Samsung SC18AW6 Bedienungsanleitung

ENGLISH

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E§§HNIKA

E S F I P D GDB98-20221A(1)

USER’S MANUAL

MANUAL DE USUARIO

MANUEL DE L’UTILISATEUR

MANUALE D’UTENE

MAUNAL DE INSTRUÇÕES

BENUTZERHANDBUCH

√¢∏°π∂™

Indoor unit Outdoor unit

AS18WJWB

AS18WJWE

SC18AW6

SC18ZWJ

AS24W6WB

AS24W6WE

SC24AW6

SC24ZW6

US18WJWB

US18WJWE

SC18AW6X

SC18ZWJX

US24W6WB

US24W6WE

SC24AW6X

SC24ZW6X

Split-type Air Conditioner (Cooling)

Acondicionador de aire de tipo partido (Enfriamiento)

Climatiseur de type Split (Réfrigération)

Tipo-Split Aria Condizionata (Raffredamento)

Aparelho de ar condicionado-tipo Split (Refrigeração)

Split-Typ Klimaanlage (Kühlen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY (æ‡ÍË˜)

E-2

Safety Precautions

You should take the following safety precautions when using your air conditioner.

◆Do not repair the air conditioner at your discretion.

It is recommended to contact a service center directly.

◆Never spill any kind of liquid on the air conditioner.

If this happens, unplug or turn off the air conditioner and contact an

authorized service center.

◆Do not insert anything between the airflow blades to prevent damage of

the inner fan and consequent injury. Keep children away from the air

conditioner.

◆Do not place any obstacles in front of the air conditioner.

◆Do not spray any kind of liquid into the indoor unit. If this happens,

turn off the breaker and contact a service center.

◆Make sure that the air conditioner is well ventilated at all times:

Do not place a cloth or other materials over it.

◆Remove the batteries if you don’t use the remote control for a long

time. (If applicable)

◆Use the remote control within 7 meters from the indoor unit. (If applicable)

WARNING

DURING OPERATION

◆Never store or load the air conditioner upside down or sideways to

prevent the damage of the compressor.

◆Young children or infirm persons should be always supervised when

they use the air conditioner.

◆Max current is measured according to IEC standard for safety.

◆Current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the air conditioner, remove the batteries from the

remote control.

◆When you dispose of the air conditioner, consult your dealer. If pipes

are removed incorrectly, refrigerant may blow out and cause air

pollution. When it contacts with your skin, it can cause skin injury.

◆The package of the air conditioner should be recycled or disposed

properly for environmental reasons.

ISPOSING OF THE UNIT

• If you don’t follow the safety precautions, you may get the risk of an electric

shock, injury or death.

•The manufacturer or qualified service personnel must install this air conditioner.

• Unplug the electric power before repairing, installing or cleaning.

E-3

ENGLISH

Contents

◆

REPARATION

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ Name of Each Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 7

■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATION

■ Selecting the Auto Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Cool Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Selecting the Dry Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Selecting the Fan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Selecting the Turbo Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Selecting the Energy Saving Function . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting the Airflow Direction Vertically . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Airflow Direction Horizontally . . . . . . . . . . . . . . . . . . 15

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the 1 Hour Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Operating Your Air Conditioner Without the Remote Control . . . . . 21

■ Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Cleaning Deodorizing and Bio Filter (Option) . . . . . . . . . . . . . . . . 23

◆

ECHNICAL SPECIFICATIONS

Name of Each Part

E-4

The design and shape can be changed according to the model.

Indoor Unit

Air filter

(under the grille) Airflow blades

(outlet) Air Inlet

Power(On/Off) button

Turbo indicator

(Red)

Operation indicator

(Green)

Temperature sensor

Timer indicator

(Green)

SH30ZC1(C2)X

E-5

ENGLISH

Outdoor Unit US18WJWB US18WJWE SC18ZWJX

Air Inlet (Rear)

Air Outlet

Connection Valve

Air Inlet (Rear)

Air Outlet

Connection Valve

Outdoor Unit SC18AW6X US24W6WB US24W6WE

SC24AW6X SC24ZW6X

Remote Control-Buttons and Display

Operation modes indicator

( AUTO, COOL,

DRY, FAN)

Transmission indicator

Energy Saving button

Sleep button

Mode selection button

(AUTO, COOL, DRY, FAN)

On Timer button

Off Timer button

Temperature and Timer setting

Turbo button

1 Hour Timer button

1 Hour Timer indicator

Battery life indicator

Battery check button

Timer Set/Cancel button

Fan speed indicator

Airflow direction

On Timer indicator

Off Timer indicator

Turbo function indicator

Sleep mode indicator

Energy saving indicator

Power(On/Off) button

Temperature adjustment button

Fan speed button

Airflow control button

E-6

◆Each mode indicator shows the current setting and the battery life.

◆You can check the battery life by pressing the button.

◆

The number of the battery life indicator means the remaining battery life.

Replace the batteries when only one battery life indicator remains.

NNoo

oott

ttee

E-7

ENGLISH

Inserting the Remote Control Batteries

Remove the battery cover in the rear of the remote control by pushing

it with your thumb.

Insert two batteries, respecting the polarities as indicated by

the + and - symbols.

Close the cover by sliding it back in its place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when:

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-7

Getting Start

The User’s Manual provides you valuable information about your air conditioner.

Please read this manual carefully before using the air conditioner.

It will help you take full advantage of the unit's features.

You have already seen the basic description of the unit on pages from 4 to 6.

Starting up with the next page, you will find a series of step-by-step procedures

for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-8

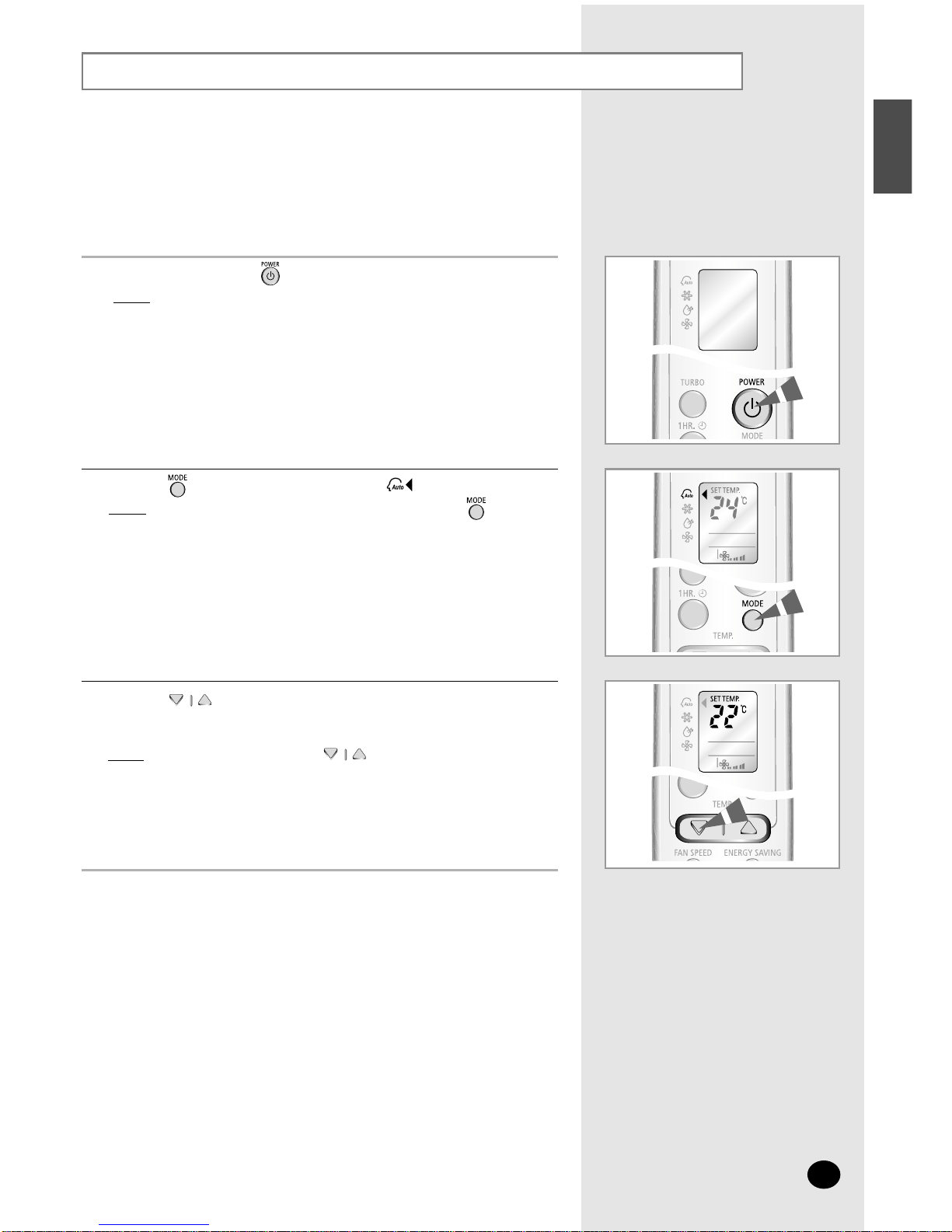

Selecting the Auto Mode

ENGLISH

You can select the Auto mode if you want to cool your room

automatically. You can adjust the temperature and the fan speed in

this mode.

Press the button on the remote control until is displayed.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in the Auto mode.

◆The Auto mode cools the room depending on the set

temperature.

You can change modes at any time.

If necessary, press the button.

Result:◆

The operation indicator on the indoor unit lights up.

◆

The air conditioner starts up in the mode you selected last.

◆The indoor unit beeps.

NNoo

oott

ttee

Press the button to adjust the temperature until the required

temperature is displayed.

You can set the temperature between 16°C and 30°C.

Result:

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

E-9

Selecting the Cool Mode

You can select the Cool mode if you want to cool your room.

You can adjust the temperature and the fan speed when cooling.

E-10

1If necessary, press the button.

Result:

◆The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode you selected last.

◆The indoor unit beeps.

To control the airflow direction, refer to page 15.

Press the button on the remote control until is displayed.

Result:

◆

The indoor unit beeps each time you press the button.

◆

The air conditioner runs in the Cool mode.

You can change modes at any time.

NNoo

oott

ttee

Press the button to adjust the temperature until the required

temperature is displayed.

You can set the temperature between 16°C and 30°C.

Result:◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆If the room temperature is higher than the selected

temperature, the air conditioner starts cooling.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan operates consistently.

Press the button to select the fan speed until the required setting

is displayed. Automatic (rotated : )

Low

Medium

High

Maximum

Result: Each time you press the button, the indoor unit

beeps.
