Samsung Split-type Room Air Conditioner Bedienungsanleitung

ENGLISH

ESPAÑOL

ITALIANO

PORTUGUÊS

FRANÇAIS

DEUTSCH

E§§HNIKA

ES IPFDGDB68-01129A(14)

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

MANUEL D’UTILISATION

GEBRAUCHSANWEISUNG

O¢H°IE™

Split-type Room Air Conditioner (Cool)

Aire acondicionado doméstico sistema Split (Refrigeración)

Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento)

Aparelho de ar condicionado tipo Split (Refrigeração)

Climatiseur de type Séparé(Refroidissement)

Geteilte raumklimaanlage (Kühlen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY(æ‡ÍË˜)

AS24B1(B2)RE/B/C/D

AST24B1(B2)(B5)(B6)(B8)RE/B/C/D

SC24TB1(B2)(B5)(B6)(B8)

AS18B1(B2)(B5)(B6)(B9)(B0)RE/B/C/D

AST18B1(B2)(B5)(B6)(B9)(B0)RE/B/C/D

SC18TB1(B2)(B5)(B6)(B9)(B0)

SC18ZB1(B2)(B5)(B6)(B9)(B0)

AS12B1(B2)(B3)(B4)(B5)(B6)(B7)(B8)(B9)(B0)MB/C/D/E/EA

SC12ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)(B9)(B0)

SC12ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)A

SC12ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)B

SC12AB5

AS09B1(B2)(B3)(B4)(B5)(B6)(B7)(B8)MB/C/D/E

SC09ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)

SC09ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)A

SC09AB5

AS07B1(B2)(B3)(B4)(B5)(B6)(B7)(B8)MB/C/D/E

SC07ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)

SC07ZB1(B2)(B3)(B4)(B5)(B6)(B7)(B8)A

SC07AB5

AS07B5(B6)MA

AS09B5(B6)MA

AS24A1(A2)RE/B/C/D

AST24A1(A2)(A5)(A6)(A8)RE/B/C/D

SC24TA1(A2)(A5)(A6)(A8)

AS18A1(A2)(A5)(A6)(A9)(A0)RE/B/C/D

AST18A1(A2)(A5)(A6)(A9)(A0)RE/B/C/D

SC18TA1(A2)(A5)(A6)(A9)(A0)

SC18ZA1(A2)(A5)(A6)(A9)(A0)

AS12A1(A2)(A3)(A4)(A5)(A6)(A7)(A8)(A9)(A0)MB/C/D/E/EA

SC12ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)(A9)(A0)

SC12ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)A

SC12ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)B

SC12AA5

AS09A1(A2)(A3)(A4)(A5)(A6)(A7)(A8)MB/C/D/E

SC09ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)

SC09ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)A

SC09AA5

AS07A1(A2)(A3)(A4)(A5)(A6)(A7)(A8)MB/C/D/E

SC07ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)

SC07ZA1(A2)(A3)(A4)(A5)(A6)(A7)(A8)A

SC07AA5

AS07A5(A6)MA

AS09A5(A6)MA

Indoor Unit Indoor Unit

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may become damaged and you may be

hurt. Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service centre.

8 This device must be installed according to the national electrical rules.

9 Before disposing of the remote control it is necessary to remove batteries.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Max current is measured according to IEC standard for safety

and current is measured according to ISO standard for energy efficiency.

The manufacturer does not take any responsibility for any accidents that

occur because the air conditioner is not fixed firmly or installed securely,

during installing or using the product. In case you experience difficulty in

installation, you must use an installation specialist. An accident will occur

if the installation is not done as recommends in the installation guide.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-3

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . .6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . .10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .12

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .13

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . .15

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . .15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . .20

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .21

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

◆

ECHNICAL SPECIFICATIONS

ENGLISH

E-4

View of the Unit

The design and shape are subject to change according to the model.

Indoor Unit

Air filter

(under the grille) Air flow blades (outlet) Air Inlet

Timer indicator

STANDARD indicator

NATURE indicator POWER indicator

SILENCE indicator

Remote Control Sensor

SAVING indicator

On/Off & 5 Way

selection button

◆For details on the 5 Way, refer to page 9.

NNoo

oott

ttee

E-5

ENGLISH

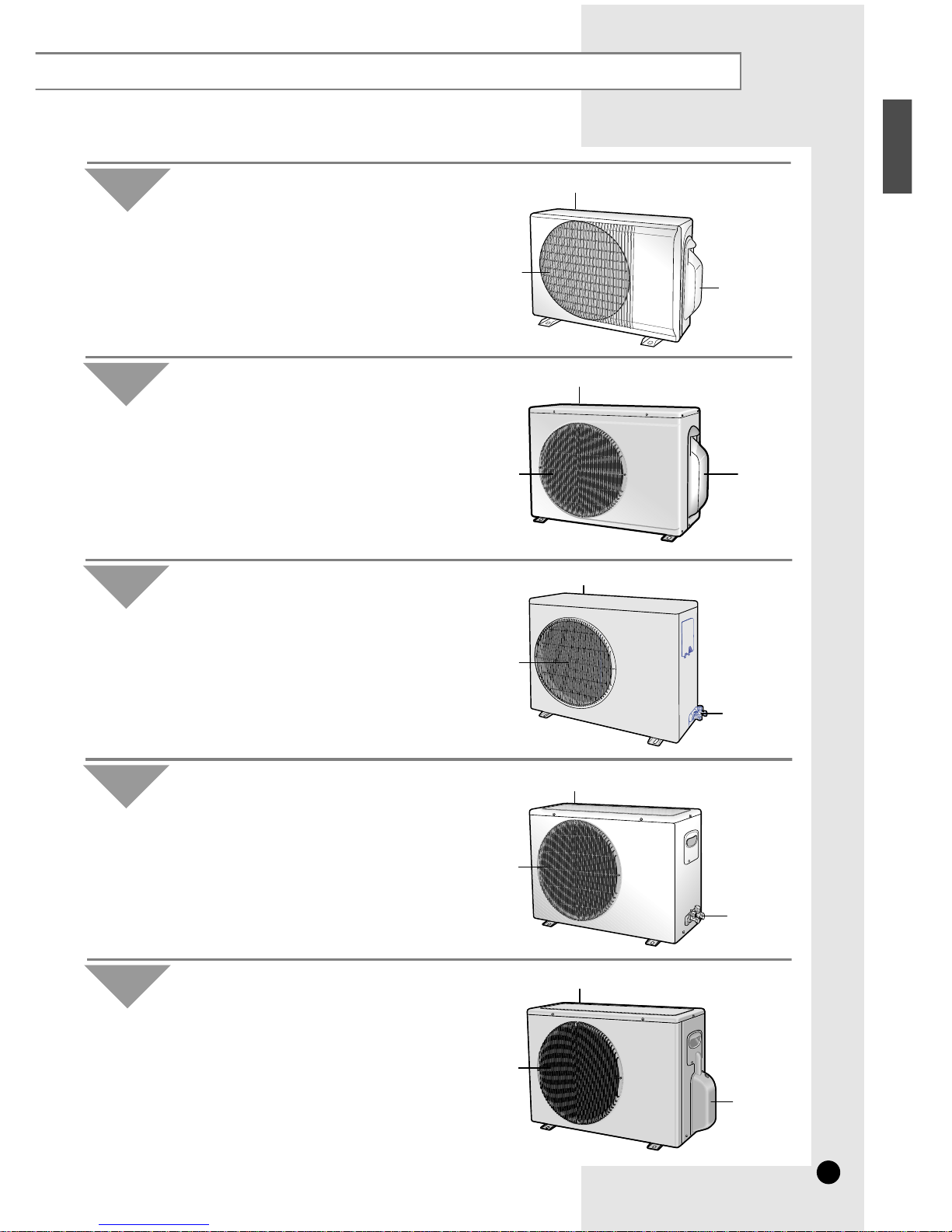

Outdoor Unit

Air Inlet(Rear)

Air Outlet Connection

Valve

(Inside)

Air Inlet(Rear)

Air Outlet Connection

Valve

(Inside)

Air Inlet(Rear)

Air Outlet

Connection

Valve

SC12ZA3(A4)(A7)(A8)X

SC12ZA3(A4)(A7)(A8)XA

US12A3(A4)(A7)(A8)MB/C/D/E/EA

SC09ZA3(A4)(A7)(A8)X

US09A3(A4)(A7)(A8)MB/C/D/E

SC07ZA3(A4)(A7)(A8)X

US07A3(A4)(A7)(A8)MB/C/D/E

SC12ZA1(A2)(A9)(A0)X

SC12ZA1(A2)XA

US12A1(A2)(A9)(A0)MB/C/D/E/EA

SC09ZA1(A2)X

US09A1(A2)MB/C/D/E

SC24TA1(A2)(A5)(A6)(A8)X

US24A1(A2)RE/B/C/D

UST24A1(A2)(A5)(A6)(A8)RE/B/C/D

SC18TA1(A2)(A5)(A6)(A9)(A0)X

SC18ZA1(A2)(A5)(A6)(A9)(A0)X

US18A1(A2)(A5)(A6)(A9)(A0)RE/B/C/D

UST18A1(A2)(A5)(A6)(A9)(A0)RE/B/C/D

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection

Valve

SC09ZA5(A6)X

US09A5(A6)MB/C/D/E

SC07ZA1(A2)(A5)(A6)X

SC07AA5X

US07A1(A2)(A5)(A6)MB/C/D/E

US07A5(A6)MA

US09A5(A6)MA

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection

Valve

(Inside)

SC12ZA5(A6)X

SC12ZA5(A6)XA

SC12AA5X

SC09AA5X

US12A5(A6)MB/C/D/E/EA

Outdoor Unit

SC12ZB3(B4)(B7)(B8)X

SC12ZB3(B4)(B7)(B8)XA

US12B3(B4)(B7)(B8)MB/C/D/E/EA

SC09ZB3(B4)(B7)(B8)X

US09B3(B4)(B7)(B8)MB/C/D/E

SC07ZB3(B4)(B7)(B8)X

US07B3(B4)(B7)(B8)MB/C/D/E

SC12ZB1(B2)(B9)(B0)X

SC12ZB1(B2)XA

US12B1(B2)(B9)(B0)MB/C/D/E/EA

SC09ZB1(B2)X

US09B1(B2)MB/C/D/E

SC24TB1(B2)(B5)(B6)(B8)X

US24B1(B2)RE/B/C/D

UST24B1(B2)(B5)(B6)(B8)RE/B/C/D

SC18TB1(B2)(B5)(B6)(B9)(B0)X

SC18ZB1(B2)(B5)(B6)(B9)(B0)X

US18B1(B2)(B5)(B6)(B9)(B0)RE/B/C/D

UST18B1(B2)(B5)(B6)(B9)(B0)RE/B/C/D

SC09ZB5(B6)X

US09B5(B6)MB/C/D/E

SC07ZB1(B2)(B5)(B6)X

SC07AB5X

US07B1(B2)(B5)(B6)MB/C/D/E

US07B5(B6)MA

US09B5(B6)MA

SC12ZB5(B6)X

SC12ZB5(B6)XA

SC12AB5X

SC09AB5X

US12B5(B6)MB/C/D/E/EA

E-6

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-7

ENGLISH

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-8

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-9

ENGLISH

5 Way Function

Press the (ON/OFF) button one time and then select the desired

mode.

To stop the operating, press the (ON/OFF) button until all indicators

turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, press the 5 Way

button one or more times until the desired mode is selected.

◆Each time you press the 5 Way button:

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button on the unit, operations can still be controlled using the

remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

temperature gradually

(POWER) mode

High fan speed

(SAVING) mode

Compressor run time reduced

(SILENCE) mode

Fan speed reduces as the temperature

decreases

E-10

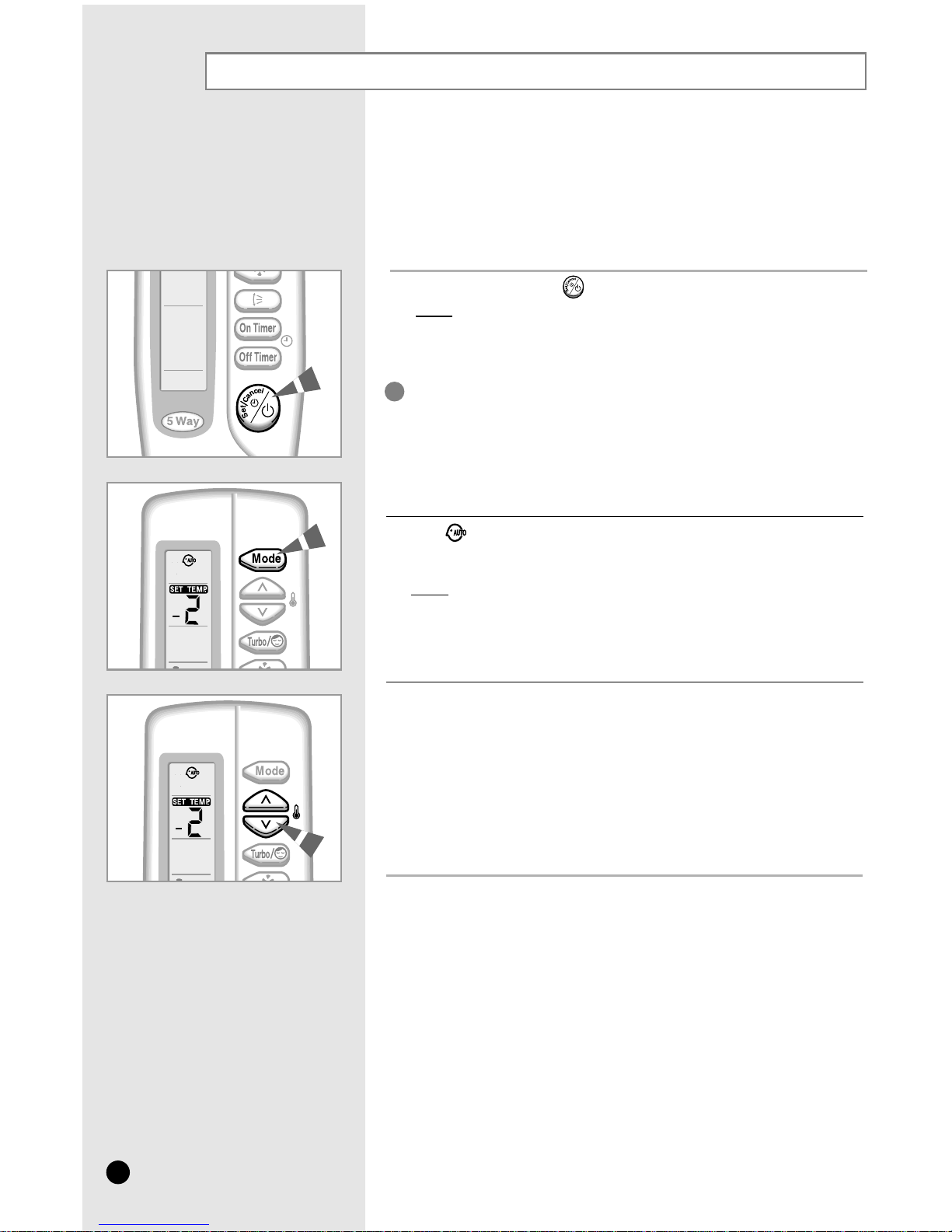

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

Dieses Handbuch passt für folgende Modelle

186

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung JH035EAV1 Bedienungsanleitung

Samsung

Samsung TH026EAV Bedienungsanleitung

Samsung

Samsung AM AN4PKH Series Bedienungsanleitung

Samsung

Samsung PC4NUFMAN Bedienungsanleitung

Samsung

Samsung FH070EAMT Bedienungsanleitung

Samsung

Samsung AS30C2BC Bedienungsanleitung

Samsung

Samsung AM NN1DKH Series Bedienungsanleitung

Samsung

Samsung SH09BWH Bedienungsanleitung

Samsung

Samsung AS09W8WE/XAP Bedienungsanleitung

Samsung

Samsung MH052FUEA Bedienungsanleitung

Samsung

Samsung MH052FB A series Bedienungsanleitung

Samsung

Samsung AVXTFH071EE Bedienungsanleitung

Samsung

Samsung ASV10E Series Bedienungsanleitung

Samsung

Samsung AM***MNVD Series Bedienungsanleitung

Samsung

Samsung AW07PH(K)H Series Bedienungsanleitung

Samsung

Samsung AW07P1H Series Bedienungsanleitung

Samsung

Samsung AE090JXYDEH Gebrauchsanweisung

Samsung

Samsung AWT18YM Series Bedienungsanleitung

Samsung

Samsung CH070EZM Bedienungsanleitung

Samsung

Samsung AS09A5MA Bedienungsanleitung

Samsung

Samsung AC TXAP G Series Bedienungsanleitung

Samsung

Samsung IDH4400A Bedienungsanleitung

Samsung

Samsung AM090NN4DEH/TL Bedienungsanleitung

Samsung

Samsung AM0 SERIES Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
