Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

imagine the possibilities

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 1 2014-05-19 오후 8:41:56

2 English

For more information on how to use

e-Manual (P. 9)

Figures and illustrations in this User Manual

are provided for reference only and may differ

from actual product appearance. Product

design and specifications may be changed

without notice.

Available Recording Time for

internal HDD

You can record digital broadcast on the

internal HDD as below.

Depending on the actual broadcast, available

recording time may be different with the table

shown below.

In On Screen Display, you can check available

recording time as shown in "high" case in the

table shown below.

Broadcast

Type

Estimated

Bitrate

Recording Time

BD-

H8500M

BD-

H8900M

8 Mbps

(Normal) 124 Hours 257 Hours

20 Mbps

(High) 49 Hours 102 Hours

5 Mbps

(Normal) 199 Hourss411 Hours

10 Mbps

(High) 99 Hours 205 Hours

NOTE

Since the product's Timeshift and other implemented

functions require a certain amount of HDD space

allocated internally, the total size shown in the

Storage Device Manager of Settings menu may

differ from the HDD's capacity shown in the manual.

Region Code

Both products and discs are coded by region.

These regional codes must match for a disc to

play. If the codes do not match, the disc will not

play.

The Region Number for this product is

displayed on the rear panel of the product.

Disc Type Region

Code Area

Blu-ray Disc

Europe, Greenland, French

territories, Middle East,

Africa, Australia and New

Zealand.

DVD-VIDEO

Europe, Japan, the Middle

East, Egypt, Africa, Greenland

Mexico, South America,

Central America, Australia,

New Zealand, Pacific Islands,

Caribbean

Logos of Discs the product can play

Blu-ray Disc 3D Blu-ray Disc

BD-Live DivX

PAL broadcast System in

U.K., France, Germany,

etc.

Accessories

Check for the supplied accessories below.

• RF cable for TV

• Remote Control

• Batteries for Remote Control(AAA Size)

• Power cord

• User Manual

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 2 2014-05-19 오후 8:41:57

3 English

Front Panel or Rear Panel

DISC TRAY

REMOTE CONTROL SENSOR

STOP BUTTON

OPEN/CLOSE BUTTON

POWER BUTTON

USB HOST

PLAY/PAUSE BUTTON

ANT OUT (TO TV) ANT IN

DIGITAL AUDIO OUT

HDMI OUT POWER

LAN

USB HOST

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 3 2014-05-19 오후 8:41:57

4 English

Remote Control

Tour of the Remote Control

Installing batteries

NOTE

If the remote does not operate properly:

Check the polarity +/– of the batteries.

Check if the batteries are drained.

Check if the remote sensor is blocked by obstacles.

Check if there is any fluorescent lighting nearby.

CAUTION

Dispose of batteries according to local environmental

regulations. Do not put them in the household trash.

Press this to operate a TV.

Turn the product on and off.

Press to use Tools menu.

Return to the previous menu.

Press numeric buttons to operate

options or to access channels directly.

Use to enter the disc menu.

Press this to operate the product.

Press to move to the home screen.

Use to select menu items and change

menu value.

Turn the TV on and off.

Press to exit the menu.

Alternately selects Teletext, Double or

Mix.

Use to enter the popup menu/title menu.

After setup, allows you to set the input

source on your TV.

Press this to display the playback information

during playing a content in Disc/USB or

display the information of TV channel.

Press to search backwards or forwards.

Press to skip backwards or forwards.

Stops playback or recording.

TV volume adjustment.

Mutes the speakers of your TV.

Displays channel lists on the screen.

Press this to pause a playback or pause

the Timeshift function.

Press this to play or start the Timeshift

function.

Press this to select a TV channel.

Displays the EPG (Electronic Programme

Guide.)

These buttons are used both for menus

on the product and also several Blu-ray

Disc functions.

FUNCTION

TV SOURCE

POWER

RECEIVER

DIGITAL

SUBTITLE

INPUT

1 2 3

4 5 6

7 8 9

PANDORA SUBTITLE

SUBTITLE

INPUT

DISC MENU TITLE MENU

POPUP

A B C D

BD TV

TV MUTE

TV SOURCE

TTX/MIX

REC

REC PAUSEWEB BROWSER

CH LIST HOME GUIDE

SMART HUB SEARCH E-MANUAL

REC TV

LIST

Press to open and close the disc tray.

Press to use Apps.

Press to search contents.

Press this to user web browser function.

Press this to display recorded TV list.

Press this when you want to use 3D function.

Press this to enter the e-manual.

Press this to pause during recording.

Press this to make a recording.

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 4 2014-05-19 오후 8:41:58

5 English

Setting the Remote Control to Operate

Your TV

To determine whether your television

is compatible, follow the instructions

below.

1. Turn your television on.

2. Point the remote control towards the

television.

3. Press the TV button to set the TV mode.

4. Press and hold the TV POWER button,

and then enter the two-figure code in the

table to the right that corresponds to the

brand of your television by pressing the

appropriate number buttons.

If your television is compatible with the

remote control, it will Turn off.

The remote is now programmed to

operate the TV.

NOTE

If several codes are listed for your television brand,

try each one in turn until you find one that works.

If you replace the remote control’s batteries, you

must set the brand code again.

You can control certain functions of your TV

with this remote control.

Button Function

TV POWER Used to Turn the television on and

off.

Number Used to input number directly.

TV VOL +/– Used to adjust the volume of the

television.

TV MUTE Used to toggle the sound on and

off.

PROG (

)Used to select the desired channel.

TV SOURCE Used to select an external source

connected to the TV.

NOTE

The functions listed above will not necessarily work

on all televisions. If you encounter problems, use the

TV remote control.

TV Control Codes

Brand Code

SAMSUNG

TV POWER+01,

+02, +03, +04,

+05, +06, +07,

+08, +09

AIWA TV POWER+82

ANAM

TV POWER+10,

+11, +12, +13,

+14, +15, +16,

+17, +18

BANG &

OLUFSEN TV POWER+57

BLAUPUNKT TV POWER+71

BRANDT TV POWER+73

BRIONVEGA TV POWER+57

CGE TV POWER+52

CONTINENTAL

EDISON TV POWER+75

DAEWOO

TV POWER+19,

+20, +23, +24,

+25, +26, +27,

+28, +29, +30,

+31, +32, +33,

+34

EMERSON TV POWER+64

FERGUSON TV POWER+73

FINLUX TV POWER+06,

+49, +57

FORMENTI TV POWER+57

FUJITSU TV POWER+84

GRADIENTE TV POWER+70

GRUNDIG TV POWER+49,

+52, +71

HITACHI TV POWER+60,

+72, +73, +75

IMPERIAL TV POWER+52

JVC

TV POWER+61, +79

TV POWER+06,

+19, +20, +21,

+22, +78

LOEWE

TV POWER+06, +69

LOEWE OPTA

TV POWER+06, +57

MAGNAVOX TV POWER+40

METZ TV POWER+57

MITSUBISHI TV POWER+06,

+48, +62, +65

MIVAR

TV POWER+52, +77

NEC TV POWER+83

NEWSAN TV POWER+68

Brand Code

NOBLEX TV POWER+66

NOKIA TV POWER+74

NORDMENDE TV POWER+72,

+73, +75

PANASONIC TV POWER+53,

+54, +74, +75

PHILIPS TV POWER+06,

+55, +56, +57

PHONOLA TV POWER+06,

+56, +57

PIONEER TV POWER+58,

+59, +73, +74

RADIOLA TV POWER+06,

+56

RADIOMARELLI

TV POWER+57

RCA TV POWER+45,

+46

REX TV POWER+74

SABA

TV POWER+57,

+72, +73, +74,

+75

SALORA TV POWER+74

SANYO

TV POWER+41,

+42, +43, +44,

+48

SCHNEIDER TV POWER+06

SELECO TV POWER+74

SHARP

TV POWER+36,

+37, +38, +39,

+48

SIEMENS TV POWER+71

SINGER TV POWER+57

SINUDYNE TV POWER+57

SONY TV POWER+35,

+48

TELEAVA TV POWER+73

TELEFUNKEN TV POWER+67,

+73, +75, +76

THOMSON TV POWER+72,

+73, +75

THOMSON

ASIA

TV POWER+80,

+81

TOSHIBA

TV POWER+47,

+48, +49, +50,

+51, +52

WEGA TV POWER+57

YOKO TV POWER+06

ZENITH TV POWER+63

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 5 2014-05-19 오후 8:41:58

6 English

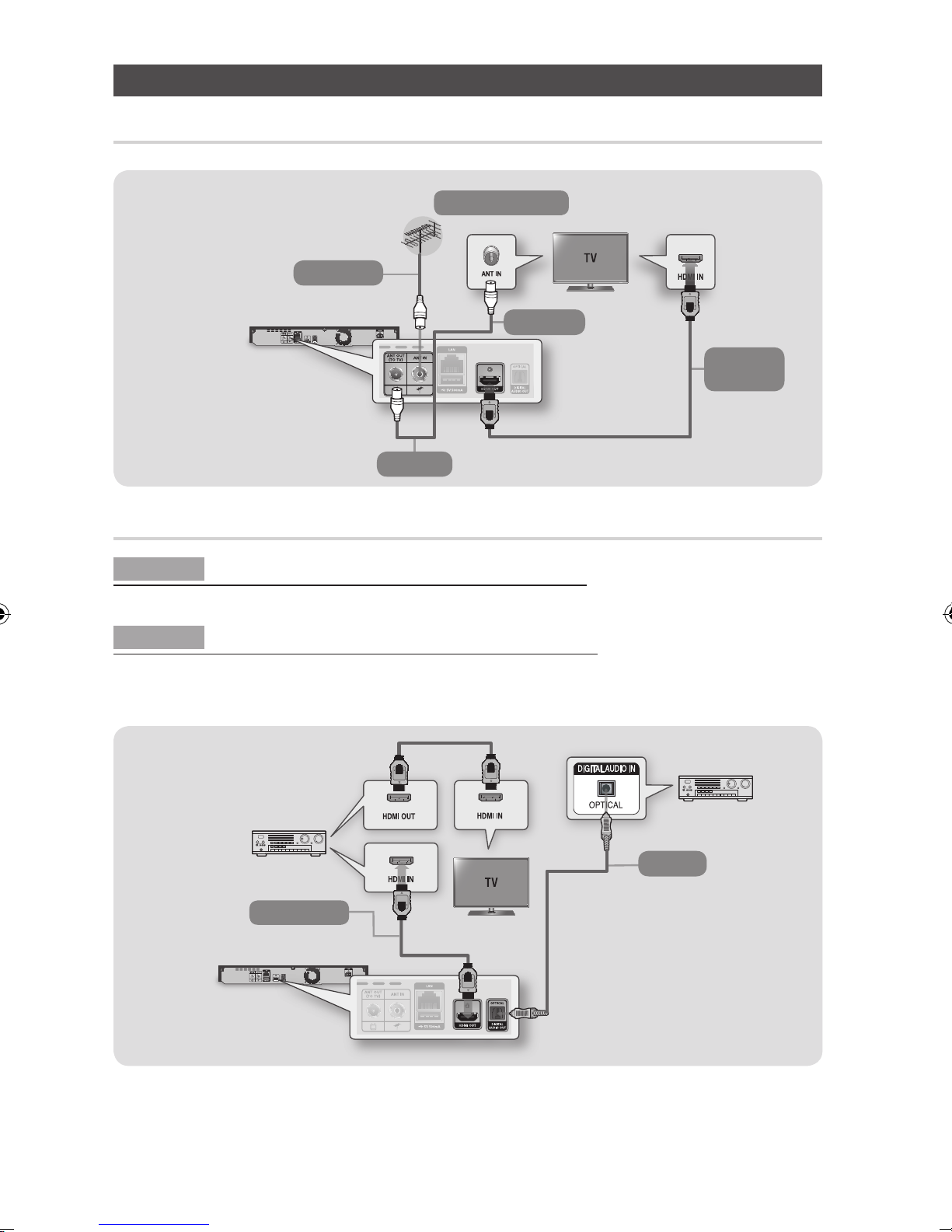

Connections

Connecting to a TV

Audio

Video

To ANT INPUT

To TV

RF cable

To ANT IN

Connecting to an Audio System

Method 1 Connecting to an HDMI supported AV receiver

• Use an HDMI cable (not included)

Method 2 Connecting to an AV receiver with Optical input

• Use an Optical Cable (not included)

• You will hear sound only through the front two speakers with Digital Output set to PCM.

Method 2

Method 1

Audio/Video

Audio

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 6 2014-05-19 오후 8:41:59

7 English

Network Connection

You can connect your product to your network

router using one of the methods illustrated

below.

Wired Network

Broadband

service

Broadband

service

Broadband modem

(with integrated router)

Broadband

modem

Router

NOTE

Internet access to Samsung’s software update

server may not be allowed, depending on the router

you use or your ISP’s policy. For more information,

contact your ISP (Internet Service Provider).

DSL users, please use a router to make a network

connection.

To use the AllShare function with your PC, you must

connect your PC.

Wireless Network

Broadband

service

Wireless Router

NOTE

If the wireless router supports DHCP, your product

can use a DHCP or static IP address to connect to

the wireless network.

Set your wireless router to Infrastructure mode. Ad-

hoc mode is not supported.

The product supports only the following wireless

security key protocols:

WEP (OPEN/SHARED), WPA-PSK (TKIP/AES),

WPA2-PSK (TKIP/AES)

Select a channel on the wireless router that is not

currently being used. If the channel set for the

wireless router is currently being used by another

device nearby, it will result in interference and

communication failure.

If you select the Pure High-throughput (Greenfield)

802.11n mode and set the Encryption type

on your router or router to WEP, TKIP or TKIP-

AES (WPS2Mixed), the product will not support

a connection in compliance with new Wi-Fi

certification specifications.

If your router supports WPS (Wi-Fi Protected Setup),

you can connect to the network via PBC (Push

Button Configuration) or PIN (Personal Identification

Number). WPS will automatically configure the SSID

and WPA key in either mode.

Wireless LAN, by its nature, may cause interference,

depending on the operating conditions (router

performance, distance, obstacles, interference by

other radio devices, etc).

To use the AllShare function with your PC, you must

connect your PC.

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 7 2014-05-19 오후 8:42:00

8 English

The Setup Procedure

•

The Home screen will not appear if you do not

configure the initial settings.

•

The OSD (On Screen Display) of this product may

change after you upgrade the software version.

•

The access steps may differ depending on the

menu you selected.

Turn on your TV after connecting the product.

When you connect the product to a TV for the

first time, product turns on automatically and

the Initial Settings screen appears.

Start the Initial Settings Procedure.

NOTE

When the product is connected to the TV for the

first time, the product turns on automatically. This is

normal operation.

Password : Enter the desired 4-digit password using

the number buttons.

1) Belgium, France, Italy, Norway : You can not set

the password to "0000". Please choose other

numbers.

2) Others : Default password is set to 0000.

The Home Screen

PLAY DISC FILMS AND TV SHOWS MULTIMEDIA

WebBrowser

e-Manual

Schedule

Manager

Screen

Mirroring

Settings

SAMSUNG APPS

1 2 3

Recorded

No Disc

1 2 3 6

4 5

RECOMMENDED MY APPS

7 8 9 0 ! @

PLAY DISC : Lets you play photos, videos, or

music content from Disc.

FILMS AND TV SHOWS : Lets you view Films

and TV Shows from the Internet.

NOTE |

Depending on your country, this menu

function may not be supported.

MULTIMEDIA : Lets you play photos, videos, or

music content from USB or mobile devices, or

PCs.

account.

Search : Lets you search for contents in Films

and TV Shows, Apps and YouTube by entering

corresponding search words.

SAMSUNG APPS : Gives you access to various

for pay or free of-charge applications you can

download.

RECOMMENDED : Gives you direct access to

recommended applications.

MY APPS : Apps downloaded from My Apps

are displayed.

Recorded TV : Access Recorded TV directly.

Schedule Manager : Reserve the desired TV

programmes.

Screen Mirroring : Lets you view the screen of

your smart phone or android tablet on a TV

you have connected to the product.

Settings : Opens the product's menu. In the

menu can set various functions to suit your

personal preferences.

NOTE

In the Home menu screen, it will switch to DTV

Channel mode after 3 minutes. When accessing the

Settings menu, the screen saver will be activated

after 5 minutes.

Saves power by turning off product automatically

when no user operation is received for 4 hours. If

Auto Power Off menu is set to Off, the power will

not turn off automatically.

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 8 2014-05-19 오후 8:42:00

9 English

Accessing the Settings Screen

1. Select Settings on the Home screen, and

then press v button.

The Settings screen appears.

Settings


Sound

Broadcasting

Network

Smart Hub

System

Support


UHD Output Auto

3D Settings

TV Aspect Ratio 16:9 Original

BD Wise Off

Resolution Auto

DTV Smart Resolution Off

Movie Frame (24fps) Auto

2. To access the Settings menus, sub-menus,

and options, please refer to the remote

control illustration and the setting table.

Buttons on the Remote Control used

for the Settings menu

FUNCTION

TV SOURCE

POWER

RECEIVER

DIGITAL

SUBTITLE

INPUT

1 2 3

4 5 6

7 8 9

PANDORA SUBTITLE

SUBTITLE

INPUT

DISC MENU TITLE MENU

POPUP

A B C D

BD TV

TV MUTE

TV SOURCE

TTX/MIX

REC

REC PAUSEWEB BROWSER

CH LIST HOME GUIDE

SMART HUB SEARCH E-MANUAL

SOCIAL

2 4

HOME button : Press to move to the Home

screen.

RETURN button : Return to the previous menu.

v (Enter) / DIRECTION buttons :

•

Press ▲▼◀▶ to move the cursor or select

an item.

•

Press the v button to activate the currently

selected item or confirm a setting.

EXIT button : Press to exit the current menu.

How to use the e-Manual

E-MANUAL

You can find instructions about

your product's features in the

e-Manual in your product. To use,

press the E-MANUAL button on

your remote control.

Press the ▲▼◀▶ buttons to

highlight a category, and then

press the v button.

The E-manual Screen

Index

Opened page

Connections

Settings

Media Play

DTV Functions

Advanced Function

Connecting to a TV

v X.XXX

Connecting to an Audio System

Connecting to a Network Router

Appendix

Set whether to play 3D Blu-ray disc in 3D or 2D image.

•

Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D

or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played

if your TV does not support 3D.

•

3D ; 3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times.

•

3D ; 2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played.

✎ For some 3D discs, to stop a movie during 3D playback, press the @ button once. The movie

stops and the 3D mode option is de-activated. To change a 3D option selection when you are

playing a 3D movie, press the @ button once. The Home Screen menu appears. Press the @

button again, then select 3D Settings in the Blu-ray menu.

✎ Depending on the content and the position of the picture on your TV screen, you may see

vertical black bars on the left side, right side, or both sides.

Screen Size

✎If you move to the Home or Apps screen while in 3D mode, the product will switch to 2D automatically.

3D Blu-ray Playback Mode

Try Now

Search : Allows you to search for information

by entering words.

Index : Displays the index screen.

Opened page : Contents that have been

searched on the E-manual screen at least once

will appear.

Try Now : Allows you to go to corresponding

OSD menu.

NOTE

This function is not enabled in some menus.

If displayed E-manual page on your TV screen is

incomplete and partially hidden, set the Fit Screen

Size to Size 1.

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 9 2014-05-19 오후 8:42:01

10 English

Troubleshooting

If the BD-HDD combo seems to have a problem, first try this list of possible problems and

solutions. If none of these troubleshooting tips apply, visit “www.samsung.com”, then click on

Support, or call Samsung customer service centre.

PROBLEM SOLUTION

The screen is blocked

•

If the HDMI output is set to a resolution your TV cannot support (for

example, 1080p), you may not see a picture on your TV.

•

Press the

(STOP) button (on top panel) for more than 5 seconds

with no disc inside on the home screen. All settings will revert to the

factory settings.

•

When the factory default settings are restored, all stored user BD

data is deleted.

Forgot password

•

Press the

(STOP) button (on top panel) for more than 5 seconds

with no disc inside on the home screen. All settings including the

PIN will revert to the factory settings. Don’t use this unless absolutely

necessary.

•

When the factory default settings are restored, all stored user BD

data is deleted.

Repairs

If you contact us to repair your product, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the product.

2. You bring the unit to a repair centre and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or

begin any work on your product.

We recommend you read this manually thoroughly, search for a solution on line at

www.samsung.com,

or contact Samsung Customer Care before seeking to repair your product.

[BD-H8500M,H8900M-XU]AK68-02466J-01ENG-.indd 10 2014-05-19 오후 8:42:01

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Blu-ray-Player Handbücher

Samsung

Samsung BDH5900 Bedienungsanleitung

Samsung

Samsung BD-C7900 Bedienungsanleitung

Samsung

Samsung BD-J5700 Bedienungsanleitung

Samsung

Samsung BD-C8000 Bedienungsanleitung

Samsung

Samsung 2.0070320082319e16 Bedienungsanleitung

Samsung

Samsung BD-P1590C Bedienungsanleitung

Samsung

Samsung BD-ES6000 Kurzanleitung

Samsung

Samsung BD-FM59 Bedienungsanleitung

Samsung

Samsung BD-D8200A Bedienungsanleitung

Samsung

Samsung BDP1590 - Blu-Ray Disc Player Bedienungsanleitung

Samsung

Samsung BD-E5200 Bedienungsanleitung

Samsung

Samsung BD-D8200A Bedienungsanleitung

Samsung

Samsung BD-F7500 Bedienungsanleitung

Samsung

Samsung BD-FM59 Bedienungsanleitung

Samsung

Samsung BD-P3600 Bedienungsanleitung

Samsung

Samsung BD-F6900 Bedienungsanleitung

Samsung

Samsung BD-C6900 Bedienungsanleitung

Samsung

Samsung Blu-ray Player Bedienungsanleitung

Samsung

Samsung BD-J4500 Bedienungsanleitung

Samsung

Samsung UBD-M9500 Bedienungsanleitung

Samsung

Samsung UBD-M9500 Bedienungsanleitung

Samsung

Samsung BD-J4500 Bedienungsanleitung

Samsung

Samsung BD-E5500 Bedienungsanleitung

Samsung

Samsung BD-E5400 Bedienungsanleitung

Beliebte Blu-ray-Player Handbücher anderer Marken

Philips

Philips BDP3380K Bedienungsanleitung

Sharp

Sharp BD-HP17U - AQUOS 1080p Blu-ray DiscTM Player Bedienungsanleitung

Pioneer

Pioneer BDP-140 Installations- und Betriebshandbuch

LG HLX50W Bedienungsanleitung

Sony

Sony BDP-S300 - Blu-Ray Disc Player Bedienungsanleitung

Marantz

Marantz UD9004 Bedienungsanleitung

Panasonic

Panasonic DMR-HCT230 Bedienungsanleitung

LG BD611 Bedienungsanleitung

Panasonic

Panasonic Diga DMR-PWT420 Bedienungsanleitung

LG BD611 Bedienungsanleitung

Marantz

Marantz BD7004 Kurzanleitung

Kogan

Kogan KABRP3DWFIA Bedienungsanleitung

Toshiba

Toshiba BDX2700 Bedienungsanleitung

Philips

Philips BDP7100 Bedienungsanleitung

LG UBK80.DUSALLK Bedienungsanleitung

Sony

Sony BDP-S185 Bedienungsanleitung

Pioneer

Pioneer BDP-LX91 Bedienungsanleitung

Sharp

Sharp BD-HP90RU Bedienungsanleitung
