Samsung HMX-S10BN Bedienungsanleitung

dv naed reaordna

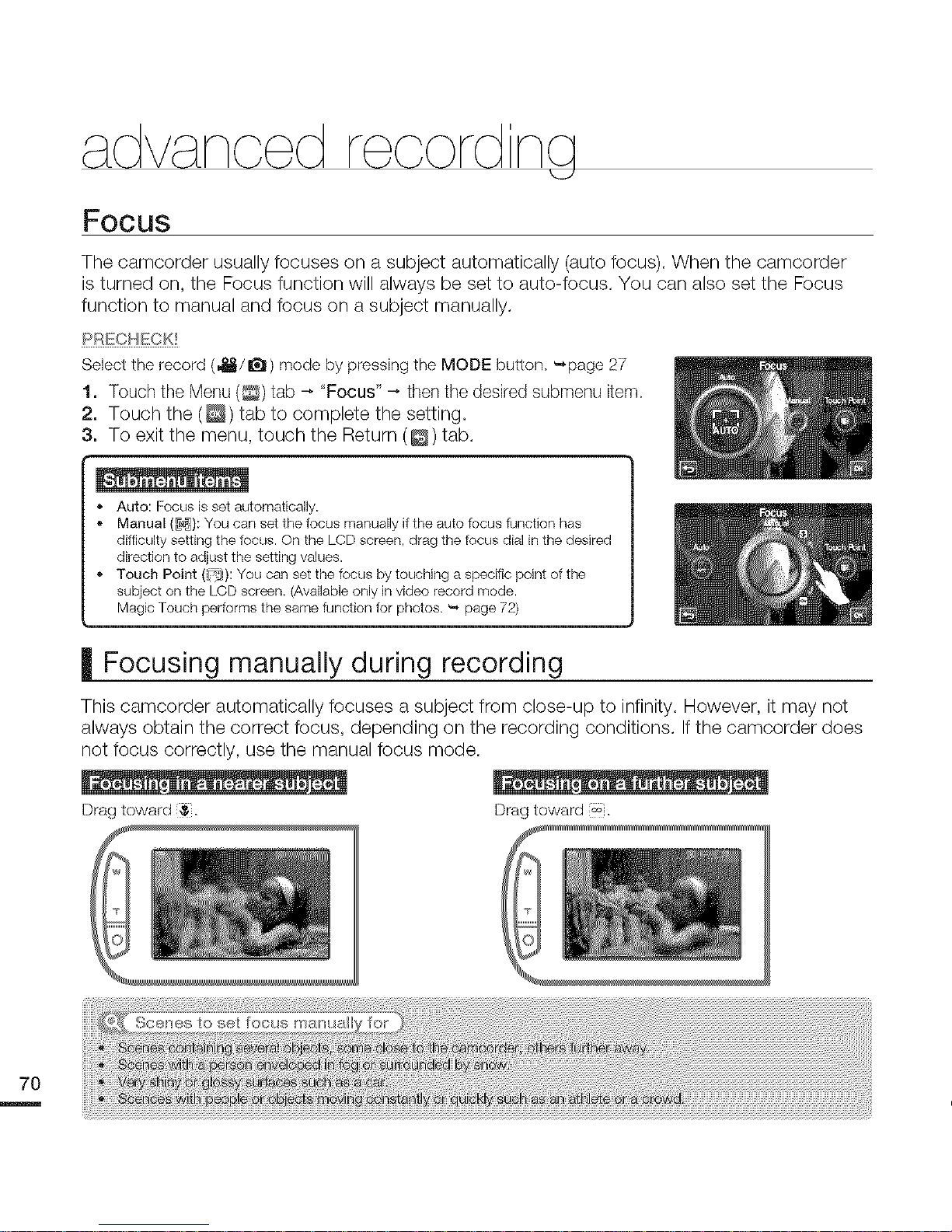

Focus

The camcorder usually focuses on a subject automatically (auto focus). When the camcorder

is turned on, the Focus function will always be set to auto-focus. You can also set the Focus

function to manual and focus on a subject manually.

PREC_ECK!

Selectthe record(,a_/_) mode by pressingthe MODE button. _page 27

1. Touch the Menu (_) tab _ "Focus" _ thenthe desired submenu item.

2. Touch the (_) tab to complete the setting.

3. To exit the menu, touch the Return (m) tab.

Auto: Focus is set automatically.

• Manual (_): You can set the focus manually if the auto focus function has

difficulty setting the focus. On the LCD screen, drag the focus dial in the desired

direction to adjust the setting values.

•Touch Point (_): You can set the focus by touching a specific point of the

subject on the LCD screen. (Available only in video record mode.

Magic Touch performs the same function for photos. "_ page 72)

| Focusing manually during recording

This camcorder automatically focuses a subject from close-up to infinity. However, it may not

always obtain the correct focus, depending on the recording conditions. If the camcorder does

not focus correctly, use the manual focus mode.

Dragtoward ,t,. Drag toward.

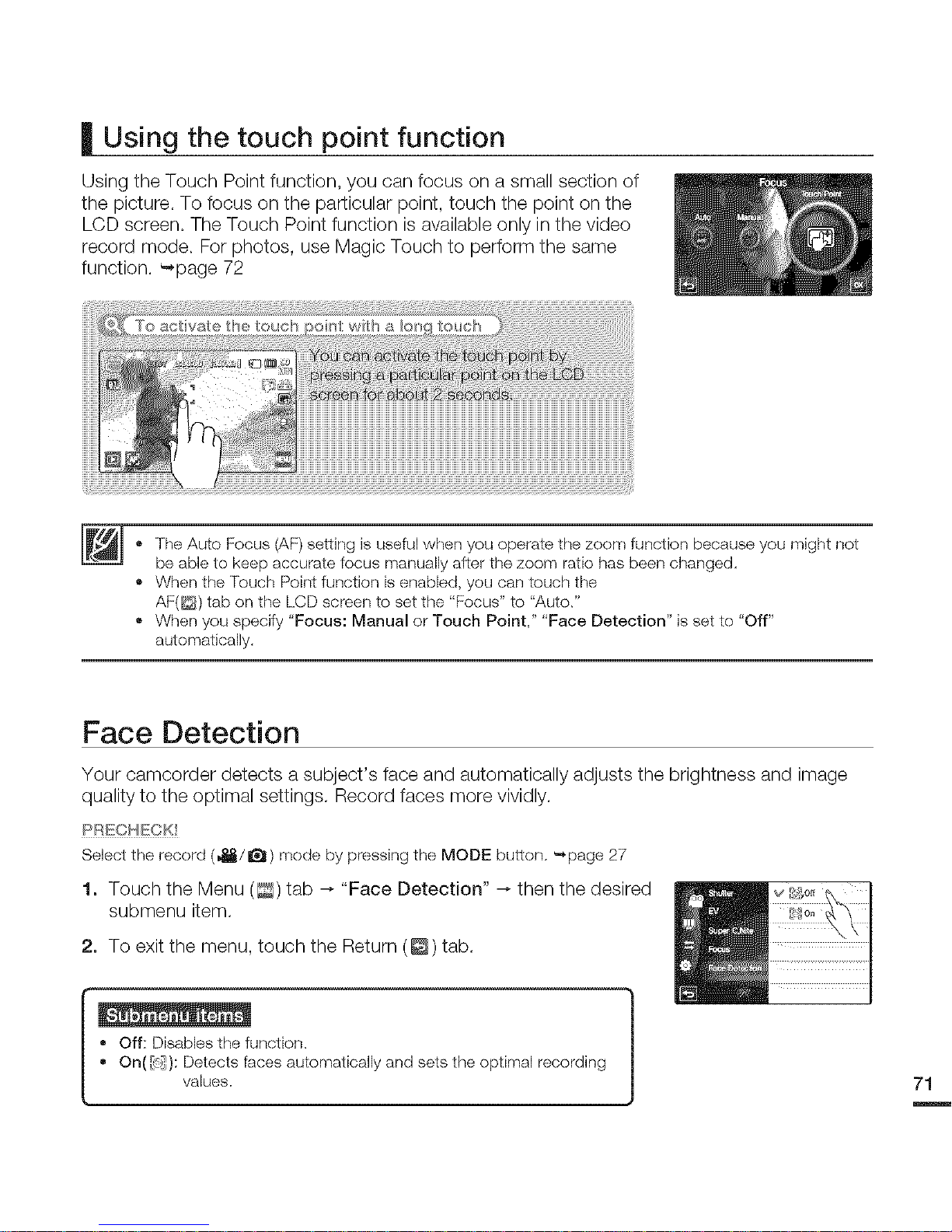

| Using the touch point function

Using the Touch Point function, you can focus on a small section of

the picture. To focus on the particular point, touch the point on the

LCD screen. The Touch Point function is available only in the video

record mode. For photos, use Magic Touch to perform the same

function. _page 72

• The Auto Focus (AF) setting is useful when you operate the zoom function because you might not

be able to keep accurate focus manually after the zoom ratio has been changed,

• When the Touch Point function is enabled, you can touch the

AF(@) tab on the LCD screen to set the "Focus" to "Auto,"

• When you specify "Focus: Manual or Touch Point," "Face Detection" is set to "OFF"

automatically.

Face Detection

Your camcorder detects a subject's face and automatically adjusts the brightness and image

quality to the optimal settings. Record faces more vividly.

PREC_ECK!

Select the record (4_/_) mode by pressing the MODE button, _page 27

1. Touch the Menu (_) tab _ "Face Detection" _ then the desired

submenu item.

2. To exit the menu, touch the Return (_) tab.

• Off: Disables the function,

• On(_(_): Detects faces automatically and sets the optimal recording

values. 71

dv noed reoordna

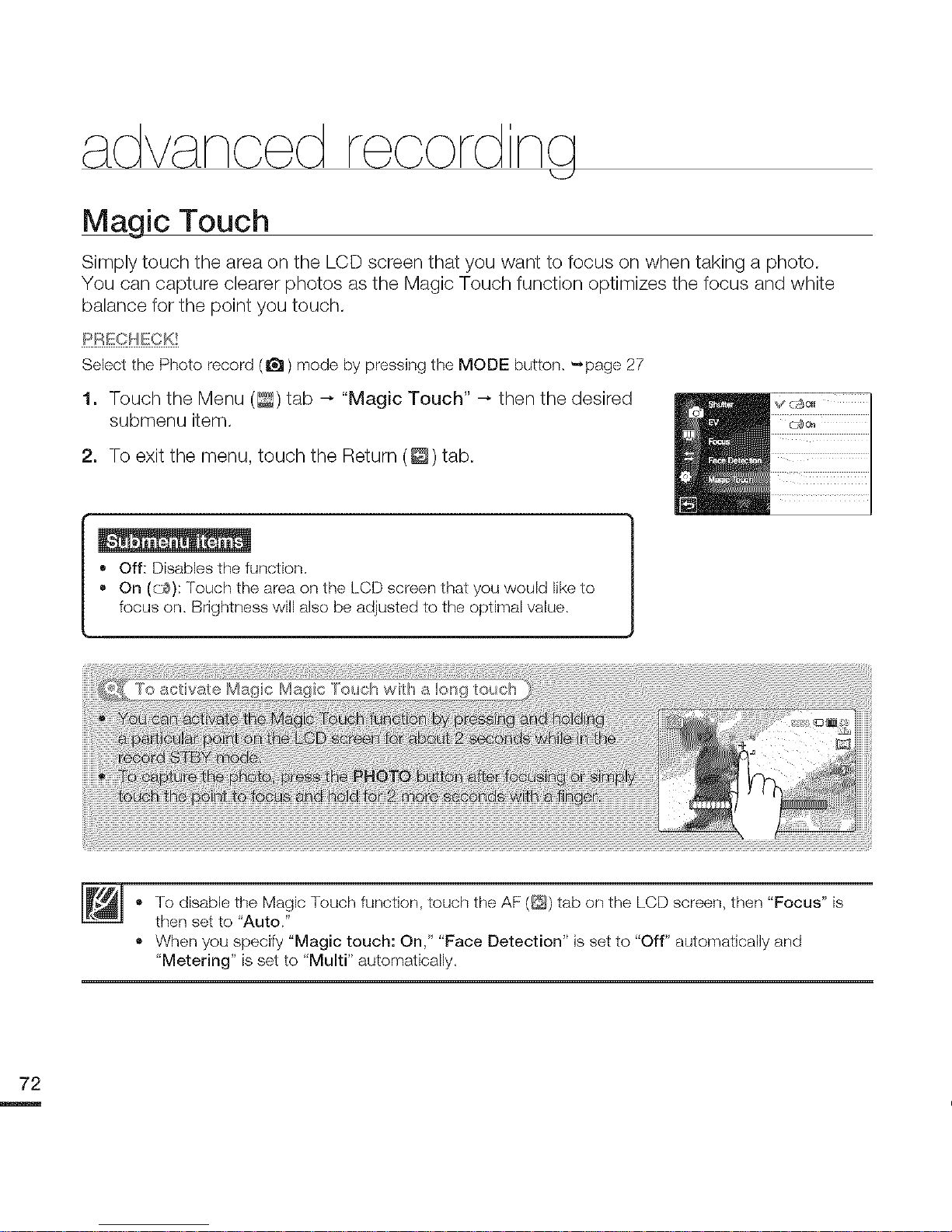

Magic Touch

Simply touch the area on the LCD screen that you want to focus on when taking a photo.

You can capture clearer photos as the Magic Touch function optimizes the focus and white

balance for the point you touch.

PRFCHECK!

Select the Photo record (1_) mode by pressing the MODE button. _page 27

1. Touch the Menu (_) tab _ "Magic Touch" _ then the desired vcs_,

submenu item.

2. To exit the menu, touch the Return (_) tab.

• Off: Disables the function.

• On (cb): Touch the area on the LCD screen that you would like to

focus on. Brightness will also be adjusted to the optimal value.

• To disable the Magic Touch function, touch the AF (@) tab on the LCD screen, then "Focus" is

then set to "Auto."

• When you specify "Magic touch: On," "Face Detection" is set to "Off" automatically and

"Metering" is set to "Multi" automatically.

Metering

The metering mode refers to the way in which a camcorder measures the quantity of light. The

brightness and lighting of your photos will vary depending on the metering mode you select.

_REC_:CK!

Select the Photo record (ll_) mode by pressing the MODE button. _page 27

1. Touch the Menu (_) tab _ "Metering" _ then the desired

submenu item.

2. To exit the menu, touch the Return (@) tab.

• Multi ( ): Meters the light by calculating the amount of light from

different areas in the frame. Suitable for normal image capture.

• Center (_0: The amount of light metered on the center of the frame

influences the whole screen. Suitable for capturing people as the

subject occupies a large portk)n of the frame.

° Spot (!{{J}):Measures only the center of the screen and determines

aperture. Use this function when there is a very large brightness

difference between background and objects.

xvYCC

Using the xvYCC function, you can record a video with an extended range of colors by

expanding the camcorder's color space. You can record a video of mulit-hued flowers in more

vibrant color.

PRECN_:CK!

SelecttheVideo record(_) mode by pressing the MODEbutton, ",page 27

1. Touch the Menu (_) tab _ "xvYCC" _ then the desired

submenu item.

2o To exit the menu, touch the Return (_) tab.

• Off: Disables the function.

• On (D): Records images with more vivid and various colors.

You can enjoy the recorded xvYCC video under optimal conditions when playing it back on the FV

that supports xvYCC. Refer to the TM's manual for details. 73

dv noed reoordna

Digital Effect

Using the Digital Effect function gives your recording a creative look.

PRECHFCK!

Select the record (4_/1_) mode by pressing the MODE button. _page 27

1. Touch the Menu (_) tab _ "Digital Effect" _ then the desired

submenu item.

• You can move to the desired item by touching the < /> tab.

2. Touch the (_) tab or selected submenu item again to complete

the setting.

3. To exit the menu, touch the Return (_) tab.

Off (G)

Without any Digital Effect, a

normal, natural image is displayed

dunng recording or playback.

Art (@)

This mode helps adjust for facial

imperfections.

Negative (G)

This mode reverses the colors,

creating a negative image.

Emboss (O)

This mode creates a three--

dimensional image.

Sepia (_)

This mode gives the image a

reddish brown book,

Silhouette (_)

This mode makes an object or

scene with black outlines and a

featureless interior.

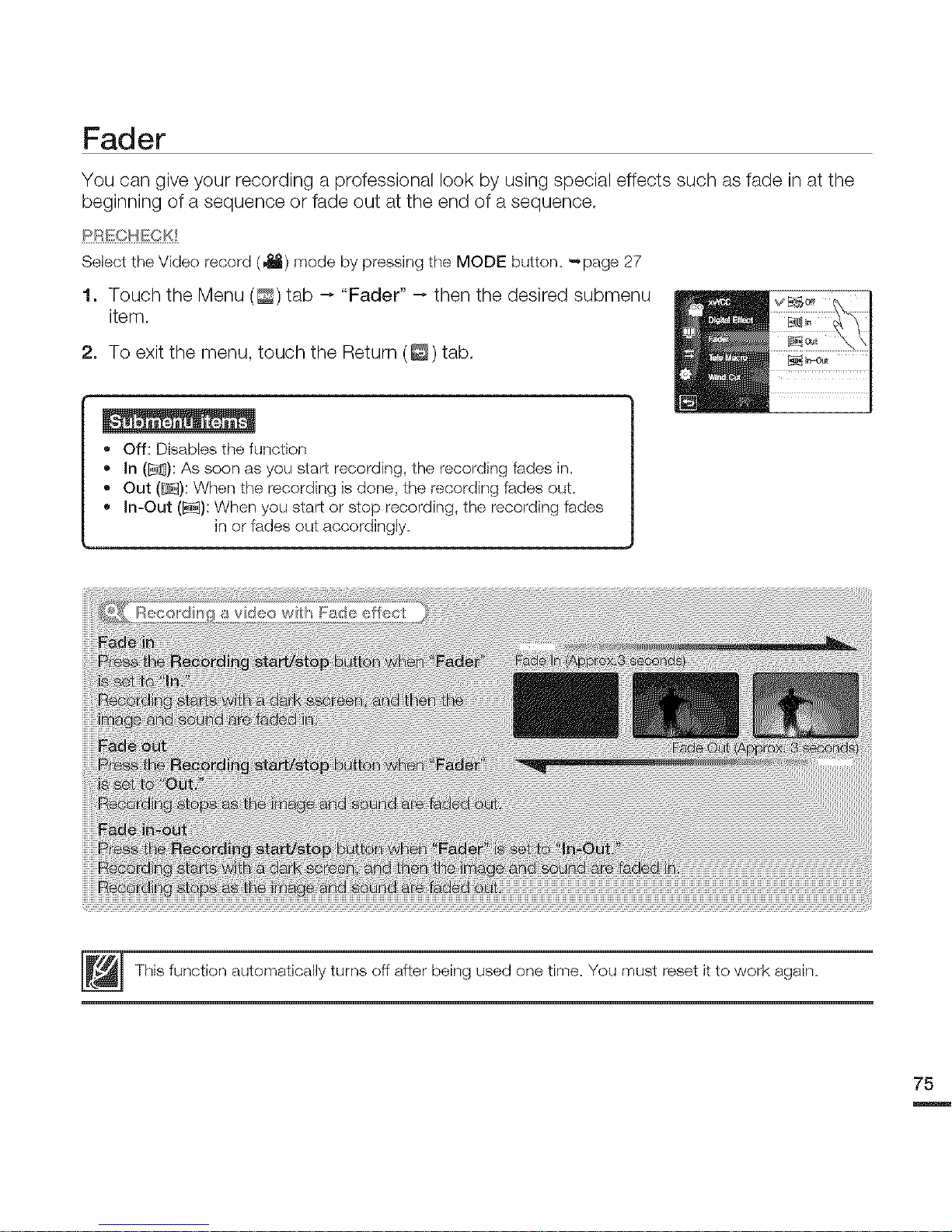

Fader

You can give your recording a professional look by using special effects such as fade in at the

beginning of a sequence or fade out at the end of a sequence.

PRECHECK!

Select the Video record (_) mode by pressing the MODE button, _',page 27

1. Touch the Menu (_) tab _ "Fader" _ then the desired submenu

item.

2. To exit the menu, touch the Return (_) tab.

• Off: Disables the function

In (M): As soon as you start recording, the recording fades in,

Out (_): When the recording is done, the recording fades out.

In-Out (1_): When you start or sIop recording, the recording fades

in or fades out accordingly,

This function automatically turns off after being used one time. You must reset it to work again,

dv naed reaordna

Tele Macro

Using the Tele Macro function, you can get close up images which are created by focusing on

a small portion of a large object at a wide angle. It is useful to get close up images of flowers or

insects etc.

PREC_ECK!

Selectthe record(4_/_) mode by pressingthe MODE button, _page 27

1. Touch the Menu (_) tab _ "Tele Macro" _ then the desired

submenu item.

2. To exit the menu, touch the Return (_) tab.

• Off: Disables the function.

• On (4_): You call focus on a small portion of a large object at a wide

angle.

• When recording in Tele Macro mode, the focus speed may be lowered.

• Use a tnpod (net supplied) to prevent hand shake in the Tele Macro mode.

• Avoid shadows when recording in the Tele Macro mode.

• As the distance to the subject decreases, the focusing area narrows.

• When you carl net get proper focus, use the Zoom (W/T) button or Zoom (W/T) lever to adjust the

focus.

• For best results, use the Tele Macro function between. 4 inches (lcm) and 19.5 inches (50cm) from

your subject.

Cont. Shot

This function allows you to capture photos rapidly, insuccession to give you more photo-taking

opportunities when recording moving subjects.

PREC_:CK!

Select the Photo record (1_!) mode by pressing the MODE button, _page 27

1o Touch the Menu (_) tab _ "Cont. Shot" _ then the desired

submenu item.

2o To exit the menu, touch the Return (_) tab.

Off: Records only one photo image.

• Normal Speed (_=_):You can take photos continuously while you press and

hold the PHOTO button. The number of recordable photos depends on the

photo's resolution and the memory space.

High Speed (_:_,,,_):Press the PHOTO button to capture 18 photos continuously

over about 2 seconds.

When an error occurs (internal memory full, etc.) during continuous shot, the recording stops and an error message

is displayed.

When "Cont. Shot" is set to "High Speed" the photo resolution is fixed to 1920x1080.

When taking photos with the Magic Touch function, the continuous shot is not available even if "Cont. Shot" is set to On.

Wind Cut

Using the Wind Cut function, you can reduce wind noise when recording sound using the

microphone.

PREC_ECK!

Select the Video record (_la) mode by pressing the MODE button, _',page 27

1. Touch the Menu (_) tab _"Wind Cut" _ then the desired

submenu item.

2. To exit the menu, touch the Return (_) tab.

• Off: Disables the function,

• On (_): Reduces wind noise when recording seund using the

microphone,

Using the Wind Cut function alse removes seme low-frequency sound with the wind noise, 77

dv noed record na

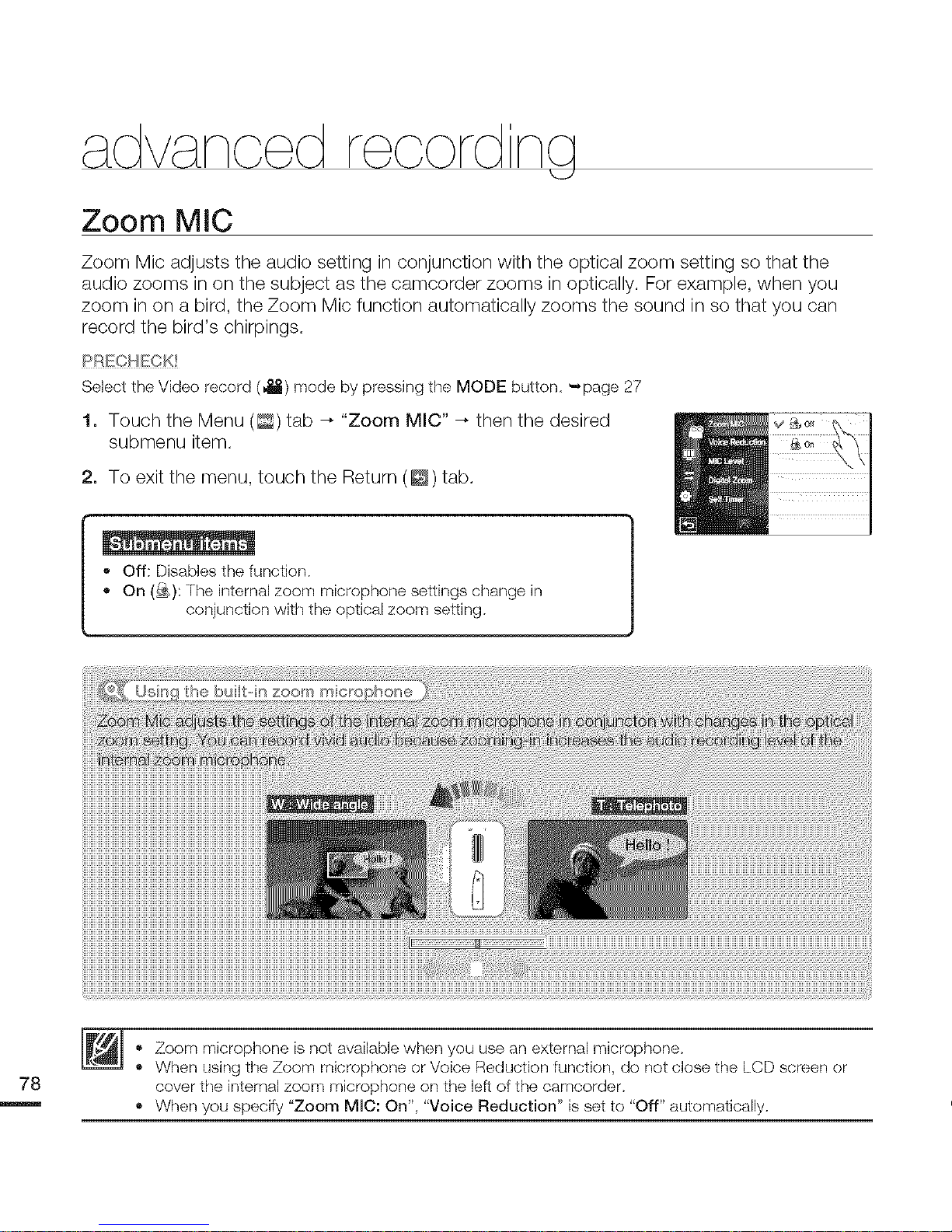

Zoom MiO

Zoom Mic adjusts the audio setting in conjunction with the optical zoom setting so that the

audio zooms in on the subject as the camcorder zooms in optically. For example, when you

zoom in on a bird, the Zoom Mic function automatically zooms the sound in so that you can

record the bird's chirpings.

PREC_ECK!

Select the Video record (_) mode by pressing the MODE button. _page 27

1o Touch the Menu (_) tab _ "Zoom MI¢" _ then the desired

submenu item.

2o To exit the menu, touch the Return (_) tab.

• Off: Disables the function.

• On (_): The internal zoom mk:rophone settings change in

conjunction with the optical zoom setting.

• Zoom microphone is not available when you use an external microphone.

• When using the Zoom microphone or Voice Reduction function, do not close the LCD screen or

cover the internal zoom microphone on the left of the camcorder.

• When you specify "Zoom MIC: On", "Voice Reduction" is set to "Off" automatically.
