Samsung VP-D371 Bedienungsanleitung

DIGITAL VIDEO CAMCORDER

Chassis : Dragon III

BASIC : VP-D371

Application Models

: VP-D371(i), VP-D371W(i),

VP-D372WH(i),VP-D374

VP-D375W(i),VP-D376

VP-D975W(i)

Application Area

: XEF, XEU, XEG, XET, XEV, XEC, XSA, CDM,

XST, XEO, XEH, XEP, XEE, EAP, EUR, XEN,

HACO, TAW, TIT, COL, SEO, XSS, SED, XSH,

XSG, FES, XTL, CHN, ZAM, STS, SMR, XFA,

ITN, KNT, XSE, FPT, RAD, AFR, AND, UMG

MEA, SEA

SERVICE

ŒShooting & compact Design

´ Direct Print System : PictBridgeTM

ˇ LED Light

¨ High quality MPEG4

ˆ Still image Interpolation

Ø Real Wide mode (16:9)/WIDE LCD

∏ 34X ZOOM (Normal model)

26X ZOOM (Mega model)

” USB 2.0 Streaming

Manual

DIGITAL VIDEO CAMCORDER Merit & Character regarding Product

SERVICE MANUAL VP-D371(i)/D371W(i)/D372WH(i)/D374/D375W(i)/D376/D975W(i)

ELECTRONICS

Printed in Korea

AD82-00183A

This Service Manual is a property of Samsung Electronics Co .,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Area Web Site

North America URL ; http://service.samsungportal.com

Latin America URL ; http://latin.samsungportal.com

CIS URL ; http://cis.samsungportal.com

Europe URL ; http://europe.samsungportal.com

China URL ; http://china.samsungportal.com

Asia URL ; http://asia.samsungportal.com

Mideast & Africa URL ; http://mea.samsungportal.com

◆If you want to know additional information which is not included on this

Service Manual, Please refer to the SKP(Samsung Knowledge Portal)

web site.

Block Diagrams

7-2 Samsung Electronics

This Document can not be used without Samsung’s authorization

DC/DC BLOCK

AUDIO VIDEO I/F

BLOCK

Syscon/Servo Block

PRML/PRE-Amp Block

DV1 chip Block

3.3V

1.8V

BL5V

-15V~-7.5V

Drum VS

Capstan VS

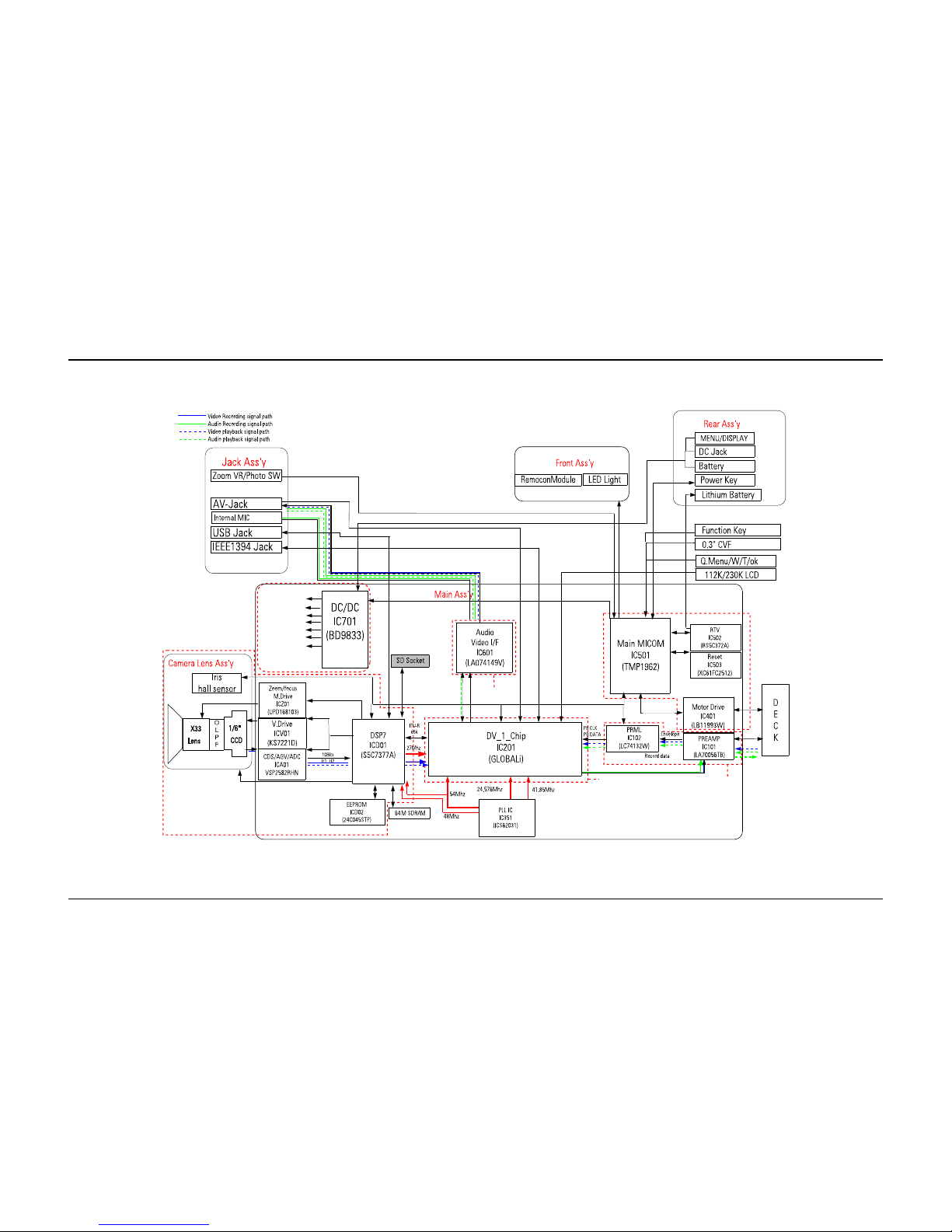

7-1 All Block Diagram

Block Diagrams

Samsung Electronics 7-3

This Document can not be used without Samsung’s authorization

S5C7377X

ADC 2CH

(500KHz

10Bits) ARM926

NAND

FLASH

CONTROLLER

SDRAMC/

SMC

APB

BRIDGE SPI

AUDIO CODEC

(G. 728/G/711)

I2S

I2C *2

UART *2

GPIO

INTC

TIMER *4

WDT

USB 2.0

MSPRO

SDIO/MMC

DMA *4

VIDEO DMA

JPEG

CODEC

MPEG4

CODEC

(30FPS@VGA)

OSD

AHB BUS

CCD[11:0]

Y/Cb/Cr[7:0]

CCD[11:0]

Y/Cb/Cr[7:0]

VIDEO BUS

Y/C CHANNEL

CAMERA

PROCESSOR DIS


improvement

Processor

Motor

Control

PWM

(12CH)

Y/Cb/Cr[9:0] Y/C[7:0]

Y[9:0]

APB BUS

Key

CCD 12bits

TV Encoder Itur656

S5C7376X

External

Device

External

Device

External

Device

Console

S/W

usage

3-in-1

CARD

Socket

Nand Flash

Memory

External

Memory

7-2 ICD01(S5C7377X) Block Diagram

Block Diagrams

7-4 Samsung Electronics

This Document can not be used without Samsung’s authorization

SHUFFLE VIDEO

CODEC

AUDIO

AUXSC

DVC_LINK

IIC

CODEC

(channel)

MODAS

DEMOD

VCO

DAC 4MBits

SDRAM

10.5MBits

SDRAM

1394

PHY

MICOM

Camera PRML

Audio

AD/DA

Video

Decoder

CLOCK

OSD

2nd-DV1CHIP

LCD

AFE

Audio

DSP

Color

Encoder

7-3 IC201 Block Diagram

Block Diagrams

Samsung Electronics 7-5

This Document can not be used without Samsung’s authorization

DCDC

BLOCK

PRML

BLCOK

PREAMP

BLOCK

DV1_CHIP

BLOCK

AV I/F

BLOCK

CAMERA

BLOCK

TMP1962F10

(IC501)

MICOM

LB11993W

(IC401)

MOTOR

DIRVER

DRUM

MOTOR

CAP

MOTOR

LOAGDING

MOTOR

T/S SENSOR

REEL SENSOR

MIC SENSOR

RS5C372A

(IC502)

RTC IC

EEPROM

524ABOX91

(IC505)

RESET-IC

XC6413FY01MR

(IC503)

7-4 Syscon/Servo Block Diagram

LPF

BATT &

ADAPTER

TMP1962

(IC501)

MICOM

VTR DD ON

CAM DD ON

LPF

BD983KV

(IC701)

PWM-IC

D.ERR

C.ERR

DRUM VS

CAPSTAN VS

SS 3.0V

SS 5.0V

SS 1.8V

LCD BL5V

CCD/LCD

-7.5V, -5V, -5V

V.LOGHT5.0V

7-5 DC/DC Block Diagram

Samsung Electronics 8-1

8. Wiring Diagram

Schematic Diagrams

10-2 Samsung Electronics

This Document can not be used without Samsung’s authorization

10-1 DC/DC (Main PCB)

Œ Q701

´ Q702

ˇ Q703

¨ Q706

ˆ Q707

Ø Q708

◆

These are the waveforms of VP-D371(i)/D371W(i)/D372WH(i)/D375W(i)/D975W(i)

Caution) There can be some differences (Voltage, Frequency, stc.) among cameras.

Schematic Diagrams

Samsung Electronics 10-3

This Document can not be used without Samsung’s authorization

10-2 Micom (Main PCB)

◆

These are the waveforms of VP-D371(i)/D371W(i)/D372WH(i)/D375W(i)/D975W(i)

Caution) There can be some differences (Voltage, Frequency, stc.) among cameras.

Œ X501(13.5MHz)

Schematic Diagrams

10-4 Samsung Electronics

This Document can not be used without Samsung’s authorization

10-3 Servo (Main PCB)

Œ IC401-25Pin(VCC1) ´ IC401-23Pin ˇ IC401-28Pin ¨ IC401-44Pin(Cap VS) ˆ IC401-51Pin(Cap W)) Ø IC401-52Pin(Cap V) ∏ IC401-54Pin(Cap U)

◆

These are the waveforms of VP-

D371(i)/D371W(i)/D372WH(i)/D375

W(i)/D975W(i)

Caution) There can be some differences

(Voltage, Frequency, stc.) among cam-

eras.

Schematic Diagrams

Samsung Electronics 10-5

This Document can not be used without Samsung’s authorization

Audio

10-4 Audio (Main PCB)

´ IC601 64Pin(Audio LR CLK)

Œ IC601 53, 57Pin

◆

These are the waveforms of VP-D371(i)/D371W(i)/D372WH(i)/D375W(i)/D975W(i)

Caution) There can be some differences (Voltage, Frequency, stc.) among cameras.
