Samsung GT-B3210 Bedienungsanleitung
GSM TELEPHONE
GT-B3210
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS
SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.
SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM850 EGSM900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
824-849
869-894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128-251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80 MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692 us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9 us
4.615 ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5~19(class4) 5~19(class4) 0~15(class1) 0~15(class1)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMAMux8888
Cell Radius 35Km 35Km 2Km 2 Km
2-1. GSM General Specification
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level DCS1800 PCS1900
030±3
dBm 30±3 dBm
128±3
dBm 28±3 dBm
226±3
dBm 26±3 dBm
324±3
dBm 24±3 dBm
422±3
dBm 22±3 dBm
520±3
dBm 20±3 dBm
618±3
dBm 18±3 dBm
716±3
dBm 16±3 dBm
814±3
dBm 14±3 dBm
912±4
dBm 12±4 dBm
10 10±4 dBm 10±4 dBm
11 8±4dBm 8±4dBm
12 6±4 dBm 6±4 dBm
13 4±4 dBm 4±4 dBm
14 2±5 dBm 2±5 dBm
15 0±5 dBm 0±5 dBm
TX Power
control level GSM850 GSM900
533±2
dBm 33±2 dBm
631±2
dBm 31±2 dBm
729±2
dBm 29±2 dBm
827±2
dBm 27±2 dBm
925±2
dBm 25±2 dBm
10 23±2 dBm 23±2 dBm
11 21±2 dBm 21±2 dBm
12 19±2 dBm 19±2 dBm
13 17±2 dBm 17±2 dBm
14 15±2 dBm 15±2 dBm
15 13±2 dBm 13±2 dBm
16 11±3 dBm 11±3 dBm
17 9±3 dBm 9±3 dBm
18 7±3 dBm 7±3 dBm
19 5±3 dBm 5±3 dBm
2-2. GSM TX power class
SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Quad Band (GSM850+EGSM900+DCS1800+PCS1900)
-GPRS Rx/Tx, EDGE Rx only
-FM Radio
-Bluetooth v2.1 +EDR
-L-QCF(220*176) 2.2" TFT 262k color LCD
-2MCMOS Camera
-MP3 Player
SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments

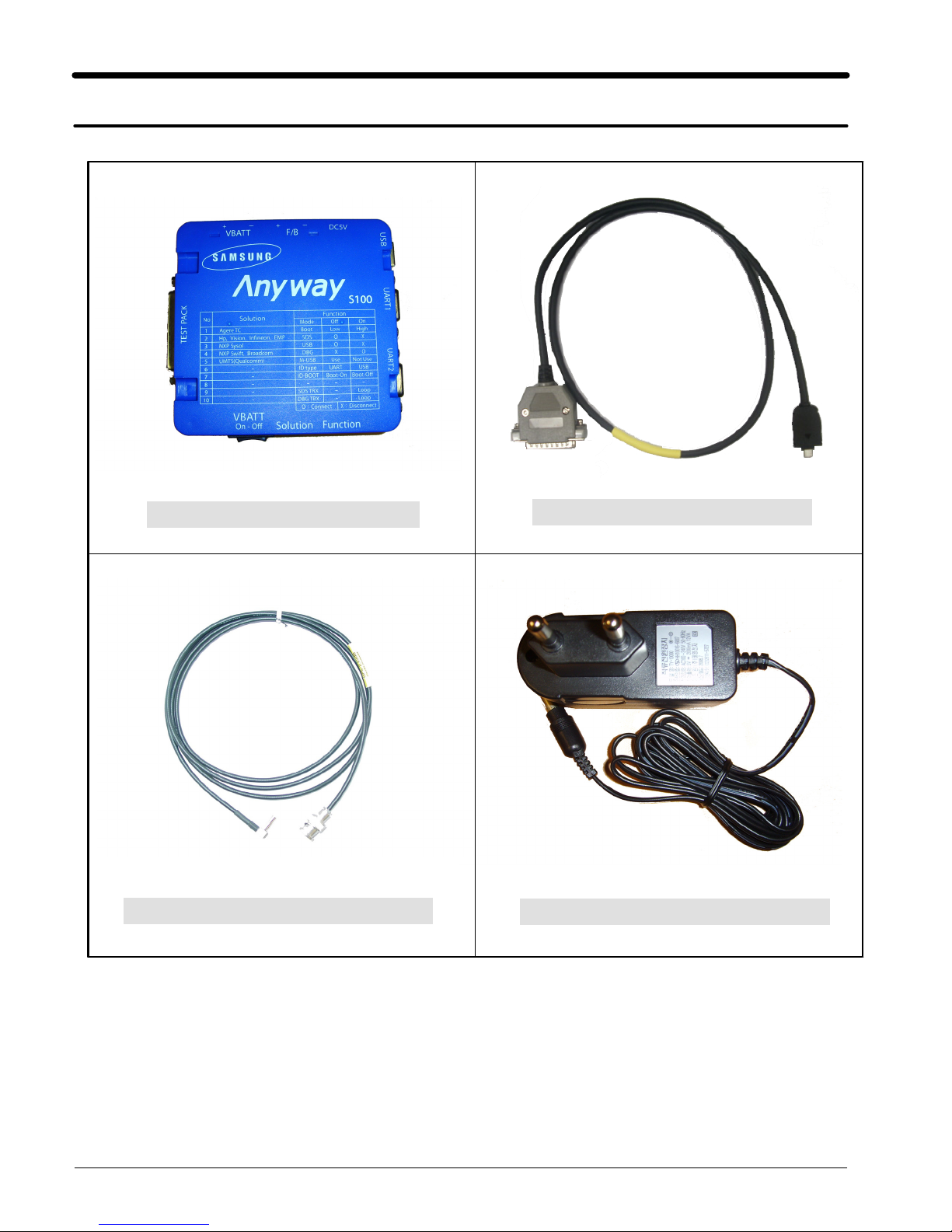

Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)
Test Cable (GH39-01290A)
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
•Downloader Program (Optiflash Version 4.17)
•GT-B3210 Mobile Phone
•Data Cable
•S3 file, CSC file
4-2-2. S/W Downloader Program
■To make USB connection between your PC and the Mobile phone.
Press and hold '＊'key then connect the Data cable to Mobile phone.
(Both of PC and Mobile phone must be in Power off state)

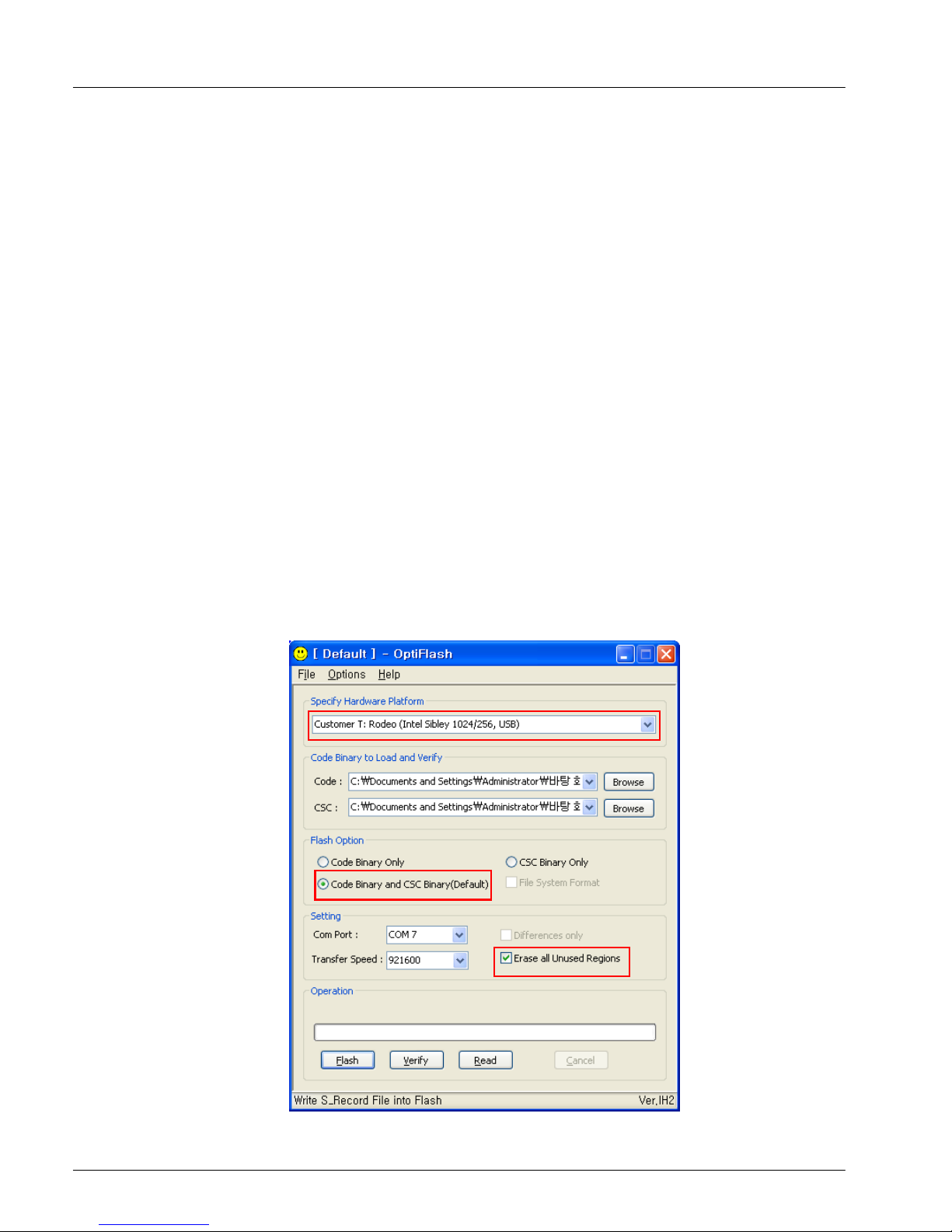

■Load the binary download program by executing the
"Optiflash.exe"
1.Select Customer T: Rodeo (Intel Sibley 1024/256, USB)
Check Code Binary and CSC Binary(Default) and Erase all Unused Regions.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

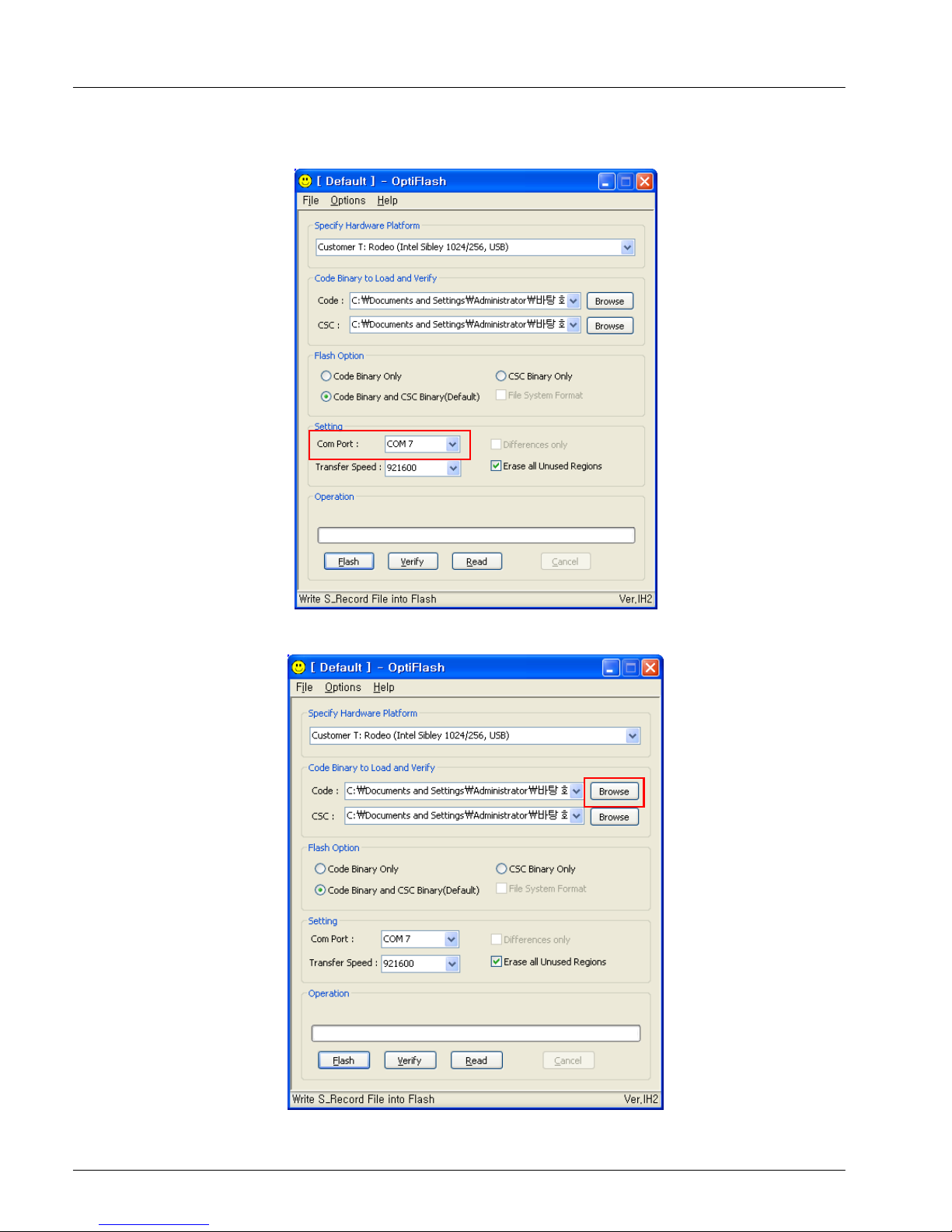

2.Select the COM port that the mobile phone is connected to..
3.Click Browse and Select S3 file.
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

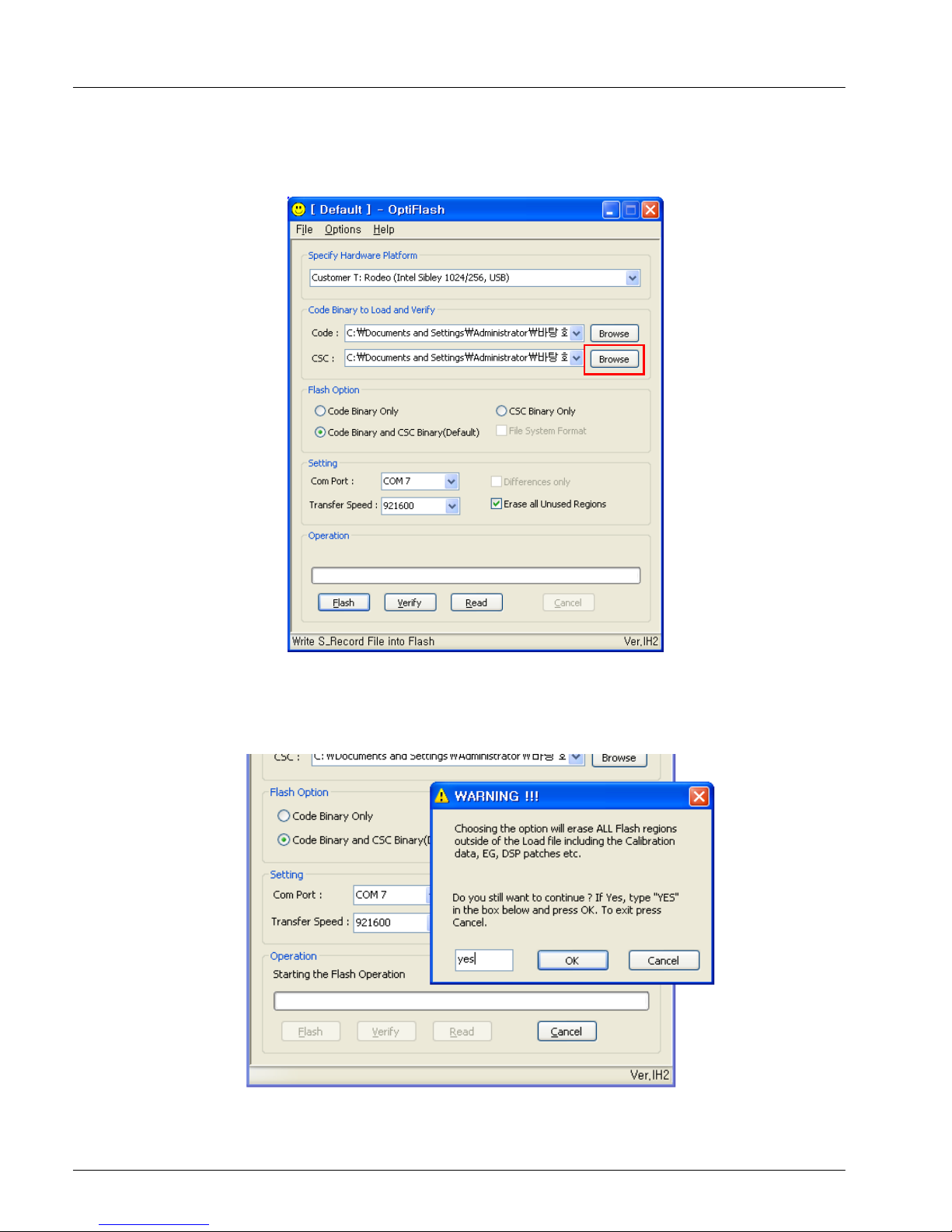

4.Click Browse and Select CSC file.
5.Click Flash and Type 'YES'in capital letters on the pop-up WARNING !!!
