Samsung GT-E1125 Bedienungsanleitung

GSM TELEPHONE

GT-E1125

GSM TELEPHONE CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Array course control

5. Exploded View and Parts List

6. Main Electrical Parts List

7. Block Diagrams

8. PCB Diagrams

9. Flow Chart of Troubleshooting

10. Reference data

11. Disassembly and Assembly

instructions

12. Schematic Diagram

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

―Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test, because the specification of cellular phone is sensitive for

surrounding interference(RF noise).

―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by

the influence of magnetic force.

―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be

worn away.

―Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

―Repair after separate Test Pack and Set because for short danger (for example an overcurrent

and furious flames of parts etc) when you repair board in condition of connecting Test Pack and

tuning on.

―Take specially care of soldering, because Land of PCB is small and weak in heat.

―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous

when tuning ON/OFF PBA and Connector after disassembling charger.

―Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

―Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity prevention

string on wrist.

―Use earthed soldering steel when you connect or disconnect ESD.

―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static

electricity.

―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

―You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice

2. Specification

2-1

This Document can not be used without Samsung's authorization

2-1. GSM/DCS1800/PCS1900 General Specification

EGSM 900

Phase 2 DCS1800

Phase 1

Freq.

Band[MHz]

Uplink/Downlink

880~915

925~960 1710~1785

1805~1880

ARFCN range 0~124 & 975~1023 512~885

Tx/Rx spacing 45MHz 95MHz

Mod. Bit rate/

Bit Period 270.833kbps

3.692us 270.833kbps

3.692us

Time Slot

Period/Frame

Period

576.9us

4.615ms 576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK

MS Power 33dBm~5dBm 30dBm~0dBm

Power Class 5pcl ~19

pcl 0pcl ~15

pcl

Sensitivity -102dBm -100dBm

TDMA Mux 88

Cell Radius 35Km 2Km

SAMSUNG Proprietary-Contents may change without notice

Specification

2-2

This Document can not be used without Samsung's authorization

2-2. GSM TX power class

TX Power

control level DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level GSM900

5 33±2 dBm

6 31±2 dBm

7 29±2 dBm

8 27±2 dBm

9 25±2 dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

-Simple and modern bar design

-Speaker Phone Function

-Mobile Tracker, My Menu, Living world

-FM Radio

SAMSUNG Proprietary-Contents may change without notice

4. Array course control

4-1

This Document can not be used without Samsung's authorization

4-1. Software Adjustments

Test Cable (GH39-01160A)

Test Jig (GH99-36900A)

RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

4-2. Software Downloading

4-2-1. Downloading Binary Files

•2binary files for downloading E1125.

–E1125DXIxx.cla

–E1125DXIxx.tfs

4-2-2. Pre-requsite for Downloading

•Downloader Program(PNX4900_SEA_Downloader_v1.1_For_SAMSUNG_Lite.exe)

•E1125 Mobile Phone

•JIG BOX

•Test Cable

•Serial Cable

•Binary files

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-3

This Document can not be used without Samsung's authorization

4-2-3. S/W Downloader Program

1. Load the binary download program by executing the “PNX4900_SEA_Downloader_

v1.1_For_SAMSUNG_Lite.exe”.

2. Select the Port, Baud Rate and Mode.

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-4

This Document can not be used without Samsung's authorization

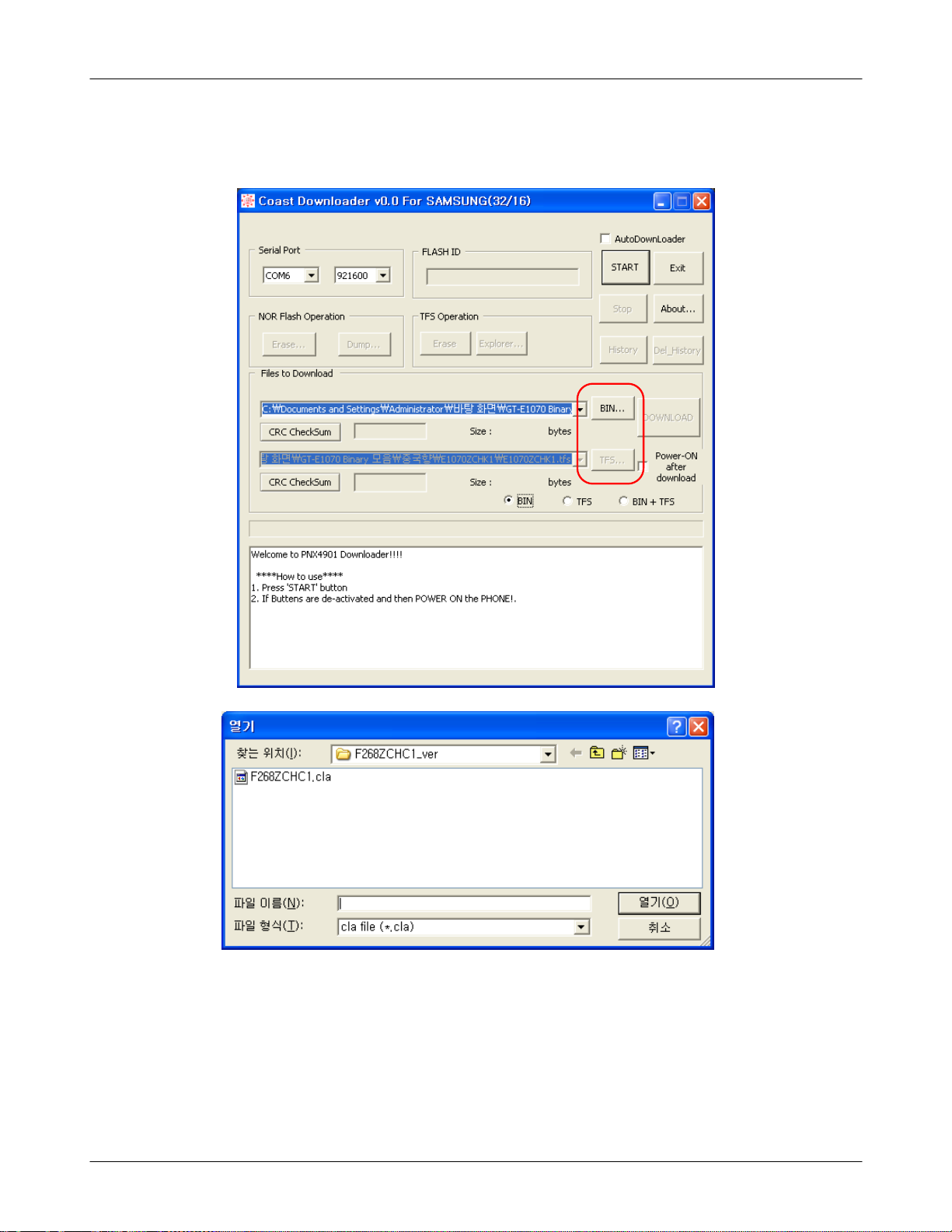

3. Select the binary fileswhat you want to download
