Samsung GT-E2652W Bedienungsanleitung

GSM TELEPHONE

GT-E2652W(GT-E2652 Common)

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because

specipicty of cellular phone is sensitive for surrounding interference(RF noise).

―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by

the influence of magnetic force.

―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be

worn away.

―Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

―Repair after separate Test Pack and Set because for short danger (for example an overcurrent

and furious flames of parts etc) when you repair board in condition of connecting Test Pack and

tuning on.

―Take specially care of soldering, because Land of PCB is small and weak in heat.

―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous

when tuning ON/OFF PBA and Connector after disassembling charger.

―Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

―Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity prevention

string on wrist.

―Use earthed soldering steel when you connect or disconnect ESD.

―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static

electricity.

―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

―You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

2. Specification

2-1

2-1. GSM General Specification

GSM900

Phase 1

DCS1800

Phase 1 PCS1900

Freq.

Band[MHz]

Uplink/Downlink

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

ARFCN range 0~124 & 975~1023 512~885 512~810

Tx/Rx spacing 45MHz 95MHz 80MHz

Mod. Bit rate/

Bit Period

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us

Time Slot

Period/Frame Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK

MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm

Power Class 5pcl ~ 19pcl 0pcl ~15

pcl 0pcl ~15

pcl

Sensitivity -102dBm -100dBm -100dBm

TDMA Mux 8 8 8

Cell Radius 35Km 2Km -

Speclflcation

2-2

2-2. GSM Tx Power Class

TX Power

control level GSM900

533±3

dBm

631±3

dBm

729±3

dBm

827±3

dBm

925±3

dBm

10 23±3 dBm

11 21±3 dBm

12 19±3 dBm

13 17±3 dBm

14 15±3 dBm

15 13±3 dBm

16 11±5 dBm

17 9±5 dBm

18 7±5 dBm

19 5±5 dBm

TX Power

control level DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

Speclflcation

2-3

TX Power

control level GSM900

827±3

dBm

925±3

dBm

10 23±3 dBm

11 21±3 dBm

12 19±3 dBm

13 17±3 dBm

14 15±3 dBm

15 13±3 dBm

16 11±5 dBm

17 9±5 dBm

18 7±5 dBm

19 5±5 dBm

TX Power

control level DCS1800

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 12±3 dBm

9 10±3 dBm

10 14±3 dBm

11 12±4 dBm

12 10±4 dBm

13 8±4dBm

14 6±4 dBm

15 4±4 dBm

2-3. GSM EDGE TX power class

TX Power

control level PCS1900

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

812±3

dBm

910±3

dBm

10 14±3 dBm

11 12±4 dBm

12 10±4 dBm

13 8±4dBm

14 6±4 dBm

15 4±4 dBm

Only in Master

SAMSUNG Proprietary-Contents may change without notice

3. Operation Instruction and Installation

3-1

This Document can not be used without Samsung's authorization

Main Function

•Tri Band 2G(EGSM900+DCS1800+PCS1900)

•GPRS Class12, EDGE Class12(Rx only)

•FM Radio

•Bluetooth v2.1 +EDR

•WIFI

•2.6''

QVGA 262k LCD

•1.3M

CMOS Camera

•MP3 Player

•3.5

mm EAR-JACK

SAMSUNG Proprietary-Contents may change without notice

4. Exploded View and Parts List

4-1

This Document can not be used without Samsung's authorization

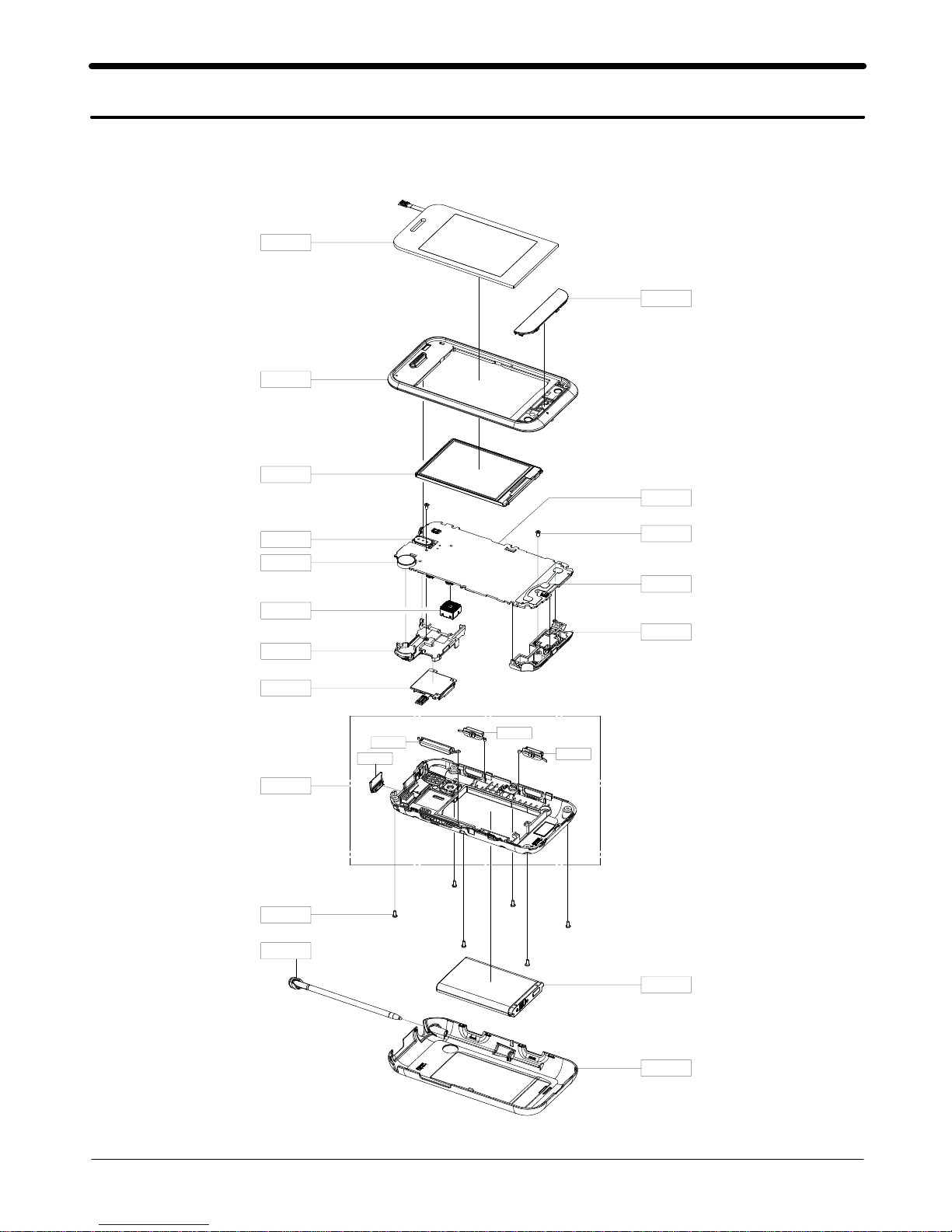

4-1. Cellular phone Exploded View

QME03

QFR01

QLC01

QAR01

QMO01

QBR05

QSM01

QCR03

QST01

QCA01

QRE01

QCK02

QKP01

QME01

QCR72

QMP01

QSP01

QBA01

QBC00

QCK01

QVO01

QRF06

SAMSUNG Proprietary-Contents may change without notice

Exploded View and Parts List

4-2

This Document can not be used without Samsung's authorization

Design LOC Description SEC CODE

QAR01 AUDIO-RECEIVER 3009-001533

QCR03 SCREW-MACHINE 6001-001811

QCR72 SCREW-MACHINE 6001-002051

QMO01 MOTOR DC-SGH_P250 GH31-00454A

QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A

QME03 TOUCH/PANEL-GT_E2652W GH59-10423A

QME01 DOME SHEET-GT_E2652W GH59-10507A

QCA01 CAMERA MODULE-SGH-T340 GH59-10511A

QSP01 MODULE-SPK/INTENNA (GT-E2652W) GH59-10548A

QSM01 ASSY ETC-COMBO (SIM+SD) GH59-10567A

QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05507A

QLC01 ELA MODULE-LCD MODULE (GT-E2652W) GH96-05009A

QFR01 ASSY CASE-FRONT GH98-19019A

QBC00 ASSY COVER-BATT GH98-19021A

QBR05 ASSY BRACKET-SIM GH98-19022A

QKP01 ASSY KEYPAD GH98-19113A

QST01 ASSY STYLUS PEN GH98-19114A

QRE01 ASSY CASE-REAR GH98-19020A

QRF06 PMO COVER-USB GH72-62435A

QCK02 PMO KEY-HOLD GH72-62437A

QVO01 PMO KEY-VOLUME GH72-62438A

QCK01 PMO KEY-HOT GH72-62439A

4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice

5. MAIN Electrical Parts List(2010.12.23)

5-1

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

0403-001688 ZD600 DIODE-ZENER

0404-001172 D300,D302 DIODE-SCHOTTKY

0406-001286 ZD601 DIODE-TVS

0406-001361 ZD403 DIODE-TVS

0406-001369 U403 DIODE-TVS

0406-001375 ZD300 DIODE-TVS

0406-001413 ZD400,ZD402,ZD405 DIODE-TVS

0406-001413 ZD504,ZD505 DIODE-TVS

0407-001002 D301 DIODE-ARRAY

0501-002606 Q300 TR-SMALL SIGNAL

0502-001322 Q301 TR-POWER

0504-001140 Q302,Q304 TR-DIGITAL

0505-001165 Q303 FET-SILICON

1001-001488 U303 IC

1001-001607 U100 IC

1001-001635 U400 IC

1001-001645 U402 IC

1001-001692 U501 IC

1108-000355 UME200 MEMORY

1201-002944 U103 IC

1201-003111 U401 IC

1201-003147 PAM100 IC

1202-001068 U301 IC

1203-004792 U306 IC

1203-004807 U304 IC

1203-005244 U302 IC

1203-005580 U307 IC

1203-005855 U300 IC

1203-006604 U305 IC

1205-003517 U102 IC

1205-003931 U500 IC

1205-003998 U502 IC

1205-004030 UCP200 IC

1205-004076 U101 IC

1404-001224 TH200 THERMISTOR

1405-001298 C502,C503,C504,C505 VARISTOR
