Samsung SGH-J200 Bedienungsanleitung

GSM TELEPHONE

SGH-J200

GSM TELEPHONE CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Array course control

5. Exploded View and Parts list

6. MAIN Electrical Parts List

7. Block Diagrams

8. PCB Diagrams

9. Flow Chart of Troubleshooting

10. Reference data

11. Disassembly and Assembly

Instructions

Samsung Electronics Co.,Ltd.

2007. 10. Rev.1.0

ⓒ

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast & Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

●Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test,

because specipicity of cellular phone is sensitive for surrounding interference(RF noise).

●Be careful to use a kind of magnetic object or tool,

because performance of parts is damaged by the influence of magnetic force.

●Surely use a standard screwdriver when you disassemble this product,

otherwise screw will be worn away.

●Use a thicken twisted wire when you measure level.

A thicken twisted wire has low resistance, therefore error of measurement is few.

●Repair after separate Test Pack and Set because for short danger (for example an

overcurrent and furious flames of parts etc) when you repair board in condition of

connecting Test Pack and tuning on.

●Take specially care of soldering, because Land of PCB is small and weak in heat.

●Surely tune on/off while using AC power plug, because a repair of battery charger is

dangerous when tuning ON/OFF PBA and Connector after disassembling charger.

●Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

●Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity

prevention string on wrist.

●Use earthed soldering steel when you connect or disconnect ESD.

●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by

static electricity.

●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

●You must maintain electric contact between ESD and place due to be set up until ESD is connected

completely to the proper place or a circuit board.

2. Specification

2-1

2-1. GSM & WCDMA General Specification

EGSM 900 DCS1800 PCS1900 W-CDMA

Freq.

Band[MHz]

Uplink/Downlink

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

1920~1980

2110~2170

ARFCN range 0~124 &

975~1023 512~885 512~810 UL: 9612~9888

DL: 10562~10838

Tx/Rx spacing 45MHz 95MHz 80MHz 190MHz

Mod. Bit rate/

Bit Period

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us 3.84Mcps

Time Slot

Period/Frame

Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms Frame length : 10ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK

HQPSK

MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-50dBm

Power Class 5

(max +33dBm)

(max +30dBm)

(max +24dBm)

Sensitivity -102dBm -100dBm -100dBm -106.7dBm

TDMA Mux 8 8 8

Cell Radius 35Km 2Km 2Km 2Km

Speclflcation

2-2

TX Power

control level GSM900

533±2dBm

631±2dBm

729±2dBm

827±2dBm

925±2dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control level DCS1800

030±3dBm

128±3dBm

226±3dBm

324±3dBm

422±3dBm

520±3dBm

618±3dBm

716±3dBm

814±3dBm

912±4dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level PCS1900

030±3dBm

128±3dBm

226±3dBm

324±3dBm

422±3dBm

520±3dBm

618±3dBm

716±3dBm

814±3dBm

912±4dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

―Built-in Digital Cameras( CMOS 1.3 Mega , CMOS VGA )

―1.76" Main LCD ( 260K TFT )

―Video Telephony / Streaming

―Bluetooth V2.0 Wireless Technology

―USB 2.0

―MP3 player

―Navi Key(JOG style)

―Downloadable Game via JAVA

―Sending Photo & Video by MMS or E-Mail

―Supporting 72 Polyphonic Ring Tone

―WAP 2.0 Browser ( Including xHTML/WCSS MP, w/HTTP )

―External Memory Card Socket( T-flash )

―GSM 900MHz & DCS1800MHz & 1900MHz & WCDMA 2100MHz

―GPRS Class 12

SAMSUNG Proprietary-Contents may change without notice

Product Function

3-2

This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice

4. Array course control

4-1

This Document can not be used without Samsung's authorization

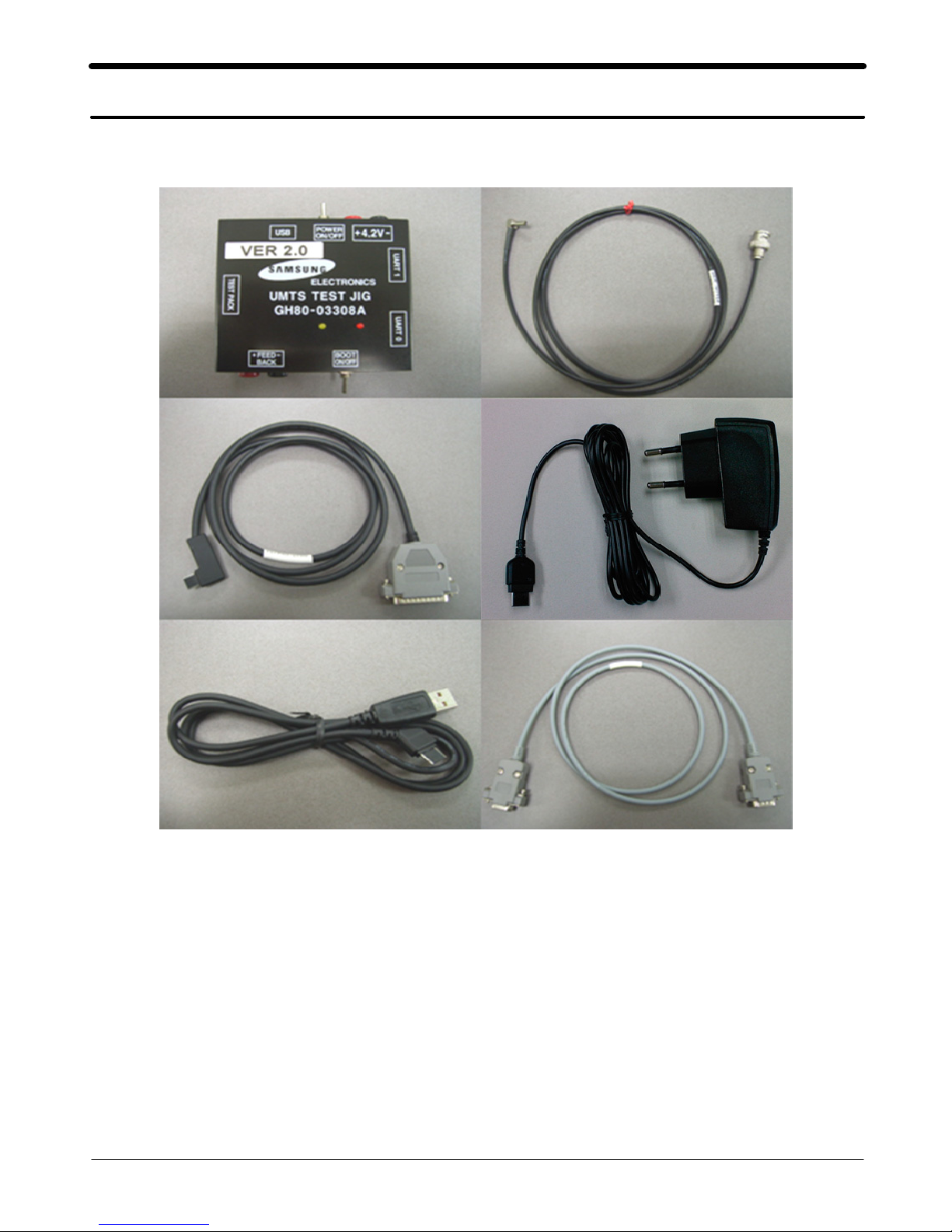

4-1. Software Adjustments

1. JIG: Download, Trace, Calibration, etc

2. RF test cable: RF test

3. Test cable: JIG to phone

4. TA (Travel Adaptor)

5. Data Link Cable : USB cable

6. Serial cable: PC to JIG

GH80-03308A GH39-00397A

GH39-00890A GH44-01702A

GH39-00859B

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

4-2. Software Downloading

4-2-1. Downloading Binary Files

• Four binary files for downloading J200.

– amss_compressed.bin : Modem binary for communication function

& Mocha binary for user interface and various application

– Rsrc1_J200_Generic.rc1: Files need for each application

– Rsrc2_J200(Low).rc2 : Power on/off animation

– FactoryFS_J200_Generic.ffs : Default file system to be put into in initial production

4-2-2. Pre-requsite for Downloading

• Downloader Program( MultiLoader V5.32.exe )

• SGH-J200 Mobile Phone

• USB Data Link Cable

• Binary files
