Samsung SM-A510FD Bedienungsanleitung

Mobile Device

SM-

510FD

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1 Repair

7. Level 2 Repair

8. Level 3 Repair

9. Reference data

Notice: All functionality, features, specifications, and

other product information provided in this document,

including but not limited to, benefits, design, pricing,

components, performance, availability, and capabiliti-

es of the product are subject to change without

notice. Samsung reserves the right to alter this doc-

ument or the product described herein at anytime,

without obligation to provide notification of such

changes.

Mobile Device CONTENTS

www.easy-firmware.com

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd

2015. 12. Rev 1.0

ⓒ

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

4. Exploded View and Parts List

4-1. Cellular phone Exploded View

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-1. Speaker module Repair

7-1-1. Notice

- It is necessary to calibrate the speaker for all cases of replacing the speakers.

- Target models : Galaxy A(A3/5/7/8), E(E5/7) Series

7-1-2. You need:

- Mobile device

- Laptop or Note PC

- Anyway Jig

- UART Serial Cable

- IF Test Cable (Different by models)

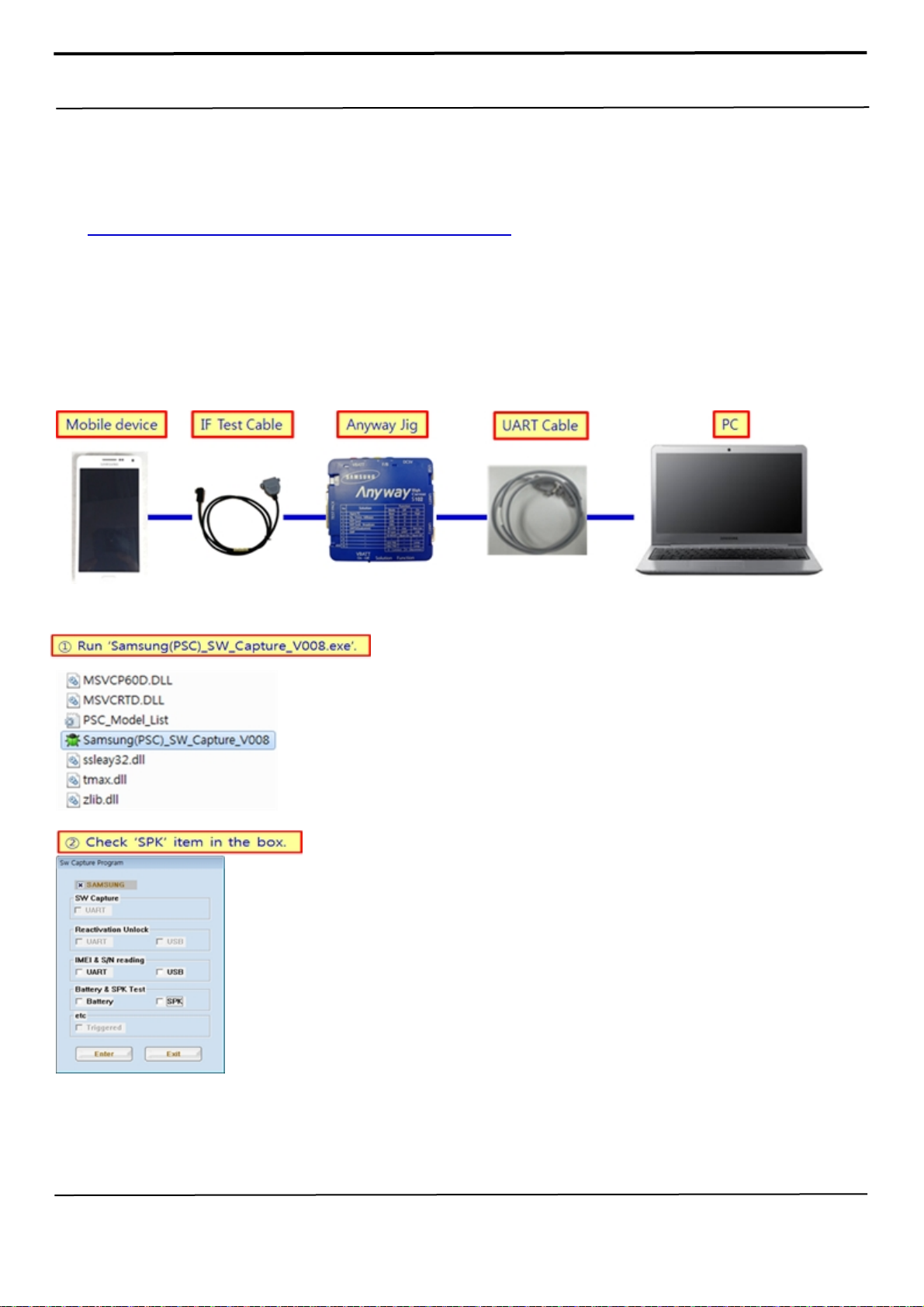

7-1-3. Lay-out

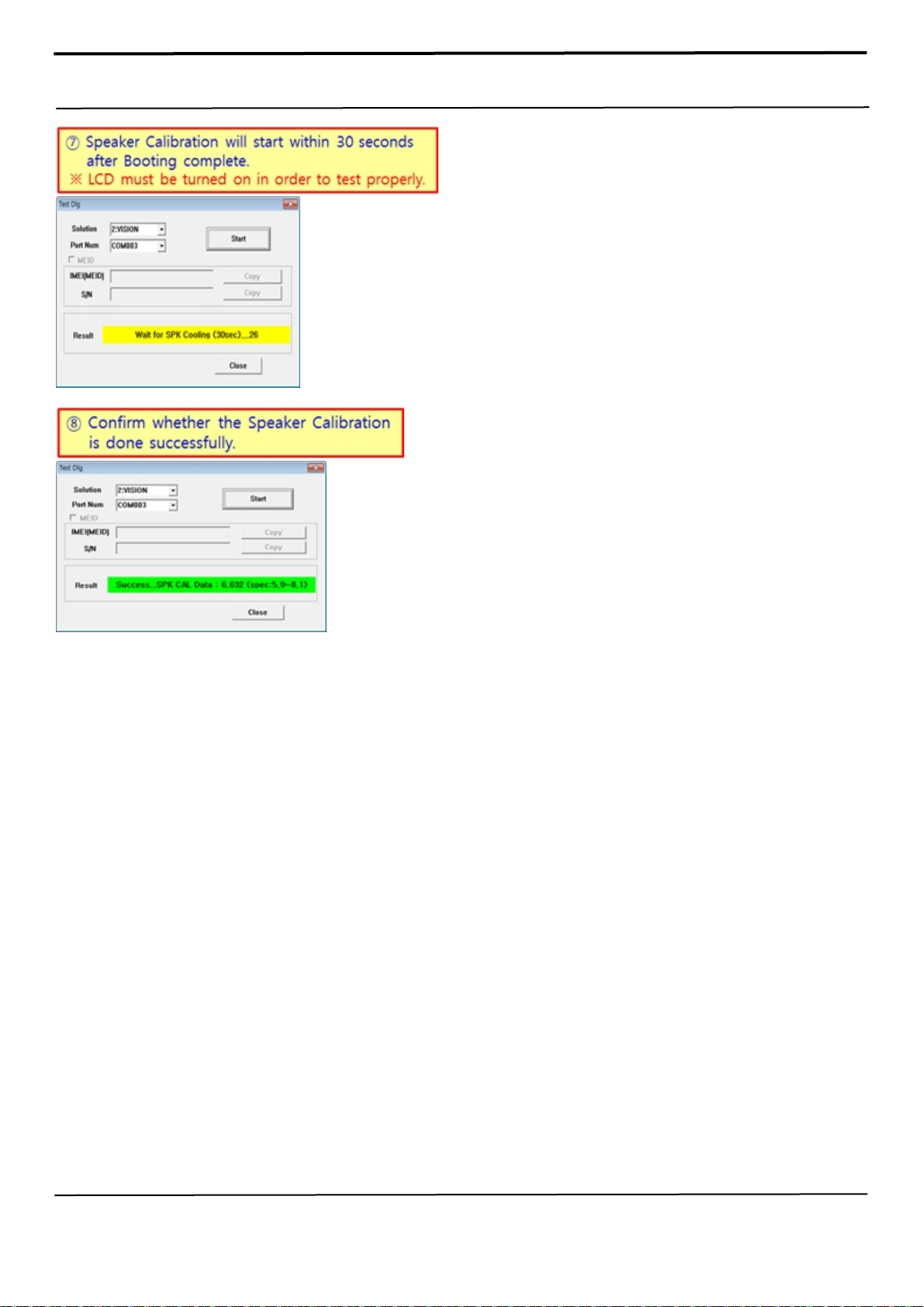

7-1-4. How to Calibrate Speaker

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

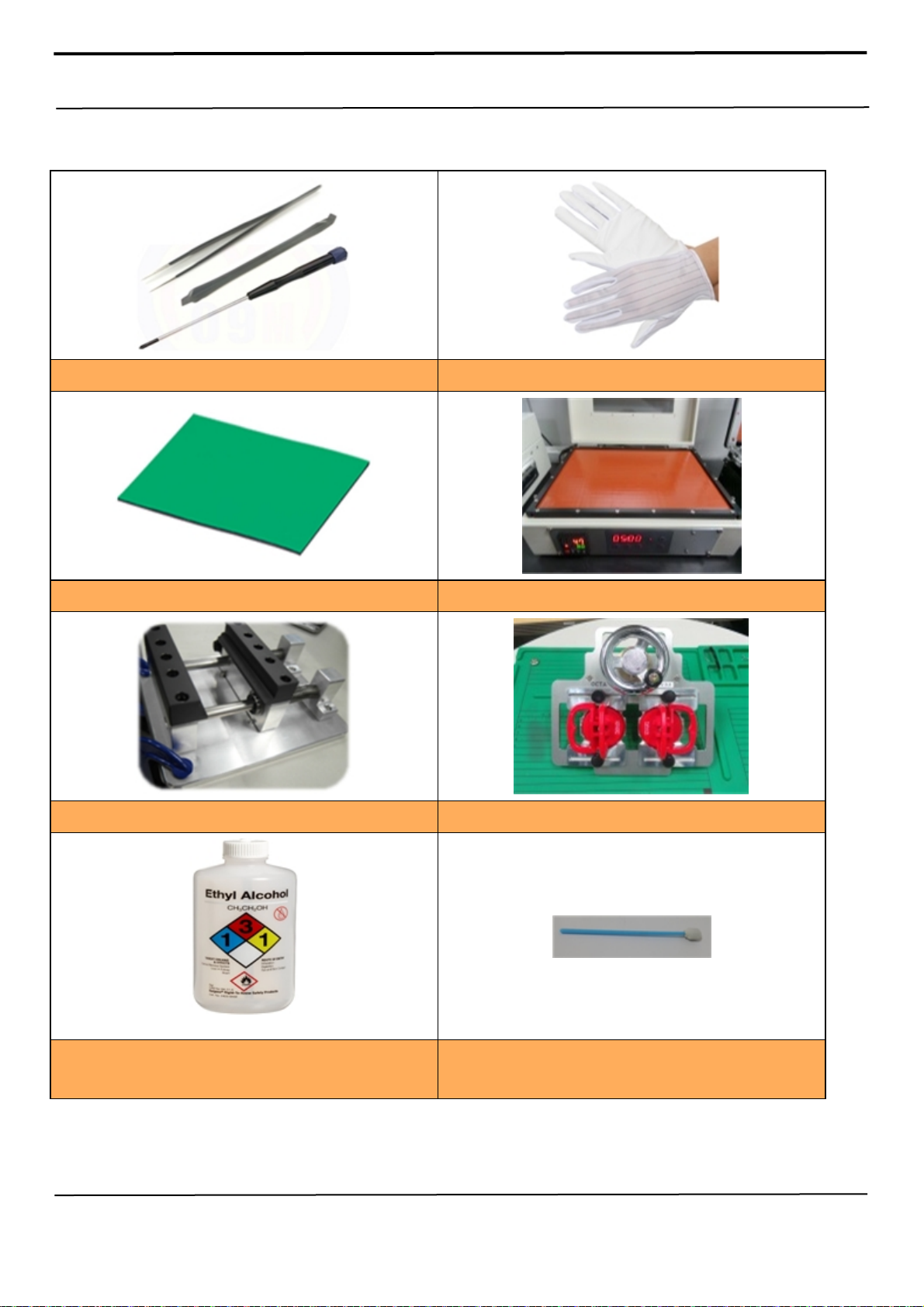

7-2. Pre-requisite

Tweezers / Disass'y Stick / Screw Driver Anti-static Gloves

Anti-static Mat Anti-static Mat

A OCTA Disassembly Holder OCTA Disassembly Upper

Ethyl Alcohol Cotton Swab

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-3. Parts which must be changed after repair

BOM Discription Picture Remarks

A/S-

TAPE_BACK_GLASS_SVC

[GH81-13535A]

Replace whne

repair all cases

TAPE DOBLE FACE-OCTA

BTM

[GH02-11593A]

Replace when

repair Front Part

TAPE DOBLE FACE-OCTA

TOP

[GH02-11588A]

A/S-

TAPE_HR_BRACKET_SVC

[GH81-13534A]

A/S-Touch key top Tape

[GH81-13587A]

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

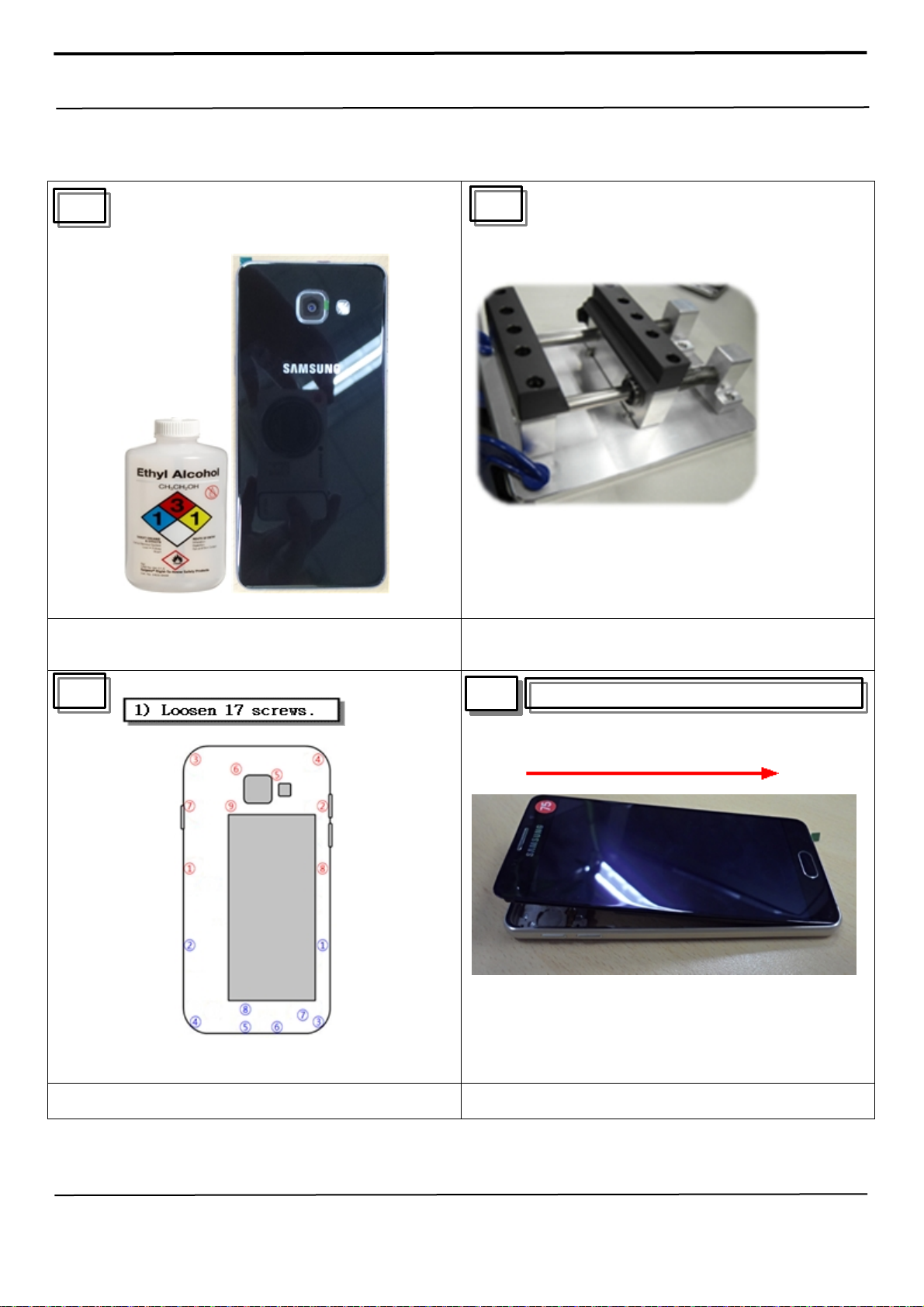

7-4. Disassembly

1) Only use alchol, but do NOT pre-heat

With mobile dryer or hot plate

Inject minimum alcohol into Back Glass

1)Detach the Back Cover from SET using Back

Cover Disassembly Holder.

※Caution

1) Take care of scratch and damage.

※Caution

Be careful not to Damage

1 2

3 4 1

)

sasse

www.easy-firmware.com

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

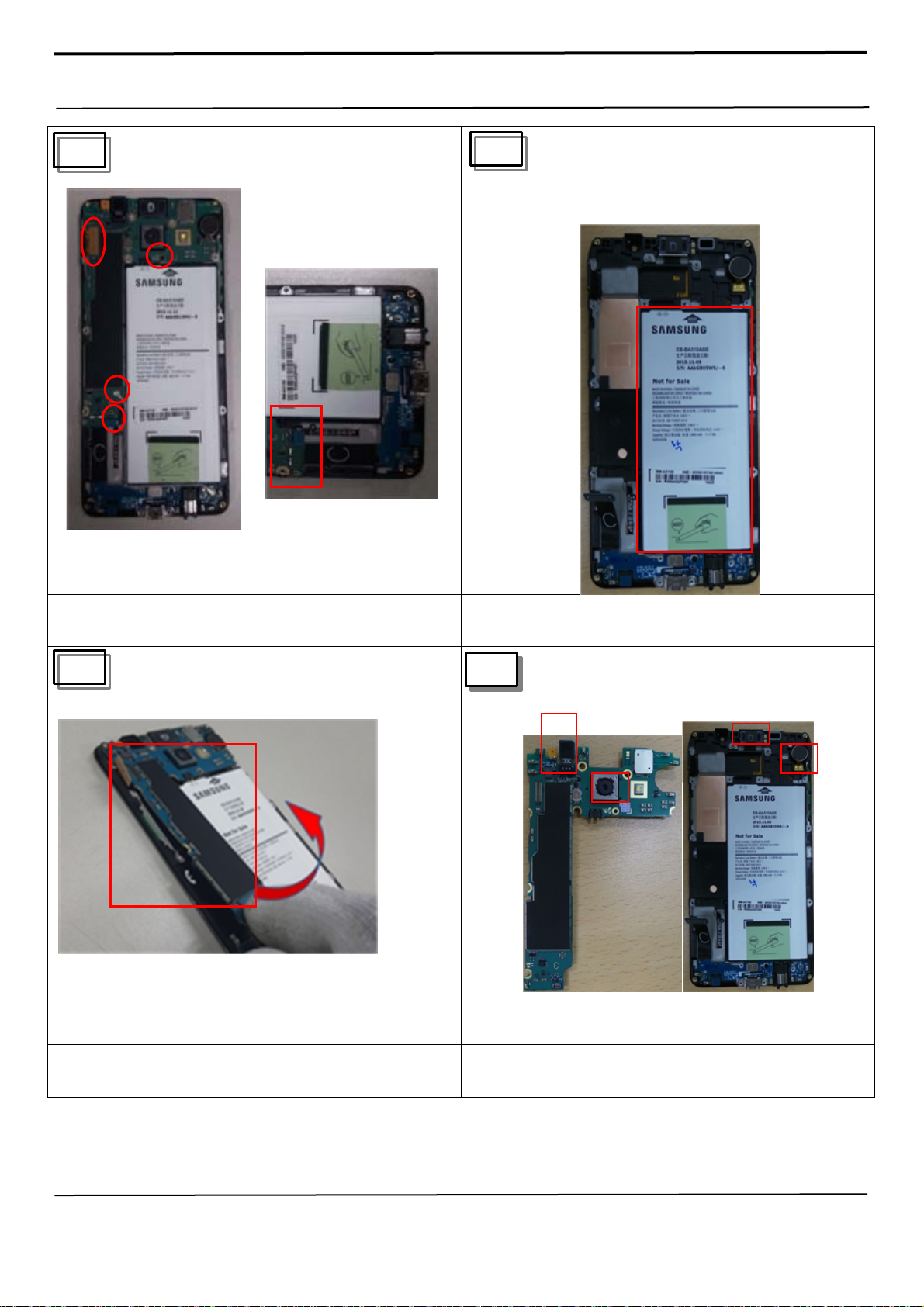

1) Loosen 1 Screws in PBA Ass'y

2) Disassemble the coaxial Cable Head.

3) Open OCTA, Home Key, Sub PBA Connetor 1) Detach Battery

1) Take Main PBA out from bottom to top.

1) ※Be careful not to damage.

1) Detach Mega Cam and Front Cam on PBA

2) Detach RCV and Motor

※Be careful not to damage.

5 6

7 8

www.easy-firmware.com
