Samsung SM-G780F Bedienungsanleitung

SM-G780F Common

Mobile Device

CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1 Repair

7. Level 2 Repair

8. Level 3 Repair

9. Reference Abbreviation

Notice: All functionality, features, specifications,

and other product information provided in this

document, including but not limited to, benefits,

design, pricing, components, performance,

availability, and capabiliti-es of the product are

subject to change without notice. Samsung

reserves the right to alter this doc-ument or the

product described herein at anytime, without

obligation to provide notification of such

changes.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

1. Safety Precautions

1-1. Repair Precaution

●Before attempting any repair or detailed tuning, shield the device from RF noise or static

electricity discharges.

(Use only antistatic glove and strape.)

●Do not touch metallic parts or circuits with your bare hands as device(parts, circuits, etc) may be

corroded.

●Use only demagnetized tools that are specifically designed for small electronic repairs,

as most electronic parts are sensitive to electromagnetic forces.

●Use only high quality screwdrivers when servicing products. Low quality screwdrivers can

easily damage the heads of screws.

●Use only conductor wire of the properly gauge and insulation for low resistance, because of the low

margin of error of most testing equipment.

We recommend 22-gauge twisted copper wire.

●Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily

damaged, even with relatively low heat. Never use a soldering iron with a power rating of

more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).

●Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.

Always use the replacement parts that are registered in the SEC system. Third-party replacement parts

may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

1. Safety Precautions

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can

be easily damaged by it. We recommend protecting these components with conductive anti-static bags

when you store or transport them.

●Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate

static electricity from your body before repairing ESDs.

●Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly

connected.

●Use only desoldering tools with plastic tips to prevent static discharge.

●Properly shield the work environment from accidental electrostatic discharge before opening

packages containing ESDs.

●The potential for static electricity discharge may be increased in low humidity environments,

such as air-conditioned rooms. Increase the airflow to the working area to decrease the

chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

2-1. GSM General Specification

Item

GSM 850

EGSM 900

DCS1800

PCS1900

Freq. Band[MHz]

Uplink/Downlink

824~849

869~894

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

ARFCN range

128~251

0~124 & 975~1023

512~885

512~810

Tx/Rx spacing

45MHz

95MHz

80MHz

Mod. Bit rate/

Bit Period

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us

Time Slot Period/

Frame Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

Modulation

GSM/

EGPRS

GMSK/

8PSK

GMSK/

8PSK

GMSK/

8PSK

GMSK/

8PSK

MS Power

(dBm)

33dBm~5dBm

30dBm~0dBm

Power Class

4(GMSK)

E2(8PSK)

4(GMSK)

E2(8PSK)

1(GMSK)

E2(8PSK)

1(GMSK)

E2(8PSK)

Sensitivity (QPSK, BW

10MHz) (dBm)

-102dBm

-100dBm

TDMA Mux

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

2-2. WCDMA General Specification

Item

WCDMA

2100(B1)

WCDMA

1900(B2)

WCDMA

AWS(B4)

WCDMA

850(B5)

WCDMA

900(B8)

Freq. Band[MHz]

Uplink/Downlink

1920~1980

2110~2170

1850~1910

1930~1990

1710~1755

2110~2155

824~849

869~894

880~915

925~960

ARFCN range

UL：9612~9888

DL：10562~10838

UL：9262~9538

DL：9662~9938

UL：1312~1513

DL：1537~1738

UL：4132~4233

DL：4357~4458

UL：2712~2868

DL：2937~3088

Tx/Rx spacing

190MHz

80MHz

400MHz

45MHz

Mod. Bit rate/

Bit Period

42.2Mbps(DL)

5.42Mbps(UL)

42.2Mbps(DL)

5.42Mbps(UL)

42.2Mbps(DL)

5.42Mbps(UL)

42.2Mbps(DL)

5.42Mbps(UL)

42.2Mbps(DL)

5.42Mbps(UL)

Time Slot Period/

Frame Period

WCDMA

10ms/0.667ms

HSPA

2ms/0.667ms

WCDMA

10ms/0.667ms

HSPA

2ms/0.667ms

WCDMA

10ms/0.667ms

HSPA

2ms/0.667ms

WCDMA

10ms/0.667ms

HSPA

2ms/0.667ms

WCDMA

10ms/0.667ms

HSPA

2ms/0.667ms

Modulation

QPSK

16QAM

64QAM

QPSK

16QAM

64QAM

QPSK

16QAM

64QAM

QPSK

16QAM

64QAM

QPSK

16QAM

64QAM

MS Power

(dBm)

25.7 ~ -49(↓)

Power Class

3(max+24dBm)

Sensitivity (QPSK,

BW 10MHz) (dBm)

-106dBm

-104dBm

-106dBm

-104dBm

-103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

2-3. LTE General Specification

Item

LTE Band1

LTE Band2

LTE Band3

LTE Band4

Freq. Band[MHz]

Uplink/Downlink

1920~1980

2110~2170

1850~1910

1930~1990

1710~1785

1805~1880

1710~1755

2110~2155

ARFCN range

UL:18000~18599

DL:0~599

UL:18600~19199

DL:600~1199

UL:19200~19949

DL:1200~1949

UL:19950~20399

DL:1950~2399

Tx/Rx spacing (MHz)

190

400

Channel Bandwidth

(MHz)

5/10/15/20

1.4/3/5/10/15/20

Modulation

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

MS Power (dBm)

25.7~-39(↓)

Sensitivity (QPSK, BW

10MHz) (dBm)

-96.3

-94.3

-93.3

-96.3

Item

LTE Band5

LTE Band7

LTE Band8

LTE Band12

Freq. Band[MHz]

Uplink/Downlink

824~849

869~894

2500~2570

2620~2690

880~915

925~960

699~716

729~746

ARFCN range

UL:20400~20649

DL:2400~2649

UL:20750~21449

DL:2750~3449

UL:21450-21799

DL:3450-3799

UL:23010~23179

DL:5010~5179

Tx/Rx spacing (MHz)

120

Channel Bandwidth

(MHz)

1.4/3/5/10

5/10/15/20

1.4/3/5/10

Modulation

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

MS Power (dBm)

25.7~-39(↓)

Sensitivity (QPSK, BW

10MHz) (dBm)

-94.3

-93.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

Item

LTE Band13

LTE Band17

LTE Band20

LTE Band26

LTE Band28

Freq. Band[MHz]

Uplink/Downlink

777~787

746~756

704~716

734~746

832~862

791~821

814~849

859~894

703~748

758~803

ARFCN range

UL:23180~23279

DL:5180~5279

UL:23730~23849

DL:5730~5849

UL:24150~24449

DL:6150~6449

UL:26690~27039

DL:8690~9039

UL:27210~27659

DL:9210~9659

Tx/Rx spacing

(MHz)

-31

-41

Channel

Bandwidth(MHz)

5/10

5/10/15/20

1.4/3/5/10/15

3/5/10/15/20

Modulation

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

MS Power(dBm)

25.7~-39(↓)

Sensitivity (QPSK,

BW 10MHz)(dBm)

-93.3

-93.8

-94.8

Item

LTE Band32

LTE Band38

LTE Band40

LTE Band41

LTE Band66

Freq. Band[MHz]

Uplink/Downlink

N/A

1452~1496

2570~2620

2300~2400

2496~2690

1710~1780

2110~2200

ARFCN range

DL:9920~10359

UL/DL:37750 ~

38249

UL/DL:38650 ~

39649

UL/DL:39650 ~

41589

UL:131972 ~ 132671

DL:66436 ~ 67335

Tx/Rx spacing

(MHz)

N/A

400

Channel

Bandwidth(MHz)

5/10/15/20

1.4/3/5/10/15/20

Modulation

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

QPSK,16/64QAM

256QAM(DL only)

MS Power (dBm)

25.7~-39(↓)

Sensitivity (QPSK,

BW 10MHz)(dBm))

-96.3

-94.3

-95.8

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2. Specification

2-4. GSM Tx Power Class

TX Power

Control level

GSM850

TX Power

Control level

EGSM900

TX Power

Control level

DCS1800

TX Power

Control level

PCS1900

33±2 dBm

30±3 dBm

31±2 dBm

28±3 dBm

29±2 dBm

26±3 dBm

27±2 dBm

24±3 dBm

25±2 dBm

22±3 dBm

23±2 dBm

20±3 dBm

21±2 dBm

18±3 dBm

19±2 dBm

16±3 dBm

17±2 dBm

14±3 dBm

15±2 dBm

12±4 dBm

13±2 dBm

10±4 dBm

11±3 dBm

8±4 dBm

9±3dBm

6±4 dBm

7±3 dBm

4±4 dBm

5±3 dBm

2±5 dBm

0±5 dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

3. Product Function

Specification

Item

Description

Android V10.0

Network

GSM : GSM850 / GSM900 / DCS1800 / PCS1900

WCDMA : B1 / B2 / B4 / B5 / B8

4G LTE

- FDD : B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B20 / B26 / B28 / B32 / B66

- TDD : B38 / B40 / B41

Battery

Typ : 4,500 mAh

Processor

EXYNOS990 Quad 2.73GHz(2x), 2.5GHz(2x), 2.0GHz(4x)

Connectivity

GPS, GLONASS, BEIDOU, Galileo, BT5.0, USB 3.1 Type-C, Wi-Fi 802.11 a/b/g/n/ac/ax

MIMO, NFC, MST

Camera

Rear :

- Wide : 12M,A/F, OIS, F1.8

- Tele : 8MP, A/F, OIS, F2.4

- Ultra Wide : 12M, F2.2

Front : 32M, F2.2

Display

6.5" FHD+, Super AMOLED

RAM

6 GB

ROM

128 GB

Sensor

Accelerometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, Light

Sensor, Virtual Proximity Sensing

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any contentor datafrom this document without Samsung’s written authorization is strictly prohibited.

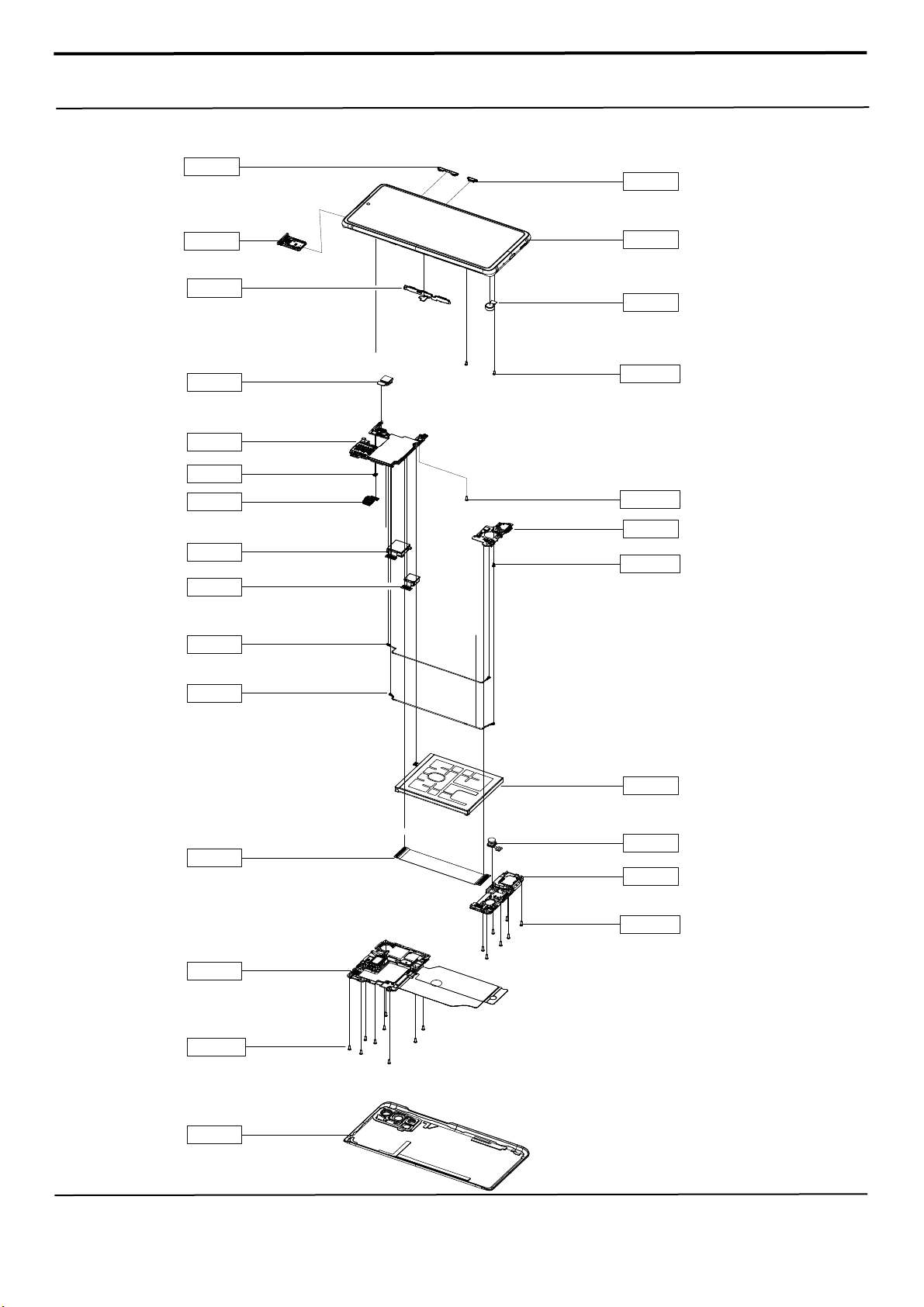

4. Exploded View and Parts List

4-1. Cellular phone Exploded View

QBC01

QCR205

QMP01

QME06

QCA03

QMI01

QCA04

QCA02

QCA01

QCB03

QCB02

QME05

QAN01

QSM01

QVO01

QCR248

QCR205

QCR249

QCR248

QMO01

QFR01

QCK01

QIF01

QBA01

QME02

QSP01

Andere Handbücher für SM-G780F

Inhaltsverzeichnis

Andere Samsung Handy Handbücher

Samsung

Samsung SGH-Z240 Bedienungsanleitung

Samsung

Samsung SM-E7009 Bedienungsanleitung

Samsung

Samsung SM-M105M/DS Bedienungsanleitung

Samsung

Samsung GT-S3650C Bedienungsanleitung

Samsung

Samsung Galaxy S6 active Bedienungsanleitung

Samsung

Samsung SGH-D410 Bedienungsanleitung

Samsung

Samsung GT-C6112 Bedienungsanleitung

Samsung

Samsung SCH-M519 Bedienungsanleitung

Samsung

Samsung SCH-A690 Bedienungsanleitung

Samsung

Samsung Convoy SCH-u640 Bedienungsanleitung

Samsung

Samsung SCH - T300 Bedienungsanleitung

Samsung

Samsung SCH-I659 Bedienungsanleitung

Samsung

Samsung GT-S7500L Bedienungsanleitung

Samsung

Samsung SM-F700W Bedienungsanleitung

Samsung

Samsung SCH-U430 Series Bedienungsanleitung

Samsung

Samsung SM-G920F SM-G920FQ Bedienungsanleitung

Samsung

Samsung SM-A536B/DS Bedienungsanleitung

Samsung

Samsung SGH-A257 Series Bedienungsanleitung

Samsung

Samsung SM-J530Y Bedienungsanleitung

Samsung

Samsung GT-E1150I Bedienungsanleitung

Samsung

Samsung SCH-A562 Bedienungsanleitung

Samsung

Samsung T-mobile SGH-M919 Benutzerhandbuch

Samsung

Samsung SM-M205FN Bedienungsanleitung

Samsung

Samsung GT-E2530 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
