Electric Dryer
user manual
Thank you for purchasing this Brada product.
To receive a more complete service,
please register your product at
www.transglobalservice.com
BED70W
BED70W-02486B_EN.indd 1 2008-01-09 ¿ÀÈÄ 6:53:06
2_ Features
features
1. Extra Large Capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra-
large 7.0 cu.ft. capacity dryer circulates more air through your clothes getting them dry faster,
for a wrinkle-free result.
2. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 7 automatic drying cycles, including normal
and heavy duty, or let the Fuzzy Logic Control measure the degree of dampness and
automatically set the drying time. Precision drying has never been easier than with Brada.
3. Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in
less time... just 44 minutes! Giving you time for more important things in life.
4. Energy Saving
Brada dryers are super energy efficient, using only 3.01 kWh per pound of laundry. Also, both
the large capacity and Fuzzy Logic Control save energy by automatically drying your clothes
the most efficient way.
5. Easy Reversible Door
Our dryers will fit just about anywhere. The direction of our easy reversible door can be
changed with just four screws.
6. Pedestal with Storage Drawers
An optional 15” pedestal is available to raise the washer for easier loading and unloading.
It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
7. Stacking (MODEL NO: SK-3B1)
Brada’s Washer and Dryer can be stacked to maximize usable space.
The Dryer legs need to be removed to stack the Washer and Dryer. An optional stacking kit
is available for purchase from your Brada retailer.
BED70W-02486B_EN.indd 2 2008-01-09 ¿ÀÈÄ 6:53:07
Safety instructions _3
safety instructions
Congratulations on your new Brada Dryer. This manual contains valuable
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
BED70W-02486B_EN.indd 3 2008-01-09 ¿ÀÈÄ 6:53:07
4_ Safety instructions
Read all instructions before using the appliance.
To reduce the risk of fire or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other flammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed in the dryer until all
traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers
• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials must not be dried on a heat setting. Heated foam rubber materials can,
under certain circumstances, produce fire by spontaneous combustion.
Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with controls.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions and you understand and have the skills to
carry those out.
Do not use fabric softeners or products to eliminate static unless recommended for dryer
use by the manufacturer of the fabric softener or product.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust, and
dirt.
The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Do not sit on top of the dryer.
Because of continuing product improvements, Brada reserves the right to change
specifications without notice. For complete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.
coins, knives, pins, etc. These objects could damage your dryer.
Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.
safety instructions
WARNING
WARNING
BED70W-02486B_EN.indd 4 2008-01-09 ¿ÀÈÄ 6:53:07
Safety instructions _5
Gas leaks may occur in your system, resulting in a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer’s instructions.
Do not place items in your dryer that have been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these items may contain significant amounts of these
oils.
The residual oil can ignite spontaneously. The potential for spontaneous combustion
increases when the items containing vegetable oil or cooking oil are exposed to heat. Heat
sources such as your dryer can warm these items, allowing an oxidation reaction in the
oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from
escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous. Washing these items in hot water with extra detergent will reduce, but not
eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying cycle until
the items have run through the Cool Down cycle. Never pile or stack these items when they
are hot.
WARNING
BED70W-02486B_EN.indd 5 2008-01-09 ¿ÀÈÄ 6:53:07
6_ Contents
contents
INSTALLING YOUR DRYER
7
7 Tools needed for installation
7 See Exhaust Requirements
8 Ducting requirements
9 Important to installer
9 location considerations
9 Alcove or closet installation
10 Mobile home installation
10 Exhausting
11 Gas requirements
12 Electrical requirements
12 Grounding
13 Electrical connections
13 Replacement parts and accessories
14 Installation
15 Final installation checklist
16 Dryer Exhaust Tips
17 Door Reversal
OPERATING INSTRUCTIONS, TIPS
18
18 Overview of the control panel
20 Child lock
21 Rack Dry
22 Clean the lint filter
22 Load the dryer properly
22 Getting started
CARE AND CLEANING
23
23 Control Panel
23 Tumbler
23 Stainless Steel Tumbler
23 Dryer Exterior
23 Dryer Exhaust System
SPECIAL LAUNDRY TIPS
24
TROUBLESHOOTING
25
25 Check these points if your dryer…
26 Information codes
APPENDIX
27
27 Fabric care chart
28 Protecting the environment
28 Declaration of conformity
28 Specification
29 Cycle chart
BED70W-02486B_EN.indd 6 2008-01-09 ¿ÀÈÄ 6:53:07
Installing your dryer _7
installing your dryer

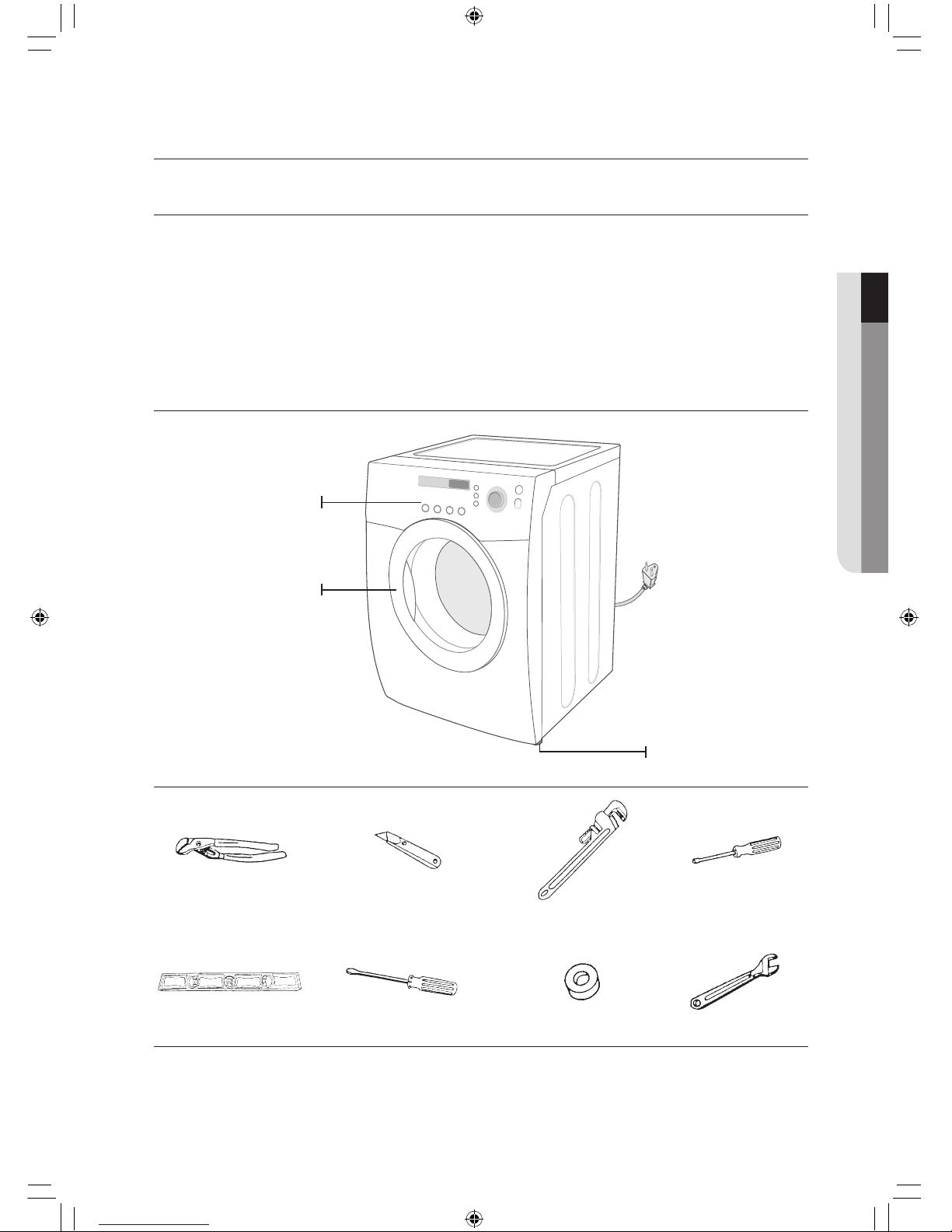

TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are
responsible.
Make sure you have everything necessary for proper installation.
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements. See page 12.
2. A POWER CORD for electric dryers (except Canada). See page 13.
3. GAS LINES (if a gas dryer) must meet national and local codes.
4. EXHAUST SYSTEM – must be rigid metal or flexible stiff-walled metal exhaust ducting.
SEE EXHAUST REQUIREMENTS
Pliers Cutting knife Pipe wrench (gas only) Nut drivers
Level Phillips Screwdriver Duct tape Crescent spanner
01 Installing your dryer
Adjustable leg
Control panel
Door
BED70W-02486B_EN.indd 7 2008-01-09 ¿ÀÈÄ 6:53:10
8_ Installing your dryer
DUCTING REQUIREMENTS
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with duct tape. Do not use screws.
• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF
A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
• Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer
operation.
• Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and
entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house
or porch.
• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before
cleaning.
• Check frequently to be sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run installation
4” (10 .16 cm) 2.5” (6.35 cm)
No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)
3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)
* Do not use non-metallic flexible duct.
installing your dryer
BED70W-02486B_EN.indd 8 2008-01-09 ¿ÀÈÄ 6:53:13
Installing your dryer _9
If the new Dryer is installed into an existing exhaust system you must make
sure:
• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be
less than 0.
This can be measured while the Dryer is running with a manometer at the point where the
exhaust duct connects to the Dryer. A no-heat setting should be used. The Dryer tumbler should
be empty and the lint filter clean.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space in front for loading the Dryer, and enough space
behind for the exhaust system. This Dryer is factory-ready for rear exhaust. To exhaust out the bottom or
the left, use the accessory exhaust kit. Instructions are included with the kit. It’s important to make sure the
room has enough fresh air. The Dryer must be located where there is no air-flow obstruction.
On gas Dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air
for combustion and proper Dryer operation.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO
WATER AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE
LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT LINT-FREE.
ALCOVE OR CLOSET INSTALLATION
The Dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or
closet.
• No other fuel-burning appliance should be installed in the same closet as the Dryer.
• WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED TO THE OUTDOORS.
See EXHAUST INFORMATION section.
• Minimum clearances between the Dryer and adjacent walls or other surfaces are:
2” in front, 17” on top, 1” on either side, and 2.375” in the back.
• The closet front must have two unobstructed air openings for a combined minimum total area of 72 in²
with 3” minimum clearance on the top and bottom. A louvered door with equivalent space clearance is
acceptable.
01 Installing your dryer
WARNING
WARNING
BED70W-02486B_EN.indd 9 2008-01-09 ¿ÀÈÄ 6:53:13
10_ Installing your dryer
installing your dryer
MOBILE HOME INSTALLATION
The installation of the Dryer in mobile homes must conform to the Manufactured Home Construction and
Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).
When installing a Dryer in a mobile home, provisions for anchoring the Dryer to the floor must be made.
Locate an area that has adequate fresh air.
A minimum of 72 in² (183 cm²) of unobstructed space is required.
Call 1-800-360-2742 for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination securely
fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the Dryer to the outside will prevent large amounts of lint and moisture from being blown into the
room.
In the United States:
• All dryers must be exhausted to the outside.
• Only a rigid or flexible metal duct should be used for exhausting.
In Canada:
• All dryers must be exhausted to the outside.
Outside the U.S. and Canada:
• Refer to local codes.
The dryer must be exhausted to the outside to reduce the risk of fire when installed in an
alcove or closet.
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,
heat, and lint.
WARNING
BED70W-02486B_EN.indd 10 2008-01-09 ¿ÀÈÄ 6:53:13
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Samsung Trockner Handbücher
Samsung
Samsung DV363EWBEUF/A1 Bedienungsanleitung
Samsung
Samsung DV365ETBGWR/A3 Bedienungsanleitung
Samsung
Samsung DV448AG series Bedienungsanleitung
Samsung
Samsung DV218AEW Bedienungsanleitung
Samsung
Samsung DVE45N6300 Series Bedienungsanleitung
Samsung
Samsung DV431AE Series Bedienungsanleitung
Samsung
Samsung DV433GTGJWR/A1 Bedienungsanleitung
Samsung
Samsung DV40J3000E Series Bedienungsanleitung
Samsung
Samsung DV48H7400E Series Bedienungsanleitung
Samsung
Samsung SDC18809 Bedienungsanleitung
Samsung
Samsung DVE47CG3500 Series Bedienungsanleitung
Samsung
Samsung DV56H9000E Series Bedienungsanleitung
Samsung
Samsung DV5451A Series Bedienungsanleitung
Samsung
Samsung DV476 Series Bedienungsanleitung
Samsung
Samsung FlexDry DVG60M9900V/A3-01 Bedienungsanleitung
Samsung
Samsung FlexDry DVG60M9900W Bedienungsanleitung
Samsung
Samsung DV25B6800HW/AC Bedienungsanleitung
Samsung
Samsung DV52J8700E Bedienungsanleitung
Samsung
Samsung DV393ETPARA/A1 Handbuch
Samsung
Samsung DVE50B5100 Series Bedienungsanleitung
Beliebte Trockner Handbücher anderer Marken
Indesit
Indesit IDV 75 Bedienungsanleitung
Infiniton
Infiniton SD-DG85C Bedienungsanleitung
BOMANN
BOMANN WT 5019 Bedienungsanleitung
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Bedienungsanleitung
Asko
Asko T793C Bedienungsanleitung
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
