Thankyou for Durcnaslngthis Samsungproduct.

TOreceive more complete service.

please register your product at

www.samsung.com/global/register

DV218AEW-02568A-01 EN.indd 1 2008-12-08 _;.&.&ti9:08:3d

1. Extra Large Capacity

Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra-

large 7.3 cu.ft, capacity dryer circulates more air through your clothes drying them faster, for

a wrinkle-free result.

2. Various Drying Cycles & Fuzzy Logic Algorithm

Simply turn the Jog Dial to select one of the 7 automatic drying cycles, including normal

and heavy duty, or let the Fuzzy Logic Control measure the degree of dampness and

automatically set the drying time. Precision drying has never been easier than with Samsung.

3. Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in

less time.., just 44 minutes! Giving you time for more important things in life.

4. Energy Saving

Samsung dryers are super energy efficient. You can dry up to 3.01 pounds of laundry with

1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically

drying your clothes the most efficient way.

5. Easy Reversible Door

Our dryers will fit just about anywhere. The direction of our easy reversible door can be

changed with just four screws.

6. Pedestal with Storage Drawers

An optional 15" pedestal is available to raise the washer for easier loading and unloading.

Italso offers a built-in storage drawer that can hold a 100 oz. bottle of detergent

7. Stacking (MODEL NO: SK-3A1/XAA, SK-4A/XAA, SK-5A/XAA)

Samsung's Washer and Dryer can be stacked to maximize usable space.

The Dryer legs need to be removed to stack the Washer and Dryer. An optional stacking kit

is available for purchase from your Samsung retailer.

2 features

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer's many benefits and

features.

WARNING -Rkof Fire

• Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type)

duct is installed, it must be of a specific type identified by the appliance manufacturer as

suitable for use with clothes dryers. Flexible venting materials are known to collapse, be

easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase

the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

i/_k Hazards or unsafe practices that may result in severe personal injury or

death.

WARNING

Hazards or unsafe practices that may result in minor personal injury or

property damage.

CAUTION

Z_ Follow the information in this manual to minimize the risk of fire or explosion or

to prevent property damage, personal injury, or death.

CAUTION Do not store or use gasoline or other flammable vapors and liquids near this or

any other appliance.

SAVE

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the pwer plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

THESE INSTRUCTIONS

safety instructions 3

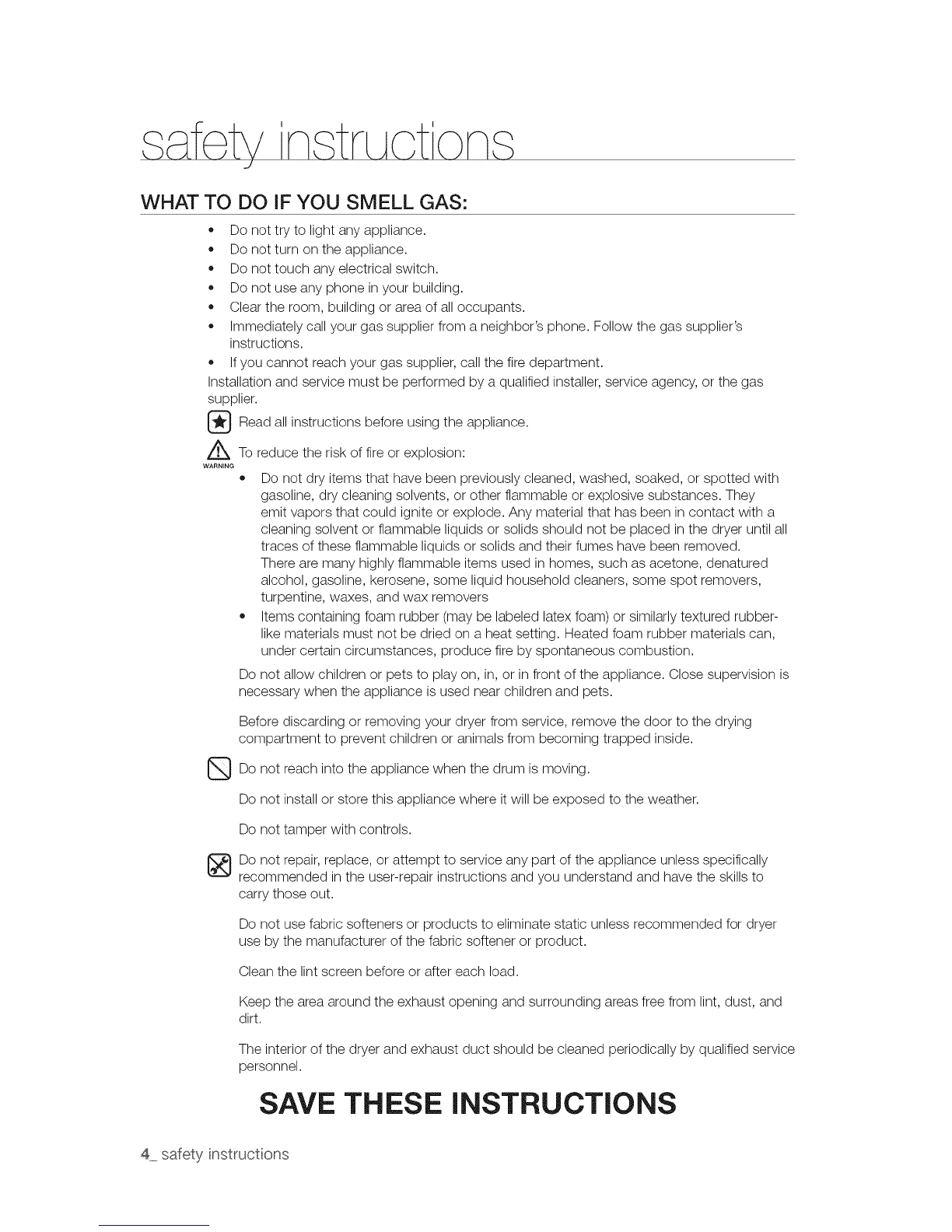

• Do not try to light any appliance.

Do not turn on the appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

Ifyou cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas

supplier.

_Read all instructions before the

using appliance.

Z_To reduce the risk of fire or explosion:

WARNING Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

recommended in the user-repair instructions and you understand and have the skills to

carry those out.

Do not use fabric softeners or products to eliminate static unless recommended for dryer

use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

SAVE THESE INSTRUCTIONS

4 safety instructons

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. See

installation instructions for grounding this appliance.

Do not sit on top of the dryer.

®Because of continuing product improvements, Samsung reserves the right to change

specifications without notice. For complete details, see the Installation Instructions

packed with your product before selecting cabinetry, making cutouts, or beginning

installation.

,/_ Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.

....... coins, knives, pins, etc. These objects could damage your dryer.

WARNING

Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these

oils.

Residual oil on clothing can ignite spontaneously. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. Ifthis heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

SAVE THESE INSTRUCTIONS

safety instructions 5

content

INSTALLING YOUR DRYER

OPERATING INSTRUCTIONS, TIPS

CARE AND CLEANING

SPECIAL LAUNDRY TiPS

7 Tools needed for installation

7 See Exhaust Requirements

8 Ducting requirements

9 Important to installer

9 Location considerations

9 Alcove or closet installation

10 Mobile home installation

10 Exhausting

11 Gas requirements

12 Electrical requirements

12 Grounding

13 Electrical connections

14 Replacement parts and accessories

14 Installation

17 Final installation checklist

18 Dryer Exhaust Tips

19 Door Reversal

20 Overview of the control panel

22 Child lock

23 Rack Dry

24 Clean the lint filter

24 Load the dryer properly

24 Getting started

25 Control Panel

25 Tumbler

25 Stainless Steel Tumbler

25 Dryer Exterior

25 Dryer Exhaust System

26 Special laundry tips

TROUBLESHOOTING 27 Check these points if your dryer.,.

28 Information codes

APPENDIX 29 Fabric care chart

30 Protecting the environment

30 Declaration of conformity

30 Specifications

31 Cycle chart

6 contents

n ta ng 7o ArdrTer

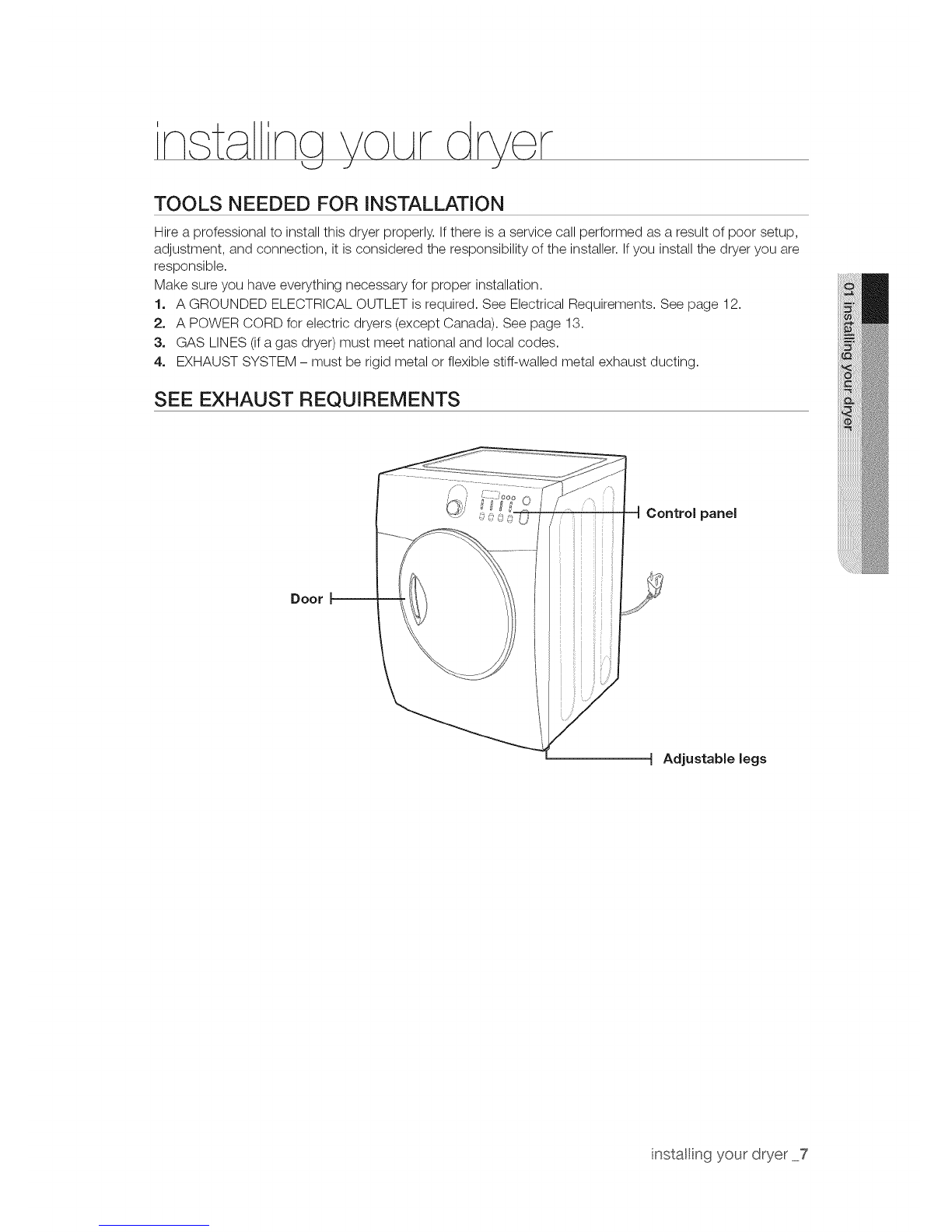

TOOLS NEEDED FOR INSTALLATION

Hire a professional to install this dryer properly. If there is a service call )erformed as a result of poor setup,

adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are

responsible.

Make sure you have everything necessary for proper installation.

1, A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements. See page 12.

2, A POWER CORD for electric dryers (except Canada). See page 13.

3, GAS LINES (ifa gas dryer) must meet national and local codes.

4, EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

SEE EXHAUST REQUIREMENTS

Control panel

Door

Adjustable legs

instaling your dryer 7

DUCTING REQUIREMENTS

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.

Lint accumulation should be cleaned regularly.

Ifa flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Only rigid or flexible metal duct shall be used for exhausting.

Secure joints with duct tape. Do not use screws.

• THE DRYER SHALL NOT BE EXHAUSTED INTO A CHIMNEY, A WALL, A CEILING, AN Aqq-IC, A

CRAWL SPACE, OR A CONCEALED SPACE OF A BUILDING.

Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

Ifexhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to be sure the exhaust hood damper opens and closes freely.

Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

NO: of 900 elbows

Rec0mmended use only for short'run installation

4" (10.16 cm) 2.5" (6.35 cm)

Rigid ' Metallic Flexible, I Rigid ' MetailicFlexible,

24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)

20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)

17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)

14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)

* Do not use non-metallic flexible duct.

8 instaling your dryer

If the new Dryer is installed into an existing exhaust system you must make

sure:

,, The exhaust system meets all local, state, and national codes.

• That a flexible plastic duct is not used.

To Inspect and clean all lint buildup from inside the existing duct.

The duct is not kinked or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured while the Dryer is running with a manometer at the point where the

exhaust duct connects to the Dryer. A no-heat setting should be used. The Dryer tumbler should

be empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

/_k REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD

....... SUFFOCATING.

LOCATION CONSIDERATIONS

The dryer should be located where there is enough space at the front for loading the Dryer, and enough

space behind for the exhaust system. This Dryer is factory-ready for rear exhaust. To exhaust out the

bottom or the left, use the accessory exhaust kit. Instructions are included with the kit. It's important to

make sure the room has enough fresh air. The Dryer must be located where there is no air-flow obstruction.

On gas Dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper Dryer operation.

THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE ITWILL BE EXPOSED TO

WATER AND/OR WEATHER. THE DRYER AREA ISTO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS,

GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE

LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT LINT-FREE.

ALCOVE OR CLOSET INSTALLATION

z_The Dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or

wA_N,._closet.

No other fuel-burning appliance should be installed in the same closet as the Dryer.

WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED TO THE OUTDOORS.

See EXHAUST INFORMATION section.

Minimum clearances between the Dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, 1" on either side, and 2.375" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2

with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is

acceptable.

instaling your dryer 9

MOBILE HOME INSTALLATION

The installation of the Dryer in mobile homes must conform to the Manufactured Home Construction and

Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home Construction and

Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).

When installing a Dryer in a mobile home, provisions for anchoring the Dryer to the floor must be made.

Locate an area that has adequate fresh air.

A minimum of 72 in2(183 cm2)of unobstructed space is required.

Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory.

All mobile home installations must be exhausted to the outside with the exhaust duct termination securely

fastened to the mobile home structure, using materials that will not support combustion.

The exhaust duct may not terminate underneath the mobile home.

See Exhausting section for more information.

EXHAUSTING

Exhausting the Dryer to the outside will prevent large amounts of lint and moisture from being blown into the

room.

In the United States:

,, All dryers must be exhausted to the outside.

• The required exhaust duct is 4inch(102mm) in diameter.

Only those foil-type flexible ducts, if any, specifically identified for use with the appliance by

the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject

2158A, shall be used.

The duct shall not be assembled with screws or other fastening means that extend into the

duct and catch lint.

In Canada:

Only those foil-type flexible ducts, if any, specifically identified for use with the appliance by

the manufacturer shall be used.

All dryers must be exhausted to the outside.

The exhaust duct should be 4inch (102mm) in diameter.

Outside the U.S. and Canada:

Refer to the local codes.

Z_The dryer must be exhausted to the outside to reduce the risk of fire when installed in an

wA,.,.Galcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

Ifyour existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

10 instaling your drter

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Trockner Handbücher

Samsung

Samsung DV231A Series Bedienungsanleitung

Samsung

Samsung DV50K Series Bedienungsanleitung

Samsung

Samsung DVEG45T3200 Series Bedienungsanleitung

Samsung

Samsung DV11H4100CW Bedienungsanleitung

Samsung

Samsung DVG52M8650 Series Bedienungsanleitung

Samsung

Samsung DV395 SERIES Bedienungsanleitung

Samsung

Samsung DV56H9000E Series Bedienungsanleitung

Samsung

Samsung DVG50M7450W Series Bedienungsanleitung

Samsung

Samsung DV448AG series Bedienungsanleitung

Samsung

Samsung DV42H5400 Bedienungsanleitung

Samsung

Samsung DVE50M7450 SERIES Bedienungsanleitung

Samsung

Samsung DVE22N6850 Series Bedienungsanleitung

Samsung

Samsung DVE 45T6020 Series Bedienungsanleitung

Samsung

Samsung DVE45M5500 Series Bedienungsanleitung

Samsung

Samsung DVEG45T6200 Series Bedienungsanleitung

Samsung

Samsung DV25B6800E Series Bedienungsanleitung

Samsung

Samsung DV10T9720 Series Bedienungsanleitung

Samsung

Samsung DV56H9100G Series Bedienungsanleitung

Samsung

Samsung DV210A Series Bedienungsanleitung

Samsung

Samsung DVG54M8750V/A3 Bedienungsanleitung

Samsung

Samsung DV231AE Series Bedienungsanleitung

Samsung

Samsung DVG53BB8700 Series Bedienungsanleitung

Samsung

Samsung FlexDry DVG55M9600W/A3 Bedienungsanleitung

Samsung

Samsung DVE50T7455V/AC Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
