Thank you foJ"puJ'chasing this Samsung p_'oduct.

[_, ' ,'1 [/,@1 ,,,[-' [_%bl 1-[,11 -[ [_, --, 1 ,[,I _[,I[/L_I_I L'I4L ' L_144'

ontent

INSTALLING YOUR DRYER 7 Unpacking your dryer

7 Basic requirments

8 Ducting requirements

9 Important to installer

9 Location considerations

9 Alcove or closet installation

10 Exhausting

11 Gas requirements

11 Commonwealth of Massachusetts

installation instructions

12 Electrical requirements

12 Grounding

13 Electrical connections

14 Installation - General procedure

17 Final installation check list

18 Dryer Exhaust Tips

19 Door Reversal

OPERATING INSTRUCTIONS, TIPS 21 Overview of the control panel

23 Child lock

24 Clean the lint filter

24 Load the dryer properly

24 Getting started

CARE AND CLEANING

SPECIAL LAUNDRY TIPS

25 Control Panel

25 Tumbler

25 Powder Coated Tumbler

25 Dryer Exterior

25 Dryer Exhaust System

26 Special laundry tips

TROUBLESHOOTING 27 Check these points if your dryer.,.

28 Information codes

APPENDIX 29 Fabric care chart

30 Protecting the environment

30 Declaration of conformity

30 Specifications

31 Cycle chart

Engl sh- 2

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 2 2014/12/30 15:14:4(}

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury

or death.

Follow the information in this manual to minimize the risk of fire or

explosion or to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids near

this or any other appliance.

Z_ Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Do NOT attempt.

[_ Do NOT disassemble.

[_ Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning icons are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

Engl sh - 3

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 3 2014/12/30 15:14:4(}

A WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

....... appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance,

such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or

anything containing wax or chemicals, such as mops and cleaning cloths. Flammable

substances may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any

other appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See "Electrical requirements" and "Grounding" in

installing your dryer section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

- This may result in injury.

20. Take care that children's fingers are not caught in the door when closing it.

- This may result in injury.

21. Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing. Service personnel -- Do not contact this part while

appliance is energize.

Engl sh- 4

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 4 2(}14/12/3(} 15:14:4(}

WARNING -Risk of Fire

,, Clothes dryer installationmust be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

,, Do not install a clothes dryer with flexible plastic venting materials. Ifflexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

/_To

WARNING ®

reduce the risk of fire or explosion:

Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers.

Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

/f_ What to do if you smell gas:

WARNING Do not try to lightany appliance.

Do not turn on the appliance.

,, Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

,, If you cannot reach your gas supplier, call the fire department.

,, Installation and service must be performed by a qualified installer, service agency, or the

gas supplier.

_ Gas Appliances:

WARNING WARNING: This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances,

including but not limited to, benzene, carbon monoxide, formaldehyde and soot,

substances resulting from the incomplete combustion of natural gas or LP fuels.

Engl sh - 5

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 I)3170N ENindd 5 2014/12/30 15:14:4(}

/t,,

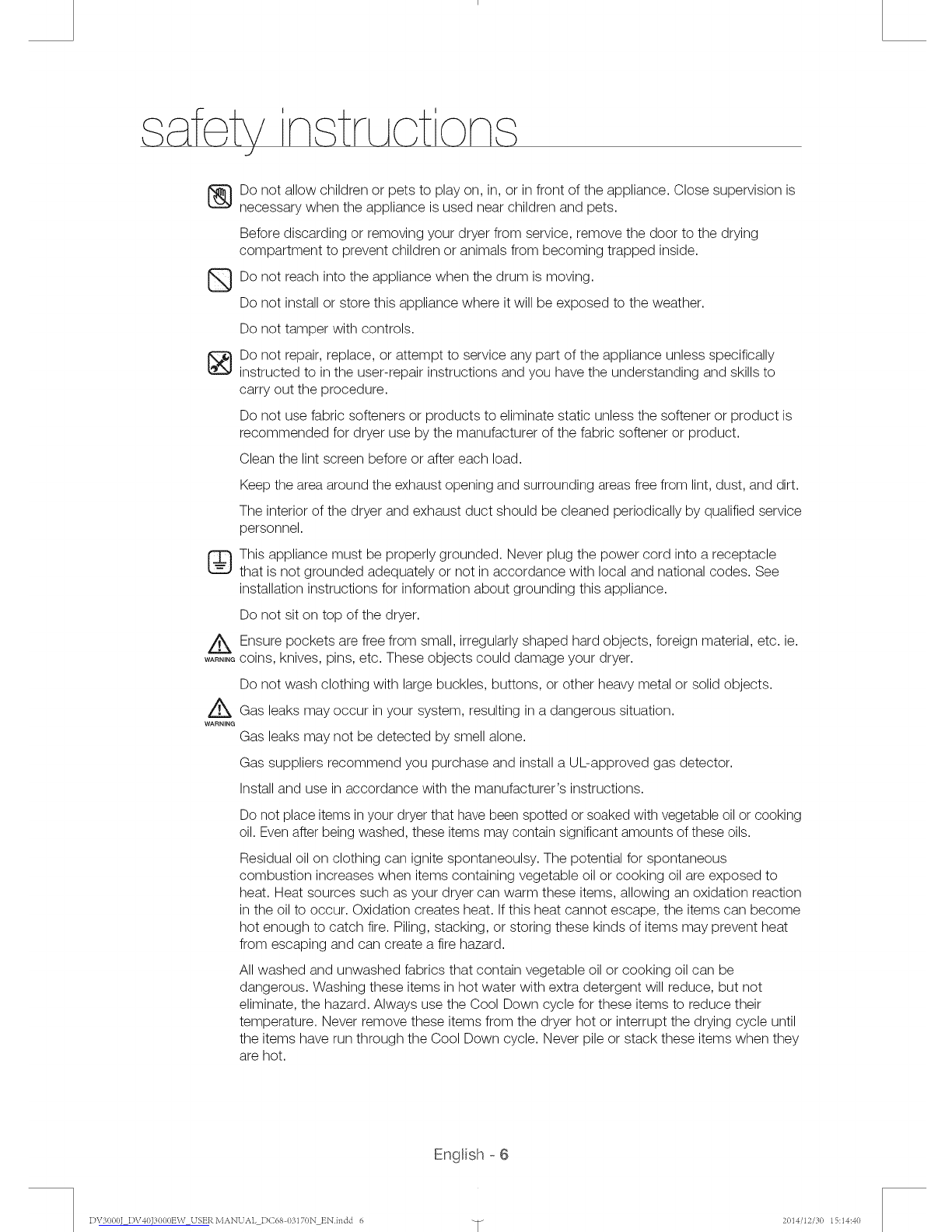

WARNING

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

instructed to in the user-repair instructions and you have the understanding and skills to

carry out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain significant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

Engl sh- 6

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 6 -_ 2014/12/30 15:14:4(}

UNPACKING YOUR DRYER

Unpack your dryer and inspect it for shipping damage. Make sure you have received all of the items

shown below. If your dryer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer.

Z_ Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of children's reach.

Z_ Do not move the product while holding the front part of the top cover of the dryer.

....... This may cause the cover to be separated and result in injury.

Control panel

Top Cover [ BACK ]

'ii

Door

Filter

IFrame Front

Duct Exhaust

_olsneeded

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

Level PhilJipsScrewdriver Duct tape Wrench

BASIC REQUIRMENTS

Make sure you have everything necessary for proper installation

A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

A POWER CORD for electric dryers (except in Canada).

GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.

EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

Engl sh- 7

DV3000] [)V40J3000E\\T USE]_.\IANUAL DC68 03170N ENindd 7 2014/12/30 15:14:41

na VOLArdryer

J J

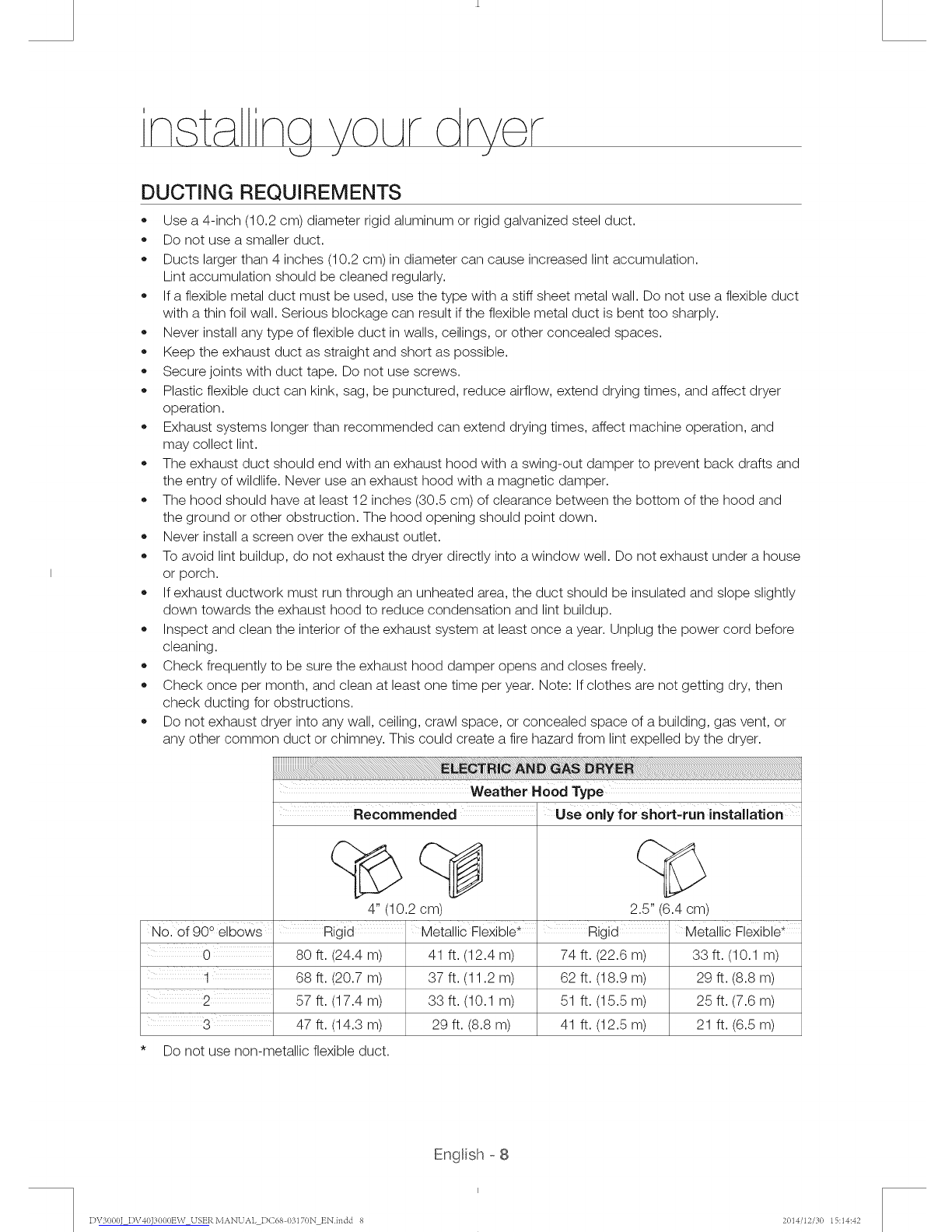

DUCTING REQUIREMENTS

Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm)in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Keep the exhaust duct as straight and short as possible.

Secure joints with duct tape. Do not use screws.

Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

the entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 era) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to be sure the exhaust hood damper opens and closes freely.

Check once per month, and clean at least one time per year. Note: Ifclothes are not getting dry, then

check ducting for obstructions.

Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or

any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.

Weather Hood Type

Recommended I use only for short.run installation

4" (10.2 cm) 2.5" (6.4 cm)

N01of 90° elbows Rigid MetalliCFlexible* I Rigid ' Metallic Flexible*

80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)

68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)

57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)

47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)

Do not use non-metallic flexible duct.

Engl sh- 8

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 8 2(}14/12/3(} 15:14:42

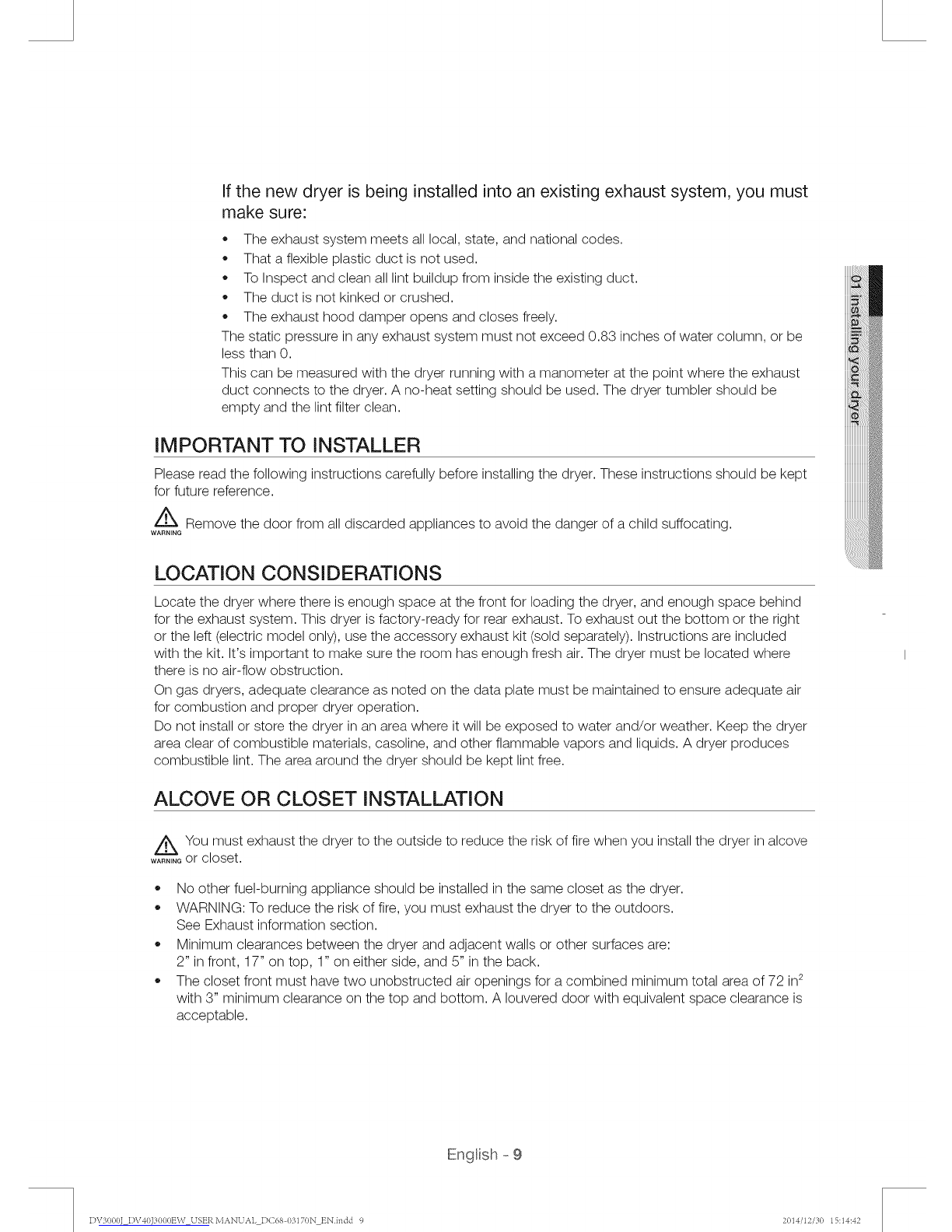

If the new dryer is being installed into an existing exhaust system, you must

make sure:

The exhaust system meets all local, state, and national codes.

That a flexible plastic duct is not used.

To Inspect and clean all lint buildup from inside the existing duct.

The duct is not kinked or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust

duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be

empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

Z_ Remove the door from all discarded appliances to avoid the danger of a child suffocating.

WARNING

LOCATION CONSIDERATIONS

Locate the dryer where there is enough space at the front for loading the dryer, and enough space behind

for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the right

or the left (electric model only), use the accessory exhaust kit (sold separately). Instructions are included

with the kit. It's important to make sure the room has enough fresh air. The dryer must be located where

there is no air-flow obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper dryer operation.

Do not install or store the dryer in an area where it will be exposed to water and/or weather. Keep the dryer

area clear of combustible materials, casoline, and other flammable vapors and liquids. A dryer produces

combustible lint. The area around the dryer should be kept lint free.

ALCOVE OR CLOSET INSTALLATION

z_You must exhaust the dryer to the outside to reduce the risk of fire when you install the dryer in alcove

WARN,NGor closet.

No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fire, you must exhaust the dryer to the outdoors.

See Exhaust information section.

Minimum clearances between the dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, 1" on either side, and 5" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2

with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is

acceptable.

Engl sh - 9

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 9 2014/12/30 15:14:42

na VoLArdryer

J J

EXHAUSTING

The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed

space of a building.

Exhausting the dryer to the outside will prevent large amount of lint and moisture from being blown into the

room.

the United States:

All dryers must be exhausted to the outside.

The required exhaust duct is 4 inches (10.2 cm) in diameter.

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance

by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct,

Subject 2158A shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends shall be used.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint.

Canada:

All dryer must be exhausted to the outside.

The exhaust duct should be 4 inches(10.2 cm ) in diameter.

Use only those foil-type flexible ducts, if any, specifically indentified for use with the appliance

by the manufacturer shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint

Outside the U.S. and Canada:

Refer to the local codes.

A You must exhaust the dryer to the outside to reduce the risk of fire when you install the

wAR'N,,dryer in an alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

Engl sh - 10

D\_3000] D\_40J3000EW USER.\IANUAL DC68 03170N ENindd 10 2014/12/30 15:14:42

Andere Handbücher für DV40J3000EW

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Trockner Handbücher

Samsung

Samsung DVE45B6300 Bedienungsanleitung

Samsung

Samsung DV9*M62 series Bedienungsanleitung

Samsung

Samsung SDC18809 Bedienungsanleitung

Samsung

Samsung DVG45R6100 Series Bedienungsanleitung

Samsung

Samsung DV431AEP/XAA Bedienungsanleitung

Samsung

Samsung DV1xR85 Series Bedienungsanleitung

Samsung

Samsung SDC1A809 Bedienungsanleitung

Samsung

Samsung FlexDry DVG60M9900 Bedienungsanleitung

Samsung

Samsung DV361EWBEWR/A3-0001 Bedienungsanleitung

Samsung

Samsung DV48J7700E(G) series Bedienungsanleitung

Samsung

Samsung DVG45R6300 Series Bedienungsanleitung

Samsung

Samsung DV5471AEW/XAA Bedienungsanleitung

Samsung

Samsung DV3C6BGW/XAA Bedienungsanleitung

Samsung

Samsung DVEG50T5300 Series Bedienungsanleitung

Samsung

Samsung DV520AEP/XAA Bedienungsanleitung

Samsung

Samsung DV22K6800 series Bedienungsanleitung

Samsung

Samsung DV22K6800 series Bedienungsanleitung

Samsung

Samsung DVE52M775 SERIES Bedienungsanleitung

Samsung

Samsung DV520AE-02836A-01 Bedienungsanleitung

Samsung

Samsung DV17B8710 Series Bedienungsanleitung

Samsung

Samsung DV431AE Series Bedienungsanleitung

Samsung

Samsung DV56H9000E Series Bedienungsanleitung

Samsung

Samsung DV419AES-02656B Bedienungsanleitung

Samsung

Samsung DV9 BB9 Series Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
