Samsung DV455 Series Bedienungsanleitung

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or contact

www.samsung.com/register

1-800-SAMSUNG (726-7864)

DV455*

This manual is made with 100% recycled paper.

DV455-02836F_EN.indd 1DV455-02836F_EN.indd 1 2012-03-21  1:24:302012-03-21  1:24:30

2_ Features

Features

• Extra Large Capacity

Ultra drying capabilities are at your ﬁngertips! Now you can dry extra-large loads. Our ultra

large 7.5 cu.ft. capacity dryer circulates more air through your clothes, drying them faster, for

a wrinkle-free result.

• Smart Control (Elec. Model Only)

Samsung’s innovative Smart Control technology enables you to control your dryer through

personal technology devices such as smart phones. You don’t have to be on standby until

the cycle ends. The Smart Control allows you to monitor the drying process and lets you

know when the cycle is complete.

• Smart Monitor(Gas Model Only)

Samsung’s innovative Smart Monitor technology enables you to monitor your dryer through

personal technologies such as smart phones. You don’t have to be on standby until the cycle

ends. Smart Monitor allows you to monitor the drying process and let you know when the

cycle is complete.

• Smart Care

Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses

problems at an early stage and provides a quick and easy solution. With the innovative Smart

Remote Control technology, you can also be alerted when the problem occurs via your smart

phones.

• Steam Cycle

This cycle sprays a small amount of water into the drum of the dryer after several minutes

of tumbling with heat. It reduces bad odors from clothing that are dicult to remove when

washing with water, and also reduces wrinkles.

• Sanitize Cycle

This cycle sanitizes garments by infusing high temperature heat deep into the fabric during

the drying cycle and eliminating 99.9% of certain bacteria. Use this cycle for clothing,

bedding, towels, or other items needing sanitization. The Sanitize cycle is certiﬁed by NSF

International, an independent third-party testing and certiﬁcation organization.

• Various Drying Cycles & Fuzzy Logic Algorithm

Simply turn the Jog Dial to select one of the 13 automatic drying cycles, including normal,

heavy duty and Bedding Plus, or let the Fuzzy Logic Control measure the degree of

dampness and automatically set the drying time. Precision drying has never been easier than

with Samsung.

• Vent Sensor

The Samsung dryer is equipped with a Vent Sensor which detects and notiﬁes you when it is

time to clean the ducts. Keep your dryer safe and ecient!

• Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in

less time... just 42 minutes! Giving you time for more important things in life.

NSF Protocol P154

Sanitization Performance of

Residential Clothes Dryers

DV455-02836F_EN.indd Sec9:2DV455-02836F_EN.indd Sec9:2 2012-03-21  1:24:542012-03-21  1:24:54

Features _3

• Energy Saving

Samsung dryers are super energy ecient. You can dry up to 3.31 pounds of laundry with

1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically

drying your clothes the most ecient way.

• Easy Reversible Door

Our dryers will ﬁt just about anywhere and without a door conﬂict. The direction of our easy

reversible door can be changed easily and quickly.

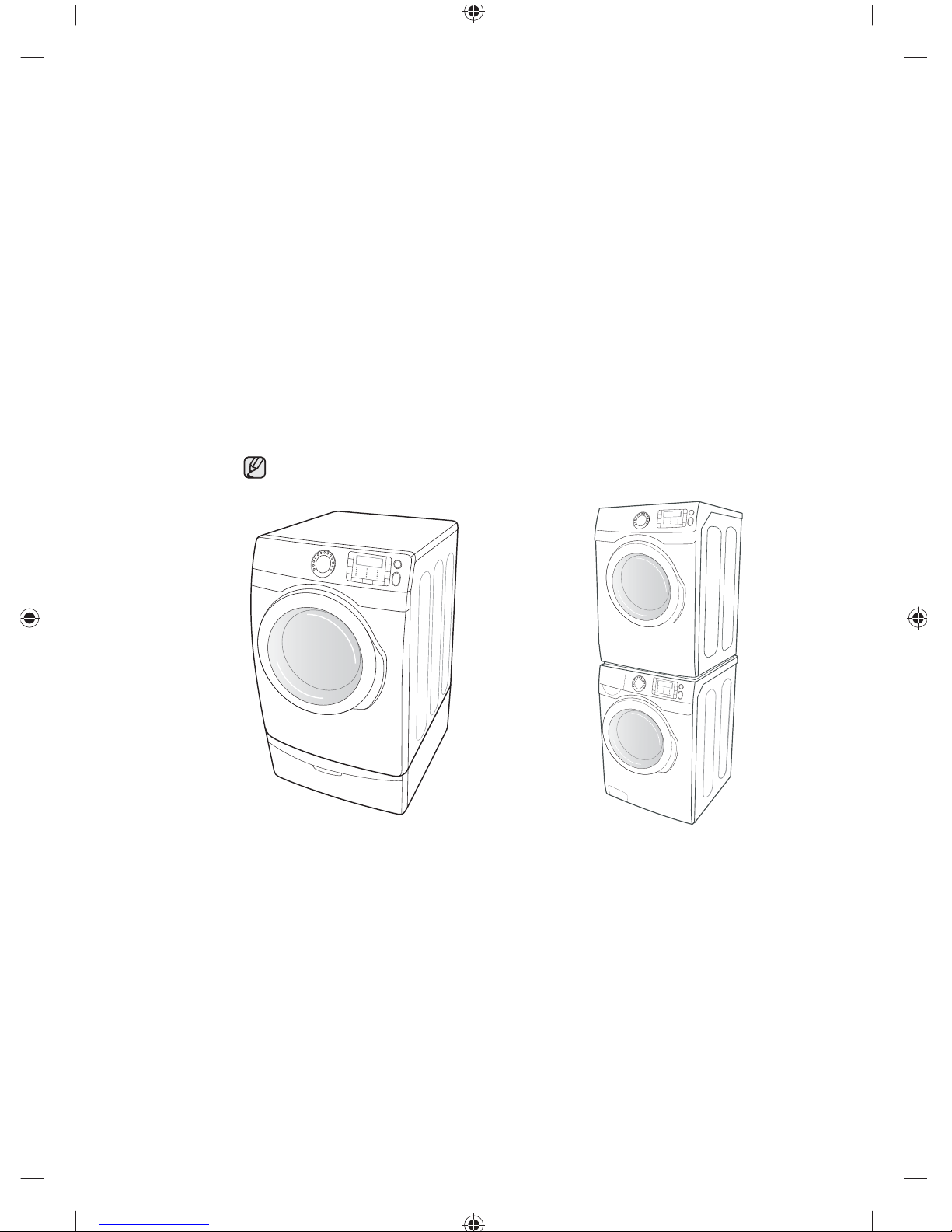

• Pedestal with Storage Drawers

An optional 15” pedestal is available to raise the dryer for easier loading and unloading. It also

oers a built-in storage drawer that can hold a 100 oz. bottle of detergent

• Stacking (MODEL NO: SK-5A/XAA)

Samsung’s Washer and Dryer can be stacked to maximize usable space.

The dryer legs need to be removed to stack the Washer and Dryer. You can purchase

an optional stacking kit from you Samsung retailer.

• 4-way Vent (electric model only : DV455*)

You can install the exhaust vent in the following four (4) positions: back, either side, bottom.

DV455-02836F_EN.indd Sec9:3DV455-02836F_EN.indd Sec9:3 2012-03-21  1:24:542012-03-21  1:24:54

4_ Safety instructions

SAVE THESE INSTRUCTIONS

Safety instructions

Congratulations on your new Samsung Dryer. This manual contains important

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many beneﬁts and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to safely and eciently operate the

extensive features and functions of your new appliance and keep it in a safe place near the appliance

for your future reference. Use this appliance only for its intended purpose as described in this instruction

manual. The Warnings and Important Safety Instructions in this manual do not cover all possible conditions

and situations that may occur. It is your responsibility to use common sense, caution, and care when

installing, maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury,

death and/or property damage. Follow the information in this manual

to minimize the risk of ﬁre or explosion or to prevent property damage,

personal injury, or death.

Do not store or use gasoline or other ﬂammable vapors and liquids near

this or any other appliance.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

DV455-02836F_EN.indd Sec11:4DV455-02836F_EN.indd Sec11:4 2012-03-21  1:24:552012-03-21  1:24:55

Safety instructions _5

SAVE THESE INSTRUCTIONS

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualiﬁed installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with ﬂexible plastic venting materials. If ﬂexible metal (foil type) duct

is installed, it must be of a speciﬁc type identiﬁed by the appliance manufacturer as suitable for

use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and

trap lint. These conditions will obstruct clothes dryer airﬂow and increase the risk of ﬁre.

• To reduce the risk of severe injury or death, follow all installation instructions.

TO REDUCE THE RISK OF FIRE OR EXPLOSION:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ﬂammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or ﬂammable liquids or solids should not be placed in the dryer until all traces of

these ﬂammable liquids or solids and their fumes have been removed.

There are many highly ﬂammable items used in homes, such as acetone, denatured alcohol,

gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,

and wax removers

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like

materials must not be dried on a heat setting. Heated foam rubber materials can, under

certain circumstances, produce ﬁre by spontaneous combustion.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

• Installation and service must be performed by a qualiﬁed installer, service agency, or the gas

supplier.

WARNING

DV455-02836F_EN.indd Sec11:5DV455-02836F_EN.indd Sec11:5 2012-03-21  1:24:552012-03-21  1:24:55

6_ Safety instructions

SAVE THESE INSTRUCTIONS

Safety instructions

WARNING

1. To reduce the risk of ﬁre, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following:

2. Read all instructions before using this appliance.

3. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other ﬂammable or explosive substances, because

they give o vapors that could ignite or explode.

4. Do not use the dryer to dry clothes which have traces of any ﬂammable substance, such

as vegetable oil, cooking oil, machine oil, ﬂammable chemicals, thinner, etc., or anything

containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may

cause the fabric to catch ﬁre by itself.

5. Do not store or use gasoline or other ﬂammable vapors and liquids near this or any other

appliance.

6. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

7. Before the appliance is removed from service or discarded, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

8. Do not reach into the appliance when the drum is moving.

9. Do not install or store this appliance where it will be exposed to the weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the appliance or attempt any servicing unless speciﬁcally

recommended in the user-maintenance instructions or published in the user-repair

instructions that you understand and have the skills to carry out.

12. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

13. Clean the lint screen before or after each load.

14. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

15. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

16. The interior of the dryer and exhaust duct should be cleaned periodically by qualiﬁed service

personnel.

17. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch ﬁre.

18. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in the

“Installing your dryer” section.

19. This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in compliance with local and national codes. Refer to

installation instructions for grounding this appliance.

WARNING

DV455-02836F_EN.indd Sec11:6DV455-02836F_EN.indd Sec11:6 2012-03-21  1:24:552012-03-21  1:24:55

Safety instructions _7

SAVE THESE INSTRUCTIONS

20. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e.

coins, knives, pins, etc. These objects could damage your dryer.

21. Gas leaks may occur in your system, resulting in a dangerous situation.

22. Gas leaks may not be detected by smell alone.

23. Gas suppliers recommend you purchase and install a UL-approved gas detector.

CAUTION

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change

speciﬁcations without notice. For complete details, see the Installation Instructions packed

with your product before selecting cabinetry, making cutouts, or beginning installation.

3. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

4. Install and use in accordance with the manufacturer’s instructions.

5. Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain signiﬁcant amounts of these

oils.

6. Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat

sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to

occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough

to catch ﬁre. Piling, stacking, or storing these kinds of items may prevent heat from escaping

and can create a ﬁre hazard.

7. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the

hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never

remove these items from the dryer hot or interrupt the drying cycle until the items have run

through the Cool Down cycle. Never pile or stack these items when they are hot.

8. Take care that children’s ﬁngers are not caught in the door when closing it. This may result in

injury.

CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT

ACT

This act requires the governor of California to publish a list of substances known to the state

to cause cancer, birth defects, or other reproductive harm and requires businesses to warn

customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon

monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural

gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances

can be minimized further by properly venting the dryer to the outdoors.

CAUTION

DV455-02836F_EN.indd Sec11:7DV455-02836F_EN.indd Sec11:7 2012-03-21  1:24:552012-03-21  1:24:55

8_ Safety instructions

SAVE THESE INSTRUCTIONS

Safety instructions

REGULATORY NOTICE

1. FCC Notice

FCC CAUTION:

Any changes or modiﬁcations not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that cause

undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection

of other channels is not possible.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a dierent circuit from that to which the receiver is

connected

• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20cm

between the radiator and your body. This device and its antenna(s) must not be co-located or

operation in conjunction with any other antenna or transmitter.

CAUTION

DV455-02836F_EN.indd Sec11:8DV455-02836F_EN.indd Sec11:8 2012-03-21  1:24:552012-03-21  1:24:55

Safety instructions _9

SAVE THESE INSTRUCTIONS

2. IC Notice

The term “IC” before the radio certiﬁcation number only signiﬁes that Industry Canada technical

speciﬁcations were met. Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection

of other channels is not possible.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body. This device and its antenna(s) must not be co-located or

operation in conjunction with any other antenna or transmitter.

DV455-02836F_EN.indd Sec11:9DV455-02836F_EN.indd Sec11:9 2012-03-21  1:24:552012-03-21  1:24:55

10_ contents

contents

INSTALLING YOUR DRYER

12 12 Unpacking your dryer

12 See exhaust requirements

13 Basic requirements

13 Ducting requirements

14 Important to installer

15 Location considerations

15 Alcove or closet installations

17 Mobile home installations

17 Exhausting

18 Gas requirements

18 Commonwealth of massachusetts

installation instructions

19 Electrical requirements

19 Grounding

20 Electrical connections

21 Connecting the inlet hose

23 Replacement parts and accessories

23 Installation

26 Final installation checklist

26 Dryer exhaust tips

27 Door Reversal

OPERATING INSTRUCTIONS, TIPS

29 29 Overview of the control panel

34 Rack Dry

35 Vent Sensor

36 SETTING THE SMART CONTROL, THE

SMART MONITORING

38 Downloading and running the mobile app,

samsung Smart Washer/Dryer app

39 Using the mobile App

43 Clean the lint ﬁlter

43 Load the dryer properly

43 Getting started

44 Quick guide for Wi-Fi setting and AP

connecting

45 Quick guide for device certiﬁcation

DV455-02836F_EN.indd Sec2:10DV455-02836F_EN.indd Sec2:10 2012-03-21  1:24:552012-03-21  1:24:55

Andere Handbücher für DV455 Series

Inhaltsverzeichnis

Sprachen:

Andere Samsung Trockner Handbücher

Samsung

Samsung DV665J Series Bedienungsanleitung

Samsung

Samsung DV350AEP Bedienungsanleitung

Samsung

Samsung DVG53BB8900 Series Bedienungsanleitung

Samsung

Samsung DVG50R8500 Series Bedienungsanleitung

Samsung

Samsung DV431AE Series Bedienungsanleitung

Samsung

Samsung DV210A Series DV220A Series Bedienungsanleitung

Samsung

Samsung DVG54M8750W Bedienungsanleitung

Samsung

Samsung DVEG45T3400 Series Bedienungsanleitung

Samsung

Samsung DC68-02836B Bedienungsanleitung

Samsung

Samsung DV40J3000EW Bedienungsanleitung

Samsung

Samsung DVE50T7450 Series Bedienungsanleitung

Samsung

Samsung DV435 SERIES Bedienungsanleitung

Samsung

Samsung DVE52B7650 Series Bedienungsanleitung

Samsung

Samsung DV435ETGJWR/A1 Bedienungsanleitung

Samsung

Samsung DV365ETBGWR/A3 Bedienungsanleitung

Samsung

Samsung DVG50R5400 Series Bedienungsanleitung

Samsung

Samsung DVEG53BB8900 Series Bedienungsanleitung

Samsung

Samsung DVE45T3400P Bedienungsanleitung

Samsung

Samsung FlexDry DVG60M9900V/A3-01 Bedienungsanleitung

Samsung

Samsung DV419AEU/XAA Bedienungsanleitung

Samsung

Samsung DVG50M7450P/A3-00 Bedienungsanleitung

Samsung

Samsung M9900 Installationsanleitung

Samsung

Samsung DV5471A Series Bedienungsanleitung

Samsung

Samsung DV316BEW Benutzerhandbuch

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
