Samsung SH-D163B Bedienungsanleitung
Samsung's OMS (Optical Media Solution) Customer Support Website
(Http://samsung-ODD.com) offers the latest versions of firmware for ODD products,
user instructions and product information. Select Model
SH-D163B(TS-H353B)
Select Languages
English
Select Model
SH-D163B(TS-H353B)
Main Pa
g
e
Safet
y
Precautions
Notational
Installation
While Operating
Other
RoHS & WEEE
Usin
g
the Drive
Using the DVD-ROM Drive
Storing and Cleaning Your Discs
Upgrading the Firmware Flash Memory
System Requirements
Introduction
Front
Rear
Troubleshootin
g
Solving Technical Problems
Setup
Installing the DVD-ROM Drive
Connecting the Cables
Installing the Device Driver
Setting Up the Device Driver
Specifications
Select Languages
English
Select Model
SH-D163B(TS-H353B)
Warning / Caution
Warning : This symbol indicates explanations about extremely dangerous matters.
If users ignore this symbol and handle the device the wrong way, serious injury or death could
result.
Caution : This symbol indicates explanations about dangerous matters.
If users ignore this symbol and handle the device the wrong way, damage to home or property
could result.
Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited
Important to read and understand at all times
Do not disassemble
Any change or modification not expressly approved by designated qualified personnel could void your
authority to operate this device.
Always make sure that the disc does not have a crack before use. If the disc has a crack (especially
around the center hole), it is recommended to make a copy immediately and use the copy instead.
When a cracked disc is used continuously, the size of the crack is likely to grow and this will eventually
result in irreparable damage to the disc.
Important to read and understand at all times.
Select Languages
English
Select Model
SH-D163B(TS-H353B)
Place the drive on a level surface.
-Failure to do so may cause the device to fall onto a hard surface,
resulting in damage or malfunction.
Do not place the drive in direct sunlight.
A
void low- or high-temperature environments.
A
void high-humidity environments.
Select Languages
English
Select Model
SH-D163B(TS-H353B)
Handle with caution to prevent damage from external shock.
Do not drop the drive, and protect it fromsevere shocks.
- It can damage the drive or cause it to malfunction.
Do not move the drive while in operation and do not attempt to open
the disc tray byforce.
Make sure to close all working programs before attempting to open the
tray and always usethe open/close button.
- Do not insert a pin into the emergency opening while in operation.
Do not use cracked, distorted or damaged discs.
- In particular, a disc with a crack on the inner tracks may break while in
use.
Select Languages
English
Select Model
SH-D163B(TS-H353B)
Never allow food particles or foreign substances to enter the drive
casing.
To protect against the risk of fire, do ot spill such liquids as
alcohol and benzene on the drive.
Do not disassemble, attempt to repair or modify the device
without express approval as directed in the manual.
- To reduce the risk of damage, electric shock, and fire,
Select Languages
English
Samsung Eco-mark
The Samsung’s own Eco mark helps
consumers to easily understand that
Samsung develops eco-friendly
products. This mark represents
Samsung’s continuous effort to develop
eco-friendly products.
RoHS (Restriction of the use of certain hazardous substances in electrical and electronic equipment)The
RoHS, the environment regulation announced by European Union, restricts the use of lead, mercury,
cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in The European Union
after July 1, 2006. .
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Select Languages
English
Select Model
SH-D163B(TS-H353B)

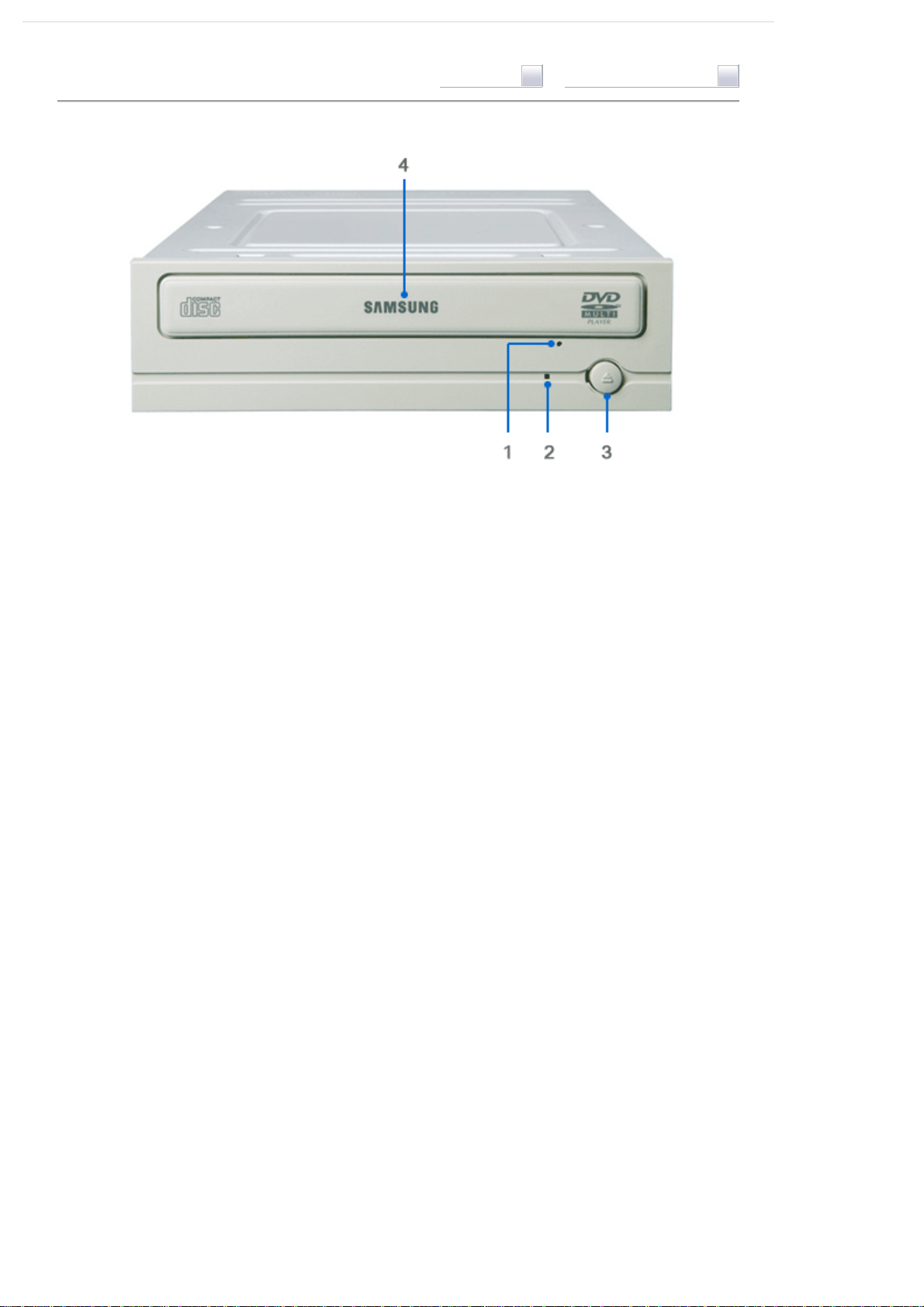

1. Emergency eject hole. (if the compartment does not open when you press the Eject button, power off the
computer, insert a pin or unfolded paper clip in the hole and push firmly)
2. Indicator Light. (When it is green, a disc is being read.)
3. Eject button.
4. Disc compartment. (the compartment opens and closes automatically when you press the Eject button)
Select Languages
English
Select Model
SH-D163B(TS-H353B)

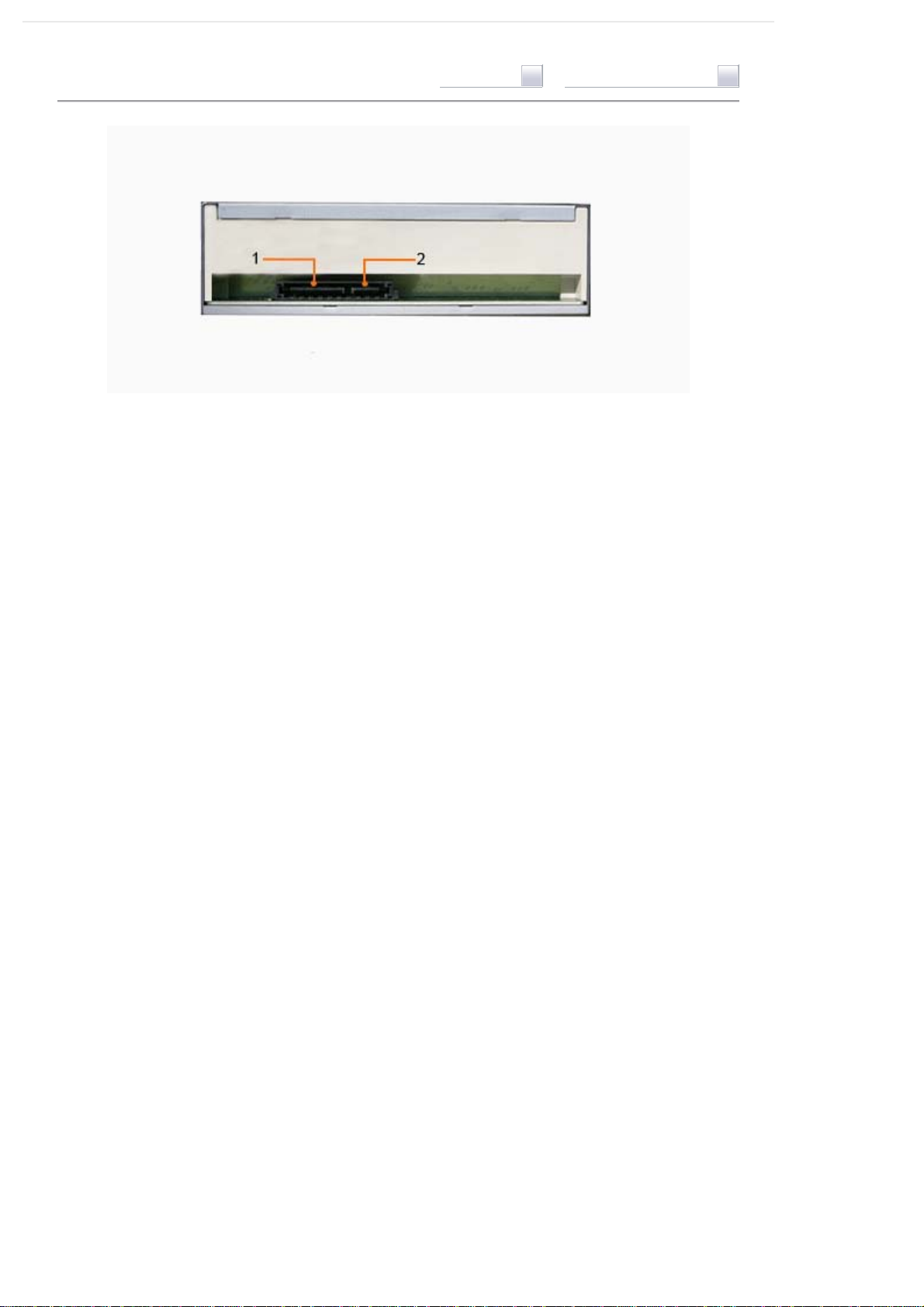

1. S-ATA Power Port 2. S-ATA Data Port
Select Languages
English
Select Model
SH-D163B(TS-H353B)
To install your DVD-ROM Drive in the PC, proceed as follows.
Installing the DVD-ROM Drive
Make sure that the PC is powered off and disconnected from any power source.
If necessary, attach a horizontal bracket to both sides of the drive.
Remove the cover from a free expansion slot and install the DVD-ROM drive, as shown in the
illustration.
