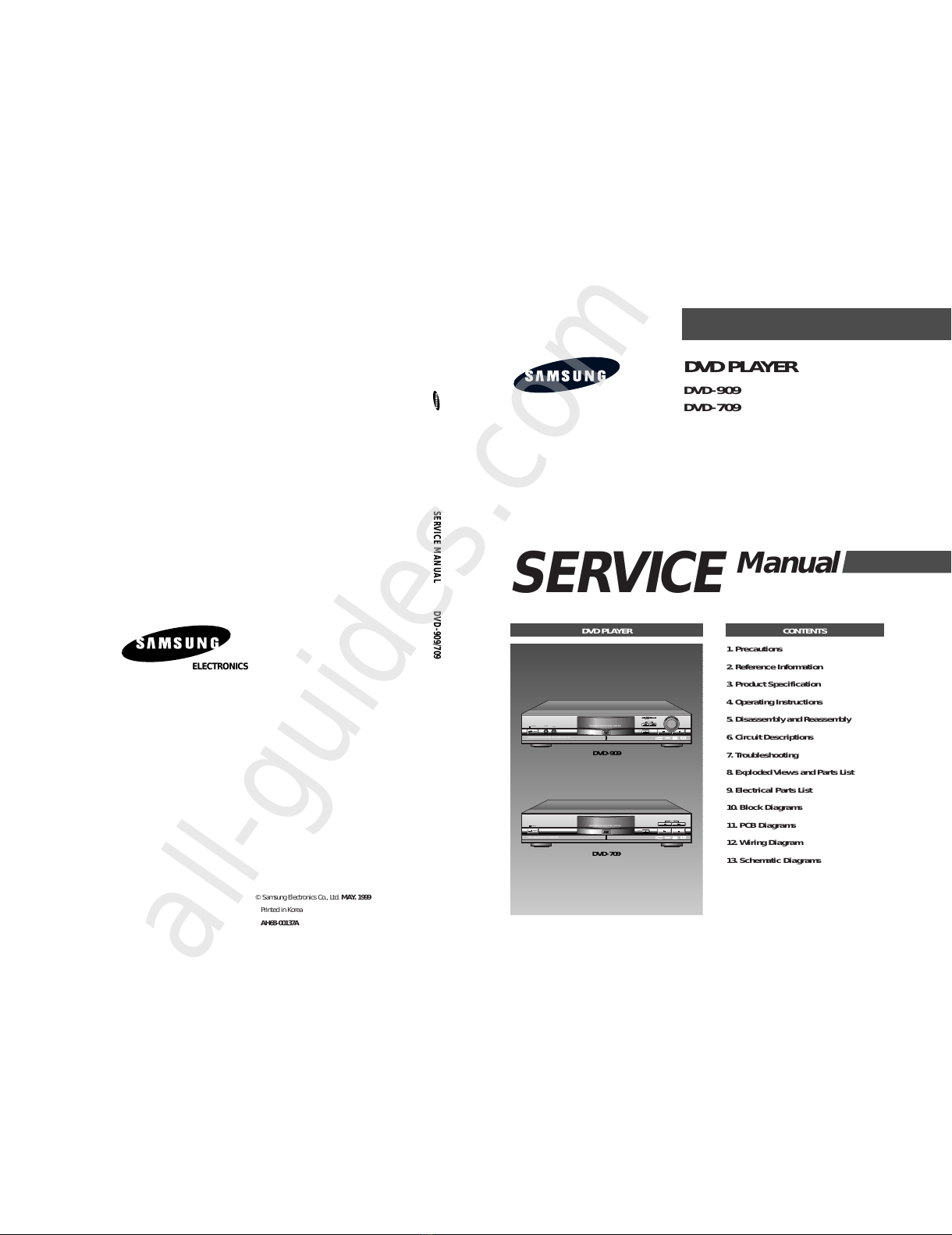

Samsung DVD-909 Bedienungsanleitung

DVD PLAYER

DVD-

909

DVD-

709

SERVICE

1. Precautions

2. Reference Information

3. Product Specification

4. Operating Instructions

5. Disassembly and Reassembly

6. Circuit Descriptions

7. Troubleshooting

8. Exploded Views and Parts List

9. Electrical Parts List

10. Block Diagrams

11. PCB Diagrams

12. Wiring Diagram

13. Schematic Diagrams

Manual

DVD PLAYER CONTENTS

SERVICE MANUAL DVD-909/709

OPEN/

POWER

STANDBY PHONE

ADVANCED DOLBY DIGITAL DECORDER BUILT-IN

LEVEL

SKIP

MIN MAX

OPEN/

DIGITALVIDEO

SPATIALIZER

N-2-2

OPEN/

STANDBY

OPEN/

24bit 96kHz AUDIO D/A CONVERTER

DIGITALVIDEO

SPATIALIZER

N-2-2

DVD/VIDEO-CD/CD PLAYER DVD-909

DVD/VIDEO-CD/CD PLAYER DVD-709

POWER

SKIP

DVD-709

DVD-909

ELECTRONICS

Printed in Korea

AH68-00137A

All manuals and user guides at all-guides.com

all-guides.com

Samsung Electronics 13-1

13. Schematic Diagrams

13-2

13-3

13-4

13-5

13-6

13-7

13-8

13-9

13-10

13-11

13-12

13-13

13-14

13-15

13-16

13-17

13-18

13-1 S.M.P.S. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-2 Main Power Supply - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-3 Main Micom - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-4 Servo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-5 Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-6 Audio- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-7 5.1 Channel Audio (DVD-909 Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-8 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-9 ZiVA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-10 DSP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-11 Front Micom/VFD Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-12 Component (DVD-909 NTSC Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-13 Scart Jack (DVD-909 PAL Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-14 Mute - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-15 Play & Phone/Power (DVD-909 Only) - - - - - - - - - - - - - - - - - - - - - - - - - -

13-16 Play & Power (DVD-709 Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-17 Deck - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

13-18 Remote Control - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Block Identification of PCB

Main PCB (Component Side)

Jack PCB (Conductor Side)

All manuals and user guides at all-guides.com

Schematic Diagrams

13-2 Samsung Electronics

13-1 S.M.P.S.

All manuals and user guides at all-guides.com

Schematic Diagrams

Samsung Electronics 13-3

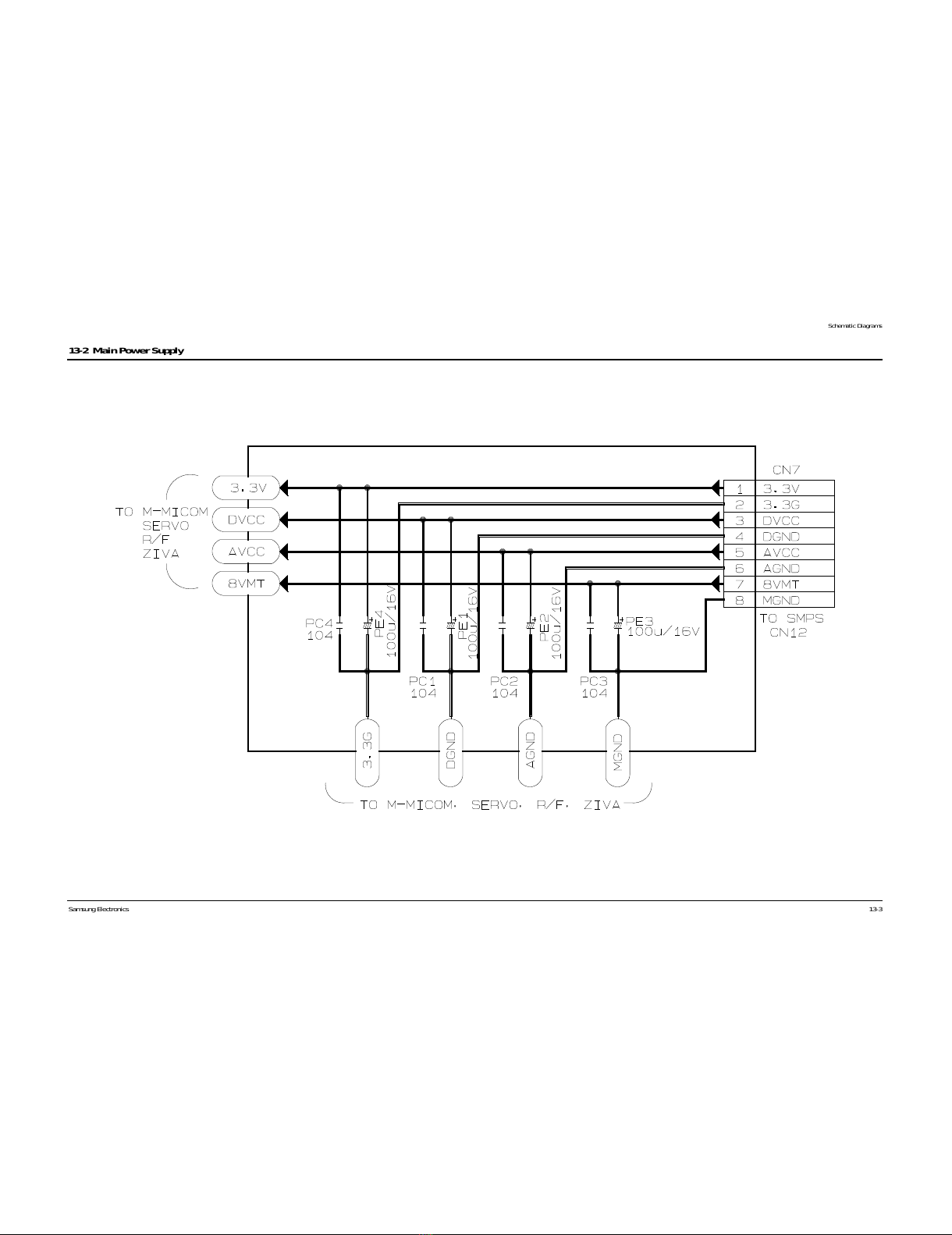

13-2 Main Power Supply

All manuals and user guides at all-guides.com

Schematic Diagrams

13-4 Samsung Electronics

13-3 Main Micom

All manuals and user guides at all-guides.com

Schematic Diagrams

Samsung Electronics 13-5

13-4 Servo

All manuals and user guides at all-guides.com

all-guides.com

Schematic Diagrams

13-6 Samsung Electronics

(DVD-909 OPTION)

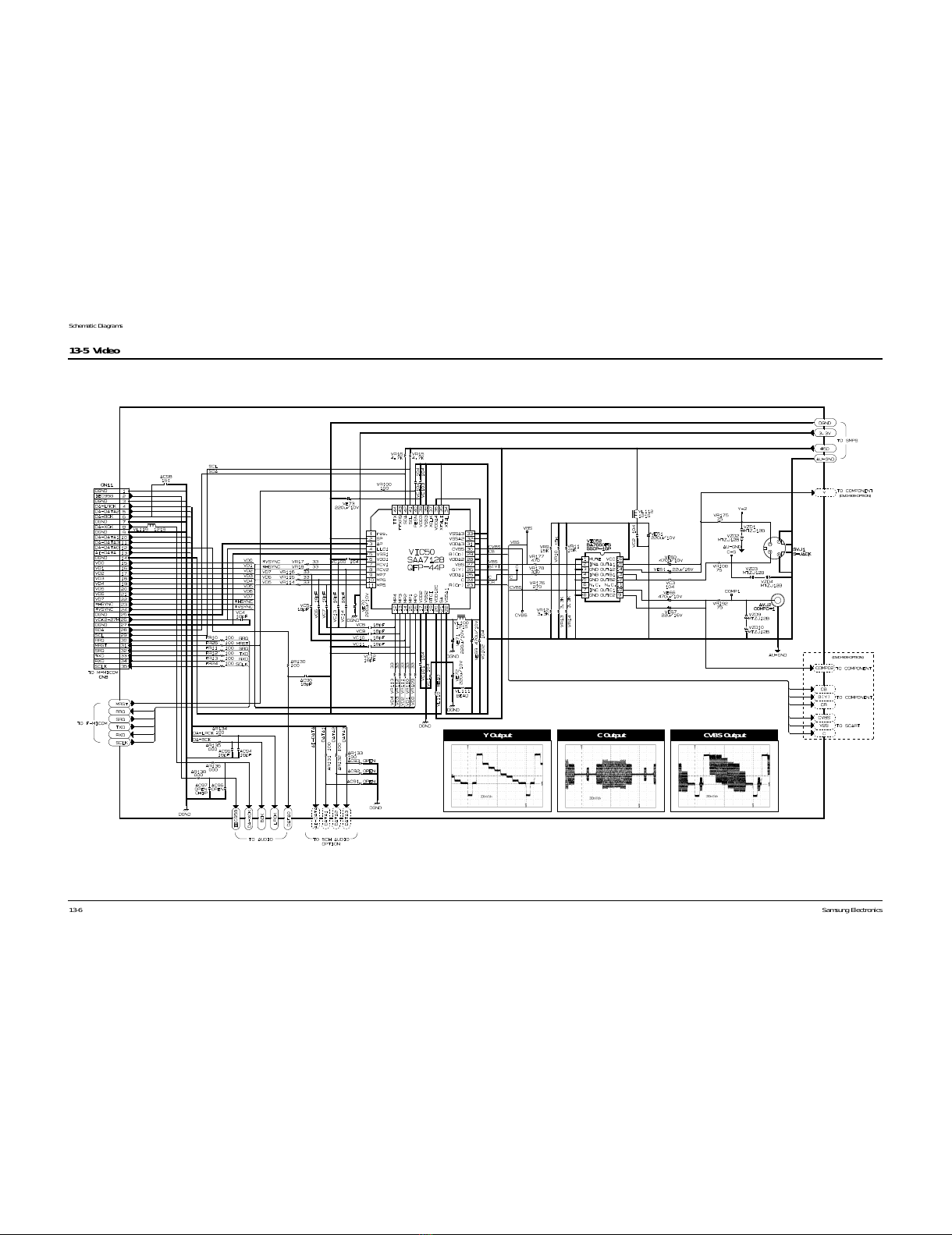

13-5 Video

Y Output C Output CVBS Output

All manuals and user guides at all-guides.com

Schematic Diagrams

Samsung Electronics 13-7

(DVD-909 OPTION)

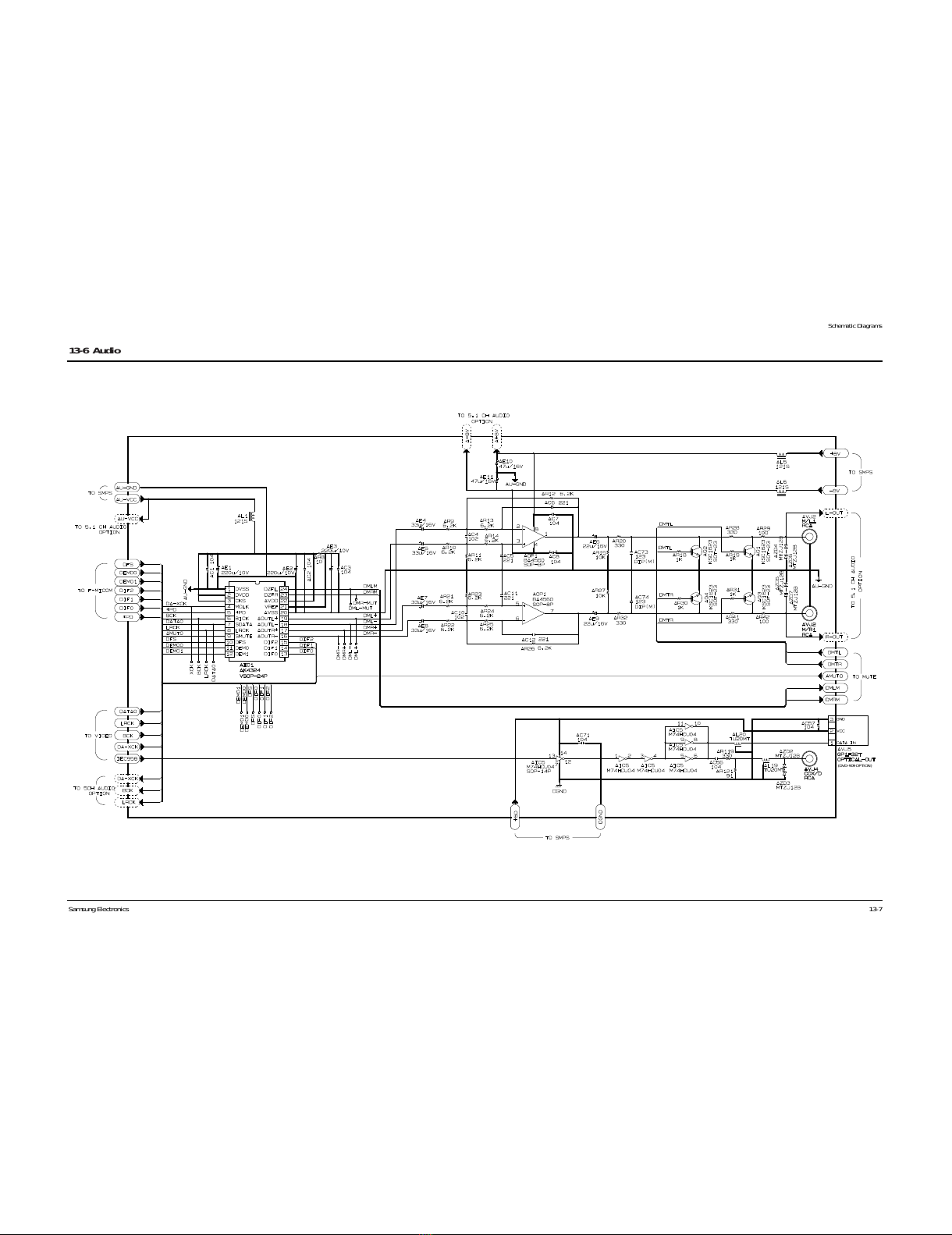

13-6 Audio

All manuals and user guides at all-guides.com

Schematic Diagrams

13-8 Samsung Electronics

13-7 5.1 Channel Audio (DVD-909 Only)

All manuals and user guides at all-guides.com

Schematic Diagrams

Samsung Electronics 13-9

13-8 RF

All manuals and user guides at all-guides.com
