Samsung 6 series Bedienungsanleitung

LCD TV

quick start guide

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/global/register

English - 1

Connections

Connect an HDMI Cable (Not supplied) between the HDMI IN (1, 2, 3 or 4) jack on the TV and the HDMI jack on

the Cable Box/Satellite receiver (Set-Top Box).

No additional Audio connection is needed for an HDMI to HDMI connection.

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA HDMI

Caution

● When connecting an external device, match the colour of the connection terminal to the cable.

● The product colour and shape may vary depending on the model.

● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel conguration.

● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

TV SIDE PANEL

English - 2

CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA DVI

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

Connect an HDMI Cable (Not supplied) between the HDMI IN 2 jack on the TV and the HDMI jack on the Cable

Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the Cable

Box/Satellite receiver (Set-Top Box).

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN2 jack.

English - 3

CONNECTINg A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

TV REAR PANEL

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

Connect a Component Cable (Not supplied) between the COMPONENT IN (1 or 2)[Y, PB, PR ]jacks on the TV

and the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the COMPONENT IN (1 or 2)[R-AUDIO-L] jacks on the TV and the

AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

English - 4

Memorizing the Channels

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you

must specify the type of signal source that is connected to the TV (i.e. an Air

or a Cable system).

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER

button.

Press the ENTER button to select “Antenna”.

Press the ▲ or ▼ button to select “Air” or “Cable”, then press the

ENTER button.

Press the EXIT button to exit.

Storing Channels in Memory (Automatic Method)

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER

button.

Press the ▲ or ▼ button to select “Auto Program”, then press the

ENTER button.

If a channel is locked using the “Child Lock” function, the PIN input window

appears.

Press the ▲ or ▼ button to select the antenna connection, then press

the ENTER button.

Air: “Air” antenna signal.

Cable: “Cable” antenna signal.

Air+Cable: “Air” and “Cable” antenna signals.

If the antenna is connected to ANT 1 IN (AIR), select “Air” and if it is connected to ANT 2 IN (CABLE), select “Cable”.

If both ANT 1 IN (AIR) and ANT 2 IN (CABLE) are connected, select the “Air+Cable”.

The TV begins memorizing all available stations.

When pressing the ENTER button during a storing process, the message “Would you like to stop the auto channel

selection?” is displayed. Select “Yes” by pressing the ◄ or ► button.

After all the available channels are stored, the “Auto Program” menu reappears.

Press the EXIT button to exit.

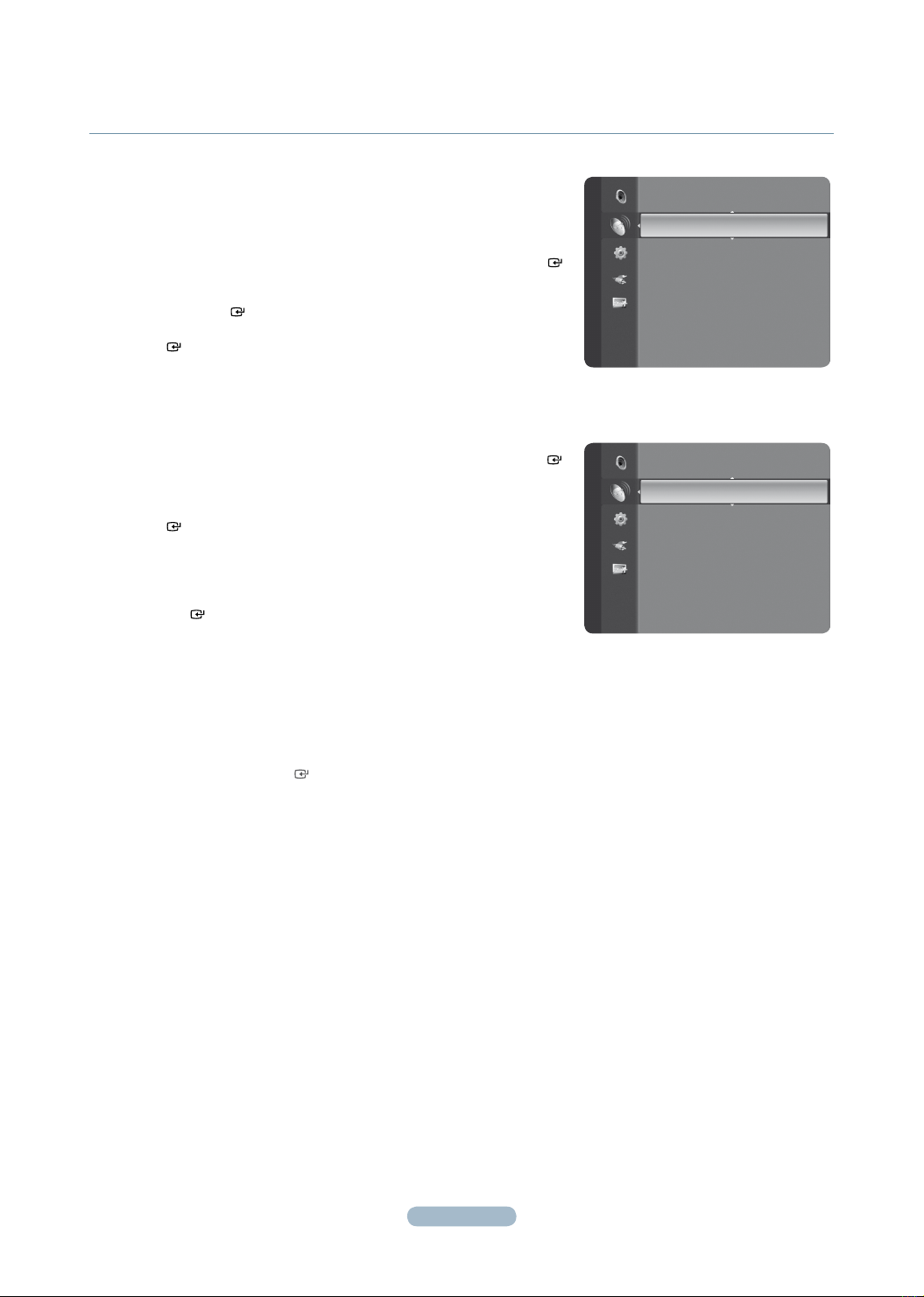

Antenna : Air 

Auto Program

Full guide

Mini guide

Default guide : Mini guide

Channel List

Fine Tune

Signal strength

Channel

Antenna : Air

Auto Program 

Full guide

Mini guide

Default guide : Mini guide

Channel List

Fine Tune

Signal strength

LNA : On

Channel

English - 5

Troubleshooting

My TV is out of order. Why? Try this.

TV HD is displayed, but

the visual quality is not

good.

• The visual quality may be degraded

when the broadcasting stations convert

the analog signal to digital. (Although

you are watching digital broadcasting,

the video source is analog.)

• Check the transmitting signal of the

corresponding cable TV network or

broadcasting station.

The picture on the

TV screen is broken

intermittently (a mosaic or

distorted).

• This may occur when the broadcast

signal received by the TV is too weak

or unstable.

• Check the transmitting signal of the

corresponding cable TV network or

broadcasting station.

• If you are using a publically shared

antenna, check the signal by asking

your apartment manager.

I cannot control the TV

using the remote control.

• When the battery is at.

• When it is not in TV mode.

• When the remote control malfunctions

temporarily.

• Replace the battery and then retry.

• Press the TV button on the remote

control to select TV mode.

A strange sound is

generated by the TV.

• Sound may be generated by the

temporary swelling and shrinking of the

plastics in the TV due to temperature

and humidity changes.

• Temporary electronic oscillation

sounds may be generated due to the

characteristics of the TV

• Some noise can be heard due to the

characteristics of the product.
