Samsung LA32C530 Bedienungsanleitung

LCD TV

quick start guide

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please

www.samsung.com/global/register

(530ASIA)_CMS.indd i(530ASIA)_CMS.indd i 2010-05-12  8:03:592010-05-12  8:03:59

connections

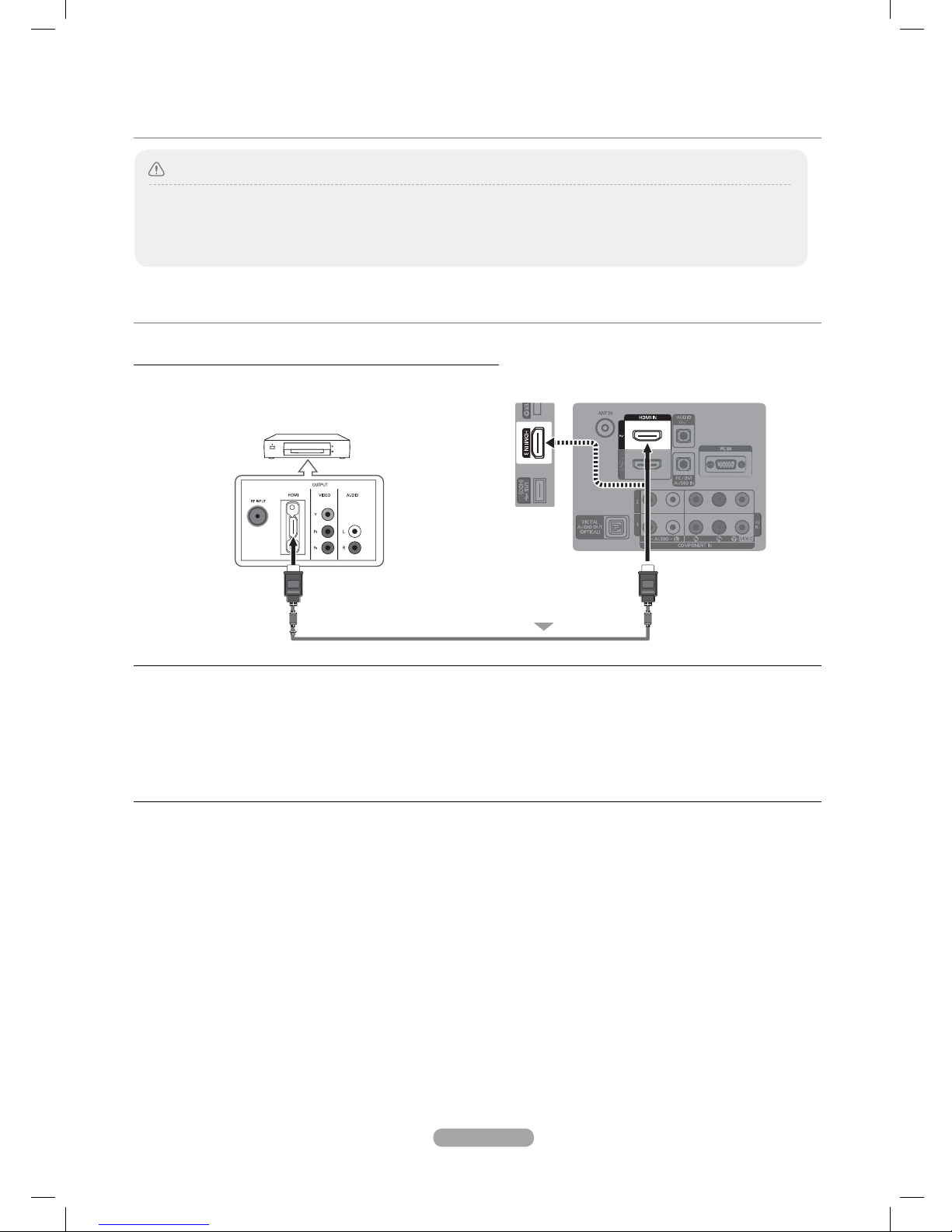

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA HDMI

●When connecting an external device, match the colour of the connection terminal to the cable.

●The product colour and shape may vary depending on the model.

●Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel conﬁguration.

●Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

Caution

Connect an HDMI Cable(Not supplied) between the HDMI IN (1or 2(DVI)) jack on the TV and the HDMI jack on

the Cable Box/Satellite receiver (Set-Top Box).

➢

No additional Audio connection is needed for an HDMI to HDMI connection.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) jack.

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

LA32C530 / LA32C531 / LA37C530 / LA40C530 / LA40C531/ LA46C530

HDMI Cable (Not supplied)

TV REAR PANELTV SIDE PANEL

(530ASIA)_CMS.indd 1(530ASIA)_CMS.indd 1 2010-05-12  8:04:032010-05-12  8:04:03

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA DVI

Connect an HDMI Cable(Not supplied) between the HDMI IN 2(DVI) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the DVI AUDIO IN jack on the TV and the Cable Box/Satellite

receiver (Set-Top Box).

➢

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 2 jack.

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV REAR PANEL

Audio Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

LA32C530 / LA32C531 / LA37C530 / LA40C530 / LA40C531/ LA46C530

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

Connect a Component Cable(Not supplied) between the COMPONENT IN 1, 2 [Y, PB, PR] jacks on the TV and the

COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the COMPONENT IN 1, 2 [R-AUDIO-L] jacks on the TV and the AUDIO

OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Audio Cable (Not supplied)

Component Cable (Not supplied)

LA32C530 / LA32C531 / LA37C530 / LA40C530 / LA40C531/ LA46C530

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV REAR PANEL

(530ASIA)_CMS.indd 2(530ASIA)_CMS.indd 2 2010-05-12  8:04:032010-05-12  8:04:03

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

The access step may differ depending on the selected menu.

OOLS

INF

RETURN

CHLIST

EXIT

MEDIA.P

HDMI

1 MENU button: Displays the main on-screen

menu.

2ENTERE/ Direction button: Move the cursor

and select an item. Conﬁrm the setting.

3RETURN button: Returns to the previous menu.

4EXIT button: Exits the on-screen menu.

HOW TO OPERATE THE OSD (ON SCREEN DISPLAY)

1MENU

The main menu options appears on

the screen:

Picture, Sound, Channel, Setup,

Input

2▲/ ▼Select an icon with the ▲or ▼

button.

3ENTER

Press ENTER

to access the sub-

menu.

4▲/ ▼Select the desired submenu with the

▲or ▼button.

5◄/ ►

Adjust the value of an item with the

◄or ►button. The adjustment in

the OSD may differ depending on the

selected menu.

6ENTER

Press ENTER

to complete the

conﬁguration.

7EXIT

Press EXIT.

(530ASIA)_CMS.indd 3(530ASIA)_CMS.indd 3 2010-05-12  8:04:042010-05-12  8:04:04

CMS

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

AUSTRALIA 1300 362 603 www.samsung.com

BAHRAIN 8000-4726

CHINA 400-810-5858

010-6475 1880 www.samsung.com

HONG KONG (852) 3698-4698 www.samsung.com/hk

www.samsung.com/hk_en/

INDIA

3030 8282

1800 110011

1800 3000 8282

1800 266 8282

www.samsung.com

INDONESIA 0800-112-8888

021-5699-7777 www.samsung.com

JAPAN 0120-327-527 www.samsung.com

JORDAN 800-22273

MALAYSIA 1800-88-9999 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

PHILIPPINES

1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

www.samsung.com

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com

SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

THAILAND 1800-29-3232

02-689-3232 www.samsung.com

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com
