Samsung LCD TV LE22S8 Bedienungsanleitung

LCD TV

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/global/register

Model Serial No.

BN68-01569H-00

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care centre.

Country Customer Care Centre

AUSTRIA 800-112233

FINLAND 0771-400002

FRANCE 0825-022062

GERMANY 01805-471101

HUNGARY 0640-985985

ITALIA 800-194194

NETHERLANDS 015-2197000

POLAND 0-801-B2BSAM (222726)

PORTUGAL 808-B2BSAM

SPAIN 0902024-010

UNITED KINGDOM 0870-2416893

LE22S8

01569H-00L07-0523.indb 1 2008-05-23 ¿ÀÈÄ 5:14:24

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and

center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may

cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

01569H-00L07-0523.indb 2 2008-05-23 ¿ÀÈÄ 5:14:24

English

English - 1

Contents

CONNECTING AND PREPARING YOUR TV

List of Parts ·············································································································································2

Installing the Stand··································································································································2

Installing the Wall Mount Kit ····················································································································2

Viewing the Control Panel ·······················································································································3

Viewing the Connection Panel·················································································································4

Viewing the Remote Control····················································································································6



Symbol Note

01569H-00L07-0523.indb 1 2008-05-23 ¿ÀÈÄ 5:14:24

English - 2

List of Parts

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.



Owner’s Instructions



Safety Guide

The stand and stand screw may not be included depending on the model.

Installing the Stand

1. Connect your LCD TV and the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling them.

2. Fasten two screws at position 1and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed

down, it may lean to one side.

The stand is installed for models with the screen size of 37 inch and above.

➣

Wall mount items (sold separately) allow you to mount the TV on

the wall.

For detailed information on installing the wall mount, see the

instructions provided with the Wall Mount items. Contact a

technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the

product or injury to yourself or others if you elect to install the TV on

your own.

Do not install your Wall Mount Kit while your TV is turned

on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and

fasten with two screws.

➣

Installing the Wall Mount Kit

M4 X L16

Data Cable Power Cord

Stand Screw X4

Stand Remote Control &

Batteries

(AAA x 2)

M4 X L16

01569H-00L07-0523.indb 2 2008-05-23 ¿ÀÈÄ 5:14:25

English - 3

Viewing the Control Panel

1 SOURCE

Toggles between all the available input

sources (TV, Ext., AV, S-Video, Component,

PC, HDMI). In the on-screen menu, use this

button as you use the ENTER button on

the remote control.

2 MENU

Press to see an on-screen menu of your TV’s

features.

Press to decrease or increase the volume.

In the on-screen menu, use the

buttons as you use the ◄ and ► buttons on

the remote control.

Press to change channels.

In the on-screen menu, use the

buttons as you use the

▲

and

▼

buttons on

the remote control.

(Without the Remote Control, you can turn on

the TV by using the Channel buttons.)

5 Speakers

6 (Power)

Press to turn the TV on and off.

Power Indicator

Blinks and turns off when the power is on and

lights up in stand-by mode.

Remote Control Sensor

Aim the remote control towards this spot on

the TV.

The product colour and shape may vary depending on the model.

01569H-00L07-0523.indb 3 2008-05-23 ¿ÀÈÄ 5:14:25

English - 4

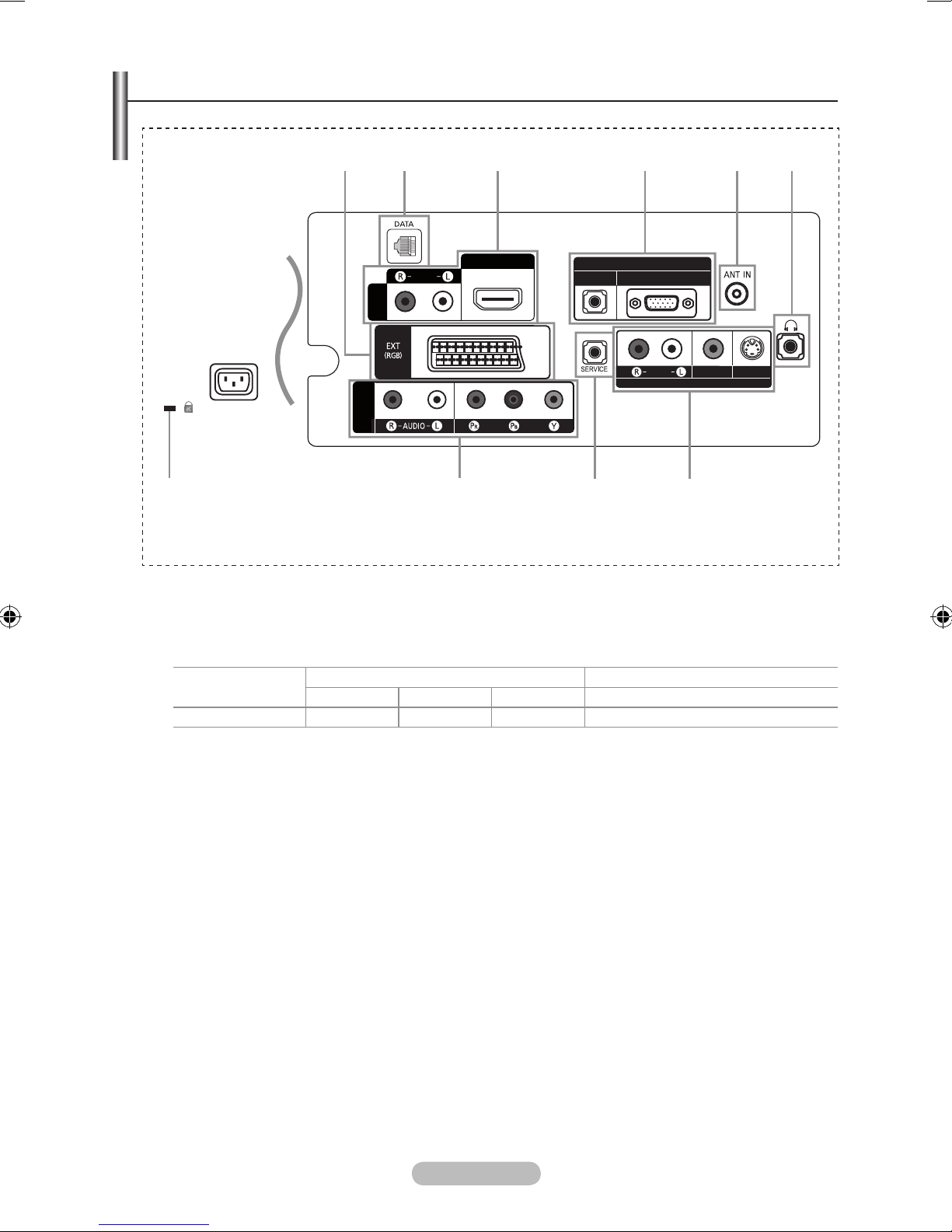

Viewing the Connection Panel

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

➣

1Connecting Set-Top Box, VCR or DVD

Connector Input Output

Video Audio (L/R) RGB Video + Audio (L/R)

EXT o o o Only TV output is available

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc

players.

2 DATA

Used to support data communication between the TV and the SBB.

The TV jack type is RJ-12.

3HDMI / DVI IN [R-AUDIO-L]

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD

players)

No additional Audio connection is needed for an HDMI to HDMI connection.

When using an HDMI/DVI cable connection, you must use the HDMI IN / DVI IN jack.

What is HDMI?

“High Denition Multimedia interface” allows the transmission of high denition digital video data

and multiple channels of digital audio.

The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable

(not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has

the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports

multi - channel digital audio.

4 PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

➣

The product colour and shape may vary depending on the model.

➣

AV IN

PC IN

DVI

HDMI/DVI IN

COMPONENT

AUDIO

VIDEO

AUDIO

S-VIDEO

Power

Input

2 54

61 3

01569H-00L07-0523.indb 4 2008-05-23 ¿ÀÈÄ 5:14:26

English - 5

5ANT IN

To view television channels correctly, a signal must be received by the set from one of the following

sources:

An outdoor aerial / A cable television network / A satellite network

6 Headphones jack

Headphone may be connected to the headphone output on your set. While the head phone is

connected, the sound from the built-in speakers will be disabled.

7Connecting External A/V Devices

Connect RCA or S-Video cable to an appropriate external A/V device such as VCR, DVD or

Camcorder.

Connect RCA audio cables to [R-AUDIO-L] on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

8SERVICE

Service connection for qualied service engineer.

9COMPONENT IN

Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of

your set and the other ends to corresponding component video out connectors on the DVD.

If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD

and connect the DVD to component connector ("PR", "PB", "Y") on your set.

The PR, PBand Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and

R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to [R-AUDIO-L] on the rear of your set and the other ends to

corresponding audio out connectors on the DVD.

0 Kensington Lock (depending on the model)

The Kensington Lock (optional) is a device used to physically x the system when used in a public

place.

If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the kensington Lock may be different depending on its model.

01569H-00L07-0523.indb 5 2008-05-23 ¿ÀÈÄ 5:14:26

English - 6

Viewing the Remote Control

TOOLS

P.SIZE

1 Television Standby button

2 Selects the TV mode directly

3 Number buttons for direct

channel access

One/Two-digit channel

selection

5 +: Volume increase

: Volume decrease

6 Temporary sound switch-off

7 Use to quickly select

frequently used functions.

8 Use to see information on

the current broadcast

9 Colour buttons :

Use these buttons in the

Channel list, etc.

! Displays the Channel List on

screen

@ Available source selection

# Previous channel

$ P: Next channel

P: Previous channel

%Returns to the previous

^ Control the cursor in the

& Exit the on-screen menu

* Picture size selection

( Displays the main on-screen

) Selects the HDMI mode

directly.

aPicture effect selection

Teletext Functions

2 Exit from the teletext display

7 Teletext size selection

8 Teletext reveal

9 Fastext topic selection

0 Alternately select Teletext,

Double, or Mix.

! Teletext store

@ Teletext mode selection

(LIST/FLOF)

# Teletext sub page

$P: Teletext next page

P: Teletext previous page

% Teletext hold

& Teletext cancel

( Teletext index

The performance of the remote control may be affected by bright

light.

➣

01569H-00L07-0523.indb 6 2008-05-23 ¿ÀÈÄ 5:14:26

This page is intentionally

left blank.

01569H-00L07-0523.indb 7 2008-05-23 ¿ÀÈÄ 5:14:26

Précautions à prendre lors de l’affichage d’une image fixe

Une image fixe peut causer des dommages irrémédiables à l’écran du téléviseur.

• N’affichez pas une image fixe sur l’écran LCD plus de 2 heures. Cela pourrait provoquer une rémanence de l’image à

l’écran. Cette rémanence de l’image est également appelée “brûlure de l’écran”.

Pour éviter une telle rémanence de l’image à l’écran, réduisez la luminosité et le contraste de l’écran lorsque vous laissez

une image fixe affichée.

•

Regarder l’écran LCD du téléviseur en format 4:3 pendant une longue période peut laisser des traces de

bordures à gauche, à droite et au centre de l’écran, à cause de la différence d’émission de lumière sur l’écran.

La lecture d’un DVD ou l’utilisation d’une console de jeu peut avoir un effet similaire sur l’écran. Les dommages

provoqués par les effets qui précèdent ne sont pas couverts par la garantie.

• L’affichage d’images fixes de jeux vidéo et d’ordinateurs pendant plus longtemps qu’une période spécifique peut

provoquer des rémanences. Pour éviter cela, réduisez la “luminosité” et le “contraste” lors de l’affichage d’images fixes.

01569H-00L07-0523.indb 8 2008-05-23 ¿ÀÈÄ 5:14:26

Inhaltsverzeichnis

Sprachen:

Andere Samsung LCD-Fernseher Handbücher

Samsung

Samsung PDP 8500 series Bedienungsanleitung

Samsung

Samsung LN32A32B Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Samsung

Samsung LW15E13C Bedienungsanleitung

Samsung

Samsung UA40K6300 Bedienungsanleitung

Samsung

Samsung 4050 Bedienungsanleitung

Samsung

Samsung LT-P2045U Bedienungsanleitung

Samsung

Samsung LN52C530F1F Bedienungsanleitung

Samsung

Samsung 690 Series Bedienungsanleitung

Samsung

Samsung LE32M87BD Bedienungsanleitung

Samsung

Samsung BN68-02540B-04 Bedienungsanleitung

Samsung

Samsung LN46A950D1F Bedienungsanleitung

Samsung

Samsung LCD TV Bedienungsanleitung

Samsung

Samsung LN-T375HA Bedienungsanleitung

Samsung

Samsung LE32M7 Bedienungsanleitung

Samsung

Samsung LN19C450E1D Bedienungsanleitung

Samsung

Samsung PN58C6400TF Bedienungsanleitung

Samsung

Samsung 6 series Bedienungsanleitung

Samsung

Samsung LN26R51B Bedienungsanleitung

Samsung

Samsung BN68-02756A-04 Bedienungsanleitung

Samsung

Samsung LCD TV Bedienungsanleitung

Samsung

Samsung LN-S2351W Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung LNS5797D Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Dell

Dell W1900 19 Gebrauchsanweisung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Bedienungsanleitung

Philips

Philips 40PFL7705D Bedienungsanleitung

Dynex

Dynex DX-40L261A12 Bedienungsanleitung

JVC

JVC LT-23C50BU Bedienungsanleitung
