Samsung LE32C678M1S Bedienungsanleitung

LCD TV

quick start guide

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please

www.samsung.com/global/register

(670EU)_CMS.indd i(670EU)_CMS.indd i 2010-05-25  5:40:102010-05-25  5:40:10

connections

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA HDMI

●When connecting an external device, match the colour of the connection terminal to the cable.

●The product colour and shape may vary depending on the model.

●Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel conﬁguration.

●Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

Caution

Connect an HDMI Cable(Not supplied) between the HDMI IN (1or 2(DVI)) jack on the TV and the HDMI jack on

the Cable Box/Satellite receiver (Set-Top Box).

➢

No additional Audio connection is needed for an HDMI to HDMI connection.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) jack.

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

LE32C670 / LE37C670 / LE40C670 / LE46C670 / LE55C670

HDMI Cable (Not supplied)

TV REAR PANELTV SIDE PANEL

(670EU)_CMS.indd 1(670EU)_CMS.indd 1 2010-05-25  5:40:172010-05-25  5:40:17

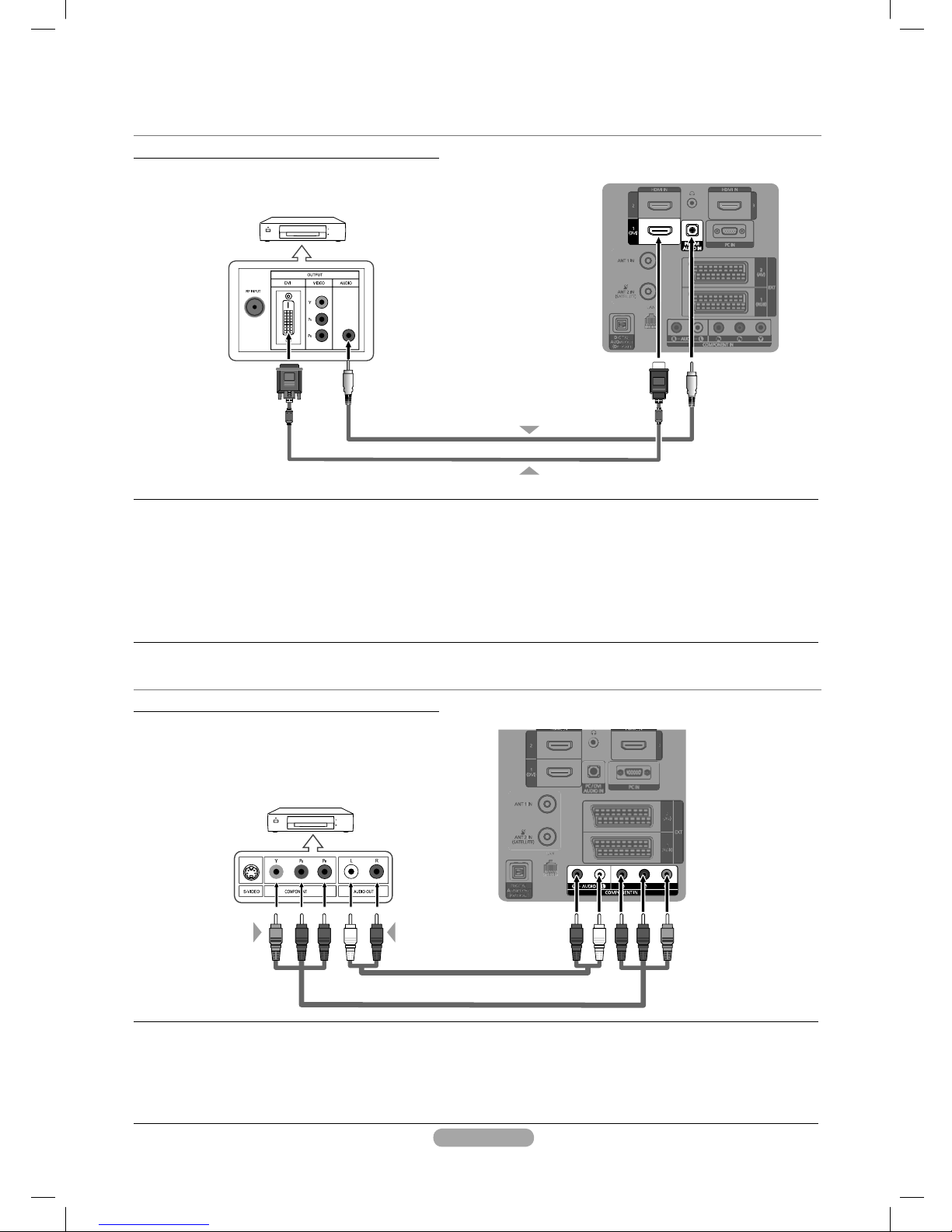

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA DVI

Connect an HDMI Cable(Not supplied) between the HDMI IN 2(DVI) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the DVI AUDIO IN jack on the TV and the Cable Box/Satellite

receiver (Set-Top Box).

➢

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 2 jack.

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV REAR PANEL

Audio Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

LE32C670 / LE37C670 / LE40C670 / LE46C670 / LE55C670

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

Connect a Component Cable(Not supplied) between the COMPONENT IN 1, 2 [Y, PB, PR] jacks on the TV and the

COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the COMPONENT IN 1, 2 [R-AUDIO-L] jacks on the TV and the AUDIO

OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Audio Cable (Not supplied)

Component Cable (Not supplied)

LE32C670 / LE37C670 / LE40C670 / LE46C670 / LE55C670

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV REAR PANEL

(670EU)_CMS.indd 2(670EU)_CMS.indd 2 2010-05-25  5:40:182010-05-25  5:40:18

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

The access step may differ depending on the selected menu.

1 MENU button: Displays the main on-screen

menu.

2ENTERE/ Direction button: Move the cursor

and select an item. Conﬁrm the setting.

3RETURN button: Returns to the previous menu.

4EXIT button: Exits the on-screen menu.

HOW TO OPERATE THE OSD (ON SCREEN DISPLAY)

1MENU

The main menu options appears on

the screen:

Picture, Sound, Channel, Setup,

Input

2▲/ ▼Select an icon with the ▲or ▼

button.

3ENTER

Press ENTER

to access the sub-

menu.

4▲/ ▼Select the desired submenu with the

▲or ▼button.

5◄/ ►

Adjust the value of an item with the

◄or ►button. The adjustment in

the OSD may differ depending on the

selected menu.

6ENTER

Press ENTER

to complete the

conﬁguration.

7EXIT

Press EXIT.

(670EU)_CMS.indd 3(670EU)_CMS.indd 3 2010-05-25  5:40:192010-05-25  5:40:19

CMS

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

ARMENIA 0-800-05-555 -

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com/at

AZERBAIJAN 088-55-55-555 -

BELARUS 810-800-500-55-500 -

BELGIUM 02-201-24-18 www.samsung.com/be (Dutch)

www.samsung.com/be_fr (French)

CZECH 800 - SAMSUNG (800-726786) www.samsung.com/cz

Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

DENMARK 70 70 19 70 www.samsung.com/dk

ESTONIA 800-7267 www.samsung.com

FINLAND 030 - 6227 5 15 www.samsung.com/ﬁ

FRANCE 01 48 63 00 00 www.samsung.com/fr

GERMANY 01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.com/de

GEORGIA 8-800-555-555 -

HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu

EIRE 0818 717100 www.samsung.com/ie

ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it

KAZAKHSTAN 8-10-800-500-55-500 -

KYRGYZSTAN 00-800-500-55-500 www.samsung.com

LATVIA 8000-7267 www.samsung.com

LITHUANIA 8-800-77777 www.samsung.com

LUXEMBURG 261 03 710 www.samsung.com/lu

MOLDOVA 00-800-500-55-500 -

NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com/nl

NORWAY 815-56 480 www.samsung.com/no

POLAND 0 801 1SAMSUNG(172678)

022-607-93-33 www.samsung.com/pl

PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt

RUSSIA 8-800-555-55-55 www.samsung.com

SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk

SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com/es

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/se

SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch

www.samsung.com/ch_fr/(French)

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com

U.K 0845 SAMSUNG (7267864) www.samsung.com/uk

UKRAINE 0-800-502-000 www.samsung.ua

www.samsung.com/ua_ru

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com
