Samsung LN26B450 Bedienungsanleitung
LCD TV
quick start guide
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
English - 1
Connections
1.
Connect an HDMI Cable (Not supplied) between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
No additional Audio connection is needed for an HDMI to HDMI connection.
N
AV IN 2
A
V
AVA
IN
2
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
1
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI
Caution
● When connecting an external device, match the colour of the connection terminal to the cable.
● The product colour and shape may vary depending on the model.
● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel con guration.
● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
LN26B450 / LN32B450 / LN32B460 / LN37B450 / LN40B450
English - 2
1.
Connect an HDMI Cable (Not supplied) between the HDMI IN (1 or 2) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
No additional Audio connection is needed for an HDMI to HDMI connection.
N
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
1
LN22B450
English - 3

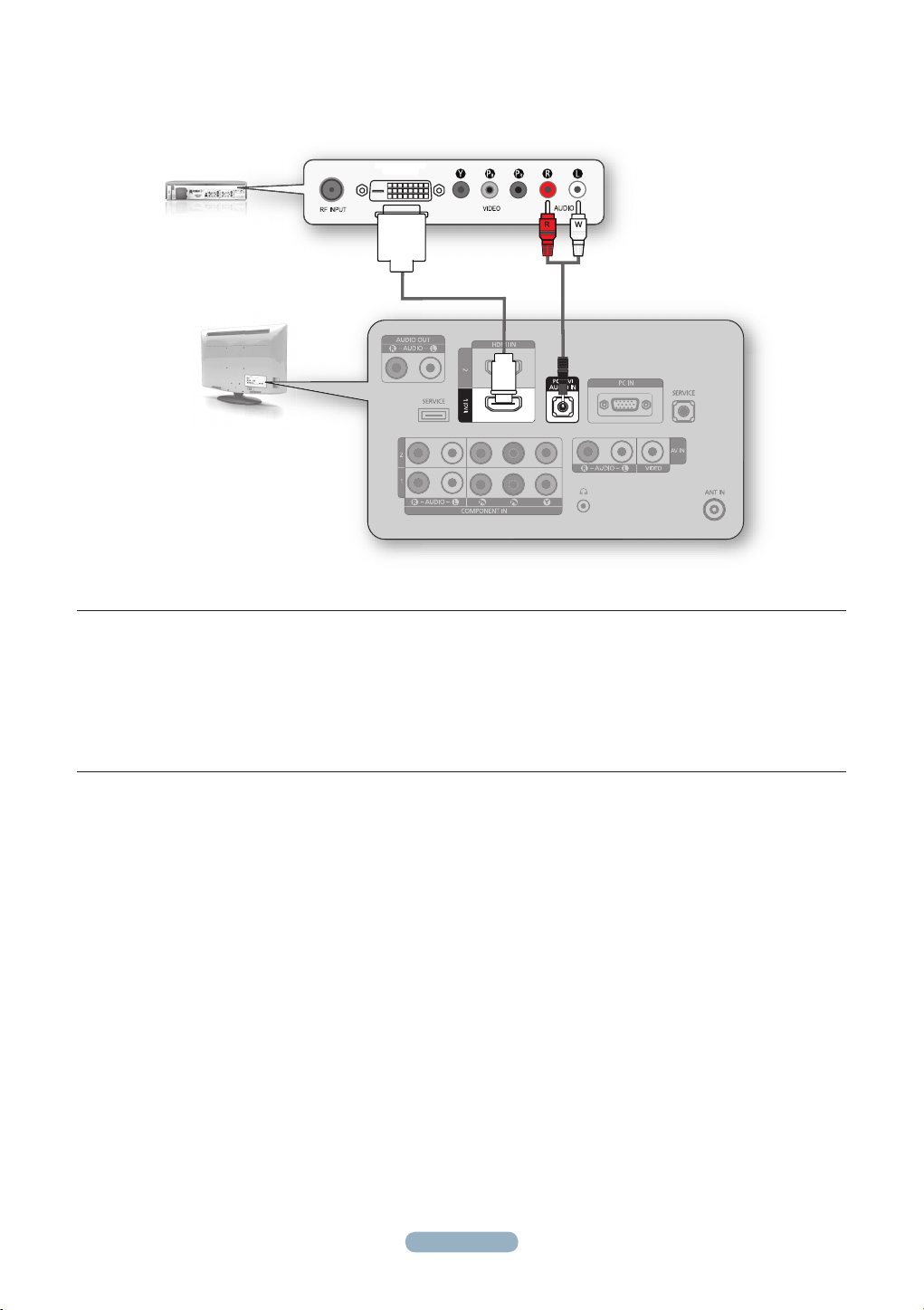

1.
Connect an HDMI Cable (Not supplied) between the HDMI (DVI) jack on the TV and the HDMI jack on the Cable
Box/Satellite receiver (Set-Top Box).
No additional Audio connection is needed for an HDMI to HDMI connection.
N
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
1
LN22B450
English - 4
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
1
2

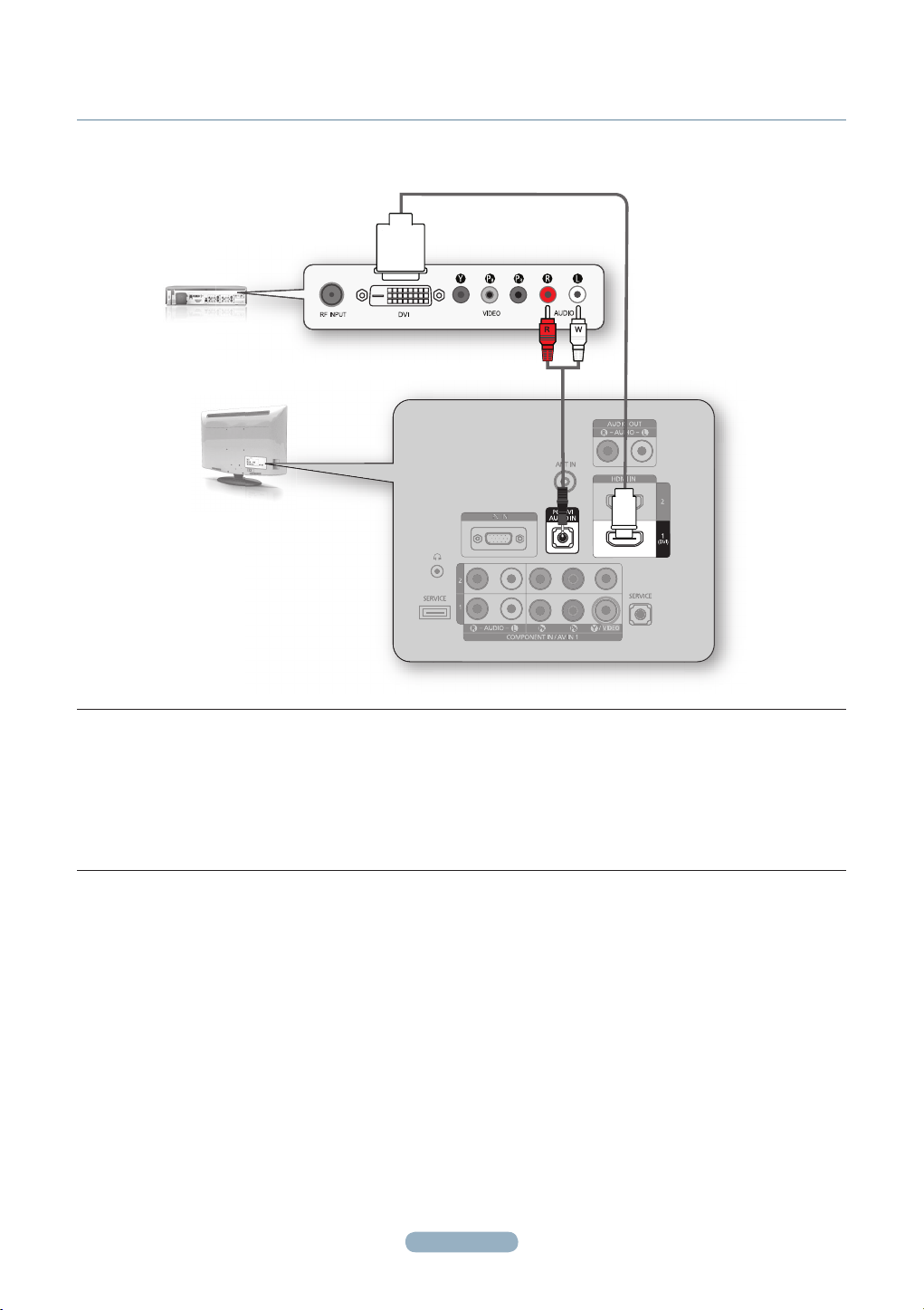

1.
Connect an HDMI Cable (Not supplied) between the HDMI IN 1(DVI) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the PC / DVI AUDIO IN jack on the TV and the Cable Box/Satellite
receiver (Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 1(DVI) jack.
N
LN26B450 / LN32B450 / LN32B460 / LN37B450 / LN40B450
English - 5
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
12
1.
Connect an HDMI Cable (Not supplied) between the HDMI IN 1(DVI) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the PC / DVI AUDIO IN jack on the TV and the Cable Box/Satellite
receiver (Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 1(DVI) jack.
N
LN22B450
English - 6
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
12
1.
Connect an HDMI Cable (Not supplied) between the HDMI (DVI) jack on the TV and the HDMI jack on the Cable
Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the AUDIO jack on the TV and the Cable Box/Satellite receiver
(Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI (DVI) jack.
N
LN22B450
English - 7
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES
TV REAR PANEL
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
1
2
1.
Connect a Component Cable (Not supplied) between the COMPONENT IN (1 or 2) [Y, PB, PR ]jacks on the TV
and the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
LN26B450 / LN32B450 / LN32B460 / LN37B450 / LN40B450
English - 8
TV REAR PANEL
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
1
2
1.
Connect a Component Cable (Not supplied) between the COMPONENT IN (1 or 2) [Y, PB, PR ]jacks on the TV
and the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
LN22B450
English - 9
TV REAR PANEL
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
1
2

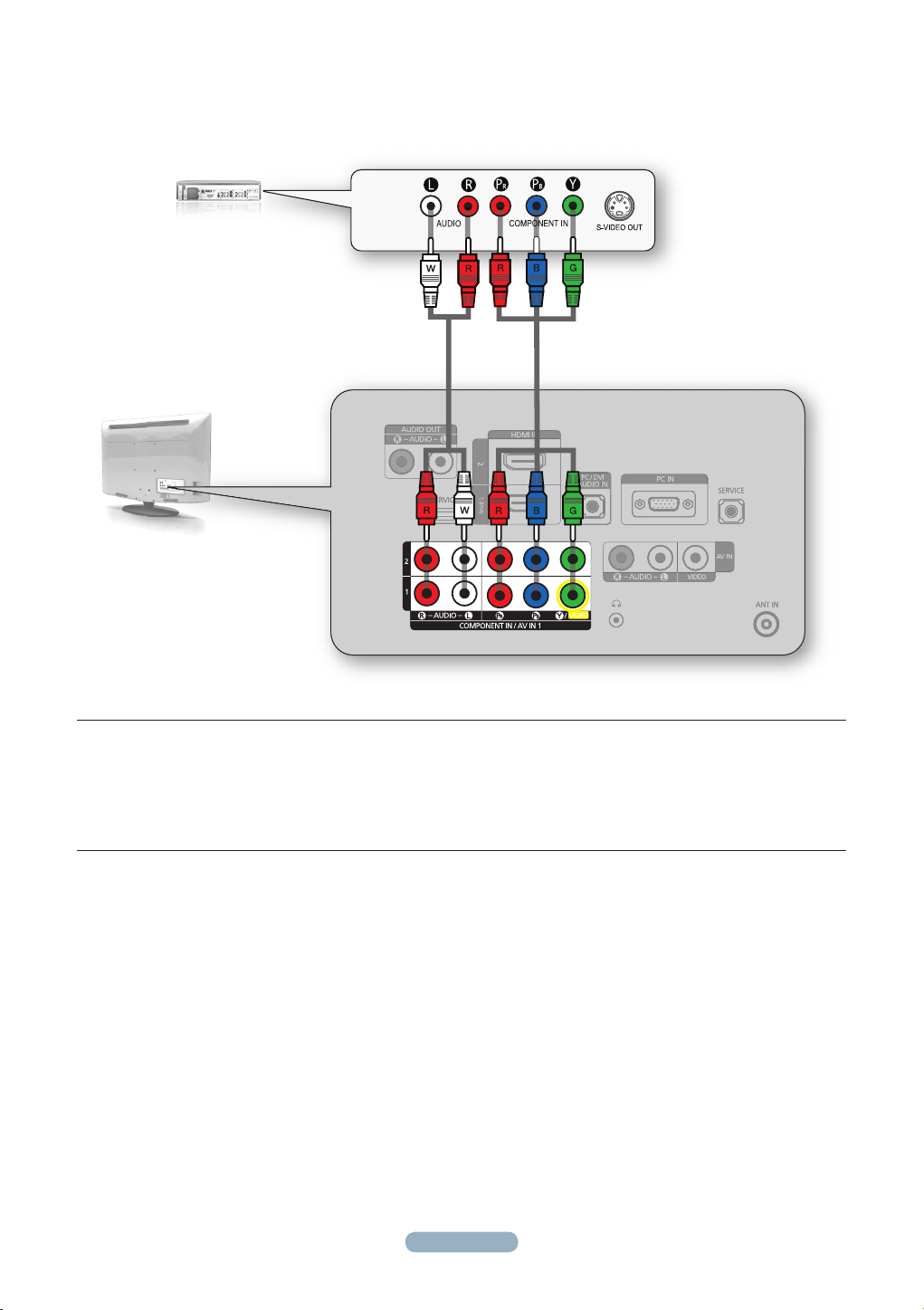

1.
Connect a Component Cable (Not supplied) between the COMPONENT IN / AV IN [Y, PB, PR ]jacks on the TV and
the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables (Not supplied) between the COMPONENT IN / AV IN [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
LN22B450
