Samsung LN46E550F6F Bedienungsanleitung

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

User Manual

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contacte con SAMSUNG WORLD WIDE

Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención

al cliente de SAMSUNG.

Country Customer Care Center Web Site

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com

ARGENTINA 0800-333-3733 www.samsung.com

BRAZIL 0800-124-421

4004-0000 www.samsung.com

CHILE 800-SAMSUNG(726-7864) www.samsung.com

COLOMBIA 01-8000112112 www.samsung.com

COSTA RICA 0-800-507-7267 www.samsung.com

DOMINICA 1-800-751-2676 www.samsung.com

ECUADOR 1-800-10-7267 www.samsung.com

EL SALVADOR 800-6225 www.samsung.com

GUATEMALA 1-800-299-0013 www.samsung.com

HONDURAS 800-7919267 www.samsung.com

JAMAICA 1-800-234-7267 www.samsung.com

NICARAGUA 00-1800-5077267 www.samsung.com

PANAMA 800-7267 www.samsung.com

PERU 0-800-777-08 www.samsung.com

PUERTO RICO 1-800-682-3180 www.samsung.com

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com

VENEZUELA 0-800-100-5303 www.samsung.com

(MEXICO Only)

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864

BN68-04313C

BN68-04313C-00

[LD550-ZX]BN68-04313C.indb 1 2012-02-23 �� 5:48:04

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image

quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout

process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

4inches

[LD550-ZX]BN68-04313C.indb 2 2012-02-23 �� 5:48:04

Contents

English

ENGLISH

Getting Started

yList of Features ......................................................... 4

yAccessories .............................................................. 4

yViewing the Control Panel ......................................... 5

yViewing the Remote Control ...................................... 6

yConnecting to an Antenna ........................................ 7

yPlug & Play (Initial Setup) ........................................... 7

Connections

yConnecting to an AV Device ...................................... 8

yChanging the Input source ...................................... 10

Basic Features

yHow to Navigate Menus .......................................... 11

yChannel Menu ........................................................ 11

Seeing Channels 11

Using Favorite Channels 12

Memorizing channels 12

Editing channels 12

Other Features 12

yPicture Menu .......................................................... 14

Changing the Preset Picture Mode 14

Adjusting picture settings 14

Changing the Picture Options 14

ySound Menu ........................................................... 16

Changing the Preset Sound Mode 16

Adjusting sound settings 16

Sound Settings 16

ySetup Menu ............................................................ 17

Setting the Time 17

Using the Sleep Timer 17

Setting the On/Off Timer 17

Locking Programs 18

Other Features 19

ySupport Menu ......................................................... 20

Advanced Features

yMedia Play .............................................................. 21

Connecting a USB Device 21

Other Information

yInstalling the Wall Mount ......................................... 25

ySecuring the TV to the Wall ..................................... 26

yAnti-Theft Kensington Lock ..................................... 26

yTroubleshooting ...................................................... 27

Storage and Maintenance 29

ySpeciﬁcations ......................................................... 30

License 30

yIndex ...................................................................... 31

Check the Symbol!

t✎O

This function can be used by pressing

the TOOLS button on the remote

control.

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

[LD550-ZX]BN68-04313C.indb 3 2012-02-23 �� 5:48:05

Getting Started

English

Getting Started

List of Features

■Excellent Digital Interface & Networking : With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box / STB (Set-Top-Box) satellite receiver.

■Media Play: Allows you to play music ﬁles, and pictures saved on a USB device. (P. 21)

■Self Diagnosis: You can check picture and sound operation. (P. 20)

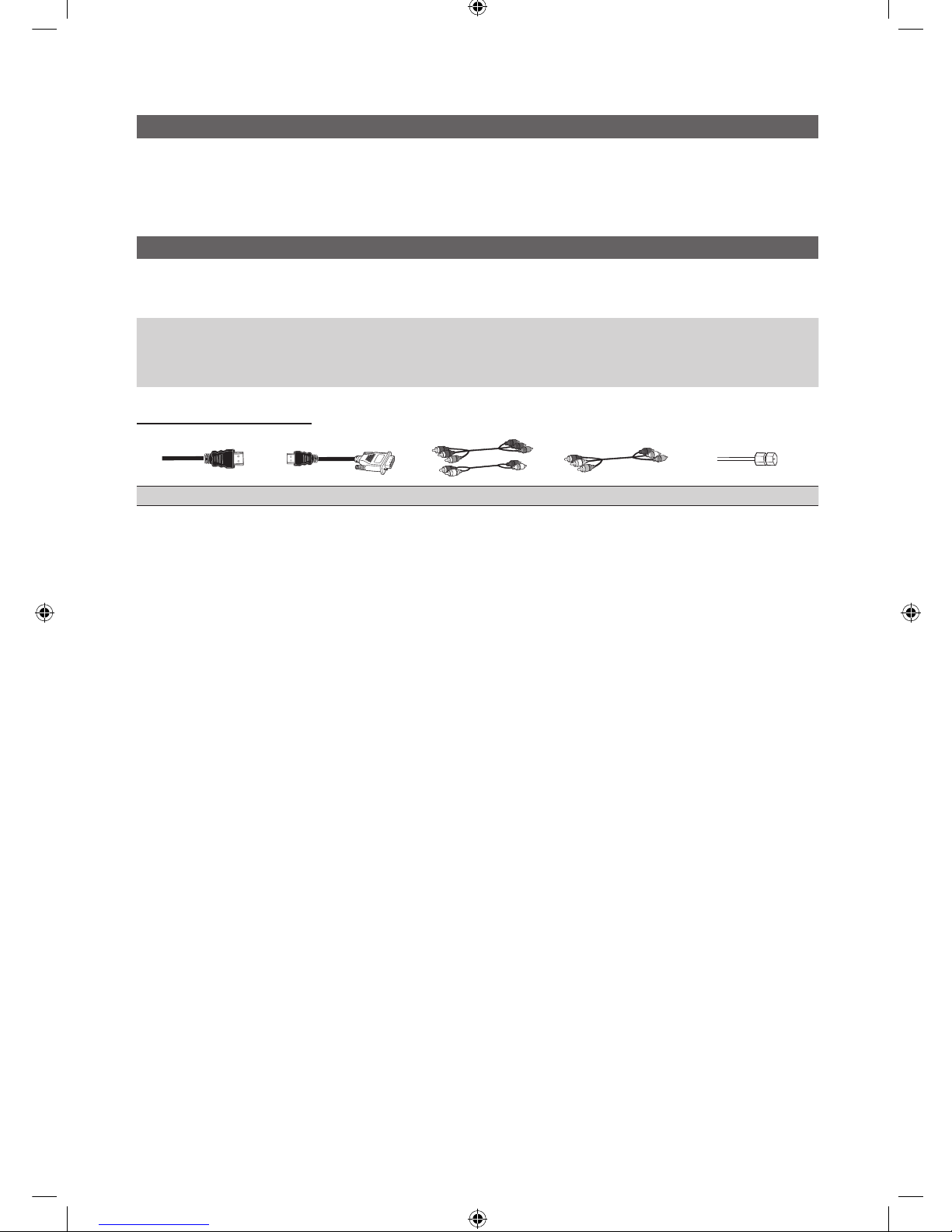

Accessories

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

■Remote Control & Batteries (AAA x 2)

■Warranty Card / Safety Guide / Quick Setup Guide

■Owner’s Instructions

■Cleaning Cloth

■Power Cord

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF)

[LD550-ZX]BN68-04313C.indb 4 2012-02-23 �� 5:48:09

01 Getting Started

English

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Speakers

Control Panel

P (Power) Press to turn the TV on and off.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCEEToggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTERE button on the remote control.

MENU Displays an on-screen menu of your TV’s features.

yAdjusts the volume. In the on-screen menu, use the y buttons as you would

use the ◄ and ► buttons on the remote control.

zChanges the channels. In the on-screen menu, use the z buttons as you

would use the ▼ and ▲ buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

[LD550-ZX]BN68-04313C.indb 5 2012-02-23 �� 5:48:10

Getting Started

English

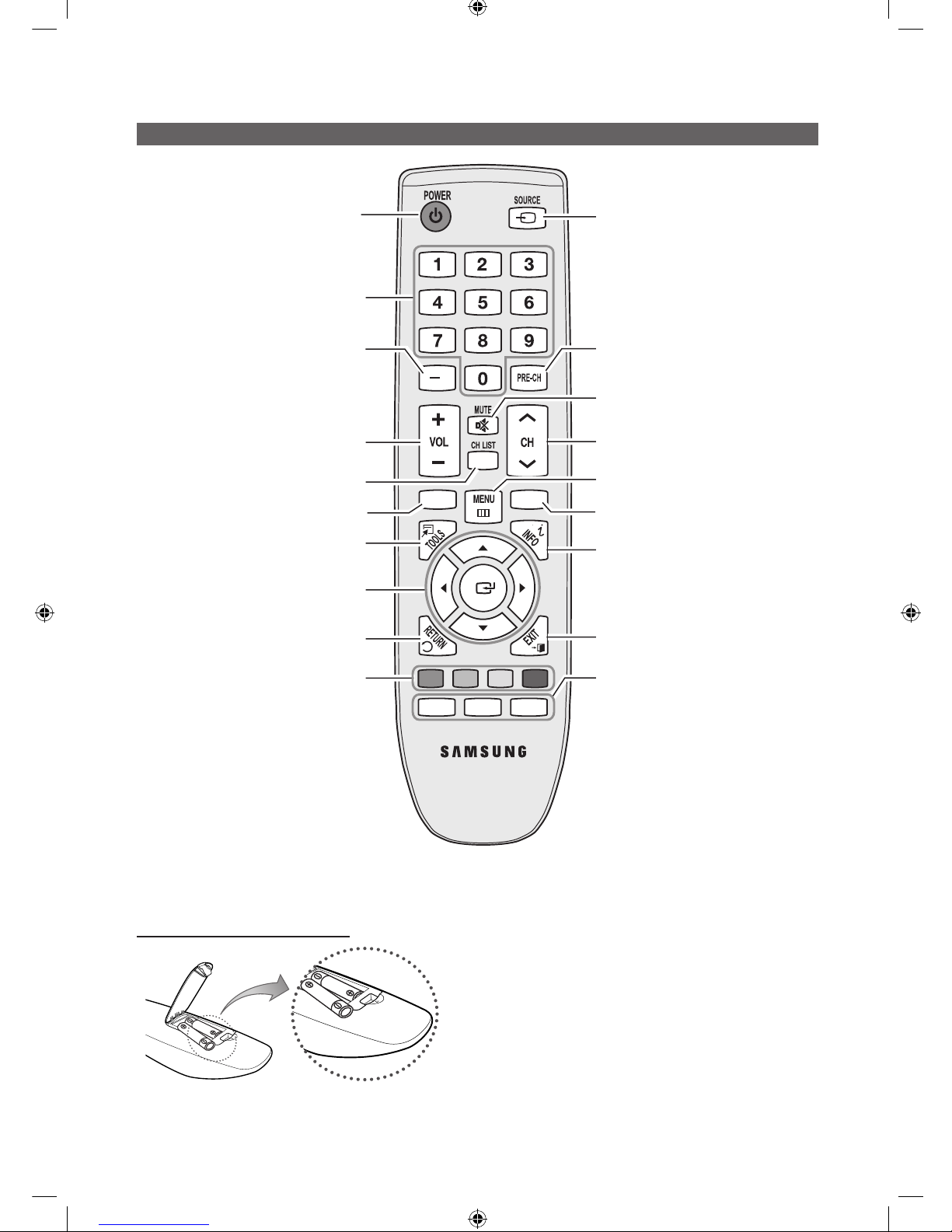

Viewing the Remote Control

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from TV.

Bright light may affect the performance of the remote control.

Avoid use when nearby fluorescent lights or neon signs.

The Color and shape may vary depending on the model.

MTS

MEDIA.P

A B C D

P.SIZE CC

FAV.CH

Press to select additional channels

(digital) being broadcast by the same

station. For example, to select channel

‘54-3’, press ‘54’, then press ‘-’ and ‘3’.

Return to the previous channel.

Press to directly access to channels.

Turns the TV on and off. Display and select the available video

sources. (P. 10)

MTS: Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast). (P. 16)

P.SIZE: Choose the picture size. (P. 15)

CC: Controls the caption decoder. (P. 19)

Cut off the sound temporarily.

Display favorite channel lists on the screen.

(p. 12)

Displays the channel list on the screen. (P. 11)

Press to display information on the TV

screen.

Quickly select frequently used functions.

Select on-screen menu items and

change menu values.

Exit the menu.

Return to the previous menu.

View the Media Play. (P. 21)

Buttons used in the Channel List,

Media Play menu, etc.

Change channels.

Displays the main on-screen menu.

Adjusts the volume.

[LD550-ZX]BN68-04313C.indb 6 2012-02-23 �� 5:48:10

Plug & Play

Language : English

Time

Game Mode : Off

V-Chip

Caption

Melody : Medium

Setup

01 Getting Started

English

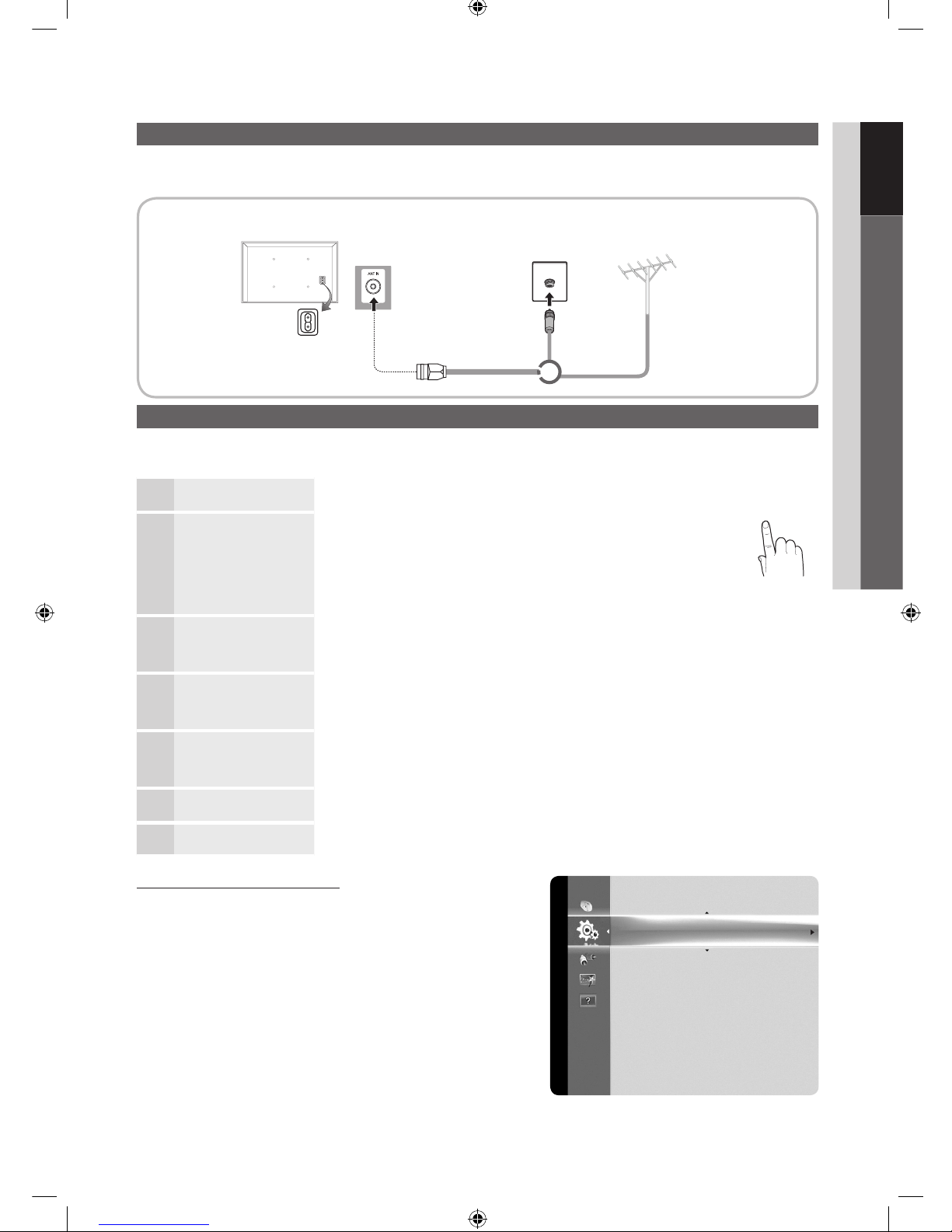

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER

button. Plug & Play is available only when the Input source is set to TV.

1Selecting a language Press the ▲ or ▼ button, then press the ENTER

button.

Select the desired OSD (On Screen Display) language.

2Selecting Store Demo

or Home Use

Press the ◄ or ► button, then press the ENTER

button.

ySelect the Home Use mode. Store Demo Mode is for retail

environments.

yTo return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume in the OSD, press and hold MENU for 5 sec.

3Selecting an antenna Press the ▲ or ▼ button, then press the ENTER

button. Select Air, Cable or Auto.

✎

In Cable mode, you can select the correct signal source among STD, HRC, and IRC

by pressing the ▲, ▼, ◄ or ► button, then press the ENTER

button.

4Selecting a channel The channel search will start automatically.

For more information, refer to Channel → Auto Program. (P. 12)

✎

Press the ENTER

button at any time to interrupt the memorization process.

5Setting the Clock

Mode

Set the Clock Mode automatically or manually.

✎

If you select the Auto, set the daylight saving time.

Select the time zone where you live.

6Viewing the HD

Connection Guide

The connection method for the best HD screen quality is displayed.

7Enjoy your TV. Press the ENTER

button.

If You Want to Reset This Feature...

→ Setup → Plug & Play → ENTER

MEDIA.P

POWER

P.SIZE

SLEEP

S.MODE

P.MODE

✎

The position of power input port may differ depending on the model.

VHF/UHF Antenna

Cable

TV Rear Panel

[LD550-ZX]BN68-04313C.indb 7 2012-02-23 �� 5:48:11

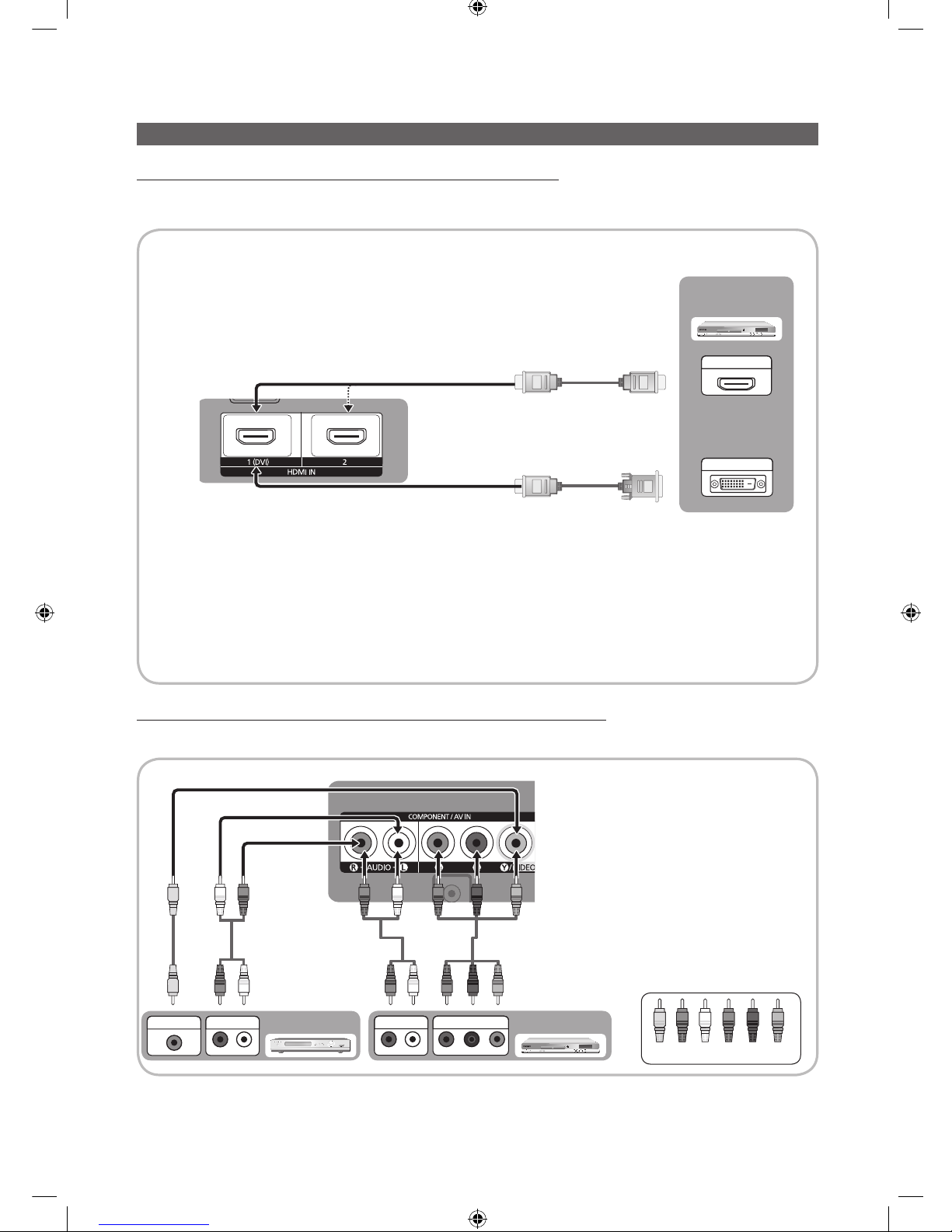

Connecting to an AV Device

Using an HDMI cable or HDMI to DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver

✎

HDMI IN 1(DVI), 2

When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI

to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external

device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

BD/DVD player/

HD cable/sat box

R-AUDIO-L PRPBY

HDMI OUT

R-AUDIO-L PRPBY

DVI OUT

TV Rear

R-AUDIO-L PRPBY

COMPONENT OUT

R-AUDIO-L PRPBY

AUDIO OUT

Blu-ray player

R-AUDIO-L PRPBY

VIDEO OUT

VCR

R-AUDIO-L PRPBY

AUDIO OUT

✎

When connecting to AV IN, the color of

the AV IN [Y/VIDEO] jack (Green) does not

match the color of the video cable (Yellow).

✎

For better picture quality, the Component

connection is recommended over the A/V

connection.

W W BG

Yellow Red White Red Blue Green

TV Rear

English

ConnectionsConnections

[LD550-ZX]BN68-04313C.indb 8 2012-02-23 �� 5:48:13

Display Modes (HDMI/DVI Input)

Optimal resolution is 1920x1080@60Hz.

Mode Resolution Horizontal Frequency

(KHz) Vertical Frequency (Hz) Pixel Clock Frequency

(MHz) Sync Polarity (H / V)

IBM 640 x 350 31,469 70,086 25,175 +/-

720 x 400 31,469 70,087 28,322 -/+

MAC

640 x 480 35,000 66,667 30,240 -/-

832 x 624 49,726 74,551 57,284 -/-

1152 x 870 68,681 75,062 100,000 -/-

VESA DMT

640 x 480 31,469 59,940 25,175 -/-

640 x 480 37,861 72,809 31,500 -/-

640 x 480 37,500 75,000 31,500 -/-

800 x 600 37,879 60,317 40,000 +/+

800 x 600 48,077 72,188 50,000 +/+

800 x 600 46,875 75,000 49,500 +/+

1024 x 768 48,363 60,004 65,000 -/-

1024 x 768 56,476 70,069 75,000 -/-

1024 x 768 60,023 75,029 78,750 +/+

1152 x 864 67,500 75,000 108,000 +/+

1280 x 720 45,000 60,000 74,250 +/+

1280 x 800 49,702 59,810 83,500 -/+

1280 x 1024 63,981 60,020 108,000 +/+

1280 x 1024 79,976 75,025 135,000 +/+

1366 x 768 47,712 59,790 85,500 +/+

1440 x 900 55,935 59,887 106,500 -/+

1600 x 900RB 60,000 60,000 108,000 +/+

1680 x 1050 65,290 59,954 146,250 -/+

1920 x 1080 67,500 60,000 148,500 +/+

✎✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

PC(D-Sub) input is not supported.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

SERVICE

Connector for service only.

English

02 Connections

[LD550-ZX]BN68-04313C.indb 9 2012-02-23 �� 5:48:14

English

Connections

Changing the Input source

Source List

→ Input → Source List → ENTER

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite

receiver.

■TV / AV / Component / HDMI1/DVI / HDMI2

✎

You can only choose external devices that are connected to the TV. In the Source List, connected

inputs will be highlighted.

✎

PC(D-Sub) input is not supported. If you want to connect PC to the TV, use HDMI1/DVI input.

✎

You can use the Edit Name and Information when you press the TOOLS button in the Source

List.

Information

You can see detailed information about the connected external device.

Edit Name

→ Input → Edit Name → ENTER

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV /

IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection

easier.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit

Name.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode

under Edit Name.

✎

When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI

mode under Edit Name.

MEDIA.P

POWER

P.SIZE

SLEEP

S.MODE

P.MODE

[LD550-ZX]BN68-04313C.indb 10 2012-02-23 �� 5:48:14

Andere Handbücher für LN46E550F6F

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung LCD-Fernseher Handbücher

Samsung

Samsung LN26C450E1D Bedienungsanleitung

Samsung

Samsung LN40C610N1F Bedienungsanleitung

Samsung

Samsung LE32C630 K1WXXC Bedienungsanleitung

Samsung

Samsung LE60C650L1K Bedienungsanleitung

Samsung

Samsung LE32A756R1F Bedienungsanleitung

Samsung

Samsung UB6V Series Installationsanleitung

Samsung

Samsung 7 Series Bedienungsanleitung

Samsung

Samsung UN32D4003 Bedienungsanleitung

Samsung

Samsung OFFICESERV 7100 Bedienungsanleitung

Samsung

Samsung LE19C45 Series Bedienungsanleitung

Samsung

Samsung LE32D550 Bedienungsanleitung

Samsung

Samsung LE26R7 Bedienungsanleitung

Samsung

Samsung LE32B530P7N Bedienungsanleitung

Samsung

Samsung UN26D4003BDXZA Bedienungsanleitung

Samsung

Samsung LE32A65 A Series Bedienungsanleitung

Samsung

Samsung UN55C5000QF Bedienungsanleitung

Samsung

Samsung LE15S51BP Bedienungsanleitung

Samsung

Samsung LN19B360 Bedienungsanleitung

Samsung

Samsung LN32D467E1H Kurzanleitung

Samsung

Samsung LN26A450C1DXZA Bedienungsanleitung

Samsung

Samsung LW30A23W Bedienungsanleitung

Samsung

Samsung UE43NU7442 Bedienungsanleitung

Samsung

Samsung LW17M24C Bedienungsanleitung

Samsung

Samsung LN-S2641D Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Dell

Dell W1900 19 Gebrauchsanweisung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Bedienungsanleitung

Philips

Philips 40PFL7705D Bedienungsanleitung

Dynex

Dynex DX-40L261A12 Bedienungsanleitung

JVC

JVC LT-23C50BU Bedienungsanleitung
