Samsung UN50F5500 Leitfaden

E-MANUAL

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No..

Picture Quality

Screen Menu > Picture

PDP 5500, LED 6400 series and above

Choose a Picture Mode and then select the following options to display a slide bar that allows the

corresponding setting to be adjusted. Adjust the value by dragging left/right on the touch pad and

change the setting by dragging up/down on the touch pad. Adjusted values are applied to the current

source and will remain in effect the next time the source is selected. When connected to a computer

via an HDMI-to-DVl cable, only the Color and Tint (G/R) adjustment options can be chosen.

LED 4300 - 6300 series

Choose a Picture Mode and then select the following options to display a slide bar that allows the

corresponding setting to be adjusted. Adjust the value by pressing the left/right arrow button on the

remote and change the setting by pressing up/down arrow button on the remote. Adjusted values

are applied to the current source and will remain in effect the next time the source is selected. When

connected to a computer via an HDMI-to-DVI cable, only the Color and Tint (G/R) adjustment options

can be chosen.

Adjusts the brightness of individual pixels. Decreasing the brightness reduces power

consumption. This option is only available for LED TVs.

Cell Light

Adjusts the brightness of the panel. Decreasing the brightness reduces power consumption. This

option is only available for PDP TVs.

Contrast

Adjusts the screen contrast. _iii! _111:i_:!

Adjusts the overall brightness.

Sharpens or dulls the edges of objects.

Color

Adjusts the overa II co Ior saturati on.

Tint (G/R)

Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red

value to saturate the reds. _}_i/ i!

Applying the Cup'rent Pictu_e Quality Setting to Another _nput

Screen Menu> Picture > AppNy Picture Mode

You can apply the picture quality setting that you configured for the TV to all external devices

connected to the TV.

To apply the setting to all external devices connected to the TV, select ANI Sources. To only apply the

setting to the current input, select Current Source.

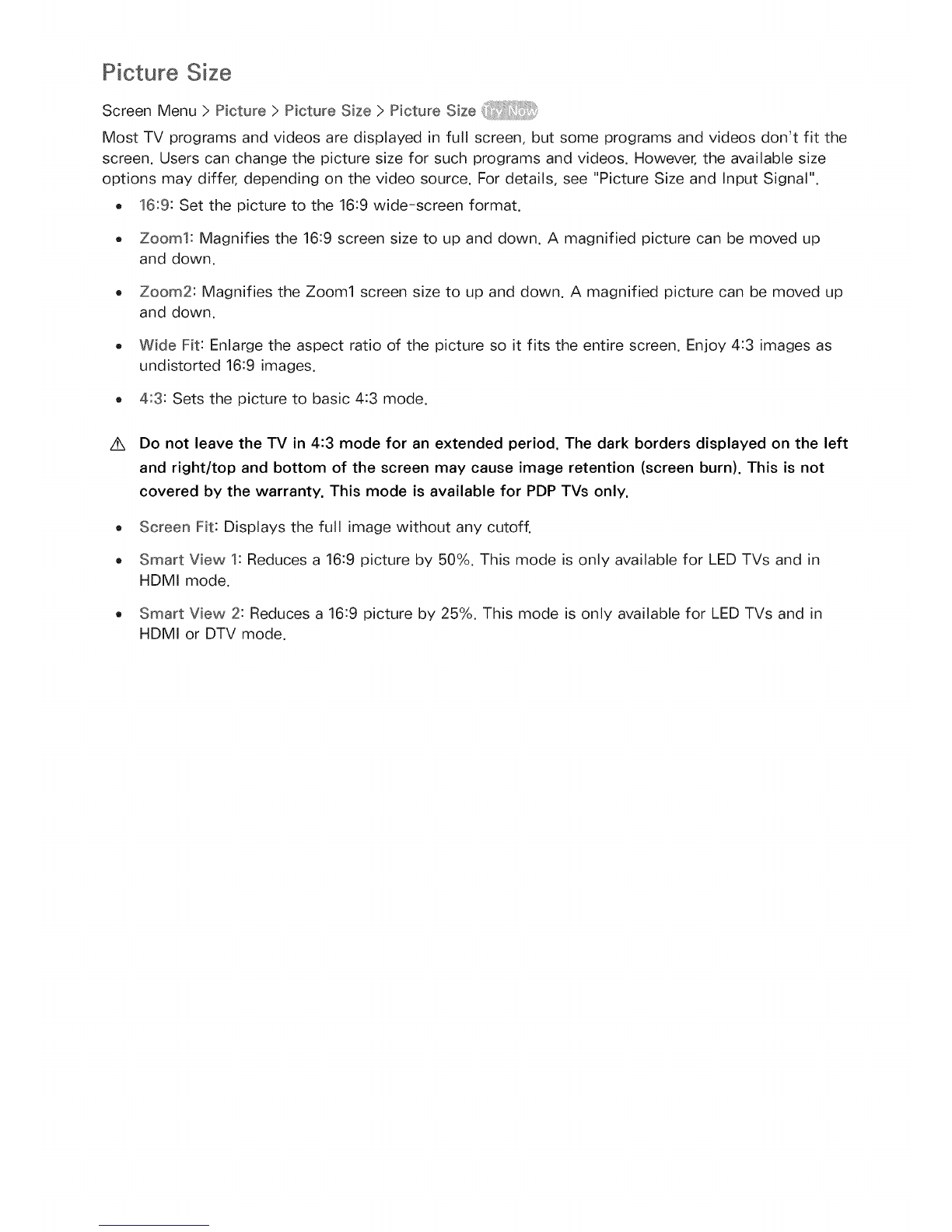

Picture Size

Screen Menu > Picture > Picture Size > Picture Size

Most TV programs and videos are displayed in full screen, but some programs and videos don't fit the

screen. Users can change the picture size for such programs and videos. However, the available size

options may differ, depending on the video source. For details, see "Picture Size and Input Signal".

o 16:9: Set the picture to the 16:9 wide-screen format.

Zoom1: Magnifies the 16:9 screen size to up and down. A magnified picture can be moved up

and down.

Zoom2: Magnifies the Zoom1 screen size to up and down. A magnified picture can be moved up

and down.

Wide Fit: Enlarge the aspect ratio of the picture so it fits the entire screen. Enjoy 4:3 images as

undistorted 16:9 images.

4:3: Sets the picture to basic 4:3 mode.

Do not leave the TV in 4:3 mode for an extended period. The dark borders displayed on the left

and right/top and bottom of the screen may cause image retention (screen burn). This is not

covered by the warranty. This mode is available for PDP TVs only.

Screen Fit: Displays the full image without any cutoff,

Smart View 1: Reduces a 16:9 picture by 50%. This mode is only available for LED TVs and in

HDMI mode.

Smart View 2: Reduces a 16:9 picture by 25%. This mode is only available for LED TVs and in

HDMI or DTV mode.

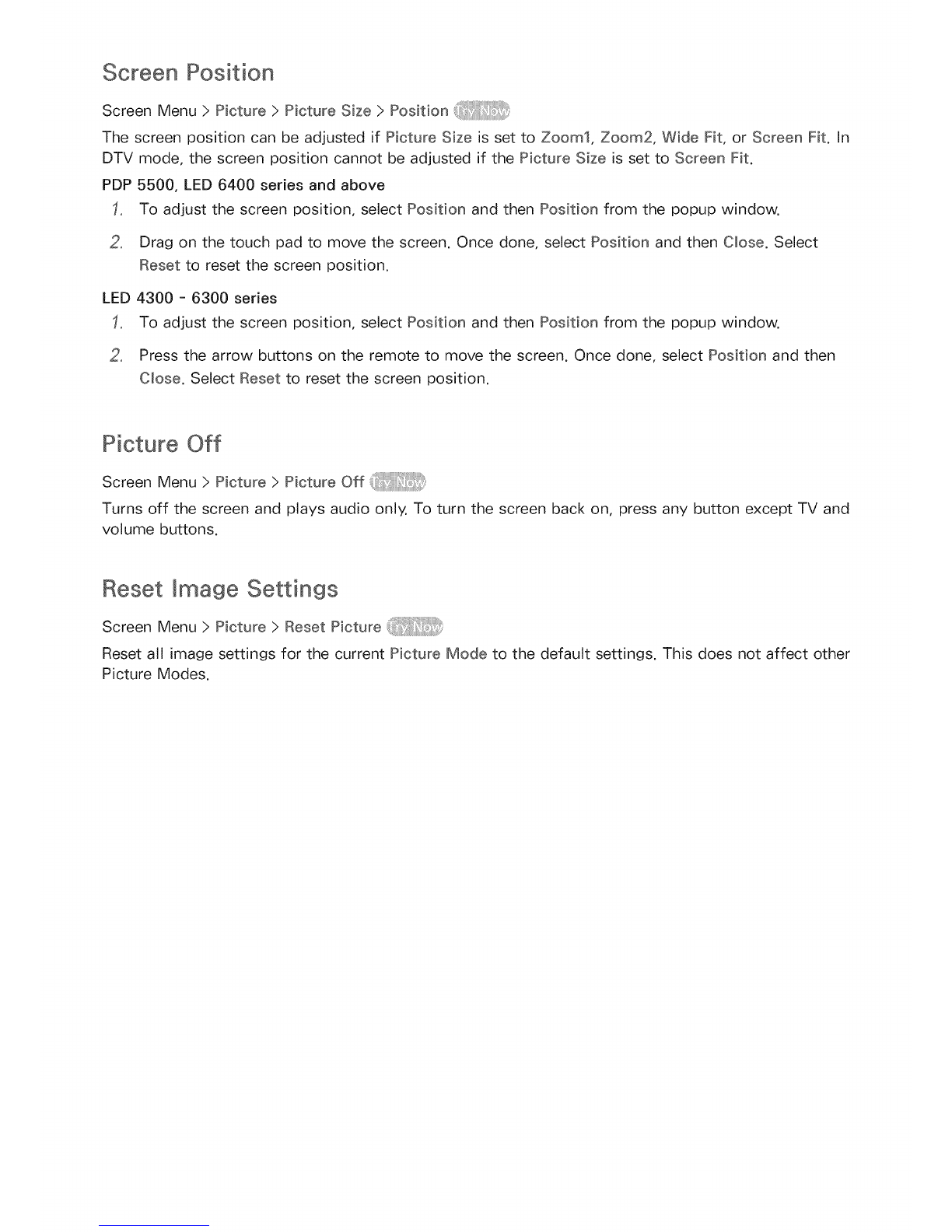

Screen Position

Screen Menu > Picture ) Picture Size ) Position

The screen position can be adjusted if Picture Size is set to Zoom1, Zoom2, Wide Fit, or Screen Fit. In

DTV mode, the screen position cannot be adjusted if the Picture Size is set to Screen Fit.

PDP 5500, LED 6400 series and above

To adjust the screen position, select Position and then Position from the popup window.

2, Drag on the touch pad to move the screen. Once done, select Position and then Close. Select

Reset to reset the screen position.

LED 4300 - 6300 series

To adjust the screen position, select Position and then Position from the popup window.

2, Press the arrow buttons on the remote to move the screen. Once done, select Position and then

Close. Select Reset to reset the screen position.

Picture Off

Screen Menu > Picture > Picture Off

Turns off the screen and plays audio only. To turn the screen back on, press any button except TV and

volume buttons.

Reset mmage Settings

Screen Menu > Picture > Reset Picture

Reset all image settings for the current Picture Mode to the default settings. This does not affect other

Picture Modes.

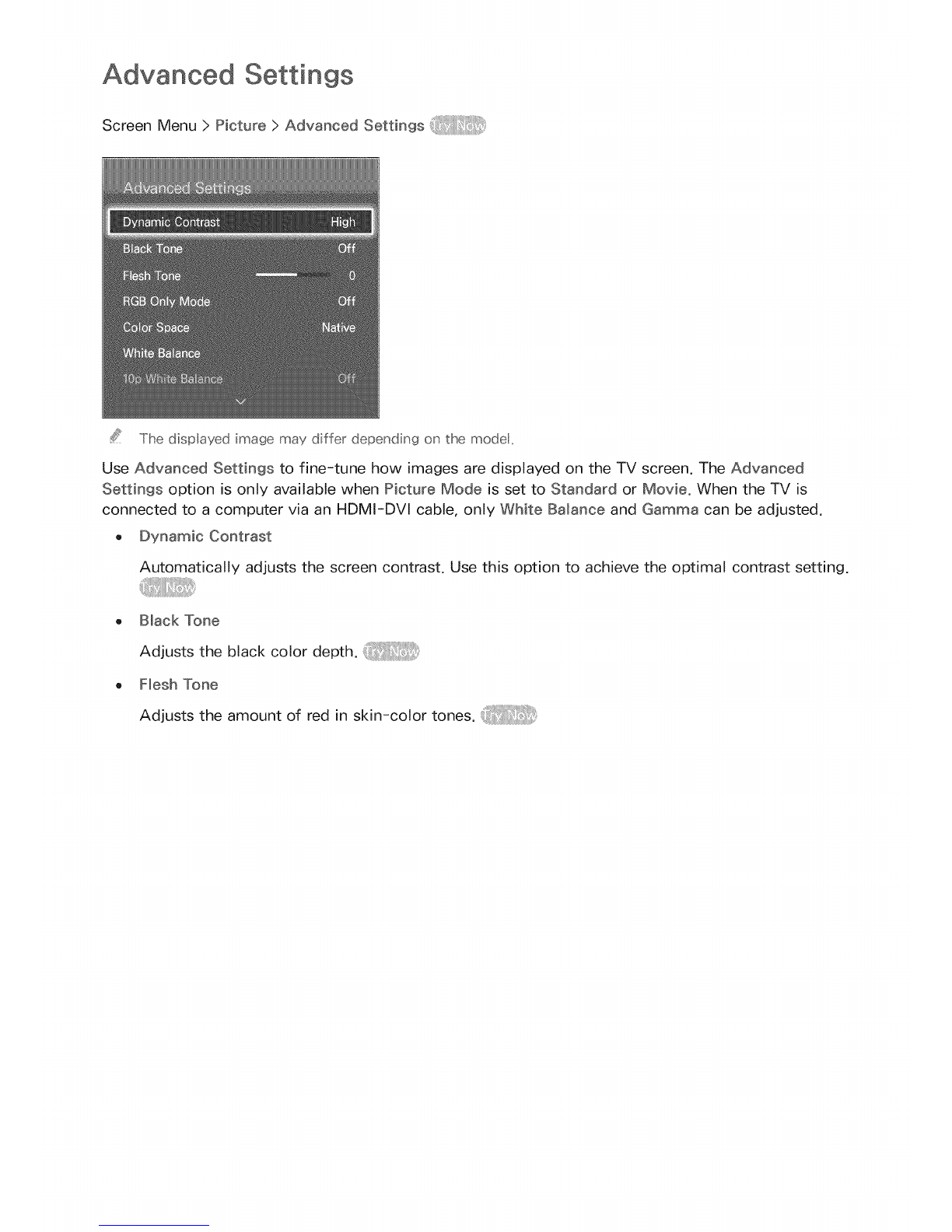

Advanced ngs

Screen Menu > Picture > Advanced Settings

The disp ayed image may differ depending on the mode,

Use Advanced Settings to fine-tune how images are displayed on the TV screen. The Advanced

Settings option is only available when Picture Mode is set to Standard or Movie. When the TV is

connected to a computer via an HDMI-DVl cable, only White Balance and Gamma can be adjusted.

o Dynamic Contrast

Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.

o Black Tone

Adjuststheblackcolordepth.

o Flesh Tone

Adjusts the amount of red in skin-color tones.

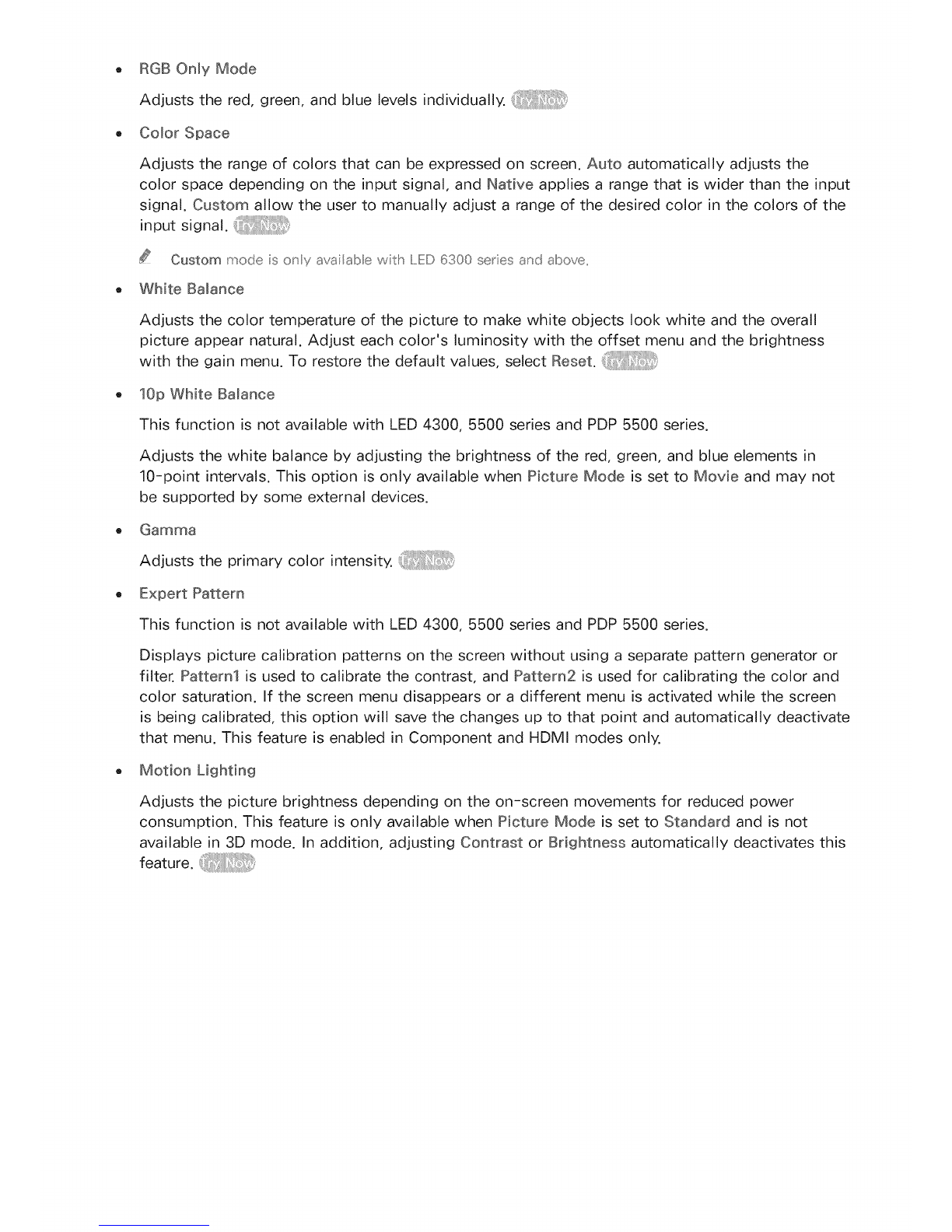

o RGBOnlyMode

Adjuststhered,green,andbluelevelsindividually.

e Color Space

Adjusts the range of colors that can be expressed on screen. Auto automatically adjusts the

color space depending on the input signal, and Native applies a range that is wider than the input

signal. Custom allow the user to manually adjust a range of the desired color in the colors of the

input signal.

Custom mode s O_y ava labe wth 6300 se_es and above

White Balance

Adjusts the color temperature of the picture to make white objects look white and the overall

picture appear natural. Adjust each color's luminosity with the offset menu and the brightness

with the gain menu. To restore the default values, select Reset. _i_! i::!:i::

10p White Balance

This function is not available with LED 4300, 5500 series and PDP 5500 series.

Adjusts the white balance by adjusting the brightness of the red, green, and blue elements in

10-point intervals. This option is only available when Picture Mode is set to Movie and may not

be supported by some external devices.

Gamma

Adjusts the primary color intensity.

Expert Pattern

This function is not available with LED 4300, 5500 series and PDP 5500 series.

Displays picture calibration patterns on the screen without using a separate pattern generator or

filter. Pattern1 is used to calibrate the contrast, and Pattern2 is used for calibrating the color and

color saturation. If the screen menu disappears or a different menu is activated while the screen

is being calibrated, this option will save the changes up to that point and automatically deactivate

that menu. This feature is enabled in Component and HDMI modes only.

Motion Lighting

Adjusts the picture brightness depending on the on-screen movements for reduced power

consumption. This feature is only available when Picture Mode is set to Standard and is not

available in 3D mode. In addition, adjusting Contrast or Brightness automatically deactivates this

feature.

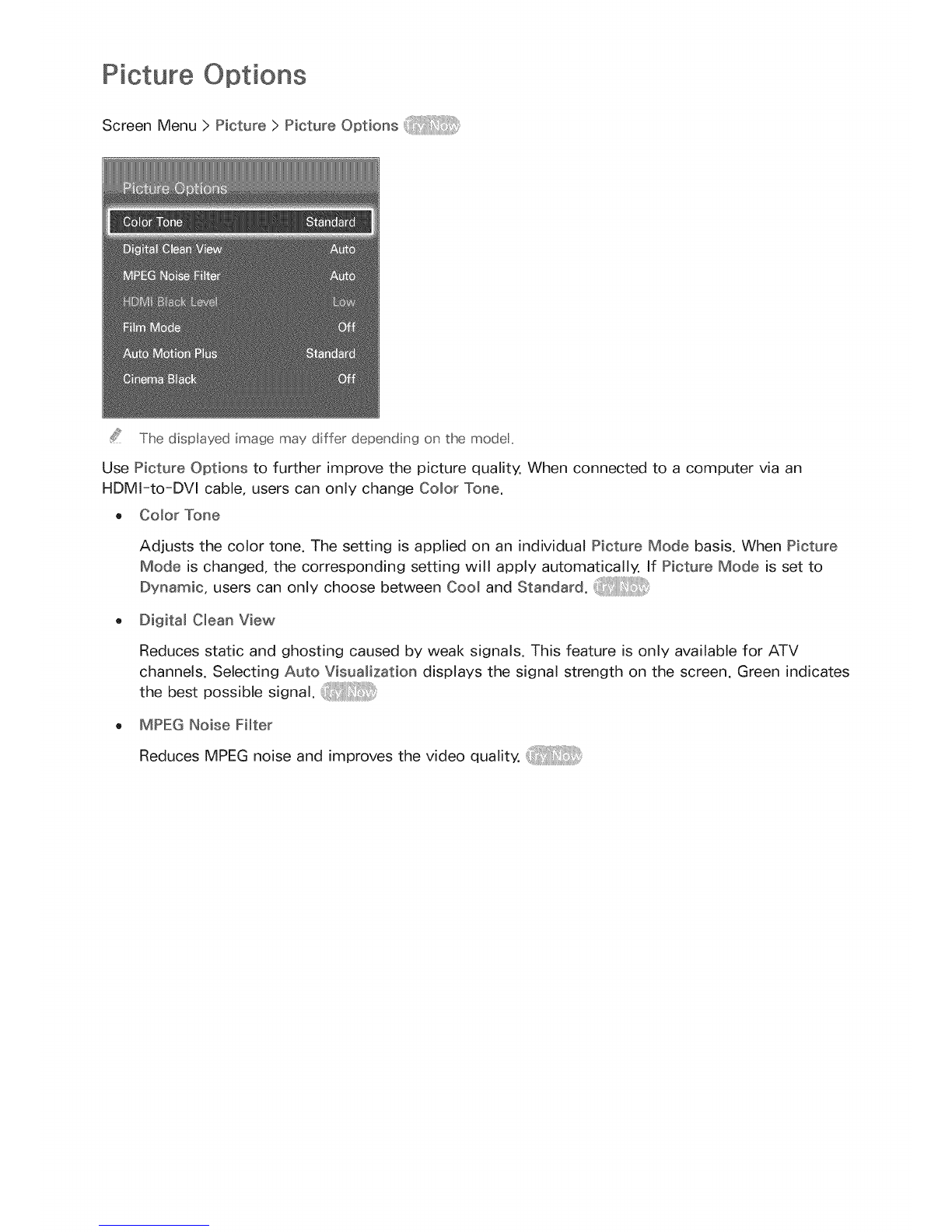

Picture Options

Screen Menu > Picture > Picture Options

The displayed image may differ depending on the model,

Use Picture Options to further improve the picture quality. When connected to a computer via an

HDMI-to-DVl cable, users can only change Color Tone.

,, Color Tone

Adjusts the color tone. The setting is applied on an individual Picture Mode basis. When Picture

Mode is changed, the corresponding setting will apply automatically. If Picture Mode is set to

Dynamic, users can only choose between Cool and Standard. _ :!/:_

,, Digital Clean View

Reduces static and ghosting caused by weak signals. This feature is only available for ATV

channels. Selecting Auto Visualization displays the signal strength on the screen. Green indicates

the best poss ible sign a I.

,, MPEG Noise Filter

Reduces MPEG noise and improves the video quality.

o HDM_BlackLevem

Thisisavailableonlyfor videoinputviaan HDMIcable.Usethis to reduceimageretentionthat

mayoccurwhenwatchingvideofrom anexternaldevice.Chooseoneof theblacklevels.

FilmMode

Optimizesthe picturequalityfor movies.Selectthemodefor watchingmovies.Thisfeatureis

only availablewhenwatchingTVorwhenthe inputsignal isAV,Component(480i,1080i),or

HDMI(1080i).TheCinemaSmoothoptionisonly activewhenthe TV inputsan HDMI24Hzsignal.

TheCinemaSmoothoption isonly availablefor PDP5500series.

Blackoptimizer

Thisfunction is availableonly with PDP5500seriesandLED6800series.

Adjust overallblackcolor depthto givea changeto picturedepth.Thisisnotavailablewhen

playingamediafile or usingthe TVasa computerdisplay.

Auto Motion Plus

Use this to reduce blur and judder from scenes with rapid movement. If you select Custom, you

can configure the afterimage and screen trembling removal ratio and you can view a sharper

image through the LED Clear Motion function. This feature is only available for LED 6300 series

and above.

While Auto Motion PJus s runninf/:_ seect the vrtual remote panel s or the _eg_ a_ remote s INFO button

todispaythereso_,donandfleq_encyofthe ncomingvdeosignal(60Hz)Iihedispayedfrequency s

not the same as the freq_ ency of the p ct_ re the IiV ;s disp ay;ng when A_to Motio _ P_s ;s activated

Cinema Black

This function is only available on the LED 7050/7100 series, except 75-inch TVs. In Movie mode,

this feature dims the top and bottom areas of the video image to provide a more immersive

viewing experience.

LED Clear Motion

Removes drag from fast scenes with a lot of movement to provide a clear picture. This function is

only available for the LED 4300, 5500 series.

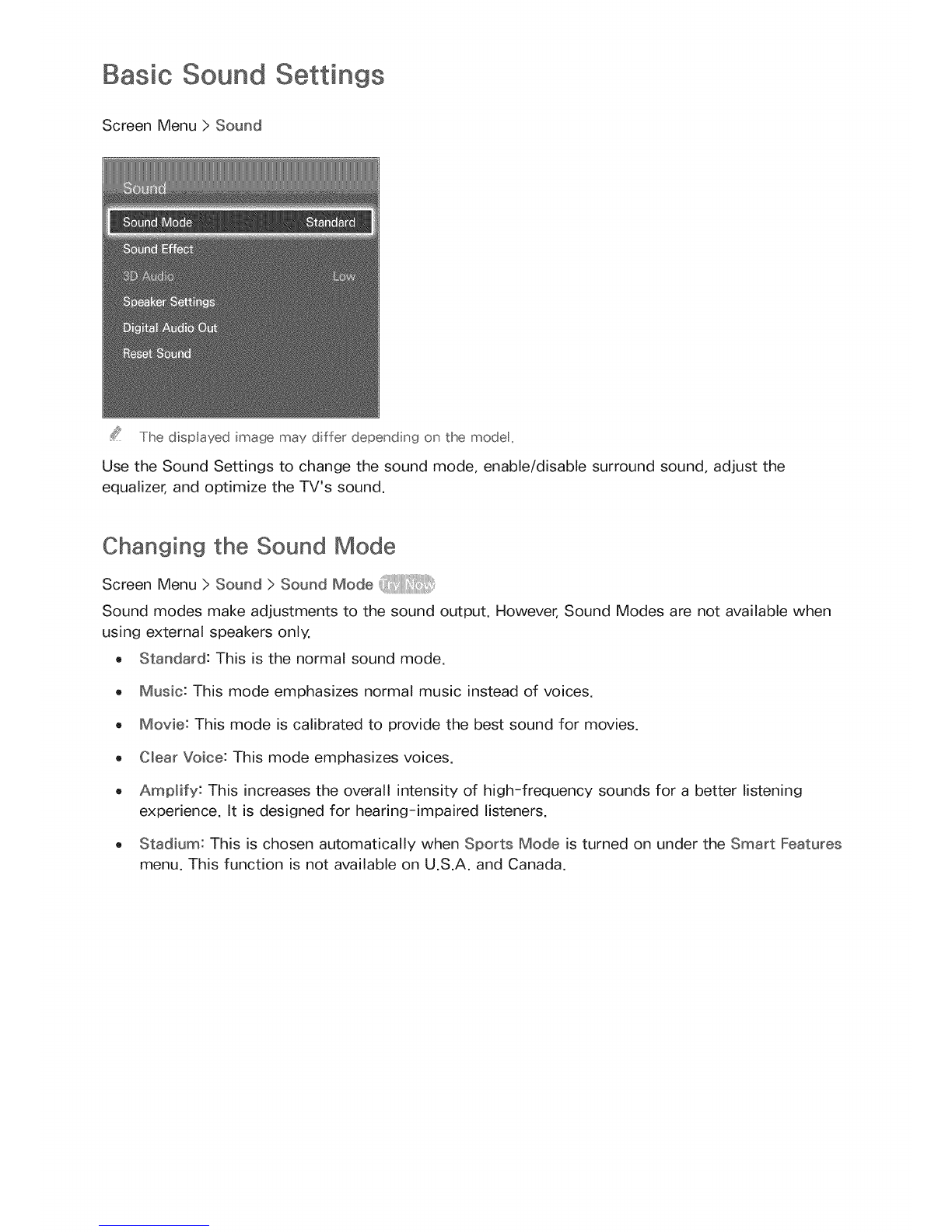

Basic Sound ngs

Screen Menu > Sound

The dispIayed image may differ depending on the modet,

Use the Sound Settings to change the sound mode, enable/disable surround sound, adjust the

equalizer, and optimize the TV's sound.

Changing the Sound Mode

Screen Menu > Sound > Sound Mode

Sound modes make adjustments to the sound output. However, Sound Modes are not available when

using external speakers only.

o Standard: This is the normal sound mode.

o Music: This mode emphasizes normal music instead of voices.

o Movie: This mode is calibrated to provide the best sound for movies.

o Clear Voice: This mode emphasizes voices.

o Amplify: This increases the overall intensity of high-frequency sounds for a better listening

experience. It is designed for hearing-impaired listeners.

o Stadium: This is chosen automatically when Sports Mode is turned on under the Smart Features

menu. This function is not available on U.S.A. and Canada.

Adjusting the Sound Settings

Screen Menu > Sound > Sound Effect

Use sound effects to alter how the TV projects sound. These options are available only when Speaker

Sebct is set to TV Speaker and Sound Mode is set to Standard.

.DTS TruSurround: Produces sound that will make you feel like you are sitting in a movie theater

or concert hall.

- DTS TruDiab9: Increases the voice intensity to make dialog clearer.

- Equalizer: Adjusts the speaker balance and makes bandwidth adjustments. Select Reset to reset

the settings. _:_

Auto Volume

Screen Menu > Sound > Speaker Settings > Auto VoBme

Because each station has its own set of broadcasting conditions, the volume may fluctuate as the

channel changes. The Auto Volume function automatically adjusts the volume of a channel by lowering

or raising the sound output. Normal applies a normal level of volume adjustment, whereas Night

applies a slightly lower volume level than Norman and is ideal for nighttime TV viewing. To use the

volume control of a connected source device, deactivate the Auto Volume function. When using the

Auto Volume function with a source device, the device's volume control may not function properly.

TV mnsta Mation Type

Screen Menu > Sound > Speaker Settings ) TV _nstaIBtion Type

Select the TV's installation type. Choose between Wall Mount and Stand to optimize the TV's sound

automatically.

Resetting the Sound

Screen Menu > Sound > Reset Sound

This resets all sound settings to the factory defaults.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung LCD-Fernseher Handbücher

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung 650 Series Bedienungsanleitung

Samsung

Samsung P2570HD - SyncMaster - 24.6" LCD Monitor Bedienungsanleitung

Samsung

Samsung LE32C630 K1WXXC Bedienungsanleitung

Samsung

Samsung la37b530p7f Bedienungsanleitung

Samsung

Samsung LNR1550 Bedienungsanleitung

Samsung

Samsung LE15S51BP Bedienungsanleitung

Samsung

Samsung LE32M8 Bedienungsanleitung

Samsung

Samsung LN40A500T1F Bedienungsanleitung

Samsung

Samsung LT-P 1545 Gebrauchs- und Pflegehandbuch

Samsung

Samsung LE26B350F1W Bedienungsanleitung

Samsung

Samsung LE15E31S Bedienungsanleitung

Samsung

Samsung 3 SERIES Bedienungsanleitung

Samsung

Samsung LE40S7 Bedienungsanleitung

Samsung

Samsung LE40M91B Bedienungsanleitung

Samsung

Samsung LN-S4095D Bedienungsanleitung

Samsung

Samsung LN-S1951W Bedienungsanleitung

Samsung

Samsung LN32A650A1F Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung Jasmine 20 Installationsanleitung

Samsung

Samsung Smart TV UN46D6000 Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Dell

Dell W1900 19 Gebrauchsanweisung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Bedienungsanleitung

Philips

Philips 40PFL7705D Bedienungsanleitung

Dynex

Dynex DX-40L261A12 Bedienungsanleitung

JVC

JVC LT-23C50BU Bedienungsanleitung
