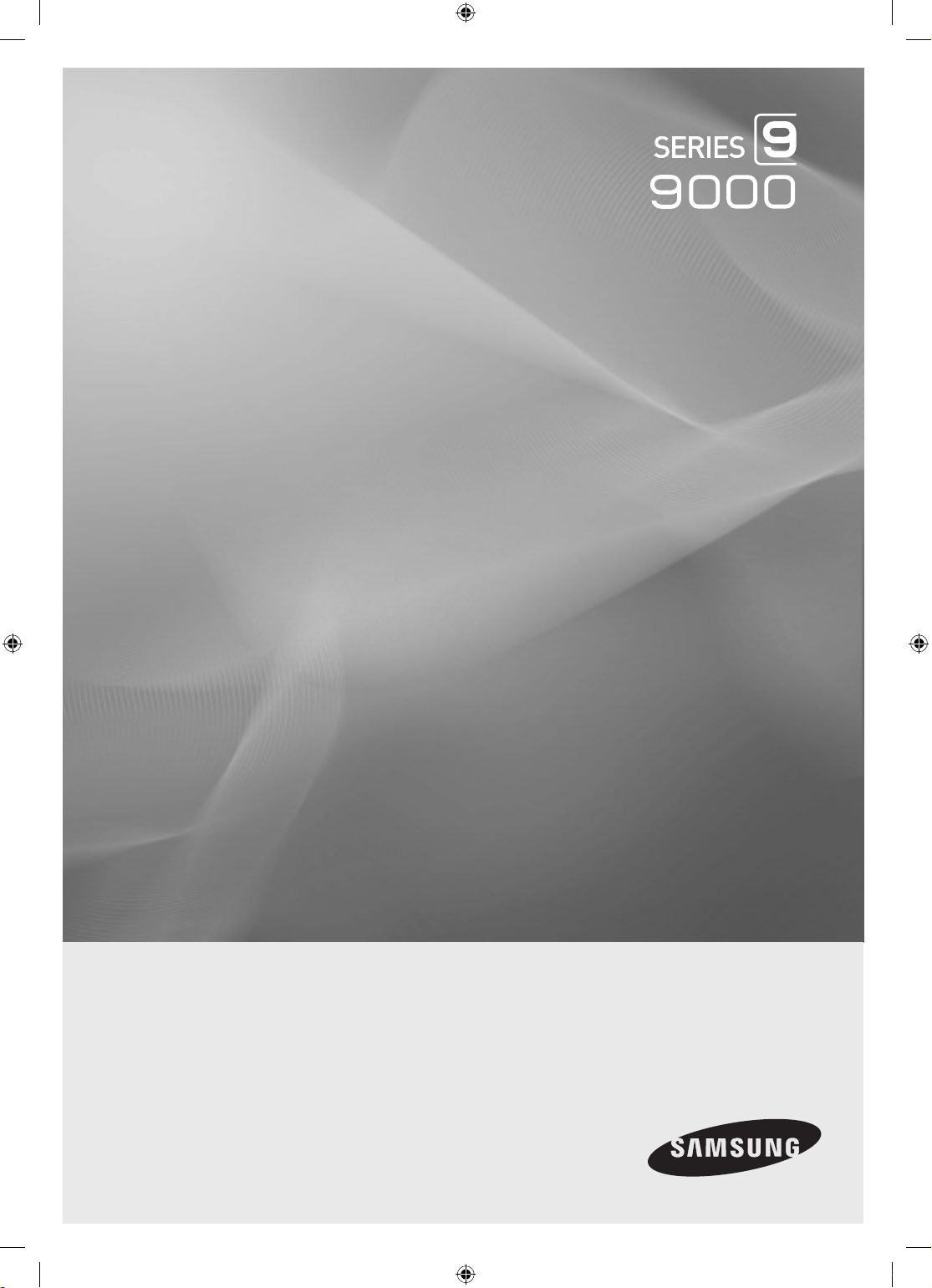

Samsung 9 Series Bedienungsanleitung

L E D T V

quick start guide

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please

www.samsung.com/global/register

[UC9000_Bra]BN68-03027A.indd 1 2010-05-18 오후 4:47:08

connections

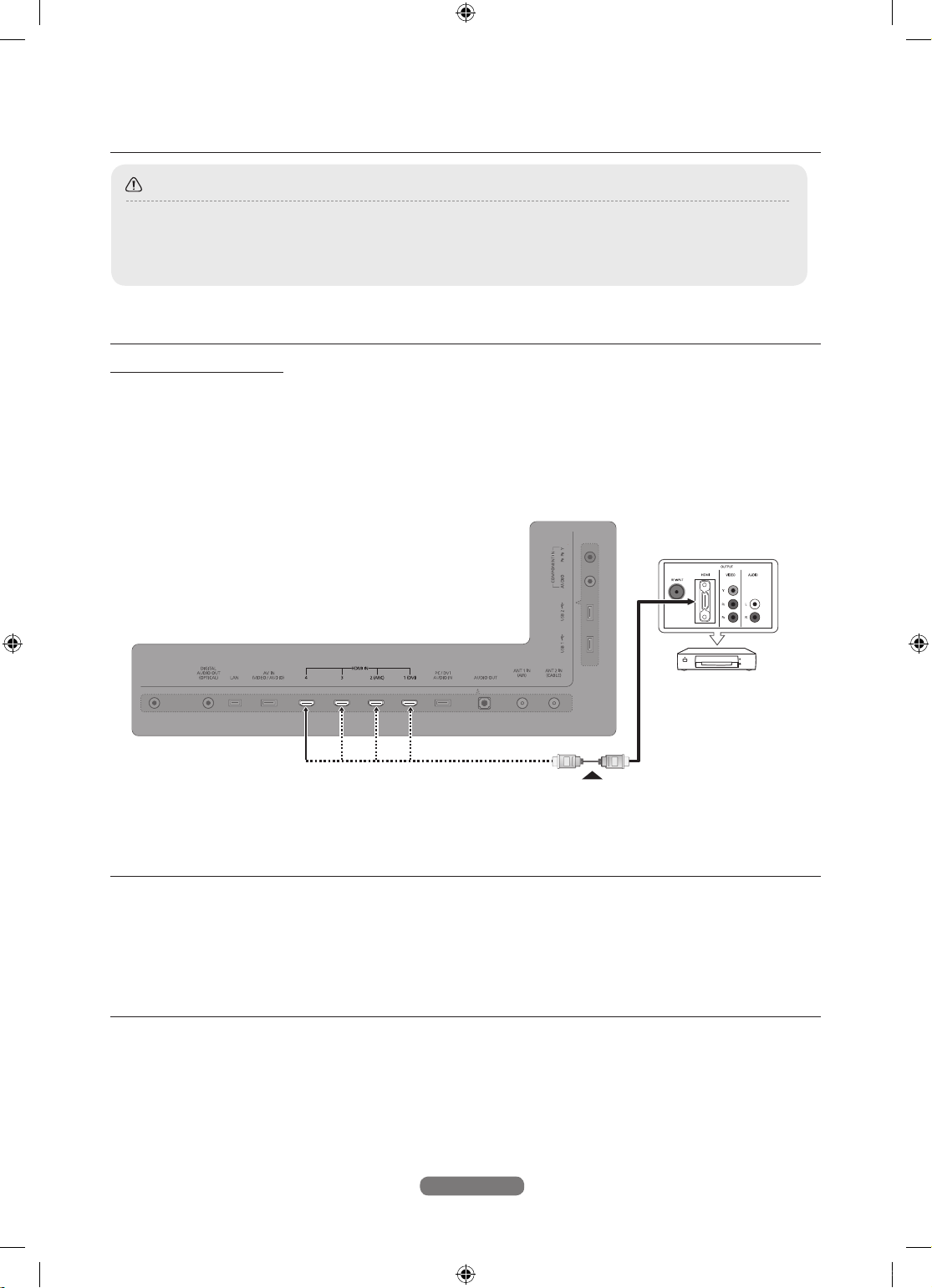

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA HDMI

UN55C9000ZM / UN55C9000SM

● When connecting an external device, match the colour of the connection terminal to the cable.

● The product colour and shape may vary depending on the model.

● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel conguration.

● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

Caution

Connect an HDMI Cable(Not supplied) between the HDMI IN (1(DVI), 2(ARC), 3 or 4) jack on the TV and the

HDMI jack on the Cable Box/Satellite receiver (Set-Top Box).

➢

No additional Audio connection is needed for an HDMI to HDMI connection.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

&9-*/,&

-*

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV ReaR Panel

[UC9000_Bra]BN68-03027A.indd 1 2010-05-18 오후 4:47:08

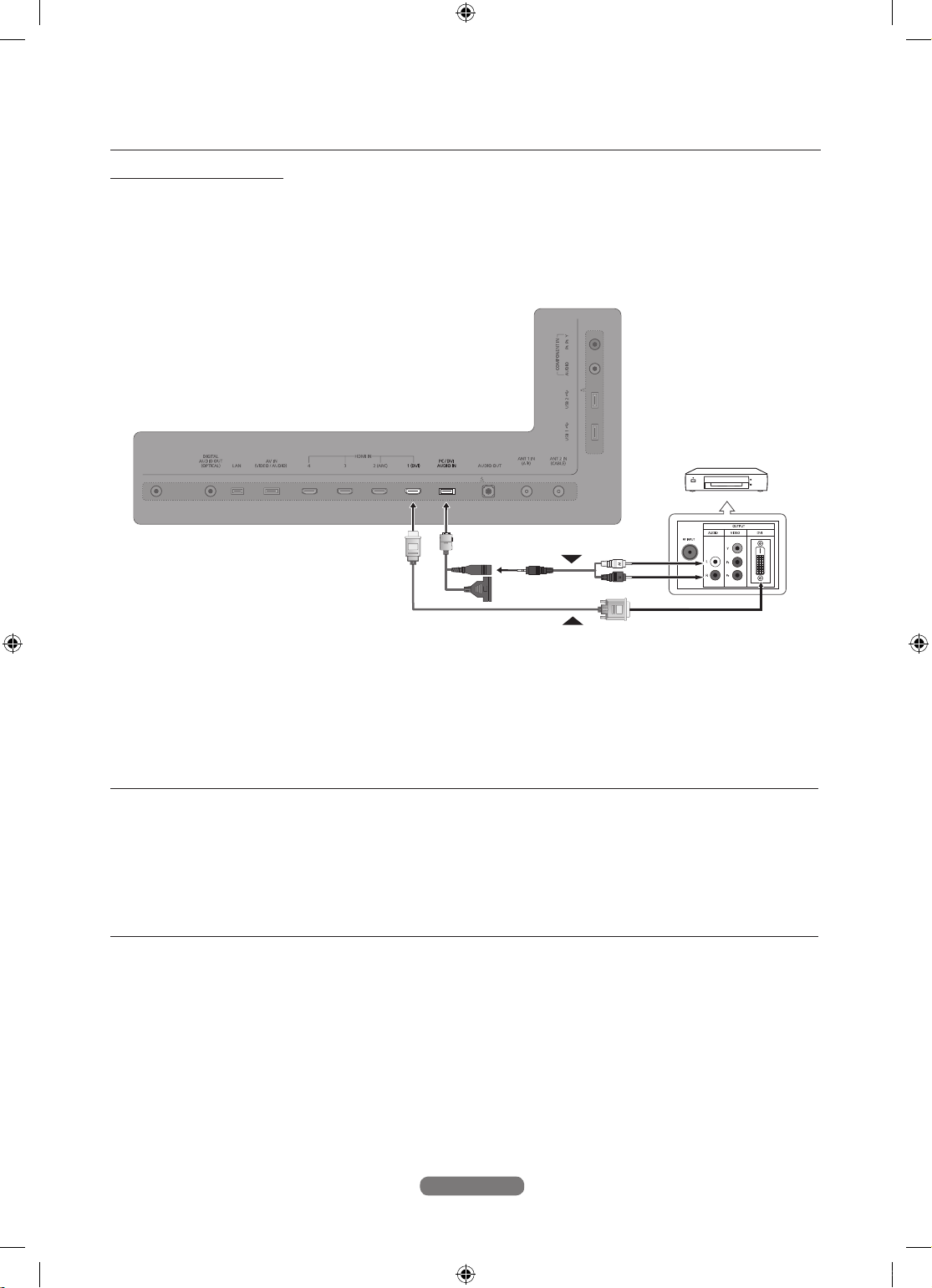

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA DVI

UN55C9000ZM / UN55C9000SM

Connect an HDMI Cable(Not supplied) between the HDMI IN 1(DVI) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the DVI AUDIO IN jack on the TV and the Cable Box/Satellite

receiver (Set-Top Box).

➢

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 1 jack.

&9-*/,&

-*

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV ReaR Panel

[UC9000_Bra]BN68-03027A.indd 2 2010-05-18 오후 4:47:09

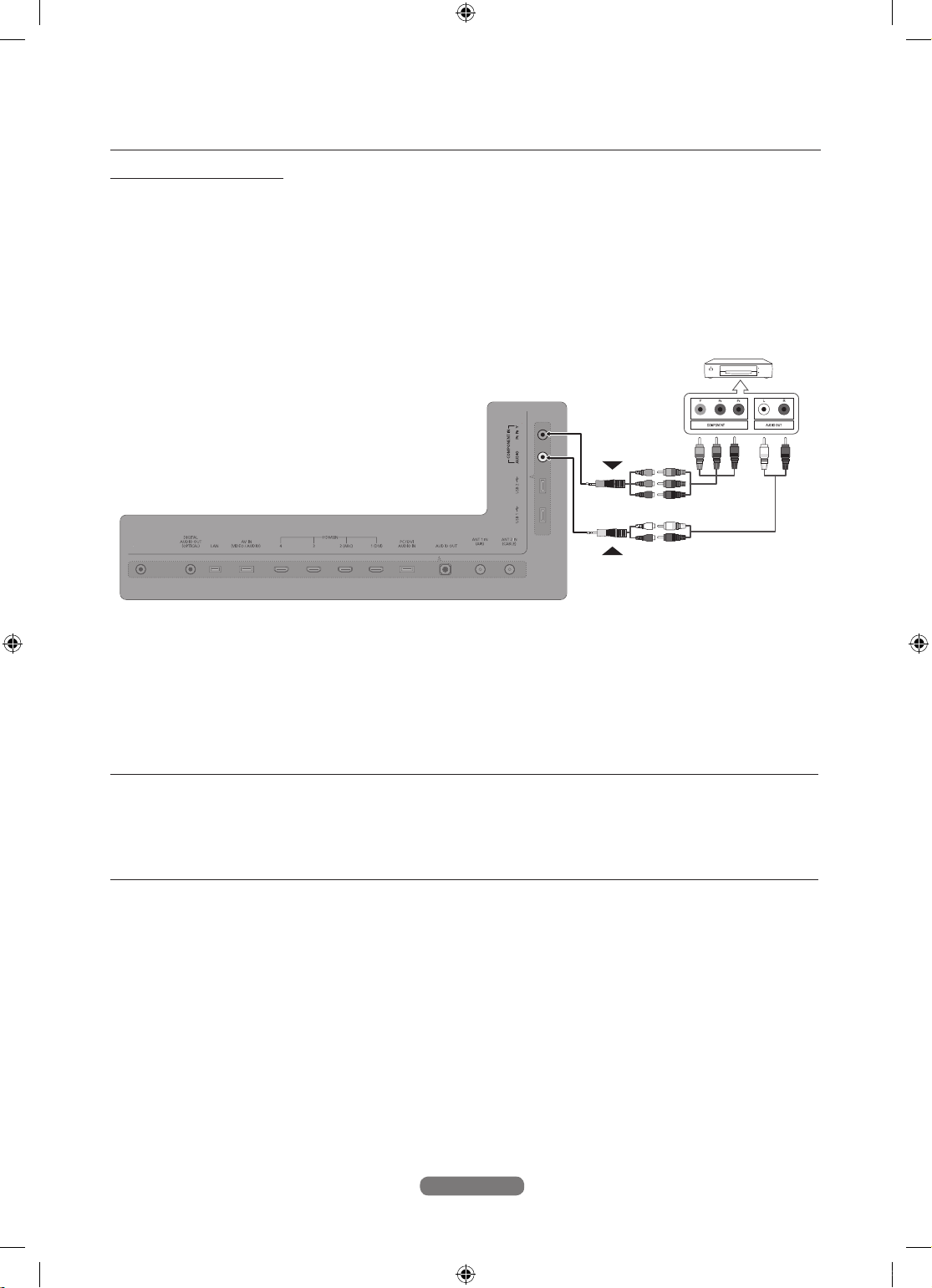

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

UN55C9000ZM / UN55C9000SM

Connect a Component Cable(Not supplied) between the COMPONENT IN [Y, PB, PR] jacks on the TV and the

COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables(Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the

AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

&9-*/,&9-*/,

W R

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV ReaR Panel

[UC9000_Bra]BN68-03027A.indd 3 2010-05-18 오후 4:47:09

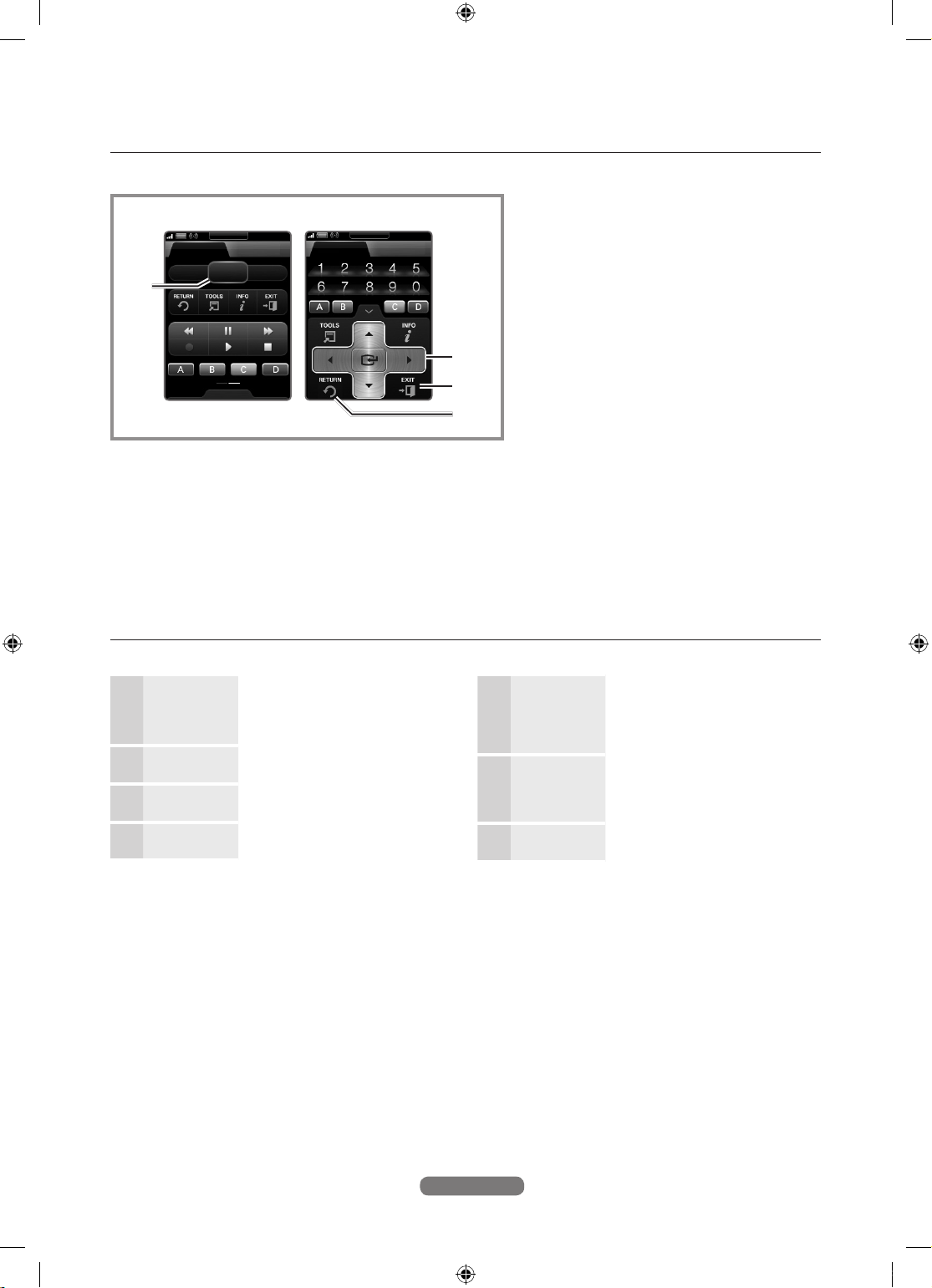

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

The access step may differ depending on the selected menu.

1MENU button: Displays the main on-screen

menu.

2 ENTERE/ Direction button: Move the cursor

and select an item. Conﬁrm the setting.

3EXIT button: Exits the on-screen menu.

4RETURN button: Returns to the previous menu.

HOW TO OPERATE THE OSD (ON SCREEN DISPLAY)

1MENU

The main menu options appears on

the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support.

2▲/ ▼Select an icon with the ▲or ▼

button.

3ENTER

Press ENTER

to access the sub-

menu.

4▲/ ▼Select the desired submenu with the

▲or ▼button.

5◄/ ►

Adjust the value of an item with the

◄or ►button. The adjustment in

the OSD may differ depending on the

selected menu.

6ENTER

Press ENTER

to complete the

conﬁguration.

7EXIT

Press EXIT.

Keyboard

Navigation

TV Control Services

CONTENT MENU INTERNET

@TV

Keyboard

TV Control Services

[UC9000_Bra]BN68-03027A.indd 4 2010-05-18 오후 4:47:09

CMS

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site

ARGENTINA 0800-333-3733 www.samsung.com

BRAZIL 0800-124-421

4004-0000 www.samsung.com

CHILE 800-SAMSUNG(726-7864) www.samsung.com

NICARAGUA 00-1800-5077267 www.samsung.com

HONDURAS 800-7919267 www.samsung.com

COSTA RICA 0-800-507-7267 www.samsung.com

ECUADOR 800-6225 www.samsung.com

EL SALVADOR 1-800-299-0013 www.samsung.com

GUATEMALA 1-800-299-0013 www.samsung.com

JAMAICA 1-800-234-7267 www.samsung.com

PANAMA 800-7267 www.samsung.com

PUERTO RICO 1-800-682-3180 www.samsung.com

REP. DOMINICA 1-800-751-2676 www.samsung.com

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com

VENEZUELA 0-800-100-5303 www.samsung.com

COLOMBIA 01-8000112112 www.samsung.com
