Professionai Design

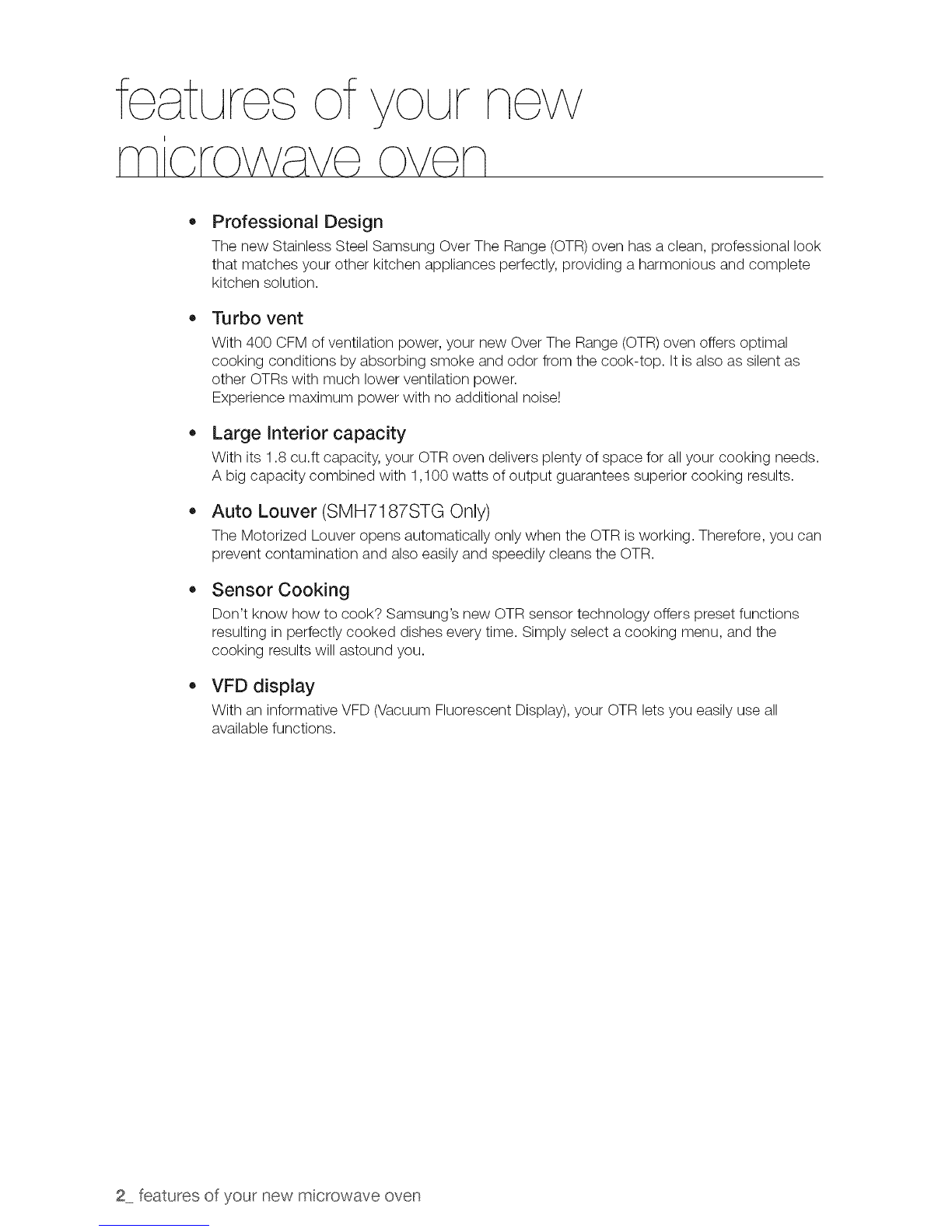

The new Stainless Steel Samsung Over The Range (OTR) oven has a clean, professional look

that matches your other kitchen appliances perfectly, providing a harmonious and complete

kitchen solution.

Turbo vent

With 400 CFM of ventilation power, your new Over The Range (OTR) oven offers optimal

cooking conditions by absorbing smoke and odor from the cook-top. It is also as silent as

other OTRs with much lower ventilation power.

Experience maximum power with no additional noise!

Large Interior capacity

With its 1.8 cu.ft capacity, your OTR oven delivers plenty of space for all your cooking needs.

A big capacity combined with 1,100 watts of output guarantees superior cooking results.

Auto Louver (SMH7187STG Only)

The Motorized Louver opens automatically only when the OTR is working. Therefore, you can

prevent contamination and also easily and speedily cleans the OTR.

Sensor Cooking

Don't know how to cook? Samsung's new OTR sensor technology offers preset functions

resulting in perfectly cooked dishes every time. Simply select a cooking menu, and the

cooking results will astound you.

VFD display

With an informative VFD (Vacuum Fluorescent Display), your OTR lets you easily use all

available functions.

2 features of your new microwave oven

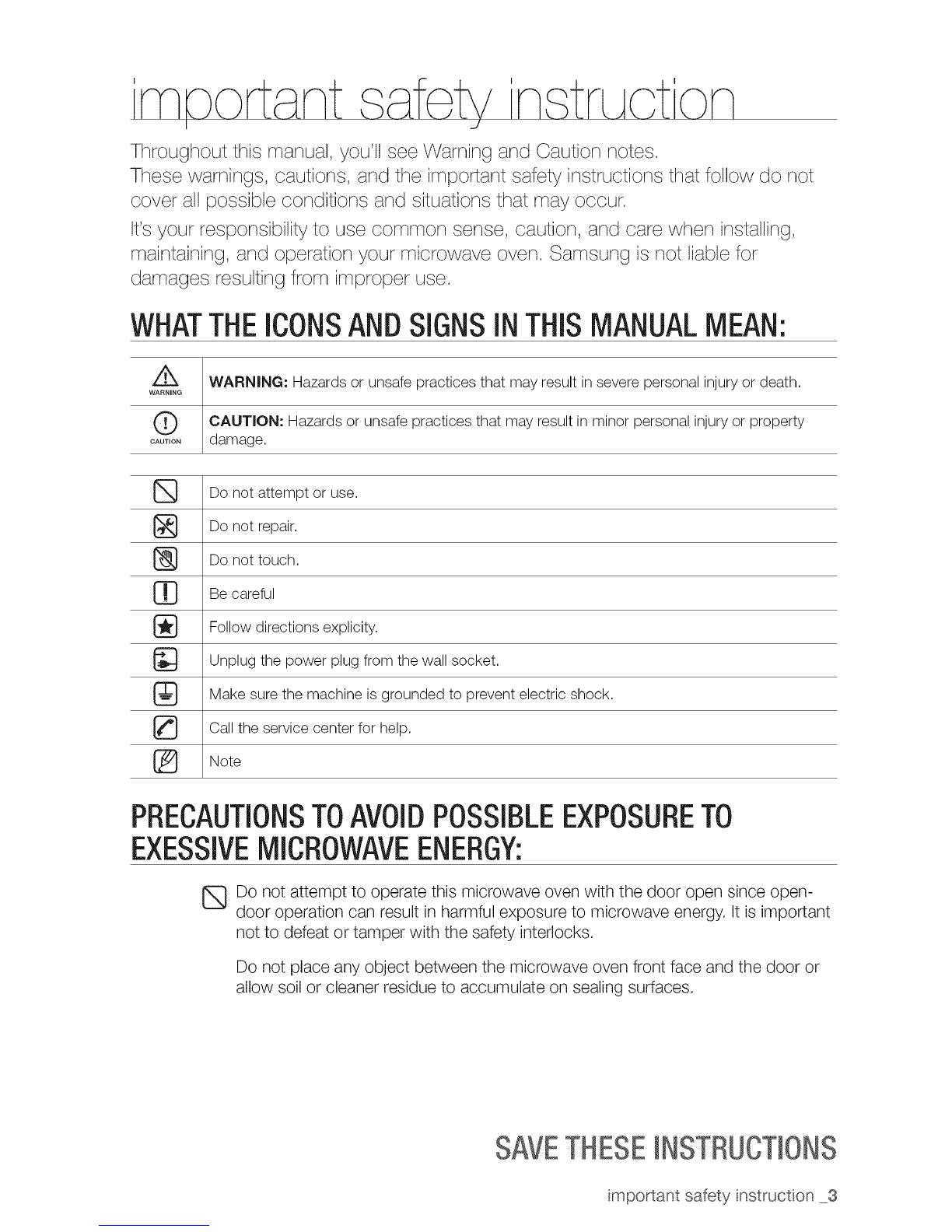

Throughout this manual, you'll see Warning and ©aution notes.

These warnings, cautions, and the important sCety instructions that follow do not

cover all possible conditions and situations that may occur.

It's your responsibility to use common sense, caution, and care when installing,

maintaining, and operation your microwave oven. Samsung is not liable for

damages resulting from improper use.

WHATTHEICONSANDSIGNSINTHISMANUALMEAN:

WARNING: Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

CAUTION: Hazards or unsafe practices that may result in minor personal injury or property

oAoT,o, damage.

Do not attempt or use.

I_ Do not repair.

Do not touch.

Be careful

I_ Follow directions explicity.

I_ Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURETO

EXESSIVEMICROWAVEENERGY:

_Do not attempt to operate this microwave oven with the door open since open-

door operation can result in harmful exposure to microwave energy. It is important

not to defeat or tamper with the safety interlocks.

Do not place any object between the microwave oven front face and the door or

allow soil or cleaner residue to accumulate on sealing surfaces.

SAVETHESEINSTRUCTIONS

important safety instruction ....3

Do not operate the microwave oven if it is damaged. It is particularly important that

the microwave oven door close properly and that there is no damage to the

• Door (bent or dented),

Hinges and latches (broken or loosened),

Door seals and sealing surfaces.

The microwave oven should not be adjusted or repaired by anyone except

properly qualified service personnel.

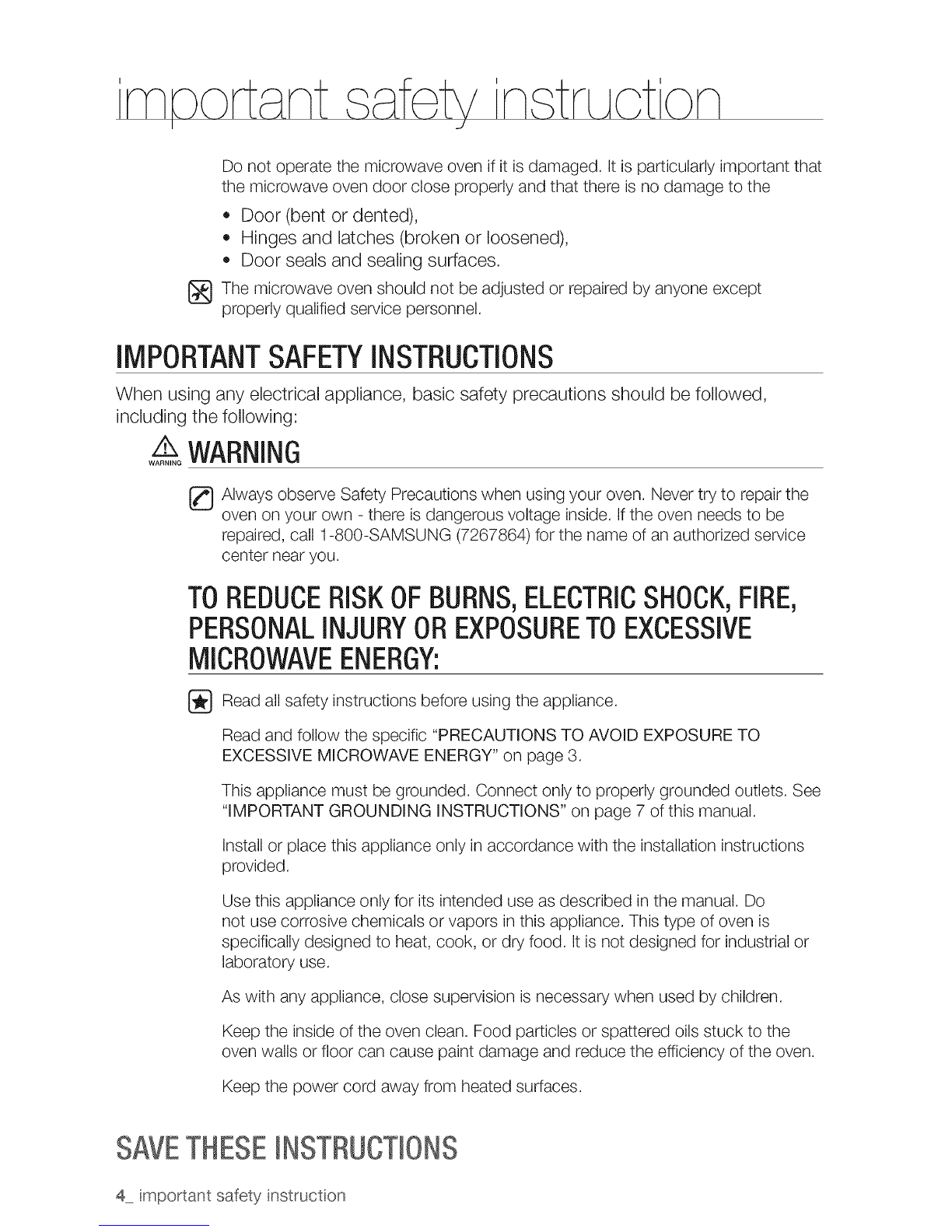

IMPORTANTSAFETYINSTRUCTIONS

When using any electrical appliance, basic safety precautions should be followed,

including the following:

WARNING

_ Always observe Safety Precautions when using your oven. Never try to repair the

oven on your own - there is dangerous voltage inside. If the oven needs to be

repaired, call 1-800-SAMSUNG (7267864) for the name of an authorized service

center near you.

TOREDUCERISKOFBURNS,ELECTRICSHOCK,FIRE,

PERSONALINJURYOREXPOSURETOEXCESSIVE

MICROWAVEENERGY:

Read all safety instructions before using the appliance.

Read and follow the specific "PRECAUTIONS TO AVOID EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY" on page 3.

This appliance must be grounded. Connect only to properly grounded outlets. See

"IMPORTANT GROUNDING INSTRUCTIONS" on page 7 of this manual.

Install or place this appliance only in accordance with the installation instructions

provided.

Use this appliance only for its intended use as described in the manual. Do

not use corrosive chemicals or vapors in this appliance. This type of oven is

specifically designed to heat, cook, or dry food. It is not designed for industrial or

laboratory use.

As with any appliance, close supervision is necessary when used by children.

Keep the inside of the oven clean. Food particles or spattered oils stuck to the

oven walls or floor can cause paint damage and reduce the efficiency of the oven.

Keep the power cord away from heated surfaces.

SAVETHESEINSTRUCTIONS

4....important safety instruction

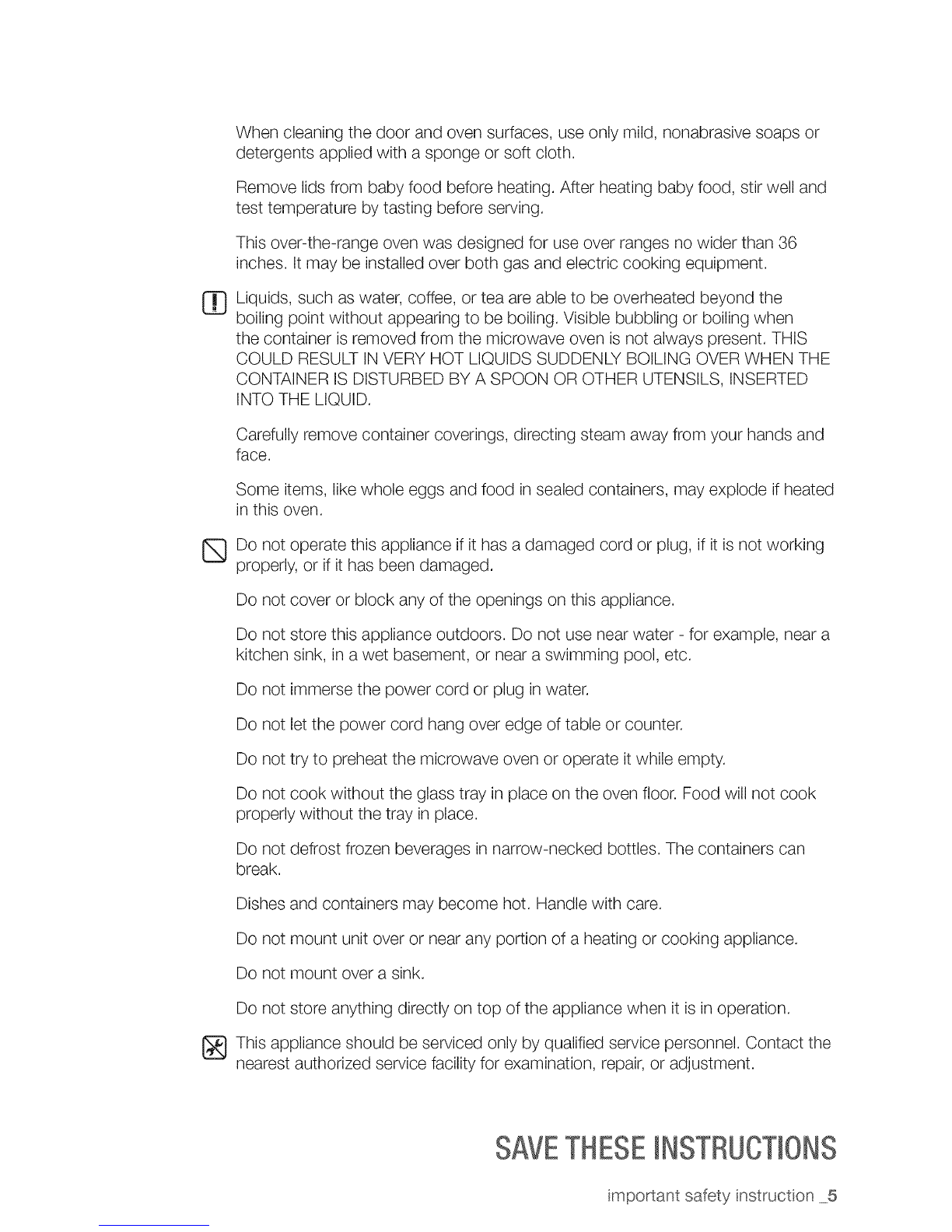

Whencleaningthedoorandovensurfaces,useonlymild,nonabrasivesoapsor

detergentsappliedwithaspongeorsoftcloth.

Removelidsfrombabyfoodbeforeheating.Afterheatingbabyfood,stirwelland

testtemperaturebytastingbeforeserving.

Thisover-the-rangeovenwasdesignedforuseoverrangesnowiderthan36

inches.Itmaybeinstalledoverbothgasandelectriccookingequipment.

[_ Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondthe

boilingpointwithoutappearingtobeboiling.Visiblebubblingorboilingwhen

thecontainerisremovedfromthemicrowaveovenisnotalwayspresent.THIS

COULDRESULTINVERYHOTLIQUIDSSUDDENLYBOILINGOVERWHENTHE

CONTAINERISDISTURBEDBYASPOONOROTHERUTENSILS,INSERTED

INTOTHELIQUID.

Carefullyremovecontainercoverings,directingsteamawayfromyourhandsand

face.

Someitems,likewholeeggsandfoodinsealedcontainers,mayexplodeifheated

inthisoven.

Donotoperatethisapplianceifithasadamagedcordorplug,ifitisnotworking

properly,orifithasbeendamaged.

Donotcoverorblockanyoftheopeningsonthisappliance.

Donotstorethisapplianceoutdoors.Donotusenearwater-forexample,neara

kitchensink,inawetbasement,ornearaswimmingpool,etc.

Donotimmersethepowercordorpluginwater.

Donotletthepowercordhangoveredgeoftableorcounter.

Donottrytopreheatthemicrowaveovenoroperateitwhileempty.

Donotcookwithouttheglasstrayinplaceontheovenfloor.Foodwillnotcook

properlywithoutthetrayinplace.

Donotdefrostfrozenbeveragesinnarrow-neckedbottles.Thecontainerscan

break.

Dishesandcontainersmaybecomehot.Handlewithcare.

Donotmountunitoverornearanyportionofaheatingorcookingappliance.

Donotmountoverasink.

Donotstoreanythingdirectlyontopoftheappliancewhenitisinoperation.

Thisapplianceshouldbeservicedonlybyqualifiedservicepersonnel.Contactthe

nearestauthorizedservicefacilityforexamination,repair,oradjustment.

SAVETHESEINSTRUCTIONS

important safety instruction ....5

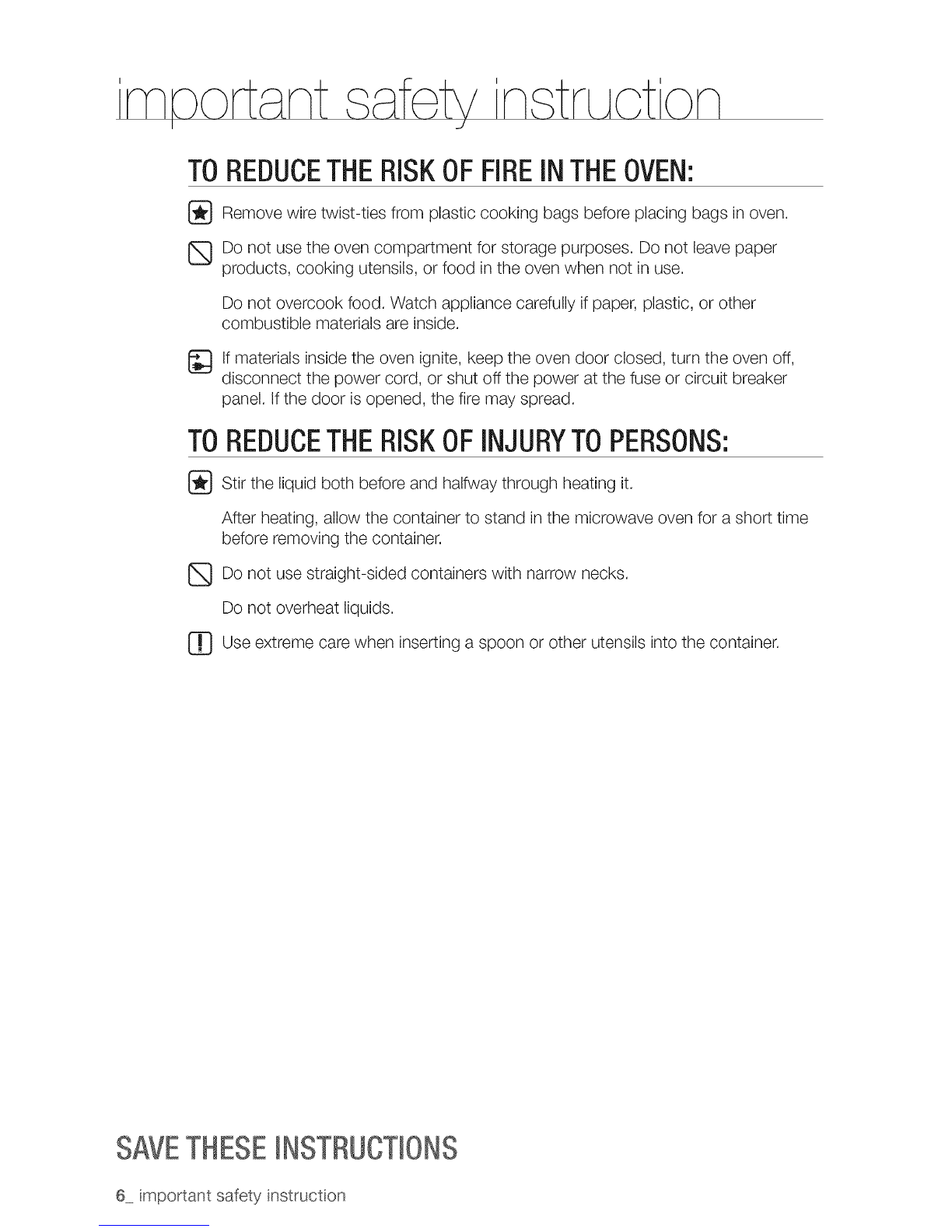

TOREDUCETHERISKOFFIREINTHEOVEN:

[_ Remove wire twist-ties from plastic cooking bags before placing bags in oven.

[_Do not use the oven compartment for storage purposes. Do not leave paper

products, cooking utensils, or food in the oven when not in use.

Do not overcook food. Watch appliance carefully if paper, plastic, or other

combustible materials are inside.

_lf materials inside the oven ignite, keep the oven door closed, turn the oven off,

disconnect the power cord, or shut off the power at the fuse or circuit breaker

panel. If the door is opened, the fire may spread.

TOREDUCETHERISKOFINJURYTOPERSONS:

_] Stir the liquid both before and halfway through heating it.

After heating, allow the container to stand in the microwave oven for a short time

before removing the container.

_Do not use containers with narrow necks.

straight-sided

Do not overheat liquids.

_Use extreme when other utensils into the container.

care inserting aspoon or

SAVETHESEINSTRUCTIONS

6_.important safety instruction

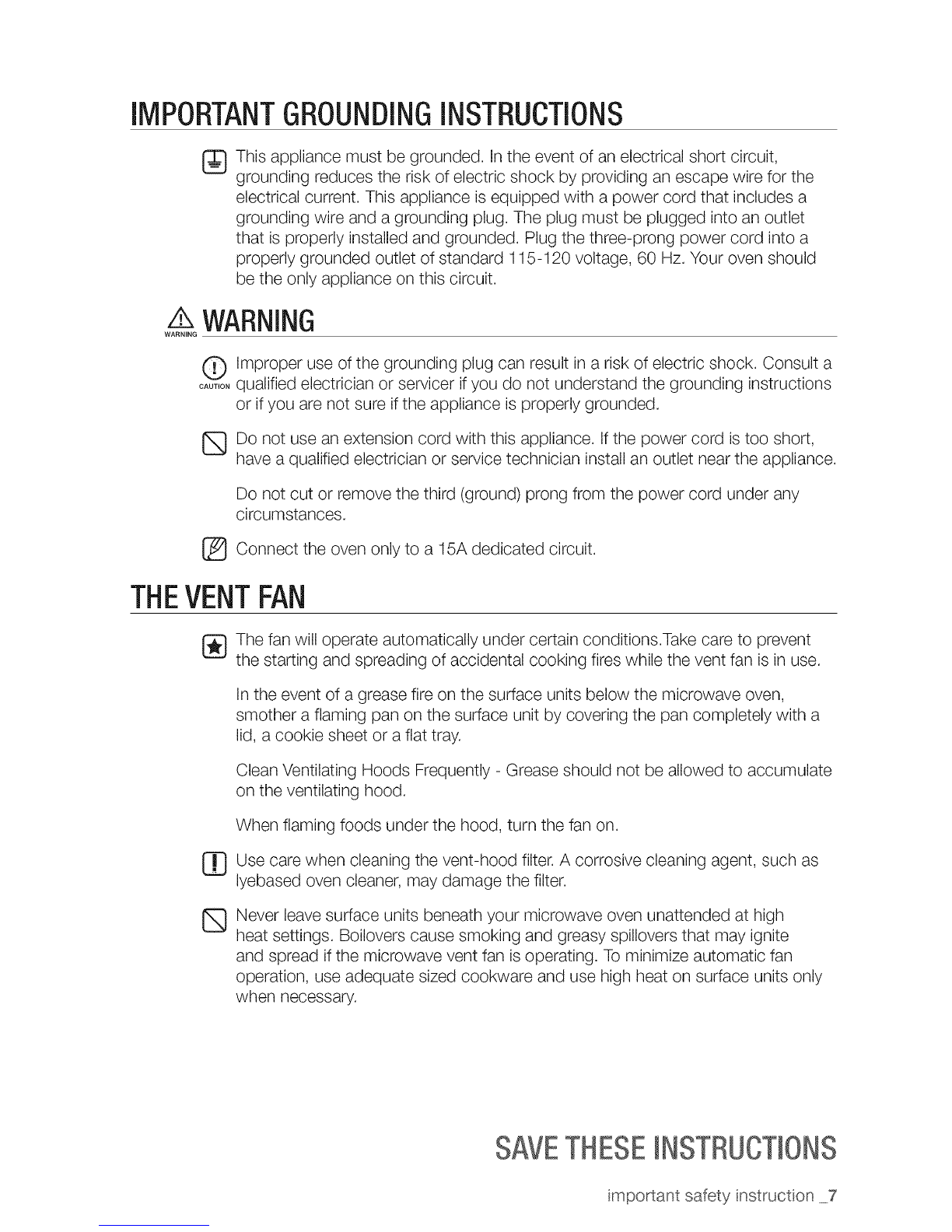

IMPORTANTGROUNDINGINSTRUCTIONS

[_ This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the

electrical current. This appliance is equipped with a power cord that includes a

grounding wire and a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded. Plug the three-prong power cord into a

properly grounded outlet of standard 115-120 voltage, 60 Hz. Your oven should

be the only appliance on this circuit.

WARNING

O Improper use of the grounding plug can result in a risk of electric shock. Consult a

....... qualified electrician or servicer ifyou do not understand the grounding instructions

or ifyou are not sure if the appliance is properly grounded.

_Do not use an extension cord with this appliance. If the power cord is too short,

have a qualified electrician or service technician install an outlet near the appliance.

Do not cut or remove the third (ground) prong from the power cord under any

circumstances.

Connect the oven only to a 15A dedicated circuit.

THEVENTFAN

[_The fan will operate automatically under certain conditions.Take care to prevent

the starting and spreading of accidental cooking fires while the vent fan is in use.

In the event of a grease fire on the surface units below the microwave oven,

smother a flaming pan on the surface unit by covering the pan completely with a

lid, a cookie sheet or a flat tray.

Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate

on the ventilating hood.

When flaming foods under the hood, turn the fan on.

Use care when cleaning the vent-hood filter. A corrosive cleaning agent, such as

lyebased oven cleaner, may damage the filter.

Never leave surface units beneath your microwave oven unattended at high

heat settings. Boilovers cause smoking and greasy spillovers that may ignite

and spread if the microwave vent fan is operating. To minimize automatic fan

operation, use adequate sized cookware and use high heat on surface units only

when necessary.

SAVETHESEINSTRUCTIONS

important safety instruction ....7

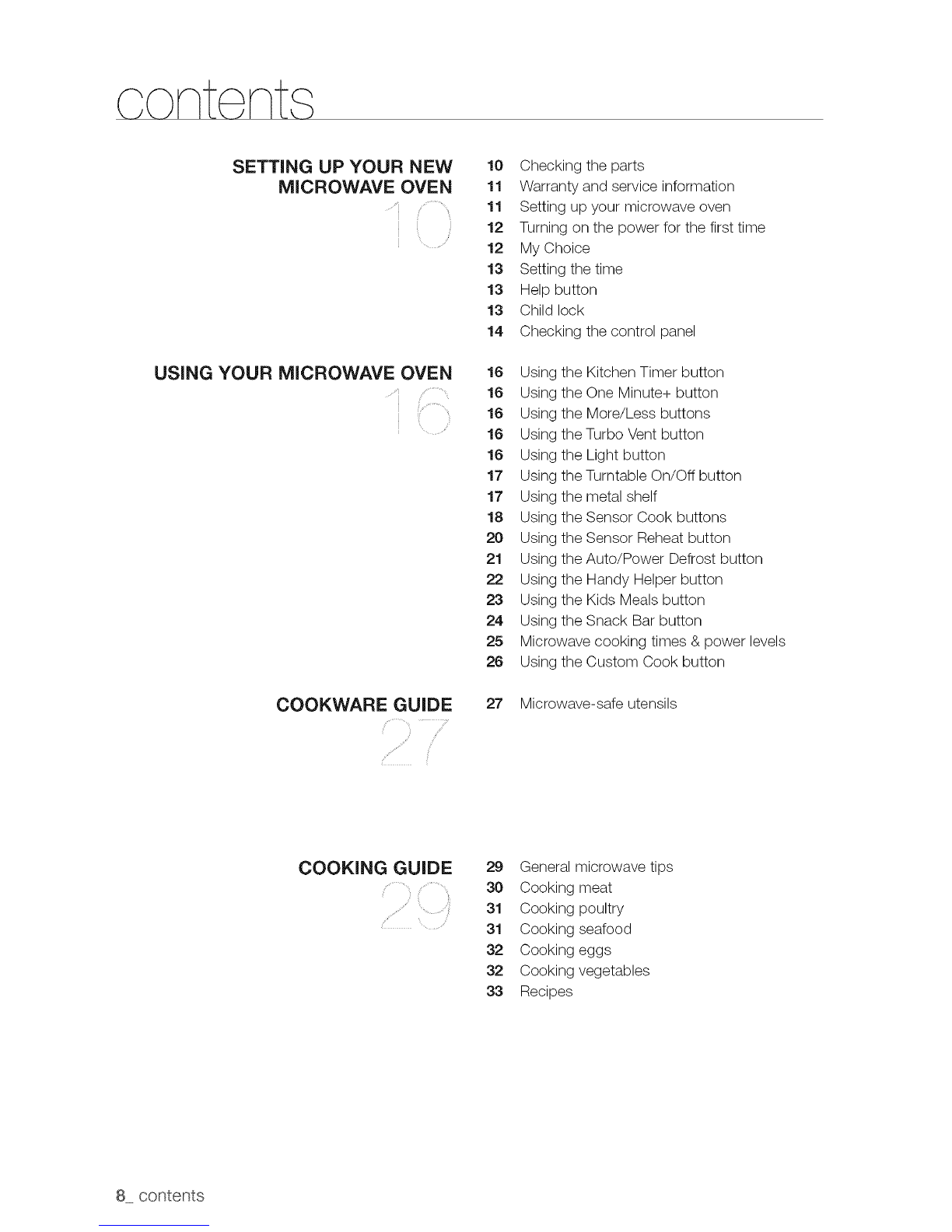

content

SETTING UP YOUR NEW

MICROWAVE OVEN

USING YOUR MICROWAVE OVEN

COOKWARE GUIDE

10 Checking the parts

11 Warranty and service information

11 Setting up your microwave oven

12 Turning on the power for the first time

12 My Choice

13 Setting the time

13 Help button

13 Child lock

14 Checking the control panel

16 Using the Kitchen Timer button

16 Using the One Minute+ button

16 Using the More/Less buttons

16 Using the Turbo Vent button

16 Using the Light button

17 Using the Turntable On/Off button

17 Using the metal shelf

18 Using the Sensor Cook buttons

20 Using the Sensor Reheat button

21 Using the Auto/Power Defrost button

22 Using the Handy Helper button

23 Using the Kids Meals button

24 Using the Snack Bar button

25 Microwave cooking times & power levels

26 Using the Custom Cook button

27 Microwave-safe utensils

COOKING GUIDE 29 General microwave tips

30 Cooking meat

31 Cooking poultry

31 Cooking seafood

32 Cooking eggs

32 Cooking vegetables

33 Recipes

8 contents

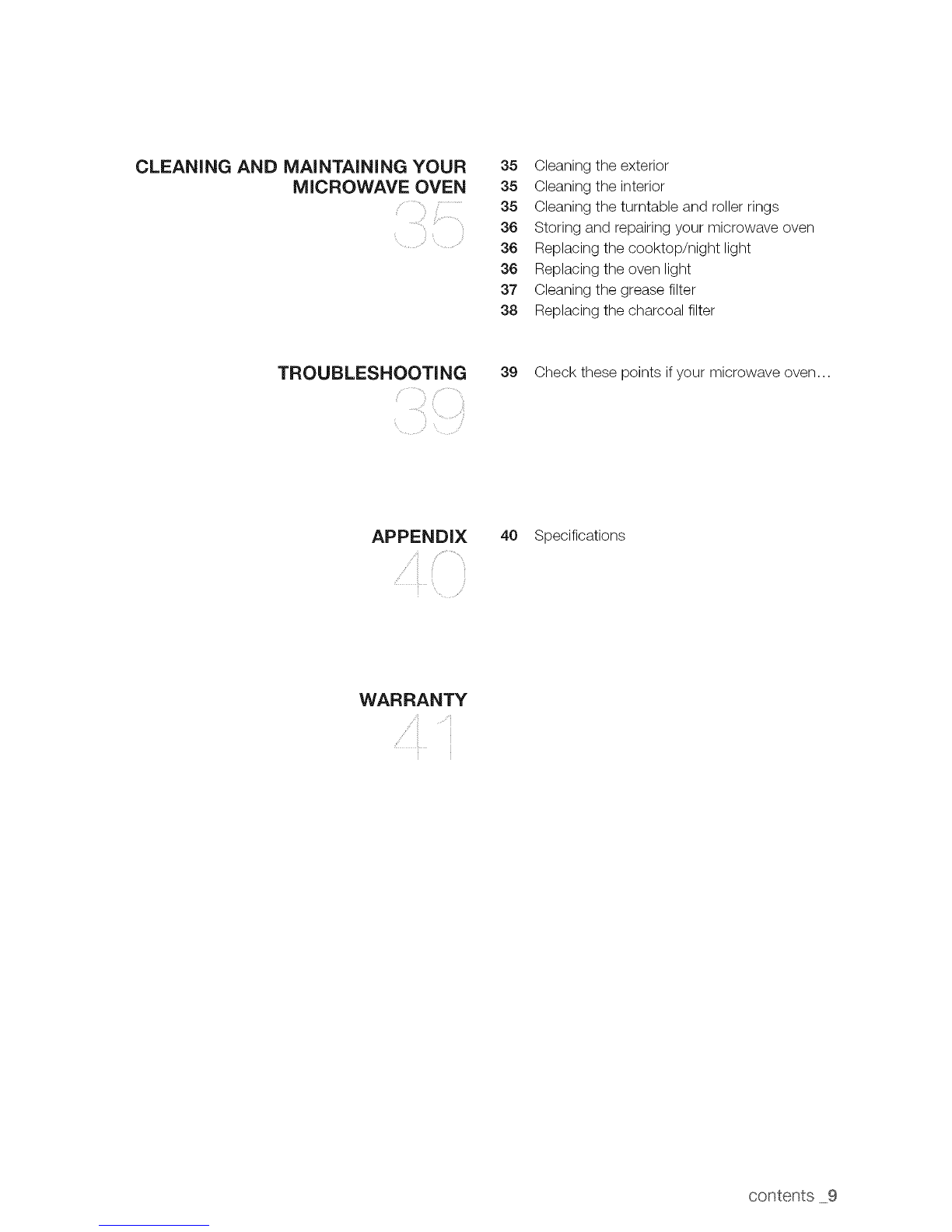

CLEANING AND MAiNTAiNiNG YOUR

MICROWAVE OVEN 35 Cleaning the exterior

35 Cleaning the interior

35 Cleaning the turntable and roller rings

36 Storing and repairing your microwave oven

36 Replacing the cooktop/night light

36 Replacing the oven light

37 Cleaning the grease filter

38 Replacing the charcoal filter

TROUBLESHOOTING 39 Check these points if your microwave oven...

APPENDIX 40 Specifications

(ii ' Y

WARRANTY

contents 9

sortng up

Be sure to follow these instructions closely so that your new microwave oven works

properly,

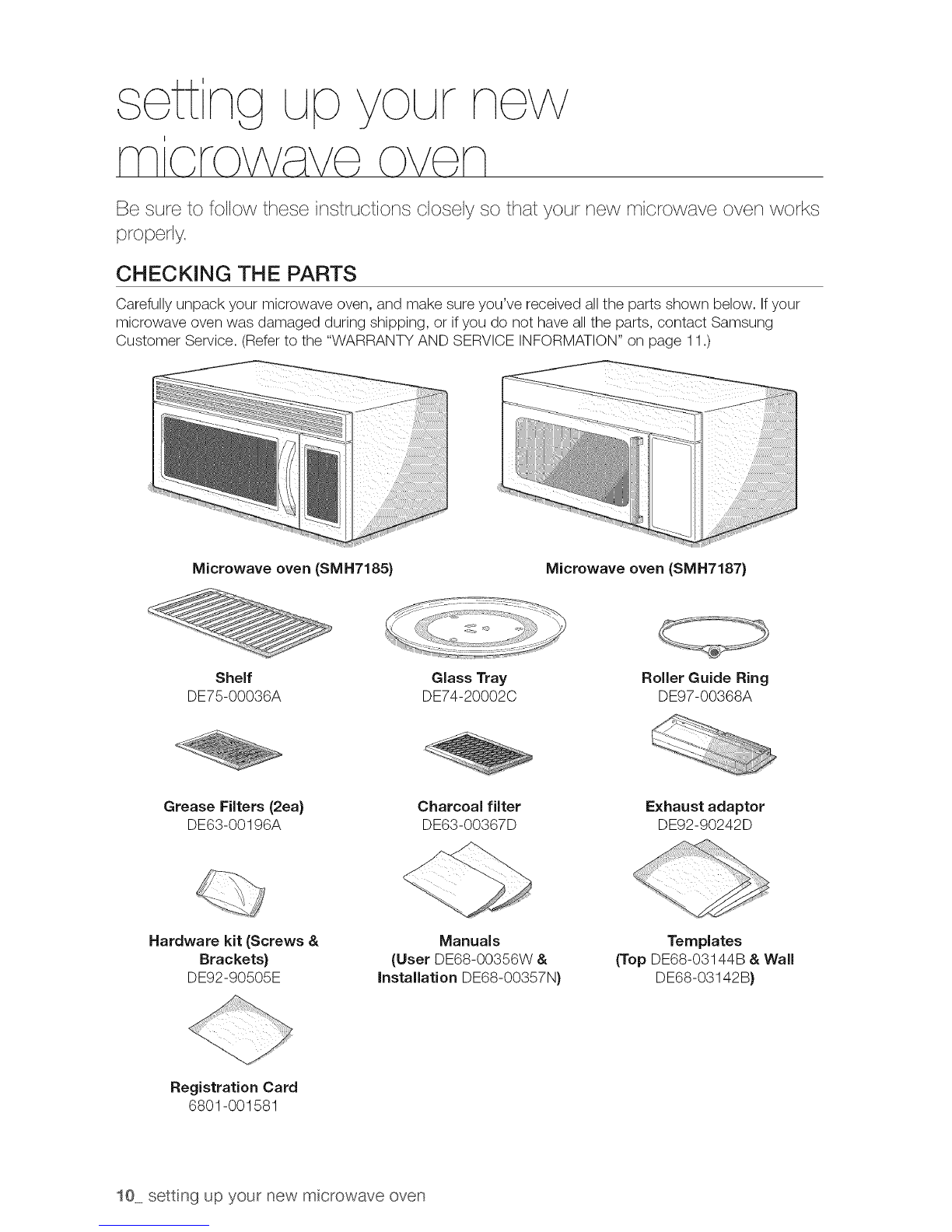

CHECKING THE PARTS

Carefully unpack your microwave oven, and make sure you've received all the parts shown below. Ifyour

microwave oven was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service. (Refer to the "WARRANTY AND SERVICE INFORMATION" on page 11.)

Microwave oven (SMH7185) Microwave oven (SMH7187}

Shelf Glass Tray Roller Guide Ring

DE75-00036A DE74-20002C DE97-00368A

Grease Filters (2ea)

DE63-00196A Charcoal filter

DE63-00367D Exhaust adaptor

DE92-90242D

Hardware kit (Screws &

Brackets)

DE92-90505E

Manuals

(User DE68-00356W &

installation DE68-00357N}

Templates

(Top DE68-03144B & Wall

DE68-03142B)

Registration Card

6801-001581

10 setting up your new microwave oven

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Mikrowellenofen Handbücher

Samsung

Samsung MC35J8085 series Bedienungsanleitung

Samsung

Samsung NQ5B4553F Series Bedienungsanleitung

Samsung

Samsung MW8123ST Bedienungsanleitung

Samsung

Samsung MB6774W Bedienungsanleitung

Samsung

Samsung SMH9207ST/XAA Bedienungsanleitung

Samsung

Samsung DE68-02331A Bedienungsanleitung

Samsung

Samsung CM1099 Handbuch

Samsung

Samsung C108ST Bedienungsanleitung

Samsung

Samsung M1913N Bedienungsanleitung

Samsung

Samsung SMH7178STD Benutzerhandbuch

Samsung

Samsung MG30T5018C Series Bedienungsanleitung

Samsung

Samsung MS30T5018A Series Bedienungsanleitung

Samsung

Samsung SMH7175BC/XAA Bedienungsanleitung

Samsung

Samsung MS11T5018AE Bedienungsanleitung

Samsung

Samsung SMH8165 Bedienungsanleitung

Samsung

Samsung MW620WB Benutzerhandbuch

Samsung

Samsung MC285TCTC SERIES Handbuch

Samsung

Samsung MW8490W Bedienungsanleitung

Samsung

Samsung SMH6150BB/XAA Bedienungsanleitung

Samsung

Samsung MG22M8074A Series Bedienungsanleitung

Samsung

Samsung MS405MADXBB Bedienungsanleitung

Samsung

Samsung GE711K Handbuch

Samsung

Samsung SMH9151 Bedienungsanleitung

Samsung

Samsung ME16A4021A Series Bedienungsanleitung

Beliebte Mikrowellenofen Handbücher anderer Marken

Daewoo

Daewoo KOG-574R0S Bedienungsanleitung

LG MH7040SS Bedienungsanleitung

Sharp

Sharp R-895(AL)M Bedienungsanleitung

Dometic

Dometic DOTRM13W Bedienungsanleitung

Sanyo

Sanyo EM-X680 Bedienungsanleitung

Sharp

Sharp R-393M Bedienungsanleitung

KitchenAid

KitchenAid KMCX4510 Montageanleitung

Smeg

Smeg S45MCX1 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHM2044 Bedienungsanleitung

Sunbeam

Sunbeam SMW759 Bedienungsanleitung

Gallet

Gallet FMOE230S Bedienungsanleitung

Bosch

Bosch CEG732X.1B Bedienungsanleitung

Dometic

Dometic Roadmate 230 Bedienungsanleitung

Sanyo

Sanyo EM-P494WS Bedienungsanleitung

Sharp

Sharp R-240 Bedienungsanleitung

Electrolux

Electrolux EMS2840 Bedienungsanleitung

Daewoo

Daewoo KOC-984T2S13 Bedienungsanleitung

Impecca

Impecca CM07M2 Bedienungsanleitung
