Samsung PS50C7000YK Bedienungsanleitung

English -4

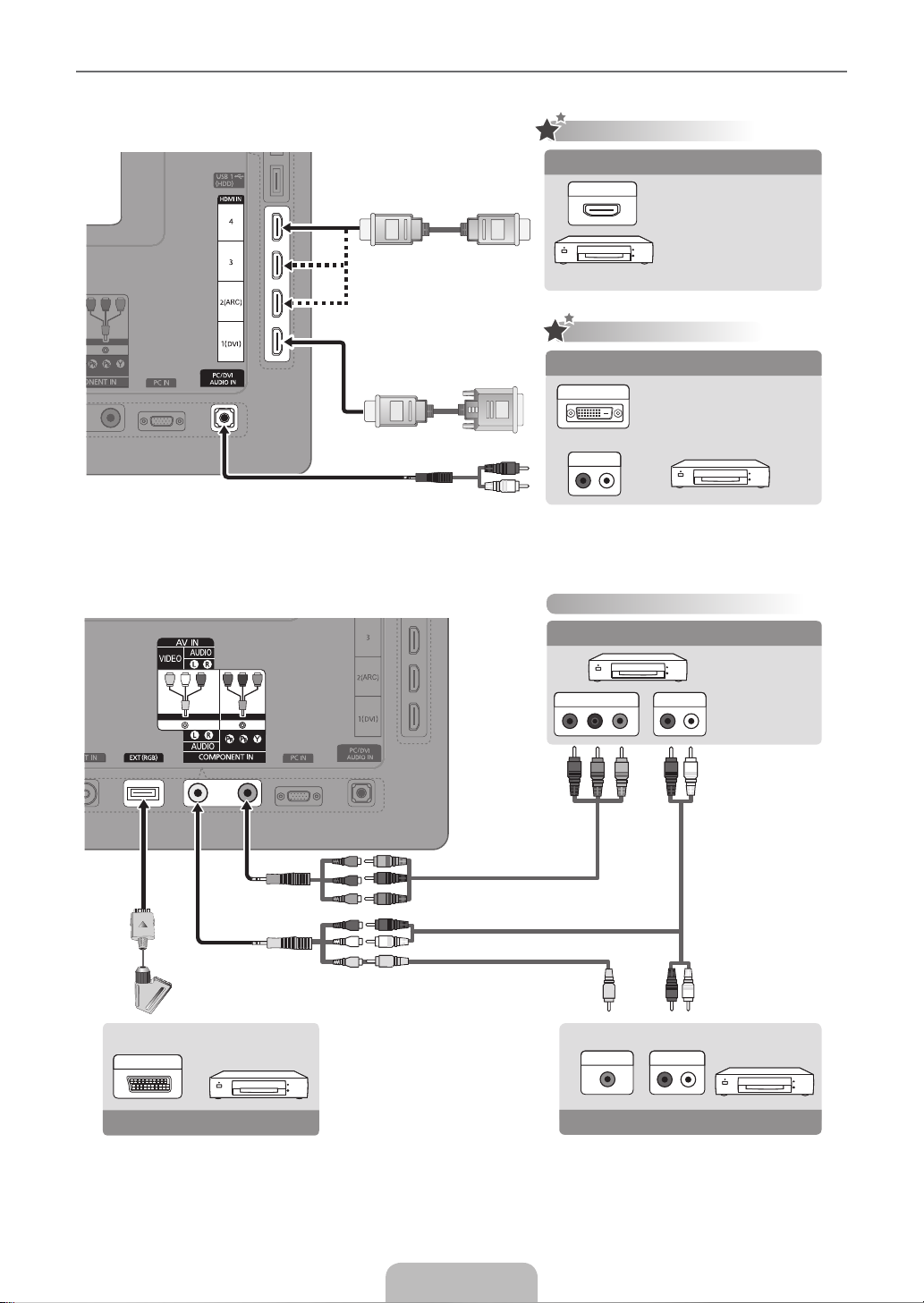

¦Connecting a AV device

W R

HD connection

DVD, Blu-ray player,

HD cable box, HD

STB (Set-Top-Box)

satellite receiver, cable

box, satellite receiver

(STB)

Using an HDMI Cable

HDMI OUT

Device

Using a Scart Cable

EXT

W R

HD connection

DVD / Blu-ray player

Using an HDMI to DVI Cable

DVI OUT

AUDIO OUT

Component connection

DVD, Blu-ray

player, cable

box, STB satellite

receiver, VCR

Using a Component Cable

AUDIO OUTCOMPONENT OUT

Device

AUDIO OUTVIDEO OUT

Using an Audio/Video Cable

BN68-02810A-00Eng.indd 1 2010-03-26 오후 6:34:08

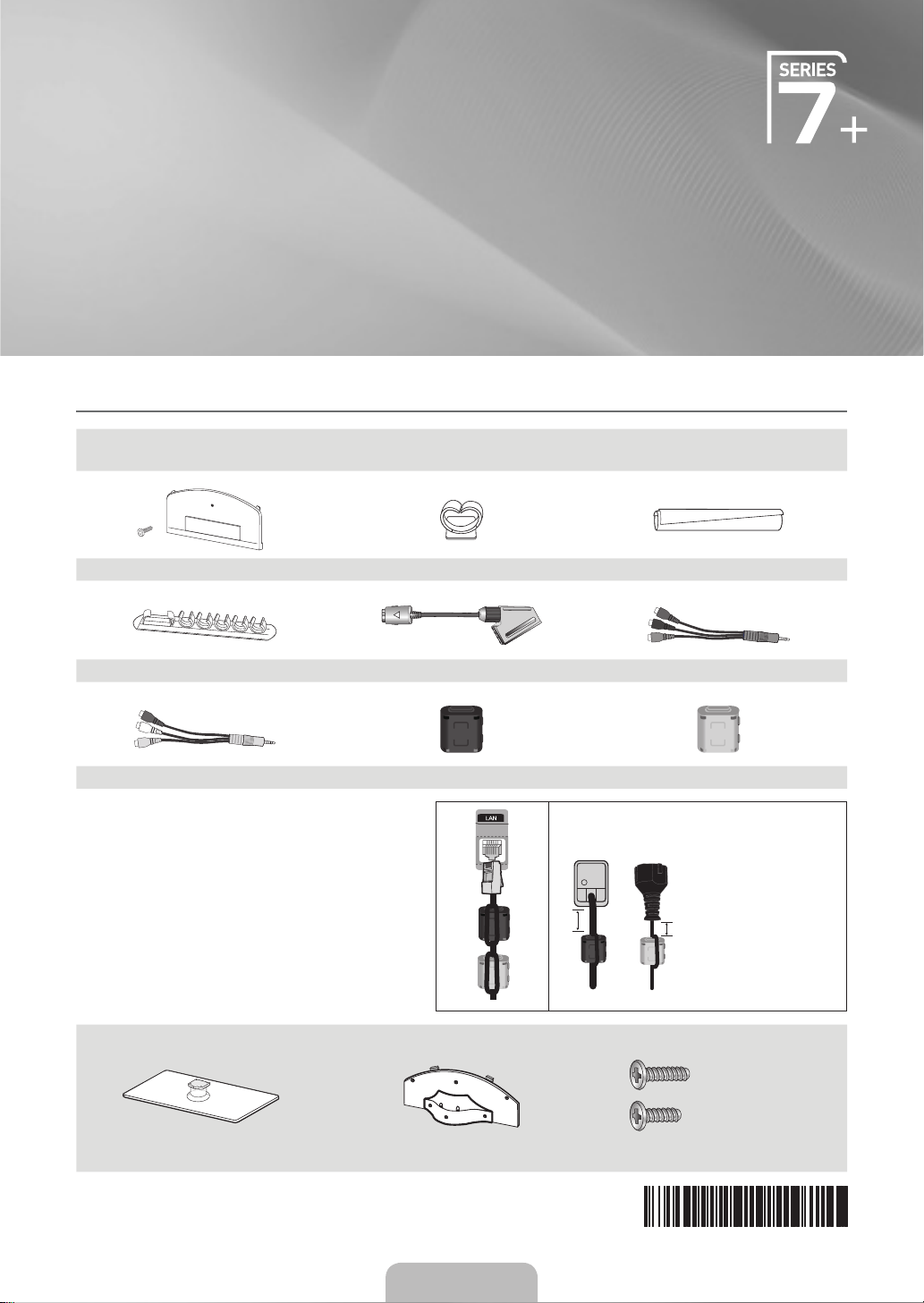

¦The Supplied Accessories

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yCleaning Cloth

yBlanking Bracket & Screw (X1)

yHolder-Wire stand

yCable Tie

yHolder-Wire (3EA)

ySCART Adapter (1EA)

yComponent Adapter

yAV Adapter

yFerrite Core (2EA)

✎

Ferrite Core: The ferrite cores are used to shield the

cables from interference. When connecting a cable,

open the ferrite core and clip it around the cable near

the plug as shown in the figure.

Distance between the ferrite core and one end

of the cord put into the TV set.

yA : below 50 mm

yB : below 20 mm

See separate guide for installing the stand.

yStand (1EA)

yGuide Stand (1EA)

yScrews (10EA)

Plasma TV

QUICK SETUP GUIDE

English - 1

BN68-02810A-00

(M4 X L12)

5EA (M4 X L12)

5EA (M4 X L10)

BN68-02810A-00Eng.indd 2 2010-03-26 오후 6:34:10

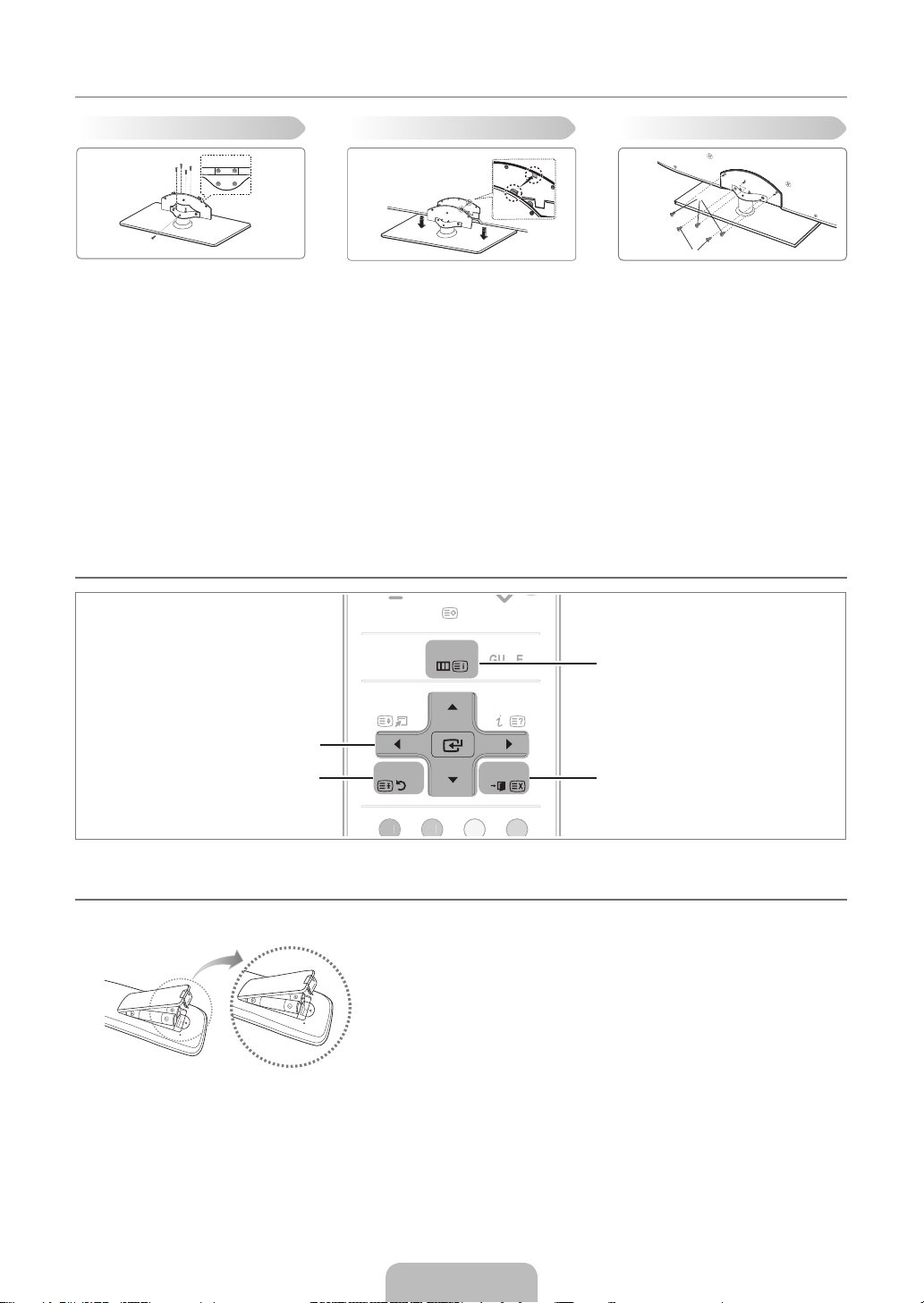

¦Installing the Stand

✎

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models

(Depending on the model)

Step 1. Attach your PDP TV to the stand.

✎

Two or more people should carry the TV.

✎

Make sure to distinguish between the front and back of the stand when assembling them.

✎

To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper

left of right sides of the TV.

Step 2. Fasten two screws at position 1and then fasten three screw at position 2.

✎

Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to

one side.

¦Using the remote control buttons

¦Installing Batteries in the Remote Control

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control. Avoid

using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

English - 2

RETURN Button

Return to the previous menu.

ENTER

/ DIRECTION Buttons

Move the cursor and select an

item. Select the currently selected

item. Conﬁrm the setting.

EXIT

Exit the on-screen menu.

MENU Button

Display the main on-screen menu.

OWER

SOU

N/OFF

INTERNET

NTEN

MEDIA

IZE

PRE-

CH LIS

MUTE

TOO

RETURN

EXIT

Preset Step 1 Step 2

Rear

Front

sss

Top View

BN68-02810A-00Eng.indd 3 2010-03-26 오후 6:34:12

English - 3

¦Plug & Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting ‘Setup →Plug & Play’.

On the screen, you can set as follows.

✎

The each step may vary depending on the Antenna source.

ANT OUT

Cable

VHF/UHF Antenna

Cable

Step 1 Step 2 Step 3

Step 4 Step 5 Step 6

Step 7 Step 8

Plug & Play

Select the OSD Language.

Menu Language : : English

▲

Nederlands

English

Eesti

▼

Move

Enter

Plug & Play

Select Country.

Country :

▲

Turkey

United Kingdom

Estonia

▼

Move

Enter

Plug & Play

Enjoy your TV.

Plug & Play

Select the usage mode.

Store Demo Home Use

Move

Enter

Plug & Play

Antenna Source : Air ►

Channel Source : Digital & Analogue

Previous Skip

Move

Enter

Serch

Plug & Play

Auto Store in progress.

Channels : 7

15%

Digital 2

TV:2 Radio:0 Data/Other: 0

Analogue 0

Enter

Stop

Plug & Play

Set the Clock Mode.

Clock Mode : Manual ►

Move

Enter

Auto

Manual

Plug & Play

How to get the best perfotmance from your new HDTV

1/2

Step 1. Connect the HD Box to the using HDMI or Component

cables.

TV rear view ►

HDMI Cable

Previous Skip ► Next

BN68-02810A-00Eng.indd 4 2010-03-26 오후 6:34:13
