Samsung SP-43Q5HL Bedienungsanleitung

Infrared Remote Control

➢The performance of the remote control may be affected by bright light.

DIRECT CHANNEL SELECTION

MENU DISPLAY/

TELETEXT INDEX

CONTROL THE CURSOR

IN THE ON-SCREEN MENU

SURROUND ON/OFF DIRECTLY

TELEVISION STANDBY

FASTEXT TOPIC SELECTION

AUTOMATIC SWITCH-OFF

TELETEXT PAGE HOLD

INFORMATION DISPLAY/

TELETEXT REVEAL

EXIT FROM ANY DISPLAY

ONE OR TWO-DIGIT CHANNEL

SELECTION/

TELETEXT STORE

SELF FOCUS

PICTURE FREEZE

TELETEXT SUB-PAGE

TELETEXT CANCEL

EXTERNAL INPUT SELECTION/

TELETEXT MODE (LIST/FLOF)

SELECTION

SWITCH REPEATEDLY BETWEEN THE

LAST TWO CHANNELS DISPLAYED

CONFIRM YOUR CHOICE

(STORE OR ENTER)

NEXT CHANNEL/

TELETEXT NEXT PAGE

PICTURE EFFECT SELECTION

IF YOUR REMOTE CONTROL IS

NOT FUNCTIONING PROPERLY,

TAKE OUT THE BATTERIES AND

PRESS THE RESET BUTTON FOR

ABOUT 2~3 SECONDS. RE-INSERT

THE BATTERIES AND TRY USING

THE REMOTE CONTROL AGAIN.

SOUND MODE SELECTION

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE

MAKE THE REMOTE CONTROL WORKS

FOR TV, STB, VCR, CABLE, DVD

PLAYER

TUNER/CABLE NETWORK

SELECTION

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

VOLUME DECREASE

TELETEXT DISPLAY/

MIX BOTH TELETEXT INFORMATION

AND THE NORMAL BROADCAST

SOUND EFFECT SELECTIOND

PICTURE SIZE/

TELETEXT SIZE SELECTION

VCR/DVD FUNCTIONS;

-REWIND ( )

-STOP ( )

-PLAY/PAUSE ( )

-FAST FORWARD ( )

REMOTE CONTROL SETUP

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:10 PM Page 10

Connecting to the External Input/Outputs

➢

EXT 1 is used for the equipment with an RGB output, such as video game

devices or video disc players.

Rear of the TV

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

①

This end can be fitted with:

◆A SCART connector

◆An S-Video connector and two audio RCA connectors (L+R); EXT 2

◆Three RCA connectors (VIDEO + AUDIO-L and R)

②

If you have a second VCR and wish to copy cassette tape, connect the

source VCR to EXT 1 and the target VCR to EXT 2 so that you can redirect

the signal from EXT 1 to EXT 2.

③

If you have a decoder, connect the decoder to the VCR and the VCR to the

television.

➃

When you wish to record a programme, connect the receiver to EXT 1 and

the VCR to EXT 2 so that you can redirect the signal from EXT 1 to EXT 2.

①

DVD

②

➃

③

☛Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:11 PM Page 53

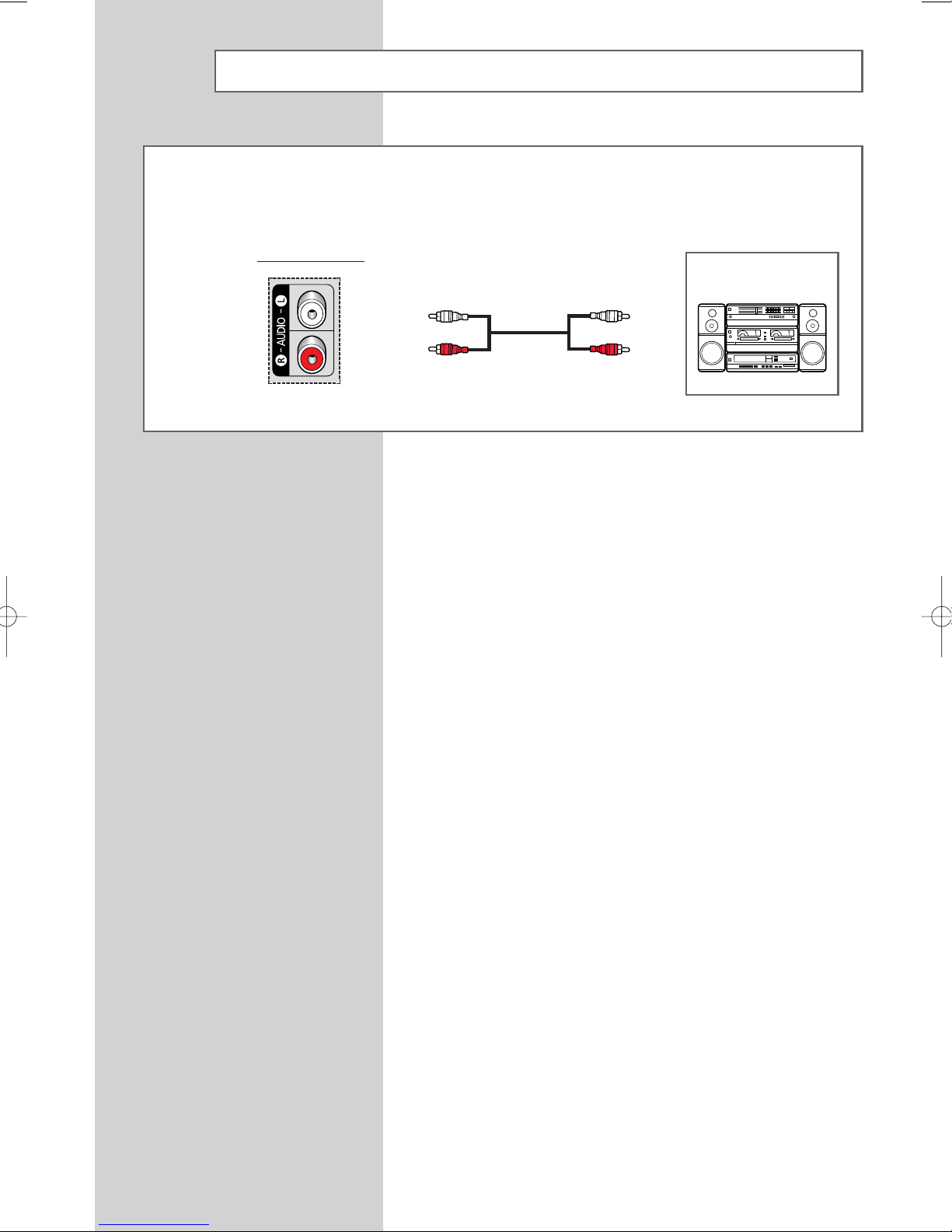

Connecting to the Audio Output

➢The RCA (AUDIO-L and R) connectors are used for equipment, such as an audio

system (to take full advantage of the Surround sound effect).

Rear of the TV

Audio system

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:11 PM Page 54

Connecting to the RCA Input

➢The RCA (VIDEO + AUDIO-L and R) connectors are used for the equipment, such as camcorders,

video disc players, and some video game devices.

Side of the TV

(depending on the model)

Camcorder

Video game device

Video disc player

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:11 PM Page 55

Connecting to the S-Video Input

➢The S-VIDEO (or S-VIDEO INPUT) and RCA (AUDIO-L and R) connectors are used for equipment

with an S-Video output, such as a camcorder or VCR.

Camcorder

VCR

①

To play pictures and sound, both the S-VIDEO (or S-VIDEO INPUT) and RCA connectors must be used.

and

①

Side of the TV

(depending on the model)

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:11 PM Page 56

Connecting to the Component Input

➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.

(480i, 480p, 576i, 576p, 1080i)

DVD

Rear of the TV

DTV receiver

BP68-00457A-01(J60B_Euro_ENG) 2005/01/13 02:11 PM Page 57
