Samsung RB38T603CS9 Bedienungsanleitung

English

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

RB7300T_User-servicing-manual_EN.indd 1 2020-11-19 PM 6:03:15

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Samsung RB38T603CS9 o

cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori

English

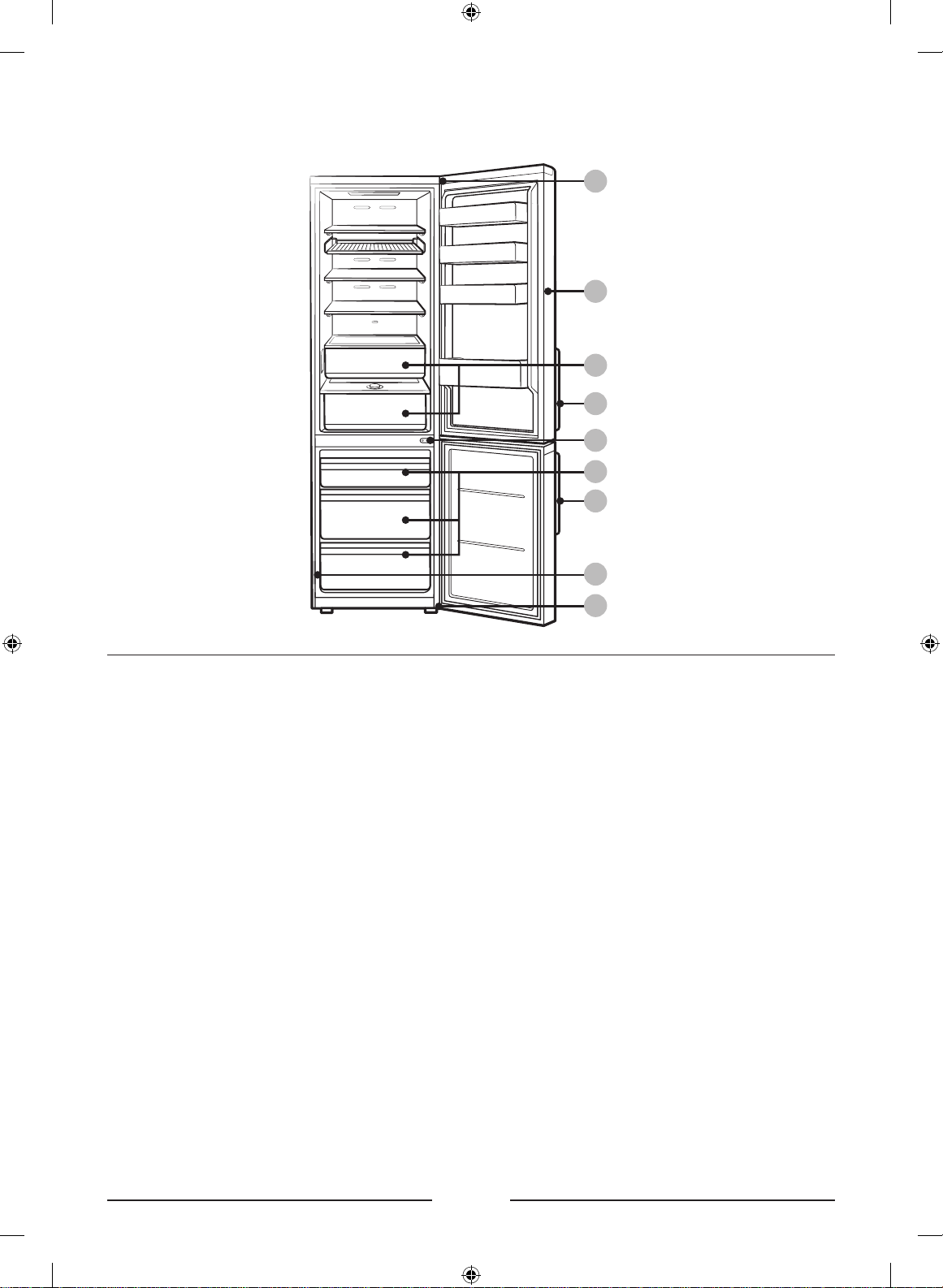

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Top hinge 02 Gasket

03 Drawer 04 Handles (Applicable models only)

05 Middle hinge 06 Barcode label

07 Bottom hinge

RB7300T_User-servicing-manual_EN.indd 2 2020-11-19 PM 6:03:15

English

Handle replacement

Model name looks like this: RB38**6****, RB38**2****, RL38**6****, RB3L**2****, RB36**6****,

RB36**2****, RL36**6****, RL36**2****, RB34**6****, RB34**2****, RL34**6****, RL34**2****

What replaces the asterisks may differ depending the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the

model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product.

Tools required (not provided)

Phillips screwdriver Flat-head

screwdriver

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

1. Use a at-head screwdriver to remove

the screw covers.

- After detaching the handle, attach the

screw covers back on the screw holes.

2. Use a Phillips screwdriver to remove the

screws and detach the handle.

NOTE

Use these screws to fasten the handle on

the opposite side.

3. Assemble the new handle in the reverse

order of disassembly.

RB7300T_User-servicing-manual_EN.indd 3 2020-11-19 PM 6:03:29

English

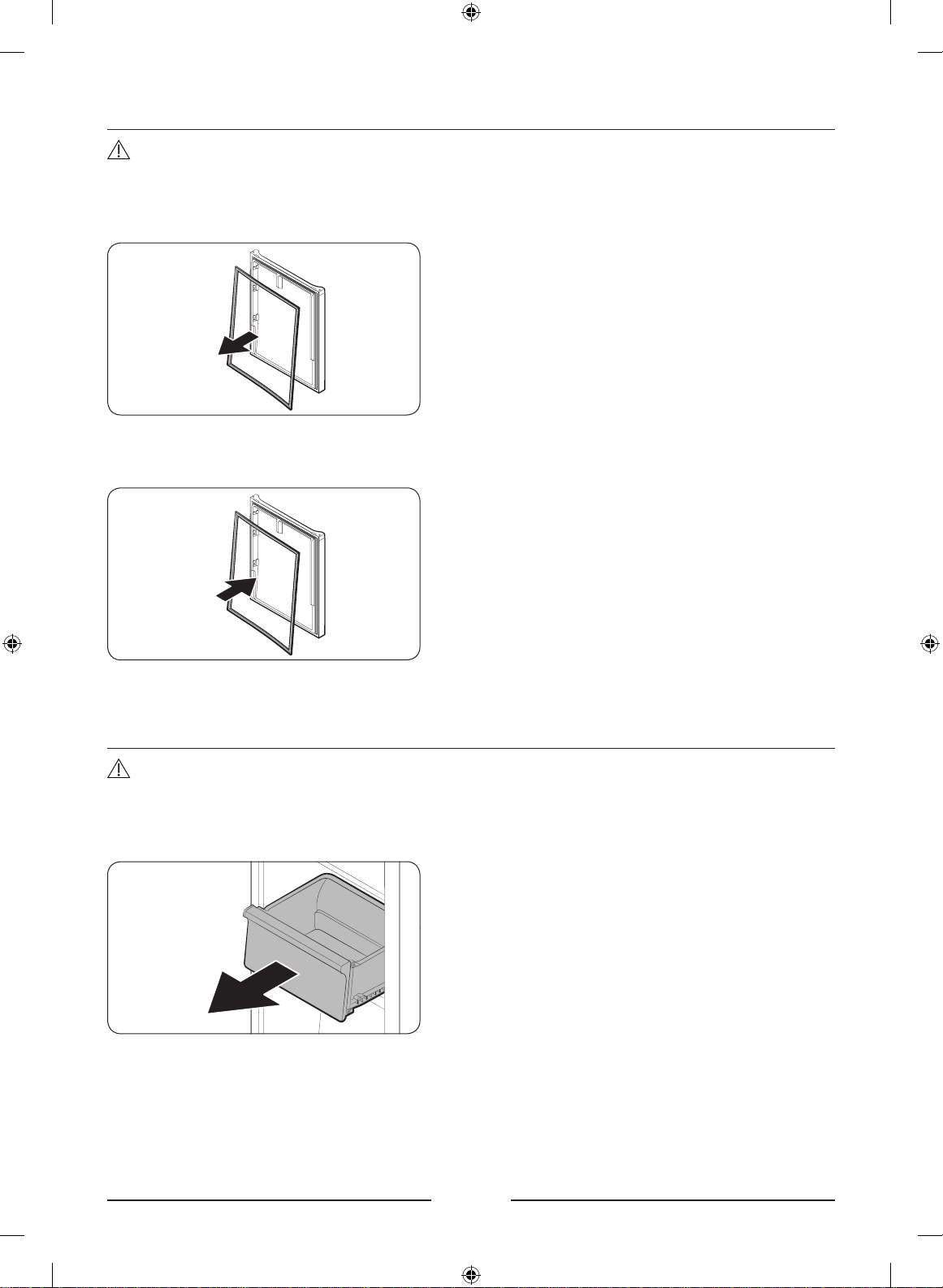

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the new

gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Gently lift up the front of the drawer and

slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

RB7300T_User-servicing-manual_EN.indd 4 2020-11-19 PM 6:03:30

English

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

RB7300T_User-servicing-manual_EN.indd 5 2020-11-19 PM 6:03:31

English

Reversing the door

NOTE

For the models with handles, reverse the handles rst. (For detailed information, see the

“Handle replacement (For models with bar handles)” section.)

1. With the fridge door closed, use a Phillips

screwdriver to remove the screws

fastening the top cover (A).

2. Gently lift the top cover (A) and place it on

top of the refrigerator.

- Be careful when you lift the top

cover (A). There is a wire connected

underneath it.

3. Remove the wire and the wire connector

placed on the holder underneath the top

cover.

- This step may not apply to some

models.

CAUTION

Do not pull the connectors too hard.

4. Disconnect the wire connector (A).

- This step may not apply to some

models.

RB7300T_User-servicing-manual_EN.indd 6 2020-11-19 PM 6:03:32

English

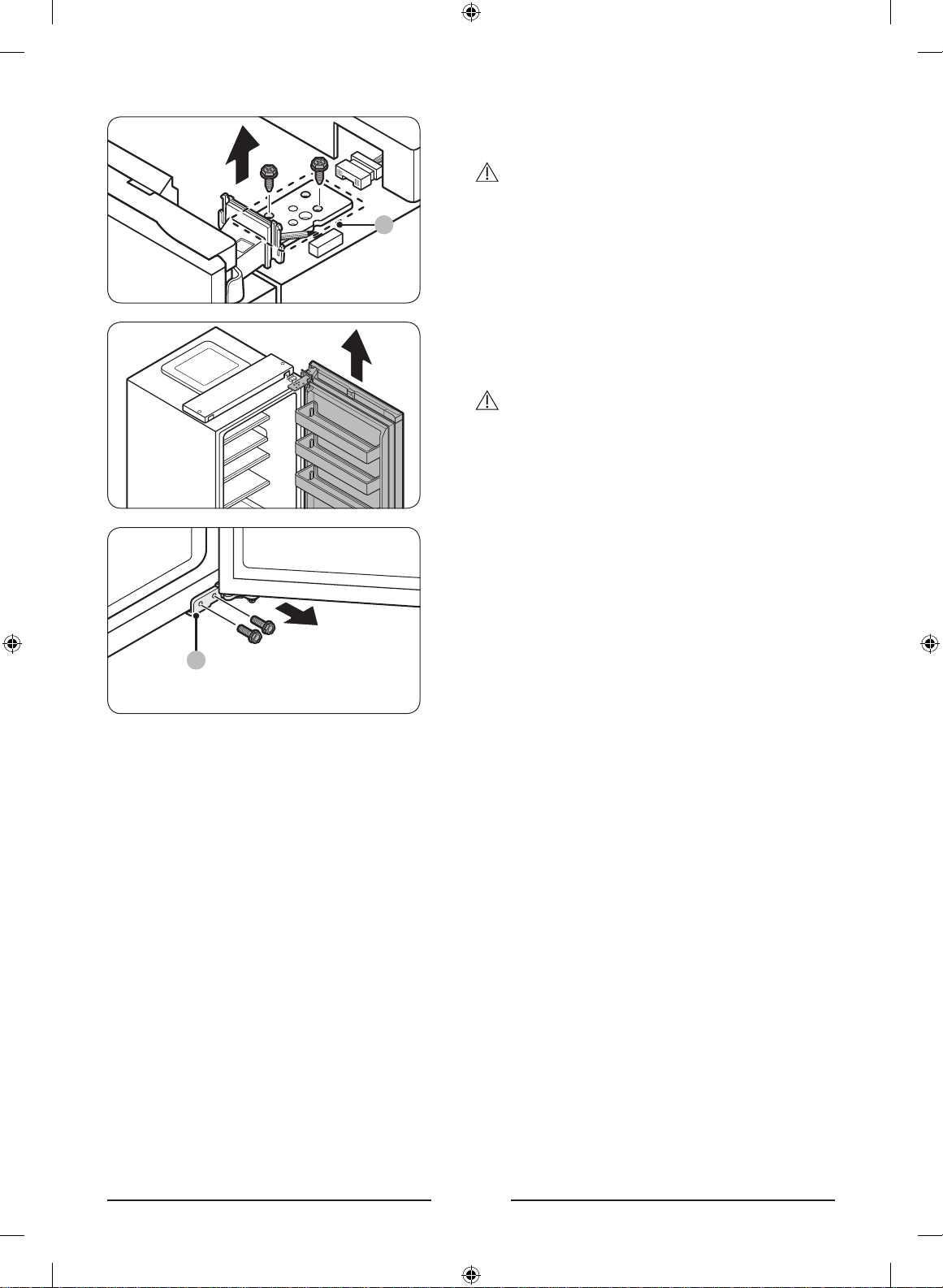

5. Use a socket wrench (8 mm) to remove the

screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling,

make sure to hold it tight while removing the

screws.

6. Open the fridge door, and then lift the

door to remove it from the middle hinge.

Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or

injury, use caution while removing the door.

7. Open the freezer door, and then use a

socket wrench (8 mm) to remove the

screws fastening the bottom hinge (A).

RB7300T_User-servicing-manual_EN.indd 7 2020-11-19 PM 6:03:32

English

8. With the freezer door sitting on the

bottom hinge (A), slowly pull the bottom

hinge (A) to remove it from the holder on

the bottom of the refrigerator. Once the

bottom hinge (A) is removed from the

holder, remove it from the freezer door,

and then pull the freezer door down to

remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling,

make sure to hold the freezer door tight until

it is safely removed from the middle hinge

(B).

9. Use a Phillips screwdriver and socket

wrench (10 mm) to remove the screws

fastening the middle hinge (A).

10.Reassemble in the opposite order of

disassembly after replacing the top,

middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are

connected properly.

• Be careful not to damage the wires when

fastening the top cover

RB7300T_User-servicing-manual_EN.indd 8 2020-11-19 PM 6:03:33

Français

Guide de réparation

1. Vous pouvez trouver où acheter des pièces de rechange sur http://samsung.com.

2. Visitez le site d'achat de pièces et saisissez le code du modèle de votre produit pour vérier les pièces

disponibles à l'achat. Le code du modèle est afché sur le côté extérieur de votre produit.

- Vous pouvez vérier le code et la version du modèle sur l'étiquette du code à barres situé en bas à

gauche du produit.

3. Pour les pièces de rechange, assurez-vous que le nom de la pièce correspond à celui de l'illustration

gurant dans ce manuel.

- Les pièces remplaçables par l'utilisateur sont limitées aux poignées (certains modèles uniquement), aux

joints, aux tiroirs et aux charnières.

REMARQUE

Suite à une réparation par un fournisseur de service non autorisé, une réparation par l'utilisateur ou une

réparation par une personne non professionnelle du produit, Samsung ne peut être tenu pour responsable

de tout dommage subi par le produit, de toute blessure ou de tout autre problème de sécurité lié au produit

et découlant d'une tentative de réparation du produit ne respectant pas scrupuleusement les présentes

consignes de réparation et de maintenance. Tout dommage subi par le produit et provoqué par une tentative

de réparation par une personne autre qu'un fournisseur de service certié par Samsung ne sera pas couvert

par la garantie.

ATTENTION

• Le nom de la pièce gurant sur le site peut être différent de celui gurant dans ce manuel. Assurez-vous

de sélectionner le nom de pièce approprié.

• Le remplacement des charnières requiert une extrême prudence car cela implique la dépose de la porte.

• Veillez à porter des gants de sécurité lorsque vous effectuez des réparations.

RB7300T_User-servicing-manual_FR.indd 1 2020-11-19 PM 6:00:27

Français

L'apparence réelle et les pièces fournies avec le réfrigérateur peuvent varier en fonction du modèle et du

pays.

01 Charnière supérieure 02 Joint

03 Tiroir 04 Poignées (modèles applicables uniquement)

05 Charnière centrale 06 Étiquette du code à barres

07 Charnière inférieure

RB7300T_User-servicing-manual_FR.indd 2 2020-11-19 PM 6:00:27
