Samsung RF24R7201SR Bedienungsanleitung

English

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

FDR_AW3-14_User-servicing-manual_26ge.indb 1 2020-12-17 오후 2:17:44

English

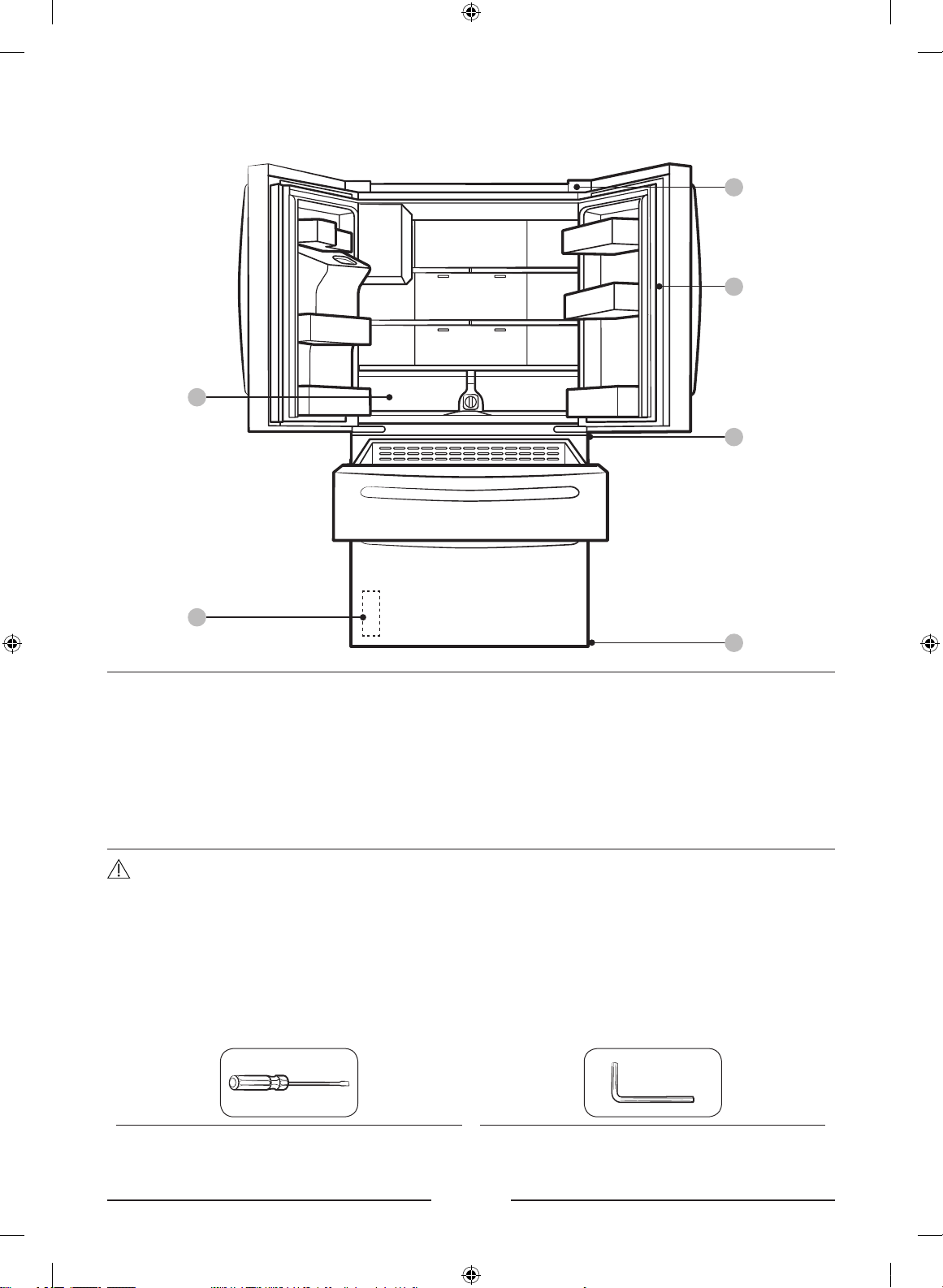

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Top hinge 02 Gasket

03 Middle hinge 04 Bottom hinge

05 Drawer 06 Barcode label

Handle replacement

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product.

Tools required (not provided)

Flat-head screwdriver Hexagon wrench (4mm diameter)

FDR_AW3-14_User-servicing-manual_26ge.indb 2 2020-12-17 오후 2:17:46

English

To detach the handles

1. Loose the Set screw witeh 0.1in hex

wrench and pull front the handle.

2. Remove the cover vinyl of door.

3. Loosen the Set Screw situated at the

bottom right of the appliance about 0.1in

by using Hex wrench.

4. Pull the Set handle out by moving it to the

right side.

CAUTION

Be careful not to scratch or break the parts.

FDR_AW3-14_User-servicing-manual_26ge.indb 3 2020-12-17 오후 2:17:49

English

To attach the handles

CAUTION

The refrigerator handles must be oriented in

the correct direction.

• The fridge handles must be attached so

that the holes on each face each other.

• The freezer handle must be attached so

that its hole faces downwards.

1. Using a Phillips screwdriver, attach the

handle screws to the refrigerator, two for

each handle respectively, as shown in the

illustration to the left.

2. To attach the fridge handles to the

refrigerator, rst place the lower side of

one handle onto the lower handle screw.

For type B handle: Attach the handle in the

following order: (1) bottom, (2) middle, (3)

top. Refer to the gure on the left.

NOTE

The design of the right side door handle may

differ depending on your model.

FDR_AW3-14_User-servicing-manual_26ge.indb 4 2020-12-17 오후 2:17:52

English

3. Push the handle down, and then place the

upper side of the handle onto the upper

handle screw.

4. Insert the supplied wrench into the handle

hole, and then turn it clockwise to tighten.

5. Repeat Steps 2 through 4 with the second

refrigerator door handle.

6. To attach the freezer handle to the

refrigerator, rst place the left side of the

freezer handle onto the left handle screw.

7. Push the handle to the left, and then place

the right side of the freezer handle onto

the right handle screw.

8. Insert the supplied wrench into the handle

hole, and then turn it clockwise to tighten.

FDR_AW3-14_User-servicing-manual_26ge.indb 5 2020-12-17 오후 2:17:55

English

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new

gasket and the door.

FDR_AW3-14_User-servicing-manual_26ge.indb 6 2020-12-17 오후 2:17:57

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Gently lift up the front of the drawer and

slide out.

• We recommend that you remove the door

bins before removing the drawer. This is to

prevent damage to the door bins.

• To reinsert, insert the drawer into the

frame rails and then slide inward.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps

FDR_AW3-14_User-servicing-manual_26ge.indb 7 2020-12-17 오후 2:17:57

English

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-heat screwdriver Socket wrench (10 mm)

Pliers Allen wrench (5 mm)

FDR_AW3-14_User-servicing-manual_26ge.indb 8 2020-12-17 오후 2:18:00

English

To replace the hinges

Disconnect the water line

CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser

model)

• To prevent water leaks, each water hose must be inserted fully to the centre of the

transparent coupler. (only for Dispenser model)

• Ensure that the water hose surface is not damaged. (only for Dispenser model)

Left door

1. With the doors closed, use a Phillips head

screwdriver to remove the screws (x3) in

the top cover.

2. Disconnect the wires and the water tube

from the left-side door. Do the following

sequentially:

• Decouple the connector.

• While holding down one end of the water

line coupler, disconnect the water tube.

CAUTION

Keep the water tube clips out of children’s

reach.

3. Gently draw up the clamp in several steps.

To prevent nger injuries, do not apply a

sudden force to the clamp.

FDR_AW3-14_User-servicing-manual_26ge.indb 9 2020-12-17 오후 2:18:02

English

4. Pull up the clamp to remove it.

NOTE

Be careful not to drop the clamp on the oor.

5. Open the door 90 degrees. While holding

the door, pull up and remove the top

hinge. Be careful not to damage the

connector wires when you remove the

hinge.

NOTE

Be careful not to drop the hinge on the oor.

6. Gently pull up the door vertically to

remove. Do not apply excessive force

to the door. The door may fall, causing

physical injury.

7. Lay the door down on a at surface.

CAUTION

Please put the door down slowly to prevent

scratches.

FDR_AW3-14_User-servicing-manual_26ge.indb 10 2020-12-17 오후 2:18:04
