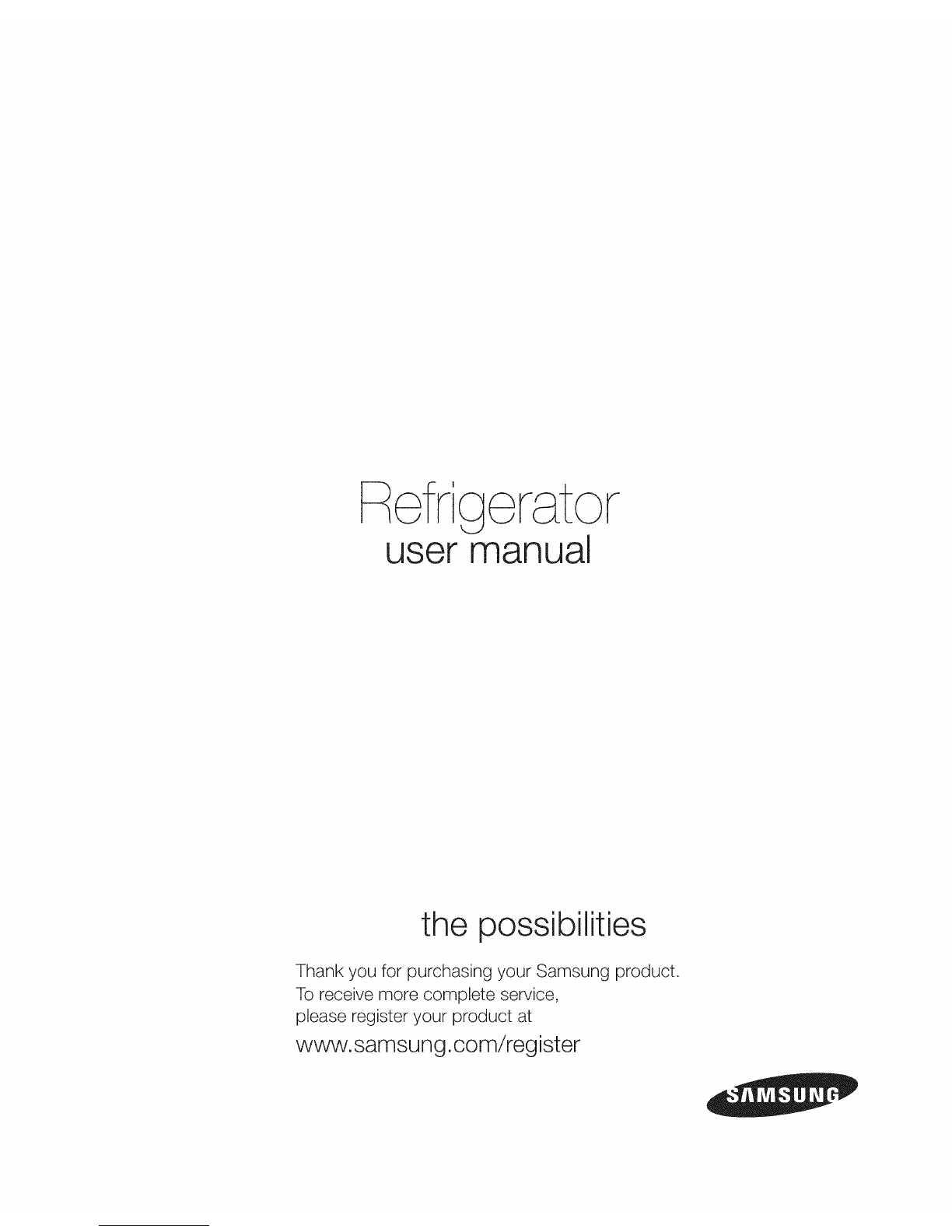

Samsung RF26XAEPN/XAA Bedienungsanleitung

user manual

the possibilities

Thank you for purchasing your Samsung product.

To receive more complete service,

please register your product at

www. samsu ng.com/reg ister

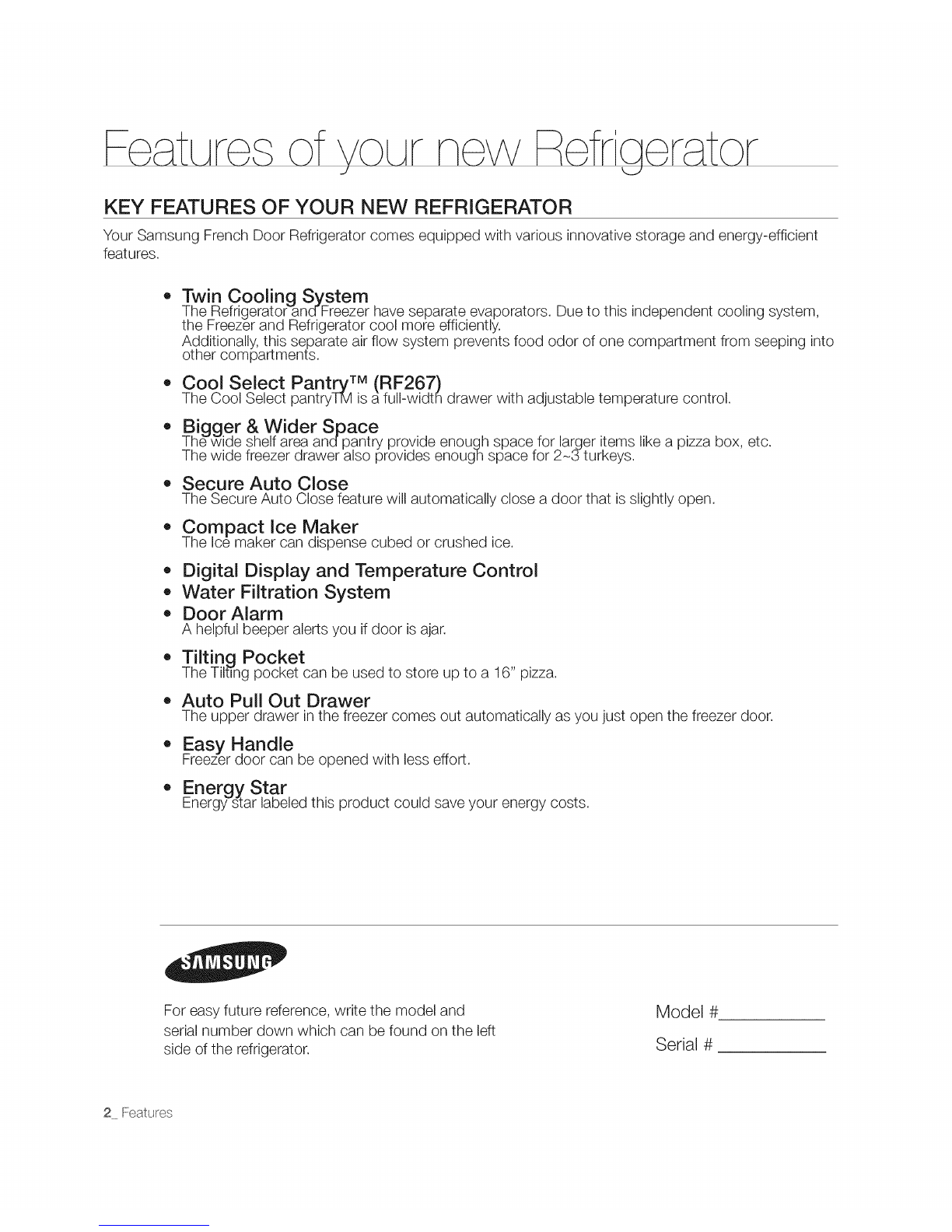

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient

features.

,, Twin Cooling System

The Refrigerator ancrFreezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently.

Additionally, this separate air flow system prevents food odor of one compartment from seeping into

other compartments.

,, Cool Select Pantry_ TM (RF267)

The Cool Select pantry lM is a full-width drawer with adjustable temperature control.

,, Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.

The wide freezer drawer also provides enough space for 2-8 turkeys.

,, Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

,, Compact Ice Maker

The Ice maker can dispense cubed or crushed ice.

,, Digital Display and Temperature Control

,, Water Filtration System

,, Door Alarm

A helpful beeper alerts you if door is ajar.

,, Tilting Pocket

The TiltTng pocket can be used to store up to a 16" pizza.

,, Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically as you just open the freezer door.

,, Easy Handle

Freezer door can be opened with less effort.

,, Energy Star

Energy star labeled this product could save your energy costs.

For easy future reference, write the model and

serial number down which can be found on the left

side of the refrigerator.

Model #

Serial #

2 Features

S f ty fornq

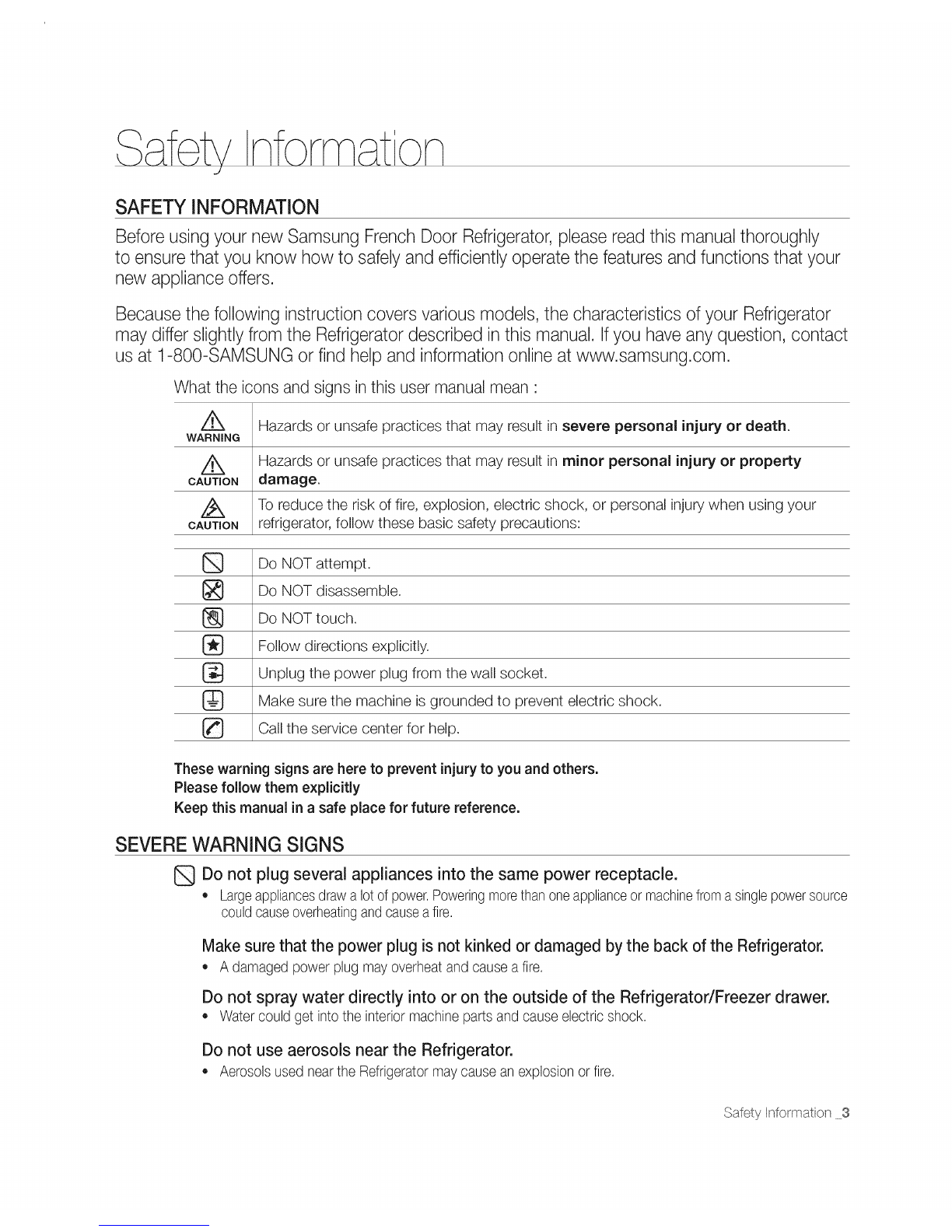

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator, please readthis manual thoroughly

to ensure that you know how to safely and efficiently operate the features and functions that your

new appliance offers.

Becausethe following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigerator described in this manual. Ifyou have any question, contact

us at 1-800-SAMSUNG or find help and information online at www.samsung.com.

What the icons and signs in this user manual mean '

Z_ Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Hazards or unsafe practices that may result in minor personal injury or property

CAUTION damage.

To reduce the risk of fire, explosion, electric shock, or personal injury when using your

CAUTION refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

[_) Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

These warning signs are here to prevent injury to you and others.

Please follow them explicitly

Keep this manual in a safe place for future reference.

SEVEREWARNING SIGNS

Do not plug several appliances into the same power receptacle.

• Large appliances draw a lot of power. Powering morethan one appliance or machine from a single power source

could cause overheating and cause a fire.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

A damaged power plug may overheat and cause a fire.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

Water could get into the interior machine parts and cause electric shock.

Do not use aerosols near the Refrigerator.

Aerosols used near the Refrigerator may cause an explosion or fire.

Safety Inforrration 3

Safe nforrnat on

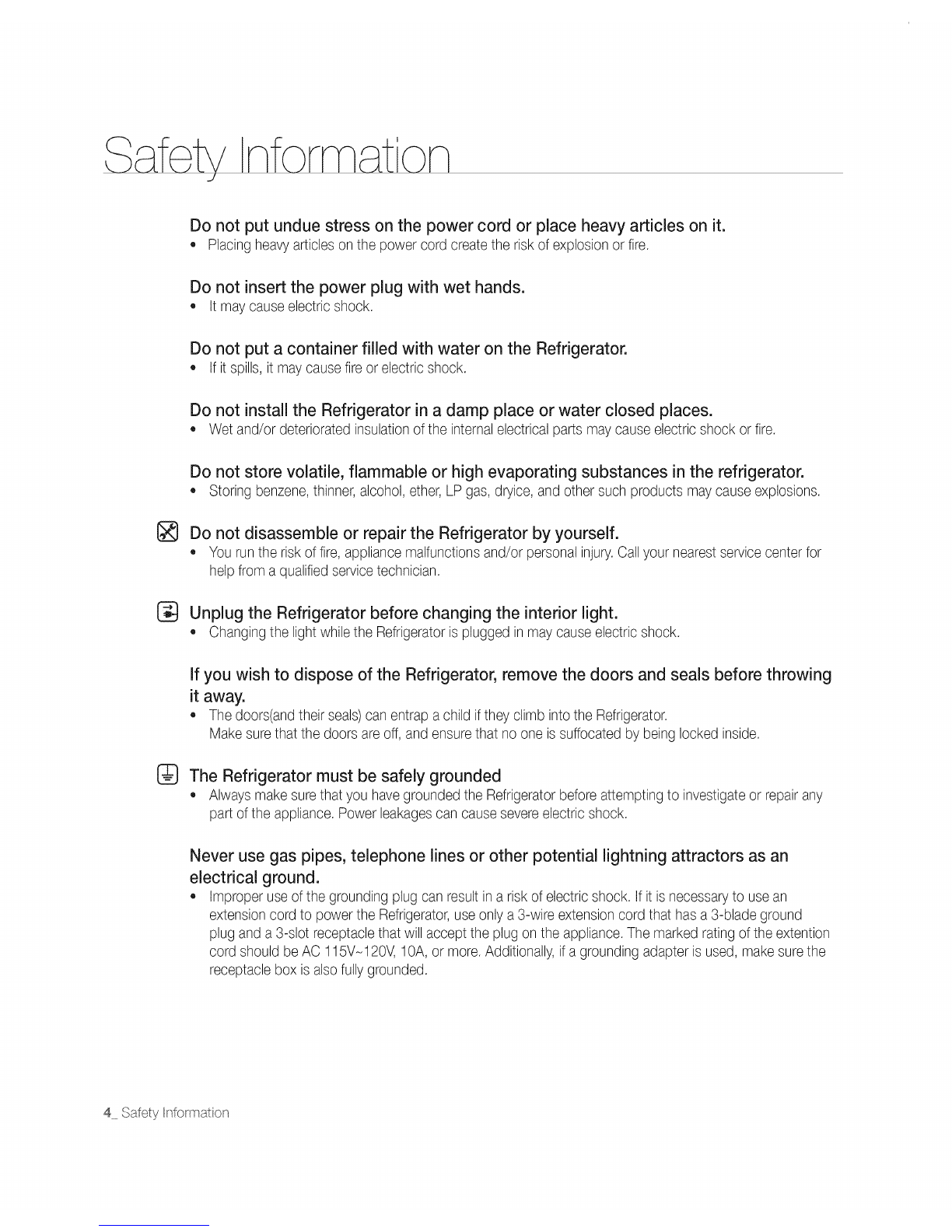

Do not put undue stress on the power cord or place heavy articles on it.

• Placing heavy articles on the power cord create the risk of explosion or fire.

Do not insert the power plug with wet hands.

It may cause electric shock.

Do not put a container filled with water on the Refrigerator.

If it spills, it may cause fire or electric shock.

Do not install the Refrigerator in a damp place or water closed places.

Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.

Do not store volatile, flammable or high evaporating substances in the refrigerator.

Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.

@Do not disassemble or repair the Refrigerator by yourself.

You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for

help from a qualified service technician.

Unplug the Refrigerator before changing the interior light.

Changing the light while the Refrigerator is plugged in may cause electric shock.

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away.

The doors(and their seals) can entrap a child if they climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.

%The Refrigerator must be safely grounded

Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention

cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

4 Safety Inforrration

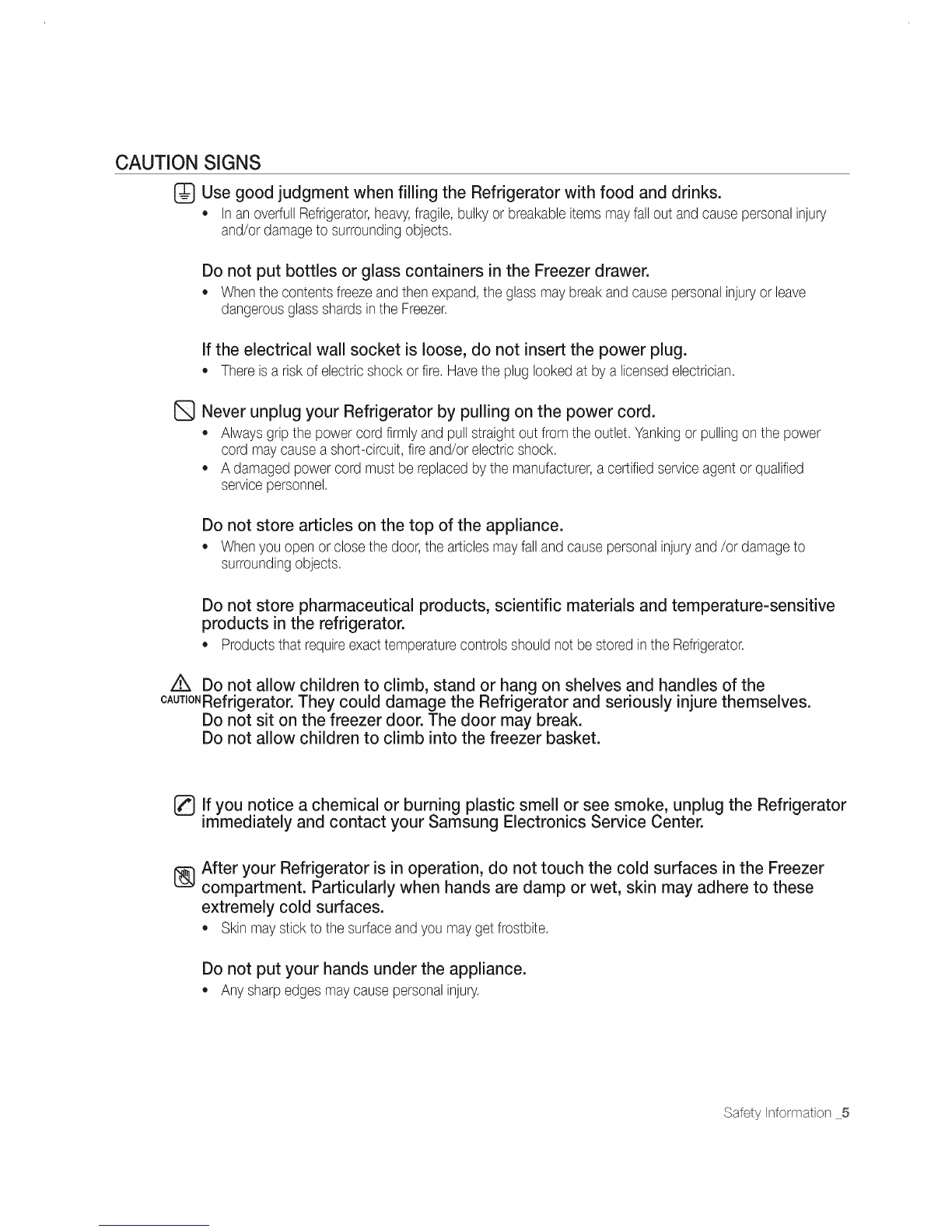

CAUTION SIGNS

Use good judgment when filling the Refrigerator with food and drinks.

• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.

Do not put bottles or glass containers in the Freezer drawer.

When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.

If the electrical wall socket is loose, do not insert the power plug.

There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.

Never unplug your Refrigerator by pulling on the power cord.

Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, fire and/or electric shock.

A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified

service personnel.

Do not store articles on the top of the appliance.

When you open or close the door, the articles may fall and cause personal injury and/or damage to

surrounding objects.

Do not store pharmaceutical products, scientific materials and temperature-sensitive

products in the refrigerator.

Products that require exact temperature controls should not be stored in the Refrigerator.

Z_ Do not allow children to climb, stand or hang on shelves and handles of the

cAunONRefrigerator.They could damage the Refrigerator and seriously injure themselves.

Do not sit on the freezer door. The door may break.

Do not allow children to climb into the freezer basket.

If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator

immediately and contact your Samsung Electronics Service Center.

®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces.

Skin may stick to the surface and you may get frostbite.

Do not put your hands under the appliance.

• Any sharp edges may cause personal injury.

Safety Info_rration 5

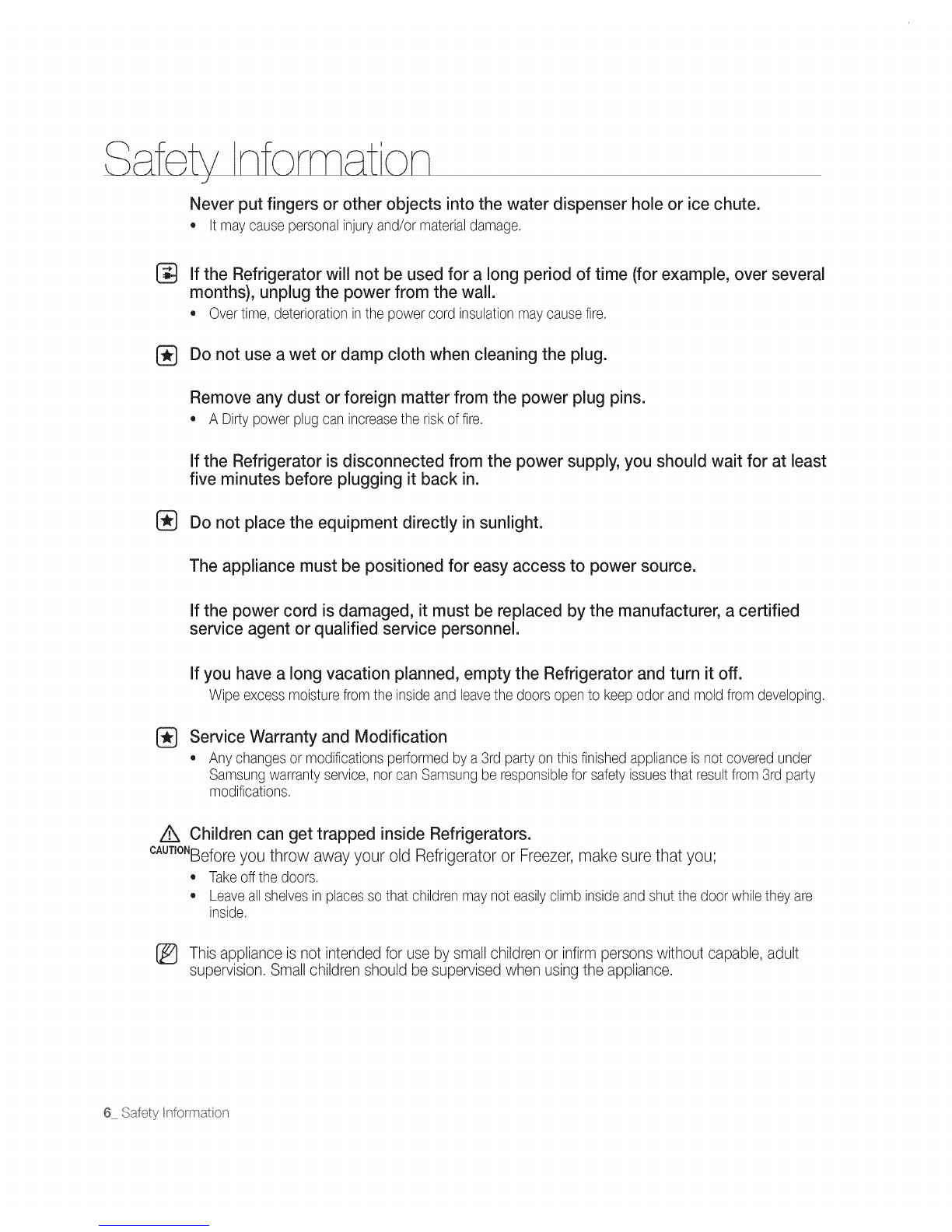

Never put fingers or other objects into the water dispenser hole or ice chute.

• It may cause personal injury and/or material damage.

If the Refrigerator will not be used for a long period of time (for example, over several

months), unplug the power from the wall.

Over time, deterioration in the power cord insulation may cause fire.

Do not use a wet or damp cloth when cleaning the plug.

Remove any dust or foreign matter from the power plug pins.

A Dirty power plug can increase the risk of fire.

If the Refrigerator is disconnected from the power supply, you should wait for at least

five minutes before plugging it back in.

Do not place the equipment directly in sunlight.

The appliance must be positioned for easy access to power source.

If the power cord is damaged, it must be replaced by the manufacturer, a certified

service agent or qualified service personnel.

If you have a long vacation planned, empty the Refrigerator and turn it off.

Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.

Service Warranty and Modification

Any changes or modifications performed by a 3rd party on this finished appliance is not covered under

Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party

modifications.

A Children can get trapped inside Refrigerators.

cAuT_°NBeforeyou throw away your old Refrigerator or Freezer,make sure that you;

Take off the doors.

Leave all shelves in places so that children may not easily climb inside and shut the door while they are

inside.

This applianceisnot intendedfor useby smallchildrenor infirmpersonswithout capable,adult

supervision.Smallchildrenshouldbesupervisedwhenusingthe appliance.

6 Safety Inforrration

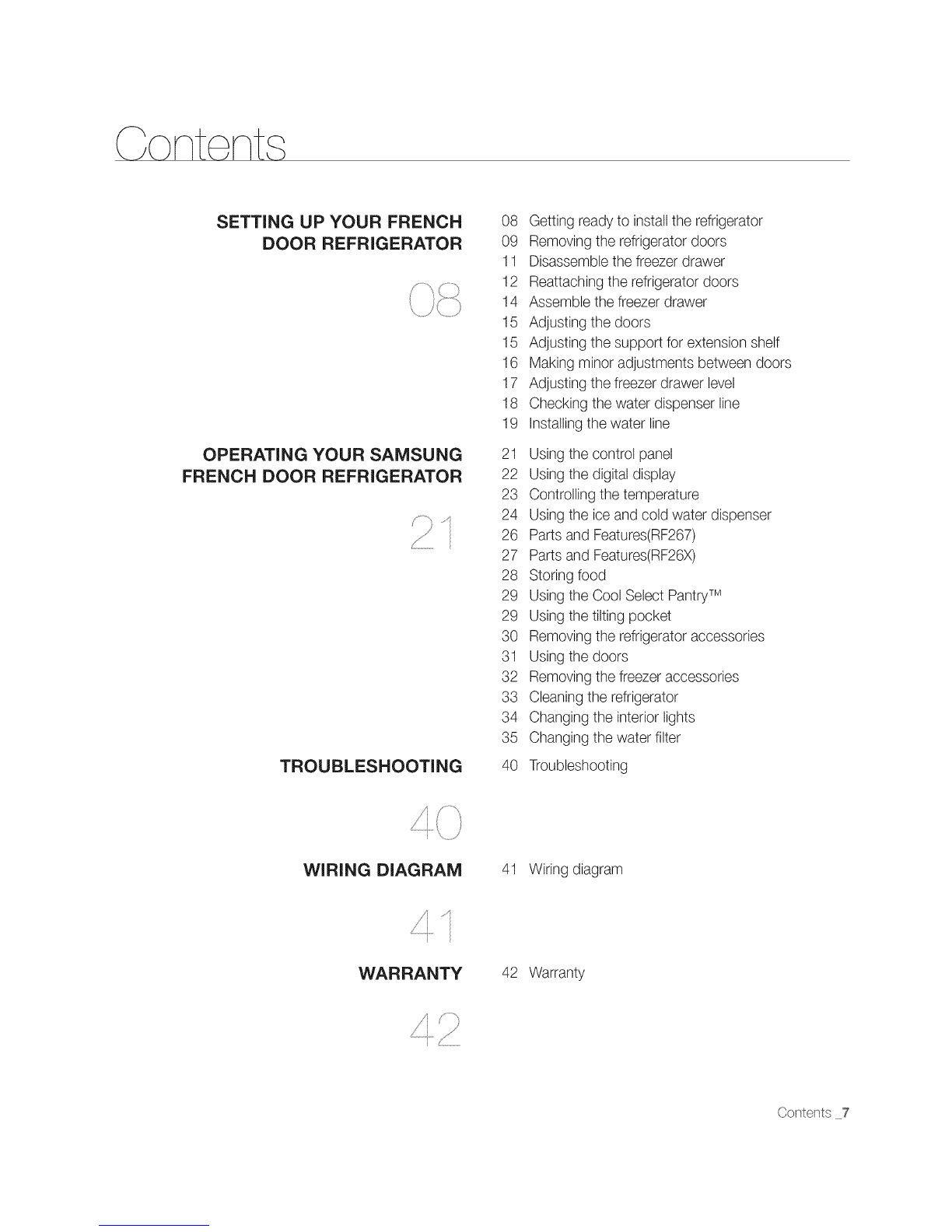

Content

SETTING UP YOUR FRENCH

DOOR REFRIGERATOR

OPERATING YOUR SAMSUNG

FRENCH DOOR REFRIGERATOR

TROUBLESHOOTING

08 Getting ready to install the refrigerator

09 Removing the refrigerator doors

11 Disassemble the freezer drawer

12 Reattaching the refrigerator doors

14 Assemble the freezer drawer

15 Adjusting the doors

15 Adjusting the support for extension shelf

16 Making minor adjustments between doors

17 Adjusting the freezer drawer level

18 Checking the water dispenser line

19 Installing the water line

21 Using the control panel

22 Using the digital display

23 Controlling the temperature

24 Using the ice and cold water dispenser

26 Parts and Features(RF267)

27 Parts and Features(RF26X)

28 Storing food

29 Using the Cool Select Pantry TM

29 Using the tilting pocket

30 Removing the refrigerator accessories

31 Using the doors

32 Removing the freezer accessories

33 Cleaning the refrigerator

34 Changing the interior lights

35 Changing the water filter

40 Troubleshooting

..............i I

WIRING DIAGRAM 41 Wiring diagram

WARRANTY 42 Warranty

Z/fi ''

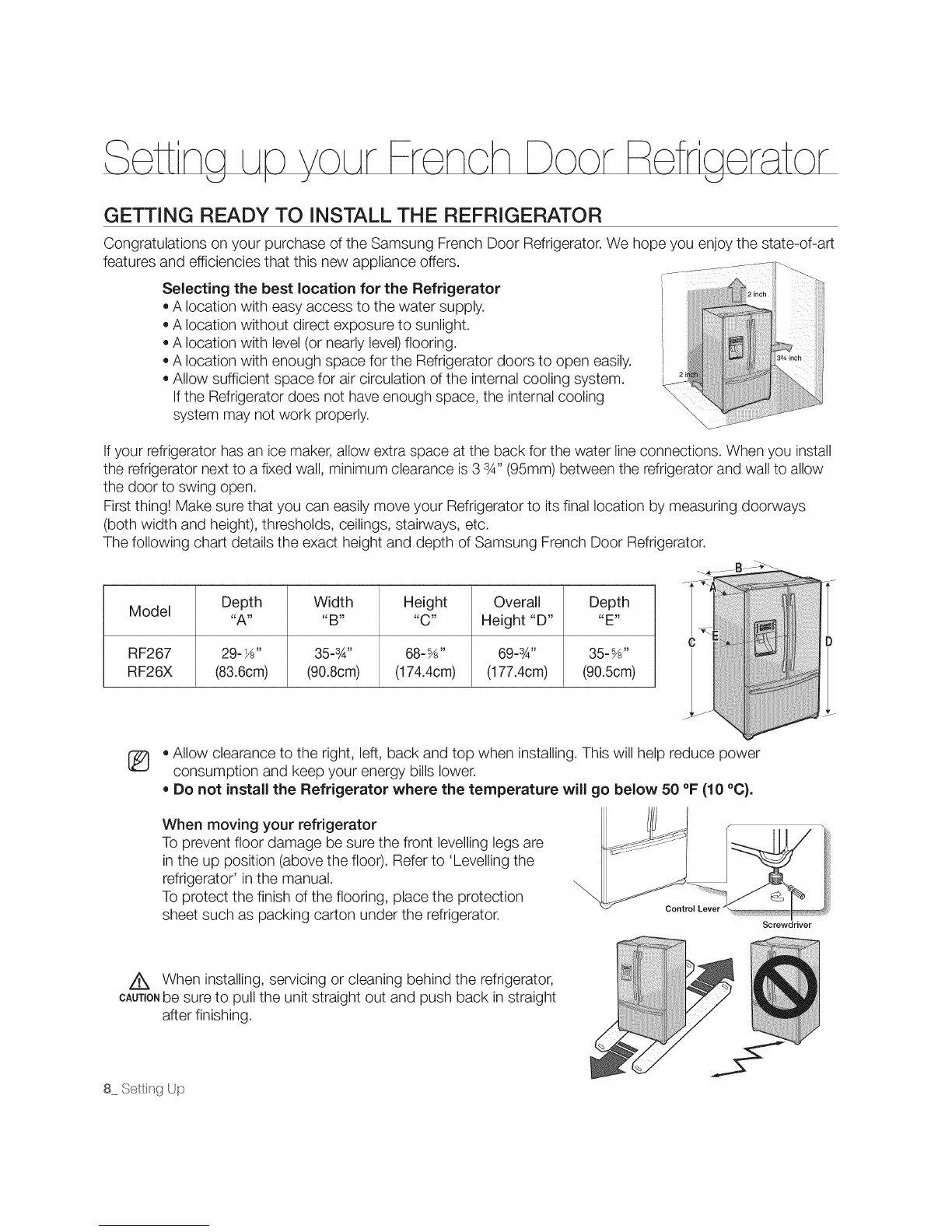

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efficiencies that this new appliance offers.

Selecting the best location for the Refrigerator

• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

A location with level (or nearly level) flooring.

A location with enough space for the Refrigerator doors to open easily.

Allow sufficient space for air circulation of the internal cooling system.

If the Refrigerator does not have enough space, the internal cooling

system may not work properly.

If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When you install

the refrigerator next to a fixed wall, minimum clearance is 3 3A" (95mm) between the refrigerator and wall to allow

the door to swing open.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

Model

RF267

RF26X 35_3A,,

(90.8cm)

Height

68_5A7,

(174.40m)

Overall

Height "D"

69_3A7'

(177.40m)

Depth

"E77

®Allow clearance to the right, left, back and top when installing. This will help reduce power

consumption and keep your energy bills lower.

•Do not install the Refrigerator where the temperature will go below 50 °F (10 °C).

When moving your refrigerator

To prevent floor damage be sure the front levelling legs are

in the up position (above the floor). Refer to 'Levelling the

refrigerator' in the manual.

To protect the finish of the flooring, place the protection

sheet such as packing carton under the refrigerator. Screwdriver

Z_ When installing, servicing or cleaning behind the refrigerator,

CAUTIONbe sure to pull the unit straight out and push back in straight

after finishing.

8 Settng Up

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of

the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator. Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly chilled

and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can store

food and drinks in the Refrigerator after the temperature is sufficiently cool.

[_ Check the accessory list below.

Waterfilter Hexwrench Fastener

(DA29-00003B) (DA80-00002C) (DA60-00143B) Compressinfitting Compressionnut

(DA62-00305A) (DA74-00070B)

REMOVING THE REFRIGERATOR DOORS

If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.

Tools you will need

Philips screwdriver

Flat-blade screwdriver

10mm Socket Wrench

Pliers

Allen wrench(3/16")

Disassemble the Refrigerator doors

1. With the door opened, remove the Top Table cap

((_) with a Flat head screwdriver, and close the

door.

Remove the 3 screws holding down the Top Table

and remove the Top Table((_).

Settng Up 9

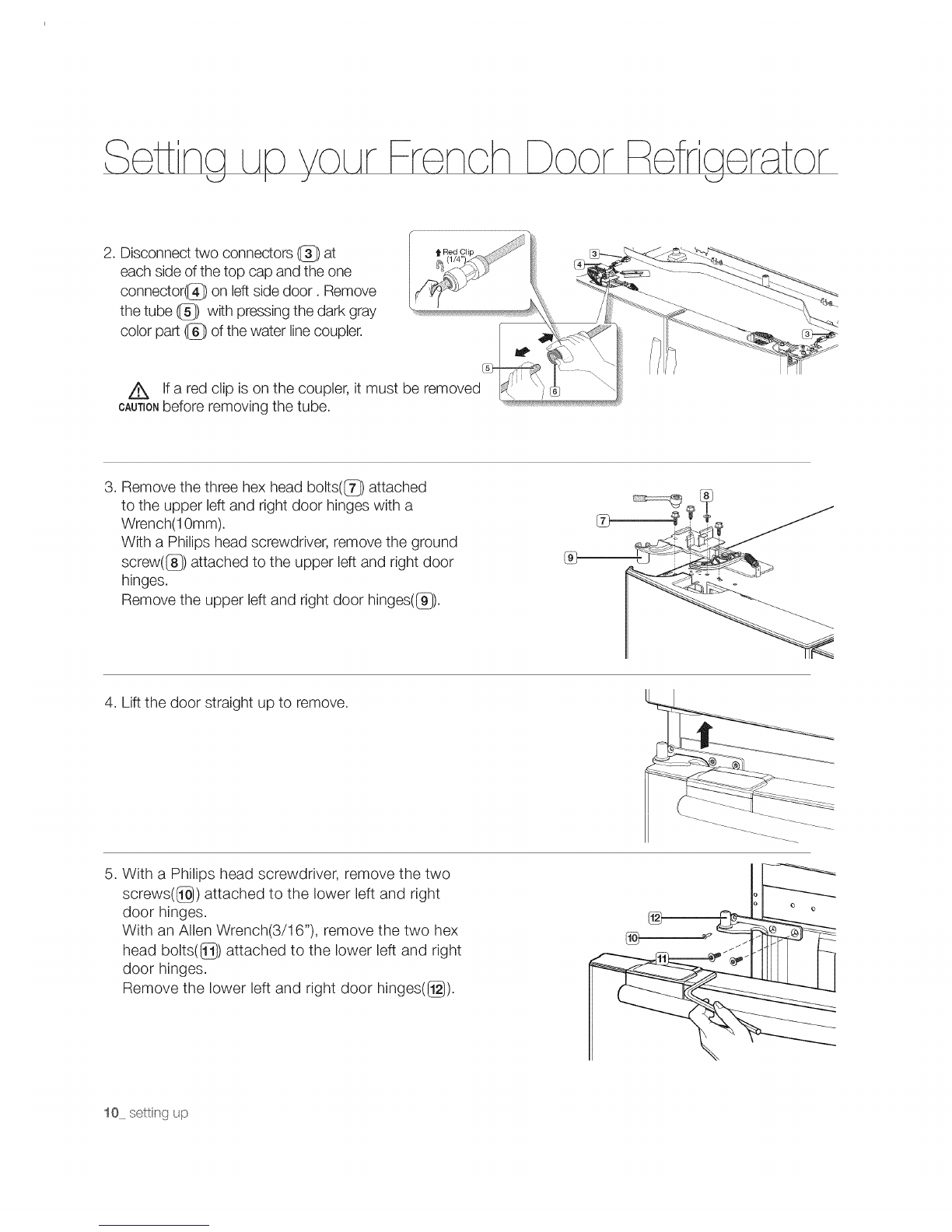

2. Disconnect two connectors ({_}) at

each side of the top cap and the one

connector(@) on left side door. Remove

the tube (l_}) with pressing the dark gray

color part (_}) of the water line coupler.

Z_ If a red clip is on the coupler, it must be removed

CAUTIONbefore removing the tube.

3. Remove the three hex head bolts(_}) attached

to the upper left and right door hinges with a

Wrench(10mm).

With a Philips head screwdriver, remove the ground

screw(G ) attached to the upper left and right door

hinges.

Remove the upper left and right door hinges(G ).

4. Lift the door straight up to remove.

5. With a Philips head screwdriver, remove the two

screws(_) attached to the lower left and right

door hinges.

With an Allen Wrench(3/16"), remove the two hex

head bolts([_}) attached to the lower left and right

door hinges.

Remove the lower left and right door hinges([_).

10 settng up

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RSG307 SERIES Bedienungsanleitung

Samsung

Samsung RF4289HA Bedienungsanleitung

Samsung

Samsung RF4287HA Bedienungsanleitung

Samsung

Samsung SR-608EV Bedienungsanleitung

Samsung

Samsung BRR7GR121 Series Bedienungsanleitung

Samsung

Samsung RS6HA8880B1 Bedienungsanleitung

Samsung

Samsung SR-30NMA Bedienungsanleitung

Samsung

Samsung RB1855SW Bedienungsanleitung

Samsung

Samsung RS7 Series Bedienungsanleitung

Samsung

Samsung RS68A8840WW/EF Bedienungsanleitung

Samsung

Samsung RF905 SERIES Bedienungsanleitung

Samsung

Samsung RL55VQBRS Premium 2m Fridge Freezer Bedienungsanleitung

Samsung

Samsung RS22HDHPNSR Bedienungsanleitung

Samsung

Samsung RT65 Series Bedienungsanleitung

Samsung

Samsung RF4289HA Bedienungsanleitung

Samsung

Samsung RF BB86 Series Bedienungsanleitung

Samsung

Samsung RF30BB6200QLAA Bedienungsanleitung

Samsung

Samsung SRS579NP Bedienungsanleitung

Samsung

Samsung RF25HMEDBSR Bedienungsanleitung

Samsung

Samsung RF220NCTA Bedienungsanleitung

Samsung

Samsung RF26DE Series Leitfaden

Samsung

Samsung RF67NE Bedienungsanleitung

Samsung

Samsung RS627LHQESR Bedienungsanleitung

Samsung

Samsung RS2577SL Sicherheitsleitfaden

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
