Samsung RFG297AA Bedienungsanleitung

imagine the possibilities

Thank you for purchasing this Samsung product,

To receive more complete service,

please register your product at

wwwo samsu ng.com/g lob aliregist er

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient

features.

Twin Cooling System

The Refrigerator and Freezer have separate evaporators,. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently

Additionally, this separate air flow system prevents food odor of one compartment from seeping into

other compartments,

Cool Select Pantry TM

The Cool Select pantry TM isa fljII-width drawer with adjustable temperature control.,

Bigger & Wider Space

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc,

The wide freezer drawer also provides enough space for 2-3 turkeys,

Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open

Compact ice Maker

The Ice maker can dispense cubed or crushed ice,

Digital Display and Temperature Control

Water Filtration System

Door Alarm

A helpful beeper alerts you if a door is ajar,

Tilting Pocket

The Tilting pocket can be used to store up to a 16" pizza.

Auto Pull Out Drawer

The upper drawer in the freezer comes out automatically as you just open the freezer door.

Easy Handle

Freezer door can be opened with less effort,

Energy Star

This Energy star labeled product may save you money on your energy costs°

For easy future reference, write the model and serial

number down. You will find your model number and

serial number on the left side of the refrigerator°

Model #

Serial #

2 Features

ati

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator,please read this manual thoroughly to

ensure that you know how to safely and efficiently operate the featuresand functions that your

new appliance offers.

Because the following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigeratordescribed in this manual. Ifyou have anyquestion, contact

us at 1-800-SAMSUNG or find help and information online at www,samsungcom.

What the icons and signs in this user manual mean •

WARNING

CAUTION

Hazards or unsafe practices that may result in severe personal injury or death

Hazards or unsafe practices that may result in minor personal injury or property

damage

To reduce the risk of fire, explosion, electric shock, or personal injury when using your

refrigerator, follow these basic safety precautions:

Do NOT attempt

Do NOT disassemble..

Do NOT touch

Follow directions explicitly

Unplug the power plug from the wai! socket.

Make sure the machine is grounded to prevent electric shock

Call the service center for help..

These warning signs are here to prevent injury to you and others.

Pleasefollow them explicitly

Keep this manual in a safe place for future reference.

SEVERE WARNING SIGNS

[_ Do not plug several appliances into the same power receptacle.

= Largeappliancesdrawa lotof power.Poweringmorethanoneapplianceormachinefroma singlepowersource

couldcauseoverheatingandcausea fire.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

° A damaged powerplug mayoverheatand cause afire.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

,Watercould get intothe interiormachineparts and cause electricshock.

Do not use aerosols near the Refrigerator.

° Aerosolsusednear the Refrigeratormay cause an explosionor fire, Safety Information _3

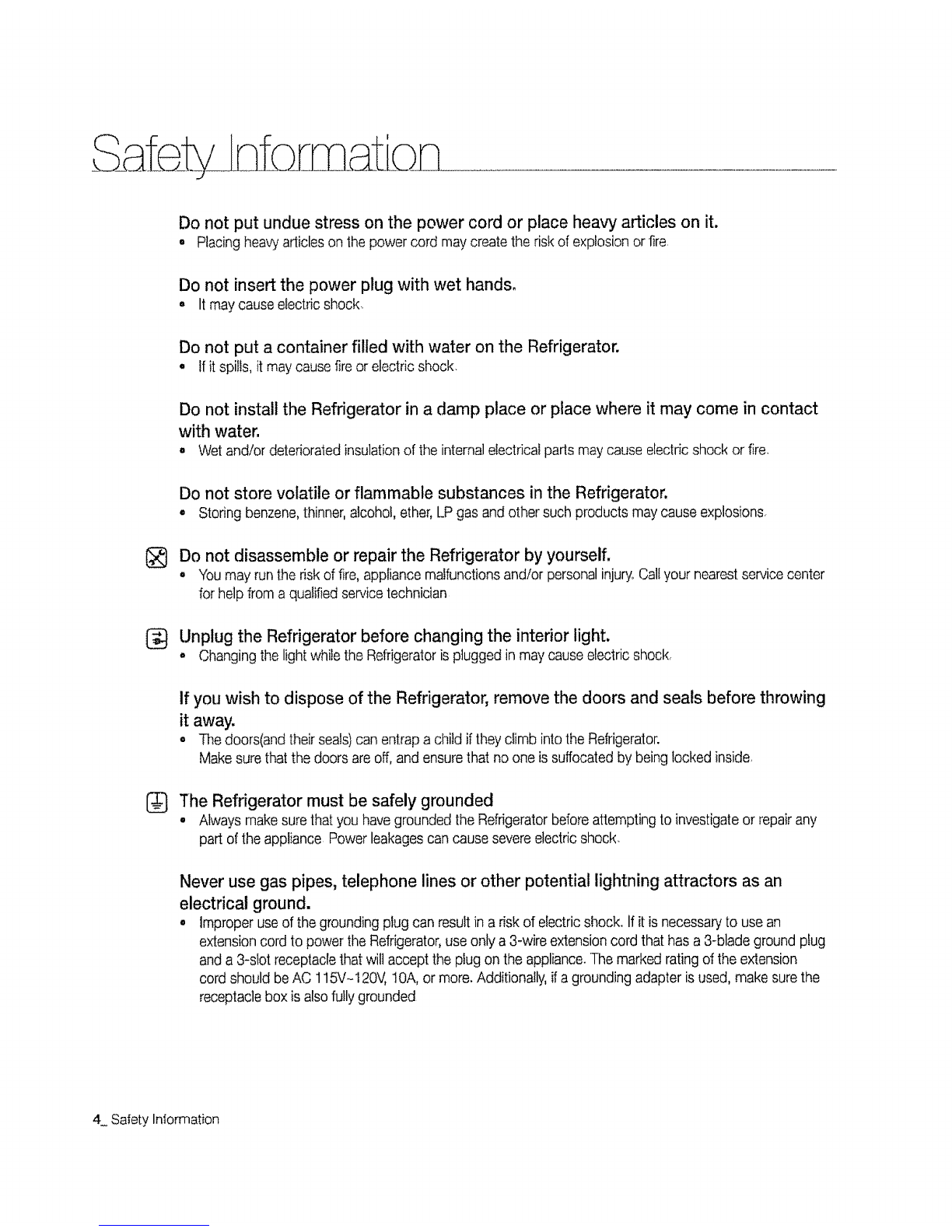

Do not put undue stress on the power cord or place heavy articles on it.

o Placingheavyadicles on the power cord may create the riskof explosionor fire.

Do not insert the power plug with wet hands,

• It maycause electricshock.

Do not put a container filled with water on the Refrigerator.

° Ifit spills,it may causefireor electric shock.

Do not install the Refrigerator in a damp place or place where it may come in contact

with water.

° Wet and/or deteriorated insulationof the internalelectricalparts maycause electricshock or fire,

Do not store volatile or flammable substances in the Refrigerator.

° Storingbenzene,thinner,alcohol, ether,LP gas and othersuch products may causeexplosions,

Do not disassemble or repair the Refrigerator by yourself,

• You may runthe riskof fire,appliancemalfunctionsand/or personalinjury.Caliyour nearestservicecenter

for help from a qualifiedservicetechnician

(_ Unplug the Refrigerator before changing the interior light.

• Changingthe lightwhilethe Refrigeratoris plugged in may causeelectric shock,

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away,

o The doors(andtheir seals)can entrapa cllild if they climb intothe Refrigerator.

Make surethat the doorsare off, and ensurethat no one issuffocatedby beinglocked inside,

The Refrigerator must be safely grounded

° Alwaysmakesure thatyou havegrounded the Refrigeratorbeforeattempting to investigateor repairany

part ofthe appliance Powerleakagescancause severeelectricshock,

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

o Improper useofthe grounding plug can resultin a risk of electricshock. If it isnecessaryto use an

extensioncord to power theRefrigerator,useonlya 3-wire extensioncord that has a 3-blade ground plug

and a 3-slot receptaclethat willaccept the pfugon the appliance.The marked ratingofthe extension

cord should be AC 115W120V, IOA, or more. Additionally,ifa grounding adapter isused, make surethe

receptaclebox isalsofully grounded

4 Safety Information

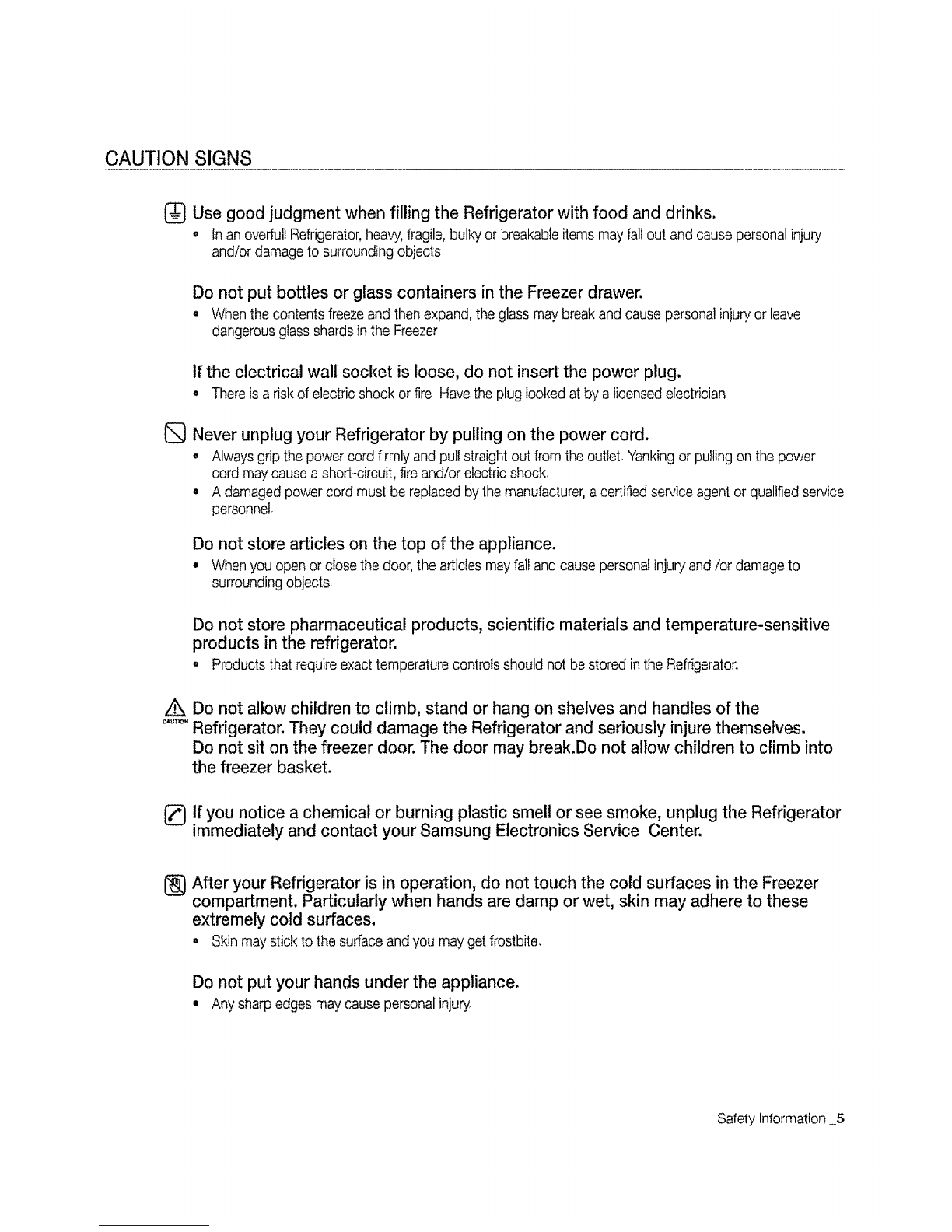

CAUTION SIGNS

_[} Use good judgment when filling the Refrigerator with food and drinks.

• Inan overfiJllRefrigerator,hea_', fragile, bulkyor breakableitems mayfallout and cause personalinjury

and/or damageto surroundingobjects

Do not put bottles or glass containers in the Freezer drawer.

• Whenthe contents freezeand then expand, theglass may breakand cause personalinjuryor leave

dangerousglass shardsin the Freezer

if the electrical wall socket is loose, do not insert the power plug.

° Thereis a risk of electricshock or fire Havethe plug looked atby a licensedelectrician

Never unplug your Refrigerator by pulling on the power cord.

° Alwaysgrip the power cordfirmly and pull straightout from the outlet,Yankingor pulling on the power

cord may cause a short-circuit, fireand/or electricshock,

• A damaged power cord must be replacedby the manufacturer,a certifiedserviceagentor qualifiedservice

personnel-

Do not store articles on the top of the appliance.

° Whenyou open or closethe door,the articlesmayfalland causepersonalinjuryand/or damageto

surroundingobjects

Do not store pharmaceutical products, scientific materials and temperature-sensitive

products in the refrigerator.

• Products thatrequireexacttemperaturecontrols shouldnot be stored inthe Refrigerator°

Do not allow children to climb, stand or hang on shelves and handles of the

Refrigerator. They could damage the Refrigerator and seriously injure themselves.

Do not sit on the freezer door. The door may break.Do not allow children to climb into

the freezer basket.

[2_ If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator

immediately and contact your Samsung Electronics Service Center.

®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces,

° Skinmay stick to the surfaceand you may getfrostbite,

Do not put your hands under the appliance.

° Anysharp edgesmay cause personalinjury

Safety Information 5

Never put fingers or other objects into the water dispenser hole or ice chute.

•Itmay causepersonalinjuryand/or rnateriafdamage,

If the Refrigerator will not be used for a long period of time (for example, over

several months), unplug the power from the wall.

=Overtime, deteriorationin the powercord insulationmaycausefire,

Do not use a wet or damp cloth when cleaning the plug.

Remove any dust or foreign matter from the power plug pins.

=A dirty power plugcanincreasetherisk of fire_

if the Refrigerator is disconnected from the power supply, you should wait for

at least five minutes before plugging it back in.

_] Do not place the refrigerator directly in sunlight.

The appliance must be positioned for easy access to power source.

if the power cord is damaged, it must be replaced by the manufacturer, a

certified service agent or qualified service personnel.

if you have a long vacation planned, empty the Refrigerator and turn it off.

_,Wipe excess moisture from the insideand leave the doors open to keep odor and mold from

developing.

Service warranty and Modification

. Any changes or modifications performed by a 3rd party on this finished appliance is not covered

under Samsung warranty service, nor can Samsung be responsible for safety issues that result

from 3rd party modifications.

Children can get trapped inside Refrigerators.

Before you throw away your old Refrigerator or Freezer, make sure that you;

• Take off the doors.

• Leave all shelves in places so that children may not easily climb inside and shut the door while they

are inside.

This appliance is not intended for use by small children or infirm persons without

capable, adult supervision. Small children should be supervised when using the

appliance.

Do not block air holes

= If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled

If this cooling period lasts too long, the water filter may break and cause water leakage,

6Safety Information

SETTING UP YOUR

FRENCH DOOR REFRIGERATOR 08 Getting ready to installthe refrigerator

09 Removing the refrigerator doors

11 Disassemble the Freezer Drawer

12 Reattaching the refrigerator doors

!4 Assemble the FreezerDrawer

15 Adjusting the doors

16 Making minor adjustments between doors

17 Adjusting the freeze+drawer level

18 Checking the water dispenser line

19 Installing the water line

OPERATING YOUR SAMSUNG

FRENCH DOOR REFRIGERATOR I

21 Using the control panel

22 Using the Digital display

24 Using the cold water dispenser

26 Parts and Features

27 Storing food in the refrigerator

27 Storing food in the freezer drawer

28 Using the Cool Select PantryTM

29 Removing the refrigerator accessories

30 Using the doors

30 Using the tilting pocket

31 Removing the freezer accessories

32 Cleaning the refrigerator

33 Changing the interior lights

34 Changing the water filter

TROUBLESHOOTING 35 Troublesl7ooting

WARRANTY 36Warranty

Contents7

I t

"- 1"-

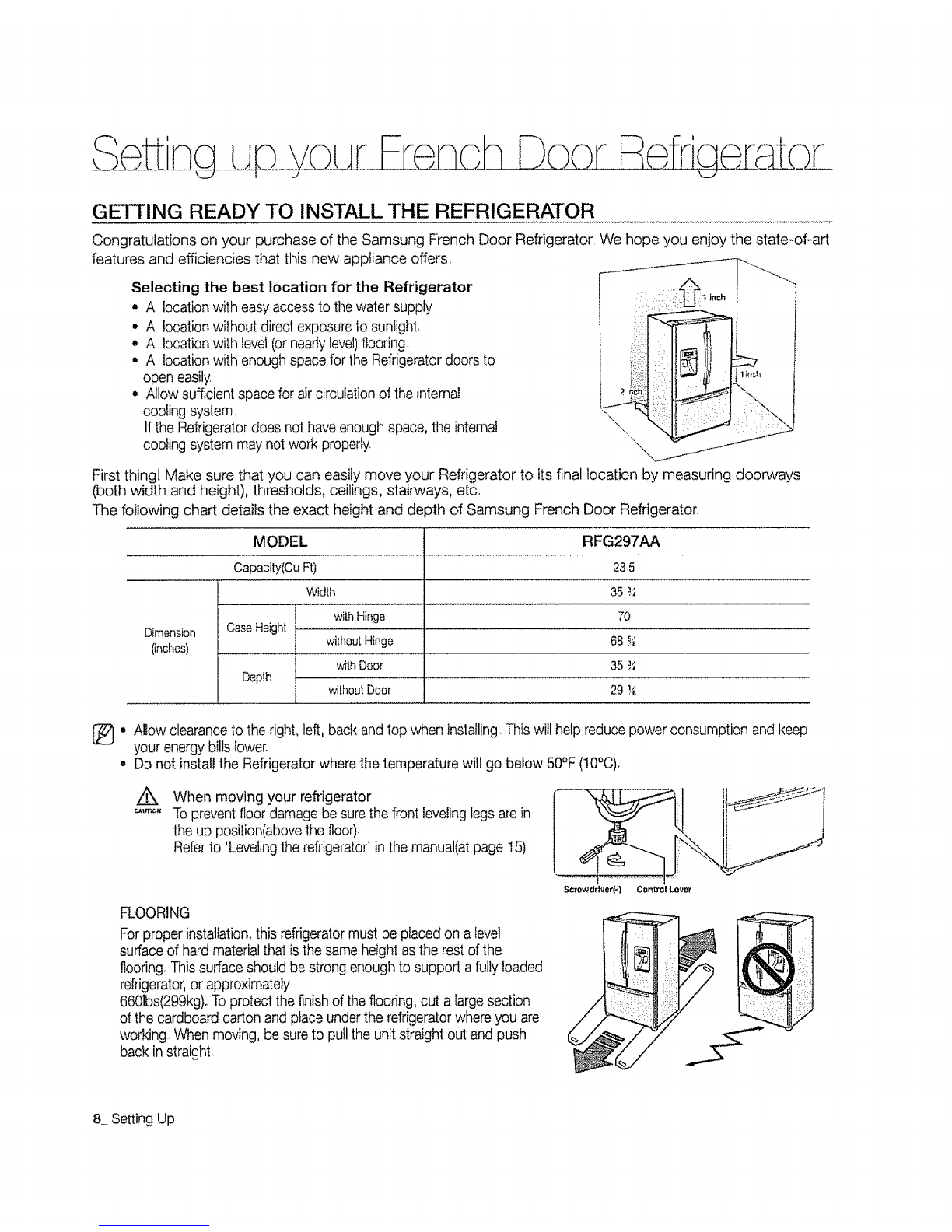

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of the Samsung French Door Refrigerator We hope you enjoy the state-of-art

features and efficiencies that this new appliance offers.

Selecting the best location for the Refrigerator

o A location with easy access to thewater supply.

= A location without direct exposureto sunlight,

• A location with level(or nearlylevel)flooring.

• A location with enough space for the Refrigeratordoors to

open easily

= Allow sufficientspace for air circulationof the internat

cooling system.

If the Refrigeratordoes not haveenoughspace, the internal

cooling system maynot work properly_

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc,

The following chart details the exact height and depth of Samsung French Door Refrigerator.

MODEL

Capacity(Cu Ft)

Width

wilh Hinge

Dimension Case Height without Hinge

(inches) with Door

Depth wilhou_ Door

RFG297AA

285

35 _J

68 _

35 s/,

29 1_

[_ • Allowclearance to the right, left,back and top when installing.Thiswill help reducepower consumption and keep

your energybillslower.

° Donot install the Refrigerator wherethe temperature will go below 50°F (!0°C).

/!,,.When moving your refrigerator

Topreventfloor damagebe surethe front levelinglegsare in

the up position(abovethe floor).

Referto 'Levelingthe refrigerator'in themanual(atpage 15)

FLOORING

Forproper installation,this refrigeratormust be placedon a level

surfaceof hard materialthat is thesame heightasthe rest ofthe

flooring.This surfaceshouldbe strong enough to support a fullyloaded

refrigerator,or approximately

6601bs(299kg).Toprotect the finishof theflooring, cut a largesection

of thecardboard carton and placeunderthe refrigeratorwhereyou are

working.When moving,be sureto puIIthe unitstraight out and push

back instraight

S_ewdrivo_-) Control Levor

8 Setting Up

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance By completing the following steps, your Refrigerator should be fully operational..

1..Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator Refer to installation instructions in this manual..

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly,

4LAfter powering the Refrigerator, it will take a few hours to reach the appropriate temperature, You can

store food and drinks in the Refrigerator after the temperature is sufficiently coo!.

[_ Check the accessory list below.

Water filter Hexwrench Fastener Compressionfitting Compressionnut

(DA2g-00003B) (DA80-00002C} (DA60-O0143B) (DA62-00305A) (DA74-00070B)

REMOVING THE REFRIGERATOR DOORS

If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors

Tools you will need

PhiIips screwdriver Flat-blade screwdriver Wrench Pliers Allen wrench(3/16")

Disassemble the Refrigerator doors

I_ With the door opened, remove the Hinge Cover

cap (t_)with a Flat head screwdriver, and close

the door,

Remove the 3 screws holding down the Hinge

Cover and remove the Hinge Cover (_),

<tt

Setting Up 9

,Disconnect the electrical connector ([_) above

the upper right door hinge and the 3 electrical

connectors (i_}) above the upper left door hinge.

Disconnect the water tube (_) by pulling the tube

titling (_) apart as shown in the picture.

3_ Remove the 3 hex head bolts ((_) attached to the upper

left and right door hinges with a wrench(10mm).

With a Philips head screwdriver, remove the ground

screw ([_) attached to the upper left and right door

hinges.

Remove the upper left and right door hinges (_).

4. Lift the door straight up to remove.

,With a Philips head screwdriver, remove the two screws (i_})

attached to the lower left and right door hingesr

With an wrench(10mm), remove the two hex head bolts (1_)

attached to the lower left and right door hinges.

Remove the lower left and right door hinges (@}.

10 Setting Up

Andere Handbücher für RFG297AA

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RF65A967FB1/EU Bedienungsanleitung

Samsung

Samsung SR-608EV Bedienungsanleitung

Samsung

Samsung RF25HMEDBSR Bedienungsanleitung

Samsung

Samsung BRB2601 Series Bedienungsanleitung

Samsung

Samsung RF31FM Series Bedienungsanleitung

Samsung

Samsung RS64R55 Series Bedienungsanleitung

Samsung

Samsung RH57H90507F Bedienungsanleitung

Samsung

Samsung RF26HF Series Bedienungsanleitung

Samsung

Samsung RF23DB Series Bedienungsanleitung

Samsung

Samsung RFG293HABP Bedienungsanleitung

Samsung

Samsung SRS676GDHLS Bedienungsanleitung

Samsung

Samsung RF267 Bedienungsanleitung

Samsung

Samsung SR-S25NTA Bedienungsanleitung

Samsung

Samsung RFG296HDBP Bedienungsanleitung

Samsung

Samsung RL48RWCIH1 Bedienungsanleitung

Samsung

Samsung RH25H5611S Bedienungsanleitung

Samsung

Samsung RFG297ACRSXAC Bedienungsanleitung

Samsung

Samsung RT38 Bedienungsanleitung

Samsung

Samsung RT35K5010WW/LV Bedienungsanleitung

Samsung

Samsung RZ11T7474 Series Bedienungsanleitung

Samsung

Samsung I.C.E. PAD RH269LBSH Sicherheitsleitfaden

Samsung

Samsung RF221NCTA Bedienungsanleitung

Samsung

Samsung RF268ABBP Bedienungsanleitung

Samsung

Samsung RSG309AARS Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
