REFRIGERATOR PRODUCT FEATURE

For the latest parts information, Please access to our service web site (http://itself.sec.samsung.co.kr)

Twin X AirFlow

Xtra Space

Door Alarm

Vegetable Crisper

1. PRECAUTIONS(SAFETY WARNINGS)

●Unplug the refrigerator before making any repairs or any replacements.

󳦧Avoid electric shock.

●Use rated components for the replacements.

󳦧Check that they have the correct model number, rated voltage, rated current, operating

temperature and so on.

●On repair, be sure that the wires such as harness are bundled tightly and are not exposed by

water.

󳦧Bundle wires tightly in order not to be detached by an the external force.

●Upon repair, completely remove dust, particles or other items from housing areas,

harness parts, and connectors.

󳦧Cleaning may prevent fire by tracking or short.

●Check if there is any trace of water infitration on electrical parts.

󳦧If there is kind of trace, change the related components or do the necessary action

such as taping using the insulating tape.

●After repair, check the appearance of the assembled parts.

󳦧They must look the same as they did before disassembly.

●Check the conditions surrounding the installed refrigerator.

󳦧When the refrigerator is located at humid or wet place, or the installed state is

unstable, change the location.

●If necessary instal a ground conductor.

󳦧This appliance must be properly grounded, especially if there is a possibility of

electrical leakage.

●Do not allow consumers to use one outlet for several plugs.

●Check whether the power cord has been placed under an other appliance and gotten,

damaged, worn-out squeezed.

󳦧Repair the defective power plug or outlet immediately.

󳦧Make sure that the power cord is not placed under an other appliance or pinched.

●Do not allow consumers to keep bottles or the likes in the Freezer or to keep foods in

unstable positions.

●Do not allow consumers to repair the appliance by themselves.

●Do not allow consumers to keep other chemicals except food.

󳦧Medicines and other materials for research, this appliance will not maintain the

precisely constant temperature for them.

󳦧Volatile materials (Alcohol, Benzene, Ether, LP gas etc.) - possibility of explosion

PRECAUTIONS(SAFETY WARNINGS)

Read all instructions before repairing the product, and follow to the instructions

in order to prevent danger or property damage.

CAUTION/WARNING SYMBOLS DISPLAYED

SYMBOLS

Indicates that a

danger of death

or serious injury

exists.

Indicates that a risk

of personal injury

or material damage

exists.

means “Forbidden”.

means “do not disassemble”.

means “do not touch”

means “Instructions that need to be

followed”

means “Ground to prevent Electric

shock”.

means “power cord should be

unplugged from the consent”

Pull the power plug out to

exchange the interior lamp

of the refrigerator.

●

It may cause electric shock.

Warning

Warning & Caution

Caution

Unplug

Use rated components for

the replacement.

●

Check for the correct model, rated

voltage, rated current, operating

temperature and so on.

Upon repair, make sure that the

wires such as harness are

bundled tightly.

●

Bundle wires tightly for them not to be

detached by an external force and not to get

wet.

Check if there is any trace indicating

water permeation.

●

If there is that kind of trace, change

the related components or do the

necessary treatment

such as taping

using the

insulating tape.

After repair, check the

appearance of the assembled

components.

●

IThey must look the same as they did

before disassembly.

Upon repair, remove completely dust or

other items form the housing areas,

harnesses, and check parts appearance.

●

Cleaning may prevent the possible fire by

tracking or short.

Rated

components

PRECAUTIONS(SAFETY WARNINGS)

❈

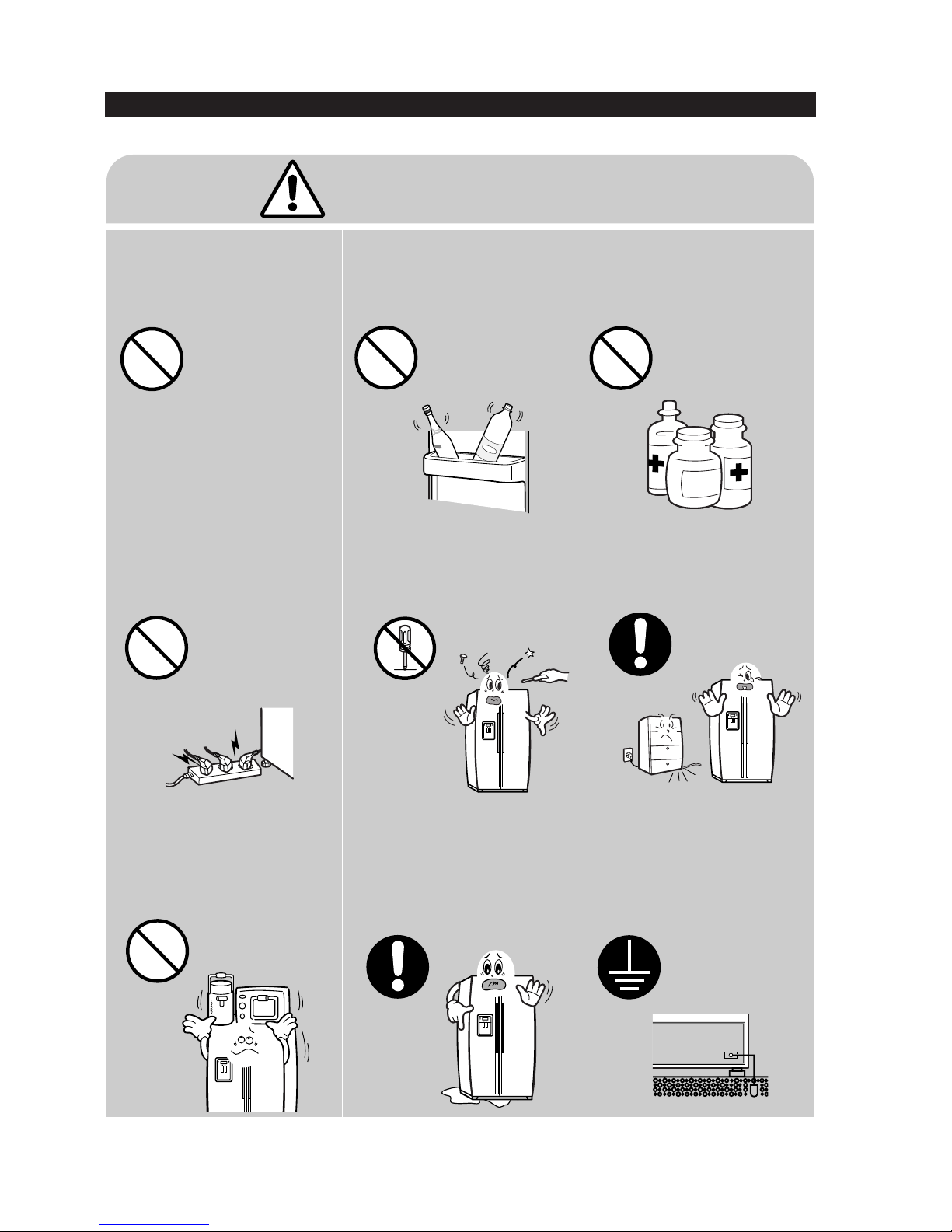

Please ler users know following warnings & cautions in detail.

Do not allow users to put glass

bottles or similar in the freezer.

●

Freezing the contents may cause .

Do not allow users to store narrow

and long bottles or foods in a small

multi-purpose room.

●

It may hurt you when the refrigerator door

is opened and closed resulting in stuff falling

down.

Do not allow users to store

pharmaceutical products, scientific

materials, etc., in the refrigerator.

●

Products which require temperature control

should not be stored in the refrigerator.

Do not allow users to store

articles on top of the product.

●

Opening or closing the door may cause

things to fall down, witch may cause injury.

Forbidden Forbidden Forbidden

Forbidden

Warning & Caution

Do not allow users to

disassemble, repair or alter.

●

It may cause fire or abnormal operation

leading to injury.

Do not

disassemble

Do not allow users to insert the

power plugs for many products

at the same time.

●

May cause abnormal generation of

heat or fire.

Forbidden

Do not allow users to bend the

power cord with excessive force or

do not allow the power

cord to get pinched by a heavy item.

●

May cause fire.

Do not allow users to install the

refrigerator in a wet place or a

place where water splashes.

●

Deterioration of the insulation of electric

parts may cause electric shock or fire.

Ensure grounding.

●

If grounding is not done, it will cause

breakdown and electric shock.

Ground

4. ALIGNMENT AND ADJUSTMENTS

4-1) TEST (FORCED OPERATION / FORCED DEFROST) ··············27

4-2) RESTORATION OF OPERATION CONDITIONS FOR POWER FAILURE ···28

4-3) ALARM ········································28

4-4) EXHIBITION MODE ··································28

4-5) SELF-DIAGNOSIS···································29

4-6) LOAD STATUS DISPLAY·······························31

4-7) OPTION SETTING ··································32

4-8) OPTION TABLE ····································34

ALIGNMENT AND ADJUSTMENTS

●

When pressing Refrigerator temp set KEY and ICE TYPE KEY in PANEL PCB simultaneously for more than 8

sec. PANEL DISPLAY will go off and it moves onto TEST MODE. At this point, although Freezer/Refrigerator

temp set KEY, Power freezing KEY, and ICE TYPE KEY are pressed, it operates by TEST KEY.

●When pressing TEST KEY, Test function shall be changed in the order as Forced Operation ---> Forced

Freezer Defrost---> Cancellation(normal operation)---> Forced Operation. If functions are canceled during the

operation of TEST function, it is most desirable to turn off the power and turn it on again.

4-1) TEST (FORCED OPERATION / FORCED DEFROST)

Press for 8

seconds

1) Forced Operation

1-1) When pressing TEST KEY once in TEST MODE, Forced Operation shall be selected and with BEEP

sound, alarm will be operated.

1-2) If Forced Operation is selected, COMP. operates instantly without 5 min. delay in any Operation MODE. At

this point, if it is in Defrost, Defrost will be stopped instantly.

1-3) With the selection of Forced Operation, COMP. and Freezer FAN operate for 24 hr. continuously and

Refrigerator shall be regulated by set temp while Forced Operation continues until the completion of

forced operation or the conversion to other MODE (forced Freezer Defrost) or cancellation.

1-4) With the selection of Forced Operation, Freezer will be selected at “ MAX(-13 °F/ -25 °C) ”and Refrigerator

will be set at “ MID (35.6 °F/ 2 °C) ”automatically. However, although forced defrost or test cancellation are

selected after a minute while selecting forced operation, set temp will not change. (Maintaining “ MAX (-13

°F/ -25 °C) ” and “ MID(35.6 °F/ 2 °C) ” ) If forced defrost or test cancellation are selected in a minute while

selecting forced operation, set temp will go back to the previous set temp before “ MAX (-13 °F/ -25 °C) ”

and “ MID (35.6 °F/ 2 °C) ” .

1-5)

On the completion of Forced Operation (24 hr.), Freezer defrost will operate regardless of the previous state.

1-6) After the above items, it operates under the conditions of normal defrost by judging case by case.

1-7) If it is cancelled randomly during Forced Operation, (On changing into cancellation Mode), the time for

COMP. ON during forced operation shall be calculated in total and reflected in defrost cycle.

1-8) During Forced Operation, Power freezing doesn’t function and with the selection of function, LED

indication for the selected POWER function will be off after 10 sec.

2) Forced Defrost

2-1) When pressing TEST KET twice in TEST MODE, Freezer defrost will operate and BEEP sound alarm

shall be heard.

2-2) BEEP sound alarm shall operate until the completion of HEATING and pause.

2-3) With the selection of forced Freezer defrost, it will operate regardless of the point of normal Heater On and

complete defrost while comparing the temp of the point of HEATER OFF.

3) TEST Cancellation MODE

3-1) When converting DISPLAY PANEL into TEST MODE and pressing TEST button one more time during

Freeaer Defrost, Freezer Defrost will be cancelled and restored to normal operation. Also, if MAIN

POWER is turned on again after being turned off, all the TEST functions will be canceled.

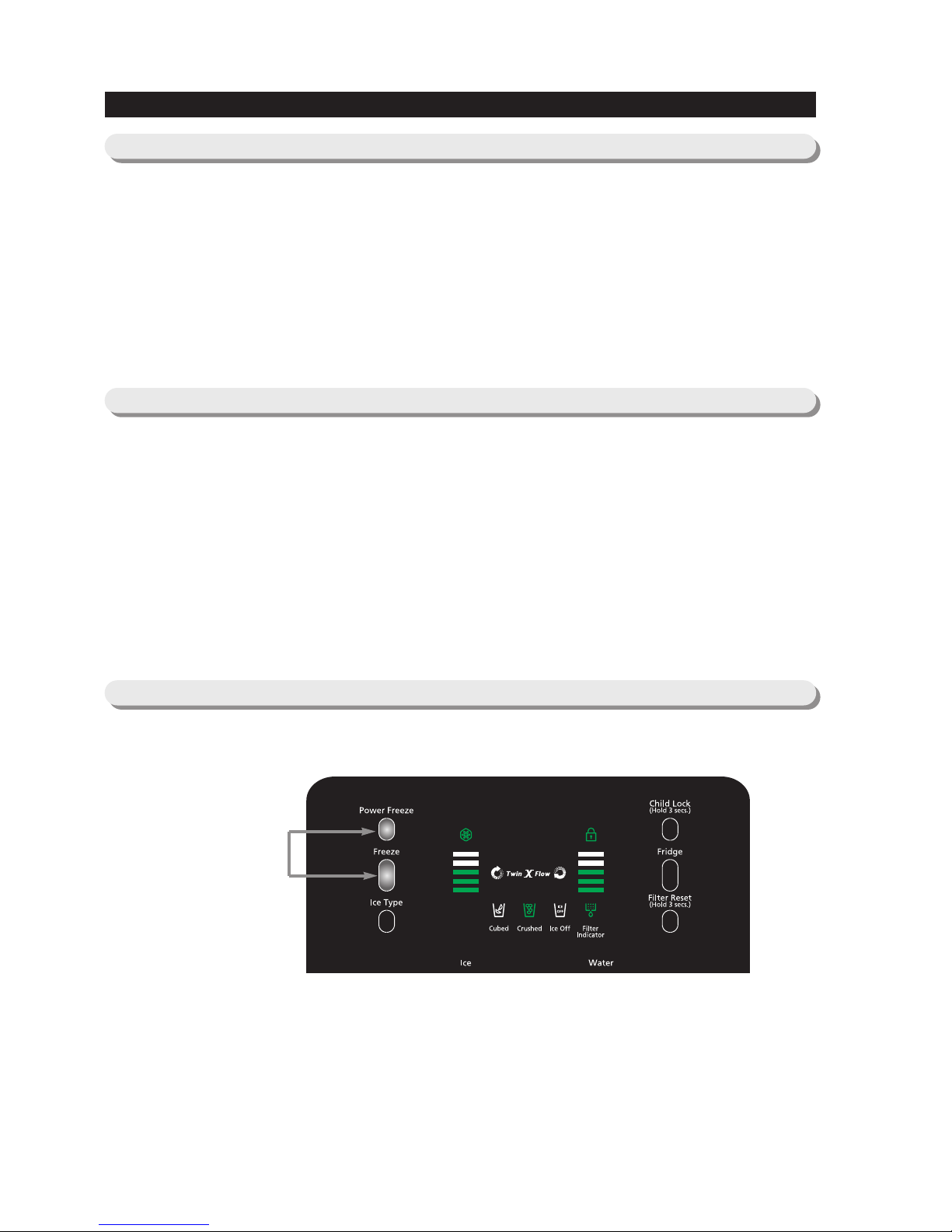

●When pressing Power Freeze and Freezer KEY on the front Display PANEL simultaneously for 3 seconds.

It will operate as Exhibition Mode with Ding Dong sound.

●Contents of operation in Exhibition Mode DISPLAY, FAN MOTOR, and DISPENSER will operate normally

except for Comp. and C-Fan.

●Exhibition Mode is not cleared even if power reset.

●To cancel Exhibition Mode, press same key (Power Freeze and Freezer KEY) for same time (3 secsonds)

●If the temperature of Freezer/ Fridge increases more than (149°F/65°C) in Exhibition Mode, it will restore to

normal operation mode.

4-4) EXHIBITION MODE

Press for 8

seconds

ALIGNMENT AND ADJUSTMENTS

1) Button TOUCH

1-1) When selecting each button in the CONTROL PANEL, the verification sound (Ding Dong) of input shall

be heard.

1-2) In the case of pressing more than two KEYS at the same time or pressing the wrong button, the sound

shall not be heard.

2) DOOR-OPEN

2-1) After passing 2 min. consecutively as Freezer/Refrigerator DOOR opened, SOUND alarm (Ding Dong)

shall be heard.

2-2) If the door is still open afterward, sound alarm will be circulated to SOUND (Ding Dong) generating

movement at the interval of a min.

2-3) Alarm stops when Freezer/Refrigerators are all closed.

1) In the case of instant power failure and initialization of PANEL DISPLAY, these can make customer’s NON-

SENSE CALL. To avoid this, if power is applied, it judges the temp of Freezer and operates as either

initialization or restoration of operation conditions.

2) With initial POWER ON, it judges the temp of Freezer and if it is below (+41°F/+5°C), it is judged as instant

power failure while operating and restoring the functions related to PANEL DISPLAY such as Power freezing,

CHILD LOCK and Freezer/Refrigerator settings.

3) With initial POWER ON, it judges the temp of Freezer and if it is above (+41°F/+5°C), it is judged as extended

power failure and PANEL DISPLAY will be initialized (Automatic setting at (-4°F/-20°C) for Freezer and

(37.4°F/3°C) for Refrigerator).

4-3) ALARM

4-2) RESTORATION OF OPERATION CONDITIONS FOR POWER FAILURE

4-5) SELF-DIAGNOSIS

Press for 8 seconds

ALIGNMENT AND ADJUSTMENTS

1) Self-diagnosis with initial POWER ON

1-1) With POWER ON, it shall diagnose the status of temp SENSOR in a minute in MICOM internally for itself.

1-2) If inferior sensor is found after self-diagnosis, corresponding DISPLAY LED will be all off at the interval of

0.5 sec. and there will be no sound with LED ON.

1-3) In the state that inferior sensor is found and DISPLAY ICON is off, it only recognizes self-diagnosis KEY

(Press Ice Type KEY + FILTER RESET KEY(LIGHT KEY) for 8 sec.) and normal temp control will be on

hold.

1-4) On self-diagnosis ERROR, if inferior sensor is fixed or if you press ICE TYPE KEY + FILTER RESET

KEY(LIGHT KEY) for 8 sec., it will be canceled automatically.

2) Self-diagnosis during normal operation

2-1) When pressing “ ICE TYPE ” and “ FILTER RESET(LIGHT) ” KEYS simultaneously for 6 sec. in normal

operation of the fridge, temp set DISPLAY will be All ON/OFF for 2 sec. at the interval of 0.5 sec. and

when pressing “ ICE TYPE ” and “ FILTER RESET(LIGHT) ” KEYS simultaneously for 8 sec. including

TOGGLE for 2 sec., self-diagnosis will be selected.

2-2) At this point, “ SOUND ”shall be heard and it operates self-diagnosis.

2-3) When self-diagnosis operates, entire LED will be OFF and only relevant LED with malfunction will be ON

/ OFF repeatedly signifying defects. (Refer to the below self-diagnosis CHECK LIST)

2-4) When an ERROR occurs, it will be indicated for 30 sec. and restored to the normal status regardless of

maintenance.

2-5) During self-diagnosis KEY input will not be recognized.

ALIGNMENT AND ADJUSTMENTS

NO Item DISPLAY LED Description How to Self-Diagnose

Refrigerator

SENSOR

1 Refrigerator "MID"

Fall out SENSOR HOUSING in

Refrigerator contanct failture, breakage of

wire, short-circuit, inferior Refrigerator

SENSOR and others.

Indicating a defect when the temp sensing

of Refrigerator SENOSR is above

(149°F/65 °C) and below (-58 °F/-50 °C).

The voltage should be within the range of

4.7V~0.6V between MAIN PCB CN30 #

8 and #9.

Peripheral temp

SENSOR

2 Refrigerator "MIN"

Fall out peripheral temp SENSOR

HOUSING , contact failure, breakage of

wire, short-circuit, inferior peripheral

sensor and others.

Indicating a defect when the temp sensing

of peripheral temp SENOSR is above

(149°F/65 °C) and below (-58 °F/-50 °C).

The voltage should be within the range of

4.7V~0.6V between MAIN PCB CN31 #

1 and #4.

Freezer SENSOR3 Freezer "MAX"

Fall out SENSOR HOUSING in Freezer,

contact failure, breakage of wire, short-

circuit, inferior Freezer SENSOR and

others.

Indicating a defect when the temp sensing

of Freezer SENOSR is above

(149°F/65°C) and below (-58 °F/-50 °C).

The voltage should be within the range of

4.7V~0.6V between MAIN PCB CN30 #

4 and #5.

Freezer Defrost

SENSOR

4 Freezer "MID"

Fall out Deforst - SENSOR HOUSING in

the evaporator of Freezer, contact facilure,

breakge of wire, short-circuit, inferior

sensor and others.Indicating a defect when

the temp sensing of Freezer Defrost

SENOSR is above (149 °F/65 °C) and

below (-58 °F/-50 °C).

The voltage should be within the range of

4.7V~0.6V between MAIN PCB CN30 #

4 and #6.

Freezer Defrost

ERROR

5 Freezer "MIN"

Fall out Freezer Heater Housing, contact

failture, breakage of wire, short circuit,

inferior Freezer Heater, or inferior Defrost

temp fuse and etc.

On Freezer Defrost 90 min. automatic

completion

I/M Function

ERROR

6 ICE OFF Ejection restoration failure more than 3

times. Push the test buttono nI/

MAss'y and It should work.

I/M SENSOR

ERROR

7 Cubed LED Fall out I/M SENSOR HOUSING, contact

failure,brekage of wire,short-circuit, inferior

I/M-SENSOR and etc.

The voltage should be within the range of

4.7V~0.6V between MAIN PCB CN90 #

3 and #4.

DAMPER HEATER8 Refrigerator "MAX" Damper Heater Slipped Away, Poor

Contact, Wire Breakage, Short Circuit,

Defective Damper Heater

Indicates error when the Damper Heater is

detected as open (Only for Energy Star)

F-FAN RESTRAINT9Crushed Ice F-Fan Restraintor Defect Upon detection of F-Fan restraint

(Only for Energy Star)

C-FAN RESTRAINT10 Crushed Ice

(Blinking)

C-Fan Restraintor Defect Upon detection of C-Fan restraint

(Only for Energy Star)

󳢬Details of self-diagnosis lighting by

When pressing “ICE TYPE” and “FILTER RESET(LIGHT)” KEYS simultaneously for 6 sec. in normal

operation, the indicators of temp set in Freezer/Refrigerator will all ON/OFF for 2 sec. at the interval of 0.5 sec.

At this point, when pressing Temp Set Key in Refrigerator while canceling “ICE TYPE” and “FILTER

RESET(LIGHT)” KEYS, it operates load status display.

2) Load status display will show the load in operation REAL TIME.

However, it is not related to real status of operation of load and it only shows the directed status of the load

operation command from MICOM.

3) Only corresponding ICON for the load in operation will be ON/OFF repeatedly and turned off.

4) Load status display will continue for 30 sec. and it will restore to the normal state.

ALIGNMENT AND ADJUSTMENTS

4-6) LOAD STATUS DISPLAY

②Press after ①

NO ITEMS DISPLAY LED PROBLEM

Damper

Condition for

over load

Condition for

low temp

COMP

Freezer Defrost

Heater

Freezer FAN

Exhibition Mode

Dispenser Heater

Damper Heater

Refrigerator "MIN" (1’st)

Refrigerator "MID" (3’rd)

Refrigerator "MAX" (5’th)

Freezer "MIN" (1’st)

Freezer "MID" (3’rd)

Freezer "MAX" (5’th)

ICE OFF

CUBE LED

CRUSH LED

LED ON whenDamper is open

LED ON when Ambient temp is over (95°F/35 °C)

LED ON when ambient temp is lower than (62.6 °F/17 °C)

Relevant LED ON whenCOMP operates

LED ON when Freezer Defrost Heater operates

Relevant LED ON when Freezer-FAN HIGH operates

LED ON in Display mode

Relevant LED ON when Dispenser Heater gets ON

Relevant LED ON when Damper Heater gets ON

󳢬Details by LED ON locations indicating load status

①Press for 6 seconds

Andere Handbücher für RS2530B SERIES

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RT44A Series Bedienungsanleitung

Samsung

Samsung RS Sicherheitsleitfaden

Samsung

Samsung RF28HDEDBSR/AA Bedienungsanleitung

Samsung

Samsung RS2544 Bedienungsanleitung

Samsung

Samsung BRD27 Series Bedienungsanleitung

Samsung

Samsung RB3 Series Bedienungsanleitung

Samsung

Samsung RS25H5111 Bedienungsanleitung

Samsung

Samsung RS261MDBP Bedienungsanleitung

Samsung

Samsung RR40B99C5AP Bedienungsanleitung

Samsung

Samsung RT22S Bedienungsanleitung

Samsung

Samsung RB31FDJNDBC Bedienungsanleitung

Samsung

Samsung RF260BEA Series Bedienungsanleitung

Samsung

Samsung RM255LAWP/XAA-0000 and Sicherheitsleitfaden

Samsung

Samsung RSG5F series Bedienungsanleitung

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung RS25J50 Bedienungsanleitung

Samsung

Samsung DA68-01454B Bedienungsanleitung

Samsung

Samsung RL56GPGBP Bedienungsanleitung

Samsung

Samsung RFG237 Series Bedienungsanleitung

Samsung

Samsung RS82A60 Series Bedienungsanleitung

Samsung

Samsung RH56J69 Series Bedienungsanleitung

Samsung

Samsung SRS583NW Bedienungsanleitung

Samsung

Samsung RF265ABBP/XAA Bedienungsanleitung

Samsung

Samsung RF4289HA Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
