Samsung RS2544 Bedienungsanleitung

RS2544

RS2622

RS2644

RS2666

RS2777

Model:

SIDE-BY-SIDE REFRIGERATOR

SAMSUNG Home Appliance Service

IMPORTANT SAFETY NOTICE

The service guide is for service men with adequate backgrounds of

electrical, electronic, and mechanical experience. Any attempt to repair

a major appliance may result in personal injury and property damage.

The manufacturer or dealer cannot be responsible for the interpretation

of this information.

SAMSUNG ELECTRONICS AMERICA, INC.

Technical Service Guide

part in any form without written permission from the SAMSUNG ELECTRONICS

Company.

WARNING

Contents

1. Introduction ········································ 4

2. Installation ········································ 5

3. Nomenclature ·······································6

4. Specifications ·······································7

5. Warranty information ···································8

6. Interior Views and Dimensions ·····························9

7. Refrigeration Cycle and Cool Air Circulation Route ·················11

8. Mechanical Disassembly ································13

9. Operation Function····································23

10. Circuit Descriptions···································37

11. Diagnostics ·······································46

13. Safety instruction on services ·····························58

●Appendix ⅠⅠ(Reference for circuit diagnostics) ····················59

●Appendix ⅡⅡ(Circuit diagram) ······························64

1. INTRODUCTION

●●SAMSUNG side by side refrigerator has the following characteristics.

1) Twin Cooling System

·The refrigerator and the freezer have two

evaporators. Given this independent system, the

freezer and the refrigerator are cooled individually as

required and are, therefore, more efficient. Food

odor from the refrigerator does not affect food in the

freezer due to separate air flow circulation.

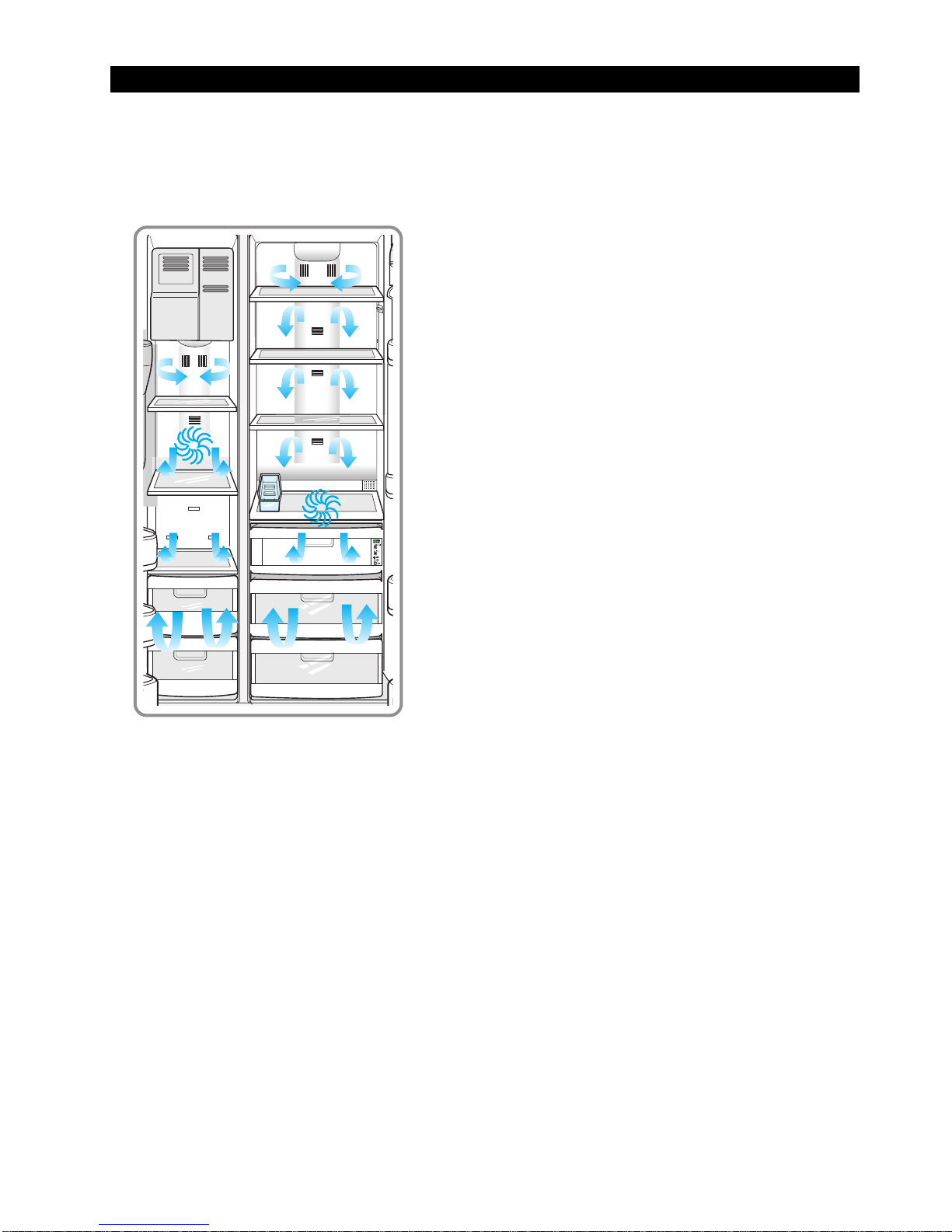

2) Multi-Flow System

·Cool air circulates through multiple vents on every

shelf level. This provides even distribution of cooling

inside cabinets to keep your food fresh longer.

3) Xtra SpaceTM

·Vertical room next to the ice maker in the freezer

provides space for pizza etc.

4) Door Alarm

·Beep sound reminds you the door is open.

5) Xtra FreshTM

·Optimized humidity control keeps vegetables & fruits

fresh.

6) Deodorizer

·Reusable twin deodorizers keep the refrigerator air

fresh and odor free.

7) CoolSelect ZoneTM Drawer(RS2555, RS2577)

·User can select Quick Cool, Thaw and Select buttons

for quickly chill, thaw and cool items. Select Soft

freeze,Chill, and Cool to control the temperature of

the drawer.

2. INSTALLATION

1) To protect refrigerator in movement

Use padded hand truck as shown. If entrance width is

less than 39〃

, remove doors prior to installation and

reattach doors according to procedure below.

2) Remove all protective tape and pad in refrigerators.

Connect water lines and power cord. Adjust the

clearance between the doors.

3) Set the temperature control to the temperature and

wait for an hour.

The refrigerator should get slightly chilled and the motor

runs smoothly.

4) Once the refrigerator temperature is sufficiently low

You can store food in the refrigerator. After starting the

refrigerator, it takes a few hours to reach the appropriate

temperature.

●●Removing Doors

Open the freezer and refrigerator doors, and

then take off the front leg cover assembly by

turning the three screws counter-clockwise.

Remove the screw from clamp disconnect, the

water tube by pressing the coupler, and pulling

the water tube away.

With the door closed, remove the upper hinge

cover using a screwdriver, and then disconnect

the wires. Remove hinge screws and ground

screw counter-clockwise, and take off the upper

hinge. Take care removing the door to ensure that

it does not fall on you.

Remove the door from the lower hinge by

carefully lifting the door so as not to damage the

water tube. Remove the lower hinge from the

lower hinge bracket by lifting the lower hinge.

●●Attaching Doors

Insert the lower hinge in the bracket lower

hinge. Attach the freezer door by inserting the

hose in the lower side of the door into the hole in

the lower hinge and pulling the hose down.

Insert the upper hinge shaft into the hole. After

leveling between the upper hinge hole and the

hole of the cabinet. Reattach hinge screws and

screw in the clockwise direction. Connect the

wires. Put the front part of the upper hinge cover

on the front part of the upper hinge and reattach

from the front part of the upper hinge cover first.

3. Nomenclature

2002 Models

R S 25 44 SW /XAA

Product ; R - REFRIGERATOR

Capacity ; CU. FT

Family ; S - SIDE BY SIDE (SBS)

H - HomePADTM (SIDE BY SIDE)

B - BOTTOM MOUNTED FREEZER (BMF)

OPTION ; 25 Cu.ft 44-GOOD

26 Cu.ft 22-GOOD 44-BETTER 66-BEST

27 Cu.ft 77-BEST

COLOR ; SBS SW-SNOW WHITE SL-NOBLE STAIN

BMF SW-SNOW WHITE SL-NOBLE GRAY

Company Name

Label Location

4. Specifications

Defrost Control From 24 to 32 hrs

Thermo-Bimetal 54℉(off)/23℉(on)

Defrost Thermistor(502AT) 50℉(off)

Electrical Rating AC115V 60Hz, 4.8 Amps

Maximum Current Leakage 0.25 mA

Maximum Ground Path Resistance 0.1 Ohm

Energy Consumption KWH/mo.

Ambient Temperature 70℉90℉

Refrigerator,℉34∼46 34∼46

Freezer,℉-14∼8 -14∼8

Run Time,% 󳠞40 󳠞60

Refrigerant Charge (R134a) 7.76 oz

Compressor(MK183C-L2U) 532.3 Btu/hr

Compressor oil Freol α-15

Capillary tube(Dia, Length)

0.033＂＂,130＂＂

Dryer

Molecular Sieve XH-9

Clearance must be provided for air circulation

AT TOP 1＂＂

AT SIDES 0.1＂＂

AT REAR 1＂＂

RS2544, RS2622, RS2644, RS2666, RS2777

Main Board(RS2622) DA41-00134A

Main Board(RS2544/2644/2666) DA41-00104L

Main Board(RS2777) DA41-00104E

Thermistor(Freezer) DA32-10109W

Thermistor(Freezer Evaporator) DA32-00006A

Thermistor(Refrigerator) DA32-10105U

Thermistor(Refrigerator Evaporator)

DA32-00006B

Thermistor(Ambient) DA32-10109V

Thermistor(CoolSelect ZoneTM)

DA32-10109X

Thermistor(Ice-Maker)

DA32-10108B

Thermo-Bimetal DA47-10160E

Relay DA35-10013Q

Overload Relay DA34-10003D

Run Capacitor (12㎌) 2501-001045

Fan-Motor(FRE) DA31-00020E

Fan-Motor(REF) DA31-00002S(RS2622)

Fan-Motor(REF) DA31-00020E(RS2544/2644/2666/2777)

Fan-Motor(Condenser) DA31-00020H

Thermal Fuse DA47-00095C

Fan

Fan Fan

Fan

(Air inlet)

Heat exchanger

Heat exchangerHeat exchanger

Compressor

Dryer

C-Fan Electric box

Sub-condenser

ELECTRICAL SPECIFICATIONS Freezer Refrigerator

NO LOAD PERFORMANCE

REFRIGERATION SYSTEM

INSTALLATION

MODELS

REPLACEMENT PARTS

5. Warranty information

6. Interior Views and Dimensions

S2544/2622 Model S2777/2666 Model

ith CoolSelectZone

RS2644 Model

with CoolSelectZone

RS2666/2777)

RS2644/2666/2777)

RS2666/2777)

Chilled Bin)(RS2777)

6-1) Shelves and Bins

Freezer

Refrigerator

Interior Views and Dimensions

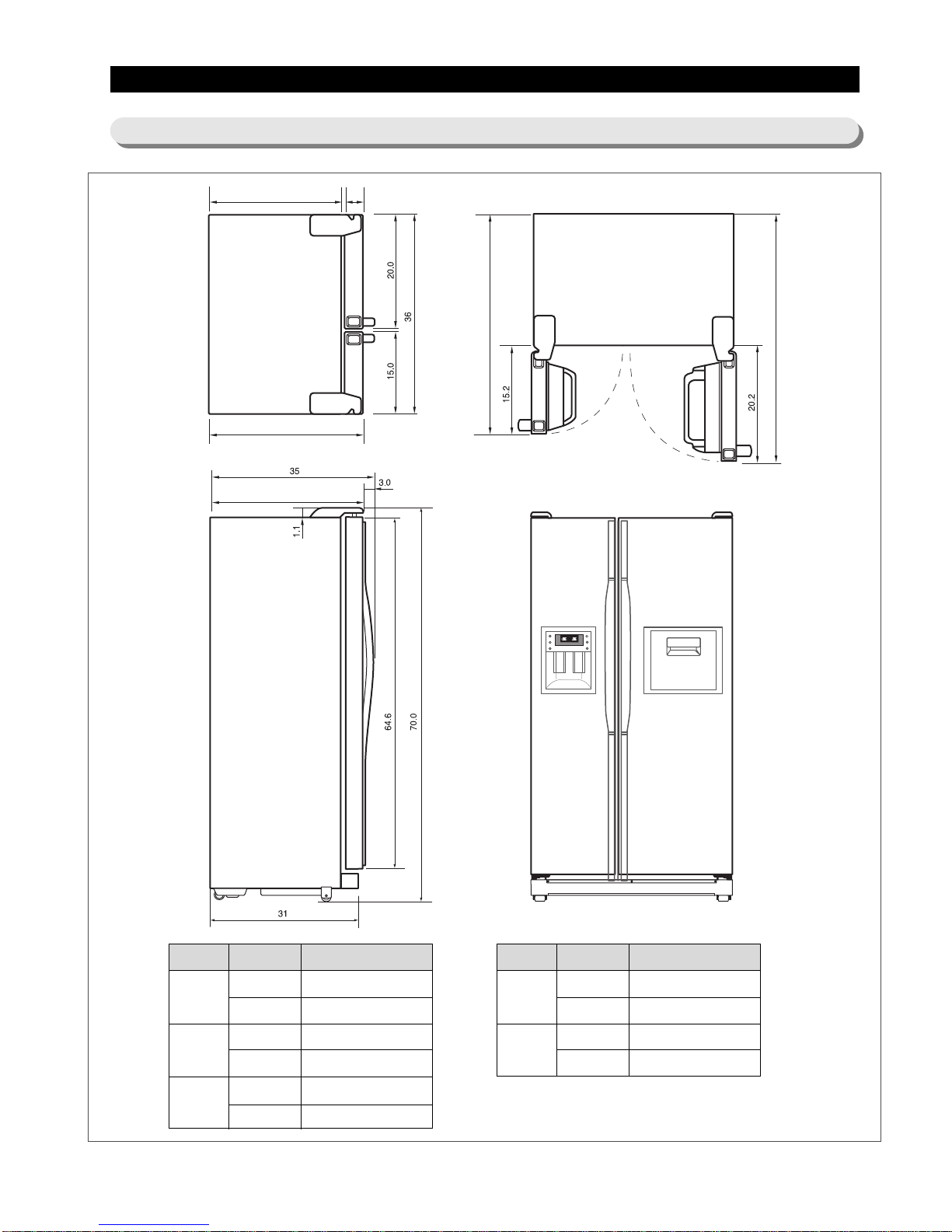

6-2) Dimensions of Refrigerator (Inches)

Beverage Station

(RS2666/RS2777)

- Dimensions Model

1.97

3.35

RS2544

RS2622/2644/2666/2777

RS2544

RS2622/2644/2666/2777

RS2622/2644/2666

RS2544/2777

- Dimensions Model

47.2

49.2

54.2

56.3

RS2544

RS2622/2644/2666/2777

RS2544

RS2622/2644/2666/2777
