Samsung RS26TKA Bedienungsanleitung

Refrigerator

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

RS26TKA77RS26TDA77ENGLISH

Free Standing Appliance

features of your side-by-side

refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung Refrigerator comes equipped with various innovative storage and energy-efficient features.

• Twin Cooling Plus™

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efficiently. Additionally, this separate air flow system prevents

food odor of one compartment from seeping into other compartments.

• Multi Airflow

Provides even cooling throughout the refrigerator to maintain optimal temperatures to keep food fresh.

• LED Tower Lighting

See everything in a new light with LED tower lighting.

• Premium Design Ice and Water Dispenser

Quick and easy access to filtered water and cubed/crushed ice with the external dispenser.

• External Digital Display and Control

Controlling the refrigerator is easy with the external digital display. It shows the inside temperatures,

when to change your filter and also controls the ice and water dispenser.

• Clear View Icemaker

The Icemaker is located in the freezer door, this ensures that all the freezer shelf space can be fully

utilized. Ice cubes are quickly produced and the clear ice bucket lets you easily see the amount of ice

cubes produced.

• CoolSelect Zone™ Drawer (RS26TKA77only)

User can select Quick Cool, Thaw and Select button to quickly chill, thaw and cool items.

• Water Filtration System

Easy to exchange water filter.

• Digital Display and Temperature Control

• Door Alarm

Beep sound reminds you the door is open.

2_ features

For easy future reference, write the model and serial

number down. You will find your model number on

the left bottom side of the refrigerator.

Model #

Serial #

safety information _3

safety information

SAFETY INFORMATION

Before using your new Samsung Side-By-Side Refrigerator, please read this manual thoroughly to

ensure that you know how to safely and efficiently operate the features and functions that your new

appliance offers.

This appliance is not intended for use by people (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

- Failing to do so may result in electric shock, fire, an explosion, problems with the product, or injury.

Because the following Instructions cover various models, the characteristics of your refrigerator may

differ slightly from the refrigerator described in this manual. If you have any questions contact us at

1-800-SAMSUNG or find help and information online at www.samsung.com.

Important safety symbols and precautions:

WARNING Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property

damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the wall socket.

Make sure the refrigerator is grounded to prevent electric shock.

Call the contact center for help.

Note.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

• R600a or R134a can be used as a refrigerant. Check the compressor label on the rear of

the appliance and the rating label inside the fridge to see which refrigerant is used for the

refrigerator.

4_ safety information

SEVERE WARNING SIGNS FOR INSTALLATION

• Do not install the refrigerator in a damp place or place where it may come in contact

with water.

- Deteriorated insulation of electrical parts may cause an electric shock or fire.

• Do not install this appliance in a humid, oily or dusty location, in a location exposed to

direct sunlight and water (rain drops).

• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room

heaters or other appliance.

• Do not plug several appliances into the same multiple power board. The refrigerator

should always be plugged into its own individual electrical board which has a voltage

rating that matched the rating plate.

- This provides the best performance and also prevents overloading house wiring circuits,

which could cause a fire hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock or fire.

• Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy articles on it.

• Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and

pull straight out from the outlet.

- Damage to the cord may cause short-circuit, fire and/or electric shock.

• Do not use aerosols near the refrigerator.

- Aerosols used near the refrigerator may cause an explosion or fire.

• The water supply to this refrigerator must only be installed/connected by a suitably

qualified person and connect to a potable water supply only.

• In order to operate the ice maker properly, water pressure of 20~125 psi is required.

WARNING

safety information

• The Refrigerator must be safely grounded

- Always make sure that you have grounded the Refrigerator before attempting to investigate

or repair any part of the appliance. Power leakages can cause severe electric shock.

• This refrigerator must be properly installed and located in accordance with the manual

before it is used.

• Connect the power plug in proper position with the cord hanging down.

- If you connect the power plug upside down, the wire can get cut off and cause a fire or

electric shock.

• When moving the refrigerator, be careful not to roll over or damage the power cord.

- This constitutes a fire hazard.

• Make sure that the power plug is not squashed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if children put them on their head.

• The appliance must be positioned so that the plug is accessible after installation.

• You need to remove all the protective plastic film before you initially plug in to use the

product.

safety information _5

• Never use gas pipes, telephone lines or other potential lightning attractors as an electrical

ground.

• If the power cord is damaged, have it replaced immediately by the manufacturer or its

service agent.

CAUTION

CAUTION SIGNS FOR INSTALLATION

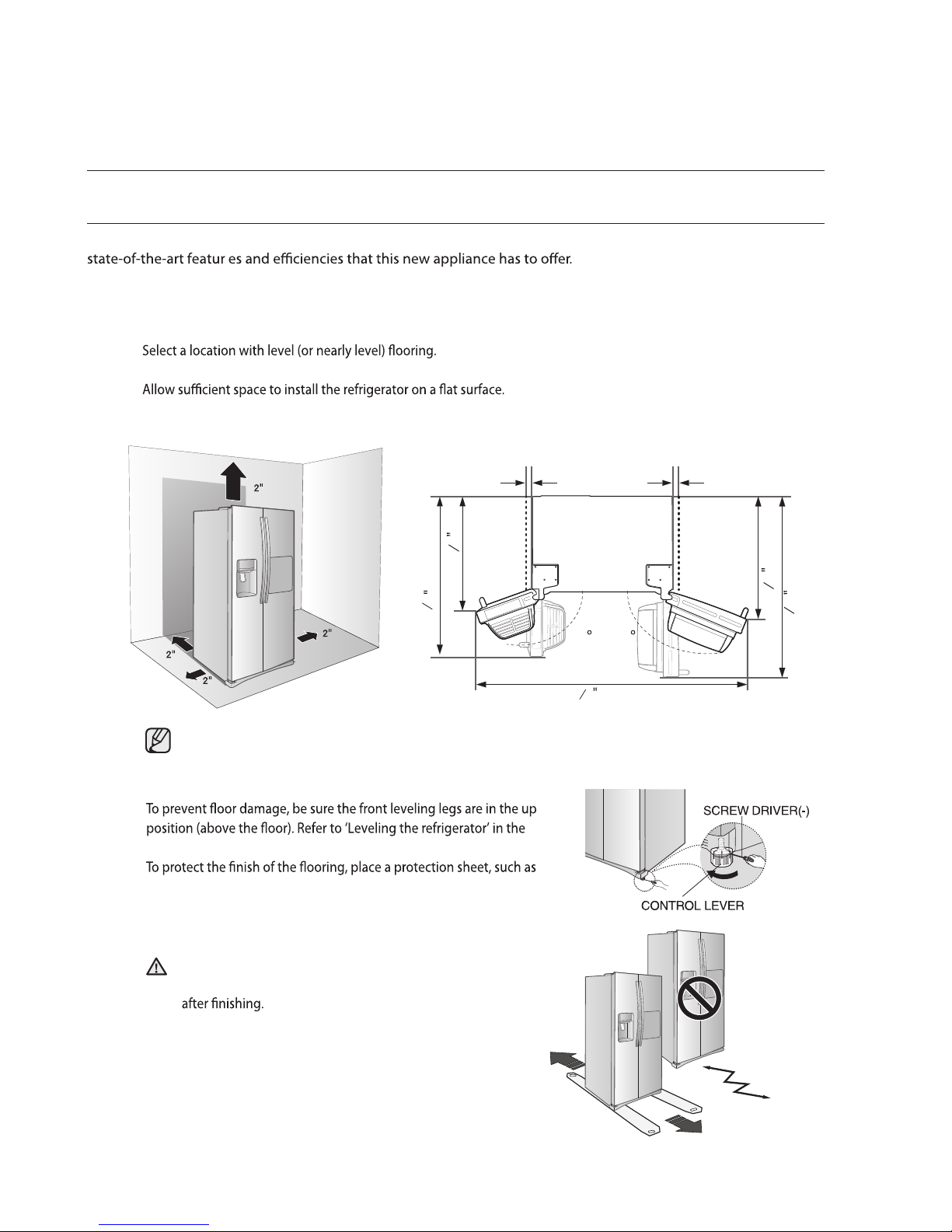

• Allow sufficient space to install the refrigerator on a flat surface.

- If your refrigerator is not level, the internal cooling system may not work correctly.

• Keep ventilation opening in the appliance enclosure or mounting structure clear of

obstruction.

• Allow the appliance to stand for 2 hours after installation.

SEVERE WARNING SIGNS FOR USING

• Do not insert the power plug with wet hands.

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or

material damage.

• Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not let children hang on the door. A serious injury may occur.

• Do not let children enter inside of the refrigerator. There is a risk of children entrapment.

• Do not insert your hands into the bottom area under the appliance.

- Any sharp edges may cause personal injury.

• Do not let children step on drawer’s cover.

- The drawer may break and cause them to slip.

• Do not overfill the refrigerator with food.

- When you open the door, an item may fall out and cause personal injury or material

damage.

• Please observe maximum storage times and expiry dates of frozen goods.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet

hands.

- This may cause frostbite.

• Never put fingers or other objects into the water dispenser hole, ice chute and ice maker

bucket.

- It may cause personal injury or material damage.

• Do not spray inflammable gas near the refrigerator.

- There is a risk of explosion or fire.

• Do not store volatile or flammable substances in the refrigerator.

- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause

explosions.

WARNING

6_ safety information

safety information

CAUTION SIGNS FOR USING

• Do not re-freeze frozen foods that have thawed completely.

Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or

glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

CAUTION

• Service warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance is not

covered under Samsung warranty service, nor can Samsung be responsible for safety

issues that result from 3rd party modifications.

• Do not block air holes.

If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled.

If this cooling period lasts too long, the water filter may break and cause water leakage.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.

- Otherwise, there is a risk of electric shock.

• If there are burning smells or smoke, pull out power plug immediately and contact your

Samsung Electronics service center.

• If you experience difficulty when changing the light, contact service agents.

• If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED Lamp

by yourself.

- Please contact your service agents.

• If any dust or water is in refrigerator, pull out power plug and contact your Samsung

Electronics service center.

- Otherwise there is a risk of fire.

SEVERE WARNING SIGNS FOR USING(CONT’D)

• Do not store pharmaceuticals products, scientific materials or temperature sensitive

products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type

recommended by the manufacturer.

• Do not use mechanical devices or any other means to accelerate the defrosting process,

other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not disassemble or repair the refrigerator by yourself.

- You run risk of causing a fire, malfunction and/or personal injury.

WARNING

• Children should be supervised to ensure that they do not play with the appliance.

• Bottles should be stored tightly together so that they do not fall out.

• This product is intended only for the storage of food in a domestic environment.

• If a gas leak is detected, avoid any naked flames or potential sources of ignition and air

the room in which the appliance is standing for several minutes.

• Use only the LED Lamps provided by manufacturer or service agents

safety information _7

• When the refrigerator gets wet by water, pull out the power plug and contact your

Samsung Electronics service center.

• If the refrigerator is disconnected from the power supply, you should wait for at least five

minutes before plugging it back.

•

If you have a long vacation planned or the refrigerator is not to be used for a long period of

time, you must empty the refrigerator and pull out the power plug and close the water valve.

- Deterioration in the insulation may cause fire.

- Otherwise, water leakage may occur.

• In the event of a power failure, call the local office of your Electricity Company and ask

how long it is going to last.

Most power failures that are corrected in an hour or two will not affect your refrigerator

temperatures. However, you should minimize the number of door openings while the power is off.

- But should the power failure last more than 24hours, remove all frozen food.

• Unplug the power plug during a thunder/lightning storm.

• Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

• To get best performance of product,

- Do not place foods too closely in front of the vents at the rear of the appliance as it can

obstruct free air circulation in the refrigerator compartment.

- Wrap the food up properly or place it in airtight containers before putting it into the

refrigerator.

- Do not store food which goes bad easily at low temperature, such as bananas, melons.

- Use only the ice maker provided with the refrigerator.

- Your appliance is frost free, which means there is no need to manually defrost your

appliance, as this will be carried out automatically.

- Temperature of frozen food during defrosting can shorten its storage life.

- The appliance might not operate consistently (possibility of defrosting of contents or

temperature becoming too warm in the frozen food compartment) when sited for an

extended period of time below the cold end of the range of temperature for which the

refrigerating appliance is designed.

- Temperature rising during the defrost can comply ISO requirement. But if you want to

prevent an undue rise in the temperature of the frozen food while defrosting the appliance,

please wrap the frozen in several layers of newspaper.

- The fuse on refrigerator must be changed by a qualified technician or service company.

> Failing to do so may result in electric shock or personal injury.

- Do not place food inside the refrigerator in a haphazard way.

> The food will not cool properly.

- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in

the refrigerator for removing bad odors.

> This may result in electric shock or fire.

• Fill water tank, ice tray, water cubes only with potable water.

8_ safety information

safety information

CAUTION SIGNS FOR CLEANING

• Do not directly spray water inside or outside the refrig.erator.

- There is a risk of fire or electric shock.

• Remove any foreign matter or dust from the power plug pins. Do not use a wet or damp

cloth when cleaning the plug, remove any foreign material or dust from the power plug

pins.

- Otherwise there is a risk of fire or electric shock.

• Unplug the refrigerator before cleaning and making repairs.

CAUTION

SEVERE WARNING SIGNS FOR DISPOSAL

• Risk of child entrapment. Before you throw away your old refrigerator or freezer.

- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.

• Please dispose of the packaging material for this product in an environmentally friendly

manner.

• Leave the shelves in place so that children may not easily climb inside. Ensure that none

of the pipes on the back of the appliance are damaged prior to disposal.

• When disposing of this refrigerator, remove the door/door seals and door latch so that

small children or animals cannot become trapped inside.

Children should be supervised to ensure that they do not play with the appliance.

• Cyclopentane is used as in the insulation. The gases in insulation material require

a special disposal procedure. Please contact your local authorities in regard to the

environmentally safe disposal of this product. Ensure that none of the pipes on the back of

the refrigerator are damaged prior to disposal.

WARNING

contents

SETTING UP YOUR SIDE-BY-SIDE

REFRIGERATOR

OPERATING YOUR

SIDE-BY-SIDE REFRIGERATOR

APP E NDIX

Troubleshooting

contents _9

WIRING DIAGRAM

31 Wiring diagram

Getting ready to install the refrigerator

11 Setting up the refrigerator

16 Leveling the refrigerator

17 Making minor adjustment to the doors

18 Checking the water dispenser line

18 Installing the water dispenser line

21 Checking the control panel

22 Using the control panel

24 Using the ice and cold water dispenser

25 Storing food

27 Removing the freezer/fridge accessories

28 Cleaning the refrigerator

CLEANING AND MAINTAINING YOUR

SIDE - BY - SIDE REFRIGERATOR

10_ setting up

setting up your side-by-side refrigerator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many

Selecting the best location for the refrigerator

•Select a location with easy access to the water supply.

•Select a location without direct exposure to sunlight.

•

•Select a location with enough space for the refrigerator doors to open easily.

•

- If your refrigerator is not level, the internal cooling system may not work correctly.

- Refer to drawing and dimensions below for overall space required for use.

Do not install the refrigerator where the temperature can drop below 50°F (10°C).

When moving your refrigerator

manual (page 15).

packing carton under the refrigerator.

When installing, servicing or cleaning behind the refrigerator,

be sure to pull the unit straight out and push back in straight

CAUTION

135 135

62 (1,577mm)

320

at least 2” (50.8mm)at least 2” (50.8mm)

46 (1,173mm)

338

(1,018 mm)

(1,109mm)

43 43 65

(1,288mm)

50 17 24

211

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RR39M Series Bedienungsanleitung

Samsung

Samsung RZ32 Sereies Bedienungsanleitung

Samsung

Samsung BRB30705EWW/EF Bedienungsanleitung

Samsung

Samsung RF4267HARS Bedienungsanleitung

Samsung

Samsung RSE8KPPS1/XEP Sicherheitsleitfaden

Samsung

Samsung RF22R7351SR/EU Bedienungsanleitung

Samsung

Samsung RSG307 SERIES Bedienungsanleitung

Samsung

Samsung RF23HTED Bedienungsanleitung

Samsung

Samsung RFG297AARS Bedienungsanleitung

Samsung

Samsung DA68-02535A Bedienungsanleitung

Samsung

Samsung RF23J9011 Bedienungsanleitung

Samsung

Samsung RFG296HD SERIES Bedienungsanleitung

Samsung

Samsung RFG237AABP Bedienungsanleitung

Samsung

Samsung RS267LBSH Sicherheitsleitfaden

Samsung

Samsung rf30hdedtsr Bedienungsanleitung

Samsung

Samsung SRG-118 Bedienungsanleitung

Samsung

Samsung DA68-01812H Bedienungsanleitung

Samsung

Samsung RS265 LAWP Bedienungsanleitung

Samsung

Samsung SRF665CDBLS Bedienungsanleitung

Samsung

Samsung RH68B Series Bedienungsanleitung

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung DA68-02836X Bedienungsanleitung

Samsung

Samsung RF44A Series Bedienungsanleitung

Samsung

Samsung RS62K series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
