Features of your new Refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and

energy-efﬁcient features.

 Twin Cooling Plus™

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efﬁciently. Additionally, this separate air ﬂow system

prevents food odor of one compartment from seeping into other compartments.

 Multi Airﬂow

Provides even cooling throughout the refrigerator to maintain optimal temperatures

to keep food fresh.

 LED Tower Lighting

See everything in a new light with LED tower lighting.

 Premium Design Ice and Water Dispenser

Quick and easy access to ﬁltered water and cubed/crushed ice with the external dispenser.

 External Digital Display and Control

Controlling the refrigerator is easy with the external digital display. It shows the inside

temperatures, when to change your ﬁlter and also controls the ice and water dispenser.

 Clear View Icemaker

The Icemaker is located in the freezer door, this ensures that all the freezer shelf space can be

fully utilized. Ice cubes are quickly produced and the clear ice bucket lets you easily see the

amount of ice cubes produced.

2_ features

For easy future reference write the model and serial

number down. You will ﬁnd your model number on

the left hand side wall of the refrigerator.

Model #

Serial #

DA99-01746A(EN)-GGH-0.9.indd 2 2010.8.20 4:31:49 PM

Safety Information

SAFETY INFORMATION

Before using your new Samsung Side-By-Side Refrigerator, please read this manual thoroughly

to ensure that you know how to safely and efﬁciently operate the features and functions that your

new appliance offers.

Because the following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigerator described in this manual. If you have any question, contact

us at 1-800-SAMSUNG or ﬁnd help and information online at www.samsung.com.

What the icons and signs in this user manual mean :

WARNING Hazards or unsafe practices that may result in .

CAUTION

Hazards or unsafe practices that may result in 

.

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your

refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.







SEVERE WARNING SIGNS

Do not plug several appliances into the same power socket.

•

Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source

could cause overheating and cause a ﬁre.

Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.

• A damaged power plug may overheat and cause a re.

Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.

• Water could get into the interior machine parts and cause electric shock.

Do not use aerosols near the Refrigerator.

• Aerosols used near the Refrigerator may cause an explosion or re.

safety information _3

DA99-01746A(EN)-GGH-0.9.indd 3 2010.8.20 4:31:50 PM

Do not put undue stress on the power cord or place heavy articles on it.

    Placing heavy articles on the power cord create the risk of explosion or ﬁre.

Do not insert the power plug with wet hands.

 It may cause electric shock.

Do not put a container ﬁlled with water on the Refrigerator.

 If it spills, it may cause ﬁre or electric shock.

Do not install the Refrigerator in a damp place or place where it may come in contact

with water.

 Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or ﬁre.

Do not store volatile or ﬂammable substances in the Refrigerator.

 Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.

Do not disassemble or repair the Refrigerator by yourself.

 You may run the risk of ﬁre, appliance malfunctions and/or personal injury. Call your nearest service center

for help from a qualiﬁed service technician.

Unplug the Refrigerator before changing the interior light.

 Changing the light while the Refrigerator is plugged in may cause electric shock.

If you wish to dispose of the Refrigerator, remove the doors and seals before throwing

it away.

 The doors(and their seals) can entrap a child if they climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.

The Refrigerator must be safely grounded

 Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.

Never use gas pipes, telephone lines or other potential lightning attractors as an

electrical ground.

 Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention

cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

Safety Information

safety information

DA99-01746A(EN)-GGH-0.9.indd 4 2010.8.20 4:31:50 PM

CAUTION SIGNS

Use good judgment when ﬁlling the Refrigerator with food and drinks.

 In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.

Do not put bottles or glass containers in the Freezer drawer.

 When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.

If the electrical wall socket is loose, do not insert the power plug.

 There is a risk of electric shock or ﬁre. Have the plug looked at by a licensed electrician.

Never unplug your Refrigerator by pulling on the power cord.

 Always grip the power cord ﬁrmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, ﬁre and/or electric shock.

 A damaged power cord must be replaced by the manufacturer, a certiﬁed service agent or qualiﬁed

service personnel.

Do not store articles on the top of the appliance.

 When you open or close the door, the articles may fall and cause personal injury and /or damage to

surrounding objects.

Do not store pharmaceutical products, scientiﬁc materials and temperature-sensitive

products in the refrigerator.

 Products that require exact temperature controls should not be stored in the Refrigerator.

Do not allow children to climb, stand or hang on shelves and handles of the

Refrigerator. They could damage the Refrigerator and seriously injure themselves.

Do not sit on the freezer door. The door may break.Do not allow children to climb into

the freezer basket.

If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator

immediately and contact your Samsung Electronics Service Center.

After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer

compartment. Particularly when hands are damp or wet, skin may adhere to these

extremely cold surfaces.

 Skin may stick to the surface and you may get frostbite.

Do not put your hands under the appliance.

 Any sharp edges may cause personal injury.

safety information _5

CAUTION

DA99-01746A(EN)-GGH-0.9.indd 5 2010.8.20 4:31:50 PM



• It may cause personal injury and/or material damage.





• Over time, deterioration in the power cord insulation may cause re.





• A dirty power plug can increase the risk of re.















• Wipe excess moisture from the inside and leave the doors open to keep odor and mold from

developing.



• Any changes or modications performed by a 3rd party on this nished appliance is not covered

under Samsung warranty service, nor can Samsung be responsible for safety issues that result

from 3rd party modiﬁcations.





• Take off the doors.

• Leave all shelves in places so that children may not easily climb inside and shut the door while

they are inside.









• If the air holes are blocked, especially with a plastic bag, refrigerator can be over cooled.

If this cooling period lasts long, the water ﬁlter may break and cause water leakage.

Safety Information

6_ safety information

CAUTION

DA99-01746A(EN)-GGH-0.9.indd 6 2010.8.20 4:31:50 PM

Contents













8 Getting ready to install the refrigerator

10 Setting up the refrigerator doors

13 Levelling the refrigerator

14 Making minor adjustments to the doors

15 Checking the water dispenser line

16 Installing the water line

18 Using the control panel/Digital display

20 Controlling the temperature

21 Using the ice and cold water dispenser

22 Storing food

24 Removing the freezer/fridge accessories

25 Cleaning the refrigerator

26 Changing the interior lights, the water ﬁlters

27 Using the doors

28 Before using icemaker

29 Troubleshooting

30 Warranty

contents _7

DA99-01746A(EN)-GGH-0.9.indd 7 2010.8.20 4:31:50 PM

8_ setting up

setting up your side-by-side refrigerator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many

state-of-the-art features and efﬁciencies that this new appliance has to offer.



• Select a location with easy access to the water supply.

• Select a location without direct exposure to sunlight.

• Select a location with level (or nearly level) ooring.

• Select a location with enough space for the refrigerator doors to open easily.

• Allow sufcient space to the right, left, back and top for air circulation.

- If your refrigerator is not level, the internal cooling system may not work correctly.

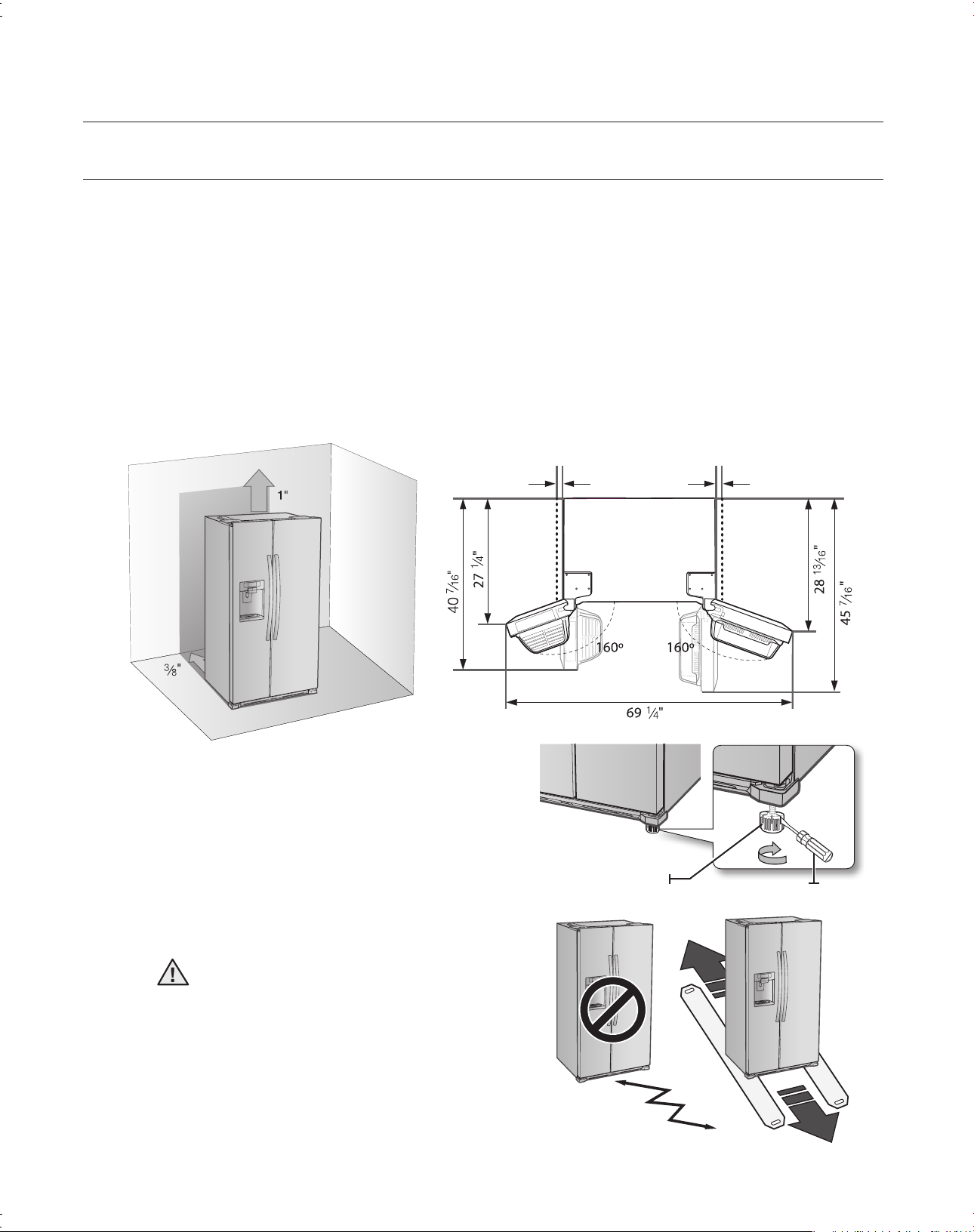

- Refer to drawing and dimensions below for overall space required for use.

• Please ensure that appliance can be moved freely in the event of maintenance & service.



To prevent ﬂoor damage, be sure the front levelling legs are

in the up position (above the ﬂoor). Refer to ‘Levelling the

refrigerator’ in the manual(page 12).

To protect the ﬁnish of the ﬂooring, place a protection sheet,

such as packing carton under the refrigerator.

When installing, servicing or cleaning behind the

refrigerator, be sure to pull the unit straight out

and push back in straight after ﬁnishing.



¼”



¼”

Leg

Screw Driver

CAUTION

DA99-01746A(EN)-GGH-0.9.indd 8 2010.8.20 4:31:52 PM

setting up _9

SETTING UP THE REFRIGERATOR

Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.

If not, ﬁrst check the power supply and electricity source or try the troubleshooting section at the back of

this user’s guide. If you have any further questions, contact your Samsung Electronics service center.

1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator. Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can

store food and drinks in the Refrigerator after the temperature is sufﬁciently cool.

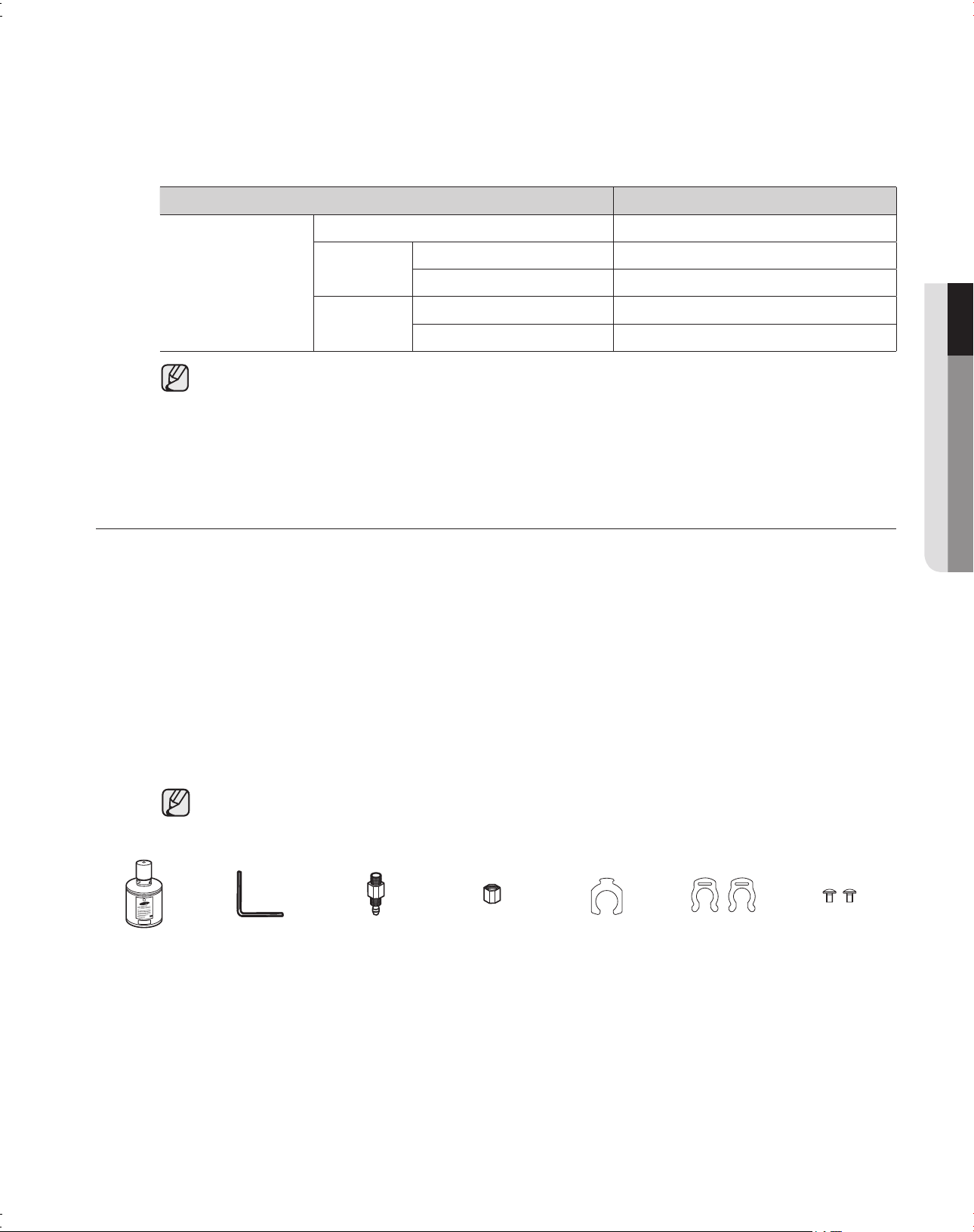

Check the accessory list below.

01 SETTING UP

First things ﬁrst! Make sure that you can easily move your refrigerator to its ﬁnal location by measuring

doorways (both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth.

 RSG257**

Dimensions

(inch/mm)

Width 35 7/8 (912)

Height Without Hinge 68 3/4 (1745)

With Hinge 70 (1780)

Depth Without Door 23 5/8 (600)

With Door 29 (737)

 Allow clearance to the right, left, back and top when installing. This will help reduce power

consumption and keep your energy bills lower.

 Do not install the refrigerator where the temperature can drop below 50°F (10°C).

 Make sure you disconnect the water supply line BEFORE removing the freezer door. See the

next section on “Separating the Water Line” to avoid damage.

Water ﬁlter

(DA29-00003B)

Hex wrench

(DA80-00002C)

Compression ﬁtting

(DA62-00305A)

Compression nut

(DA74-00070B)

Clip

(DA61-04521A)

Clip

(DA61-04522A)

Screw

(6001-000541)

DA99-01746A(EN)-GGH-0.9.indd 9 2010.8.20 4:31:52 PM

10_ setting up

setting up your side-by-side refrigerator

SETTING UP THE REFRIGERATOR DOORS

If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors.

Removing the Front Leg Cover

First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the

three screws counter-clockwise

Separating the Water Supply Line from the Refrigerator

 Remove two water lines(gray one is for ice and the other one is for water)by pressing the coupler

1and pulling the water line 2away.

Reattaching the Water Supply Line

1. The Water Line must be fully inserted to

the marked line to prevent water leakage

from the dispenser.

2. Insert the 2 clips in the install

pack and check that each clip

holds the line ﬁrmly.

Do not cut the water line. Gently separate it from the coupler.

Make sure the color of the

water lines match.

 

 



clip A

(¼”)

clip A

(¼”)



DA99-01746A(EN)-GGH-0.9.indd 10 2010.8.20 4:31:55 PM

Andere Handbücher für RSG257AABP/XAA

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung SRS583HDP Bedienungsanleitung

Samsung

Samsung RF28JB Series Bedienungsanleitung

Samsung

Samsung RB28F Series Bedienungsanleitung

Samsung

Samsung RB38J7 Series Bedienungsanleitung

Samsung

Samsung RFG293HABP Bedienungsanleitung

Samsung

Samsung RF26HF Seies Bedienungsanleitung

Samsung

Samsung RFG296HD SERIES Bedienungsanleitung

Samsung

Samsung RF28HDEDBSR Bedienungsanleitung

Samsung

Samsung RF195 series Bedienungsanleitung

Samsung

Samsung RF26HFEND series Bedienungsanleitung

Samsung

Samsung RT21VHSS Bedienungsanleitung

Samsung

Samsung RB38T600FSA/EK Bedienungsanleitung

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung RF265ABPN Bedienungsanleitung

Samsung

Samsung RR19 series Bedienungsanleitung

Samsung

Samsung RSE8KPAS Bedienungsanleitung

Samsung

Samsung RT26 Bedienungsanleitung

Samsung

Samsung RT58 Bedienungsanleitung

Samsung

Samsung RQ48T9422T1 Bedienungsanleitung

Samsung

Samsung RH68B Series Bedienungsanleitung

Samsung

Samsung SR-23NME Bedienungsanleitung

Samsung

Samsung RSJ1Z/K Series Bedienungsanleitung

Samsung

Samsung RF23HCED series Bedienungsanleitung

Samsung

Samsung RT-54 EMSW Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
