Samsung RSG5D series Bedienungsanleitung

SBS TYPE

BASIC : RSH1D

MODEL NAME : RSG5D**

RSG5F**

RSG5K**

RSG5B**

MODEL CODE : RSG5DUMH1/XEU

RSG5FURS1/XEF

RSG257AARS/XAA

RSG5BLAW/1XSC

RSG5VLWJ1/XSC

RSG25**

RSG5V**

REFRIGERATOR

REFRIGERATOR CONTENTS

- For the latest parts information, Please access to our service web site

(• North America : http;//service.samsungportal.com • Latin America : http;//latin.samsungportal.com

• CIS : http;//cis.samsungportal.com • Europe : http;//europe.samsungportal.com

• China : http;//china.samsungportal.com • Asia : http;//asia.samsungportal.com

• Mideast & Africa : http;//mea.samsungportal.com)

RSG5D*RSG5V* RSG5B* RSG5F/K*

1. PRECAUTIONS

(SAFETY WARNINGS) ....................................................5

2. PRODUCT SPECIFICATIONS.........................................8

3. DISASSEMBLY & REASSEMBLY.................................17

4. TROUBLE SHOOTING ..................................................47

5. PCB DIAGRAM..............................................................88

6. WIRING DIAGRAM........................................................92

7. SCHEMATIC DIAGRAM &

BLOCK DIAGRAM ........................................................97

8. REFERENCE INFORMATION .....................................106

IMPORTANT SAFETY NOTICE

The service guide is for service men with adequate backgrounds of

electrical, electronic, and mechanical experience. Any attempt to repair

a major appliance may result in personal injury and property damage.

The manufacturer or dealer cannot be responsible for the interpretation

of this information.

SAMSUNG ELECTRONICS AMERICA, INC.

Technical Service Guide

part in any form without written permission from the SAMSUNG ELECTRONICS

Company.

WARNING

Contents

1. PRECAUTION(SAFETY WARNINGS .....................................................................5

2. PRODUCT SPECIFICATIONS ................................................................................8

3. DISASSEMBLY & REASSEMBLY .........................................................................17

4. TROUBLE SHOOTING..........................................................................................45

5. PCB DIAGRAM .....................................................................................................88

6. WIRING DIAGRAM ...............................................................................................92

7. SCHEMATIC DIAGRAM & BLOCK DIAGRAM......................................................97

8. REFERENCE INFORMATION.............................................................................106

1. PRECAUTIONS(SAFETY WARNINGS)

●Unplug the appliance before servicing or replacing electrical Parts.

●Use rated electronic Control equipment.

󳦧Make sure to check out ModeL name, Rated voltage, Rated current, Operation Temp, etc.

●Upon repair, make sure that harnesses are not to be water-penetrated and are bundled tight.

󳦧Should not be detached by a certain amount of external force.

●Upon repair, completely remove dust or other foreign substances from housing, harness,

connector, etc.

󳦧To prevent fire by tracking, short, etc.

●Check out whether water has penetrated into the electronic Control system.

󳦧If there is any kind of trace, take necessary measures such as related component change,

insulation tapping, etc.

●After repair, check out the assembled state of parts.

󳦧It should be the same as the previous state.

●Check out the surrounding conditions.

󳦧Change the location, if the fridge is located at humid, wet places or the installed state is

unstable.

●In order to reduce the risk of electric shock the appliance must be properly grounded.

●Do not allow consumers to overload a certain outlet.

●Check out whether the power cord or the outlet is broken, squeezed, chopped off or heat-

deformed.

󳦧Repair or replace the defective power cord/outlet immediately.

󳦧Make sure the power cord is not punctuated or stomped down.

●Do not allow consumers to keep food frayed or place bottles in the Freezer Room.

●Do not allow consumers to repair the fridge by themselves.

●Do not allow consumers to keep things except for food.

󳦧Pharmaceutical, Chemical substances : These are not possible to be fine-Controlled with a

consumer fridge.

󳦧Flammable material (alcohol, benzene, ether, LPG, etc) : possibility of explosion.

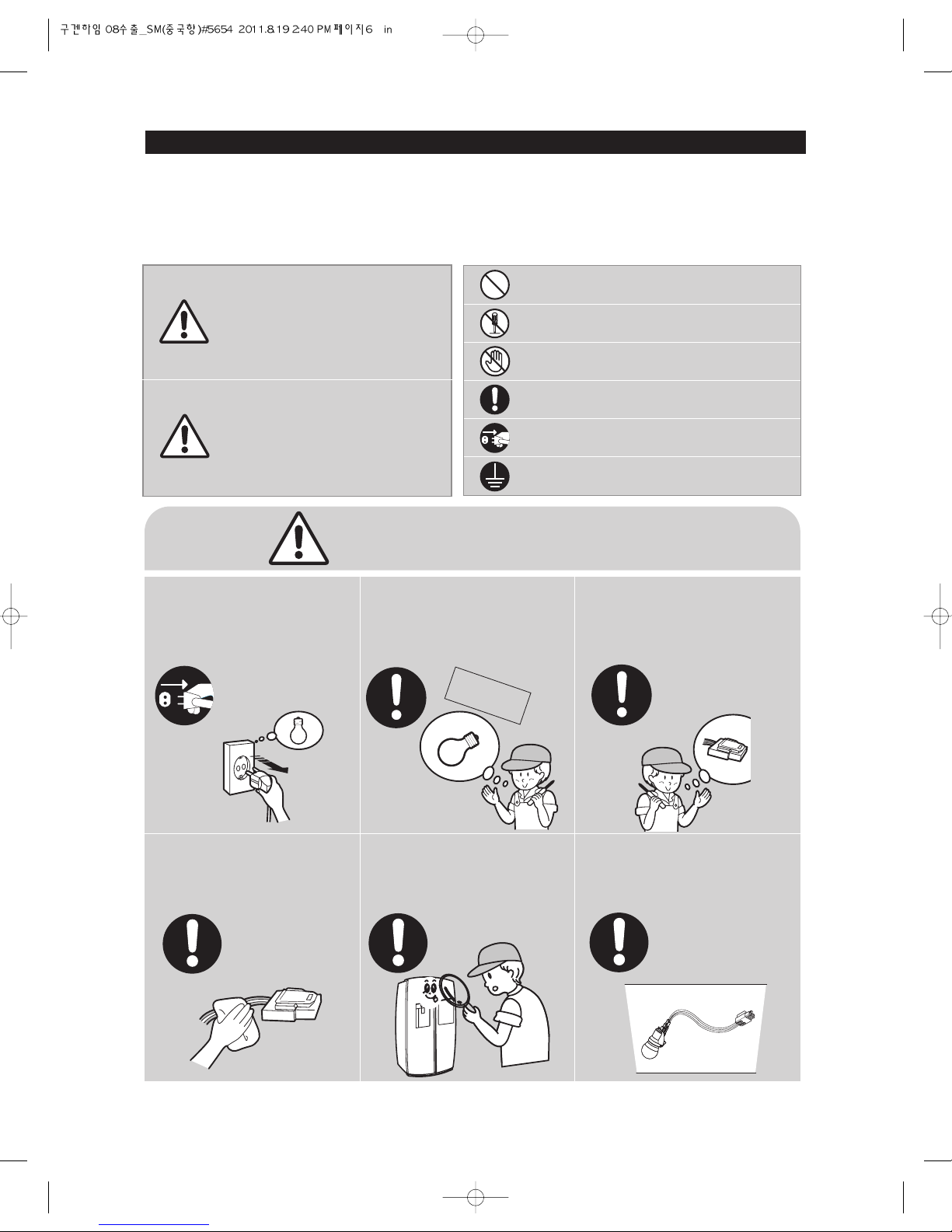

SAFETY WARNINGS

Read all instructions before repairing the product and keep to the instructions

in order to prevent danger or property damage.

CAUTION/WARNING SYMBOLS DISPLAYED

SYMBOLS

Indicates that a

danger of death

or serious injury

exists.

Indicates that a risk

of personal injury

or material damage

exists.

means “Prohibition”.

means “Do not disassemble”.

means “No contact”.

means ”The things to

be followed”.

means “Earth to prevent Electric

shock”.

means “Power cord should be

unplugged from the consent”

Unplug the appliance before

servicing or replacing electrical

parts.

●

It may cause electric shock.

Warning

Warning & Caution

Caution

Earth

Unplug

Use the rated components

on the replacement.

●

Check the correct model, rated

voltage, rated current, operating

temperature and so on.

On repair, make sure that the

wires such as harness are

bundled tightly.

●

Bundle tightly wires in order not to be

detached by the external force and then not

to be wetted.

Check if there is any trace

indicating the permeation

of water.

●

If there is that kind of trace, change

the related components or do the

necessary treatment

such as taping

using the

insulating tape.

After repair, check the

assembled state of components.

●

It must be in the same assembled state

when compared with the state before

disassembly.

On repair, remove completely dust

or other things of housing parts,

harness parts, and check parts.

●

Cleaning may prevent the possible fire by

tracking or short.

Rated

components

SAFETY WARNINGS

❈

Please ler users know following warnings & cautions in detail.

Do not allow users to put bottles or

kinds of glass in the freezer.

●

Freezing of the contents may inflict a wound.

Do not allow users to store narrow

and lengthy bottles or foods in a

small multi-purpose room.

●

It may hurt you when refrigerator door is

opened and closed resulting in falling stuff

down.

Do not allow users to store

pharmaceutical products, scientific

materials, etc., in the refrigerator.

●

The products which temperature control

should not be stored in the refrigerator.

Do not allow users to store

articles on the product.

●

Opening or closing the door may cause

things to fall down, with may inflict a

wound.

Prohibition Prohibition Prohibition

Prohibition

Warning & Caution

Do not allow users to

disassemble, repair or alter.

●

It may cause fire or abnormal

operation which leads to injury.

Do not

disassemble

Do not allow users to insert the

power plugs for many products

at the same time.

●

May cause abnormal generation of

heat or fire.

Prohibition

Do not allow users to bend the

power cord with excessive force

or do not have the power cord

pressed by heavy article.

●

May cause fire.

Do not allow users to install the

refrigerator in the wet place or

the place which water splashes.

●

Deterioration of insulation of electric

parts may cause electric shock or fire.

In order to reduce the risk of

electric shock the appliance

must be properly grounded.

Earth

When installing, servicing or cleaning behind

the refrigerator, be sure to pull the unit straight

out and push back in straight after finishing.

CAUTION

2. PRODUCT SPECIFICATIONS

2-1) Characteristics .....................................................................................................9

2-2) Model Specification ............................................................................................10

2-3-1) Basic Specification..........................................................................................12

2-3-2) Electric Parts Specification .............................................................................12

2-4) Dimensions (mm) ...............................................................................................15

2-5) Optional Material Specification ..........................................................................16

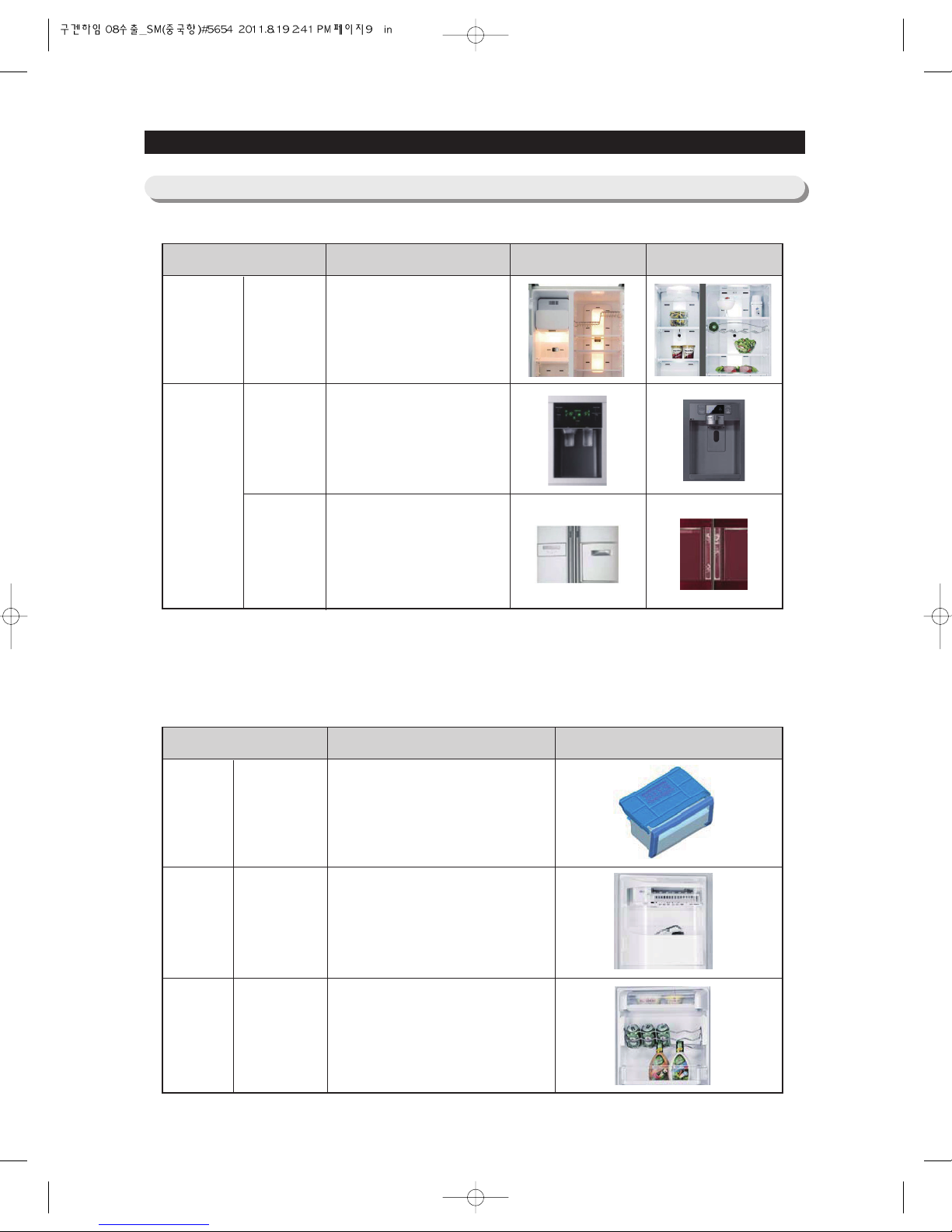

2-1) Charcteristics

PRODUCT SPECIFICATIONS

●●Comparison with basic

Tower LED Lighting

Changed Part

CABI LAMP

DOOR

Description Basic Current

●●New Option

Adapted Part

CABI

Automoisture

Drawer

(RSG5B*ONLY)

Description Image

DOOR Clear View

Icemaker More freezer storage space

DOOR Tilt Can

Carry

Constant slant angle for

easy access of cans & bottles

To maintain the optimal humidity in

the crisper, the fine-mesh holes in the

polymer control the flow of moisture

through hole according to the humidity

in the bin.

DISPENSER

New Design Dispenser

HANDLE

Built_In Easy Handle

(RSG5BL**, RSG5V**)

2-2) Model Specification

PRODUCT SPECIFICATIONS

NOTE

This operation instruction covers various models.

The characteristics of your appliance may differ slightly from those described in this manual.

- Key features of your new refrigerator

Your Samsung Side-By-Side Refrigerator comes equipped with many

space-saving, innovative storage and energy-efficient features.

• Twin Cooling PlusTM

Twin CoolingTM‚ system uses two evaporators to independently control

temperature of the refrigerator and freezer compartments maintaining proper

humidity levels and preventing odor transfers between compartments.

• Multi Airflow

Provides even cooling throughout the refrigerator to maintain optimal

temperatures to keep food fresh.

• LED Tower Lighting

See everything in a new light with LED tower lighting.

• CoolSelect ZoneTM (Optional)

With this state of the art feature, you can select Quick Cool, Thaw or Select

buttons to quickly chill, thaw and cool items just in the CoolSelect drawer.

• Clear View Icemaker

The Icemaker is located in the freezer door, this ensures that all the shelf

space can be fully utilized. Ice cubes are quickly produced and the clear ice

bucket lets you easily see the amount of ice cubes produced.

• Premium Design Ice & Water Dispenser

Quick and easy access to filtered water and cubed/crushed ice at your

fingertips with the external dispenser.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RB3 T Series Bedienungsanleitung

Samsung

Samsung RZ32M713ES9 Bedienungsanleitung

Samsung

Samsung RR11K Bedienungsanleitung

Samsung

Samsung RF22K9581SR/AA Bedienungsanleitung

Samsung

Samsung RF265ABBP/XAA Bedienungsanleitung

Samsung

Samsung Refrigerator Sicherheitsleitfaden

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung RF4289HA Bedienungsanleitung

Samsung

Samsung RF28JBEDBSR/AA Bedienungsanleitung

Samsung

Samsung RF56J9041SREG Bedienungsanleitung

Samsung

Samsung RS23KCSW Sicherheitsleitfaden

Samsung

Samsung RF50A5202S9 Bedienungsanleitung

Samsung

Samsung RB215LASH Bedienungsanleitung

Samsung

Samsung RS25H5121 Bedienungsanleitung

Samsung

Samsung RFG298AA Bedienungsanleitung

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung RF26XAEPN Bedienungsanleitung

Samsung

Samsung RS2666SL Bedienungsanleitung

Samsung

Samsung RF22KR Series Bedienungsanleitung

Samsung

Samsung French Door Refrigerator Bedienungsanleitung

Samsung

Samsung RF31FM Series Bedienungsanleitung

Samsung

Samsung RB194 Bedienungsanleitung

Samsung

Samsung RF265AB Bedienungsanleitung

Samsung

Samsung RT52EAEW Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
