Samsung CS15K2X/NWT Bedienungsanleitung

COLOR TELEVISION RECEIVER

Chassis : KS1A

Model : CS15K2X/BWT,NWT,VWT

CS15K8WX/BWT,NWT,VWT

CS2073S/BWT,NWT,VWT

CS21F5X/BWT,NWT,VWT

CS2173S/BWT,NWT,VWT

CS21D8S/NWT,BWT,VWT

CS21S1S/NWT,BWT,VWT

COLOR TELEVISION RECEIVER CONTENTS

Precautions

Specifications and IC Data

Disassembly and Reassembly

Alignment and Adjustment

Troubleshooting

Exploded View and Parts List

Electrical Parts List

Block Diagram

Wiring Diagram

Schematic Diagrams

10.

SAMSUNGSAMSUNG

2007.04.27

QQ :376315150

手机:13942296513

ELECTRONICS

©Samsung Electronics Co., Ltd. APR. 2001

Printed in Korea

3KS1A-1502

Samsung Electronics 2-1

Specifications and IC Data

2. Specifications and IC Data

2-1 Specifications

Television System:

Channels:

Intermediate Frequencies (MHz) :

Picture Tube:

Power Requirements:

Antenna Input Impedance:

Speaker Impedance

NTSC - M

2 - 13

14-69

NTSC - M

38.90

34.40

35.32

PAL/SECAM-

B/G,I

2 - 12

21 - 69

PAL/

SECAM- B/G

38.90

33.40

34.47

System

Band

VHF

UHF

SYSTEM

IF Carrier Frequency

Picture IF Carrier

Sound IF Carrier

Color Sub Carrier

PAL,

SECAM- D/K

1 - 13

21 - 69

PAL/SECAM-D/K,

SECAM-K1

38.90

32.40

34.47

SECAM-K1,

PAL-D

2 - 9

13 - 57

PAL - I

38.90

32.90

34.47

MODEL

CII

14 Inch

20 Inch

21 Inch

AC 100~240V, 50/60Hz

VHF, UHF : Telescopic dipole antenna (75 ohm unbalanced type )

8 ohm, 5W+5W (Dual Type)

16 ohm, 3W (Monitor Type & Dual Type)

SYSTEM

PAL-I (UHF)

PAL-I (VHF/UHF)

PAL-B/G, SECAM-B/G

PAL-B/G, D/K, SECAM-B/G, D/K

PAL-B/G, D/K, SECAM-B/G, D/K, NT 4.43

PAL-B/G, D/K, SECAM-B/G, D/K, NT4.43, NT3.58

A34KQV42X

A48KRD82X(H)

A51KQJ63X

Quick start, in-line-gun,

Black stripe, 90 degree deflection

2-2 Samsung Electronics

2-2 IC Line Up

Specifications and IC Data

Loc. No Specification Description Remark

HC101 PAP103 IF PRE-AMP

IC501 TDA6107Q RGB DRIVE AMP

Table 2-1 IC Line-Up

IC902 24C08/KS28C040 EEPROM

PC801S TCET1108 / LTV817B PHOTO COUPLER

SPM802ER TTX, English/Croatian/Romanian/Hungarian/Polish/Czech/

Bulgarian/Russian/Portugal

IC201S Philips

Philips

SPM802ERN W/O TTX, English/Croatian/Romanian/Hungarian/Polish/Czech/

Bulgarian/Russian/Portugal

VERTICAL OUTPUT

LA7840

TDA7266S

IC301

IC601 SOUND-AMP (3W x 1CH or 3W x 2CH or 5W x 2CH)

IC801S KA5Q0765R POWER IC (STR)

IC802 KA7632 CUSTOM REGULATOR (5V, 8V, 3.3V)

IC101 U4468B SIF - IC TEMIC

Sanyo

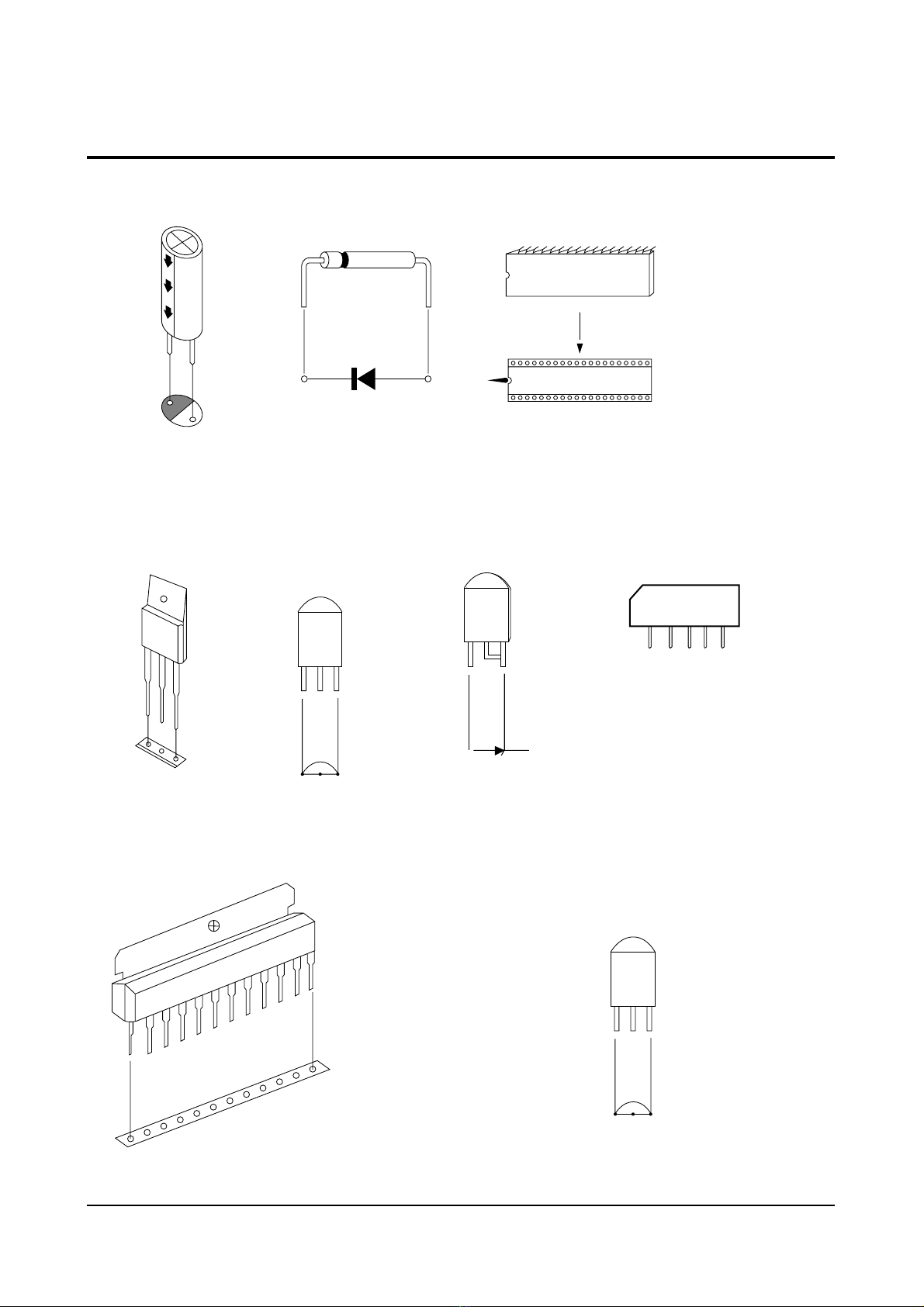

2-3 Semiconductor Base Diagrams

Specifications and IC Data

Samsung Electronics 2-3

ELECTROLYTIC-

CONDENSER IC

DIODE

SPM-802ERN(Pin 64)

SPM-802ER(Pin 64)

X24CO8P(Pin 8)

KS24C080(Pin 8)

U4468B(Pin 16)

IC TRANSISTOR

LA7840

TDA6107Q

KA7632

TRANSISTOR

2SD1651

2SD1650

2SD2499

KSA614

BCEE B C

KSC815-Y

KSA539-Y

BC548

KTC9014

UPC574J

KA33V

SAW-FILTER

E C B

KSR1012

KSR1010

KSR2010

KTD863-Y

KSC2331-Y

G3956M

K9260M

Fig. 2-1 Semiconductor Base Diagrams

2-4

MEMO

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 Preadjustment

4-1-1 Factory Mode

1. Do not attempt these adjustments in the Video

Mode.

2. The Factory Mode adjustments are necessary

when either the EEPROM (IC902) or the CRT

is replaced.

3. Do not tamper with the “Adjustment” screen

of the Factory Mode menu. This screen is

intended only for factory use.

4-1-2 When EEPROM (IC902) Is Replaced

1. When IC902 is replaced all adjustment data

revert to initial values. It is necessary to

re-program this data.

2. After IC902 is replaced, warm up the TV for

10 seconds.

4-1-3 When CRT Is Replaced

1. Make the following adjustments AFTER set-

ting up after setting up purity and conver-

gence :

White Balance

Sub-Brightness

Vertical Center

Vertical Size

Horizontal Size

Fail Safe (This adjustment must be the last

step).

2. If the EEPROM or CRT is replaced, set PVA to

40 (factory mode) and set SC as follows.

14 inch : 0

20 inch : 9

21 inch : 9

4-2 Factory/Service Mode

4-2-1 Procedure for the “Adjustment” Mode

1. This mode uses the standard remote control.

The Service Mode is activated by entering the

following remote-control sequence :

(1) DISPLAY→FACTORY.

(2) STAND-BY→ DISPLAY→MENU→MUTE

→POWER ON.

2. The “SERVICE (FACTORY)” message will be

displayed. The Service Mode has four compo-

nents: ADJUST, OPTION and Reset.

3. Access the Adjustment Mode by pressing the

“VOLUME” keys ( Up or Down). The adjust-

ment parameters are listed in the accompany-

ing table, and selected by pressing the CHAN-

NEL keys (▲ ,▼).

4. Selection sequences for the all system:

DOWN or UP key:

SCT>SBT>BLR>BLB>RG>GG>BG>VSL>

VS>VA>HS>SC>SDL>STT>SSP>PDL>

NDL>PSR>NSR>AGC>VOL>LCO>TXP

5. The VOLUME keys increase or decrease the

adjustment values (stored in the

non-volatile memory) when Adjustment Mode

is cancelled.

6. Cancel the Adjustment Mode by re-pressing

the “FACTORY” or “Power OFF” keys.

4-2-2 Main Adjustment Parameter

NOTE : PVS,PVA, PHS, parameters must be aligned using the 50Hz vertical-field rates.

Alignment and Adjustments

4-2 Samsung Electronics

SCT Sub Contrast 0~23

SBT Sub Bright ness 0~23

BLR Black Level offset Blue 0~15

BLB Black Level offset Red 0~15

RG Red Gain 0~63

GG Green Gain 0~63

BG Blue Gain 0~63

VSL Vert ical Slope 0~63

VS Vert ical Shift 0~63

VA Vertical Amplitude 0~63

HS Horizontal Shift 0~63

SC S- Correct ion 0~63

CDL Cathode Drive Level 0~15

STT Sub Tint 0~7

SSP Sub Sharpness 0~7

PDL PAL Del ay 0~15

NDL NTSC Delay 0~15

PSR PAL Sub coloR 0~23

NSR NTSC Sub coloR 0~23

AGC Automatic Gain Control 0~63

VOL Volume pre setti ng 0~63

LCO SECAM-L Vision IF 0~1

TXP TTX Position 0~15

25(Fix)

40(Fix)

15(Fix)

OSD FUNCTION RANGE INITIAL DATA REMARK

Alignment and Adjustments

Samsung Electronics 4-3

4-2-3 Option Bytes

In the Service Mode, various can be selected via the Option Table. Example:

OptionTable:xx xx xx xx

LNA

SYSTEM

AUDIO

JACK

ZOOM

AUTOPOWER

SBL

2ndSIF

HOTELMODE

BKS

MONO

RCA

NOR/ZOOM/16:9

OFF

Alignment and Adjustments

4-4 Samsung Electronics

4-3 Other Adjustments

4-3-1 General

1. Usually, a color TV needs only slight touch-

up adjustment upon installation. Check the

basic characteristics such as height, horizontal

and vertical sync and focus.

2. The picture should have good black and white

details. There should be no objectionable

color shading; if color shading is present, per-

form the purity and convergence adjustments

described below.

3. Use the specified test equipment or its equiva-

lent.

4. Correct impedance matching is essential.

5. Avoid overload. Excessive signal from a sweep

generator might overload the front-end of the

TV. When inserting signal markers, do not

allow the marker generator to distort test

results.

6. Connect the TV only to an AC power source

with voltage and frequency as specified on the

backcover nameplate.

7. Do not attempt to connect or disconnect any

wires while the TV is turned on. Make sure

that the power cord is disconnected before

replacing any parts.

8. To protect against shock hazard, use an isola-

tion transformer.

4-3-2 Automatic Degaussing

A degaussing coil is mounted around the pic-

ture tube, so that external degaussing after

moving the TV should be unnecessary. But

the receiver must be properly degaussed upon

installation.

The degaussing coil operates for about 1 sec-

ond after the power is switched ON. If the set

has been moved or turned in a different direc-

tion, disconnect its AC power for at least 30

minutes.

If the chassis or parts of the cabinet become

magnetized, poor color purity will result. If

this happens, use an external degaussing coil.

Slowly move the degaussing coil around the

faceplate of the picture tube and the sides and

front of the receiver. Slowly withdraw the coil

to a distance of about 6 feet before removing

power.

4-2-4 RESET

The Reset Mode is used during factory inspection.

Function Reset:

1. Picture Custom

2. Auto Volume Off

3. Color System Auto (option)

4. Sound System D/K (option)

5. Blue Screen Off

6. Low Noise AMP Off (option)

7. Volume 10

8. CH. Skip Erased

9. CH. Lock Off

10. Timer Off
