Samsung ED65E Bedienungsanleitung

User Manual

The colour and the appearance may differ depending on the product, and the

specifications are subject to change without prior notice to improve the performance.

Recommended hours of use per day for the EDE, EME, DCE models is less than 16 hours.

If the product is used for longer than 16 hours a day, the warranty may be void.

ED65E ED75E

EM65E EM75E

DC32E DC40E DC48E DC55E

DC32E-M DC40E-M DC48E-M DC55E-M

DC40E-H DC48E-H

Table of contents

Before Using the Product

Safety Precautions 7

Symbols 7

Cleaning 7

Storage 8

Electricity and Safety 8

Installation 9

Operation 11

Preparations

Checking the Components 14

Components 14

Parts 15

Control Panel 15

Reverse Side 17

Reverse Side 18

Anti-theft Lock 19

Remote Control 20

Before Installing the Product

(Installation Guide) 22

Switching between portrait and landscape 22

Ventilation 22

Installing the Wall Mount 23

Preparing before installing Wall-Mount 23

Installing the Wall Mount Kit 23

Wall Mount Kit Specifications (VESA) 24

Remote Control (RS232C) 25

Cable Connection 25

Connection 28

Control Codes 29

Connecting and Using a Source

Device

Before Connecting 38

Pre-connection Checkpoints 38

Connecting to a PC 38

Connection using the D-SUB cable

(Analogue type) 38

Connection using a DVI cable (Digital type) 39

Connection Using an HDMI-DVI Cable 39

Connection Using an HDMI Cable 40

Connecting to a Video Device 41

Connection Using the AV Cable 41

Connection Using the component Cable 41

Connection Using an HDMI-DVI Cable 42

Connection Using an HDMI Cable 43

Connecting to an Audio System 43

Connecting the LAN Cable 44

Connecting the HDBase-T 45

Changing the Input source 46

Source 46

Using MDC

MDC Programme Installation/Uninstallation 47

Installation 47

Uninstallation 47

Connecting to MDC 48

Using MDC via RS-232C

(serial data communications standards) 48

Using MDC via Ethernet 49

Screen Adjustment

Picture Mode 50

If the input source is PC, DVI, HDMI(PC) 50

If the input source is AV, Component, HDMI(AV) 50

Backlight / Contrast / Brightness / Sharpness /

Colour / Tint (G/R) 51

Gamma 51

Calibrated value 52

Picture Size 53

Position 54

Zoom/Position 54

Resolution Select 55

Auto Adjustment 55

PC Screen Adjustment 56

PIP 57

Table of contents

Advanced Settings 58

Dynamic Contrast 59

Black Tone 59

Flesh Tone 59

RGB Only Mode 59

Colour Space 59

White Balance 59

Motion Lighting 59

Picture Options 60

Colour Tone 61

Colour Temp. 61

Digital Clean View 61

MPEG Noise Filter 61

HDMI Black Level 62

Film Mode 62

Motion Plus 62

Dynamic Backlight 62

Picture Off 63

Reset Picture 63

Sound Adjustment

Sound Mode 64

Sound Effect 65

Speaker Settings 66

Reset Sound 66

Network

Network Status 67

Network Settings 67

Network type 67

Network Settings (Wired) 68

Network Setting (Wireless) 70

WPS(PBC) 72

Wi-Fi Direct 73

AllShare Settings 73

Server Network Settings 74

Connect to server 74

Server Access 74

FTP Mode 74

Device Name 74

Applications

Source List 75

Refresh 75

Edit Name 75

Information 75

MagicInfo Lite 76

Playing content from the internal memory or

USB 76

Network Channel 77

System

Setup 79

Menu Language 80

Multi Control 80

Configuring settings for Multi Control 80

Time 81

Clock Set 81

Sleep Timer 81

On Timer 81

Off Timer 82

Holiday Management 82

Eco Solution 83

Energy Saving 83

Eco Sensor 83

No Signal Power Off 83

Auto Power Off 83

Auto Protection Time 84

Screen Burn Protection 85

Pixel Shift 85

Timer 86

Immediate display 87

Side Grey 87

Ticker 88

Video Wall 89

Format 89

Horizontal 89

Table of contents

Vertical 90

Screen Position 90

Source AutoSwitch Settings 91

Source AutoSwitch 91

Primary Source Recovery 91

Primary Source 91

Secondary Source 91

Change PIN 92

General 93

Max. Power Saving 93

Game Mode 93

Auto Power On 93

Safety Lock 93

Button Lock 94

Standby Control 94

HDBT Standby 94

Network Standby 94

Lamp Schedule 95

OSD Display 95

Power On Adjustment 95

Temperature Control 95

Anynet+ (HDMI-CEC) 96

Auto Turn Off 97

Troubleshooting for Anynet+ 98

Clone Product 100

Reset System 100

Reset All 101

DivX®Video On Demand 101

PC module power 101

Synced power-on 101

Synced power-off 101

Support

Software Update 102

Update now 102

Contact Samsung 102

Playing photos, videos and music

(Media Play)

Read the following before using media play

with a USB device 103

Using a USB device 105

Menu items in the media content list page 106

Available buttons and features during photo

playback 107

Available buttons and features during video

playback 108

Available buttons and features during music

playback 109

Supported Subtitle and Media play file

formats 110

Subtitle 110

Compatible image file format 110

Supported music file formats 111

Supported Video Formats 111

Troubleshooting Guide

Requirements Before Contacting Samsung

Customer Service Centre 114

Testing the Product 114

Checking the Resolution and Frequency 114

Check the followings. 115

Q & A 122

Specifications

General 123

Preset Timing Modes 125

Table of contents

Appendix

Responsibility for the Pay Service

(Cost to Customers) 127

Not a product defect 127

A Product damage caused by customer's fault 127

Others 127

Optimum Picture Quality and Afterimage

Burn-in Prevention 128

Optimum Picture Quality 128

Prevention of Afterimage Burn-in 128

Licence 130

Terminology 131

Before Using the Product

Chapter 01

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Microsoft, Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Ownership of all other trademarks is attributed to their due owner.

•An administration fee may be charged if either

-(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

-(b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

•The amount of such administration charge will be advised to you before any work or home visit is carried out.

Safety Precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been

included with this product.

Symbols

Warning

A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

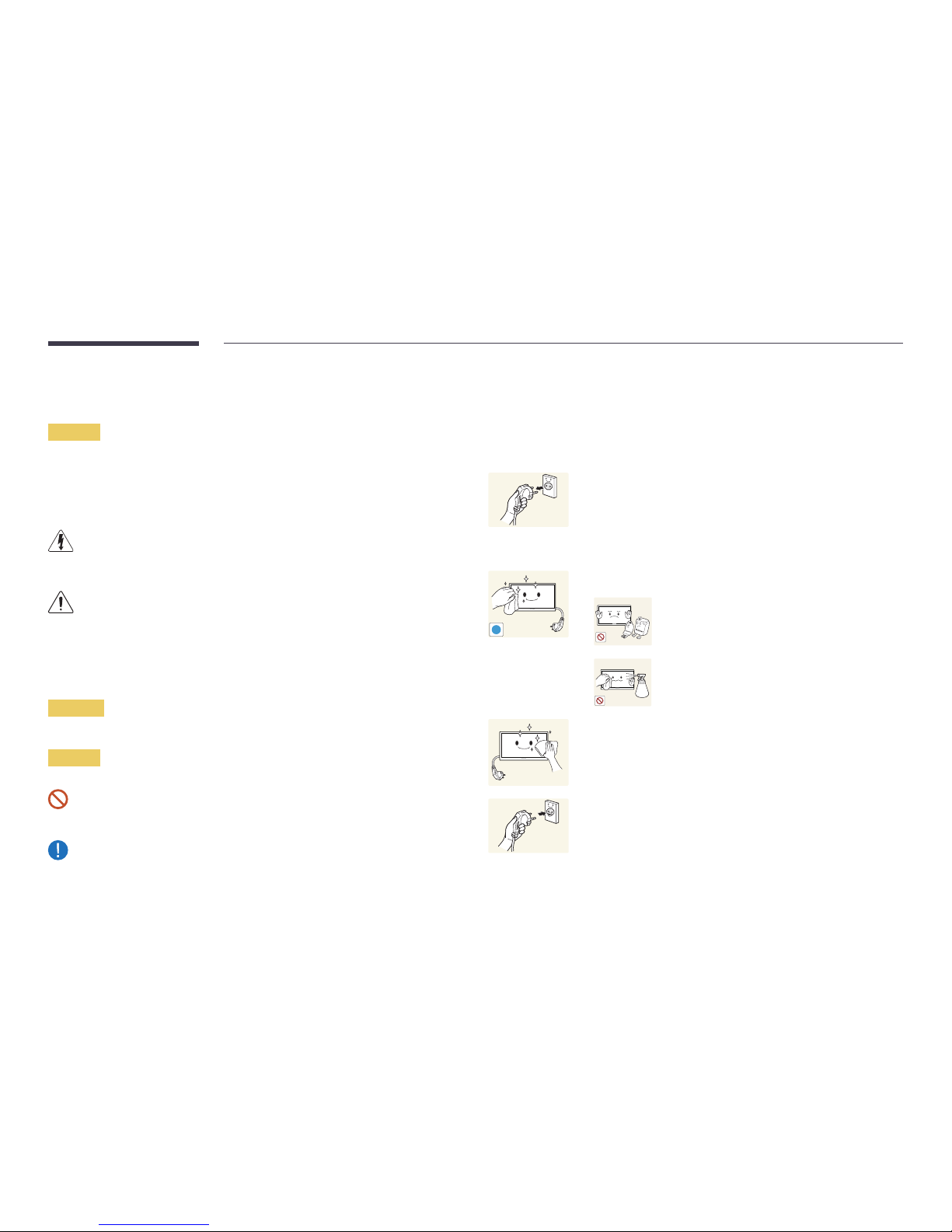

Cleaning

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

―The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Power off the product and computer.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

Wipe the product with a clean, soft and dry cloth.

•Do not use detergents that contain alcohol, solvent or

surface-active agents.

•Do not spray water or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Storage

Due to the characteristics of high-glossy products, using a UV humidifier nearby may create

whitecoloured stains on the product.

―Contact Customer Service Centre if the inside of the product needs cleaning (service fee will be

charged).

Electricity and Safety

―The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

•An electric shock or fire may result.

Do not use multiple products with a single power socket.

•Overheated power sockets may cause a fire.

Do not touch the power plug with wet hands. Otherwise, an electric shock

may result.

Insert the power plug all the way in so it is not loose.

•An unsecure connection may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated

devices only).

•An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave the

power cord under a heavy object.

•Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

•A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket with

a dry cloth.

•A fire may result.

Caution

Do not disconnect the power cord while the product is being used.

•The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do not

use the power cord with other products.

•A fire or electric shock may result.

Keep the power socket where the power cord is connected unobstructed.

•The power cord must be disconnected to cut off power to the product

when an issue occurs.

•Note that the product is not completely powered down by using only

the power button on the remote.

Hold the plug when disconnecting the power cord from the power socket.

•An electric shock or fire may result.

Installation

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF

THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

•A fire may result.

Have a technician install the wall-mount hanger.

•Installation by an unqualified person can result in an injury.

•Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a bookcase or

closet.

•An increased internal temperature may cause a fire.

Install the product at least 10cm away from the wall to allow ventilation.

•An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

•Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure shelf,

sloped surface, etc.)

•The product may fall and become damaged and/or cause an injury.

•Using the product in an area with excess vibration may damage the

product or cause a fire.

Do not install the product in a vehicle or a place exposed to dust, moisture

(water drips, etc.), oil, or smoke.

•A fire or electric shock may result.

Do not expose the product to direct sunlight, heat, or a hot object such as a

stove.

•The product lifespan may be reduced or a fire may result.

Do not install the product within the reach of young children.

•The product may fall and injure children.

•As the front is heavy, install the product on a flat and stable surface.

Edible oil, such as soybean oil, can damage or deform the product. Do not

install the product in a kitchen or near a kitchen counter.

Caution

Do not drop the product while moving.

•Product failure or personal injury may result.

Do not set down the product on its front.

•The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the

bottom edge of the front of the product is not protruding.

•The product may fall and become damaged and/or cause an injury.

•Install the product only on cabinets or shelves of the right size.

Set down the product gently.

•Product failure or personal injury may result.

SAMSUNG

Installing the product in an unusual place (a place exposed to a lot of fine

dust, chemical substances, extreme temperatures or a significant presence

of moisture, or a place where the product will operate continuously for an

extended period of time) may seriously affect its performance.

•Be sure to consult Samsung Customer Service Centre if you want to

install the product at such a place.

Andere Handbücher für ED65E

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung PN50C680G5F Bedienungsanleitung

Samsung

Samsung Q70T Bedienungsanleitung

Samsung

Samsung CS-15K10MJ Bedienungsanleitung

Samsung

Samsung CS29A5HT8X/NWT Bedienungsanleitung

Samsung

Samsung QE50QN90BATXXH Bedienungsanleitung

Samsung

Samsung PS-42P3S Kurzanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung RU7 Series Leitfaden

Samsung

Samsung CT-21K3W Bedienungsanleitung

Samsung

Samsung HLN4365W1 Bedienungsanleitung

Samsung

Samsung BAUHN Tizen ATV70UHDT-1022 Bedienungsanleitung

Samsung

Samsung HLN437W - 43" Rear Projection TV Bedienungsanleitung

Samsung

Samsung HL-S4266W - 42" Rear Projection TV Bedienungsanleitung

Samsung

Samsung UN40C6300SF Bedienungsanleitung

Samsung

Samsung COLOR TELEVISION Bedienungsanleitung

Samsung

Samsung UA49KU7500 Bedienungsanleitung

Samsung

Samsung WS-32A11SS Bedienungsanleitung

Samsung

Samsung TU7092 Bedienungsanleitung

Samsung

Samsung CS29Z58 Bedienungsanleitung

Samsung

Samsung CS29Z45Z39 Bedienungsanleitung

Samsung

Samsung DM65D Bedienungsanleitung

Samsung

Samsung Colour Television Bedienungsanleitung

Samsung

Samsung QLED 8K Q700T Bedienungsanleitung

Samsung

Samsung 9 Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
