Samsung FP9ATSCF-2.101 Leitfaden

E-MANUAL

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No.

Broadcast Audio

Screen Menu > Broadcasting > Audio Options

The displayed image may differ depending on the model,

Configure the program's audio language. Using this option is different for analog and digital channels.

Digital Broadcast Audio Options

Preferred Language: Digital broadcasts are embedded with audio signals in multiple languages

which users can choose from. You do not need to manually configure digital broadcasts that

support the designated language. If the designated language is not supported, the default audio

language chosen by the TV station will be heard.

o Visual _mpaired: Activate the audio guide for the visually impaired. This is only available with

broadcasts that provide this service.

Analog Broadcast Audio Options

Mumti-Traok Sound: Configure the audio for the current broadcast. You can select a sound you

want to listen from among the ones being broadcasted. Multi-Track Sound may differ depending

on the program being broadcast or broadcast signal. Although user set this option to stereo,

if the broadcast signal or program is not supported a stereo, this option will be set to mono

automatically, i_!: !i!_ /_

Setect the virtual remote panel's INFO button to view the current broadcast's audio signal information.

Select the virtua remote panel's TOOLS button whie watching TV to access and configure the Multi-Track

Sound setting,

Screen Menu > Smart Features > Sports Mode

This functions is not available on U.S.A. and Canada.

Enable Sports Mode for the optimal sports viewing experience. However, enabling Sports Mode

disables the Picture, Sound and Broadcasting menu options. Disabling Sports Mode restores the

previous Picture and Sound settings.

Subtitles

Screen Menu > Broadcasting > Caption

The displayed image may differ depending on the model,

View subtitles along with subtitle-enabled digital and analog broadcasts.

Show Subtitles

Screen Menu > Broadcasting > Caption > Caption

Show subtitles. Subtitles will be displayed when you choose a broadcast that supports subtitles.

DVD Subtitles are only available when connected to an external input connector:

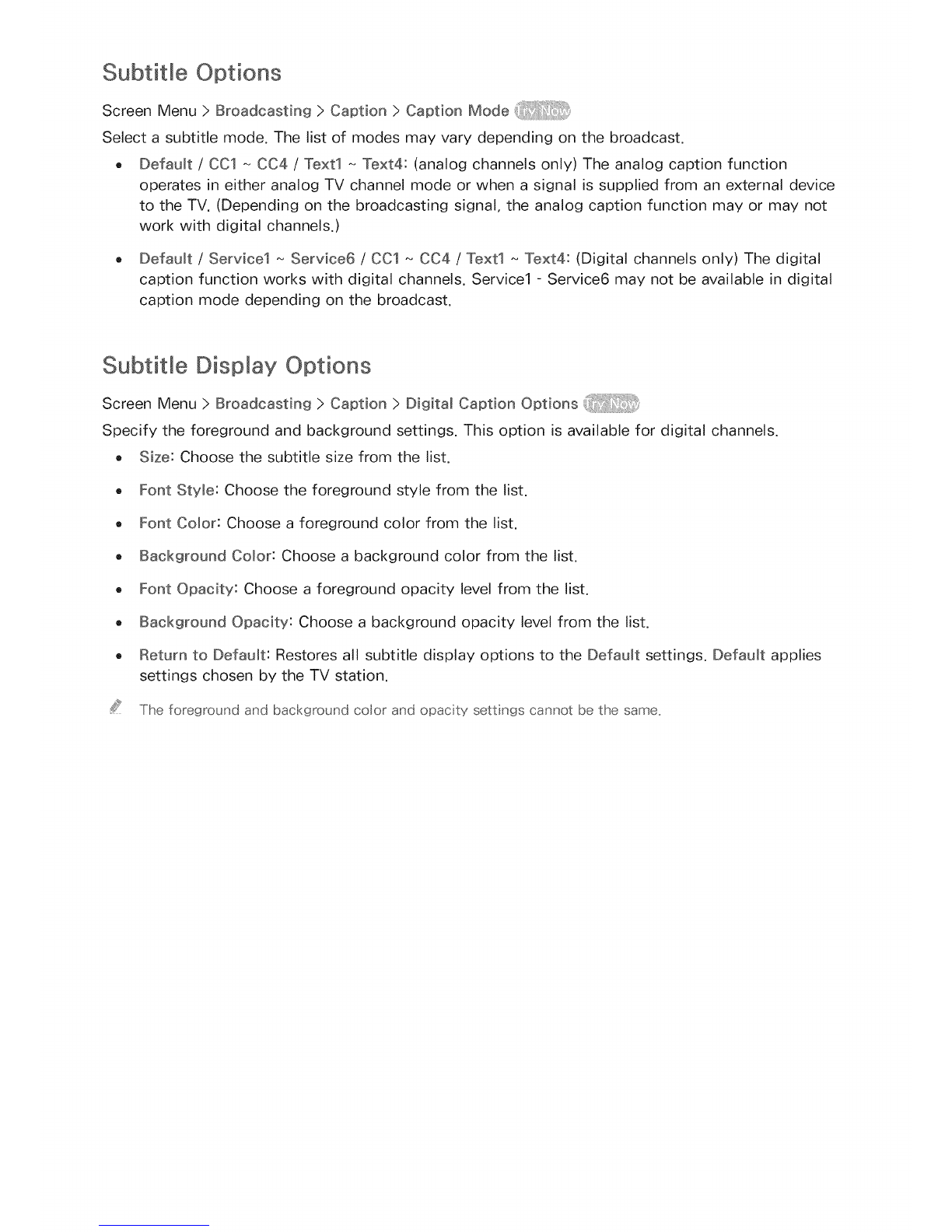

SubtitMe Options

Screen Menu > Broadcasting > Caption > Caption Mode :_

Select a subtitle mode. The list of modes may vary depending on the broadcast.

o Default /001 ~ 004 /Text1 ~ Text4: (analog channels only) The analog caption function

operates in either analog TV channel mode or when a signal is supplied from an external device

to the TV. (Depending on the broadcasting signal, the analog caption function may or may not

work with digital channels.)

DefauNt /Service1 ~ Service6 /COl ~ 004 /Text1 ~ Text4: (Digital channels only) The digital

caption function works with digital channels. Service1 - Service6 may not be available in digital

caption mode depending on the broadcast.

SubtitMe DispMay Options

Screen Menu > Broadcasting > Caption > Digital Caption Options

Specify the foreground and background settings. This option is available for digital channels.

Size: Choose the subtitle size from the list.

Font Styme: Choose the foreground style from the list.

Font Color: Choose a foreground color from the list.

Background Color: Choose a background color from the list.

Font Opacity: Choose a foreground opacity level from the list.

Background Opacity: Choose a background opacity level from the list.

Return to Default: Restores all subtitle display options to the DefauNt settings. Default applies

settings chosen by the TV station.

The foreground and background color and opac ty sett ngs cannot be the same_

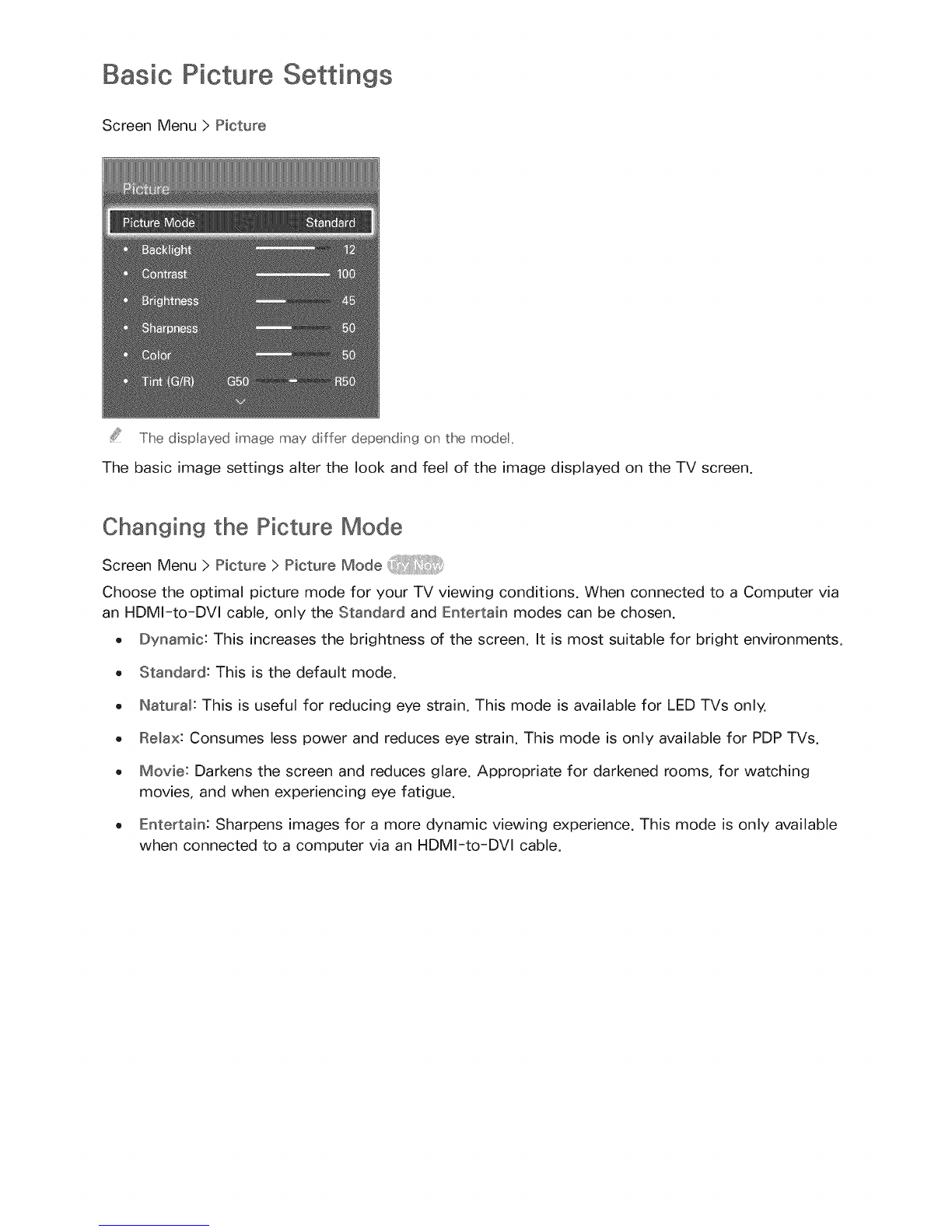

Basic Picture Settings

Screen Menu ) Picture

The dispIayed image may differ depending on the modet,

The basic image settings alter the look and feel of the image displayed on the TV screen.

Changing the Picture Mode

Screen Menu ) Picture > Picture Mode

Choose the optimal picture mode for your TV viewing conditions. When connected to a Computer via

an HDMI-to-DVl cable, only the Standard and Entertain modes can be chosen.

o Dynamic: This increases the brightness of the screen. It is most suitable for bright environments.

o Standard: This is the default mode.

o Natural: This is useful for reducing eye strain. This mode is available for LED TVs only.

o Relax: Consumes less power and reduces eye strain. This mode is only available for PDP TVs.

o Movie: Darkens the screen and reduces glare. Appropriate for darkened rooms, for watching

movies, and when experiencing eye fatigue.

o Entertain: Sharpens images for a more dynamic viewing experience. This mode is only available

when connected to a computer via an HDMI-to-DVl cable.

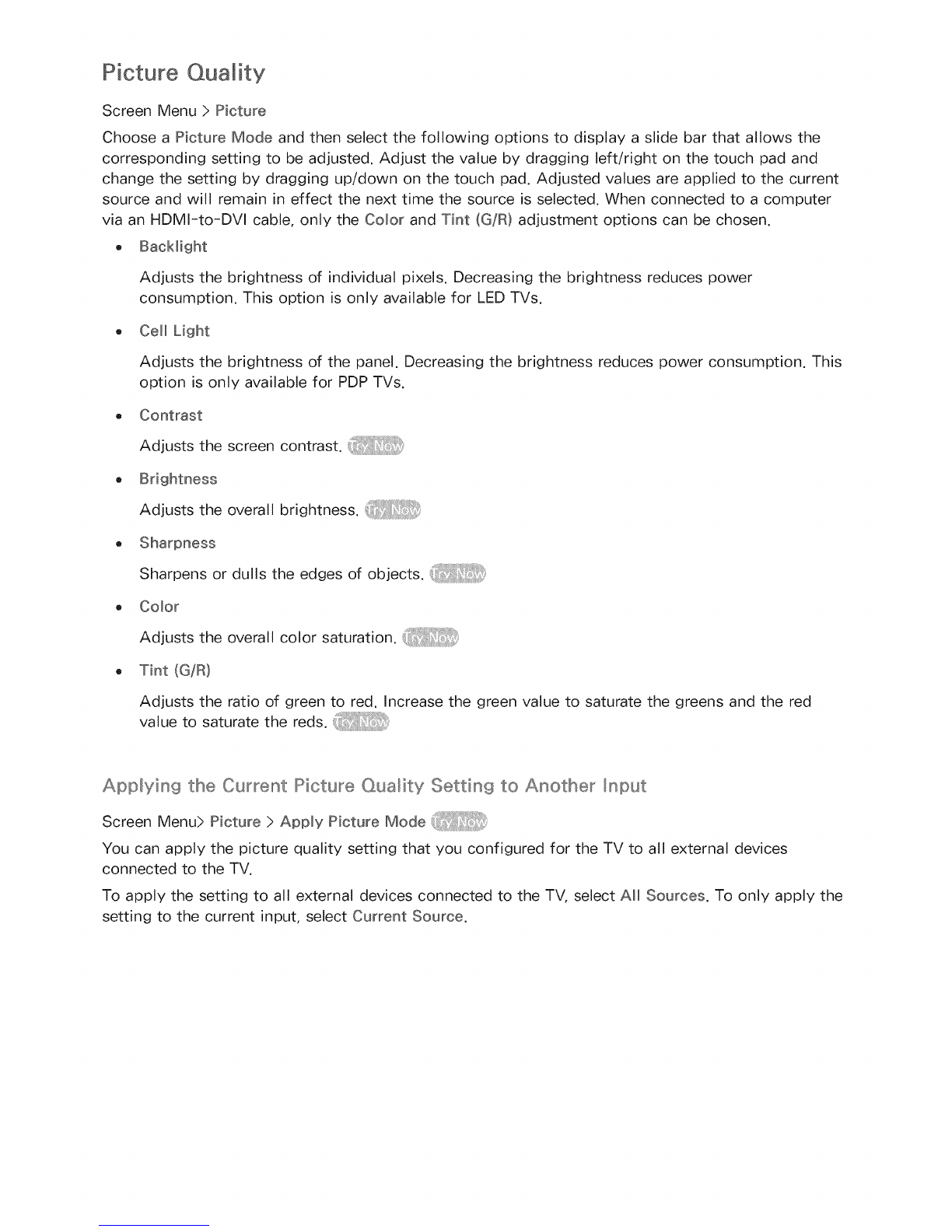

Picture Quality

Screen Menu > Picture

Choose a Picture Mode and then select the following options to display a slide bar that allows the

corresponding setting to be adjusted. Adjust the value by dragging left/right on the touch pad and

change the setting by dragging up/down on the touch pad. Adjusted values are applied to the current

source and will remain in effect the next time the source is selected. When connected to a computer

via an HDMI-to-DVI cable, only the Color and Tint (G/R} adjustment options can be chosen.

Adjusts the brightness of individual pixels. Decreasing the brightness reduces power

consumption. This option is only available for LED TVs.

Cell Light

Adjusts the brightness of the panel. Decreasing the brightness reduces power consumption. This

option is only available for PDP TVs.

Contrast

Adjusts the screen contrast.

Adjusts the overall brightness.

Sharpens or dulls the edges of objects.

Color

Adjusts the overa II co Ior saturati on.

Tint (G/R}

Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red

value to saturate the reds.

Applying the Cup'rent Pictu_e Quality Setting to Another _nput

Screen Menu> Picture > AppNy Picture Mode

You can apply the picture quality setting that you configured for the TV to all external devices

connected to the TV.

To apply the setting to all external devices connected to the TV, select ANI Sources. To only apply the

setting to the current input, select Current Source.

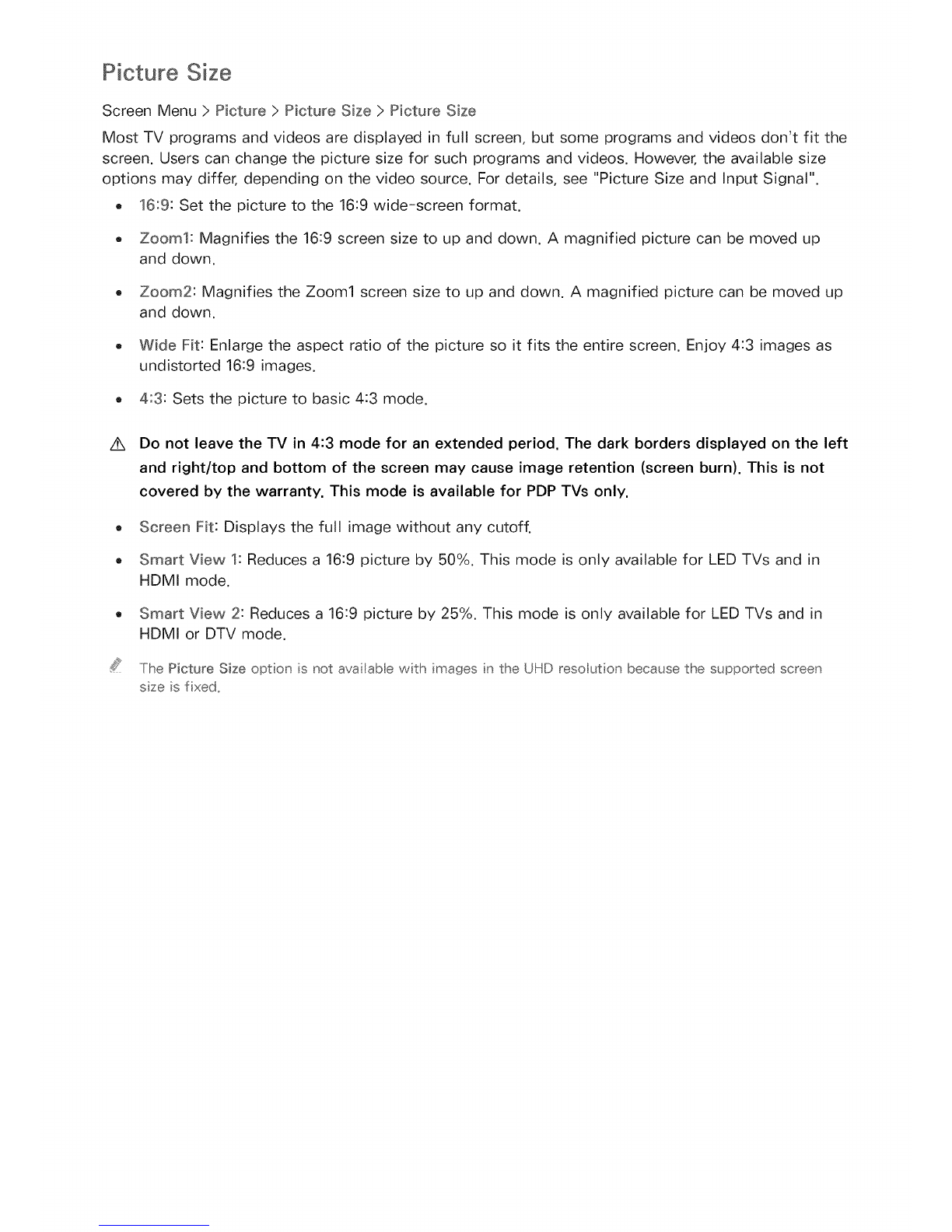

Picture Size

Screen Menu ) Picture ) Picture Size ) Picture Size

Most TV programs and videos are displayed in full screen, but some programs and videos don't fit the

screen. Users can change the picture size for such programs and videos. However, the available size

options may differ, depending on the video source. For details, see "Picture Size and Input Signal".

o 16:9: Set the picture to the 16:9 wide-screen format.

Zoom1: Magnifies the 16:9 screen size to up and down. A magnified picture can be moved up

and down.

Zoom2: Magnifies the Zoom1 screen size to up and down. A magnified picture can be moved up

and down.

Wide Fit: Enlarge the aspect ratio of the picture so it fits the entire screen. Enjoy 4:3 images as

undistorted 16:9 images.

4:3: Sets the picture to basic 4:3 mode.

ADo not leave the TV in 4:3 mode for an extended period. The dark borders displayed on the left

and right/top and bottom of the screen may cause image retention (screen burn). This is not

covered by the warranty. This mode is available for PDP TVs only.

Screen Fit: Displays the full image without any cutoff,

Smart View 1: Reduces a 16:9 picture by 50%. This mode is only available for LED TVs and in

HDMI mode.

Smart View 2: Reduces a 16:9 picture by 25%. This mode is only available for LED TVs and in

HDMI or DTV mode.

The Picture Size opton s not ava lable with mages n the UHD resolut on because the supported screen

sze s fxed,

Screen Position

Screen Menu ) Picture ) Picture Size ) Position

The screen position can be adjusted if Picture Size is set to Zoom1, Zoom2, Wide Fit, or Screen Fit. In

DTV mode, the screen position cannot be adjusted if the Picture Size is set to Screen Fit.

To adjust the screen position, select Position and then Position from the popup window.

2, Drag on the touch pad to move the screen. Once done, select Position and then Close. Select

Reset to reset the screen position.

The Position opton s not ava lable with mages n the UHD resolut on because the supported screen sze s

fxed.

Picture Off

Screen Menu ) Picture ) Picture Off

Turns off the screen and plays audio only. To turn the screen back on, press any button except TV and

volume buttons.

Reset mmage Settings

Screen Menu ) Picture ) Reset Picture i !c

Reset all image settings for the current Picture Mode to the default settings. This does not affect other

Picture Modes.

Advanced ngs

Screen Menu > Picture > Advanced Settings

The disp ayed image may differ depending on the mode,

Use Advanced Settings to fine-tune how images are displayed on the TV screen. The Advanced

Settings option is only available when Picture Mode is set to Standard or Movie. When the TV is

connected to a computer via an HDMI-DVl cable, only White Balance and Gamma can be adjusted.

o Dynamic Contrast

Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.

o Black Tone

Adjuststheblackcolordepth.

o Flesh Tone

Adjusts the amount of red in skin-color tones.

o RGB Only Mode

Adjusts the red, green, and blue levels individually.

o ColorSpace

Adjuststhe rangeof colorsthat canbeexpressedon screen.Auto automaticallyadjuststhe

colorspacedependingon the inputsignal,andNativeappliesa rangethat is widerthanthe input

signal.Customallow the userto manuallyadjusta rangeof the desiredcolor in the colorsof the

inputsignal._i:i!_:i:::::_

WhiteBalance

Adjuststhe colortemperatureof the pictureto makewhite objectslook whiteandtheoverall

pictureappearnatural.Adjust eachcolor's luminositywith the offset menuandthe brightness

with the gainmenu.To restorethedefaultvalues,selectReset.

10pWhiteBalance

Adjuststhe white balanceby adjustingthe brightnessof the red,green,andblueelementsin

10-pointintervals.Thisoption isonly availablewhenPictureModeissetto Movieandmaynot

be supportedby someexternaldevices.

Gamma

Adjuststhe primarycolor intensity.

ExpertPattern

Displayspicturecalibrationpatternson thescreenwithout usingaseparatepatterngeneratoror

filter.Pattern1isusedto calibratethe contrast,andPattern2isusedfor calibratingthecolor and

color saturation.If the screenmenudisappearsoradifferent menuisactivatedwhile thescreen

is beingcalibrated,this option will savethechangesup to that pointandautomaticallydeactivate

that menu.Thisfeatureis enabledin ComponentandHDMImodesonly. _1:ii::::,:!:_j'

• Motion Lighting

Adjuststhe picturebrightnessdependingonthe on-screenmovementsfor reducedpower

consumption.Thisfeatureisonly availablewhenPictureModeissetto Standardandisnot

availablein 3Dmode.Inaddition,adjustingContrastor Brightnessautomaticallydeactivatesthis

feature.
