Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No.

LED TV

Installation manual

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Instruction

This TV is provided with interactive functionality through a set-back box (SBB/STB) connected to the TV, and with other TVs in a computer-controlled

system for hotels and other hospitality businesses.

Interactive : When the TV is powered-up initially, it sends a command to identify the SBB/STB; if identiﬁed, theTV switches to ONLINE mode and full

control is through the SBB/STB.

If the TV is in ONLINE mode, it stops receiving IR(Samsung remote) commands and acts according to interface protocol.

Stand-Alone: If SBB/STB is not identiﬁed, the TV should be switched to STAND-ALONE mode with restricted operation.

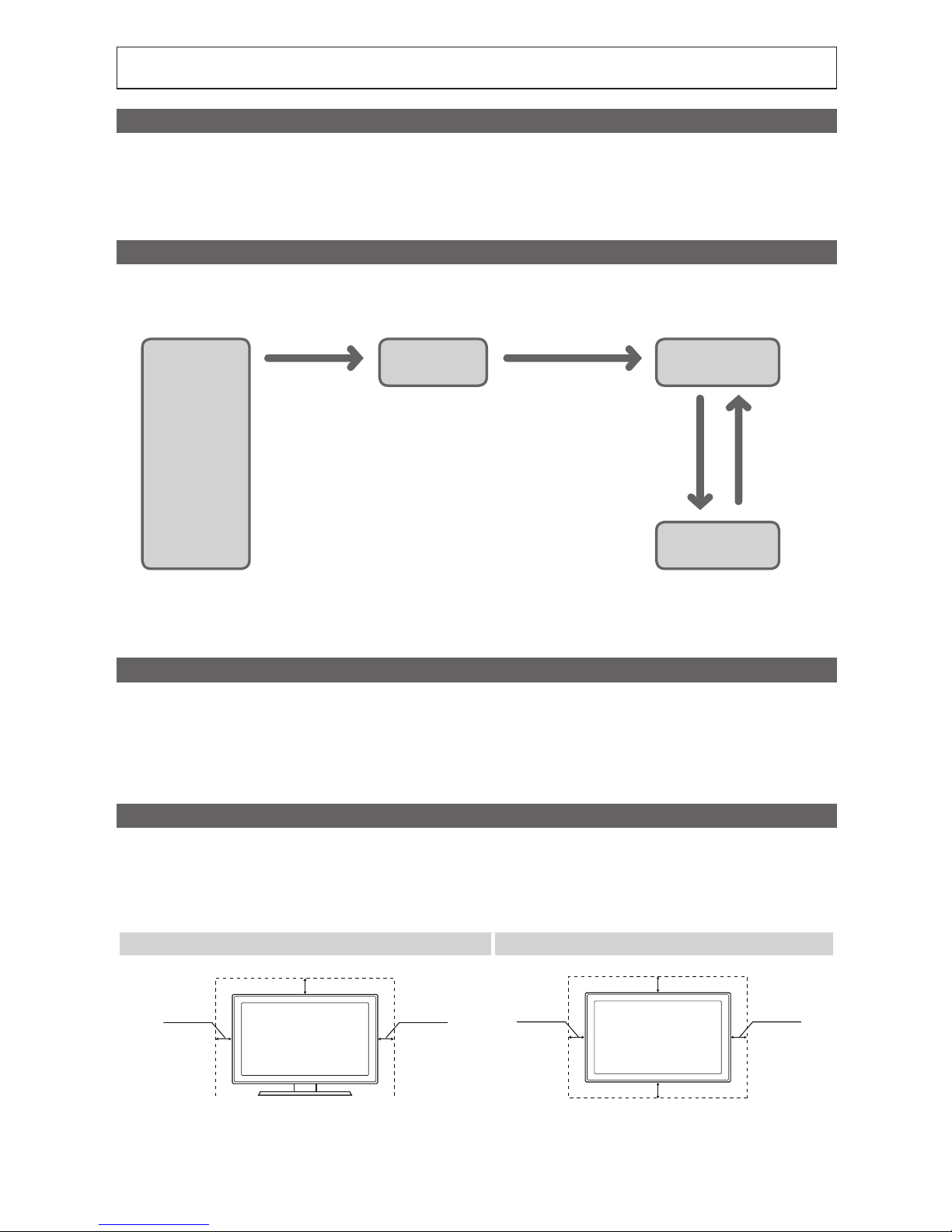

Operational Modes

When this TV (in Hotel mode) is operated with a SBB/STB, it is in one of two states :

• ONLINE or STAND-ALONE. In the STAND-ALONE state, the TV will act as a Hotel TV, but without active communication. This is to prevent guests

from trying to cheat the system by disconnecting the SBB/STB.

To set the details for Stand-alone or interactive mode, refer to pages 21-24(Setting the hotel option data : Stand-alone mode and Interactive mode)

• Some operations may be restricted to prevents guests from "cheating" the TV system.

• No main menu(Interactive mode) or Channel Menu, Plug & Play in Main Menu (Stand-Alone mode)

• Limited Volume and Panel key lock or unlock

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV Program logo, panorama or 4:3 image format, stock or news bar at screen

bottom etc.) on the screen. Constant displaying of still picture can cause uneven wear of screen phosphor, which will affect image quality. To reduce risk of

this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout. Refer to the relevant user manual section for details.

Securing the Installation Space

Keep required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

Using parts provided by another manufacturer may result in a problem with the product or injuries due to the product falling.

✎

The appearance may differ, depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm10 cm

10 cm

10 cm10 cm

10 cm

Power

Hotel TV

Online Mode

Poll Rate 20/sec

Stand-alone

Mode

Hotel Mode On SBB/STB Online if

one success within 10

attempts

SBB/STB

Online-10

consecutive

fails

SBB/STB

Status-

Attempt

every 2secs

Contents

ENGLISH

English

yInstruction................................................................................................................................................................. 2

yOperational Modes ................................................................................................................................................... 2

yStill image warning.................................................................................................................................................... 2

ySecuring the Installation Space ................................................................................................................................. 2

yAccessories .............................................................................................................................................................. 4

yInstalling the LED TV Stand....................................................................................................................................... 5

yViewing the Connection Panel................................................................................................................................... 6

yTV Controller............................................................................................................................................................. 8

ySamsung Smart Control............................................................................................................................................ 9

yViewing the Remote Control.................................................................................................................................... 12

yConnecting the TV with SBB................................................................................................................................... 13

yConnecting the Bathroom Speakers ....................................................................................................................... 15

yConnecting the MediaHub HD ................................................................................................................................ 17

yConnecting the RJP (Remote Jack Pack)................................................................................................................ 18

yConnecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)................................................................ 20

ySetting the Hotel Option Data ................................................................................................................................. 21

yInstalling the Wall Mount ......................................................................................................................................... 59

ySecuring the TV to the Wall..................................................................................................................................... 60

yAnti-theft Kensington Lock...................................................................................................................................... 61

ySpeciﬁcations ......................................................................................................................................................... 62

yDimensions............................................................................................................................................................. 63

English

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ colour and shapes may vary depending on the model.

mart Touch Control & Batteries (AA x 2)

yRemote Control & Batteries (AAA x 2)

yQuick Set up Guide

yPower Cord / Data Cable

yOwner’s Instructions

Safety Guide (Not available in all locations)

CI Card Adapter Cable Holder (2 EA)

✎

The stand and stand screw may not be included, depending on the model.

✎

The Data Cable may not be included, depending on the SI Vendor.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.

charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To

prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these

items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take these items for environmentally safe recycling. Business users should

contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed

of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb

indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If

batteries are not properly disposed of, these substances can cause harm to human health or the environment. To

protect natural resources and to promote material reuse, please separate batteries from other types of waste and

recycle them through your local, free battery return system.

English

Installing the LED TV Stand

Stand Components

When installing the stand, use the provided components and parts.

✎

The stand shape of product may vary depending on the model.

x12 (M4 X L14)

tand

yGuide Stand (2EA)

yBracket Stand (2EA)

yScrews

Tight the bottom of the screw ﬁrst, and stow the

upper side of screw last.

When the declination happened, try reassemble

category.

✎Place a soft cloth over the table to protect the TV, and then place

the TV on the cloth screen-side down.

✎Insert the Stand Guide into the slot on the bottom of the TV.

✎Slide and assemble it to the end line in the direction of arrow.

✎Make sure to assembling stand guide attached on the TV.

1-1

1-2

1-3

(M4 X L14)

2-32-1 2-2

3-1 3-2

(M4 X L14)

✎

NOTE

yMake sure to distinguish between the front and back of each component when assembling them.

yMake sure that at least two persons lift and move the TV.

English

Viewing the Connection Panel

✎

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

✎

When connecting an external device, match the colour of the connection terminal to the cable.

1 AV IN

– Connect audio cables to "R-AUDIO-L" on your TV and the other ends to corresponding audio out jacks on an

A/V device.

– Connects Component video / audio.

– Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of the TV set and the other ends to

corresponding audio out jacks on the external device.

– When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (Green) does not match the color of the video

cable (Yellow).

2 USB (5V 0.5A)

USB (HDD/1.0A) / CLONING

– Connector for software upgrades and Media Play, etc.

– Service connection.

3 HDMI IN 1, 2(DVI), 3(ARC): Connects to the HDMI jack of a device with an HDMI output.

✎No sound connection is needed for an HDMI-HDMI connection. HDMI connections carry both audio and video.

✎Use the HDMI IN 2(DVI) jack for a DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI

adapter (DVI to HDMI) for the video connection and the PC/DVI AUDIO IN jacks for audio.

4 ANT IN (SATELLITE), (AIR/CABLE)

– To view television channels correctly, the TV must receive a signal from one of the following sources:

– An outdoor antenna / A cable television system

7 0

# @

English

5 HEADPHONE JACK:

– Headphones may be connected to the headphone jack on your TV. While the headphones are connected, the sound

from the built-in speakers is disabled.

6 HP-ID : Connect the cable to HP-ID and Headphone Jack simultaneously and connect it to separated Headphone Box.

See page 16. When connecting Headphone to Headphone Box, it works same as Headphone function.

Display Modes

You can also select one of the standard resolutions listed in the Resolution column. The TV will automatically adjust to the

resolution you choose.

After connecting a computer to the TV, set the screen resolution for the TV on the computer. The optimal resolution is 1920 x

1080 @ 60 Hz. If it is set to any other than in the table below, the TV may display nothing. Set the resolution properly, referring

to the user guide of the computer or its graphic card.

The resolutions in the table are recommended.

✎

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution Horizontal Frequency

(KHz)

Vertical Frequency

(Hz)

Pixel Clock Frequency

(MHz)

Sync Polarity

(H / V)

IBM 720 x 400 31.469 70.087 28.322 -/+

MAC

640 x 480

832 x 624

1152 x 870

35.000

49.726

68.681

66.667

74.551

75.062

30.240

57.284

100.000

-/-

VESA DMT

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1280 x 720

1280 x 800

1280 x 960

1366 x 768

1440 x 900

1600 x 900RB

1680 x 1050

1920 x 1080

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

45.000

49.702

60.000

47.712

55.935

60.000

65.290

67.500

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

60.000

59.810

60.000

60.015

59.887

60.000

59.954

60.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

74.250

83.500

108.000

85.500

106.500

108.000

146.250

148.500

-/-

+/+

-/-

+/+

-/+

+/+

-/+

+/+

-/+

+/+

✎

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 (DVI) jack.

✎

The interlace mode is not supported.

✎

The set might operate abnormally if a non-standard video format is selected.

✎

Separate and Composite modes are supported. SOG is not supported.

7 RJP: This port is an RJP (Remote Jack Pack) communication port that enables connecting different devices to additional

modules to improve device use and convenience.

8 PC/ DVI AUDIO IN: Connects to the audio input jacks on an Ampliﬁer/Home Theater.

VOL-CTRL: Used to control the volume of the Bathroom speaker. Connect the Bathroom Wall Box and the VOLCTRL port.

0 VARIABLE AUDIO OUT: Used for the audio output to the Bathroom speaker. Connect the Bathroom Wall Box and the

Variable port (RCA).

! DATA

– Used to support data communication between the TV and the SBB.

– Connects using RJ-12 TV type plugs.

@ PC IN: Connect to the video output jack on your computer.

# LAN: Connect to a wired LAN using CAT 7 cable.

English

TV Controller

TV Controller is a multi directional button that helps navigate without using the remote control.

✎

Some functions which require a PIN code may not be available.

✎

The product colour and shape may vary, depending on the model.

✎

Exits the menu when pressing the controller for more than 1 second.

✎

When selecting the function by moving the controller to the up/down/left/right directions, do not press the controller. If the controller is

used first, you cannot operate it to move the up/down/left/right directions.

Power on Turn the TV on by pressing the controller in standby mode.

Adjusting the volume Adjust the volume by moving the controller from side to side when the power is on.

Selecting a channel Select a channel by moving the controller up and down when the power is on.

Using the function menu Press the controller when the power is on and the function menu appears. If you press it again, the

function menu screen disappears.

Using the Menu Selects the MENU(

)by moving the controller in the function menu screen. The OSD(On Screen

Display) of your TV’s feature appears.

Selecting the Source Selects the Source(s)by moving the controller in the function menu screen. The Source list

screen appears.

Selecting the SMART HUB ( ™) With the Function menu visible, select SMART HUB (™) by moving the Controller upwards. The

SMART HUB main screen appears. Select an application by moving the Controller, and then

pressing the Controller.

Power Off Selects the Power Off(

)to turn the TV off by moving the controller in the function menu screen.

✎

To close the Menu, SMART HUB, or Source, press the Controller for more than 1 second.

Standby mode

Do not leave your TV in standby mode for long periods of time a small amount of electric power is still consumed even when the power button is

such as when on holiday. off. It is best to unplug the power cord.

TV Controller

Function menu

The image is drawn by facing the front

side of the TV.

Remote control sensor

When you use the Samsung Smart

Control, the standby LED does not work

(except the P button).

English

Samsung Smart Control

✎Colours and shape may vary depending on the model.

Turns the TV on/off.

Changes the source.

Changes the channel.

Press this button to use the search window.

( Not available )

With the virtual remote control on the screen,

you can easily enter digits, control content,

and use functions.

Changes the volume.

Starts voice recognition. When the microphone

icon appears on the screen, say a voice

command into the microphone. Say "

Help

" to

learn about basic usage and voice commands.

- Say a voice command 10cm to 15cm

from the microphone and at an ap-

propriate volume.

: Turns the sound on/off.

AD: Press and hold this

button to bring up the

Accessibility Shortcuts

panel. Select the options to

turn them on or off.

- Touchpad: Place a ﬁnger on the touch pad

and move the Samsung Smart Control.

The pointer on the screen moves in the

direction and as much as the Samsung

Smart Control is moved. Press the

touchpad to run the focused item.

: Moves the pointer or focus.

RETURN: Returns to the previous menu.

Additionally, when you press this button while

watching TV, you can return to the previous

channel.

EXIT: Press and hold this button to exit all

currently running applications.

Use these buttons with speciﬁc features. Use

these buttons according to the directions on the

TV screen.

Launches Smart Hub. Pressing SMART HUB

while an application is running terminates the

application.

GUIDE: Displays the digital channel

broadcasting schedule.

CH.LIST: Press and hold to launch the

CH.LIST.

Colour button: Use these colour buttons

to access additional options speciﬁc to the

feature in use.

- MENU: Press and hold to display a

menu on the screen.

- REC: Press and hold to record the

broadcast.

- INFO: Press and hold to view informa-

tion about the current digital channel

or media ﬁle.

M.SCREEN: You can split the TV screen and

use various functions such as watching TV,

surﬁng the web, watching video, and so on.

For more information, refer to the e-Manual.

Enable Football Mode for an optimal sports

viewing experience.

English

Inserting Batteries into Samsung Smart Control

To use Samsung Smart Control, ﬁrst refer to the ﬁgure below and insert batteries into the unit.

1. Gently pull on the battery cover's notch and then remove the cover completely once it comes loose.

2. Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities correctly.

3. Place the battery cover on the remote control and insert the top part of the cover into the remote control.

4. Press the catches on both sides of the battery cover in the order shown so that the cover is completely attached to the

remote control.

¦Using the Samsung Smart Control

Samsung Smart Control makes it even easier and more convenient to use the TV. Pressing the

KEYPAD

button displays a

virtual remote control that allows you to easily enter digits, control content, and activate functions on the screen.

- We recommend using Samsung Smart Control at a distance of less than 6m. A usable distance may differ depending on

the wireless environmental conditions.

Pairing the Samsung Smart Control

To control the TV with Samsung Smart Control, you need to pair Samsung Smart Control to the TV via Bluetooth. Pair

Samsung Smart Control to the TV.

- Samsung Smart Control can only be paired to a single TV.

Point Samsung Smart Control at the remote control sensor of the TV and press the TV button to turn the TV on.

- Remote control receiver’s location may vary depending on the model.

Reconnecting Samsung Smart Control

If the Samsung Smart Control stops operating or works abnormally, replace the batteries as this may be due to insufﬁcient

battery power.

If the problem persists, the Samsung Smart Control restores pairing with the TV.

1. Press

RETURN

button and

GUIDE

button simultaneously for 3 seconds.

- You must place the Samsung Smart Control approximately 30cm ~ 40cm away from the TV and ensure it is pointing

towards the remote control receiver.

2. Connection image is appeared on the screen. And then, Samsung Smart Control is connecting to TV automatically.

Andere Handbücher für Galaxy 8

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung CL-21Z43ML Bedienungsanleitung

Samsung

Samsung CL-21N11MJ Benutzerhandbuch

Samsung

Samsung HG43AT692U Bedienungsanleitung

Samsung

Samsung QE43LS05BG Bedienungsanleitung

Samsung

Samsung HL-R4667W - 46" Rear Projection TV Bedienungsanleitung

Samsung

Samsung GL21M6W Bedienungsanleitung

Samsung

Samsung 4 Series Bedienungsanleitung

Samsung

Samsung CZ-21K5ML Bedienungsanleitung

Samsung

Samsung TX-S3082WH Bedienungsanleitung

Samsung

Samsung KU6500 Bedienungsanleitung

Samsung

Samsung TXL 2791F Kurzanleitung

Samsung

Samsung CS-14B500KJ Bedienungsanleitung

Samsung

Samsung 4 Series Bedienungsanleitung

Samsung

Samsung CS29Z4HRGX/SAP Bedienungsanleitung

Samsung

Samsung UN55ES7003F Bedienungsanleitung

Samsung

Samsung CS-15K5ML Bedienungsanleitung

Samsung

Samsung 4500 series 4 Bedienungsanleitung

Samsung

Samsung UE32N4000A Bedienungsanleitung

Samsung

Samsung COLOR TELEVISION Bedienungsanleitung

Samsung

Samsung OfficeServ 7000 Series Bedienungsanleitung

Samsung

Samsung VG-MSFB55WTC Series Bedienungsanleitung

Samsung

Samsung CS29Z58 Bedienungsanleitung

Samsung

Samsung CT-29K40ML Bedienungsanleitung

Samsung

Samsung UN60ES8000FXZA Montageanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
