Samsung LE19R86BD Bedienungsanleitung

TFT-LCD TV

Chassis GBP19SEN

Model LE19R86BD

Manual

SERVICE

TFT-LCD TV Fashion Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

2007 by Samsung Electronics Co., Ltd.

This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to any

electronic or machine readable form without prior

written permission of Samsung Electronics Co., Ltd.

LE19R86BD Service Manual

First edition Sep 2007.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung

Electronics Co., Ltd.

LE19R86BD and Macmaster Cable Adapter are

trademarks of Samsung Electronics Co., Ltd.

Macintosh and Power Macintosh are trademarks of

Apple Computer, Inc.

All other trademarks are the property of their respective

owners.

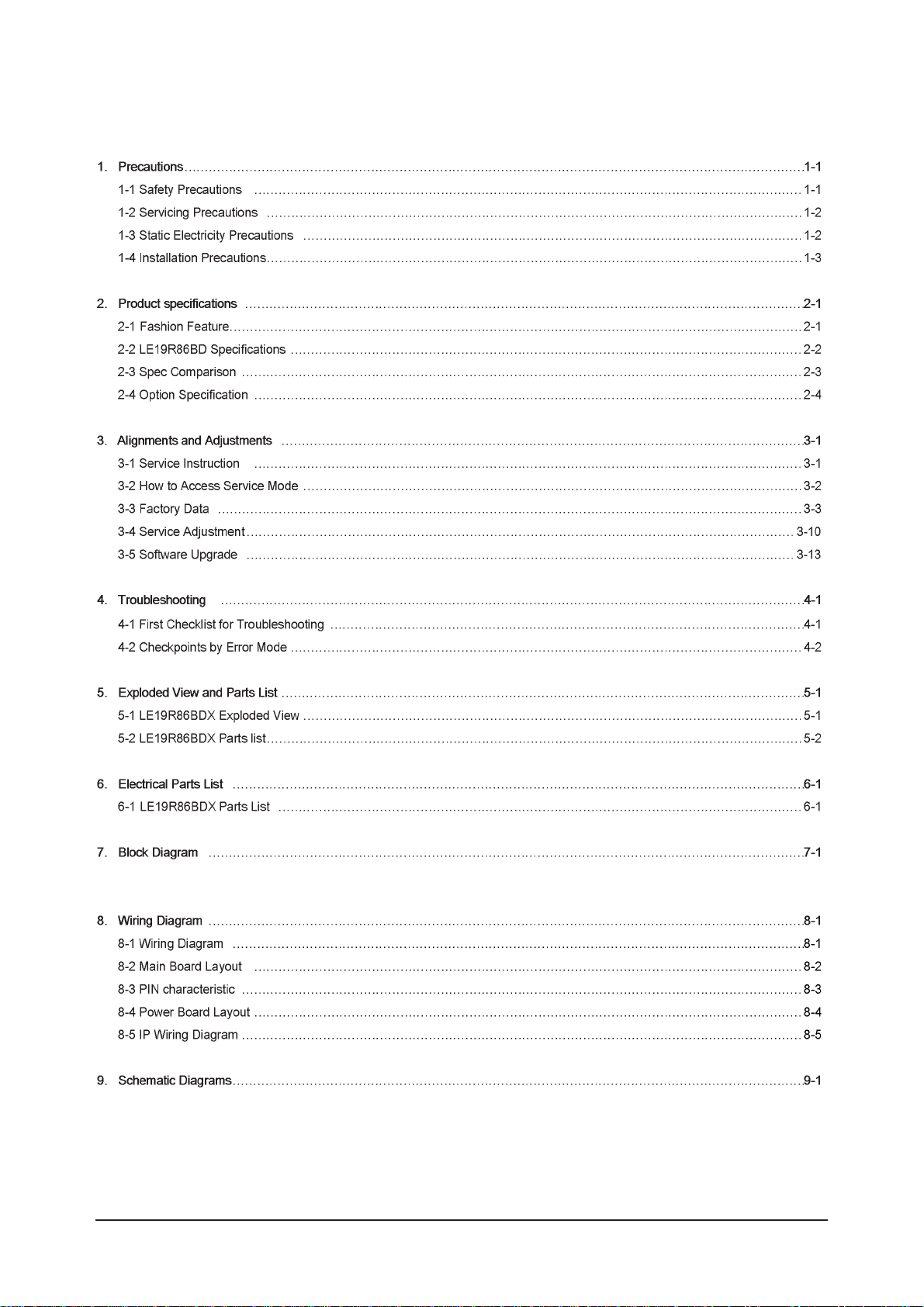

Contents

2007 Samsung Electronics Co.,Ltd.

Printed in Korea

P/N : BN82-00186-00

This Service Manual is a property of Samsung

Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under

applicable International and/or domestic law.

Area

GSPN(Global Service Partner Network)

North America

Latin America

CIS

Europe

China

Asia

Mideast & Africa

http://service.samsungportal.com

http://latin.samsungportal.com

http://cis.samsungportal.com

http://europe.samsungportal.com

http://china.samsungportal.com

http://asia.samsungportal.com

http://mea.samsungportal.com

Web Site

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 Service Instruction

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.

Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end

of the TV. When inserting signal markers, do not allow the marker generator to distort

test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on

the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure

that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments

3-2

3-2 How to Access Service Mode

3-2-1 Entering Factory Mode

1. To enter "Service Mode"Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

- If you have Factory remote - control

Power OFF

PICTURE ON INFO FACTORY

Power ON

INFO MUTE

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left

Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -, Menu, TV/VIDEO(Enter)

3 Alignments and Adjustments

3-3

3-3 Factory Data

1. Calibration

2. Option Table(Service)

3. White Balance

4. MST 69981

5. Option Block

6. Sound

7. YC Delay

8. Adjust

9. Bus Stop

10. W/B Movie

11. Checksum 0000

12. Reset

13. Spread Spectrum

T-JSM22PEUMD-XXXX (Main Micom Ver.)

Month / Date / Year / Hour / Min. / Sec.

1. Calibration

1) AV Calibration

2) Comp Calibration

3) PC Calibration

4) HDMI Calibration

2. Option Table(Service)

Item

Ready

Inch Option

Panel Vender

Panel Type

Model Option

Anynet+

Auto Power

Nordic

LNA Menu

TTX On/off

TTX List

Carrier Mute

High Devi

Volume Curve

HotPlug

HotPlugCtrl

HotPlugDelay

Hotel Option

Shop Mode

Color Space

PC Ident

Language

Ch Table

TTX Group

IDTV Country

PDP Filter

PDP Group

Range

Off

TN_INT

19CMO

BRD Plus

Off

Flof

Off

Small

Off

English

Suwon

Lang OSD

50"EU MRT

C5E_DMA

3 Alignments and Adjustments

3-4

3. White Balance

item

Sub Bright

Red Offset

Greem Offset

Blue Offset

Sub Contrast

Red Gain

Green Gain

Blue Gain

Value

128

140

128

4. MST 68981

1) ADC Calibration

item

CVBS Y Gain

CVBS Y Offs

Ana Y Offs

Ana Pb Offs

Ana Pr Offs

Ana Y Gain

Ana Pb Gain

Ana Pr Gain

Out R Offs

Out G Offs

Out B Offs

Out R Gain

Out G Gain

Out B Gain

Value

128

127

128

116

2) Calibration Target

2-1) AV ADC Target

item

Low

High

Delta

Value

234

3 Alignments and Adjustments

3-5

2-2) Comp ADC Target

item

Low

High

Delta

Value

234

2-3) PC ADC Target

item

Low

High

Delta

Value

254

2-4) AII RGB Target

item

Low

High

Delta

Value

235

3) Sharpness

item

H1 Gain

H2 Gain

H3 Gain

H4 Gain

V1 Gain

V2 Gain

D1 Gain

D2 Gain

Over Shoot2

Over Shoot3

Under Shoot2

Under Shoot3

Sub Color

Value

5. Option Block

1) FRC(Micronas)

2) FRC2X

3) FBE2
