Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

[PC6500_Aus]BN68-02889A-00Eng.indb 1 2010-04-02 오후 2:01:35

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image

retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 14 of this manual to reduce the degree of

brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the

product.

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to

the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

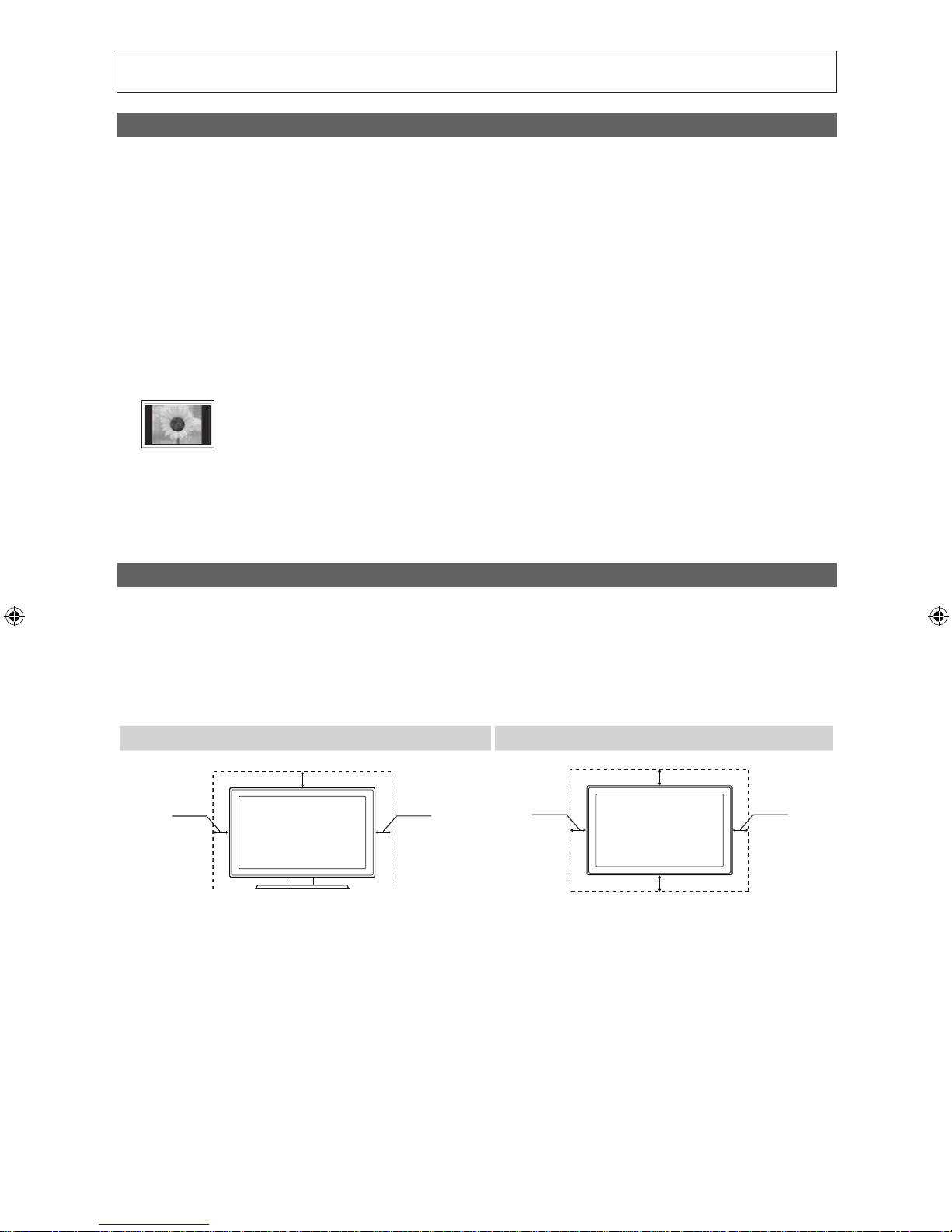

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the

product falling.

✎

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm 10 cm

10 cm

[PC6500_Aus]BN68-02889A-00Eng.indb 2 2010-04-02 오후 2:01:36

ENGLISH

English

Contents

Getting Started

4 Accessories

5 Viewing the Control Panel

6 Viewing the Remote Control

7 Connecting to an Antenna

7 Plug & Play (Initial Setup)

Connections

8 Connecting to an AV Device

9 Connecting to an Audio Device

9 Changing the Input Source

Basic Features

10 How to Navigate Menus

10 Using the INFO button (Now & Next guide)

10 Planning Your Viewing

12 Channel Menu

13 Picture Menu

17 Sound Menu

18 Setup Menu

21 Support Menu

Advanced Features

22 Connecting to a PC

23 Network Connection

30 Media Play

37 Anynet+

40 Internet@TV

43 AllShare

Other Information

45 Analogue Channel Teletext Feature

46 Assembling the Cables

47 Installing the Wall Mount

48 Securing the TV to the wall

49 Troubleshooting

52 Speciﬁcations

53 Index

Check the Symbol!



This function can be used by

pressing the TOOLS button on the

remote control.

Note One-Touch Button

TOOLS

[PC6500_Aus]BN68-02889A-00Eng.indb 3 2010-04-02 오후 2:01:37

English

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

yRemote Control & Batteries (AAA x 2)

yWarranty Card / Safety Guide (Not available in some locations)

yCleaning Cloth

yOwner’s Instructions

yBlanking Bracket yCable tie yHolder-Wire stand

yHolder-Wire (3ea) yComponent Adapter yAV Adapter

yComponent Sound in Adapter yFerrite Core (2EA) yFerrite Core (2EA)

✎

Ferrite Core: The ferrite cores are used to shield

the cables from interference. When connecting

a cable, open the ferrite core and clip it around

the cable near the plug as shown in the figure.

Distance between the ferrite core and one end

of the cord put into the TV set.

yA : below 50 mm

yB : below 20 mm

See separate guide for installing the stand.

5EA (M4 X L12)

5EA (M4 X L10)

yStand (1EA) yGuide Stand (1EA) yScrews

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

yMaximum thickness - 0.55 inches (14mm)

(M4 X L12)

[PC6500_Aus]BN68-02889A-00Eng.indb 4 2010-04-02 오후 2:01:39

01 Getting Started

English

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE



Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER



button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.



Adjusts the volume. In the OSD, use the



buttons as you would use the

◄ and ► buttons on the remote control.



Changes the channels. In the OSD, use the



buttons as you would use the

▼ and ▲ buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.



(Power) Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Speakers

Power Indicator

[PC6500_Aus]BN68-02889A-00Eng.indb 5 2010-04-02 오후 2:01:40

Getting Started

English

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and

Volume buttons.

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

CH LIST

MUTE

POWER

SOURCE

PRE-CH

TOOLS

RETURN

P.SIZE

SUBT.

DUAL

EXIT

INFO

TTX/MIX

A B C D

INTERNET

MEDIA.P

CONTENT

GUIDE

ON/OFF

I-II

@TV

Turns the TV on and off.

Displays and selects the available video

sources (p. 9).

Turns the remote control light on or

off. When on, the buttons become

illuminated for a moment when pressed.

(Using this button frequently will reduce

the battery usage time in the remote

control.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen

(p. 12).

Displays the EPG (Electronic Programme

Guide) (p.10).

Displays information on the

TV screen.

Exits the menu.

Have direct access to channels.

Adjusts the volume.

Alternately select Teletext ON,

Double, Mix or OFF.

Opens the OSD.

Quickly select frequently used functions.

Displays the Content View, which

includes Guide, Internet@TV,

Media Play, and AllShare.

Returns to the previous menu.

Selects the on-screen menu items and

changes the values seen on the menu.

These buttons are for the

Channel Manager, Internet@TV,

Media Play menu, etc.

Use these buttons in Media Play

and Anynet+ modes (p. 30, 37).

(



: Controls recording for Samsung

recorders that have the Anynet+ feature)

MEDIA.P: Displays Media Play (p. 30).

INTERNET@TV: Link to various internet

services (p. 40).

Dual





: Sound effect selection (p. 18).

AD: Turns the audio description on and

off (p. 17). This is not available in some

locations.

P.SIZE: Selects the picture size (p. 15).

SUBT.: Displays digital subtitles (p. 20).

[PC6500_Aus]BN68-02889A-00Eng.indb 6 2010-04-02 오후 2:01:40

01 Getting Started

English

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER



button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

1Selecting Store Demo

or Home Use

Press the ◄ or ► button, then press the ENTER



button.

ySelect the Home Use mode. Store Demo Mode is for

retail environments.

yTo return the unit’s settings from Store Demo to

Home Use (standard): Press the volume button on

the TV. When the OSD volume is displayed, press and

hold MENU for 5 sec.

POWER

2Selecting a country Press the ▲ or ▼ button, then press the ENTER



button.

Select the appropriate country.

3Selecting a channel Press the ▲ or ▼ button, then press the ENTER



button.

After selecting the channel source to memorise, select Search. For more information, refer

to Channel → Auto Store (p. 12).

✎

Press the ENTER



button at any time to interrupt the memorization process.

4Setting the Clock

Mode

Set the Clock Mode automatically or manually.

yAuto: Allows you to select a time zone.

✎

Press the ▲ or ▼ button to highlight the time zone for your local area. Press the

ENTER



button. (Australia only)

yManual: Allows you to manually set the current date and time (p. 18).

5Viewing the HD

Connection Guide.

The connection method for the best HD screen quality is displayed.

6Enjoy your TV. Press the ENTER



button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to

change the PIN number, use the Change PIN function.

ANT OUT

VHF/UHF Antenna

Cable

[PC6500_Aus]BN68-02889A-00Eng.indb 7 2010-04-02 오후 2:01:41

English

Connections

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI

(DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /

annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and

request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

PRPBY

COMPONENT OUT VIDEO OUTAUDIO OUT

R-AUDIO-L

AUDIO OUT

R-AUDIO-L

W R

WRWR

DVD / VCRBlu-ray player

Red

White

Yellow

Red Blue Green

HDMI OUT

DVI OUT

R-AUDIO-L

AUDIO OUT

DVD

WhiteRed

[PC6500_Aus]BN68-02889A-00Eng.indb 8 2010-04-02 오후 2:01:42

English

02 Connections

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analogue) Cable or Headphone Connections

Available devices: digital audio system, ampliﬁer, DVD home theatre

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is

a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is

connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to

hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite

receiver directly to an amplifier or home theatre.

✎

Headphones



: You can connect your headphones to the headphones output on your set. While the

headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

OPTICAL

Digital Audio System

Changing the Input Source

Source List

Use to select TV or other external input

sources such as DVD / Blu-ray players

/ cable box / STB satellite receiver

connected to the TV.

■TV / PC / AV / Component /

HDMI1/DVI / HDMI2 / HDMI3 /

HDMI4 / USB

✎

In the Source List, connected

inputs will be highlighted.

✎

PC always stay activated.

Edit Name

■VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC /

DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make

your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @

60Hz is connected to the HDMI IN 1(DVI) port,

you should set to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

SOURCE

[PC6500_Aus]BN68-02889A-00Eng.indb 9 2010-04-02 오후 2:01:43

English

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to

navigate the menu and select and adjust different functions.

1 ENTER



/ Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu.

4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1MENU



The main menu options appear on

the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support.

2▲ / ▼Select an icon with the ▲ or ▼

button.

3ENTER



Press ENTER



to access the

sub-menu.

4▲ / ▼Select the desired submenu with

the ▲ or ▼ button.

5◄ / ►Adjust the value of an item with the

◄ or ► button. The adjustment in

the OSD may differ depending on

the selected menu.

6ENTER



Press ENTER



to complete the

conﬁguration.

7EXIT



Press EXIT.

Using the INFO button (Now & Next guide)

The display identiﬁes the current channel

and the status of certain audio-video

settings.

The Now & Next guide shows daily TV

programme information for each channel

according to the broadcasting time.

yScroll ◄, ► to view information for a

desired programme while watching the

current channel.

yScroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press

the ENTER



button.

DTV Air

DEF

18:00 ~ 6:00

18:11 Thu 6 Jan

Life On Venus Avenue

Unclassified

No Detaild Information

Information

Watch

Planning Your Viewing

Guide

The EPG (Electronic Programme Guide)

information is provided by broadcasters.

Using programme schedules provided

by broadcasters, you can specify

programmes you want to watch in

advance so that the channel automatically

changes to the selected programme

channel at the speciﬁed time. Programme

entries may appear blank or out of date depending on a

channel status.

✎

In New Zealand, if Digital Text is set to Enable, the

EPG (Electronic Programme Guide) will work.

(refer to page 20)

Using Channel View

H LI

MUTE

SOU

PRE-CH

TOO

RETURN

.SIZE

DUA

EXIT

INTERNET

T V

MEDIA.P

NTEN

UIDE

INFO

GUIDE

DTV Air 800 five

Home and Away

18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

800

Discovery

DiscoveryH&L

five

price-drop.tv

QVC

R4DTT

American Chopper

Programmes resume at 06:00

Home and...

No Information

QVC Selection

No Information

Tine Team

Fiv...

18:00 - 19:00 19:00 - 20:00

)

Family Affairs

)

Dark Angel

800 ﬁve

View Mode



+24 Hours Ch. Mode



Information





Page



Watch

2:10 Tue 1 Jun

Guide

Channel View - All

1 2 3 4 5 6

[PC6500_Aus]BN68-02889A-00Eng.indb 10 2010-04-02 오후 2:01:45

Andere Handbücher für Plasma TV

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung Q7C Series Bedienungsanleitung

Samsung

Samsung Q80A Bedienungsanleitung

Samsung

Samsung CL15K5MNFX/XAP Bedienungsanleitung

Samsung

Samsung 4304 Bedienungsanleitung

Samsung

Samsung SP-42L6HR Bedienungsanleitung

Samsung

Samsung HG24ND470 Bedienungsanleitung

Samsung

Samsung UN46EH5000FXZA Programmierhandbuch

Samsung

Samsung CS20F10MJ0XBWT Bedienungsanleitung

Samsung

Samsung QE55Q90R Bedienungsanleitung

Samsung

Samsung UN82MU7050 Bedienungsanleitung

Samsung

Samsung Plasma TV Bedienungsanleitung

Samsung

Samsung UN KS8000F Series Bedienungsanleitung

Samsung

Samsung Colour Television Bedienungsanleitung

Samsung

Samsung CB-15N112T Bedienungsanleitung

Samsung

Samsung UN40HU6900 Bedienungsanleitung

Samsung

Samsung CX6840W3X Bedienungsanleitung

Samsung

Samsung Colour Television Bedienungsanleitung

Samsung

Samsung CS20V10MJOXAWE Bedienungsanleitung

Samsung

Samsung UE48H5000 Bedienungsanleitung

Samsung

Samsung Plasma TV Bedienungsanleitung

Samsung

Samsung UN49KU6500 Bedienungsanleitung

Samsung

Samsung Sero QE43LS05TCUXXN Bedienungsanleitung

Samsung

Samsung CL21M2 Einrichtungshandbuch

Samsung

Samsung CK1438VR5X/VWT Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
