Samsung PS50B530S2W Bedienungsanleitung

English - 1

The Supplied Accessoris

Owner’s Instructions Remote Control/

AAA Batteries (2ea)

Power Cord Cloth-Clean

Holder-Wire Cable Screw (4ea) Cover-Bottom Holder-Ring (4ea)

Ferrite Core for

Power Cord

Installing Batteries in the Remote Control

PDP TV

QUICK SETUP GUIDE

BN68-02282A.indd 1 2009-04-09 오후 3:35:21

All manuals and user guides at all-guides.com

all-guides.com

English - 2

Installing the Stand

Step 1. Attach your PDP TV to the stand.

Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the oor because of possible damage to the screen.

Always store the TV upright.

Step 1. Using the 4 screws for securing the stand base and the monitor, rmly attach the monitor to the stand base. (The exterior of

the set may be different than the picture.)

Step 3. In case of installing your TV on the wall, close the cover 1on the stand-base connection part using two screws for hiding.

Assembling the Cables

Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the

transparent stand.

Using the remote control buttons

Back

Front Back

Front

Step 1 Step 2 Step 3

RETURN Button

Returns to the previous menu

EXIT Button

Exit the on-screen menu

MENU Button

Displays the favourites channel list.

ENTER

/ Direction Button

Move the cursor and select an item.

Select the currently selected item.

Confirm the setting.

BN68-02282A.indd 2 2009-04-09 오후 3:35:24

All manuals and user guides at all-guides.com

English - 3

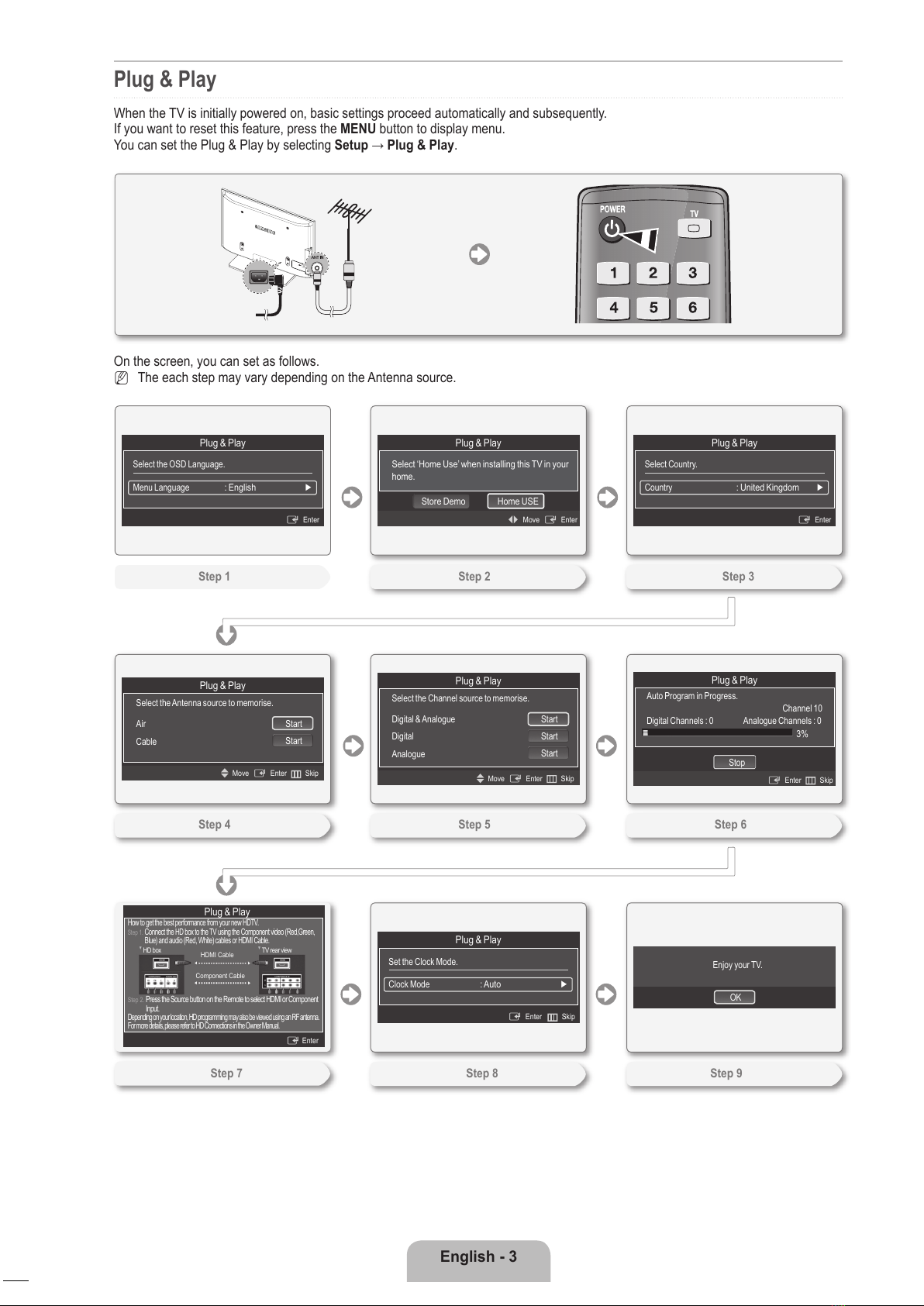

Plug & Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting Setup → Plug & Play.

On the screen, you can set as follows.

The each step may vary depending on the Antenna source.

Plug & Play

Select the OSD Language.

Enter

Menu Language

: English

►

Step 1

Plug & Play

Select the Antenna source to memorise.

Air

Cable Start

Move

Enter Skip

Start

Step 4

Step 3

Plug & Play

Select Country.

Enter

Country

: United Kingdom

►

Step 2

Plug & Play

Select ‘Home Use’ when installing this TV in your

home.

Store Demo Home USE

Move

Enter

Step 9

Enjoy your TV.

Step 5

Plug & Play

Select the Channel source to memorise.

Digital & Analogue

Digital

Analogue

Start

Move

Enter Skip

Start

Step 6

Plug & Play

Auto Program in Progress.

Stop

Channel 10

Digital Channels : 0 Analogue Channels : 0

Step 8

Plug & Play

Set the Clock Mode.

Enter Skip

Clock Mode

: Auto

►

Enter Skip

Step 7

Plug & Play

How to get the best performance from your new HDTV.

Step 1. Connect the HD box to the TV using the Component video (Red,Green,

Blue) and audio (Red, White) cables or HDMI Cable.

▼

HD box

▼

TV rear view

Enter

Step 2. Press the Source button on the Remote to select HDMI or Component

Input.

Dependingonyourlocation,HDprogrammingmayalsobeviewedusinganRFantenna.

Formoredetails,pleaserefertoHDConnectionsintheOwnerManual.

HDMI Cable

Component Cable

BN68-02282A.indd 3 2009-04-09 오후 3:35:26

All manuals and user guides at all-guides.com

English - 4

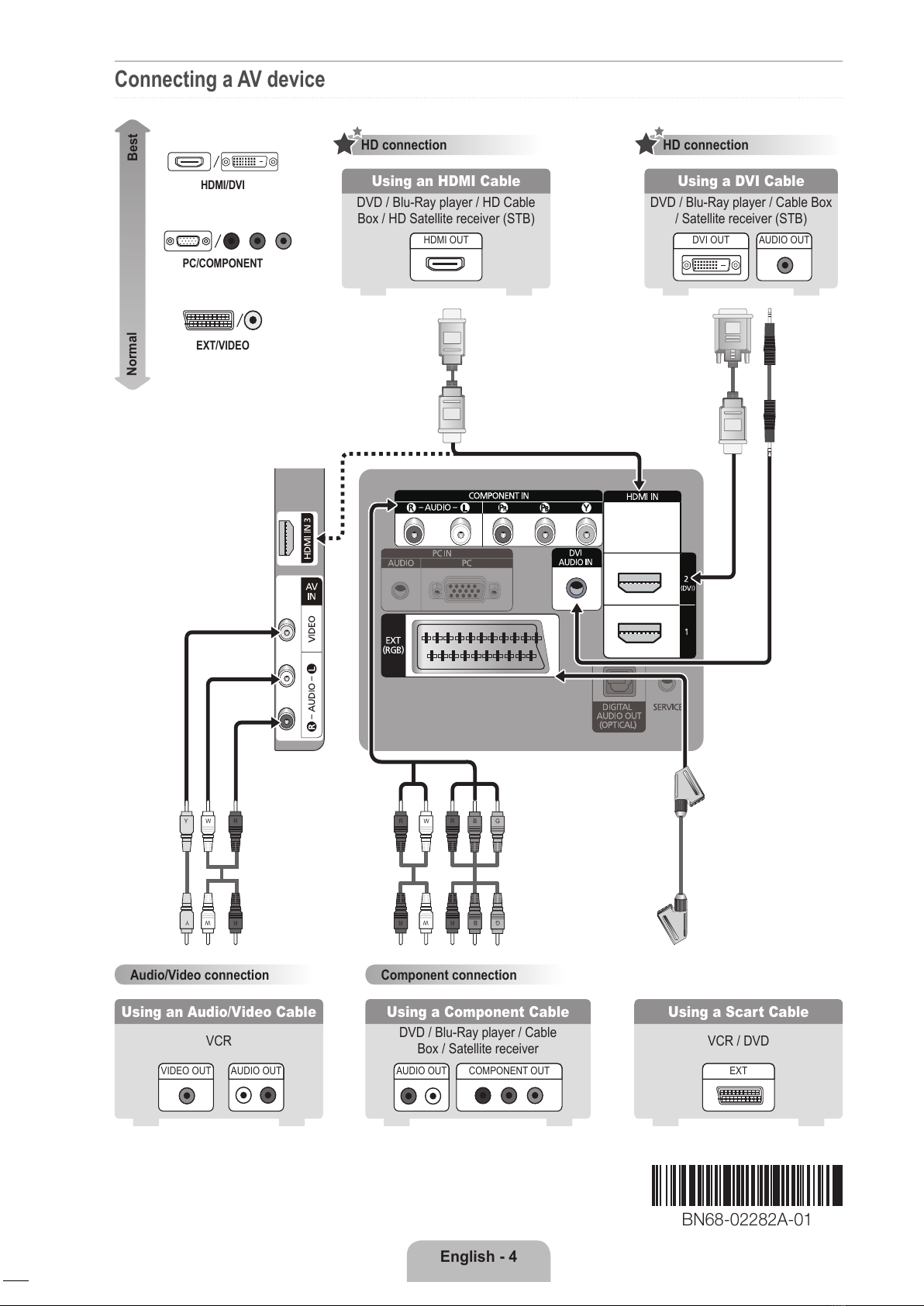

Connecting a AV device

WY R

W YR

W R

HD connection

DVD / Blu-Ray player / Cable Box

/ Satellite receiver (STB)

Using a DVI Cable

AUDIO OUTDVI OUT

HD connection

DVD / Blu-Ray player / HD Cable

Box / HD Satellite receiver (STB)

Using an HDMI Cable

HDMI OUT

Audio/Video connection

VCR

Using an Audio/Video Cable

AUDIO OUTVIDEO OUT

Component connection

DVD / Blu-Ray player / Cable

Box / Satellite receiver

Using a Component Cable

AUDIO OUT COMPONENT OUT

HDMI/DVI

PC/COMPONENT

EXT/VIDEO

Best

Normal

VCR / DVD

Using a Scart Cable

EXT

BN68-02282A-01

BN68-02282A

BN68-02282A.indd 4 2009-04-09 오후 3:35:28
