Samsung SP-43T8HL Leitfaden
1
ENG
Control Panels (depending on the model)
➢The actual configuration on your TV may be different, depending on
your model.
➢
Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:
◆Switch on the TV when it is in Standby mode and select channels
(CH or Picture On/Off)
◆Access the menu ( MENU )
◆Adjust the volume (
-
VOL +)
◆Switch among Video input modes (SOURCE ) and access to the selected option on the menu
system ( )
( a ) Input Source Selection
( b ) Menu Display
( c ) Channel Selection
( d ) Volume Adjustment
( e ) Power On/Off
( f ) Standby & Timer Indicator
( g ) Remote Control Sensor
( h ) Accessing to the Selected Option
on the Menu System
( i ) Picture On/Off
SP43T8
SP54T8
SP43T7
SP43W6
SP42Q2
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 6
2
ENG

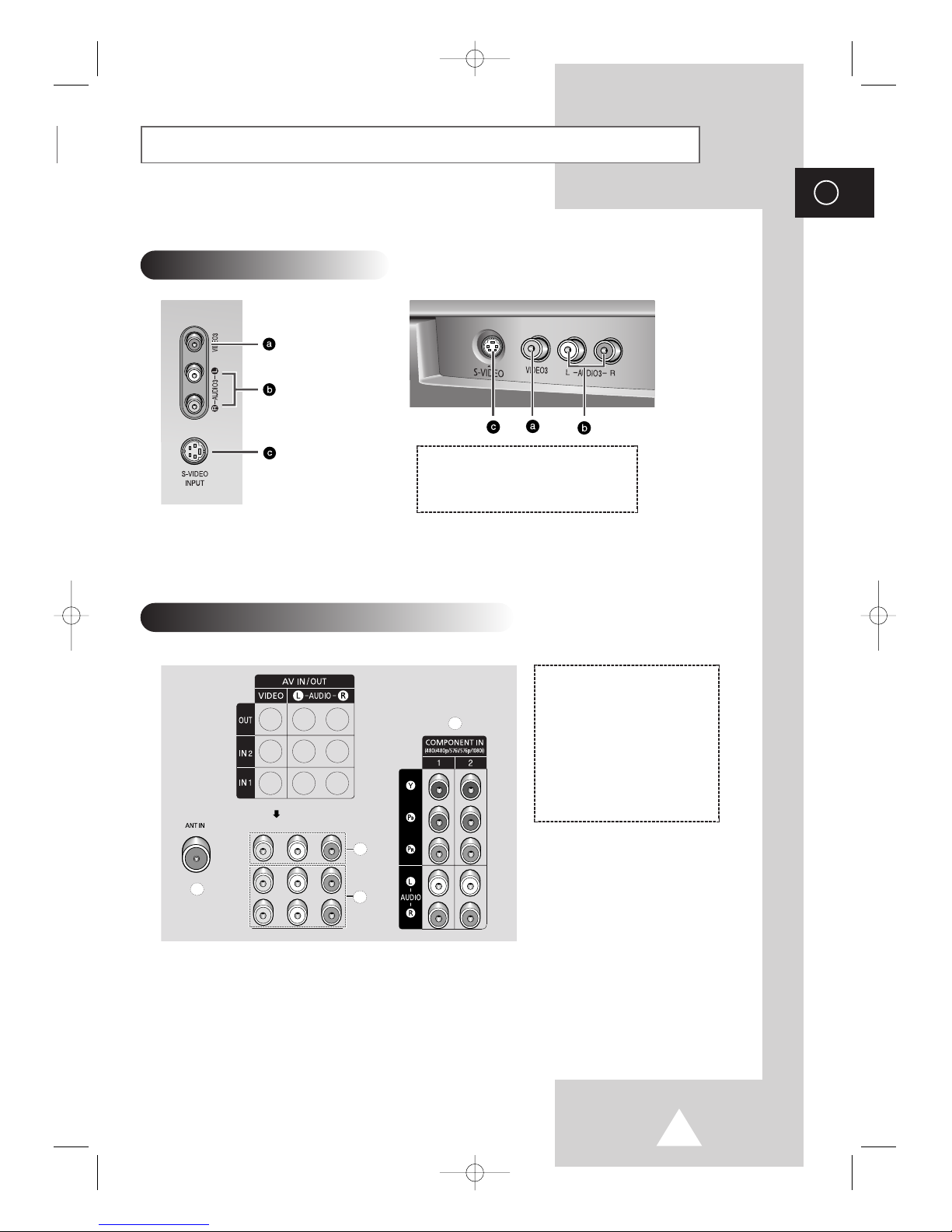

Connection Panels (depending on the model)
➢The actual configuration on your TV may be different, depending on
your model.
Side of the TV
( a )
Video Input
( b )
Audio Input
( c )
S-Video Input
:➢For further details about connection, refer to pages 7~10.
☛Whenever you connect an audio or video system to your television, ensure that all elements are
switched off. Refer to the documentation supplied with your equipment for detailed connection
instructions and associated safety precautions.
Rear of the TV
d
ab
c
( a ) ANT IN VHF/UHF (75Ω)
( b ) AV INPUT
(VIDEO/L-AUDIO-R)-1, 2
( c ) AV OUTPUT
(VIDEO / L-AUDIO-R)
( d ) COMPONENT
VIDEO/AUDIO INPUT
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 7
3
ENG
Using a Display Deck (depending on the model)
You can display a VCR or DVD Player, etc. by using the display
deck.
SP54T8
1Hold the center of the door and lift it up in the direction of arrow.
2After placing a component you have in the display deck, hold the
center of the door and pull it down.
➢
You should display only the component that is within
126mm high. When displaying a component in the
display deck, please space it out 30mm from the front,
20mm from either end.
SP43W6
Inserting the Batteries in the Remote Control
You must insert or replace the batteries in the remote control when
you:
◆Purchase the television
◆Find that the remote control is no longer operating
correctly
1Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆
+
on the battery against
+
on the remote control
◆
-
on the battery against
-
on the remote control
3Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
SP54T8
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 8
4
ENG
Infrared Remote Control
➢The performance of the remote control may be affected by bright light.
DIRECT CHANNEL SELECTION
MENU DISPLAY/
TELETEXT INDEX
CONTROL THE CURSOR
IN THE ON-SCREEN MENU
SURROUND ON/OFF DIRECTLY
TELEVISION STANDBY
FASTEXT TOPIC SELECTION
AUTOMATIC SWITCH-OFF
TELETEXT PAGE HOLD
INFORMATION DISPLAY/
TELETEXT REVEAL
EXIT FROM ANY DISPLAY
ONE OR TWO-DIGIT CHANNEL
SELECTION/
TELETEXT STORE
SELF FOCUS
PICTURE FREEZE
TELETEXT SUB-PAGE
TELETEXT CANCEL
EXTERNAL INPUT SELECTION/
TELETEXT MODE (LIST/FLOF)
SELECTION
SWITCH REPEATEDLY BETWEEN THE
LAST TWO CHANNELS DISPLAYED
CONFIRM YOUR CHOICE
(STORE OR ENTER)
NEXT CHANNEL/
TELETEXT NEXT PAGE
PICTURE EFFECT SELECTION
IF YOUR REMOTE CONTROL IS
NOT FUNCTIONING PROPERLY,
TAKE OUT THE BATTERIES AND
PRESS THE RESET BUTTON FOR
ABOUT 2~3 SECONDS. RE-INSERT
THE BATTERIES AND TRY USING
THE REMOTE CONTROL AGAIN.
SOUND MODE SELECTION
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
MAKE THE REMOTE CONTROL WORKS
FOR TV, STB, VCR, CABLE, DVD
PLAYER
TUNER/CABLE NETWORK
SELECTION
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
VOLUME DECREASE
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
SOUND EFFECT SELECTIOND
PICTURE SIZE/
TELETEXT SIZE SELECTION
VCR/DVD FUNCTIONS;
-REWIND ( )
-STOP ( )
-PLAY/PAUSE ( )
-FAST FORWARD ( )
REMOTE CONTROL SETUP
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 9
5
ENG
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
◆A satellite network
1In the first three cases, connect the aerial or network input cable to
the 75Ωcoaxial socket on the rear of the television.
2If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to the user manual :
◆“Storing Channels Automatically” on page 20
◆“Storing Channels Manually” on page 22.
Connecting to an Aerial or Cable Television Network
Rear of the TV
Cable Television
Network
or
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 10
6
ENG
Connecting a Satellite Receiver or Decoder
In order to watch television programmes broadcast via a satellite
network, you must connect a satellite receiver to the rear of TV.
Also, in order to descramble a coded transmission signal, you must
connect a decoder to the rear of TV.
Using a Coaxial cable
Connect a coaxial cable to the:
◆Receiver (or Decoder) output socket.
◆Television aerial input socket.
➢If you wish to connect both a satellite receiver (or decoder)
and a VCR, you should connect the:
◆Receiver (or Decoder) to the VCR
◆VCR to the television
Otherwise, connect the receiver (or decoder) directly to the
television.
Rear of the TV
Satellite receiver/
Decoder
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 11
7
ENG
☛Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
Connecting to the External Devices
Rear of the TV
(Input/Output)
①
This end can be fitted with:
◆Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to
“IN 1”
and the
target VCR to
“OUT”
so that you can redirect the signal from
source VCR
to target VCR.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
“OUT” is used for displaying the current picture to an external device.
When you wish to record the
current picture, connect the VCR to
“OUT”
.
①
Side of the TV
(Input)
(depending on the model)
Camcorder
Video disc player
Video game device
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
③
➃
②
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 49
8
ENG
➢The AUDIO-L and R connectors are used for equipment, such as an audio system or external amplifier
(to take full advantage of the Surround sound effect).
Audio System/
External Amplifier

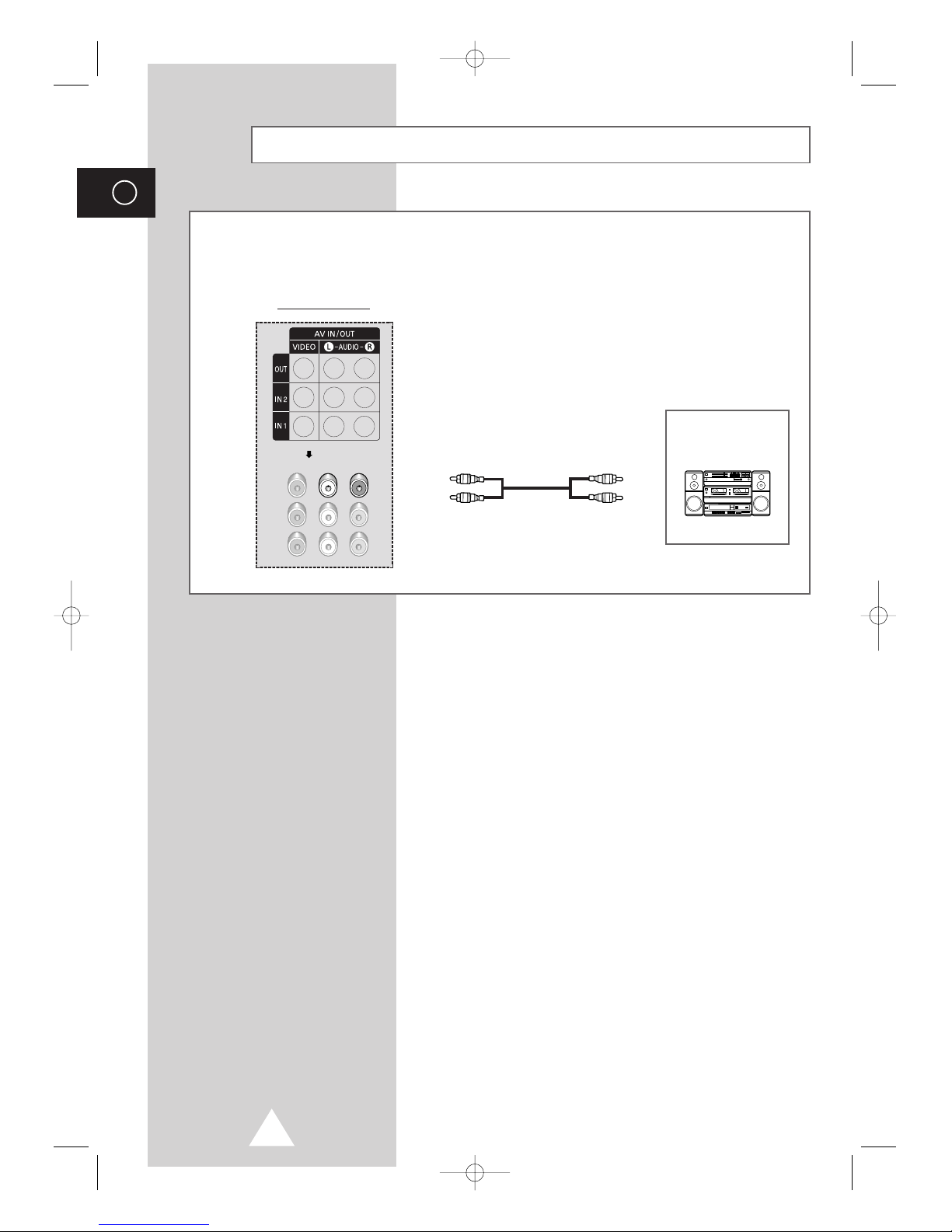

Connecting to the Audio Outputs
Rear of the TV
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 50
9
ENG
Connecting to the S-Video Input
➢The S-VIDEO (or S-VIDEO INPUT) and RCA (AUDIO3-L and R) connectors are used for
equipment with an S-Video output, such as a camcorder or VCR.
Camcorder
VCR
①
To play pictures and sound, both the S-VIDEO (or S-VIDEO INPUT) and RCA connectors must be used.
and
①
and
①
Side of the TV
(depending on the model)
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 51
10
ENG

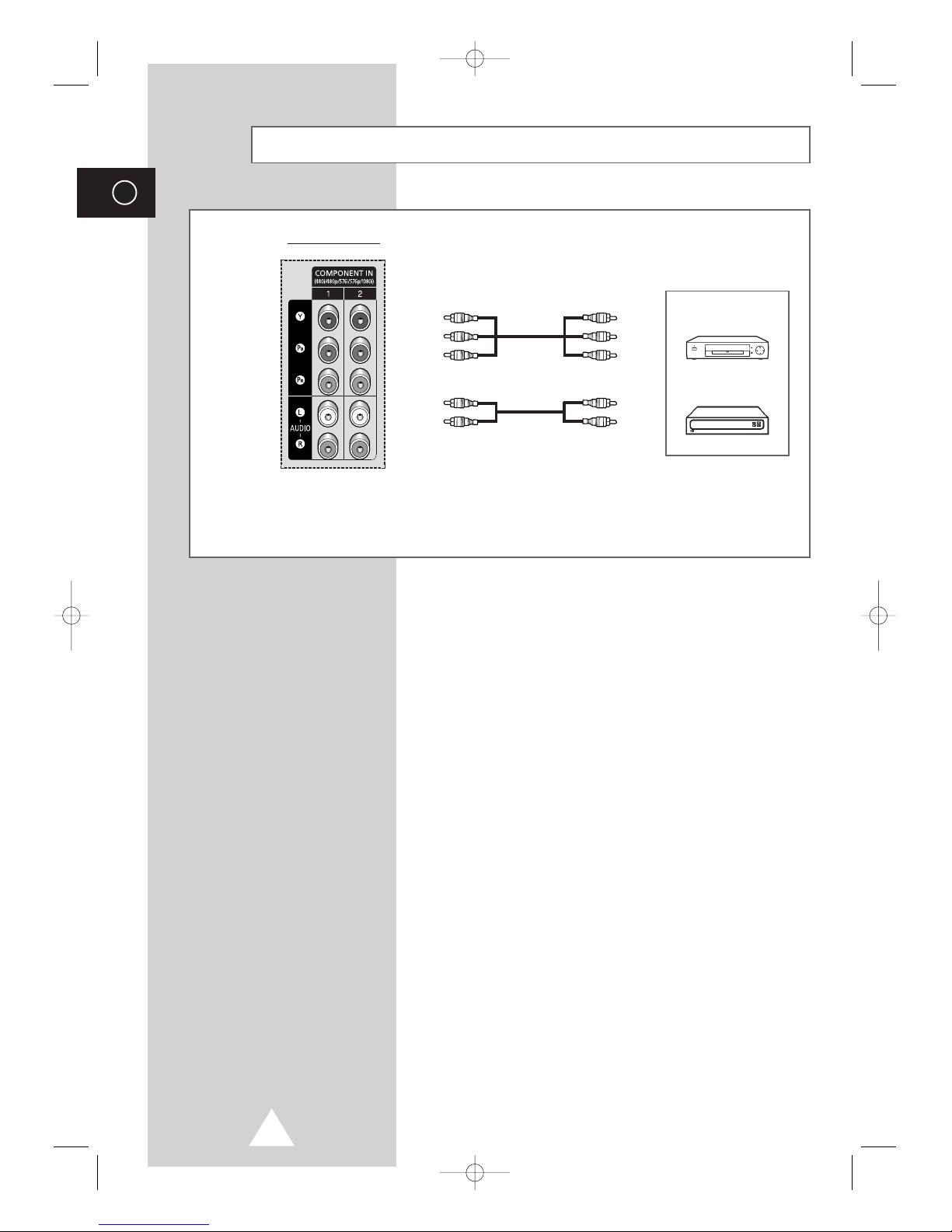

Connecting to the Component Input
➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.
(480i, 480p, 576i,576p, 1080i)
DVD
Rear of the TV
DTV receiver
①
②
BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 52
