Samsung SP-46L5HR Kurzanleitung

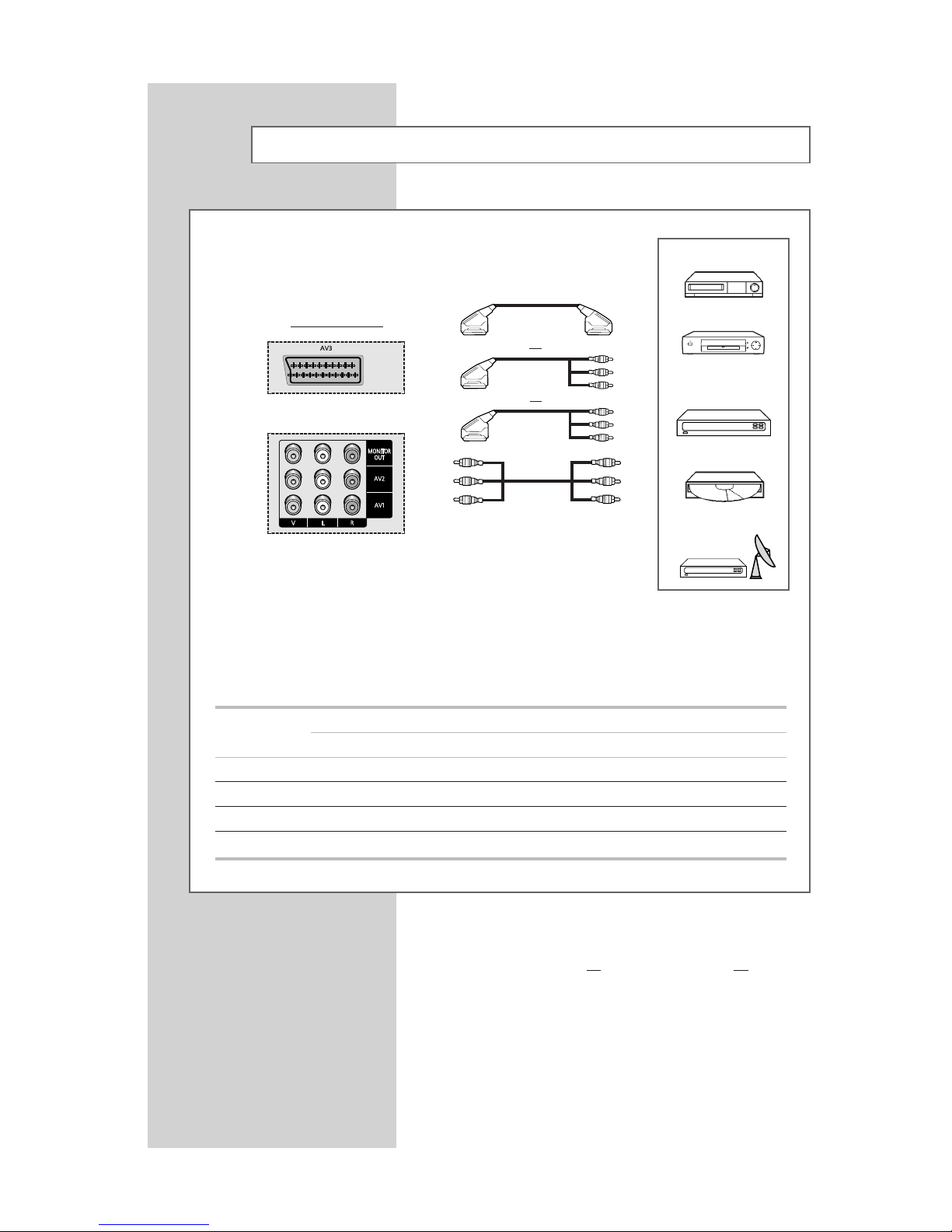

Connecting to the External Input/Output

“AV3” is used for the equipment with an RGB output, such as video game

devices or video disc players.

Rear of the TV

①

This end can be fitted with:

◆A SCART connector

◆An S-Video connector and two audio RCA connectors (L+R)

◆Three RCA connectors (VIDEO + AUDIO-L/R)

Input/Output Specification

Connector Input Output

Video Audio (L/R) S-Video RGB Video + Audio (L/R)

AV1 ✔✔ ✔

AV2 ✔✔ ✔

AV3 ✔✔ ✔✔ Only TV output is available.

MONITOR OUT Output you are viewing.

S-VIDEO 1 S-VIDEO 2

①

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

☛Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

S-VIDEO 1 S-VIDEO 2

Connecting to the DVD Input

The RCA connectors are used for equipment with a DVD output.

DVD

Rear of the TV

S-VIDEO 1 S-VIDEO 2

Y / Pb / Pr

L / R

Connecting to the Audio Outputs

The “AUDIO OUT” connectors are used for equipment, such as an audio system or external amplifier

(to take full advantage of the Surround sound effect).

Rear of the TV

S-VIDEO 1 S-VIDEO 2

Audio System/

External Amplifier

Connecting to the Audio/Video Input

The RCA (VIDEO + L-AUDIO-R) connectors are used for equipment such as camcorders, video disc

players and some video game devices.

Side of the TV

Camcorder

Video disc player

Video game device

SP43L2HX/

SP50L2HX/

SP61L2HX

SP46L5HX/

SP56L5HX

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

and

①

Rear of the TV

S-VIDEO 1 S-VIDEO 2

or and

①

Side of the TV

SP43L2HX/SP50L2HX/

SP61L2HX

SP46L5HX/

SP56L5HX

Connecting to the PC Input

The “PC” (video) and “PC AUDIO (L+R)” connectors are used for interfacing with your PC.

Personal Computer

and

Rear of the TV

S-VIDEO 1 S-VIDEO 2

Connecting to the DVI Input

The “DVI” (video) and “PC AUDIO (L+R)” connectors are used for equipment with a DVI output.

and

Personal Computer

Rear of the TV

S-VIDEO 1 S-VIDEO 2

➢The “DVI” does not support the Analog R (red), G (green) and B (blue) signals.
