COLOUR

TELEVISION

SP43L2HX

SP50L2HX

SP61L2HX

SP46L5HX

SP56L5HX

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PICTURE INPICTURE (PIP)

TELETEXT

ENG

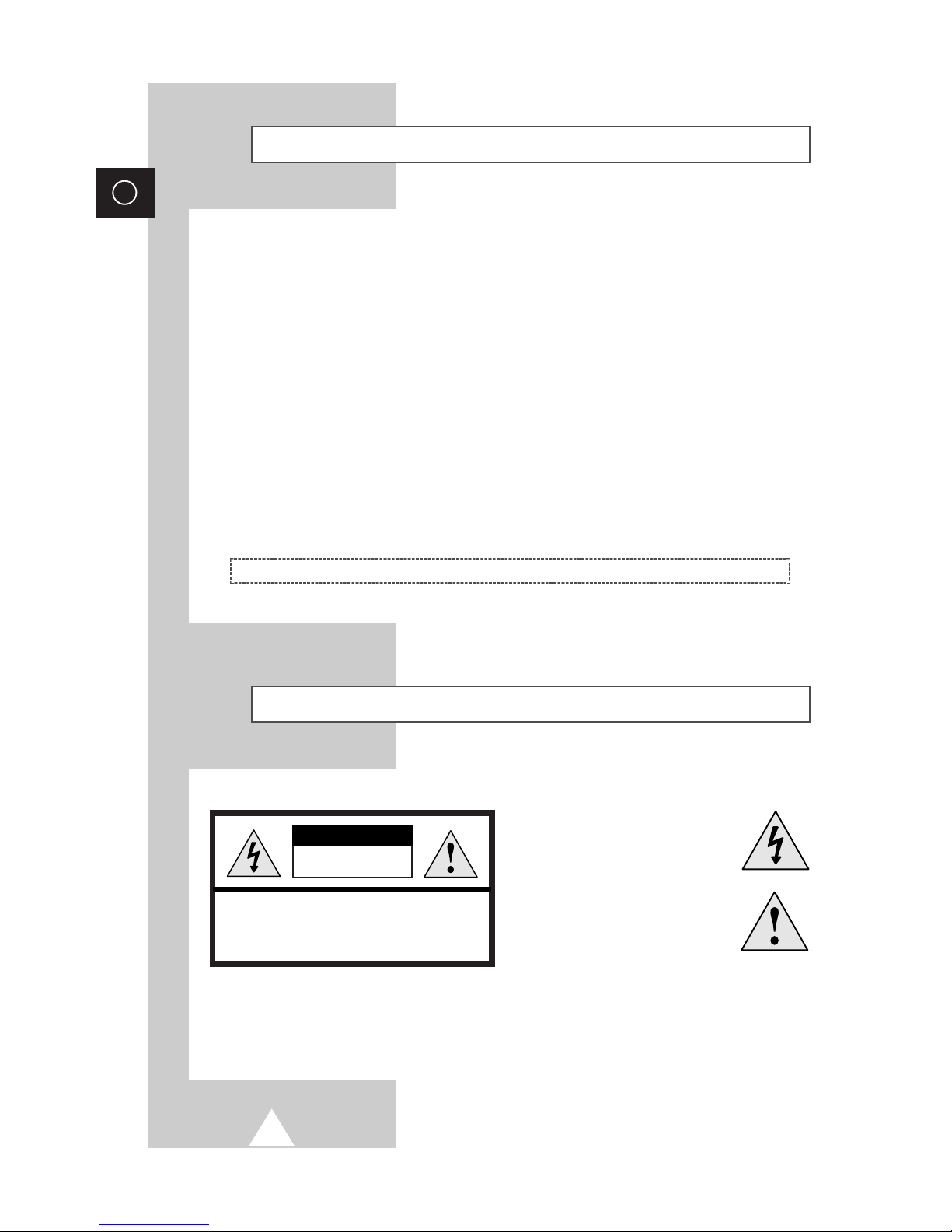

Safety Instructions

◆Do not expose the television to extreme temperature conditions or to extreme humidity conditions.

◆Do not expose the television to direct sunlight and other sources of heat.

◆Do not expose the television to any liquids.

◆Never put objects of any kind into the television, and do not place a water-containing vessel on the

television.

◆During a storm conditions (especially when there is lightning) unplug the television from the mains

socket and aerial.

◆Do not step on or twist the power cord.

◆Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.

◆Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.

◆If the television is broken, do not try to repair it yourself. Contact qualified service personnel.

◆If the remote control is not used for a long period of time, remove the batteries and store it in a

cool, dry place.

◆Do not drop the remote control.

This device is not for use in industrial environments.

Caution

WARNING: TO PREVENT DAMAGE WHICH MAY RESULT

IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRICAL SHOCK,

DO NOT REMOVE REAR COVER, NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

The lightning flash and arrow head

within the triangle is a warning sign

alerting you of “dangerous voltage”

inside the product.

The exclamation point within the

triangle is a warning sign alerting

you of important instructions

accompanying the product.

☛The main voltage is indicated on the

rear of the TV set and the frequency is

50 or 60Hz.

ENG

Contents

◆FOREWORD

■Safety Instructions ......................................................................................... 2

■Caution .......................................................................................................... 2

■Replacing the Lamp....................................................................................... 5~6

◆CONNECTING AND PREPARING YOUR TELEVISION

■Control Panel of Your Television ................................................................... 7~8

■Connection Panel of Your Television ............................................................ 9

■Connecting to an Aerial or Cable Television Network ................................... 10

■Connecting a Satellite Receiver or Decoder.................................................. 10

■Connecting Additional Speakers ................................................................... 11

■Inserting the Batteries in the Remote Control................................................ 11

■Infrared Remote Control ................................................................................ 12

■Switching Your Television On and Off........................................................... 13

■Placing Your Television in Standby Mode..................................................... 13

■Becoming Familiar with the Remote Control ................................................. 14

■Plug & Play Feature....................................................................................... 15~16

■Choosing Your Language.............................................................................. 16

◆SETTING THE CHANNELS

■Storing Channels Automatically..................................................................... 17

■Storing Channels Manually............................................................................ 18~19

■Skipping Unwanted Channels ....................................................................... 20

■Sorting the Stored Channels ......................................................................... 21

■Assigning Names to Channels ...................................................................... 22

■Activating the Child Lock ............................................................................... 23

■Selecting a Channel by Information............................................................... 24

◆USING YOUR TELEVISION (continued)

■Changing the Picture Standard ..................................................................... 25

■Adjusting the Picture Settings........................................................................ 26

■Adjusting the Picture Settings (PC or DVI Mode) .......................................... 27

■Setting the Picture (PC Mode)....................................................................... 28

■Using the Fine Tune ...................................................................................... 29

■Viewing the Channel Scan Picture ................................................................ 30

■Freezing the Current Picture ......................................................................... 30

■Using the LNA (Low Noise Amplifier) Feature............................................... 31

■Selecting the Picture Size.............................................................................. 32

■Using the Digital NR (Digital Noise Reduction) Feature ................................ 33

■DNIeTM (Digital Natural Image engine) ............................................... 34

■Setting the Blue Screen................................................................................. 35

■Selecting the Film Mode ................................................................................ 35

■Changing the Sound Standard ...................................................................... 36

ENG

Contents (continued)

◆USING YOUR TELEVISION

■Adjusting the Sound Settings ........................................................................ 37

■Adjusting the Volume Automatically .............................................................. 37

■Setting the Dolby Pro Logic........................................................................... 38

■Adjusting Your Dolby Preferences................................................................. 39

■Setting the External Sound............................................................................ 40

■Selecting the Sound Mode (depending on the model) .................................. 41

■Setting the Melody Sound ............................................................................. 42

■Setting the Sleep Timer ................................................................................. 43

■Setting and Displaying the Current Time....................................................... 44

■Switching the Television On and Off Automatically ....................................... 45

■Viewing an External Signal Source ............................................................... 46

■Viewing the Picture In Picture (PIP) .............................................................. 47~48

■Listening to the Sound of the Sub Picture (PC or DVI Mode)........................ 49

◆USING THE TELETEXT FEATURE

■Teletext Feature ............................................................................................ 50

■Displaying the Teletext Information ............................................................... 51

■Selecting Display Options.............................................................................. 52

■Selecting a Teletext Page.............................................................................. 53

◆ADDITIONAL INFORMATION AND CONNECTIONS

■Connecting to the External Input/Output ....................................................... 54

■Connecting to the DVD Input......................................................................... 55

■Connecting to the Audio Outputs................................................................... 55

■Connecting to the Audio/Video Input............................................................. 56

■Connecting to the S-Video Input.................................................................... 56

■Connecting to the DVI Input .......................................................................... 57

■Connecting to the PC Input ........................................................................... 57

■Setting up Your PC Software (Windows only) ............................................... 58

■Input Mode (PC/DVI) ..................................................................................... 59

■Pin Configurations ......................................................................................... 60

■Programming the Remote Control for Other Components ............................ 61

VCR Remote Control Codes ...................................................................... 62~63

Cable Box (CATV) Remote Control Codes ................................................ 63

DVD Remote Control Codes ...................................................................... 63

◆RECOMMENDATIONS FOR USE

■Troubleshooting: Before Contacting Service Personnel................................ 64

■Technical Specifications ................................................................................ 65

☛➢

Press Important Note

Symbols

ENG

1Use a screwdriver to remove the screw.

2Remove the Lamp cover.

3Use a screwdriver to remove the screws securing the Lamp.

There are 2 screws: one on the up and one on the down.

When the screws have been completely unfastened, they will still

be connected to the body of the Lamp.

4Separate the Lamp from the engine by holding the handle and

pulling it out.

5To reinstall the Lamp, follow these steps in reverse order.

☛A Projection TV lamp is a consumable item, and should be

replaced from time to time for best projector operation. If the

screen image becomes dark, or timer, lamp and Temp LEDs

flicker off at the same time, you may have to replace the lamp.

When changing the lamp, you should first verify the

type/model, and then use only the correct lamp replacement.

The code for lamp regulation and usage is marked on the

label. If you remove the lamp, you can identify this

replacement code. You should only replace the lamp with the

one of the same regulation code.

◆

If you wish to buy a new lamp,please phone your Service Center

or a nearby TV dealer, and tell them the model of your projection

unit.

◆

You can identify the lamp type on the left side of TV and the

lamp cover.

◆

The TV will be damaged if you use a lamp that is different from

the original supplied by the manufacturer. Be sure the

replacement lamp is the same model.

◆

Please don't remove the lamp except when replacing with a new

one.

◆

Please turn off TV power before changing a lamp and then

unplug after waiting 1 minute.

◆

The cooling fan will help cool the lamp so you can safely remove

it. The surface of the Lamp is very hot. Please wait for 30

minutes after turning off your projection TV to handle the lamp.

◆

Please keep the old lamp away from flammable articles and

children. Dispose of properly.

◆

Don't allow dirt or dust to accumulate inside the lamp cover or on

the Lamp.

◆

A dirty cover or lamp can catch fire, explode and cause electric

shock.

◆

Please don't touch the front glass of a new lamp or the glass of

the lamp container.

◆

If a new lamp is improperly handled,the quality of the screen

image can be affected and the expected life span of the lamp

can be reduced.

◆

Be sure to tighten the lamp cover on the TV after changing the

lamp. Note that the TV will not function if the lamp cover is not

securely attached. Please tighten the holding screw on the lamp

cover after it has been attached to the TV.

Replacing the Lamp (

SP43L2HX/SP50L2HX/SP61L2HX)

ENG

1Use a screwdriver to remove the screw.

2Remove the Lamp cover.

3Use a screwdriver to remove the screws securing the Lamp.

There are 2 screws: one on the up and one on the down.

When the screws have been completely unfastened, they will still

be connected to the body of the Lamp.

4Separate the Lamp from the engine by holding the handle and

pulling it out.

5To reinstall the Lamp, follow these steps in reverse order.

☛A Projection TV lamp is a consumable item, and should be

replaced from time to time for best projector operation. If the

screen image becomes dark, or timer, lamp and Temp LEDs

flicker off at the same time, you may have to replace the lamp.

When changing the lamp, you should first verify the

type/model, and then use only the correct lamp replacement.

The code for lamp regulation and usage is marked on the

label. If you remove the lamp, you can identify this

replacement code. You should only replace the lamp with the

one of the same regulation code.

◆

If you wish to buy a new lamp,please phone your Service Center

or a nearby TV dealer, and tell them the model of your projection

unit.

◆

You can identify the lamp type on the left side of TV and the

lamp cover.

◆

The TV will be damaged if you use a lamp that is different from

the original supplied by the manufacturer. Be sure the

replacement lamp is the same model.

◆

Please don't remove the lamp except when replacing with a new

one.

◆

Please turn off TV power before changing a lamp and then

unplug after waiting 1 minute.

◆

The cooling fan will help cool the lamp so you can safely remove

it. The surface of the Lamp is very hot. Please wait for 30

minutes after turning off your projection TV to handle the lamp.

◆

Please keep the old lamp away from flammable articles and

children. Dispose of properly.

◆

Don't allow dirt or dust to accumulate inside the lamp cover or on

the Lamp.

◆

A dirty cover or lamp can catch fire, explode and cause electric

shock.

◆

Please don't touch the front glass of a new lamp or the glass of

the lamp container.

◆

If a new lamp is improperly handled,the quality of the screen

image can be affected and the expected life span of the lamp

can be reduced.

◆

Be sure to tighten the lamp cover on the TV after changing the

lamp. Note that the TV will not function if the lamp cover is not

securely attached. Please tighten the holding screw on the lamp

cover after it has been attached to the TV.

Replacing the Lamp (

SP46L5HX/SP56L5HX)

ENG

Control Panel of Your Television

LED Indicators

➢

The actual configuration on your TV may be different, depending on

your model.

LED Indicators

( a ) Input Source Selection

( b ) Menu Display

( c ) Channel Selection

( d ) Volume Adjustment

( e ) Confirm your choice (Store or Enter)

( f ) Power On/Off

SP43L2/50L2HX SP61L2HX

SP46L5/56L5HX

ENG

(:On, :Blinking, :Off)

TIMER LAMP STAND BY/TEMP Indication

Standby mode.

A timer pilot lights when Timer Auto On or Off is selected.

Normal operation.

Normal operation (when Timer Auto On or Off is selected).

Lamp is warming up. The normal picture comes on after 25 seconds.

The normal picture comes on after 25 seconds. (when Timer Auto On or

Off is selected)

Air vent cover in the rear of the TV is not properly installed.

Inside temperature of the TV is over normal. Clean the air vent cover in the

rear of the TV. Turn the TV back on after 1 hour.

The lamp does not work, please contact an authorized Service Center for

assistance.

➢Using the Buttons on the Panel

If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:

◆

Switch on the TV when it is in Standby mode and select channels ( ▲CH ▼ or CH ).

◆

Access the menu ( MENU ).

◆

Adjust the volume (

VOL+ ).

◆

Switch among Video input modes ( TV/VIDEO ).

Control Panel of Your Television (continued)

ENG

Connection Panel of Your Television

➢

The actual configuration on your TV may be different, depending on

your model.

fgi

S-VIDEO 1 S-VIDEO 2

➣For further details about connection, refer to pages 54~60.

a) 75Ω

Coaxial connector for Aerial or Cable

Network.

b) MONITOR OUT / AV1 / AV2 / AV3

Inputs or outputs for external devices, such as

VCR, DVD, video game device or video disc

players.

c) S-VIDEO 1 / S-VIDEO 2

Video input for external devices with an

S-Video output, such as a camcorder or VCR.

d) SURROUND SPEAKER (8Ω15W)

Connectors for external rear speakers.

e) AUDIO OUT

Amplifier (L/R) or powered speaker (WOOFER)

connection to take full advantage of the

surround sound effect.

f) COMPONENT 1 / COMPONENT 2

Video (Y/PB/PR) and audio (L/R) inputs for

Component. (480i/480p, 576i/576p, 720p,

1080i)

g) PC AUDIO (L/R)

PC or DVI Audio inputs.

h) PC (15 Pin)

PC Video input.

i) DVI (24 Pin)

Video input for device with DVI input.

j) RS-232 (only for service)

Side of the TV

SP46L5HX/56L5HX

( a ) Video Input

( b ) Audio Inputs

( c ) S-Video Input

SP43L2HX/50L2HX/61L2HX

Rear of the TV

ENG

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

◆A satellite network

1In the first three cases, connect the aerial or network input cable to

the 75Ωcoaxial socket on the rear of the television.

2If you are using an indoor aerial, you may need to turn it when

tuning your television until you obtain a picture that is both sharp

and clear.

For further details, refer to:

◆“Storing Channels Automatically” on page 17.

◆“Storing Channels Manually” on page 18.

Connecting to an Aerial or Cable Television Network

Rear of the TV

Cable Television

Network

Connecting a Satellite Receiver or Decoder

In order to watch television programmes broadcast via a

satellite network, you must connect a satellite receiver to the

rear of TV. Also, in order to descramble a coded

transmission signal, you must connect a decoder to the rear

of TV.

◆Using a SCART cable

Connect the receiver (or decoder) SCART cable to one of

the SCART connectors on the rear of the television.

◆Using a coaxial cable

Connect a coaxial cable to the:

Receiver (or Decoder) output socket.

Television aerial input socket.

➢If you wish to connect both a satellite receiver (or decoder)

and a VCR, you should connect the:

◆Receiver (or Decoder) to the VCR

◆VCR to the television

Otherwise, connect the receiver (or decoder) directly to

the television.

Rear of the TV

S-VIDEO 1 S-VIDEO 2

Satellite receiver/

Decoder

S-VIDEO 1 S-VIDEO 2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung HL-T6176S - 61" Rear Projection TV Bedienungsanleitung

Samsung

Samsung AU6979 Bedienungsanleitung

Samsung

Samsung UE75MU8000TXZG Bedienungsanleitung

Samsung

Samsung HG32ND470S Bedienungsanleitung

Samsung

Samsung UN32D6000SF Bedienungsanleitung

Samsung

Samsung 6 series Bedienungsanleitung

Samsung

Samsung 85CU7175U Bedienungsanleitung

Samsung

Samsung Plasma TV 4 Series Bedienungsanleitung

Samsung

Samsung QB43B Bedienungsanleitung

Samsung

Samsung UN46D6420UF Bedienungsanleitung

Samsung

Samsung SP-46K5HD Bedienungsanleitung

Samsung

Samsung CS-32500HEXA Bedienungsanleitung

Samsung

Samsung CW-21A113N Bedienungsanleitung

Samsung

Samsung J4300 Series 4 Bedienungsanleitung

Samsung

Samsung QE55LST7TCUXZT Bedienungsanleitung

Samsung

Samsung UN40C6300SFXZA Programmierhandbuch

Samsung

Samsung UE55MU9000 Bedienungsanleitung

Samsung

Samsung The Sero LS05T Bedienungsanleitung

Samsung

Samsung CL34M9P8X/RCL Bedienungsanleitung

Samsung

Samsung 2BH0 Bedienungsanleitung

Samsung

Samsung UA40J6200 Leitfaden

Samsung

Samsung CM19033SX/KMT Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Samsung

Samsung UN49KU6500 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
