E-MANUAL

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model______________ Serial No.______________

Contents

Connecting Antenna and External

devices

Aerial Connection

Video Device Connection

8 HDMI Connection

9 Component Connection

10 AV Connection

TV Audio through the External Speakers

12 Digital Audio (Optical) Connection

13 Audio Out Connection

Connecting to a Computer

15 Connecting via HDMI Port

16 Connecting with the HDMI (DVI) Port

17 Connecting via Samsung Link

17 Connecting via Home Network (DLNA)

Connecting with a Mobile Device

19 Mobile Device Screen on TV (Screen Mirroring)

20 Connecting Mobile Devices without a Wireless Router

(Wi-Fi Direct)

21 Connecting via Samsung Link

21 Connecting via Home Network (DLNA)

22 Name of TV on Network

Input Signal Selection

Using Remote and Peripheral

Devices

Controlling the TV with a Keyboard

23 Connecting a Keyboard

24 Using the Keyboard

Controlling the TV with a Mouse

25 Connecting a Mouse

26 Using the Mouse

Entering Text Using QWERTY

27 Using Additional Functions

Internet Connection

Establishing a Wired Internet Connection

28 Connecting a LAN Cable

29 Connecting to a Wired Internet Network Automatically

29 Connecting to a Wired Internet Network Manually

Establishing a Wireless Internet Connection

31 Connecting to a Wireless Internet Network Automatically

32 Connecting to a Wireless Internet Network Manually

33 Connecting to a Wireless Internet Network with WPS

Troubleshooting Internet Connectivity Issues

34 Troubleshooting Wired Internet Connectivity Issues

35 Troubleshooting Wireless Internet Connectivity Issues

Mobile Network

36 Supported Telecom and Model Name

Checking the Internet Connection Status

Smart Features

Smart Hub

39 Testing Smart Hub connections

40 Opening the Home Screen

41 Moving to the Panel Screen

42 Using the Smart Hub Tutorial

42 Resetting Smart Hub

Using Smart Hub with Samsung Account

43 Creating a Samsung Account

44 Signing into Samsung Account

45 Linking My Samsung and App Accounts

46 Changing and Adding Information to Samsung Account

46 Deleting All Samsung Accounts from the TV

Using SAMSUNG APPS Panel

48 Using Pop-Up Menu Functions

49 Installing an App

50 Default Apps

51 Using Web Browser

54 Rearranging Apps on the SAMSUNG APPS Screen

54 Removing an App from the TV

54 Rating/Reviewing an App

55 Updating an App

55 SAMSUNG APPS Features

Playing Photos, Videos, and Music (MULTIMEDIA)

58 Playing Media Contents from a USB Device

59 Playing Multimedia Content Saved in a Computer/Mobile

Device

61 Buttons and Functions Available while Viewing Photos

62 Buttons and Functions Available while Watching Video

64 Buttons and Functions Available while Playing Music

65 Functions on the Media Content List Screen

TV Viewing Features

Digital Broadcast Information at a Glance

66 Using the Guide

67 Checking the Current Programme Info

67 Digital Signal Info and Strength

Setting Up a Schedule Viewing

68 Setting Up Schedule Viewing

69 Managing the Schedule Viewing List

Using the Channel List

Registering, Removing, and Editing Channels

71 Registering and Removing Channels

72 Editing Registered Channels

73 Enabling/Disabling Password Protection on Channels

73 Locking/ Unlocking Channels

73 Edit Channel Number

Creating a Personal Favourites List

74 Registering a Channel as Favourites

75 Viewing Favourites List Channels Only

75 Editing a Favourites List

Watching a Sports Game Realistically (Soccer Mode)

78 Enabling Soccer Mode

79 Functions Available in Soccer Mode

TV-Viewing Support Features

80 Showing Subtitles

80 Subtitle Options

80 Changing Teletext Language

81 PIP Broadcast Viewing

82 Scanning for Available Channels

83 Selecting the Broadcast Audio Options

83 Audio Description

Using the Channel Settings

84 Country (or Area)

84 Manual Tuning

85 Fine-Tuning the Screen

86 Transfer Channel List

II III

Picture and Sound Settings

Changing the Picture Mode and Adjusting the Picture

Quality

87 Choosing the Right Picture Mode for the Viewing

Environment

88 Adjusting the Picture Quality for Each Picture Mode

89 Fine-Tuning Each Picture Mode (Advanced Settings)

91 Adjusting the Picture for Easier Viewing (Picture Options)

Picture Support Functions

93 PIP Broadcast Viewing

94 Changing the Picture Size and Position

95 Listening to Audio Only with the Screen Turned Off

(Picture Off)

95 Resetting the Picture Mode Settings

Changing the Sound Mode and Using Sound Effects

96 Choosing the Right Sound Mode for the Environment

97 Using Sound Effects

Sound Support Functions

98 Selecting Speakers

98 Designating the TV's Installation Type

99 Enabling the Sound (Additional Settings)

100 Resetting All Sound Settings

General

Setting the Time and Using the Timer

101 Setting the Current Time

102 Using the Timers

Using the Screen Burn Protection and Energy Saving

Features

104 Preventing Screen Burn

104 Using Energy Saving Features

Using the e-Manual

105 Launching the e-Manual

105 Additional e-Manual Features

106 Updating the e-Manual to the Latest Version

Updating the Software

107 Updating Software over the Internet

107 Updating Software using a USB connection

108 Enabling Automatic Software Updates

108 Software update via satellite channel

Protecting the TV from Hacking and malicious code

108 Checking the TV and Connected Storage Media

109 Automatically Scanning when the TV is Powered On

109 Automatically Adding malicious code to the Blocked List

110 Enabling the High Contrast

110 Adjusting the Menu Transparency

111 Expanding the Smart Hub's Focus Area

111 Changing the Menu Language

111 Checking Notifications

111 Setting Up a Password

112 Programme Rating Lock

112 Enabling Game Mode

112 Enjoying Rich Colours and Superior Picture Quality (BD

Wise)

113 Locking/Unlocking the Panel Keys

113 Showing/Hiding the Samsung Logo while Booting

114 Registering the TV as a DivX-Certified Device (Watching

Paid DivX Movies)

115 Restoring the TV to the Factory Settings

115 Turning the TV into a Display Model (for retail stores)

Teletext Feature

Troubleshooting

Getting Support

118 Support through Remote Management

120 Finding the Information You Need for Service

There is a problem with the screen.

120 Testing the Picture

I can't hear the sound clearly.

123 Testing the Sound

There is a problem with the broadcast.

The computer won't connect.

I can't connect to the Internet.

I am having trouble launching/using apps.

My file won't play.

I want to reset the TV.

Other Issues

Notes and Precautions

Read Before Using SAMSUNG APPS

Web Browser Restrictions

Read Before Playing Photo, Video, or Music Files

131 Photo, Video, and Music File Use Limitations

131 Storage Device File Transfers

132 Supported External Subtitles

132 Supported Internal Subtitles

133 Supported Image Formats and Resolutions

133 Supported Music Formats and Codecs

134 Supported Video Codecs

Read After Installing the TV

136 Picture Sizes and Input Signals

136 Installing an Anti-Theft Kensington Lock

137 Read Before Setting Up a Wireless Internet Connection

Read Before Connecting a Computer (Supported

Resolutions)

138 LED 4 series

140 LED 5, 6 series

Supported Video Resolutions

142 CEA-861

Licence

Glossary

IV V

Aerial Connection

Before connecting any external devices and cables to the TV, first verify the model number. A sticker

containing the model number is attached to the back of the TV. The connection method varies

depending on the model.

An aerial must be connected to the TV in order to receive broadcast signals.

"An aerial connection is not necessary when a cable box or satellite receiver is used.

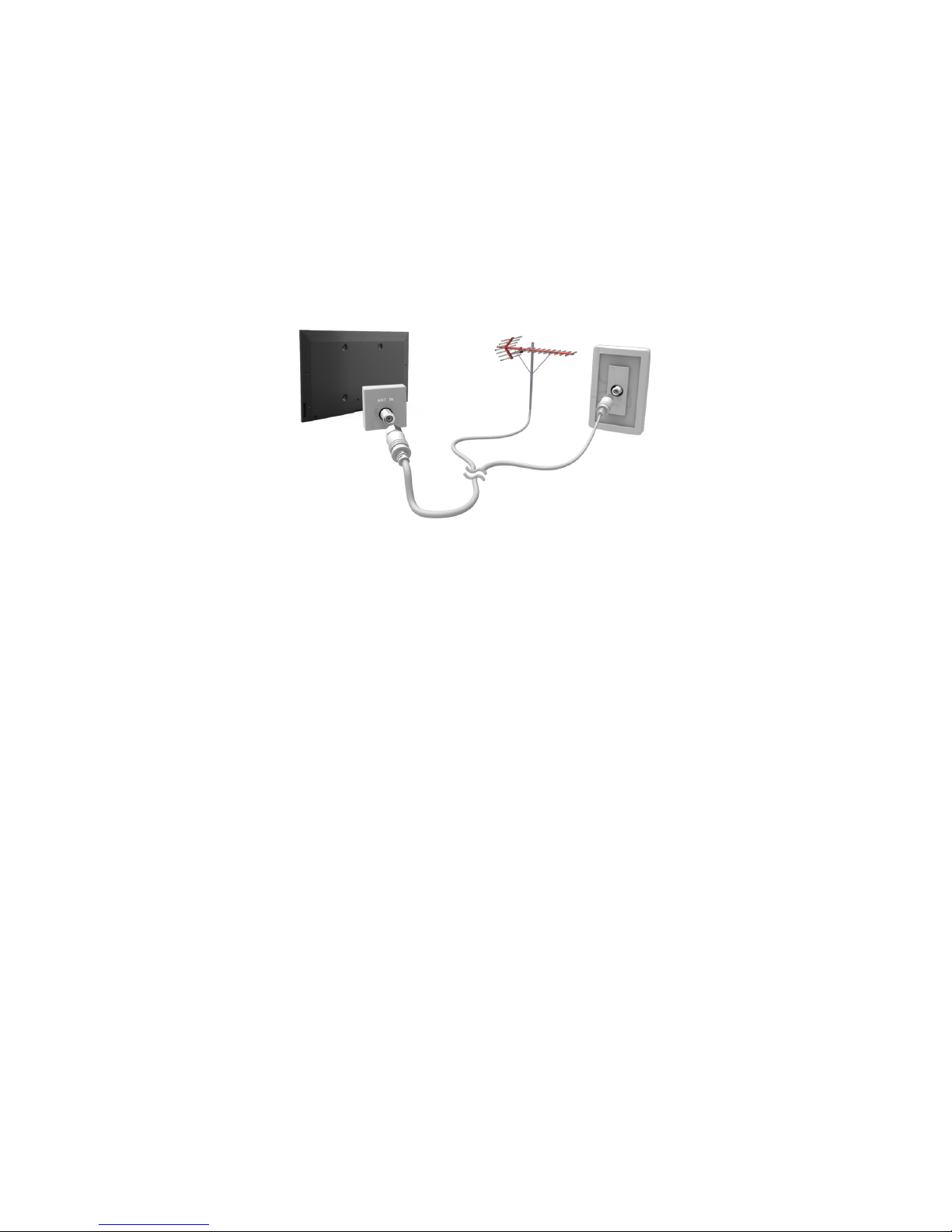

Connect the correct aerial cable according to your viewing environment to the TV's aerial connector, as

shown in the diagram.

6 7

Video Device Connection

Your TV has a variety of connectors for video input from external devices such as cable boxes, satellite

receivers, Blu-ray players, DVD players, camcorders, and gaming consoles. Below is a list of featured

connectors shown in descending order of picture quality.

●HDMI

●Component

●AV

Connect a video device to the TV via an HDMI connector for the best picture quality. If the device does

not have an HDMI connector, try a component connector to get the next best picture quality.

"The number of connectors and their names and locations may vary depending on the model.

"Refer to the external device's operating manual when connecting it to the TV. The number of external device

connectors and their names and locations may vary depending on the manufacturer.

HDMI Connection

Before connecting any external device or cable to the TV, first verify the TV's model number. A

sticker containing the model number is attached to the back of the TV. The connection method varies

depending on the model.

The following types of HDMI cables are recommended:

●High-Speed HDMI Cable

●High-Speed HDMI Cable with Ethernet

HDMI cables have certain requirements:

"Use an HDMI cable with a thickness of 14 mm or less.

"Using a non-certified HDMI cable may result in a blank screen or a connection error.

"Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.

"This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built with coaxial

cables standardised by the IEEE.

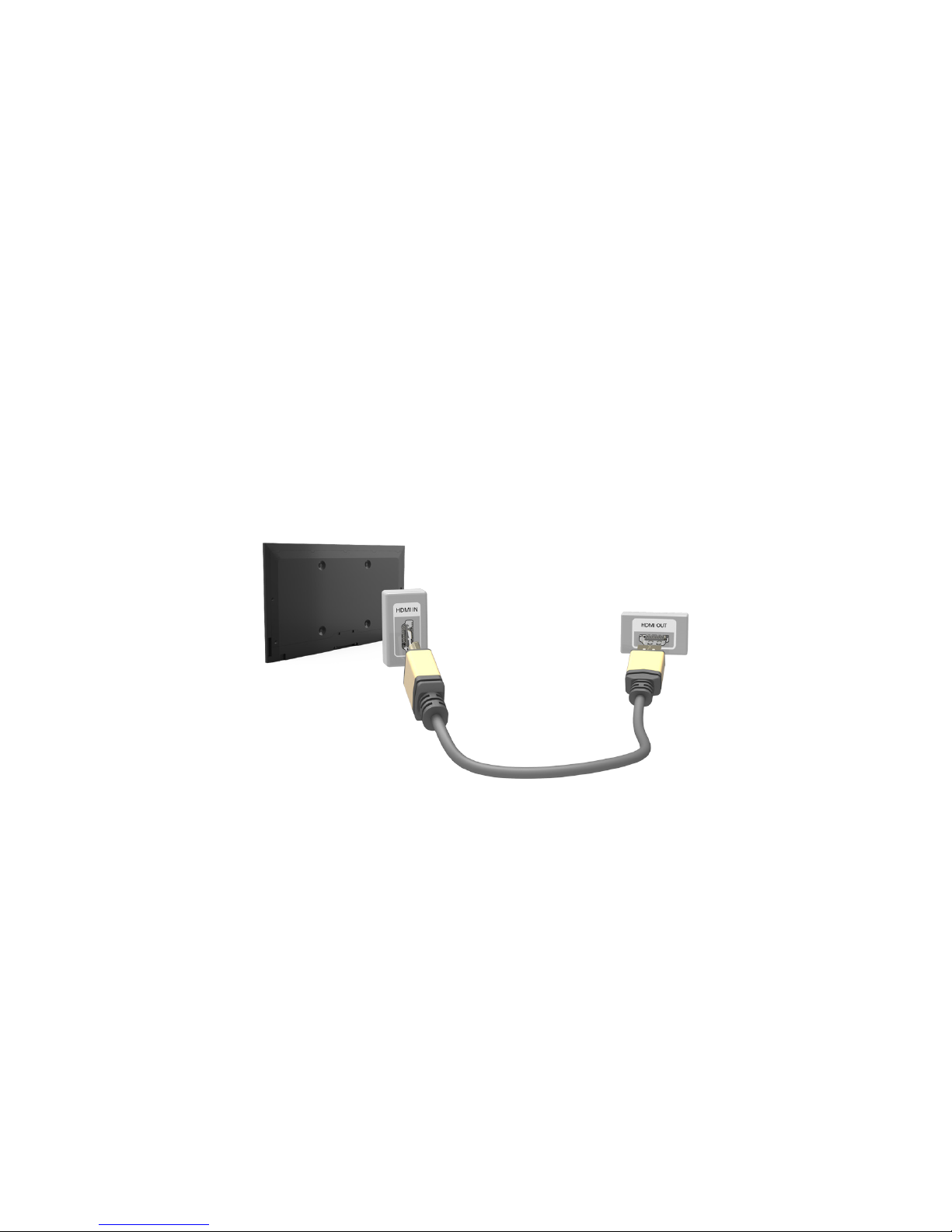

Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the

TV's HDMI input connector.

"The number of connectors and their names and locations may vary depending on the model.

Once the connection has been made, you will be able to select the connected external device using

the SOURCE button.

8 9

Component Connection

Before connecting any external devices and cables to the TV, first verify the model number of the

TV you purchased. A sticker containing the model number is attached to the back of the TV. The

connection method varies depending on the model.

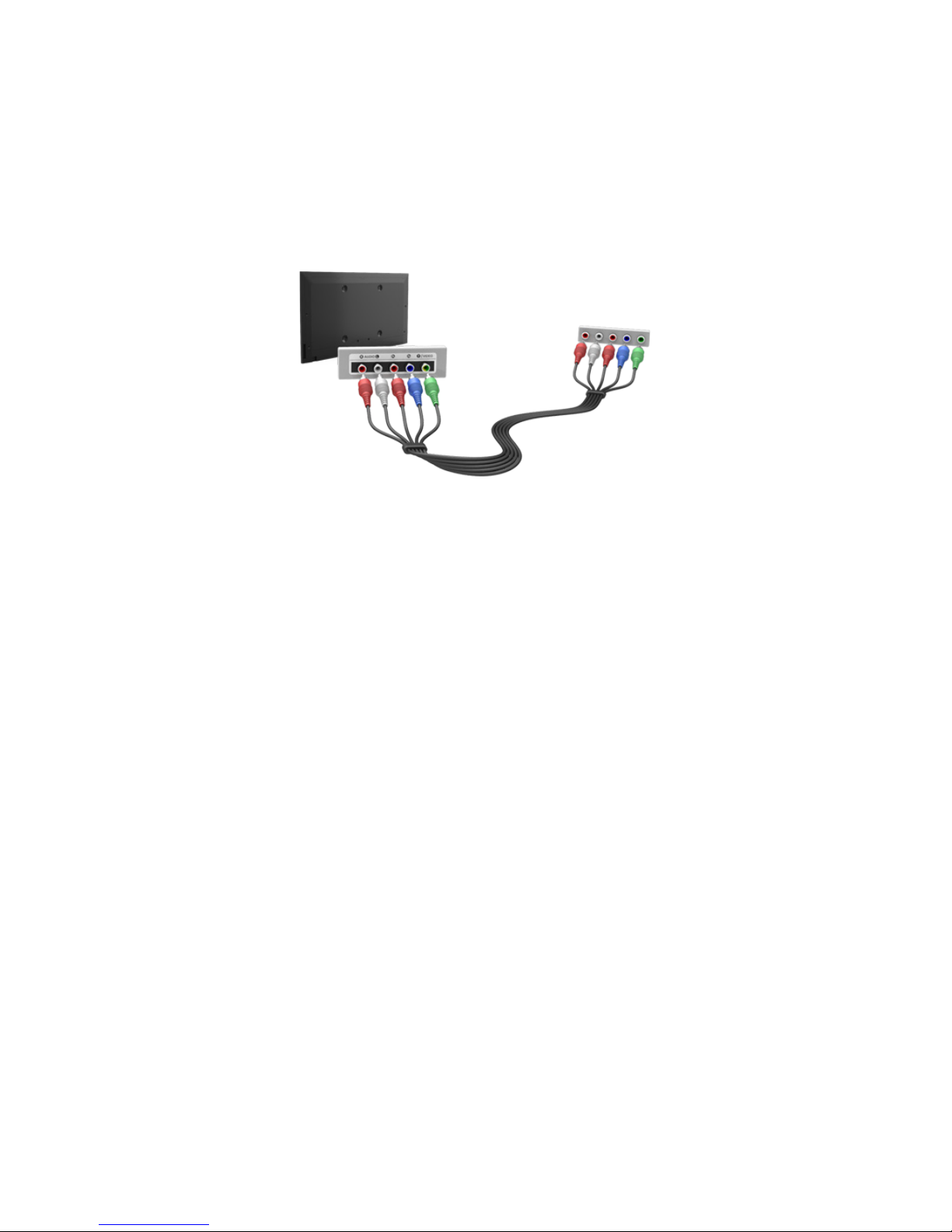

Refer to the diagram and connect the Component cable to the TV's component input connectors and

the device's component output connectors.

Make sure the cable colours match the connector colours.

Once the connection has been made, you will be able to select the connected external device using

the SOURCE button.

AV Connection

Before connecting any external device or cable to the TV, first verify the TV's model number. A

sticker containing the model number is attached to the back of the TV. The connection method varies

depending on the model.

Refer to the diagram and connect the AV cable to the TV's AV input connectors and the device's AV

output connectors.

If you are using the TV's AV input connectors, connect the video cable to the Y connector. Some

models feature a video connector as well. In this case, connect the cable to the video connector.

Once the connection has been made, you will be able to select the connected external device using

the SOURCE button.

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung LN-S2641D Bedienungsanleitung

Samsung

Samsung CL21K30MQ, CL21K30M16 Benutzerhandbuch

Samsung

Samsung LN46B640 Handbuch

Samsung

Samsung CT29M6WKX/MAM Bedienungsanleitung

Samsung

Samsung SP42L6HX - 42" Rear Projection TV Bedienungsanleitung

Samsung

Samsung UE19C4005 Bedienungsanleitung

Samsung

Samsung UE22H5670 Bedienungsanleitung

Samsung

Samsung HL-R5688W - 56" Rear Projection TV Bedienungsanleitung

Samsung

Samsung CS-29K40 Bedienungsanleitung

Samsung

Samsung CL29M16MQD Bedienungsanleitung

Samsung

Samsung LE**C450 Bedienungsanleitung

Samsung

Samsung UE65MU6479UXZG Bedienungsanleitung

Samsung

Samsung Plasma TV Bedienungsanleitung

Samsung

Samsung QN900A Bedienungsanleitung

Samsung

Samsung CS29A5HT8X/NWT Bedienungsanleitung

Samsung

Samsung Crystal UHD TU7199 Bedienungsanleitung

Samsung

Samsung 9000 Series Bedienungsanleitung

Samsung

Samsung HG32AD670 Bedienungsanleitung

Samsung

Samsung SP46L6HXX Bedienungsanleitung

Samsung

Samsung HLR4677W - 46" Rear Projection TV Bedienungsanleitung

Samsung

Samsung QE50LS03AAUXXH Bedienungsanleitung

Samsung

Samsung UN40K6250 Bedienungsanleitung

Samsung

Samsung PS50C679 Series 5+ Bedienungsanleitung

Samsung

Samsung The Sero 85Q70B Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
