Owner’s Instructions

Before operating the unit, please read this manual throughly, and

retain for future reference.

www.samsung.com/global/register

BEFORE USING THE WASHER . . . . . . . . . . . . . . . . . . . . 1

CAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

PRECAUTIONS WHEN OPERATING. . . . . . . . . . . . . . . . . 1

DESCRIPTION OF PARTS . . . . . . . . . . . . . . . . . . . . . . . 2

CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

HOW TO CLEAN THE FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CONNECTING THE DRAIN HOSE . . . . . . . . . . . . . . . . . . . . . . 3

CLEANING THE MACHINE . . . . . . . . . . . . . . . . . . . . . . 3

WASHING PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . 4

TO WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SPIN DRY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

RINSING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

OVER FLOW RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ADDITIONAL RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

LAUNDRY GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

TROUBLE SHOOTING

SPECIFICATION

WT80J7-02206A_EN.indd 1 2006-02-17 ¿ÀÈÄ 2:43:14

C DE N . : DC68-02206A-01

All manuals and user guides at all-guides.com

all-guides.com

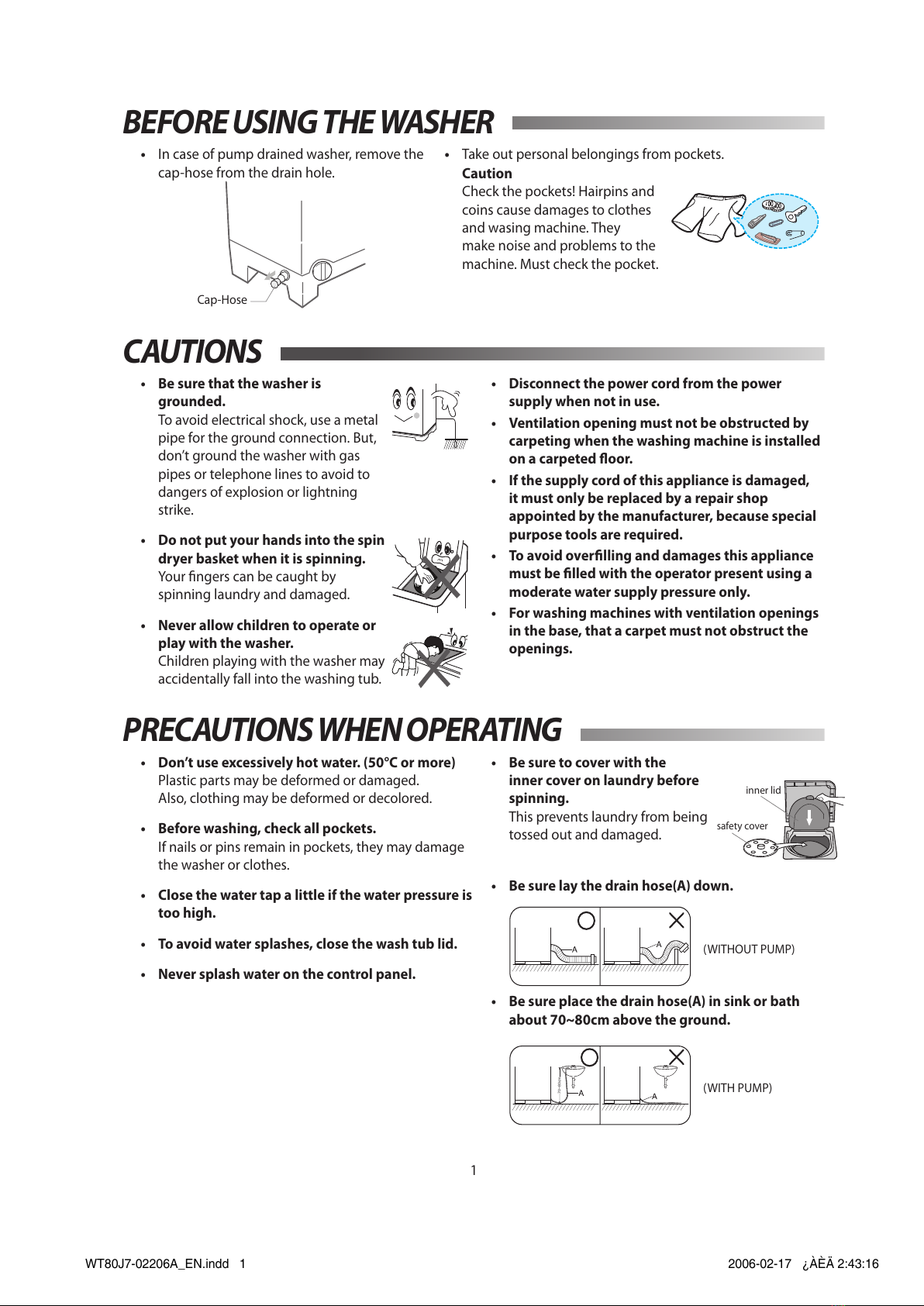

BEFORE USING THE WASHER

• In case of pump drained washer, remove the

cap-hose from the drain hole.

• Take out personal belongings from pockets.

Caution

Check the pockets! Hairpins and

coins cause damages to clothes

and wasing machine. They

make noise and problems to the

machine. Must check the pocket.

CAUTIONS

• Be sure that the washer is

grounded.

To avoid electrical shock, use a metal

pipe for the ground connection. But,

don’t ground the washer with gas

pipes or telephone lines to avoid to

dangers of explosion or lightning

strike.

• Do not put your hands into the spin

dryer basket when it is spinning.

Your ﬁngers can be caught by

spinning laundry and damaged.

• Never allow children to operate or

play with the washer.

Children playing with the washer may

accidentally fall into the washing tub.

• Disconnect the power cord from the power

supply when not in use.

• Ventilation opening must not be obstructed by

carpeting when the washing machine is installed

on a carpeted ﬂoor.

• If the supply cord of this appliance is damaged,

it must only be replaced by a repair shop

appointed by the manufacturer, because special

purpose tools are required.

• To avoid overﬁlling and damages this appliance

must be ﬁlled with the operator present using a

moderate water supply pressure only.

• For washing machines with ventilation openings

in the base, that a carpet must not obstruct the

openings.

PRECAUTIONS WHEN OPERATING

• Don’t use excessively hot water. (50°C or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or decolored.

• Before washing, check all pockets.

If nails or pins remain in pockets, they may damage

the washer or clothes.

• Close the water tap a little if the water pressure is

too high.

• To avoid water splashes, close the wash tub lid.

• Never splash water on the control panel.

• Be sure to cover with the

inner cover on laundry before

spinning.

This prevents laundry from being

tossed out and damaged.

• Be sure lay the drain hose(A) down.

• Be sure place the drain hose(A) in sink or bath

about 70~80cm above the ground.

Cap-Hose

inner lid

safety cover

(WITHOUT PUMP)

(WITH PUMP)

70~80cm

WT80J7-02206A_EN.indd 1 2006-02-17 ¿ÀÈÄ 2:43:16

All manuals and user guides at all-guides.com

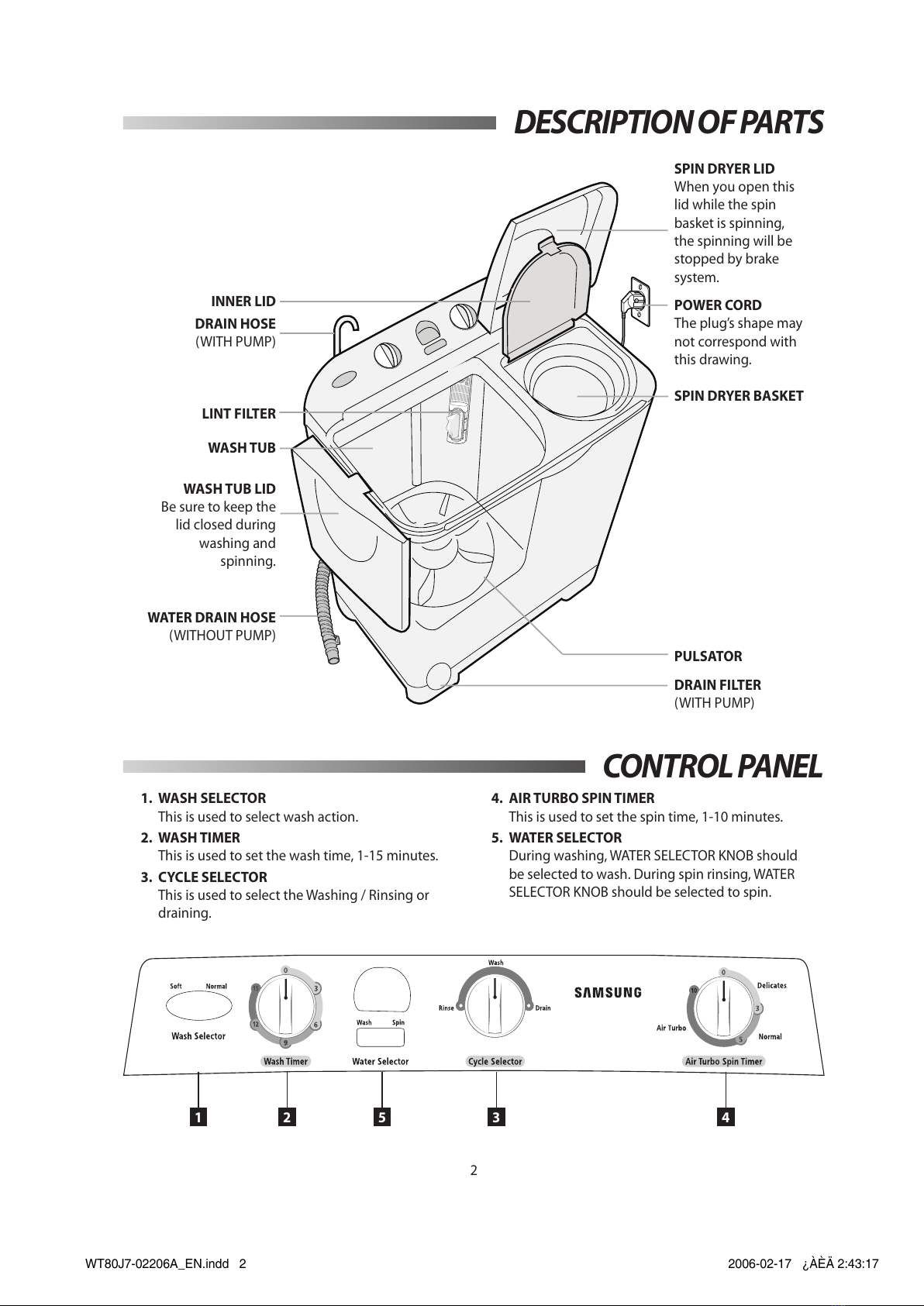

DESCRIPTION OF PARTS

CONTROL PANEL

1. WASH SELECTOR

This is used to select wash action.

2. WASH TIMER

This is used to set the wash time, 1-15 minutes.

3. CYCLE SELECTOR

This is used to select the Washing / Rinsing or

draining.

4. AIR TURBO SPIN TIMER

This is used to set the spin time, 1-10 minutes.

5. WATER SELECTOR

During washing, WATER SELECTOR KNOB should

be selected to wash. During spin rinsing, WATER

SELECTOR KNOB should be selected to spin.

SPIN DRYER LID

When you open this

lid while the spin

basket is spinning,

the spinning will be

stopped by brake

system.

INNER LID

DRAIN HOSE

(WITH PUMP)

LINT FILTER

WASH TUB

WASH TUB LID

Be sure to keep the

lid closed during

washing and

spinning.

WATER DRAIN HOSE

(WITHOUT PUMP)

POWER CORD

The plug’s shape may

not correspond with

this drawing.

SPIN DRYER BASKET

PULSATOR

DRAIN FILTER

(WITH PUMP)

1 2 5 3 4

WT80J7-02206A_EN.indd 2 2006-02-17 ¿ÀÈÄ 2:43:17

All manuals and user guides at all-guides.com

INSTALLATION

ENVIRONMENT

Leave some space

Space at last 15cm between the washer and the wall.

Place the washer on a sturdy ﬂat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration may be occured.

(Allowable is 2°)

Never install the washer near water.

Do not place the washer in steamy rooms or where

the washer is directly exposed to rain.

Moisture may destroy the electrical insulation and

cause an electrical shock hazard.

Avoid direct sunlight or heating devices.

As plastic and electrical components are aﬀected

by direct heat, never place the washer near heaters,

boilers,etc.

Do not place under direct sunlight.

HOW TO CLEAN THE FILTER (In case drain pump)

1. Place a rag under the washer ﬁlter not to wet the

ﬂoor.

2. Rotate the ﬁlter counterclockwise and pull out

the ﬁlter.

3. Remove dirts and rotate the ﬁlter clockwise until

it locks in position.

Remark : Should be

cleaned Filter at least

1 time a week.

CONNECTING THE DRAIN HOSE

Insert the drain hose(a) and push it tighly to be

connected as arrow direction.

Install the drain hose about 70~80cm above the

ground for pump model.

CLEANING THE MACHINE

CLENING THE LINT FILTER

If the dregs are ﬁlled up in the lint ﬁlter after ﬁnishing

the wash, push down(1) and pull it out(2) as shown in

ﬁgure.

Remove the collected lint and rinse the ﬁlter net.

OVERFLOW FILTER

Pull the upper side of the overﬂow ﬁlter

with two ﬁngers into the hole ‘A’ in the

direction of arrow as shown in the ﬁgure.

CLEANING THE WASH TUB

Wipe oﬀ strains on the cabinet and operation panel with soft cloth.

Do not use benzene, thinners, cleanser, or wax, nor scrub the washer with a brush.

Painted surfaces or plastic parts will be damaged.

Filter

Close Rag

Open

(WITHOUT PUMP)

70~80cm

Lint Filter

WT80J7-02206A_EN.indd 3 2006-02-17 ¿ÀÈÄ 2:43:19

All manuals and user guides at all-guides.com

WASHING PROCEDURE

TO WASH

1. Before starting washing, check the following;

- Connect the water supply hose and open the

water tap.

- Connect the power cord to the power supply

outlet.

- Lay the drain hose(A) down toward a sinkhole.

- Place the drain hose(A) in sink or bath about

70~80cm above the ground.

2. Set the WASH SELECTOR

KNOB to the desired

mode.

3. Set the CYCLE SELECTOR KNOB to ‘WASH·RINSE’.

(In case no drain pump) (‘WASH’ in case drain pump)

4. Set the WATER SELECTOR

KNOB to WASH .

5. Load laundry in the wash

tub.

6. Fill water in the wash tub

and add the detergent.

7. Set the WASH TIMER 1-15

minutes.

8. After washing,set the

CYCLE SELECTOR KNOB to

‘DRAIN’ for drain.

SPIN DRY

1. Transfer the clothes into the spin basket and

arrange the clothes evenly.

2. Be sure to attach the safety cover and close the

inner lid.

3. Close the spin dryer lid.

4. Set the AIR TURBO SPIN TIMER 1-10 minutes.

5. Incomplete spining. (Severe vibration or

unbalance) See “When you load ...”on page 6.

inner lid

safety cover

(Without pump) (With pump)

(WITHOUT PUMP)

(WITH PUMP)

70~80cm

Bottom of balancer

Safety cover

WT80J7-02206A_EN.indd 4 2006-02-17 ¿ÀÈÄ 2:43:22

All manuals and user guides at all-guides.com

RINSING

1. Set the CYCLE SELECTOR KNOB to ‘WASH RINSE’.

(In case no drain pump) (‘WASH’ in case drain pump)

2. Supply the proper amount of water as not to

overﬂow the top of the washing tub.

3. Set the WASH TIMER 2~3minutes.

4. Drain the water. Set the CYCLE SELECTOR KNOB

to ‘DRAIN’

5. Repeat this cycle until drain water is clean. (2~3

cycles)

6. In case no drain pump.

- Be sure lay the drain hose down.

In case drain pump.

- Be sure place the drain hose in sink or bath.

OVER FLOW RINSE

1. Keep suppling water

Adjust water pressure to ensure that the

amount of water supplied does not exceed

that water drained.

2. Set the WASH TIMER 6~8

minutes.

3. As soon as the WASH TIMER shuts oﬀ, turn oﬀ the

water tap.

4. Set the CYCLE SELECTOR

KNOB to ‘DRAIN’.

ADDITIONAL RINSE

After rinsing you can select this course for more eﬀective rinse (Don’t select only this course for rinse.)

1 Load the laundry evenly into the

spin basket.4 After stopping water

supply, cover the

laundry with safety

cover and close the

inner lid.

2 Set the WATER SELECTOR

KNOB to SPIN (a) and

CYCLE SELECTOR KNOB

to ‘DRAIN’(b).

5 Close the spin dryer lid.

3 Supply water for about 1

minute. Adjust the water

ﬂow to prevent overﬂow

from the wash tub.

6 Set the AIR TURBO SPIN

TIMER 2~3 minutes.

(Without pump) (With pump)

inner lid

safety cover

1min.

(Without pump) (With pump)

(b)

(a)

WT80J7-02206A_EN.indd 5 2006-02-17 ¿ÀÈÄ 2:43:24

All manuals and user guides at all-guides.com

all-guides.com

LAUNDRY GUIDE

WASHING TIME

KINDS OF CLOTHING WASHING TIME WASHING

SELECTION

Extremely solid heavy fabric 10 to15minutes NORMAL

Linen,cotton,etc. 8 to10minutes

Ordinary clothes

(underwear,etc) 7minutes

SOFT

Slightly solied synthetic ﬁber 2 to 5minutes

100%wool,mixed wool knitting,

thin synthetic ﬁber with tags

indicating hand washing

2 to 5minutes

SPIN DRY TIME

TIME TYPE OF LAUNDRY

1 min. Thin(synthetic ﬁber)

1~2 min. wool

3~5 min. cotton

5 min. thick(cotton)

10 min. (Air Turbo) thick(cotton)

DETERGENT

AMOUNT OF

DETERGENT WATER LEVEL

37 g Low ( 37 l )

45 g Mid ( 45 l )

54 g High ( 54 l )

The amount of detergent is average.

Follow the instruction detergent printed on

the package for amount of detergent.

Choose the amount of detergent depending

on the fabric type.

MAINTENANCE

WHEN YOU LOAD THE LAUNDRY INTO THE

SPIN BASKET.

Press the laundry evenly and put the safety cover into

the spin basket drum as shown in the ﬁgure.

TO PICK OUT THE CLOTHING WHICH HAS

FALLEN BETWEEN THE BASKET AND TUB.

For safety, pull the power supply plug out of the socket.

1. Disassemble a screws from the spin dryer hatch.

2. The spin dryer hatch is ﬁxed to the brim by the

concave and convex parts at two places. Expand

the concave and convex parts, and pull up the spin

dryer hatch to remove it.

3. Remove the clothing

4. Close the spin dryer

hatch.

Push in hatch ﬁrmly

until the catch at

the front is engaged

securely.

Bottom of balancer

Safety cover

Spin dryer hatch

Screw

inner lid

safety cover

WT80J7-02206A_EN.indd 6 2006-02-17 ¿ÀÈÄ 2:43:25

All manuals and user guides at all-guides.com

TROUBLE SHOOTING

TROUBLE CHECK POINT TROUBLE CHECK POINT

1. The washer

does not

work.

Check that the power cord is

connected to a power outlet well.

Power stoppage?

4. Water dose

not drain.

In case no drain pump.

- Be sure lay the drain hose down.

In case drain pump.

- Be sure remove the cap-hose from

the drain hole.

 See “Before using...” on page 1.

2. Clothes will

not move

freely.

Is the laundry overloaded? 5. The spin

dryer basket

will not run.

Is the spin dryer lid closed

completely?

Are laundry (socks,etc.) falling out of

the spin dryer basket and clinging to

the axle?

 See “To pick out...” on page 6.

3. Incomplete

spinning.

(Severe

vibration or

unbalance.)

Are the laundry arranged evenly?

 See “When you load...” on page 6.

6. The water

drains out

immediately.

In case no drain pump.

- Is the Cycle Selector set to drain?

- Is the drain hose clogged with

scrap?

 Hang up drain hose over the drain

hose hook. Half ﬁll the wash tub

with the water and try for drain

again.(Scrab will be removed by

water drain pressure.)

In case drain pump.

- Is the drain hose hung about 70~80

cm above the ground?

 See “Connecting the drain...” on

page 3.

SPECIFICATION

DIMENSIONS (W x D x H)mm 792 x 465 x 951

WATER PRESSURE 0.05~0.78 MPa

0.5 ~ 8.0 kg·f/cm²

WEIGHT With out pump 29 kg

With pump 31 kg

EXTRACTION EFFICIENCY 50 %

STANDARD QUANTITY OF WATER 54 l

MOTOR INPUT Washing 330 W / Spinning 160 W

MOTOR MAX INPUT 480 W

RATING TIME Washing 1 Hour / Spinning 15 minutes

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care centre.

Country Customer Care Center Web Site

AUSTRALIA 1300 362 603 www.samsung.com/au

INDIA 3030 8282, 1600 1100 11 www.samsung.com/in

MALAYSIA 1800-88-9999 www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph

RUSSIA 8-800-200-0400 www.samsung.ru

SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg

SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za

VIETNAM 1 800 588 889 www.samsung.com/vn

WT80J7-02206A_EN.indd 7 2006-02-17 ¿ÀÈÄ 2:43:25

All manuals and user guides at all-guides.com

Inhaltsverzeichnis

Andere Samsung Waschmaschine Handbücher

Samsung

Samsung WD70K5 Series Bedienungsanleitung

Samsung

Samsung WA11RAS3 Bedienungsanleitung

Samsung

Samsung WF0500NXW Bedienungsanleitung

Samsung

Samsung WA90H4400SS Bedienungsanleitung

Samsung

Samsung WD0854W8N Bedienungsanleitung

Samsung

Samsung WE357A7P Bedienungsanleitung

Samsung

Samsung WW80T3040 Series Bedienungsanleitung

Samsung

Samsung WD9 TA Series Bedienungsanleitung

Samsung

Samsung 5205 series Bedienungsanleitung

Samsung

Samsung WF8624FG Bedienungsanleitung

Samsung

Samsung WW95H7410E Series Bedienungsanleitung

Samsung

Samsung WF16J9000K Series Bedienungsanleitung

Samsung

Samsung WD80M4B5 Series Bedienungsanleitung

Samsung

Samsung WF501ANW Trouble Shooting Guide Bedienungsanleitung

Samsung

Samsung WA17W Series Bedienungsanleitung

Samsung

Samsung WD906U4SA Bedienungsanleitung

Samsung

Samsung DC68-02657F Bedienungsanleitung

Samsung

Samsung WW90T684DLH/S1 Bedienungsanleitung

Samsung

Samsung B1245AV Bedienungsanleitung

Samsung

Samsung WF45H6 Series Bedienungsanleitung

Samsung

Samsung WA18B Bedienungsanleitung

Samsung

Samsung WF702U4BK Series Bedienungsanleitung

Samsung

Samsung WA50M7450A series Bedienungsanleitung

Samsung

Samsung SW70A1 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung
