Washing Machine
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
WF-J1461(V/S/C)
WF-J1261(V/S/C)
WF-J1061(V/S/C)
WF-J861(V/S/C)
WF-B1461(V/S/C)
WF-B1261(V/S/C)
WF-B1061(V/S/C)
WF-B861(V/S/C)
WF-R1261(V/S/C)
WF-R1061(V/S/C)
WF-R861(V/S/C)
WF-F1261(V/S/C)
WF-F1061(V/S/C)
WF-F861(V/S/C)
WF-S1061(V/S/C)
WF-S861(V/S/C)
WF-J1461-02456G_EN.indd 1 2007-05-21 ø¿»ƒ 6:59:50
2_ Safety information
safety information
Congratulations on your purchase of this Samsung washing machine. These
Owner’s Instructions contain valuable information on the installation, use, and
care of this appliance. Please take the time to read these instructions so that
you can take full advantage of the washing machine’s features and enjoy this
appliance for many years to come.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual means:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
BEFORE USING THE APPLIANCE
Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
The appliance is designed for home use only.
Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer’s instructions (see “Installing the Washing Machine”) and local
safety regulations.
All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See “Removing the shipping bolts”.
Before washing clothes for the first time, you must run a complete cycle without clothes.
See “Washing for the first time”.
SAFETY INSTRUCTIONS
Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet
or set the (On/Off ) button to Off.
Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Always unplug the appliance and turn off the water after use.
Before you open the door of the appliance, check that the water has drained. Do not open
the door if you can still see water.
Pets and small children may climb into the appliance. Check the appliance before each use.
CAUTION
WARNING
WF-J1461-02456G_EN.indd 2 2007-05-21 ø¿»ƒ 6:59:51
Safety information _3
The glass door becomes very hot during the washing cycle. Keep children away from the
appliance while it is in use.
Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the appliance
necessary.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualified person in order to avoid a hazard.
This appliance should only be serviced by an authorized service center, and only genuine
spare parts should be used.
This appliance is not intended for use by young children or infirm persons unless theyhave
been adequately supervised by a responsible person to ensure that they can use the
appliance safely. Young children should be supervised to ensure that they do not play with
the appliance.
This appliance has to be connected to the plug endurable to proper power consumption.
This appliance has to be positioned so that the plug is accessible after installation.
Do not use processed water containing oil, cream or lotion, which is usually found in skin-
care shops or massage clinics.
• Otherwise this will cause the packing to be deformed, which causes a malfunction or
water leak.
A stainless washing tube does not usually rust. However if some metal such as a hair pin is
left in the tube for an extended time, the tube could rust.
• Do not leave water or bleach containing chlorine in the tube for an extended period of
time.
• Do not regularly use or leave water containing iron in the tube for an extended period of
time.
• If rust starts appearing on the surface of the tube, apply a cleansing agent (neutral) to
the surface and use a sponge or soft cloth to clean it. (Under no circumstances use a
metal brush)
For washing machines with ventilation openings in the base, that a carpet must not
obstruct the openings.
Use the new hose-sets and old hose-sets should not be reused.
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate this
from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their supplier and check
the terms and conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
safety information
WF-J1461-02456G_EN.indd 3 2007-05-21 ø¿»ƒ 6:59:51
4_ Contents
contents
INSTALLING THE WASHING
MACHINE
5
5 Unpacking the Washing Machine
5 Overview of the washing machine
6 Selecting a location
6 Adjusting the leveling feet
6 Removing the shipping bolts
7 Connecting the water supply hose
7 Positioning the drain hose
8 Plugging in the machine
WASHING A LOAD OF LAUNDRY
9
9 Overview of the control panel
10 Washing for the first time
10 Putting detergent in the washing machine
11 Washing clothes manually
11 Selecting options
12 Washing tips and hints
MAINTAINING THE WASHING
MACHINE
13
13 Repairing a frozen washing machine
13 Cleaning the exterior
13 Cleaning the debris filter
13 Cleaning the water hose mesh filter
TROUBLESHOOTING
14
14 Problems and solutions
14 Understanding error messages
PROGRAMME CHART
15
15 Programme chart
APPENDIX
16
16 Fabric care chart
16 Electrical warnings
16 Protecting the environment
16 Declaration of conformity
17 Specification
WF-J1461-02456G_EN.indd 4 2007-05-21 ø¿»ƒ 6:59:52
Installing the washing machine _5
installing the washing machine
UNPACKING THE WASHING MACHINE
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received
all of the items shown below. If the washing machine was damaged during shipping or you do not have all
of the items, contact your Samsung dealer immediately.
OVERVIEW OF THE WASHING MACHINE
Wrench Cold water supply hose Hose guide Bolt hole covers
01 Installing the washing machine
Control panel
Detergent drawer
Door
Base cover
Adjustable feet Debris filter
Plug
Drain Hose
Cover top
WF-J1461-02456G_EN.indd 5 2007-05-21 ø¿»ƒ 6:59:54
6_ Installing the washing machine
SELECTING A LOCATION
Before you install the washing machine, select a location with the following characteristics:
• A hard, level surface (if the surface is uneven, see “Adjusting the leveling feet,” below)
• Away from direct sunlight.
• Adequate ventilation
• Room temperature that will not fall below 0˚C
• Away from sources of heat such as coal or gas Make sure that the washing machine does
not stand on its power cord. Ventilation openings must not be obstructed by carpeting when
the washing machine is installed on a carpeted floor.
ADJUSTING THE LEVELING FEET
If the floor is uneven, adjust the feet (do not insert pieces of wood or any other objects under the
feet):
1. Loosen the leg bolt by turning it with your hand
until it is at the desired height.
2. Tighten the locking nut by turning it with the
wrench.
• Place the washer on a sturdy, flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration occurs.
(Only a 1 degrees angle is allowed.)
REMOVING THE SHIPPING BOLTS
Before using the washing machine, you must remove all of the shipping bolts from the back of
the unit.
To remove the bolts:
1. Loosen all bolts with the wrench before removing
them.
2. Take each bolt head and pull it through the wide
part of the hole. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts for future use.
installing the washing machine
oC
rpm
Min
Fuzzy control
Temp Spin Delay Start Function
Door open
Power
Spin
Check
Remaining Time
Delay Start
Rinse
Wash
Pre-wash
Eco
Speedy
Wool
Delicate
Synthetic
Cotton
START
PAUSE
12:00
WF-J1461-02456G_EN.indd 6 2007-05-21 ø¿»ƒ 6:59:55
Installing the washing machine _7
CONNECTING THE WATER SUPPLY HOSE
The water supply hose must be connected to the washing machine at one end and to the water faucet at
the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the
water faucet, replace the hose with a longer, high pressure hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold water
supply hose and connect to the cold water supply
intake on the back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose
to your sink’s cold water faucet and tighten it by hand.
If necessary, you can reposition the water supply hose
at the washing machine end by loosening the fitting,
rotating the hose, and retightening the fitting.
POSITIONING THE DRAIN HOSE
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of between
60 and 90 cm. To keep the drain hose spout bent, use
the supplied plastic hose guide. Secure the guide to the
wall with a hook or to the faucet with a piece of string to
prevent the drain hose from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60
cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60
cm and no longer than 90 cm.
01 Installing the washing machine
WF-J1461-02456G_EN.indd 7 2007-05-21 ø¿»ƒ 6:59:56
8_ Installing the washing machine
PLUGGING IN THE MACHINE
You MUST ground the plug of the washing machine.
Check with a licensed electrician before using the machine to make sure it is properly grounded.
For U.K. Users.
Wiring lnstructions
- WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an electrical
short circuit, earthing reduces the risk of electric shock
providing an escape wire for the electric current.
The appliance is equipped with a mains lead which includes
an earth wire for connecting to the earth terminal of your mains
plug.
The plug must be plugged into a socket that is properly
installed and earthed.
* The wires in this mains lead are coloured in accordance with
the following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
• AS the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings
indentifying the terminals in your plug, proceed as follows.
• Connect the green and yellow wire to the terminal in the
plug marked with the letter E or the earth symbol ( ) or
coloured green or green-and-yellow.
• Connect the blue wire to the terminal marked with the letter
N or coloured black.
• Connect the brown wire to the terminal marked with the
letter L or coloured red.
* Consult a qualified electrician or service technician if in
doubt about any of these instructions.
The manufacturer of this washing machine will not accept
any liability for damage to persons or material for non
observance of these requirements.
There are no user serviceable parts inside the washing
machine and if the mains lead of this appliance is damaged,
it must only be replaced by qualified service personnel
approved by the manufacturer because special tools are
required.
installing the washing machine
GREEN AND
YELLOW
BLUE
13 AMP FUSE
BROWN
WARNING
Ensure that the plug and
power cord are not damaged
before use. If you have any
reason to remove the moulded
plug from this appliance,
immediately remove the fuse
and dispose of the plug.
Do not connect the plug to
a mains socket under any
circumstances as there is a
danger of electric shock.
CIRCUITS
Your washing machine should
be operated on a separate
circuit from other appliances.
Failure to do this may cause
the circuit breaker to trip or
the fuse to blow.
WF-J1461-02456G_EN.indd 8 2007-05-21 ø¿»ƒ 6:59:57
Washing a load of laundry _9
washing a load of laundry
OVERVIEW OF THE CONTROL PANEL
This is a general manual. The INLAY system may be different from that of the product you purchased.
For A , see item 4 below to select the right specifications that match your product.
Display panel Displays wash cycle and error messages.
During execution of the program, the program indicator blinks.
Program Select
button
Press the button repeatedly to select one of the six available wash program.
Cotton → Coloureds → Synthetics → Handwash → Wool → Quickwash →
Rinse+Spin → Spin
Temperature
selection button
Press the button repeatedly to cycle through the available water temperature
options (cold wash, 30˚C, 40˚C , 60˚C and 95˚C).
When pressing this button during washing, you can see the selected
temperature in the display panel.
Spin selection
button
Press the button repeatedly to cycle through the available spin speed options.
WF-J1461/B1461 no spin ( ), 400, 800, 1400 rpm
WF-J1261/B1261/R1261/
F1261 no spin ( ), 400, 800, 1200 rpm
WF-J1061/B1061/R1061/
F1061/S1061 no spin ( ), 400, 800, 1000 rpm
WF-J861/B861/R861/
F861/S861 no spin ( ), 400, 800, 800+ rpm
Option button
Press the button repeatedly to cycle through the available partial wash
options. Rinse Hold → Rinse+ → Rinse Hold+Rinse+ → Prewash →
Prewash+Rinse Hold → Prewash+Rinse+ → Prewash+Rinse Hold+Rinse+
Prewash is only available when washing cotton, synthetic or Coloureds.
Delay Start
selection button
Press this button repeatedly to rotate between the retarded start options
available. (from 3 Hours to 24 Hours, in 1 hour increments)
02 Washing a load of laundry
5
4
3
2
1
1234678
5
A
6
WF-J1461-02456G_EN.indd 9 2007-05-21 ø¿»ƒ 6:59:58

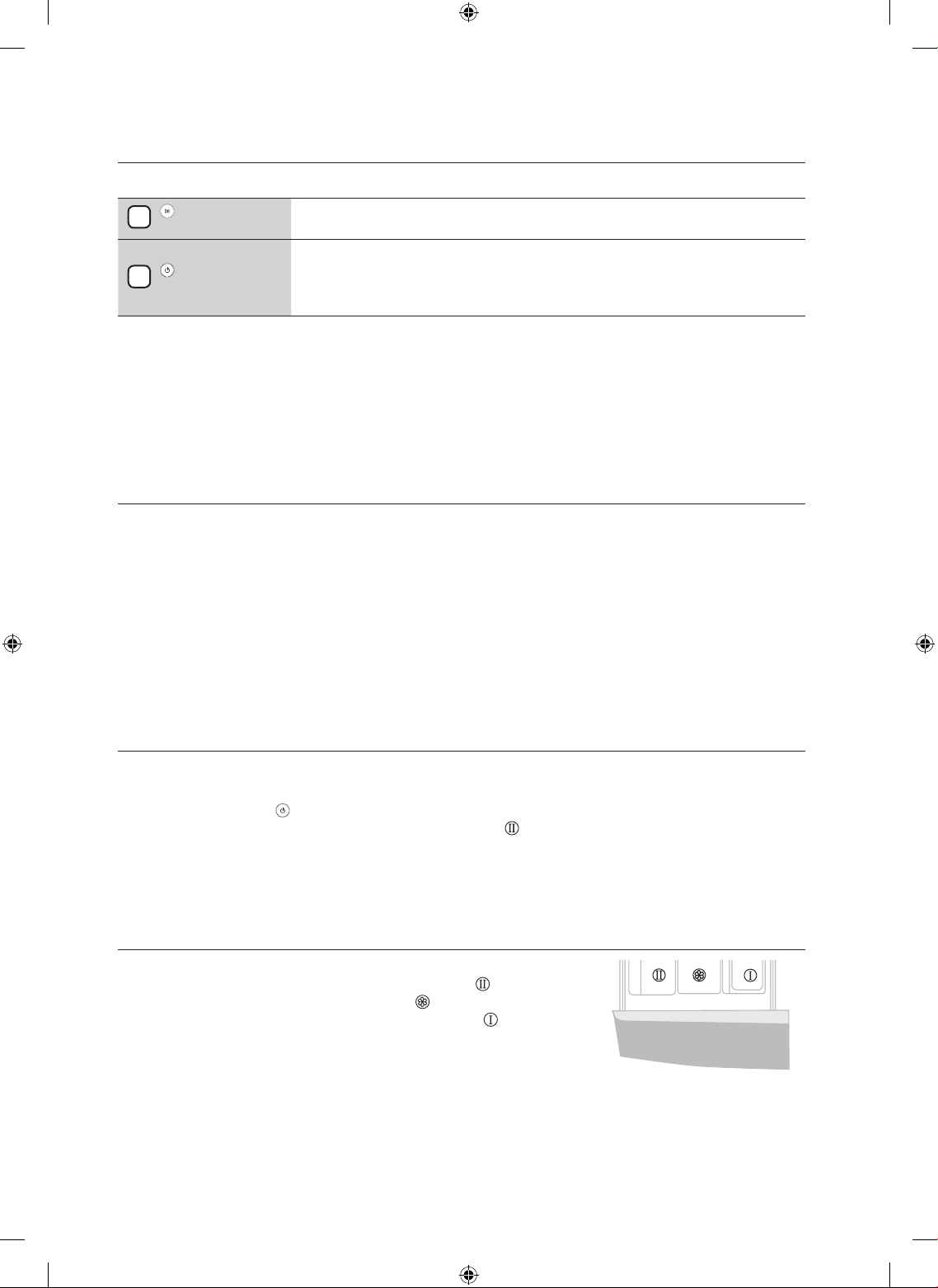

10_ Washing a load of laundry
Start/Pause
button Press to pause and restart programs.
(On/Off)
button
Press once to turn the washing machine on, press again to turn the washing
machine off.
If the washing machine power is left on for longer than 10 minutes without
any buttons being touched, the power automatically turns off.
What is the “Child Lock” function?
• If you press the “Child Lock” button (Spin+Option button) longer than 2 sec during operation, this
function is selected.
• If once this function is selected, no change can be done until the end of laundry.
• Press the “Child Lock” button (Spin+Option button) longer than 2 sec to cancel the function.
WM STOPS THE CURRENT STEP OF THE CYCLE OR DOES NOT
PROCEED TO THE NEXT STEP OF WASHING (INDICATION OF
REMAIN TIME ON LED DISPLAY MAY INCREASE).
Your new washing machine is equipped with Fuzzy Logic system, which not only sets the optimum level of
water and other parameters of washing, but also controls the washing process as well as makes necessary
corrections in order to provide better washing results. In the above- mentioned matter, the Fuzzy Logic
system has detected deviations in washing cycle such as: high quantity of detergent at the end of the
cycle, high vibration level while spinning, etc.You can adjust existing wash programs, i.e. change wash
temperature and spin speed. After detection of such abnormalities, the washing machine is suspending
the normal course of program in order to normalize these parameters and continue the cycle. Fuzzy logic
system makes 7 attempts to eliminate such deviations. If it is impossible to normalize the above mentioned
deviations by Fuzzy Logic system, you will see the corresponding indication on LED lamps. (see chapter
“Troubleshooting”) The operation of Washing machine that corresponds to above- mentioned scheme is
considered to be normal.
WASHING FOR THE FIRST TIME
Before washing clothes for the first time, you must run a complete cycle without clothes.
To do this:
1. Press the (On/Off ) button.
2. Pour a little detergent in the detergent drawer .
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40˚C is displayed.
5. Press the Start/Pause button.
• This will remove any water from the manufacturer’s test run remaining in the machine.
PUTTING DETERGENT IN THE WASHING MACHINE
1. Pull out the detergent drawer.
2. Add laundry detergent into compartment .
3. Add softener into compartment (if you desire).
4. Add prewash detergent into compartment (if you desire).
washing a load of laundry
7
8
WF-J1461-02456G_EN.indd 10 2007-05-21 ø¿»ƒ 7:00:01
Dieses Handbuch passt für folgende Modelle
47
Inhaltsverzeichnis
Sprachen:
Andere Samsung Waschmaschine Handbücher
Samsung
Samsung WW12H8 Series Bedienungsanleitung
Samsung
Samsung WF8604FF(A/C/D/F/G/H/R/S/T/V/W/Z) Bedienungsanleitung
Samsung
Samsung WF428AAW Bedienungsanleitung
Samsung
Samsung WA56H9000A Series Bedienungsanleitung
Samsung
Samsung WW7 J4 Series Bedienungsanleitung
Samsung
Samsung FlexWash WV60M9900AV/A5 Bedienungsanleitung
Samsung
Samsung WF8804LP Bedienungsanleitung
Samsung
Samsung WF455ARG SERIES Installationsanleitung
Samsung
Samsung WF42H5100 Betriebsanleitung
Samsung
Samsung WF9702N5W Bedienungsanleitung
Samsung
Samsung SW80W1P Bedienungsanleitung
Samsung
Samsung J1455AV Bedienungsanleitung
Samsung
Samsung WF405ATPA SERIES Bedienungsanleitung
Samsung
Samsung WF361BVBEWR Installationsanleitung
Samsung
Samsung WD10T Series Bedienungsanleitung
Samsung
Samsung WA40J3000 Bedienungsanleitung
Samsung
Samsung Drum Washing Machine Bedienungsanleitung
Samsung
Samsung WF361 Series Bedienungsanleitung
Samsung
Samsung SW1065D1 Bedienungsanleitung
Samsung
Samsung WA12J675 Series Bedienungsanleitung
